SMART FORTWO COUPE 2010 Owners Manual

RTurn off the engine.
R Remove the key from the starter switch.
Replacing a fuse
The fuse box is located on the driver’s side
below the dashboard.
XFrom the fuse chart ( Y page 192),
determine which fuse belongs to the
malfunctioning accessory or component.XRemove the respective fuse.XReplace the defective fuse with a new one
of the same amperage.Fuses189>> Practical hints.451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 189Z

Fuse boxFront side0046 - 006DFuse009D - 00A5Backup fuse slots190Fuses>> Practical hints.
451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 190

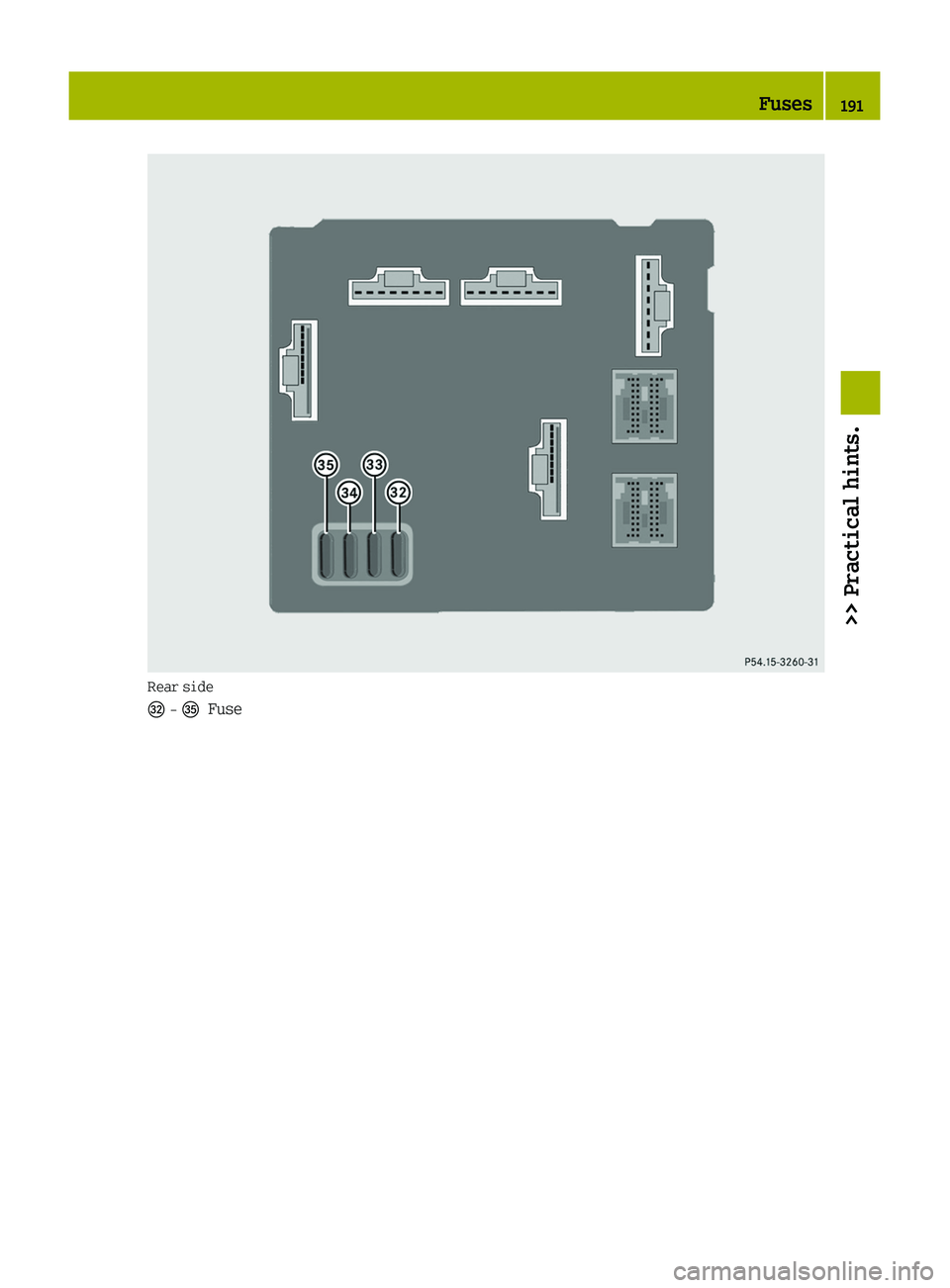

Rear side006C - 00BAFuseFuses191>> Practical hints.451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 191Z

Fuse chart No.Accessory/ComponentAmperageColor0046Engine25 ANeutral0047Windshield wipers25 ANeutral008APower window, left and right20 AYellow0088Blower25 ANeutral0086Front fog lamps10 ARed0087Right parking lamp, license plate lamps7.5 ABrown006ELeft parking lamp7.5 ABrown006FEngine25 ANeutral0070Engine7.5 ABrown0071Engine15 ABlue0072ESP®25 ANeutral0073Switches strip, on-board diagnostics socket, turn
signal lamps, transmission control unit, exterior
lamp switch10 ARed0074Spare fuse (without function)15 ABlue0075Charge air cooler, air conditioning compressor15 ABlue0076Audio, subwoofer, interior lighting, soft top
(cabriolet only)15 ABlue0077Fuel pump15 ABlue0078Rear window wiper (coupé only)15 ABlue0079ESP ®
, EPS*, air bag, instrument cluster10 ARed007AEngine control unit, on-board diagnostics socket,
transmission control unit7.5 ABrown007BAir conditioning system, exterior rear view mirror
adjustment, washer pump, audio, seat heating, gear
selector lever control unit, wiper switch10 ARed007CAuxiliary power outlet, cigarette lighter15 ABlue007DLeft low‑beam headlamp7.5 ABrown007ERight low‑beam headlamp7.5 ABrown007FBrake lamps, rain-light sensor*15 ABlue192Fuses>> Practical hints.* optional451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 192

No.Accessory/ComponentAmperageColor0080Right high‑beam headlamp7.5 ABrown0081Left high‑beam headlamp7.5 ABrown0082Engine7.5 ABrown0083Rear window defroster, radiator fan40 AOrange0084Soft top (cabriolet only)30 AGreen0085Transmission40 AOrange006DHorn, doors, central locking20 AYellow006C———006BIgnition50 ARed0069ESP®40 AOrange00BAEPS*30 AGreen009DExterior rear view mirror heating7.5 ABrown009E———009FBackup (ignition)——00A0Backup (ignition)——00A1Backup (batt. +)——00A2Backup (batt. +)——00A3Backup (batt. +)——00A4Backup (batt. +)——00A5Seat heating20 AYellowFuses193>> Practical hints.* optional451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 193Z

194451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 194

>> Technical data.Parts service .................................. 196
Warranty coverage ............................ 196
Engine electronics ........................... 196
Identification labels .......................198
Vehicle specification (model pure) .....199
Vehicle specification (model passion) . 200
Vehicle specification (model BRABUS) . 201
Rims and tires ................................ 202
Service fluids and capacities ............204451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 195

Parts service
The “Technical data” section provides the
necessary technical data for your vehicle.
Genuine smart Parts are subjected to
stringent quality inspections. Each part
has been specifically developed,
manufactured or selected for and adapted
to smart vehicles.
Therefore, Genuine smart Parts should be
installed.
! The use of non-genuine smart parts and
accessories not authorized by smart
could damage the vehicle, which is not
covered by the smart Limited Warranty,
or could compromise the vehicle’s
durability or safety.
Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the Service and
Warranty Information booklet. Your
authorized smart center will exchange or
repair any defective parts originally
installed on the vehicle in accordance with
the terms of the following warranties:
R smart USA Limited Warranty (USA only)
R New Vehicle Limited Warranty (Canada
only)
R Emission System Warranty
R Emission Performance Warranty
R Corrosion Warranty
R California, Connecticut, Maine,
Massachusetts, New York, Pennsylvania,
Rhode Island, and Vermont Emission
Control System Warranty
R smartmove Assistance (Canada only)
R State Warranty Enforcement Laws (Lemon
Laws, USA only)
Replacement parts and accessories are
covered by the smart Parts and Accessories
warranties, copies of which are available
at any authorized smart center.
Loss of Service and Warranty
Information Booklet
Should you lose your Service and Warranty
Information booklet, have an authorized
smart center arrange for a replacement. It
will be mailed to you.
Engine electronics
Work on engine electronics
GWarning!
Always have maintenance work on engine
electronics and components performed by a
qualified specialist, e.g. at a smart
center. In particular, work relevant to
safety or on safety related systems must be
carried out at a qualified specialist
workshop.
! Always have maintenance work on the
engine electronics and components, such
as control modules, sensors and
connecting cables, performed by a
qualified specialist who has the
necessary knowledge and tools to carry
out the work required, e.g. at a smart
center. Otherwise there is a danger that
vehicle components may wear more
rapidly, which may void the vehicle’s
warranty.
Retrofitting electrical and
electronic devices
Electrical and electronic devices can
endanger vehicle operating safety.
196Engine electronics>> Technical data.
451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 196

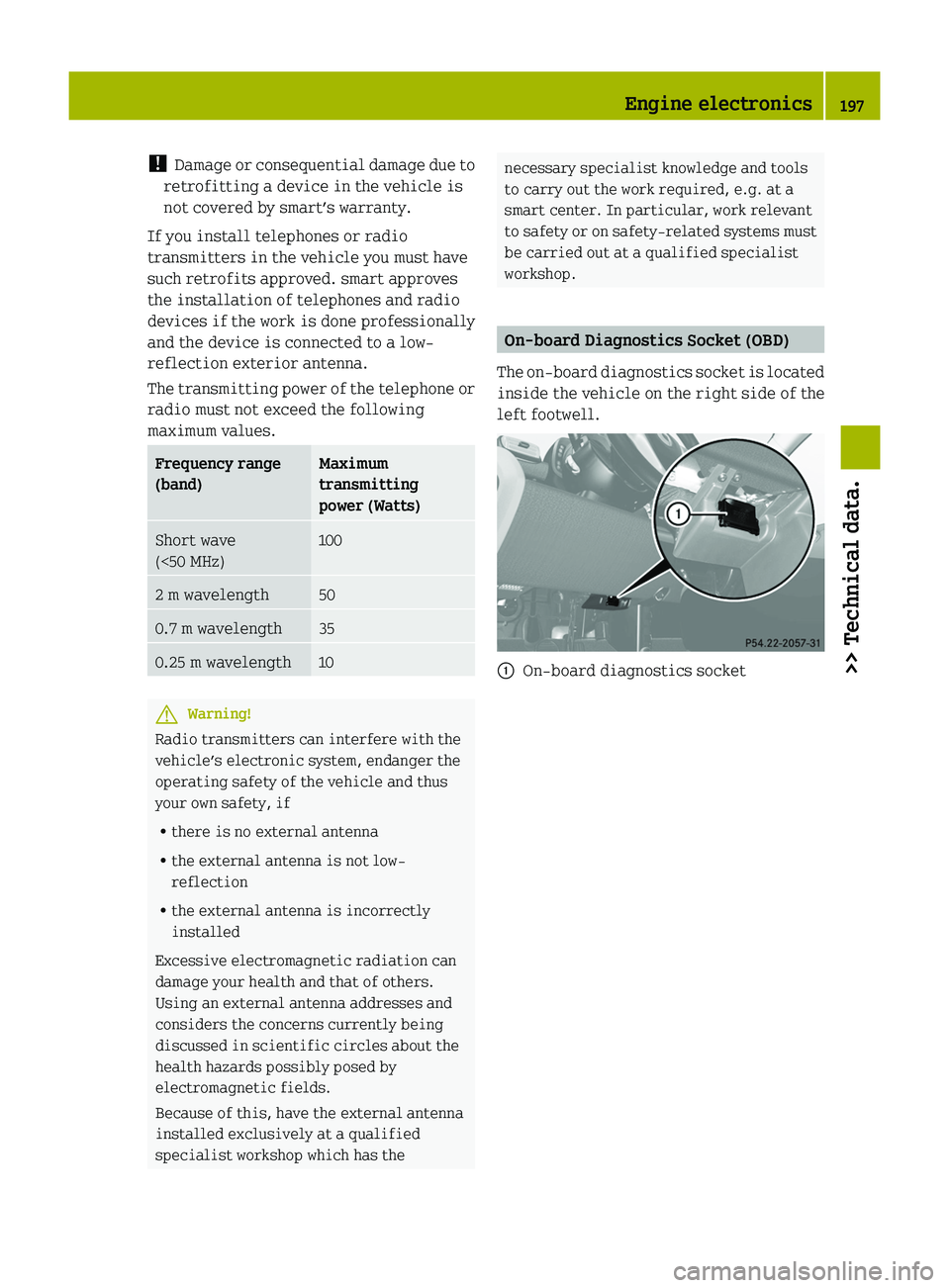

! Damage or consequential damage due to
retrofitting a device in the vehicle is
not covered by smart’s warranty.
If you install telephones or radio
transmitters in the vehicle you must have
such retrofits approved. smart approves
the installation of telephones and radio
devices if the work is done professionally
and the device is connected to a low-
reflection exterior antenna.
The transmitting power of the telephone or
radio must not exceed the following
maximum values.Frequency range
(band)Maximum
transmitting
power (Watts)Short wave
(<50 MHz)1002 m wavelength500.7 m wavelength350.25 m wavelength10GWarning!
Radio transmitters can interfere with the
vehicle’s electronic system, endanger the
operating safety of the vehicle and thus
your own safety, if
R there is no external antenna
R the external antenna is not low-
reflection
R the external antenna is incorrectly
installed
Excessive electromagnetic radiation can
damage your health and that of others.
Using an external antenna addresses and
considers the concerns currently being
discussed in scientific circles about the
health hazards possibly posed by
electromagnetic fields.
Because of this, have the external antenna
installed exclusively at a qualified
specialist workshop which has the
necessary specialist knowledge and tools
to carry out the work required, e.g. at a
smart center. In particular, work relevant
to safety or on safety-related systems must
be carried out at a qualified specialist
workshop.
On-board Diagnostics Socket (OBD)
The on-board diagnostics socket is located
inside the vehicle on the right side of the
left footwell.
0046On-board diagnostics socketEngine electronics197>> Technical data.451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 197Z

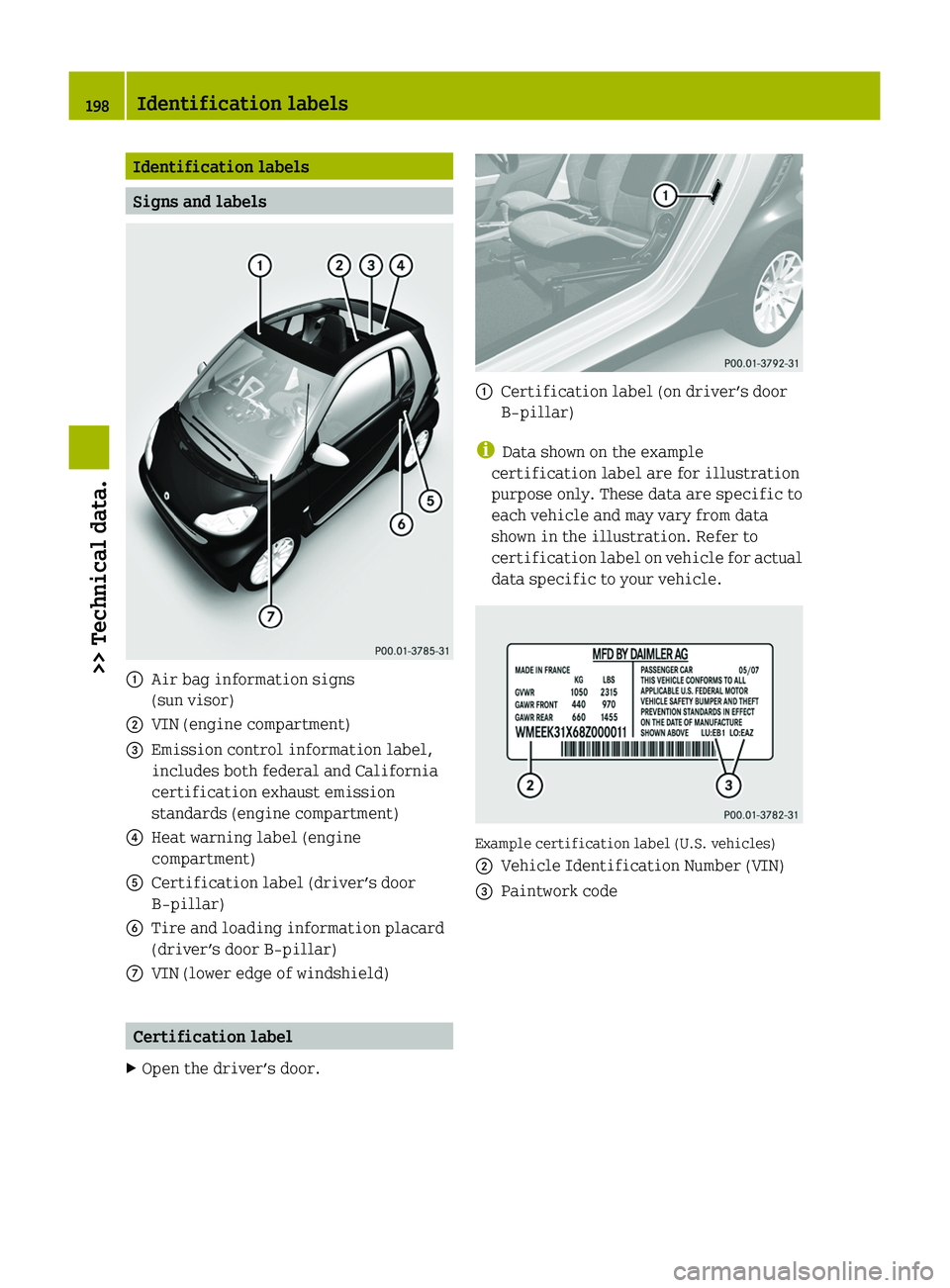

Identification labels
Signs and labels
0046Air bag information signs
(sun visor)0047VIN (engine compartment)008AEmission control information label,
includes both federal and California
certification exhaust emission
standards (engine compartment)0088Heat warning label (engine
compartment)0086Certification label (driver’s door
B‑pillar)0087Tire and loading information placard
(driver’s door B‑pillar)006EVIN (lower edge of windshield)
Certification label
XOpen the driver’s door.0046Certification label (on driver’s door
B‑pillar)
i Data shown on the example
certification label are for illustration
purpose only. These data are specific to
each vehicle and may vary from data
shown in the illustration. Refer to
certification label on vehicle for actual
data specific to your vehicle.
Example certification label (U.S. vehicles)
0047Vehicle Identification Number (VIN)008APaintwork code198Identification labels>> Technical data.
451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 198
