SMART FORTWO COUPE 2010 Owners Manual

Example certification label (Canada vehicles)
0047Vehicle Identification Number (VIN)008APaintwork code
Vehicle Identification Number (VIN)
The
Vehicle Identification Number (VIN)
can be found in the following locations:
R on the certification label on the driver’s
door B‑pillar ( Y page 198)
R on the rear right on the cargo
compartment floor ( Y page 199)
R in the lower edge of the windshield
( Y page 198)
XOpen the cargo compartment.XFold back the carpet.0046VIN (on the cargo compartment floor)
Engine number
The engine number is engraved into the
engine block. For more information,
contact any authorized smart center.
i When ordering parts, please specify
vehicle identification and engine
number.
Vehicle specification (model pure)
The quoted data apply only to the standard
vehicle. Contact an authorized smart
center for the corresponding data of all
special bodies and special equipment.
Engine (model pure)Engine, type132Mode of operation4‑stroke engine,
gasoline injectionNo. of cylinders3Valves per
cylinder4Bore2.83 in (72.00 mm)Stroke3.22 in (81.80 mm)Total piston
displacement61.0 cu in (999 cm 3
)Compression ratio10.0:1Output acc. to
SAE J 134970 hp/5 800 rpm
(52 kW/5 800 rpm)Maximum torque
acc. to SAE J 134968 lb-ft/4 500 rpm
(92 Nm/4 500 rpm)Maximum engine
speed6 400 rpmFiring order1-2-3Poly‑V‑belt802 mmElectrical system (model pure)Alternator14 V/90 AStarter motor12 V/0.95 kWBattery12 V/42 AhVehicle specification (model pure)199>> Technical data.451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 199Z

Electrical system (model pure)Spark plugs, typeDENSO XU22 HDR9Spark plugs,
electrode gap0.035 in (0.9 mm)Spark plugs,
tightening torque11 - 15 lb-ft (15 - 20 Nm)Main dimensions (model pure)Overall vehicle
length106.1 in (2 695 mm)Overall vehicle
width 1869.0 in (1
752 mm)Overall vehicle
height60.7 in (1 542 mm)Wheelbase73.5 in (1 867 mm)Track, front50.5 in (1 283 mm)Track, rear54.5 in (1 385 mm)Turning circle28.7 ft (8.75 m)Weights (model pure)Cargo
compartment loadmax. 110 lb (50 kg)Roof load 19NoneGWarning!
No racks or loads may be secured to the roof
of the vehicle, as
R the panorama roof* may be damaged, thus
injuring persons
R this can have a substantial adverse
effect on the driving dynamics of the
vehicle, thus causing accidents
R the rack and/or the load could detach and
through this cause an accident or other
people could be injured by the load and/
or rack that has fallen off
Vehicle specification (model passion)
The quoted data apply only to the standard
vehicle. Contact an authorized smart
center for the corresponding data of all
special bodies and special equipment.
Engine (model passion)Engine, type132Mode of operation4‑stroke engine,
gasoline injectionNo. of cylinders3Valves per
cylinder4Bore2.83 in (72.00 mm)Stroke3.22 in (81.80 mm)Total piston
displacement61.0 cu in (999 cm 3
)Compression ratio10.0:1Output acc. to
SAE J 134970 hp/5 800 rpm
(52 kW/5 800 rpm)Maximum torque
acc. to SAE J 134968 lb-ft/4 500 rpm
(92 Nm/4 500 rpm)Maximum engine
speed6 400 rpmFiring order1-2-3Poly‑V‑belt802 mmElectrical system (model passion)Alternator14 V/90 AStarter motor12 V/0.95 kW18
Exterior rear view mirrors folded out.
19 This vehicle is not intended to carry items on its roof. Thus roof rails and any roof-mounted devices
must not be used.200Vehicle specification (model passion)>> Technical data.* optional451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 200

Electrical system (model passion)Battery12 V/42 AhSpark plugs, typeDENSO XU22 HDR9Spark plugs,
electrode gap0.035 in (0.9 mm)Spark plugs,
tightening torque11 - 15 lb-ft (15 - 20 Nm)Main dimensions (model passion)Overall vehicle
length106.1 in (2 695 mm)Overall vehicle
width 2069.0 in (1
752 mm)Overall vehicle
height60.7 in (1 542 mm)Wheelbase73.5 in (1 867 mm)Track, front50.5 in (1 283 mm)Track, rear54.5 in (1 385 mm)Turning circle28.7 ft (8.75 m)Weights (model passion)Cargo
compartment loadmax. 110 lb (50 kg)Roof load 21NoneGWarning!
No racks or loads may be secured to the roof
of the vehicle, as
R the panorama roof* may be damaged, thus
injuring persons
R this can have a substantial adverse
effect on the driving dynamics of the
vehicle, thus causing accidents
R the rack and/or the load could detach and
through this cause an accident or other
people could be injured by the load and/
or rack that has fallen off
Vehicle specification (model BRABUS)
The quoted data apply only to the standard
vehicle. Contact an authorized smart
center for the corresponding data of all
special bodies and special equipment.
Engine (model BRABUS)Engine, type132Mode of operation4‑stroke engine,
gasoline injectionNo. of cylinders3Valves per
cylinder4Bore2.83 in (72.00 mm)Stroke3.22 in (81.80 mm)Total piston
displacement61.0 cu in (999 cm 3
)Compression ratio10.0:1Output acc. to
SAE J 134970 hp/5 800 rpm
(52 kW/5 800 rpm)Maximum torque
acc. to SAE J 134968 lb-ft/4 500 rpm
(92 Nm/4 500 rpm)20
Exterior rear view mirrors folded out.
21 This vehicle is not intended to carry items on its roof. Thus roof rails and any roof-mounted devices
must not be used.Vehicle specification (model BRABUS)201>> Technical data.* optional451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 201Z

Engine (model BRABUS)Maximum engine
speed6 400 rpmFiring order1-2-3Poly‑V‑belt802 mmElectrical system (model BRABUS)Alternator14 V/90 AStarter motor12 V/0.95 kWBattery12 V/42 AhSpark plugs, typeDENSO XU22 HDR9Spark plugs,
electrode gap0.035 in (0.9 mm)Spark plugs,
tightening torque11 - 15 lb-ft (15 - 20 Nm)Main dimensions (model BRABUS)Overall vehicle
length107.4 in (2 727 mm)Overall vehicle
width 2269.0 in (1
752 mm)Overall vehicle
height60.3 in (1 532 mm)Wheelbase73.5 in (1 867 mm)Track, front50.0 in (1 270 mm)Track, rear53.7 in (1 363 mm)Turning circle28.7 ft (8.75 m)Weights (model BRABUS)Cargo
compartment loadmax. 110 lb (50 kg)Roof load 23NoneGWarning!
No racks or loads may be secured to the roof
of the vehicle, as
R the panorama roof* may be damaged, thus
injuring persons
R this can have a substantial adverse
effect on the driving dynamics of the
vehicle, thus causing accidents
R the rack and/or the load could detach and
through this cause an accident or other
people could be injured by the load and/
or rack that has fallen off
Rims and tires
Notes
! Only use tires which have been tested
and approved by smart. Tires approved by
smart are developed to provide best
possible performance in conjunction
with the driving safety systems on your
vehicle such as the ABS or the ESP ®
.
Using tires other than those approved by
smart may result in damage that is not
covered by the smart Limited Warranty.
! Using tires other than those approved
by smart can have detrimental effects,
such as
R poor handling characteristics
R increased noise
R increased fuel consumption
22Exterior rear view mirrors folded out.
23 This vehicle is not intended to carry items on its roof. Thus roof rails and any roof-mounted devices
must not be used.202Rims and tires>> Technical data.* optional451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 202

Moreover, tires and rims not approved by
smart may, under load, exhibit
dimensional variations and different
tire deformation characteristics that
could cause them to come into contact
with the vehicle body or axle parts.
Damage to the tires or the vehicle may be
the result.
i Further information on tires and rims
is available at any authorized smart
center. A placard with the recommended
tire inflation pressure is located on the
driver’s door B‑pillar.
The tire inflation pressure should be
checked regularly and should only be
adjusted on cold tires. Follow tire
manufacturer’s maintenance
recommendation included with vehicle.
Mobility
Your vehicle is equipped with a tire repair
kit ( Y page 172). In case of a flat tire, it
enables you to drive to the nearest
authorized smart center on the sealed tire.
If the tire is damaged too severely for the
tire sealant to provide a reliable tire
repair:
XContact the nearest smart center.
or
XCall Roadside Assistance.Rims and tires203>> Technical data.451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 203Z

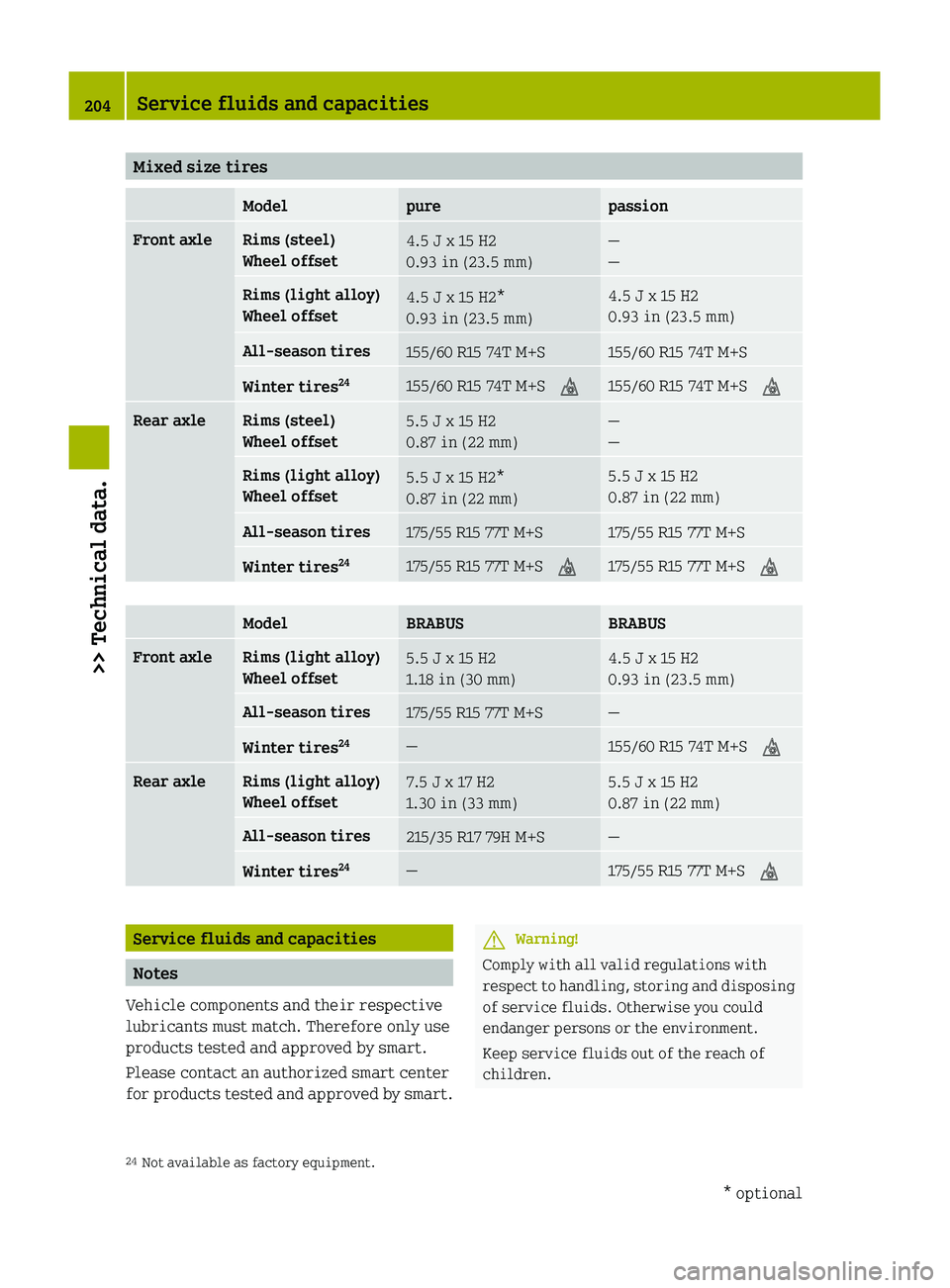

Mixed size tiresModelpurepassionFront axleRims (steel)
Wheel offset4.5 J x 15 H2
0.93 in (23.5 mm)—
—Rims (light alloy)
Wheel offset4.5 J x 15 H2*
0.93 in (23.5 mm)4.5 J x 15 H2
0.93 in (23.5 mm)All-season tires155/60 R15 74T M+S155/60 R15 74T M+SWinter tires 24155/60 R15 74T M+S
004D155/60 R15 74T M+S 004DRear axleRims (steel)
Wheel offset5.5 J x 15 H2
0.87 in (22 mm)—
—Rims (light alloy)
Wheel offset5.5 J x 15 H2*
0.87 in (22 mm)5.5 J x 15 H2
0.87 in (22 mm)All-season tires175/55 R15 77T M+S175/55 R15 77T M+SWinter tires 24175/55 R15 77T M+S
004D175/55 R15 77T M+S 004DModelBRABUSBRABUSFront axleRims (light alloy)
Wheel offset5.5 J x 15 H2
1.18 in (30 mm)4.5 J x 15 H2
0.93 in (23.5 mm)All-season tires175/55 R15 77T M+S—Winter tires 24—155/60 R15 74T M+S
004DRear axleRims (light alloy)
Wheel offset7.5 J x 17 H2
1.30 in (33 mm)5.5 J x 15 H2
0.87 in (22 mm)All-season tires215/35 R17 79H M+S—Winter tires 24—175/55 R15 77T M+S
004DService fluids and capacities
Notes
Vehicle components and their respective
lubricants must match. Therefore only use
products tested and approved by smart.
Please contact an authorized smart center
for products tested and approved by smart.
GWarning!
Comply with all valid regulations with
respect to handling, storing and disposing
of service fluids. Otherwise you could
endanger persons or the environment.
Keep service fluids out of the reach of
children.
24 Not available as factory equipment.204Service fluids and capacities>> Technical data.* optional451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 204

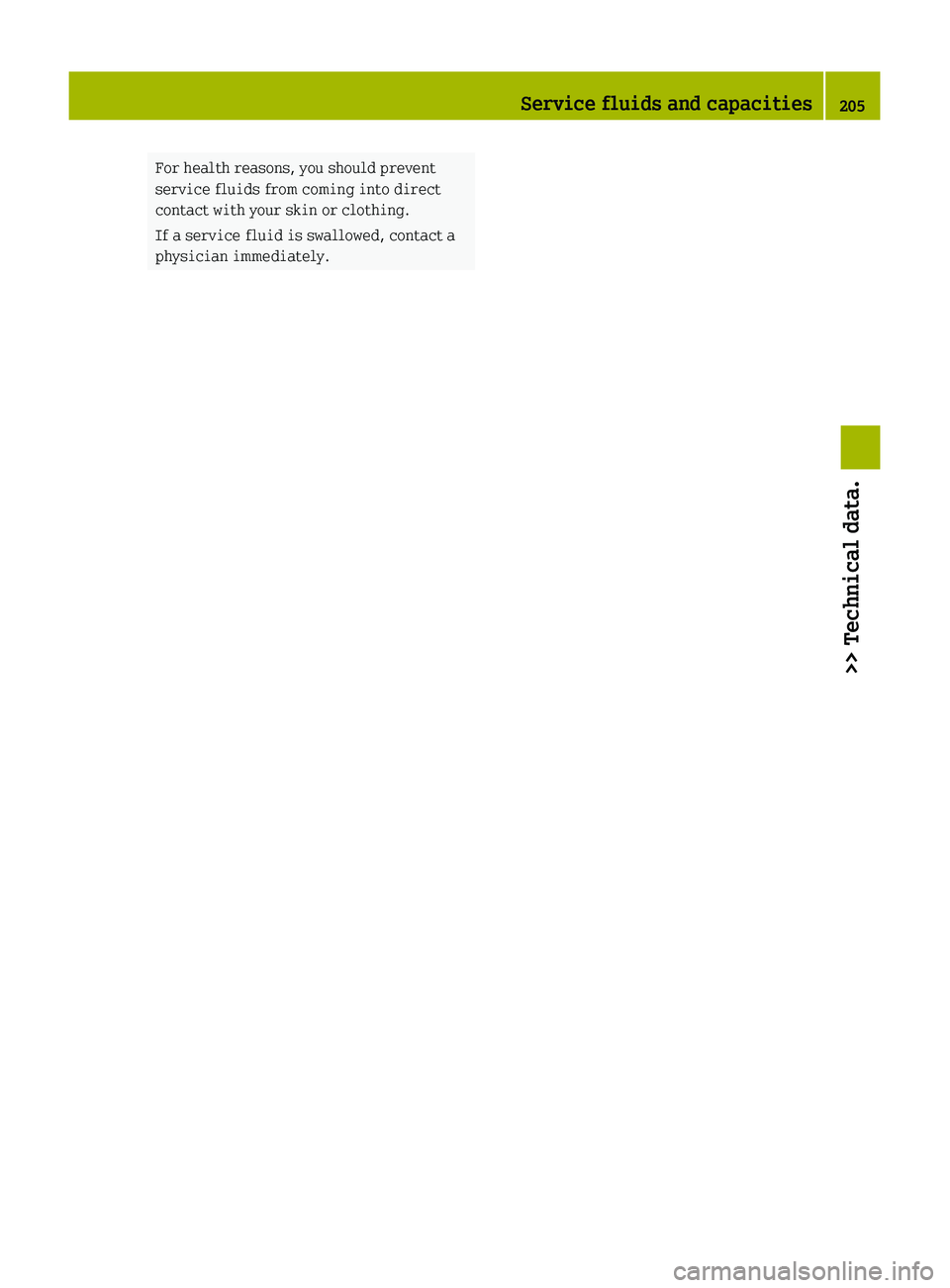

For health reasons, you should prevent
service fluids from coming into direct
contact with your skin or clothing.
If a service fluid is swallowed, contact a
physician immediately.Service fluids and capacities205>> Technical data.451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 205Z

CapacitiesComponentsModelCapacityFuels, coolants, lubricants,
etc.Engine with oil
filterAll models3.5 US qt (3.3 l)Approved engine oilsTransmissionAll models2.4 US qt (2.3 l)Castrol Manual BOT 328Brake systemAll models1.05 US qt (1.0 l)Brake fluid (DOT 4+)Cooling systemAll modelsapprox. 4.5 US qt (4.3 l)Anticorrosion/Antifreeze
meeting specification
MB 325.0Fuel tankAll models8.72 US gal (33.0 l)Premium unleaded gasoline
(Minimum Posted Octane 91
[Avg. of 96 RON/86 MON])Fuel tank
reserveAll modelsapprox. 1.32 US gal (5.0 l)Air
conditioning
system*All models—R134a refrigerant and
special PAG lubricant oil
(never R 12)Windshield
washer systemAll models4.0 US qt (3.8 l)Windshield washer
concentrate 25
(Y page 208)
Washer fluid mixing ratio
( Y page 208)Engine oils
Engine oils are specifically tested for
their suitability in our engines and
durability for our service intervals.
Therefore, only use engine oils and oil
filters required for vehicles with the
Maintenance System. For a listing of
approved engine oils and oil filters
contact an authorized smart center.
! Using engine oils and oil filters of
specification other than those expressly
required for the Maintenance System, or
changing of oil and oil filter at change
intervals longer than those called for bythe Maintenance System will result in
engine or emission control system
damage not covered by the smart Limited
Warranty.
Please follow Maintenance System
recommendations for scheduled oil
changes. Failure to do so will result in
engine or emission control system
damage not covered by the smart Limited
Warranty.25 Use a windshield washer concentrate labeled for summer and water for temperatures above freezing
point or a windshield washer concentrate labeled for winter and water for temperatures below freezing
point.206Service fluids and capacities>> Technical data.* optional451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 206

Viscosity grades for engine oils
Using the chart below, select oil viscosity
according to the lowest air temperature
expected before the next oil change.
Engine oil additives
! Do not blend oil additives with engine
oil. They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered
by the smart Limited Warranty. Any
authorized smart center will provide you
with additional information.
Air conditioning refrigerant
R134a (HFC) refrigerant and special
PAG lubricating oil are used in the air
conditioning system.
! Never use R 12 (CFC) or mineral-based
lubricating oil. Otherwise damage to the
system will occur.
Brake fluid
GWarning!
During vehicle operation, the boiling
point of the brake fluid is continuously
reduced through the absorption of moisture
from the atmosphere. Under extremely
strenuous operating conditions, this
moisture content can lead to the formation
of bubbles in the system, thus reducing the
system’s efficiency.
Therefore, the brake fluid must be replaced
regularly. Refer to your vehicle’s
Maintenance Booklet for replacement
interval.
Only brake fluid approved by smart is
recommended. Any authorized smart center
will provide you with additional
information.
Premium unleaded gasoline
GWarning!
Gasoline is highly flammable and
poisonous. It burns violently and can cause
serious personal injury.
Never allow sparks, flame or smoking
materials near gasoline!
Turn off the engine before refueling.
Whenever you are around gasoline, avoid
inhaling fumes and skin or clothing
contact. Extinguish all smoking materials.
Direct skin contact with fuels and the
inhalation of fuel vapors are damaging to
your health.
! To maintain the engine’s durability
and performance, premium unleaded
gasoline must be used. If premium
unleaded gasoline is not available and
low octane fuel is used, follow these
precautions:
R Have the fuel tank only partially filled
with unleaded regular gasoline and
fill up with premium unleaded
gasoline as soon as possible.
R Avoid full throttle driving and abrupt
acceleration.
R Do not exceed an engine speed of
3 000 rpm if the vehicle is loaded with
Service fluids and capacities207>> Technical data.451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 207Z

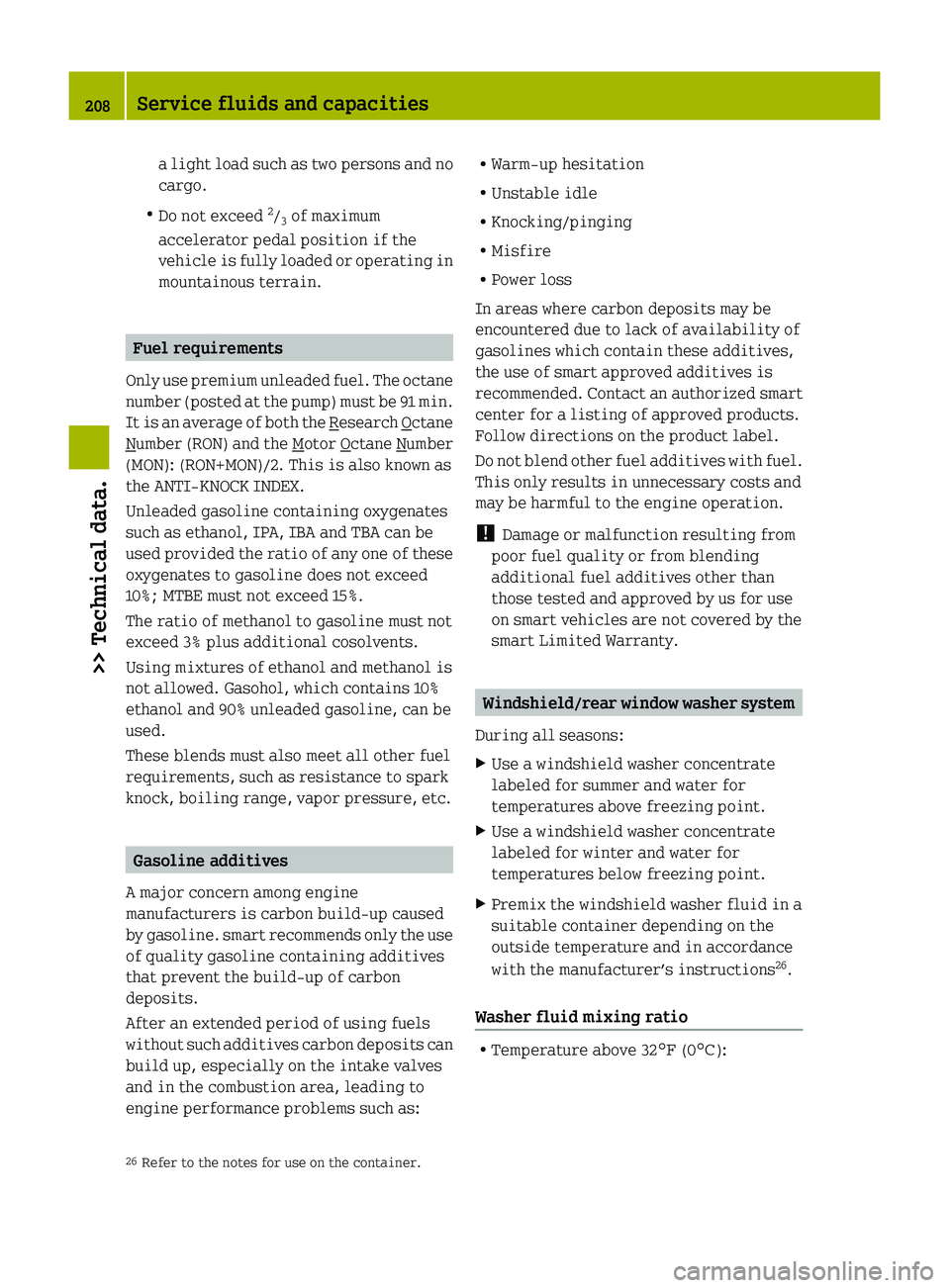

a light load such as two persons and no
cargo.
R Do not exceed 2
/ 3 of maximum
accelerator pedal position if the
vehicle is fully loaded or operating in
mountainous terrain.
Fuel requirements
Only use premium unleaded fuel. The octane
number (posted at the pump) must be 91 min.
It is an average of both the
R esearch Octane
N umber (RON) and the Motor Octane Number
(MON): (RON+MON)/2. This is also known as
the ANTI‑KNOCK INDEX.
Unleaded gasoline containing oxygenates
such as ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not exceed
10%; MTBE must not exceed 15%.
The ratio of methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of ethanol and methanol is
not allowed. Gasohol, which contains 10%
ethanol and 90% unleaded gasoline, can be
used.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure, etc.
Gasoline additives
A major concern among engine
manufacturers is carbon build-up caused
by gasoline. smart recommends only the use
of quality gasoline containing additives
that prevent the build-up of carbon
deposits.
After an extended period of using fuels
without such additives carbon deposits can
build up, especially on the intake valves
and in the combustion area, leading to
engine performance problems such as:
R Warm-up hesitation
R Unstable idle
R Knocking/pinging
R Misfire
R Power loss
In areas where carbon deposits may be
encountered due to lack of availability of
gasolines which contain these additives,
the use of smart approved additives is
recommended. Contact an authorized smart
center for a listing of approved products.
Follow directions on the product label.
Do not blend other fuel additives with fuel.
This only results in unnecessary costs and
may be harmful to the engine operation.
! Damage or malfunction resulting from
poor fuel quality or from blending
additional fuel additives other than
those tested and approved by us for use
on smart vehicles are not covered by the
smart Limited Warranty.
Windshield/rear window washer system
During all seasons:
XUse a windshield washer concentrate
labeled for summer and water for
temperatures above freezing point.XUse a windshield washer concentrate
labeled for winter and water for
temperatures below freezing point.XPremix the windshield washer fluid in a
suitable container depending on the
outside temperature and in accordance
with the manufacturer’s instructions 26
.
Washer fluid mixing ratio
R Temperature above 32 ¦ (0¥ ):
26
Refer to the notes for use on the container.208Service fluids and capacities>> Technical data.
451_AKB; 3; 22, en-USd2ureepe,Version: 2.11.8.12009-07-27T09:36:34+02:00 - Seite 208
