of service fluids. Otherwise you could
endanger persons or the environment.
Keep service fluids out of the reach of
children.
For health reasons, you should prevent
service fluids from coming into direct
contact with your skin or clothing.
If a service fluid is swallowed, contact a
physician immediately. Service fluids and capacities
219>> Technical data. Z

Capacities
Components Model Capacity Fuels, coolants, lubricants,
etc.
Engine with oil
filter All models 3.5 US qt (3.3 l) Approved engine oils
Cooling system All models approx. 4.5 US qt (4.3 l) Anticorrosion/Antifreeze
meeting specification
MB 325.0
Fuel tank All models 8.72 US gal (33.0 l) Premium unleaded gasoline
(Minimum Posted Octane 91
[Avg. of 96 RON/86 MON])
Fuel tank
reserve All models approx. 1.32 US gal (5.0 l)
Air
conditioning
system* All models — R134a refrigerant and
special PAG lubricant oil
(never R 12)
Windshield
washer system All models 4.0 US qt (3.8 l) Windshield washer
concentrate
27
(Y page 222)
Washer fluid mixing ratio
(Y page 222) Engine oils
Engine oils are specifically tested for
their suitability in our engines and
durability for our service intervals.
Therefore, only use engine oils and oil
filters required for vehicles with the
Maintenance System. For a listing of
approved engine oils and oil filters
contact an authorized smart center.
! Using engine oils and oil filters of
specification
other than those expressly
required for the Maintenance System, or
changing of oil and oil filter at change
intervals longer than those called for by
the Maintenance System will result in
engine or emission control system
damage not covered by the smart Limited
Warranty. Please follow Maintenance System
recommendations for scheduled oil
changes. Failure to do so will result in
engine or emission control system
damage
not covered by the smart Limited
Warranty.
Viscosity grades for engine oils Using the chart below, select oil viscosity
according to the lowest air temperature
expected before the next oil change.
27 Use a windshield washer concentrate labeled for summer and water for temperatures above freezing
point

or a windshield washer concentrate labeled for winter and water for temperatures below freezing
point. 220
Service fluids and capacities
>> Technical data.
* optional

Engine oil additives
! Do not blend oil additives with engine
oil. They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered
by the smart Limited Warranty. Any
authorized
smart center will provide you
with additional information. Air conditioning refrigerant
R134a (HFC) refrigerant and special
PAG lubricating oil are used in the air
conditioning system.
! Never use R 12 (CFC) or mineral-based
lubricating

oil. Otherwise damage to the
system will occur. Brake fluid
G
WARNING
During vehicle operation, the boiling
point of the brake fluid is continuously
reduced

through the absorption of moisture
from the atmosphere. Under extremely
strenuous operating conditions, this
moisture content can lead to the formation
of bubbles in the system, thus reducing the
system’s efficiency.
Therefore, the brake fluid must be replaced
regularly. Refer to your vehicle’s Maintenance Booklet for replacement
interval.
Only brake fluid approved by smart is
recommended.

Any authorized smart center
will provide you with additional
information. Premium unleaded gasoline
G
WARNING
Gasoline is highly flammable and
poisonous.
It burns violently and can cause
serious personal injury.
Never allow sparks, flame or smoking
materials near gasoline!
Turn off the engine before refueling.
Whenever you are around gasoline, avoid
inhaling fumes and skin or clothing
contact. Extinguish all smoking materials.
Direct skin contact with fuels and the
inhalation of fuel vapors are damaging to
your health.
! To maintain the engine’s durability
and performance, premium unleaded
gasoline must be used. If premium
unleaded gasoline is not available and
low octane fuel is used, follow these
precautions:
R Have the fuel tank only partially filled
with unleaded regular gasoline and
fill up with premium unleaded
gasoline as soon as possible.
R Avoid full throttle driving and abrupt
acceleration.
R Do not exceed an engine speed of
3 000 rpm if the vehicle is loaded with
a light load such as two persons and no
cargo.
R Do not exceed 2
/ 3 of maximum
accelerator pedal position if the
vehicle is fully loaded or operating in
mountainous terrain. Service fluids and capacities
221
>> Technical data. Z

Fuel requirements
Only use premium unleaded fuel. The octane
number (posted at the pump) must be 91 min.
It is an average of both the Research Octane
Number (RON) and the Motor Octane Number
(MON): (RON+MON)/2. This is also known as
the ANTI‑KNOCK INDEX.
Unleaded gasoline containing oxygenates
such as ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not exceed
10%; MTBE must not exceed 15%.
The ratio of methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of ethanol and methanol is
not allowed. Gasohol, which contains 10%
ethanol and 90% unleaded gasoline, can be
used.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure, etc. Gasoline additives
A major concern among engine
manufacturers is carbon build-up caused
by

gasoline. smart recommends only the use
of quality gasoline containing additives
that prevent the build-up of carbon
deposits.
After an extended period of using fuels
without such additives carbon deposits can
build up, especially on the intake valves
and in the combustion area, leading to
engine performance problems such as:
R Warm-up hesitation
R Unstable idle
R Knocking/pinging
R Misfire
R Power loss
In areas where carbon deposits may be
encountered due to lack of availability of
gasolines which contain these additives, the use of smart approved additives is
recommended.

Contact an authorized smart
center for a listing of approved products.
Follow directions on the product label.
Do not blend other fuel additives with fuel.
This only results in unnecessary costs and
may be harmful to the engine operation.
! Damage or malfunction resulting from
poor fuel quality or from blending
additional fuel additives other than
those tested and approved by us for use
on smart vehicles are not covered by the
smart Limited Warranty. Windshield/rear window washer system
During all seasons:
X Use a windshield washer concentrate
labeled for summer and water for
temperatures above freezing point.
X Use a windshield washer concentrate
labeled for winter and water for
temperatures below freezing point.
X Premix the windshield washer fluid in a
suitable container depending on the
outside temperature and in accordance
with the manufacturer’s instructions 28
.
Washer fluid mixing ratio R
Temperature above 32 ¦ (0¥):
1 part windshield washer concentrate
labeled for summer to 100 parts water
R Temperature of 14 ¦ (-10¥):
1 part windshield washer concentrate
labeled for winter to 2 parts water
R Temperature of -4¦ (-20¥):
1 part windshield washer concentrate
labeled for winter to 1 part water G
WARNING
Windshield washer concentrate is highly
flammable.
Fire, naked flames and smoking
28 Refer to the notes for use on the container.222
Service fluids and capacities
>> Technical data.

are prohibited when windshield washer
concentrate is being handled.
Coolants
The engine coolant is a mixture of water
and anticorrosion/antifreeze, which
provides:
R Corrosion protection
R Freeze protection
R Boiling protection (by increasing the
boiling point)
The
cooling system was filled at the factory
with a coolant providing freeze protection
to approximately -35¦ (-37 ¥) and
corrosion protection.
! Add premixed coolant solution only.
Adding water and MB 325.0
Anticorrosion/Antifreeze separately
from each other, could cause engine
damage not covered by the smart Limited
Warranty.
If the antifreeze mixture is effective to
-35¦ (-37 ¥), the boiling point of the
coolant in the pressurized cooling system
is reached at approximately 266 ¦
(130¥ ).
The coolant solution must be used year
round, even in countries which have high
temperatures to provide the necessary
corrosion protection and increase
boil‑over protection. Refer to
Maintenance/ Service Booklet for
replacement interval.
Coolant system design and coolant used
determine the replacement interval. The
replacement interval published in the
Maintenance booklet is only applicable if
MB 325.0 Anticorrosion/Antifreeze
solution or other smart approved products
of equal specification are used to renew
the coolant concentration or bring it back
up to the proper level. For information on other smart approved
products

of equal specification, contact an
authorized smart center.
To provide important corrosion
protection, the solution must be at least
50% anticorrosion/antifreeze (equivalent
to freeze protection to approximately
-35¦ [-37 ¥]).
If you use a solution that is more than 55%
anticorrosion/antifreeze (freeze
protection to approximately -49¦
[(-45 ¥]), the engine temperature will
increase due to the lower heat transfer
capability of the solution. Therefore, do
not use more than this amount of
anticorrosion/antifreeze.
If the coolant level is low, water and
MB 325.0 Anticorrosion/Antifreeze should
be used to bring it up to the proper level
(have cooling system checked for signs of
leakage). Please make sure the mixture is
in accordance with label instructions.
Always use anticorrosion/antifreeze that
has been approved by smart. For
information contact an authorized smart
center.
The water in the cooling system must meet
minimum requirements, which are usually
satisfied by normal drinking water.
If you are not sure about the water quality,
consult an authorized smart center.
Anticorrosion/antifreeze Your vehicle contains a number of
aluminum parts. The use of aluminum
components in motor vehicle engines
necessitates that anticorrosion/
antifreeze

coolant used in such engines be
specifically formulated to protect the
aluminum parts.
Failure to use such anticorrosion/
antifreeze coolant will result in a
significantly shortened service life.
Therefore, the following product is
strongly recommended for use in your Service fluids and capacities
223
>> Technical data. Z

vehicle: MB 325.0 Anticorrosion/
Antifreeze agent.
Before the start of the winter season (or
once a year in hot southern regions), you
should have the anticorrosion/antifreeze
concentration checked.
The
coolant is also regularly checked each
time you bring your vehicle to an
authorized smart center for service.
Anticorrosion/antifreeze quantity: Approximate freeze protection
-35¦ (-37
¥) -49¦ (-45¥)
Cooling system
2.27 US qt (2.15 l) 2.45 US qt (2.32 l)224
Service fluids and capacities
>> Technical data.

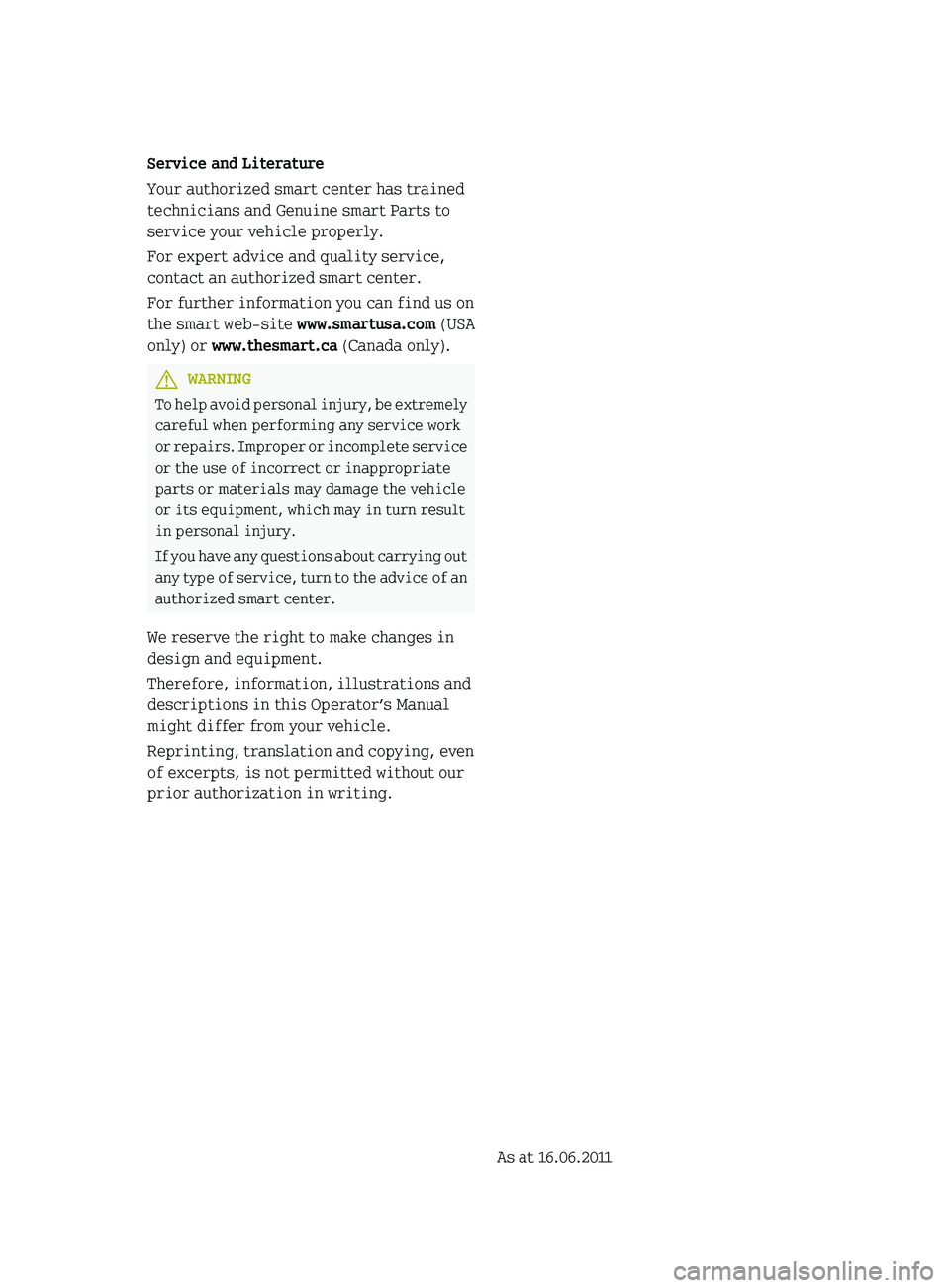

Service and Literature
Your authorized smart center has trained
technicians and Genuine smart Parts to
service your vehicle properly.
For expert advice and quality service,
contact an authorized smart center.
For further information you can find us on
the smart web-site
www.smartusa.com (USA
only) or www.thesmart.ca (Canada only).G
WARNING
To help avoid personal injury, be extremely
careful when performing any service work
or
repairs. Improper or incomplete service
or the use of incorrect or inappropriate
parts or materials may damage the vehicle
or its equipment, which may in turn result
in personal injury.
If you have any questions about carrying out
any type of service, turn to the advice of an
authorized smart center.
We reserve the right to make changes in
design and equipment.
Therefore, information, illustrations and
descriptions in this Operator’s Manual
might differ from your vehicle.
Reprinting, translation and copying, even
of excerpts, is not permitted without our
prior authorization in writing.
As at 16.06.2011

É4515846882OËÍ4515846882Order no. 6522 0049 13
Part no. 451 584 68 82
Edition A 2012
www.smart.com
smart - A Daimler brand
