>> Practical hints.Where will I find ...
.......................... 158
Display messages ............................. 158
What to do if ... ............................... 162
Unlocking/locking manually ...............176
Replacing transmitter battery ............177
Replacing bulbs ...............................
178
Replacing wiper blades ..................... 184
Flat tire ........................................ 186
Wheel change .................................. 194
Battery .......................................... 196
Jump starting .................................. 199
Towing .......................................... 202
Fuses ............................................ 205
Page 207 of 228
X
Turn the battery on using the previously
installed battery switch.
X Move the gear selector lever to park
position P.
X Remove the key from the starter switch.
X Lock the doors.
! Do not flat tow the vehicle with the front
axle raised. Doing so may cause serious
damage to the brake system which is not
covered by the smart Limited Warranty.
! Failure to follow the recommendations
for flat towing can cause damage to your
vehicle:
R Not following the battery disconnect
procedure in the proper sequence may
result in data loss in the vehicle’s
control units.
R Not disconnecting the battery and
leaving the key in starter switch
position 1 (ignition on) may result in
-the vehicle locking. The vehicle will
lock if the wheels are turning at
vehicle speeds of approximately
8 mph (14 km/h) or more.
- the ESP ®
being activated. Active
braking action through the ESP ®
may
seriously damage the brake system
which is not covered by the smart
Limited Warranty.
R Not moving the gear selector lever to
neutral position N may result in
significant transmission damage.
R in a discharged battery. Fuses
The electrical fuses in your vehicle serve
to switch off malfunctioning power
circuits.
If a fuse is blown, the components and
systems secured by that fuse will stop
operating. G
WARNING
Only use fuses approved by smart with the
specified amperage for the system in
question and do not attempt to repair or
bridge a blown fuse this may cause an
overload leading to a fire, and/or cause
damage to electrical components and/or
systems. Contact a smart center if you
encounter any electrical problems.
! A blown fuse must be replaced by an
appropriate
spare fuse (recognizable by
its color or the fuse rating given on the
fuse) of the amperage recommended in
the fuse chart. Any smart center will be
glad to advise you on this subject.
If a newly inserted fuse blows again, have
the cause determined and rectified at an
authorized smart center.
Before replacing fuses:
R Engage the parking brake.
R Make sure the gear selector lever is in
park position P.
R Turn off all electrical accessories.
R Turn off the engine.
R Remove the key from the starter switch. Replacing a fuse
The
fuse box is located on the driver’s side
below the dashboard. Fuses
205
>> Practical hints. Z
Page 208 of 228
X
From the fuse chart (Y page 208),
determine which fuse belongs to the
malfunctioning accessory or component.
X Remove the respective fuse.
X Replace the defective fuse with a new one
of the same amperage.206
Fuses>> Practical hints.
Page 209 of 228
Fuse box
Front side
: - \
Fuse
y - ¥ Backup fuse slots Fuses
207>> Practical hints. Z

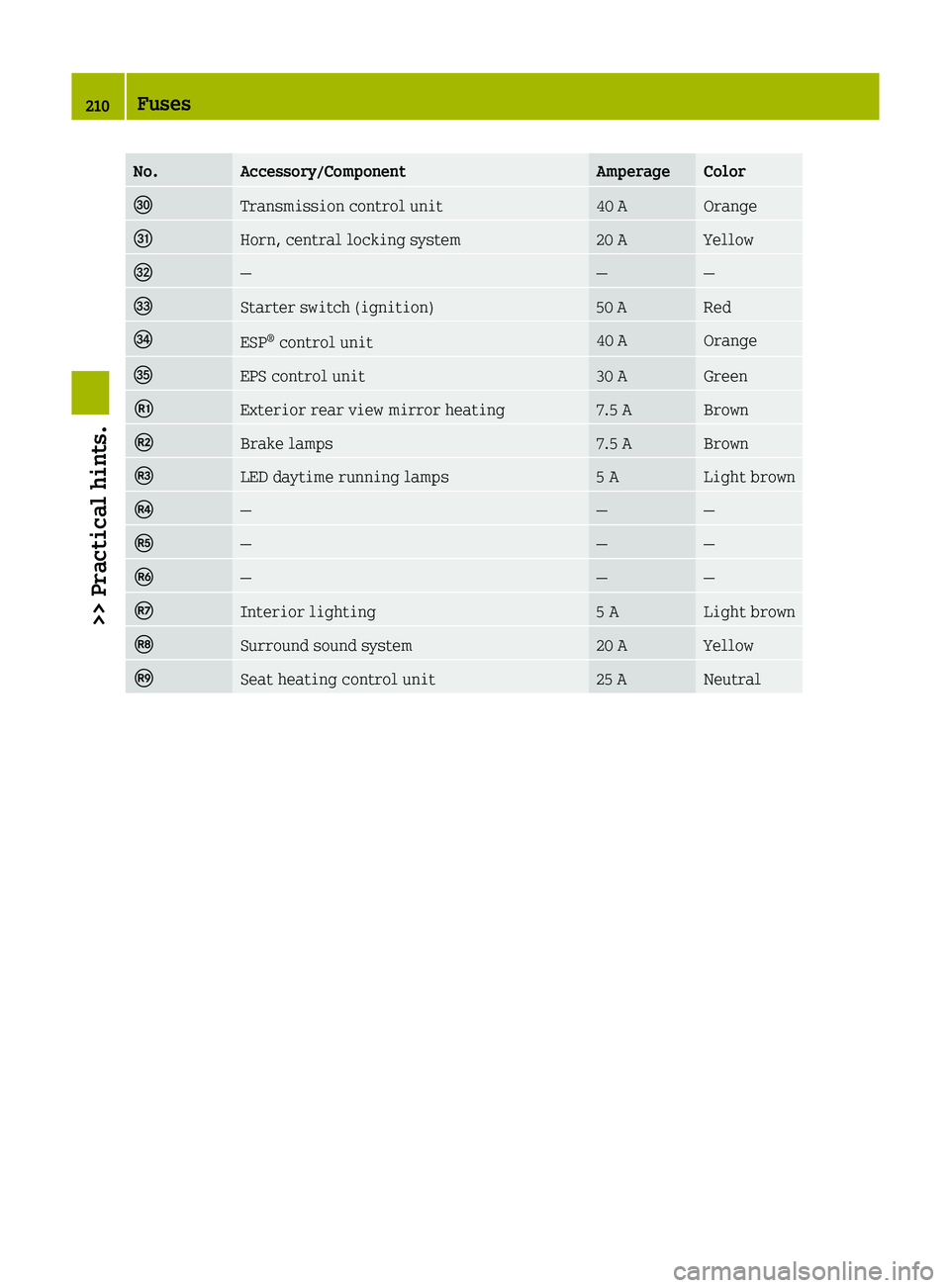

Page 210 of 228
Rear side
^ - ©
Fuse Fuse chart
No. Accessory/Component Amperage Color
:
Engine 25 A Neutral
;
Windshield wipers 25 A Neutral
=
Power window, left and right 20 A Yellow
?
Passenger compartment blower (HVAC) 25 A Neutral
A
Front fog lamps 10 A Red
B
Right parking lamp, right tail lamp, license
plate lamps 7.5 A Brown
C
Left parking lamp, left tail lamp 7.5 A Brown
D
Engine 25 A Neutral
E
Engine 7.5 A Brown208
Fuses>> Practical hints.
Page 211 of 228
No. Accessory/Component Amperage Color
F
Engine 15 A Blue
G
ESP
®
control unit 25 A Neutral
H
Cockpit switch module, on-board
diagnostics
socket, turn signal lamp switch,
transmission control unit, exterior lamp
switch, anti-theft warning system, rain-
light sensor, auxiliary instruments, central
locking system, instrument cluster, exterior
rear view mirror heating, Tire Pressure
Monitoring System (TPMS) 10 A Red
I
— — —
J
Air conditioning compressor 15 A Blue
K
Audio, subwoofer, sound system, soft top
(cabriolet only) 15 A Blue
L
Fuel pump with fuel level sensor 15 A Blue
M
Rear window wiper (coupé only) 15 A Blue
N
ESP
®
control unit, EPS control unit, restraint
system, instrument cluster 10 A Red
O
Engine control unit, on-board diagnostics
socket, transmission control unit, Tire
Pressure Monitoring System (TPMS) 7.5 A Brown
P
Air conditioning system, exterior rear view
mirror
adjustment, washer pump, audio, seat
heating, wiper switch, backup lamps, soft top
switch (cabriolet only) 10 A Red
Q
Auxiliary power outlet 15 A Blue
R
Left low‑beam headlamp 7.5 A Brown
S
Right low‑beam headlamp 7.5 A Brown
T
Brake lamps 15 A Blue
U
Right high‑beam headlamp 7.5 A Brown
V
Left high‑beam headlamp 7.5 A Brown
W
Engine 7.5 A Brown
X
Rear window defroster, radiator fan 40 A Orange
Y
Soft top (cabriolet only) 30 A Green Fuses
209
>> Practical hints. Z
Page 212 of 228
No. Accessory/Component Amperage Color
Z
Transmission control unit 40 A Orange
\
Horn, central locking system 20 A Yellow
^
— — —
_
Starter switch (ignition) 50 A Red
a
ESP
®
control unit 40 A Orange
©
EPS control unit 30 A Green
y
Exterior rear view mirror heating 7.5 A Brown
z
Brake lamps 7.5 A Brown
|
LED daytime running lamps 5 A Light brown
~
— — —
¡
— — —
¢
— — —
£
Interior lighting 5 A Light brown
¤
Surround sound system 20 A Yellow
¥
Seat heating control unit 25 A Neutral210
Fuses>> Practical hints.
