SMART FORTWO COUPE 2013 Owners Manual

X
Turn air distribution control 0029to the
desired symbol.
The air distribution is controlled
depending on the position of the air
distribution control. Adjusting air volume
The air volume is controlled depending on
the blower speed selected. Five blower
speeds are available. 0
Off
1
Slow
2
Medium
3
High/defrosting
4
Maximum
X
Increasing or decreasing: Push air
volume control 0002up or down. Defrosting
G
WARNING
Never drive with iced up or fogged
windows. Visibility will be significantly
impaired. Impaired visibility could
endanger yourself and others. This may
prevent you from observing the traffic
conditions, thereby causing an accident.
The best defrosting of windows is achieved
if the ice is completely removed from the
windows manually with an ice scraper
before driving off.
Also use the "Air conditioning before
start" function (Y page 86).
Control panel (Y page 97). X
Switching on: Push air volume
control 0002to level 3.
X Turn air distribution control 0029to
position 0006.
X Push temperature control 0028fully up. Rear window defroster
The rear window defroster serves to de-ice
the rear window quickly and clear the view
if the rear window is fogged.
The rear window defroster uses a large
amount of power. To keep battery drain to a
minimum, switch off the rear window
defroster as soon as the rear window is
clear. The rear window defroster is
automatically deactivated after
approximately 10 minutes of operation. X
Make sure the key is in starter switch
position 1.
X Switching on: Press rear window
defroster switch 0002.
The indicator lamp in rear window
defroster switch 0002comes on.
X Switching off: Press rear window
defroster switch 0002once more.
The indicator lamp in rear window
defroster switch 0002goes out. Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle Air conditioning with climate control
99>> Controls. Z

from the outside (e.g. before driving
through a tunnel). This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.
G
WARNING
When the air recirculation mode is
switched on, windows can fog on the inside
immediately. Fogged windows impair
visibility, endangering you and others. If
the windows begin to fog on the inside,
switching off the air recirculation mode
immediately should clear interior window
fogging. If interior window fogging
persists,m ake sure the air conditionin gis
switched on, turn air distribution control
0029 to position 0006and increase the air
volume using air volume control 0002.
Control panel (Y page 97).
X Switching on: Press air recirculation
switch 002A.
The indicator lamp in air recirculation
switch 002Acomes on.
X Switching off: Press air recirculation
switch 002Aonce more.
The indicator lamp in air recirculation
switch 002Agoes out. Loading and storing
Cargo compartment cover blind with
parcel net bag
G
WARNING
The cargo compartment cover blind is not
intended to secure heavy objects in the
event of an accident. For this reason, heavy
objects must be tied down.
Vehicle occupants could be injured by
objects being thrown around in the vehicle
in the event of
R hard braking
R a change of direction
R an accident G
WARNING
Do not place any objects on the mounted
cargo compartment cover blind.
Vehicle occupants could be injured by
objects being thrown around in the vehicle
in the event of
R hard braking
R a change of direction
R an accident G
WARNING
Only place light loads in the parcel net
bag. Do not transport heavy ,sharp-edged or
fragile objects in the parcel net bag. The
parcel net bag cannot sufficiently secure
loads in an accident.
Vehicle occupants could be injured by
objects being thrown around in the vehicle
in the event of
R hard braking
R a change of direction
R an accident
Observe the loading guidelines.
The cargo compartment cover blind
R serves to protect objects that are stored
in the vehicle’s cargo compartment from
prying eyes
R prevents smaller objects from
penetrating into the passenger
compartment from the cargo
compartment; however, it is not intended
to act as a load restraining device
The parcel net bag
R is for storing small, lightweight objects
R prevents small objects from sliding
around inside the passenger
compartment
! If objects are placed on the cargo
compartment cover blind when mounted,
the cover may be damaged. 100
Loading and storing>> Controls.

Fitting
If you wish to use cargo compartment cover
blind 0002as normal, assemble it in top
mountings 0003. If you do not need the cargo
compartment cover blind, insert in bottom
mountings 002B.
X Open the tailgate.
X Secure cargo compartment cover
blind 0002at the front of the cargo
compartment with the parcel net bag.
X Insert cargo compartment cover
blind 0002on the right-hand side in top
mounting 0003or in bottom mounting 002B.X
Push handle 002Ato the right in the
direction of the arrow.
X Insert cargo compartment cover
blind 0002in top mounting 0003or bottom
mounting 002Bin the left-hand side
paneling and release handle 002A.
X Cargo compartment cover blind 0002
engages. X
Pull parcel net bag 0028down slightly and
secure with the hook and loop fastener.
X Remove in reverse order.
Controls X
Closing: Take hold of cargo compartment
cover blind 0002in the middle and pull
backwards.
X Guide cargo compartment cover
blind 0002into the rear right and left
mountings 0003.
X Opening: Take hold of cargo compartment
cover blind 0002in the middle, pull
backwards, and remove from rear
mountings 0003.
X Guide cargo compartment cover
blind 0002into position. Coat hooks
The coat hooks are located at the rear roof
rail on the driver’s and passenger side. Loading and storing
101>> Controls. Z

Coat hook on driver’s side
0002
Coat hook Storage compartments
G
WARNING
To help avoid personal injury during a
collision or sudden maneuver, exercise
care when storing objects in the vehicle.
Put luggage or cargo in the cargo
compartment if possible. Do not pile
luggage or cargo higher than the seat
backrests.
Keep compartment lids closed. This will
help to prevent stored objects from being
thrown about and injuring vehicle
occupants during
R hard braking
R a change of direction
R an accident
Do not store objects under the driver’s seat.
Objects stored under the driver’s seat can
slide forwar dinto driver’s foot well during
braking and get caught between or beneath
the pedals .This could restrict your ability
to brake or accelerate and could lead to
accidents and injury.
Coin holder The coin holder is located in front of the
gear selector lever. Example illustration (coupé)
0002
Coin holder
Door pockets The door pockets are located in the driver’s
and passenger door.
0002
Door pocket
Storage trays next to the steering wheel The storage trays are located to the left and
right of the steering wheel.
0002
Storage tray 102
Loading and storing>> Controls.

Glove box
i
A clamp rail for slips of paper is
located on the outside of the glove box
lid. X
Opening: Pull on glove box lid
release 0002and fold down the glove box
lid.
X Closing: Lift up the glove box lid with a
bit of force until it engages.
X Locking: Insert the key into the glove box
lock and turn it to position 0006.
X Unlocking: Insert the key into the glove
box lock and turn it to position 0005.
Storage tray* in center console X
Installing: Slide storage tray 0003onto the
cones on the center console until it
engages audibly.
X Removing: Press levers 0002
simultaneously towards the storage tray.
X Pull storage tray 0003away from the center
console. X
Opening: Pull handle 002B.
X Closing: Swivel storage tray 0003back
until it engages.
Parcel nets Parcel nets are located on the in-board
sides of the seat backrests.
i
Vehicles equipped with an armrest* on
the driver’s seat, have aparcel net on the
passenger seat only.
i Each parcel net is intended for light-
weight items of below 0.9 lb (0.4 kg). Example illustration: Parcel net on passenger
seat
0002
Parcel net
Drawer Ad
rawer is located below the audio system. Loading and storing
103>> Controls.
* optional Z

X
Opening: Press on the center of
drawer 0002.
The drawer opens slightly.
X Pull drawer0002 to open completely.
X Closing: Press on drawer 0002until it
engages.
Storage compartment in the tailgate
(coupé only) If possible, you can stow the charging cable
in the storage compartment of the tailgate
(Y
page 112).
! Do not place the charging cable in the
compartment for the roof bars of the roof
system. If the charging cable is placed
there, the roof bars can be damaged when
the storage compartment is closed. For
this reason, please make sure that the
charging cable is only stowed in the
intended location. X
Opening: Open the tailgates.
X Pull handle 0002on the inside of the
tailgate backward.
X Lift up the storage compartment cover.
X Closing: Close storage compartment
cover 0002.
X Press on the “PRESS” marking in the
middle of storage compartment cover 0002
until it engages audibly.
X Close the tailgates (Y page 53). Loading instructions
G
WARNING
Transport heavy or hard objects in the
cargo compartment, not in the passenger
compartment.
Always fasten items being carried as
securely as possible using fastening
materials appropriate for the weight and
size of the load.
In an accident, during hard braking or
sudden maneuvers, loose items may be
thrown around inside the vehicle, causing
injury to vehicle occupants. G
WARNING
To help avoid personal injury during a
collision or sudden maneuver, exercise
care when storing objects in the vehicle.
Put luggage or cargo in the cargo
compartment if possible. Do not pile
luggage or cargo higher than the seat
backrests.
Keep compartment lids closed. This will
help to prevent stored objects from being
thrown about and injuring vehicle
occupants during
R braking
R vehicle maneuvers
R an accident G
WARNING
No racks or loads may be secured to the roof
of the vehicle, as
R the panorama roof* may be damaged, thus
injuring persons
R this can have a substantial adverse
effect on the driving dynamics of the
vehicle, thus causing accidents
R the rack and/or the load could detach and
through this cause an accident or other
people could be injured by the load and/
or rack that has fallen off 104
Loading and storing>> Controls.
* optional

G
WARNING
Do not store any flammable substances
inside the vehicle that could ignite and
start a fire. G
WARNING
The manufacturer has not approved your
vehicle for towing a trailer. A trailer can
permanently impair driving safety.
The gross vehicle weight which is the
weight of the vehicle including tools,
installed accessories, passengers, and
luggage/cargo must never exceed the load
limit and the Gross Vehicle Weight Rating
(GVWR) for your vehicle as specified on the
placard located on the driver’s door
B‑pillar (Y page 208). In addition, the
load must be distributed in such a way so
that the weight on each axle never exceeds
the Gross Axle Weight Rating (GAWR) for the
front and rear axle. The GVWR and GAWR for
your vehicle are indicated on the
certification label which can be found on
the driver’s door B‑pillar.
For more information, see “Loading the
vehicle” (Y page 127).
The handling characteristics of a fully
loaded vehicle depend greatly on the load
distribution. It is therefore recommended
to load the vehicle with the heaviest items
being placed towards the front of the
vehicle.
Please pay attention to and comply with the
following instructions when loading the
vehicle and transporting cargo:
R Always place items being carried
against seat backrests, and fasten them
as securely as possible.
R The heaviest portio nofthe cargo should
always be kept as low as possible against
seat backrests.
R Do not stack loads higher than the top
edge of the head restraints.
R Make sure no luggage/cargo items can get
above or next to the driver’s and/or passenger seat into the passenger
compartment.
R Make sure luggage/cargo is properly
secured.
R Always use, if so equipped, cargo net*
when transporting cargo.
Do not carry any unnecessary weight in the
vehicle. This increases vehicle weight,
which results in increased energy
consumption. Useful features
Sun visors
The sun visors protect you from sun glare
while driving. Glare through the windshield
X
Swing sun visor 0002down.
Glare through a side window X
Swing sun visor 0002down.
X Disengage sun visor 0002from
mounting 0003.
X Pivot sun visor 0002to the side. Sun screen*
The sun screen provides protection from
sun rays and from heat generated by the
panorama roof*. Useful features
105>> Controls.
* optional Z

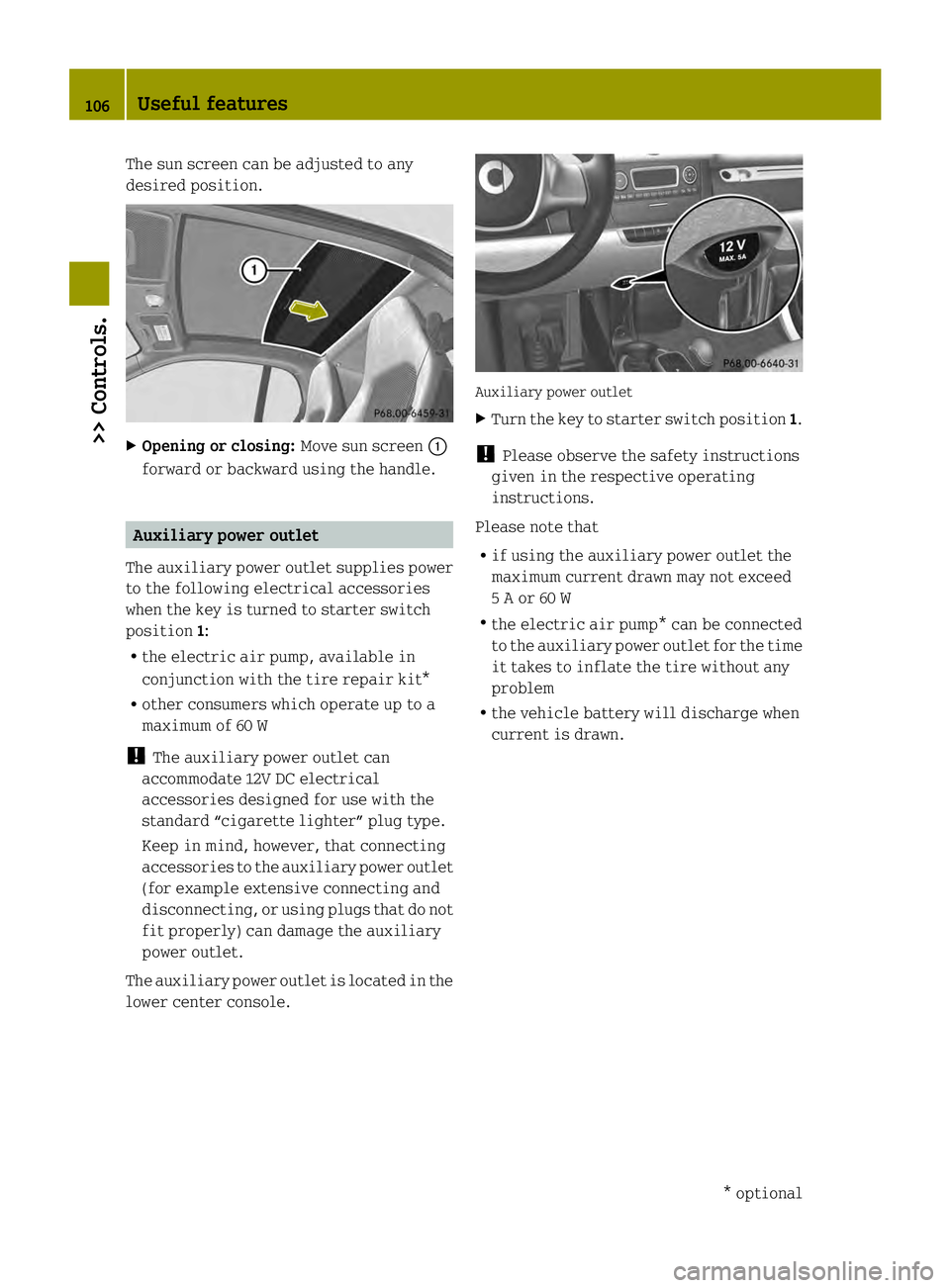

The sun screen can be adjusted to any
desired position.
X
Opening or closing: Move sun screen0002
forward or backward using the handle. Auxiliary power outlet
The auxiliary power outlet supplies power
to the following electrical accessories
when the key is turned to starter switch
position 1:
R the electric air pump, available in
conjunction with the tire repair kit*
R other consumers which operate up to a
maximum of 60 W
! The auxiliary power outlet can
accommodate 12V DC electrical
accessories designed for use with the
standard “cigarette lighter” plug type.
Keep in mind, however, that connecting
accessories to the auxiliary power outlet
(for example extensive connecting and
disconnecting, or using plugs that do not
fit properly) can damage the auxiliary
power outlet.
The auxiliary power outlet is located in the
lower center console. Auxiliary power outlet
X
Turn the key to starter switch position 1.
! Please observe the safety instructions
given in the respective operating
instructions.
Please note that
R if using the auxiliary power outlet the
maximum current drawn may not exceed
5 A or 60 W
R the electric air pump* can be connected
to the auxiliary power outlet for the time
it takes to inflate the tire without any
problem
R the vehicle battery will discharge when
current is drawn. 106
Useful features>> Controls.
* optional

>> Operation.High-voltage battery
........................108
Front compartment ............................ 117
Tires and wheel s.............................. 122
Winte rdriving ................................ 140
Driving instructions ........................141
Driving abroad ................................ 146
Vehicle care ................................... 147

High-voltage battery
Introduction
The components of the drive system are
indicated by yellow warning labels to make
you aware of high voltage.
High‑voltage cablesa
re orange‑colored.G
WARNING
The drive system is subject to high
voltages.
You may be seriously or even fatally injured
if you:
R tamper with components or high-voltage
cables in the drive system
R touch components or high-voltage cables
in the drive system on avehicle which has
been involved in an accident
R touch damaged drive system components
Do not remove any drive system component
covers which are marked with a warning
sticker. Do not tamper with components or
orange high-voltage drive system cables. G
WARNING
The high‑voltage battery of the drive
system is located under the vehicle’s
underbody. When the pressure inside the
high‑voltage battery exceeds a certain
value, for example in case of avehicle fire,
inflammable gas will escape via a duct. The
inflammable gas escapes to an area under
the vehicle. This prevents the high‑voltage
battery from exploding.
Stay away from this area of the vehicle. The drive system is powered by a
high‑voltage battery. The high‑voltage
battery stores and releases the energy
required for operation of the electric
motor.
The electric motor uses the energy that is
stored in the high‑voltage battery when
driving off and when accelerating.
When rolling, kinetic energy is converted
into electrical energy by energy recovery
and stored in the high‑voltage battery.
The range of the vehicle is reduced when
consumers are switched on, e.g. climate
control.
The high‑voltage battery can be charged in
a voltage range from 100 V to 240 V.
The high‑voltage battery can be charged
R through energy recovery while the
vehicle is rolling or when braking
R Level 1 charging - 110 V / 120 V -
A travel cord will be supplied with the
vehicle. This charging cable can be
plugged into commonly available
110 V / 120 V, 15 A power sources. This
charging method will take longer to
charge your vehicle than adedicated
level 2 charging source. Therefore it is
not recommended as the primary method
of charging.
R Level 2 charging - 220 V / 240 V -
For the fastest possible charging time, a
dedicated 220 V /240 V, 20 A circuit is
required. Local electrical code can vary
from town to town. Therefore, it is highly
recommended that this service is
professionally installed. This service
should be installed in a dry area with
easy access to the passenger side of the
vehicle. You will need to obtain avehicle
charge connector that can be wired
directly to or plugged into the dedicated
220 V / 240 V service. Charge connectors
will be available for purchase through
your authorized electric drive smart
center.
R Level 2 charging - Charging station 108
High-voltage battery>> Operation.
