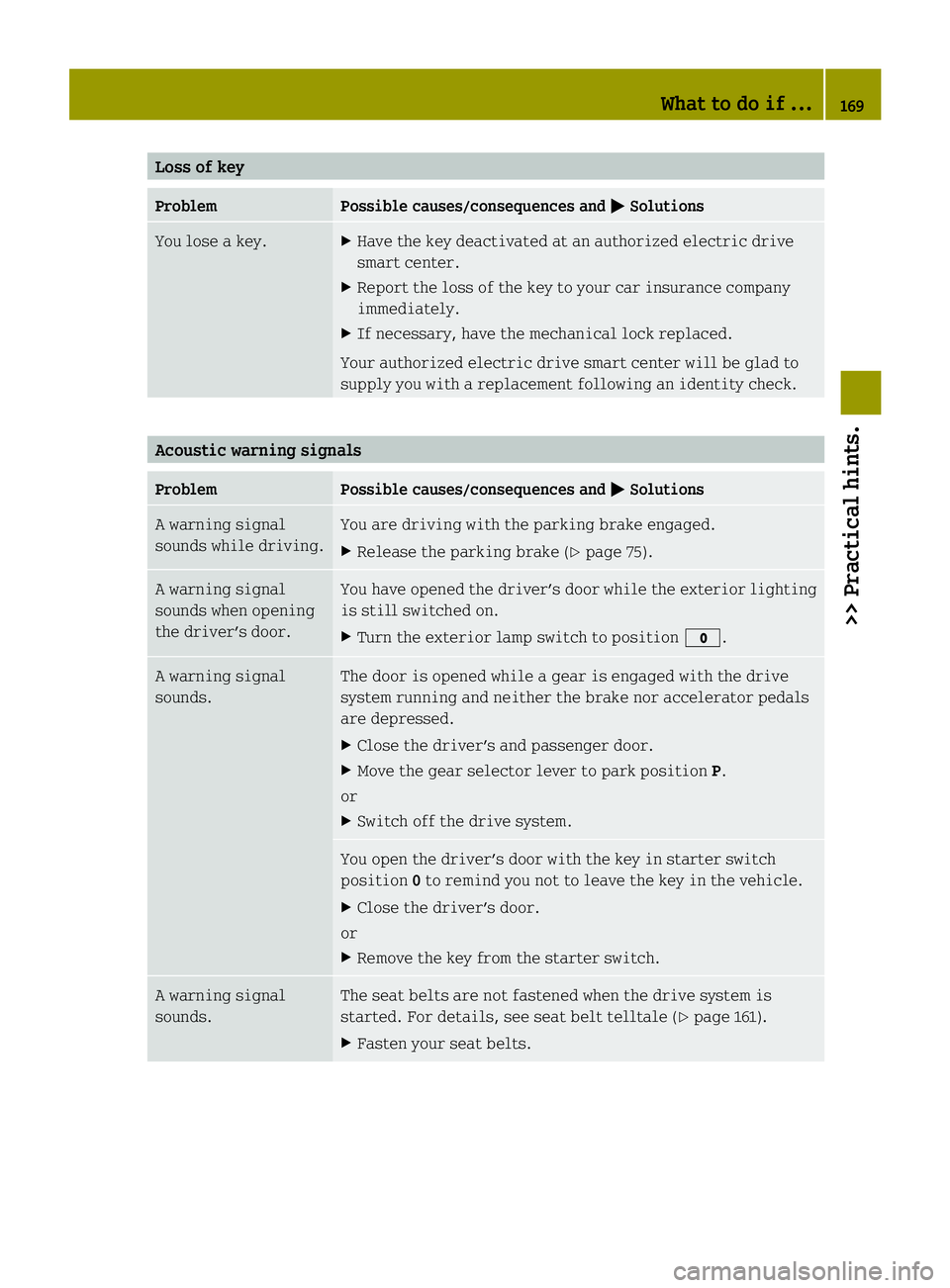

SMART FORTWO COUPE ELECTRIC DRIVE 2013 Owners Manual

Loss of key
Problem Possible causes/consequences and
0001 Solutions
You lose a key. X
Have the key deactivated at an authorized electric drive
smart center.
X Report the loss of the key to your car insurance company
immediately.
X If necessary, have the mechanical lock replaced.
Your authorized electric drive smart center will be glad to
supply you with a replacement following an identity check. Acoustic warning signals
Problem Possible causes/consequences and
0001 Solutions
A warning signal
sounds while driving. You are driving with the parking brake engaged.
X Release the parking brake (Y page 75).A warning signal
sounds when opening
the driver’s door. You have opened the driver’s door while the exterior lighting
is still switched on.
X
Turn the exterior lamp switch to position 0004.A warning signal
sounds. The door is opened while a gear is engaged with the drive
system running and neither the brake nor accelerator pedals
are depressed.
X
Close the driver’s and passenger door.
X Move the gear selector lever to park position P.
or
X Switch off the drive system. You open the driver’s door with the key in starter switch
position
0to remind you not to leave the key in the vehicle.
X Close the driver’s door.
or
X Remove the key from the starter switch. A warning signal
sounds. The seat belts are not fastened when the drive system is
started. For details, see seat belt telltale (Y
page 161).
X Fasten your seat belts. What to do if ...
169>> Practical hints. Z

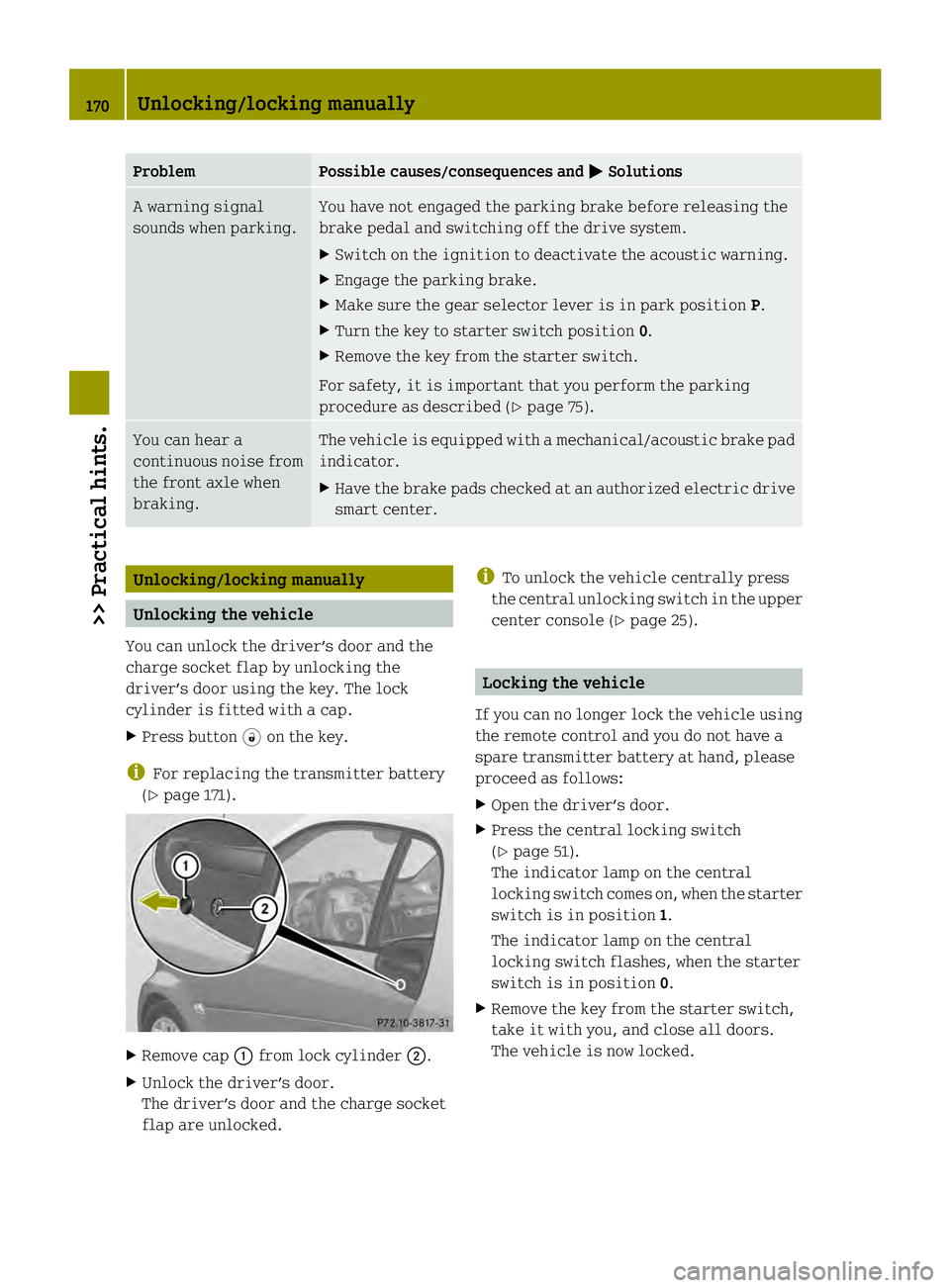

Problem Possible causes/consequences and
0001 Solutions
A warning signal
sounds when parking. You have not engaged the parking brake before releasing the
brake pedal and switching off the drive system.
X
Switch on the ignition to deactivate the acoustic warning.
X Engage the parking brake.
X Make sure the gear selector lever is in park position P.
X Turn the key to starter switch position 0.
X Remove the key from the starter switch.
For safety, it is important that you perform the parking
procedure as described (Y page 75).You can hear a
continuous noise from
the front axle when
braking. The vehicle is equipped with a mechanical/acoustic brake pad
indicator.
X
Have the brake pads checked at an authorized electric drive
smart center. Unlocking/locking manually
Unlocking the vehicle
You can unlock the driver’s door and the
charge socke tflap by unlocking the
driver’s door using the key. The lock
cylinder is fitted with a cap.
X Press button 0006on the key.
i For replacing the transmitter battery
(Y page 171). X
Remove cap 0002from lock cylinder 0003.
X Unlock the driver’s door.
The driver’s door and the charge socket
flap are unlocked. i
To unlock the vehicle centrally press
the central unlocking switch in the upper
center console (Y page 25). Locking the vehicle
If you can no longer lock the vehicle using
the remote control and you do not have a
spare transmitter battery at hand, please
proceed as follows:
X Open the driver’s door.
X Press the central locking switch
(Y page 51).
The indicator lamp on the central
locking switch comes on, when the starter
switch is in position 1.
The indicator lamp on the central
locking switch flashes, when the starter
switch is in position 0.
X Remove the key from the starter switch,
take it with you, and close all doors.
The vehicle is now locked. 170
Unlocking/locking manually>> Practical hints.

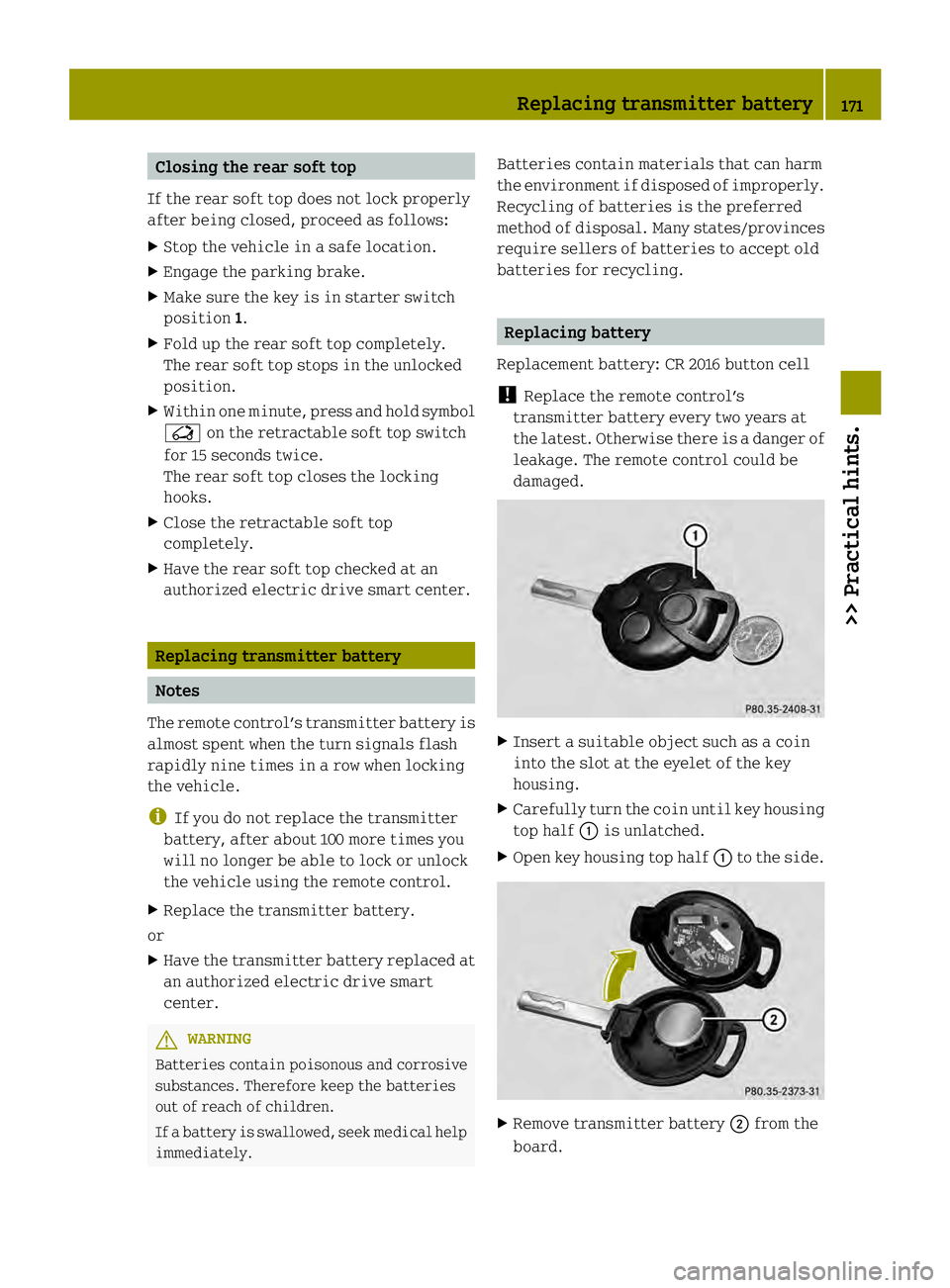

Closing the rear soft top
If the rear soft top does not lock properly
after being closed, proceed as follows:
X Stop the vehicle in a safe location.
X Engage the parking brake.
X Make sure the key is in starter switch
position 1.
X Fold up the rear soft top completely.
The rear soft top stops in the unlocked
position.
X Within one minute, press and hold symbol
0003 on the retractable soft top switch
for 15 seconds twice.
The rear soft top closes the locking
hooks.
X Close the retractable soft top
completely.
X Have the rear soft top checked at an
authorized electric drive smart center. Replacing transmitter battery
Notes
The remot econtrol’s transmitter battery is
almost spent when the turn signals flash
rapidly nine times in a row when locking
the vehicle.
i If you do not replace the transmitter
battery, after about 100 more times you
will no longer be able to lock or unlock
the vehicle using the remote control.
X Replace the transmitter battery.
or
X Have the transmitter battery replaced at
an authorized electric drive smart
center. G
WARNING
Batteries contain poisonous and corrosive
substances. Therefore keep the batteries
out of reach of children.
If a battery is swallowed, seek medical help
immediately. Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states/provinces
require sellers of batteries to accept old
batteries for recycling.
Replacing battery
Replacement battery: CR 2016 button cell
! Replace the remote control’s
transmitter battery every two years at
the latest. Otherwise there is a danger of
leakage. The remote control could be
damaged. X
Insert a suitable object such as a coin
into the slot at the eyelet of the key
housing.
X Carefully turn the coin until key housing
top half 0002is unlatched.
X Open key housing top half 0002to the side. X
Remove transmitter battery 0003from the
board. Replacing transmitter battery
171>> Practical hints. Z

!

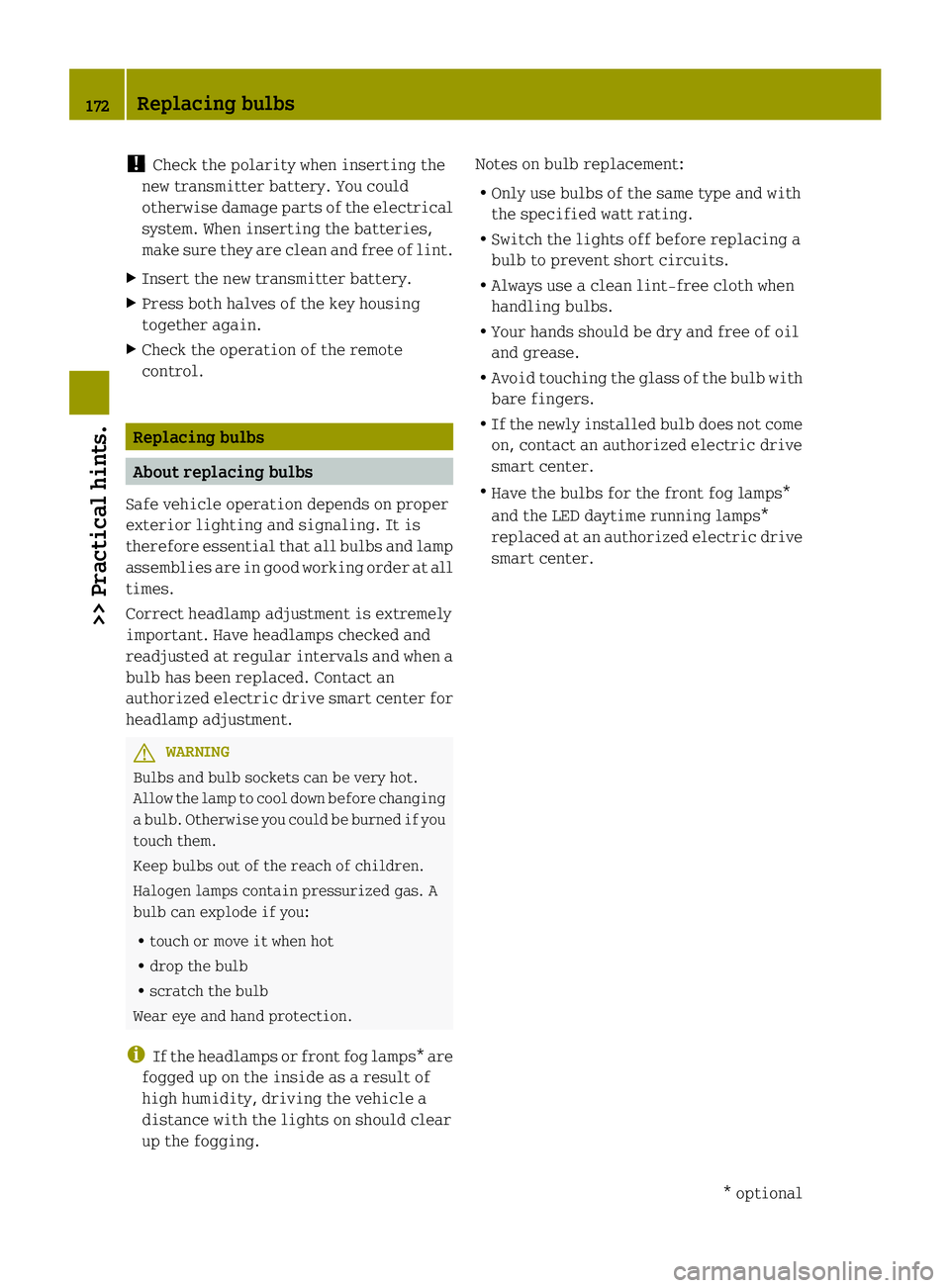

Check the polarity when inserting the
new transmitter battery. You could
otherwise damage parts of the electrical
system. When inserting the batteries,
make sure they are clean and free of lint.
X Insert the new transmitter battery.
X Press both halves of the key housing
together again.
X Check the operation of the remote
control. Replacing bulbs
About replacing bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is
therefore essential that all bulbs and lamp
assemblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. Contact an
authorized electric drive smart center for
headlamp adjustment. G
WARNING
Bulbs and bulb sockets can be very hot.
Allow the lamp to cool down before changing
a bulb. Otherwise you could be burned if you
touch them.
Keep bulbs out of the reach of children.
Halogen lamps contain pressurized gas. A
bulb can explode if you:
R touch or move it when hot
R drop the bulb
R scratch the bulb
Wear eye and hand protection.
i If the headlamps or front fog lamps* are
fogged up on the inside as a result of
high humidity, driving the vehicle a
distance with the lights on should clear
up the fogging. Notes on bulb replacement:
R
Only use bulbs of the same type and with
the specified watt rating.
R Switch the lights off before replacing a
bulb to prevent short circuits.
R Always use aclean lint-free cloth when
handling bulbs.
R Your hands should be dry and free of oil
and grease.
R Avoid touching the glass of the bulb with
bare fingers.
R If the newly installed bulb does not come
on, contact an authorized electric drive
smart center.
R Have the bulbs for the front fog lamps*
and the LED daytime running lamps*
replaced at an authorized electric drive
smart center. 172
Replacing bulbs>> Practical hints.
* optional

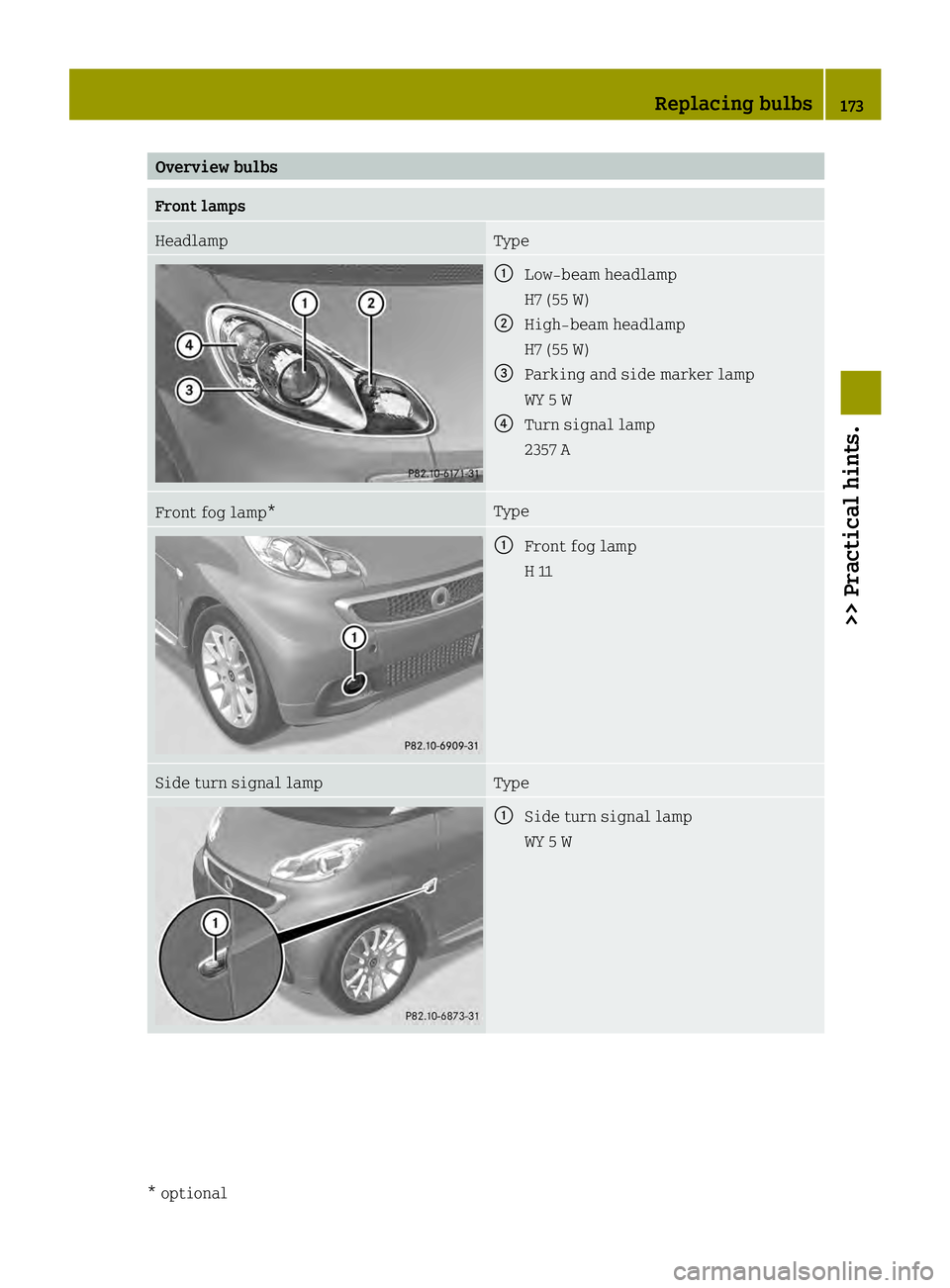

Overview bulbs
Front lamps
Headlamp Type
0002
Low‑beam headlamp
H7 (55 W)
0003 High‑beam headlamp
H7 (55 W)
002B Parking and side marker lamp
WY 5 W
002A Turn signal lamp
2357 A Front fog lamp* Type
0002
Front fog lamp
H 11 Side turn signal lamp Type
0002
Side turn signal lamp
WY 5 W Replacing bulbs
173>> Practical hints.
* optional Z

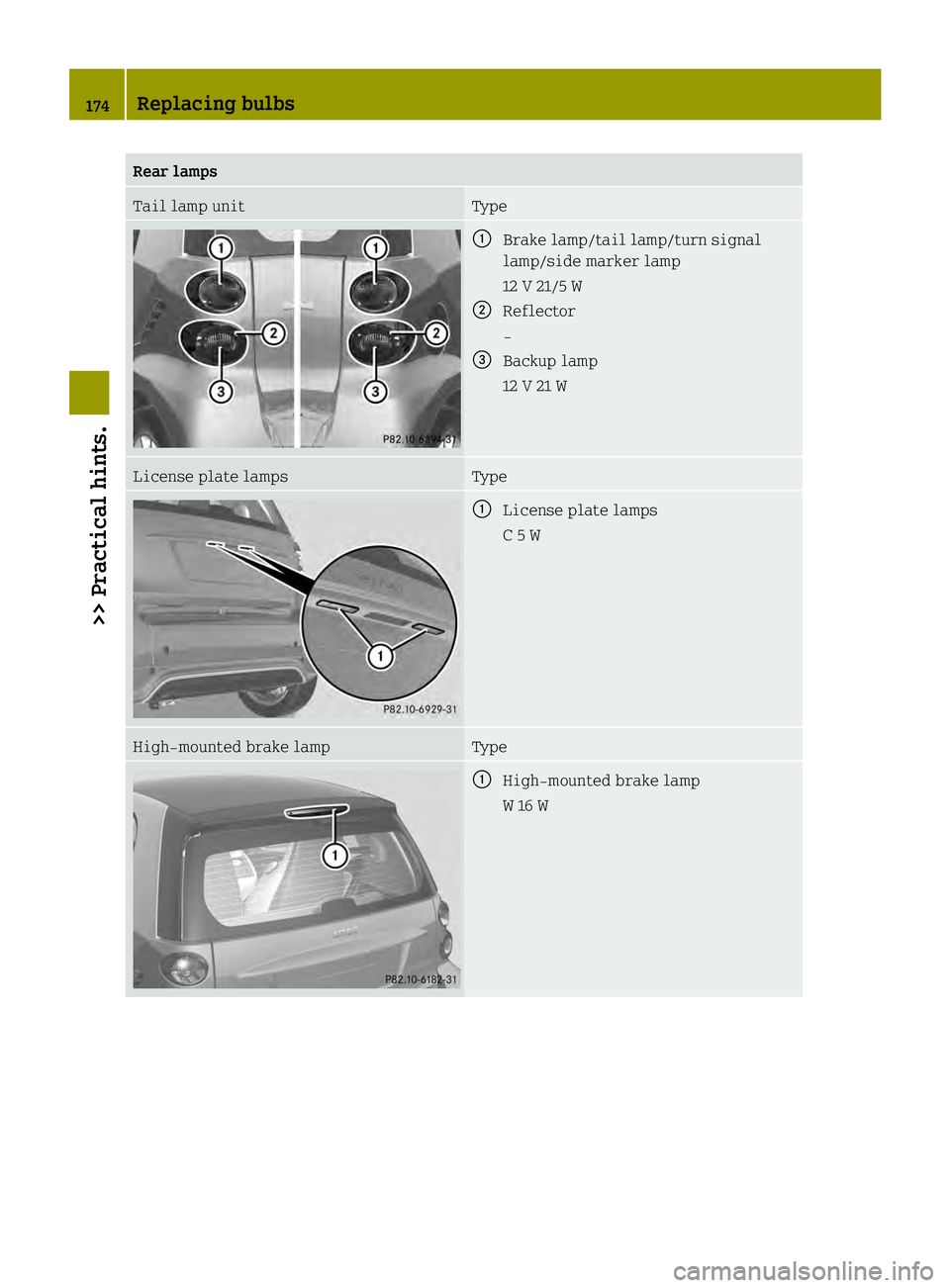

Rear lamps
Tail lamp unit Type
0002
Brake lamp/tail lamp/turn signal
lamp/side marker lamp
12 V 21/5 W
0003 Reflector
-
002B Backup lamp
12 V 21 W License plate lamps Type
0002
License plate lamps
C 5 W High‑mounted brake lamp Type
0002
High‑mounted brake lamp
W 16 W 174
Replacing bulbs>> Practical hints.

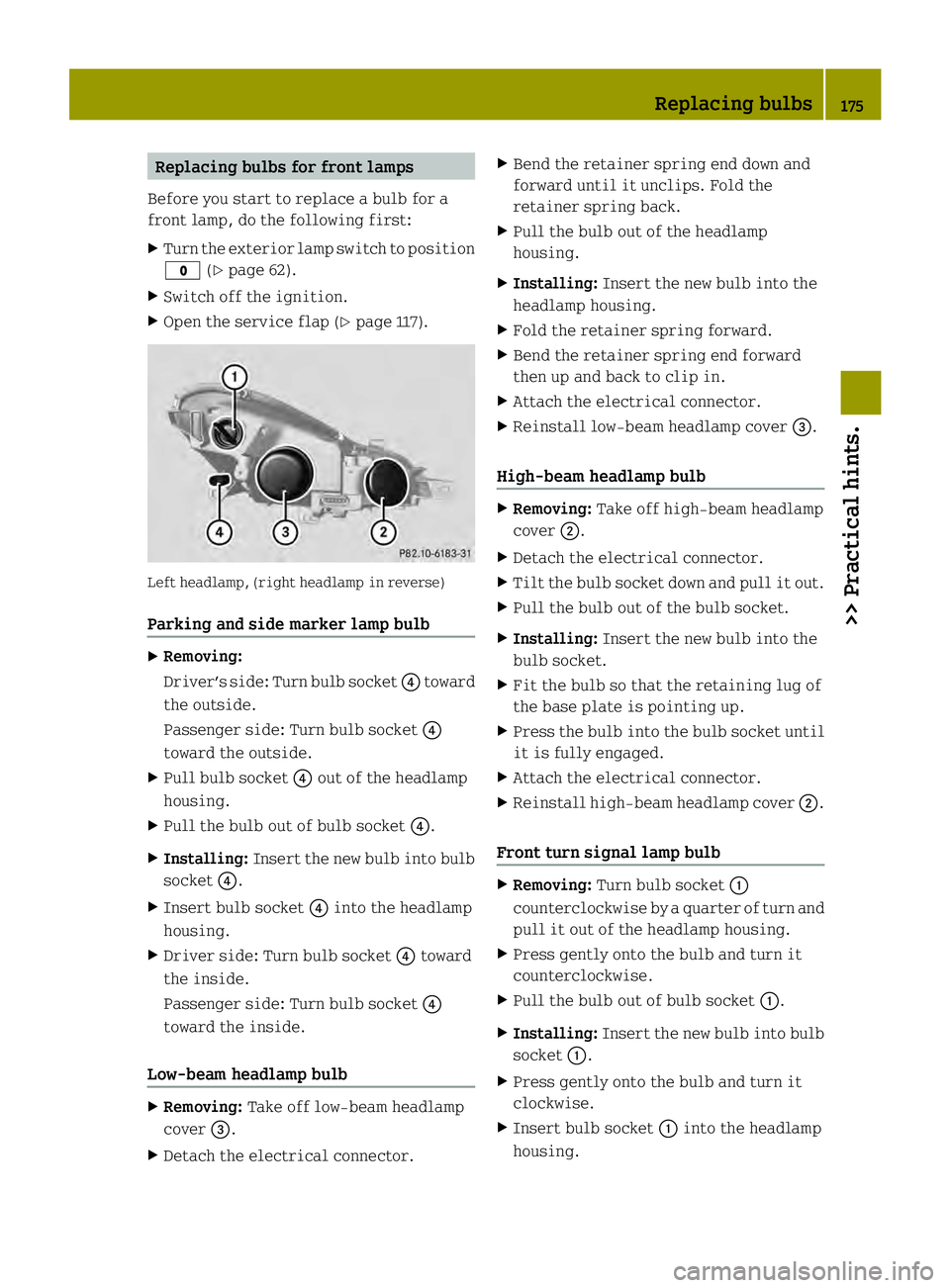

Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
X Turn the exterior lamp switch to position
0004 (Ypage 62).
X Switch off the ignition.
X Open the service flap (Y page 117).Left headlamp, (right headlamp in reverse)
Parking and side marker lamp bulb X
Removing:
Driver’s side: Turn bulb socket 002Atoward
the outside.
Passenger side: Turn bulb socket 002A
toward the outside.
X Pull bulb socket 002Aout of the headlamp
housing.
X Pull the bulb out of bulb socket 002A.
X Installing: Insert the new bulb into bulb
socket 002A.
X Insert bulb socket 002Ainto the headlamp
housing.
X Driver side: Turn bulb socket 002Atoward
the inside.
Passenger side: Turn bulb socket 002A
toward the inside.
Low‑beam headlamp bulb X
Removing: Take off low‑beam headlamp
cover 002B.
X Detach the electrical connector. X
Bend the retainer spring end down and
forward until it unclips .Fold the
retainer spring back.
X Pull the bulb out of the headlamp
housing.
X Installing: Insert the new bulb into the
headlamp housing.
X Fold the retainer spring forward.
X Bend the retainer spring end forward
then up and back to clip in.
X Attach the electrical connector.
X Reinstall low‑beam headlamp cover 002B.
High‑beam headlamp bulb X
Removing: Take off high‑beam headlamp
cover 0003.
X Detach the electrical connector.
X Tilt the bulb socket down and pull it out.
X Pull the bulb out of the bulb socket.
X Installing: Insert the new bulb into the
bulb socket.
X Fit the bulb so that the retaining lug of
the base plate is pointing up.
X Press the bulb into the bulb socket until
it is fully engaged.
X Attach the electrical connector.
X Reinstall high‑beam headlamp cover 0003.
Front turn signal lamp bulb X
Removing: Turn bulb socket 0002
counterclockwise by aquarter of turn and
pull it out of the headlamp housing.
X Press gently onto the bulb and turn it
counterclockwise.
X Pull the bulb out of bulb socket 0002.
X Installing: Insert the new bulb into bulb
socket 0002.
X Press gently onto the bulb and turn it
clockwise.
X Insert bulb socket 0002into the headlamp
housing. Replacing bulbs
175>> Practical hints. Z

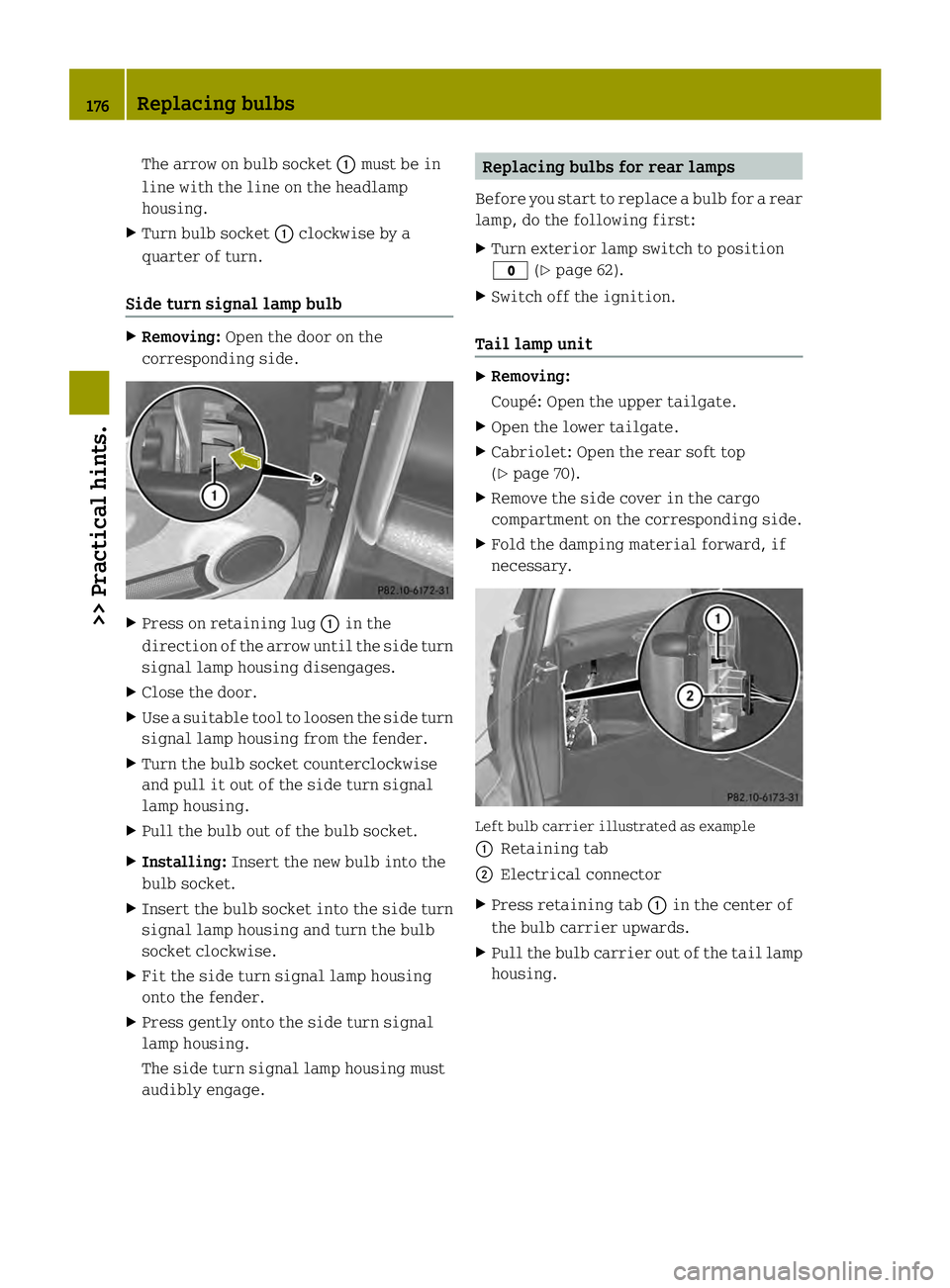

The arrow on bulb socket
0002must be in
line with the line on the headlamp
housing.
X Turn bulb socket 0002clockwise by a
quarter of turn.
Side turn signal lamp bulb X
Removing: Open the door on the
corresponding side. X
Press on retaining lug 0002in the
direction of the arrow until the side turn
signal lamp housing disengages.
X Close the door.
X Use a suitable tool to loosen the side turn
signal lamp housing from the fender.
X Turn the bulb socket counterclockwise
and pull it out of the side turn signal
lamp housing.
X Pull the bulb out of the bulb socket.
X Installing: Insert the new bulb into the
bulb socket.
X Insert the bulb socket into the side turn
signal lamp housing and turn the bulb
socket clockwise.
X Fit the side turn signal lamp housing
onto the fender.
X Press gently onto the side turn signal
lamp housing.
The side turn signal lamp housing must
audibly engage. Replacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
X Turn exterior lamp switch to position
0004 (Ypage 62).
X Switch off the ignition.
Tail lamp unit X
Removing:
Coupé: Open the upper tailgate.
X Open the lower tailgate.
X Cabriolet: Open the rear soft top
(Y page 70).
X Remove the side cover in the cargo
compartment on the corresponding side.
X Fold the damping material forward, if
necessary. Left bulb carrier illustrated as example
0002
Retaining tab
0003 Electrical connector
X Press retaining tab 0002in the center of
the bulb carrier upwards.
X Pull the bulb carrier out of the tail lamp
housing. 176
Replacing bulbs>> Practical hints.

Left bulb carrier with bulb sockets (right bulb
carrier in reverse)
0002 Retaining tab
002B Brake, tail, turn signal and side marker
lamp bulb
002A Backup lamp bulb
X Depending on which bulb needs to be
replaced, press gently onto bulb 002B
or 002A and turn it counterclockwise.
X Pull the bulb out of the bulb socket.
X Installing: Insert the new bulb into the
bulb socket.
X Press gently onto the bulb and turn it
clockwise until it engages.
X Insert the bulb carrier into the tail lamp
housing.
X Press gently onto the bulb carrier.
Let retaining tab 0002engage.
X Fold the damping material backward, if
necessary.
X Reinstall the side cover in the cargo
compartment. High-mounted brake lamp X
Removing: Unscrew retaining screws 0002.
X Remove high-mounted brake lamp 002A.
X Detach electrical connector 0003from bulb
socket 002B.
X Turn the bulb counterclockwise and pull
it out of its socket.
X Installing: Install in the reverse order.
License plate lamps X
Use a suitable tool to loosen the
corresponding license plate lamp unit at
jacking point 0002.
X Carefully unclip the license plate lamp
unit. Replacing bulbs
177>> Practical hints. Z

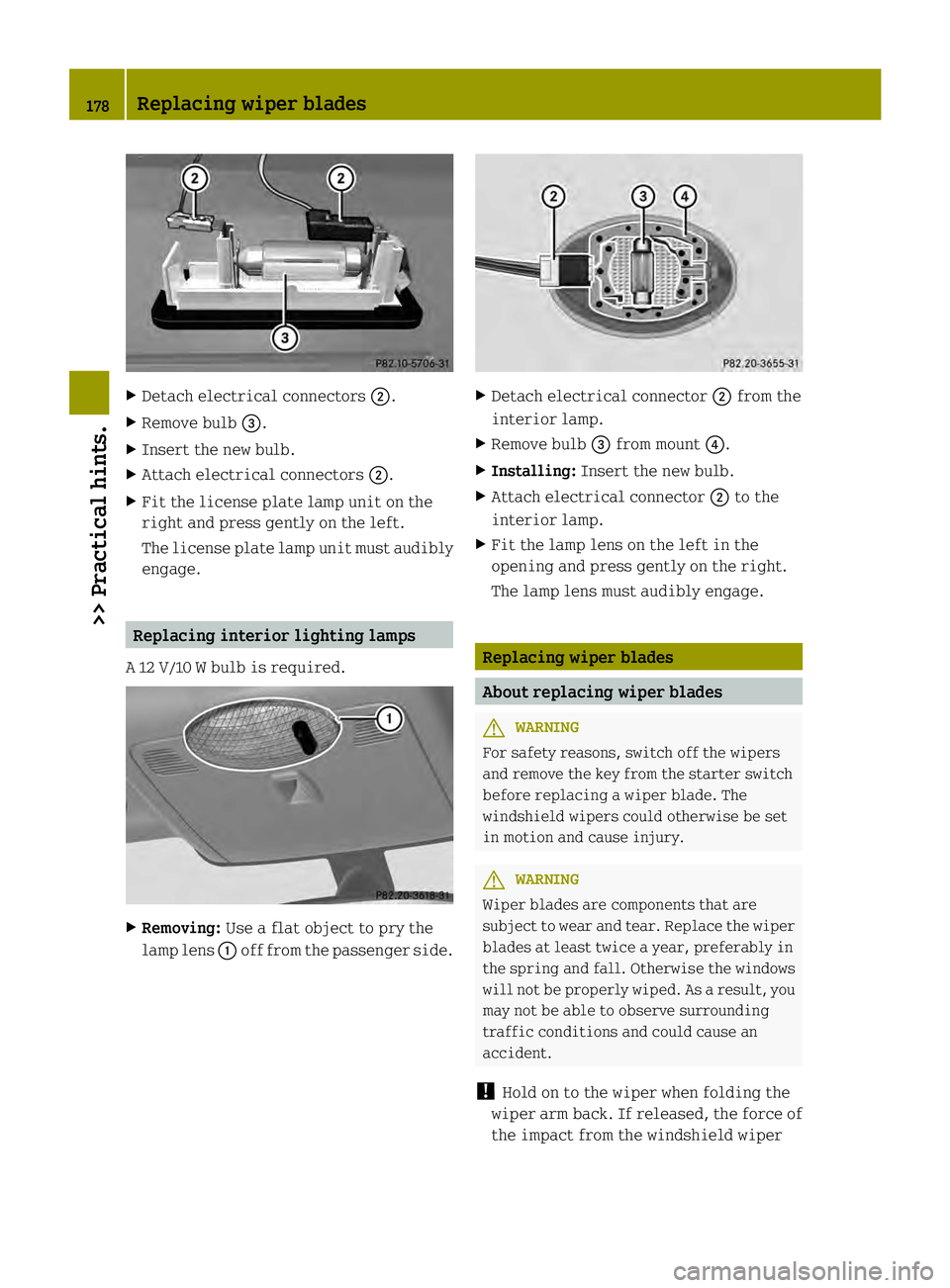

X
Detach electrical connectors 0003.
X Remove bulb 002B.
X Insert the new bulb.
X Attach electrical connectors 0003.
X Fit the license plate lamp unit on the
right and press gently on the left.
The license plate lamp unit must audibly
engage. Replacing interior lighting lamps
A 12 V/10 W bulb is required. X
Removing: Use a flat object to pry the
lamp lens 0002off from the passenger side. X
Detach electrical connector 0003from the
interior lamp.
X Remove bulb 002Bfrom mount 002A.
X Installing: Insert the new bulb.
X Attach electrical connector 0003to the
interior lamp.
X Fit the lamp lens on the left in the
opening and press gently on the right.
The lamp lens must audibly engage. Replacing wiper blades
About replacing wiper blades
G
WARNING
For safety reasons, switch off the wipers
and remove the key from the starter switch
before replacing a wiper blade. The
windshield wipers could otherwise be set
in motion and cause injury. G
WARNING
Wiper blades are components that are
subject to wear and tear. Replace the wiper
blades at least twice a year, preferably in
the spring and fall. Otherwise the windows
will not be properl ywiped. As a result, you
may not be able to observe surrounding
traffic conditions and could cause an
accident.
! Hold on to the wiper when folding the
wiper arm back. If released, the force of
the impact from the windshield wiper 178
Replacing wiper blades>> Practical hints.
