Driving and parking
Safety notes ............................. 74
Driving safety systems ....................44
ABS ........................................ 44
ESP ®
....................................... 45
Hydraulic brake assistant ...........46 E
ECO indicator ............................... 83
Electrical system Improper work on or
modifications ........................... 15
Power outlet ............................ 106
Electronic immobilizer ..................46
Electronic Power Steering see EPS
Electronic Stability Program
see ESP ®
Emergency, in case of Hazard warning flasher ..........46, 66
Roadside Assistance ..................14
Emergency Tensioning Device
see ETD
Emission control
Information label .................... 208
System warranties ......................12
Engine
Electronic s............................. 206
Starting .................................. 74
Turning off .............................. 77
EPS (Electronic Power Steering)
Warning lamp .......................... 163
ESP ®
(Electronic Stability Program) ..45
Warning lamp .......................... 163
ETD (Emergency Tensioning Device) ...31
Safet yguidelines ...................... 33
Exterior lamp switch ......................62
Exterior lighting Overview ................................ 173
Exterior rear view mirrors ..............59 F
First-aid kit ............................... 154
Flat tire ..................................... 180
Fluids Capacities .............................. 212 Fog lamps
................................ 65, 173
Front air bags see Air bags
Front compartment ......................... 117
Front lamps Overview ................................ 173
Fuse chart ................................... 201
Fuses .......................................... 198 G
GAWR (Gross Axle Weight Rating) ......138
Global locking/unlocking ................51
Glove box .................................... 103
Gross Axle Weight Rating see GAWR
Gross Vehicle Weight
see GVW
Gross Vehicle Weight Rating
see GVWR
GVW (Gross Vehicle Weight) .............138
GVWR (Gross Vehicle Weight Rating) ..138 H
Halogen headlamps see Headlamps
Hazard warning flasher .................... 66
Headlamps Automatic headlamp mode ............ 62
Daytime running lamp mode .........63
High-beam flasher .....................64
High-beam headlamps ................. 64
Low-beam headlamps ..................62
Switch ..................................... 62
Head-thorax air bags ......................35
Heated exterior rear view mirrors .....59
Height adjustment Seats ...................................... 57
High-beam flasher ......................... 64
High-beam headlamps ................64, 173
Indicator lamp ........................ 164
High-mounted brake lamp ...............174
High-voltage battery Charg elevel gauge .................... 79
Charging (AC power socket) .........112
Charging (control system) ...........88
Charging (private wallbox) .........112 6
Index
Page 12 of 218
Storage compartments
....................102
Coin holder ............................. 102
Door pockets ........................... 102
Drawer ................................... 103
Glove box ................................ 103
in the tailgate ........................ 104
Parcel nets ............................. 103
Storage tray in center console ....103
Storage trays next to steering
whee l..................................... 102
Storing tires ............................... 132
Sun screen ................................... 105
Sun visors ................................... 105T
Tailgate Closin g............................... 53, 55
Opening .............................. 52, 54
Tail lamps ................................... 174
Technical data Brake fluid ............................. 212
Coolant .................................. 213
Dimensions and weights ............ 209
Identification label s............... 208
Rims and tire s......................... 210
Service fluids and capacities .....211
Windshield/rear window washer
system ................................... 212
Temperature
Coolant .................................. 146
Interior temperature .................. 97
Outside ................................... 83
Tether anchorage points
see Children in the vehicle
Thorax-pelvis side air bags .............36
Tightening torque Wheels ................................... 133
TIN (Tire Identification
Number) ................................. 136, 139
Tire and Loading Information
placard ....................................... 127
Tire and loading terminology ..........137
Tire Identification Number see TIN Tire inflation pressure
Checking ................................ 124
Importan tnotes on .................... 124
Placard on driver’s door B-
pillar .................................... 127
Tire labeling ............................... 133
Tire load rating ........................... 139
Tire ply composition and material
used ........................................... 139
Tire Pressure Monitoring System
(TPMS) ........................................ 125
Tire repair kit ....................... 154, 180
Tires .................................... 122, 210
Air pressure ........................... 122
Care and maintenance ................131
Cleaning ................................ 132
Direction of rotation, spinning ... 131
Driving instructions ................143
Flat tire ................................. 180
Important notes on tire
inflation pressure ...................124
Inflation pressure ....................124
Information placard .................. 127
Inspection .............................. 131
Labeling ................................ 133
Load rating ............................. 139
Ply composition and material
used ...................................... 139
Problems under-/overinflation ...124
Retreads ................................. 122
Rims and tires (technical data) ...210
Rotatio n................................. 133
Service life ............................ 131
Sizes ..................................... 210
Snow chain s............................ 140
Speed rating ................ 135, 139, 145
Storing .................................. 132
Temperature ...................... 124, 133
Terminology ............................ 137
Tire Identification Number ..136, 139
Tire Pressure Monitoring
System (TPMS) .......................... 125
Traction ..................... 132, 139, 144
Tread ..................................... 139
Tread depth ....................... 131, 140
Treadwear indicators ..........131, 140
Vehicle maximum load on ...........140 10
Index
Page 22 of 218
Cockpit
Function Page
0002
Exterior lamp switch 62
0003
Steering wheel
002B
Instrument cluster 21
002A
Steering wheel paddle
shifters
77
0028
Charge level gauge 79
0029
Power gauge 79
0018
Glove box 103
AUX/USB sockets* 93
0019
Overhead control panel 26
001A
Radio 91
001B
Center console switches 25
001D
Coin holder 102
Retractable soft top
switch
1 70 Function Page
001E
Gear selecto
rlever 77
0020
Starter switch 55
0021
Auxiliary power outlet 106
0022
Storage tray* 103
0023
Wiper switch 67
Cruise control switch* 93
Control lever (control
system)
81
0024
On-board Diagnostics
Socket (OBD)
207
0033
Horn
0034
Cruise control buttons* 93
0035
Door control panel 26
0036
Inside door handle 52
1
cabriolet only. 20
Cockpit>> At a glance.
* optional
Page 36 of 218
any authorized electric drive smart
center.
How an air bag operates An air bag is inflated in a matter of
milliseconds. If an air bag is triggered,
the SRS indicator lamp
000Ain the
instrument cluster illuminates.
! If the air bags are activated, you will
hear a loud noise and some dust may be
generated. The explosion fundamentally
represents no risk to your hearing.
An inflated air bag slows down and reduces
the movement of the occupant. When the
occupant makes contact with a front air bag
or head-thorax air bag (cabriolet only),
hot gas flows out of the inflated front air
bags and head-thorax air bags (cabriolet
only). This reduces the load on the
occupant’s head and upper body. These air
bags are consequently deflated after the
accident.
Driver front air bag/passenger front air
bag The front air bags are designed to reduce
the potential of injury in certain frontal
impacts.
Driver front air bag and passenger front
air bag are deployed
R
at the start of an accident with high
vehicle deceleration in the longitudinal
direction
R independently of other air bags in the
vehicle being deployed
R never in the event of arollover, unless
high vehicle deceleration in the
longitudinal direction is detected
i The front air bags in this vehicle have
been designed to inflate in two stages.
This allows the air bag to have different
rates of inflation that are based on the
rate of relevant vehicle deceleration and a fastened or unfastened seat belt as
assessed by the air bag control unit.
On the passenger side, the front air bag
deployment is additionally influenced
by the passenger’s weight category as
identified by the Occupant
Classification System (OCS)
(Y
page 37).
The lighter the passenger side occupant,
the higher the vehicle deceleration rate
required for the second stage inflation
of the air bag.
The air bags will not deploy in impacts
which do not exceed the system’s
deployment thresholds. In such instances,
the seat belts are designed to protect you.
The passenger air bag will only be
deployed if
R the system, based on OCS weight sensor
readings, senses that the passenger seat
is occupied and the 00090007
indicator lamp is not lit (Y page 39)
R the impact exceeds a preset deployment
threshold
The driver front air bag is located in the
steering wheel housing, the passenger
front air bag above the glove box. 0002
Driver front air bag
0003 Passenger front air bag 34
Occupant safety>> Safety.
Page 95 of 218
AUX and USB sockets
You can connect mobile audio devices such
as an MP3 player via the AUX and USB
sockets using commercially available
3.5 mm socket plug (AUX) or USB connector
cable (USB).

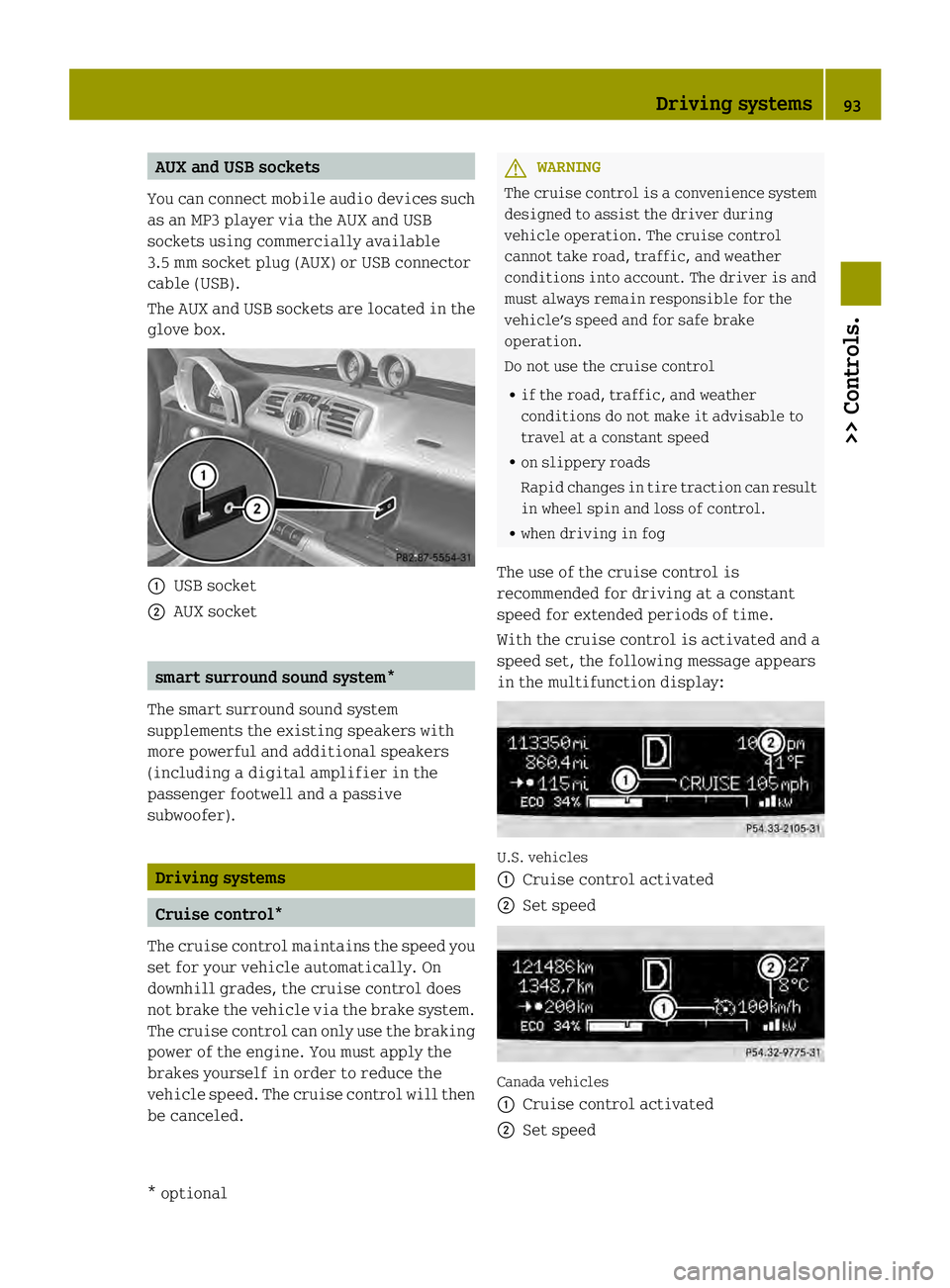

The AUX and USB sockets are located in the
glove box. 0002
USB socket
0003 AUX socket smart surround sound system*
The smart surround sound system
supplements the existing speakers with
more powerful and additional speakers
(including a digital amplifier in the
passenger footwell and a passive
subwoofer). Driving systems
Cruise control*
The cruise control maintains the speed you
set for your vehicle automatically. On
downhill grades, the cruise control does
not brake the vehicle via the brake system.
The cruise control can only use the braking
power of the engine. You must apply the
brakes yourself in order to reduce the
vehicle speed. The cruise control will then
be canceled. G
WARNING
The cruise control is aconvenience system
designed to assist the driver during
vehicle operation. The cruise control
cannot take road, traffic, and weather
conditions into account. The driver is and
must always remain responsible for the
vehicle’s speed and for safe brake
operation.
Do not use the cruise control
R if the road, traffic, and weather
conditions do not make it advisable to
travel at a constant speed
R on slippery roads
Rapid changes in tire traction can result
in wheel spin and loss of control.
R when driving in fog
The use of the cruise control is
recommended for driving at a constant
speed for extended periods of time.
With the cruise control is activated and a
speed set, the following message appears
in the multifunction display: U.S. vehicles
0002
Cruise control activated
0003 Set speed Canada vehicles
0002
Cruise control activated
0003 Set speed Driving systems
93>> Controls.
* optional Z
Page 105 of 218
Glove box
i
A clamp rail for slips of paper is
located on the outside of the glove box
lid. X
Opening: Pull on glove box lid
release 0002and fold down the glove box
lid.
X Closing: Lift up the glove box lid with a
bit of force until it engages.
X Locking: Insert the key into the glove box
lock and turn it to position 0006.
X Unlocking: Insert the key into the glove
box lock and turn it to position 0005.
Storage tray* in center console X
Installing: Slide storage tray 0003onto the
cones on the center console until it
engages audibly.
X Removing: Press levers 0002
simultaneously towards the storage tray.
X Pull storage tray 0003away from the center
console. X
Opening: Pull handle 002B.
X Closing: Swivel storage tray 0003back
until it engages.
Parcel nets Parcel nets are located on the in-board
sides of the seat backrests.
i
Vehicles equipped with an armrest* on
the driver’s seat, have aparcel net on the
passenger seat only.
i Each parcel net is intended for light-
weight items of below 0.9 lb (0.4 kg). Example illustration: Parcel net on passenger
seat
0002
Parcel net
Drawer Ad
rawer is located below the audio system. Loading and storing
103>> Controls.
* optional Z
Page 183 of 218

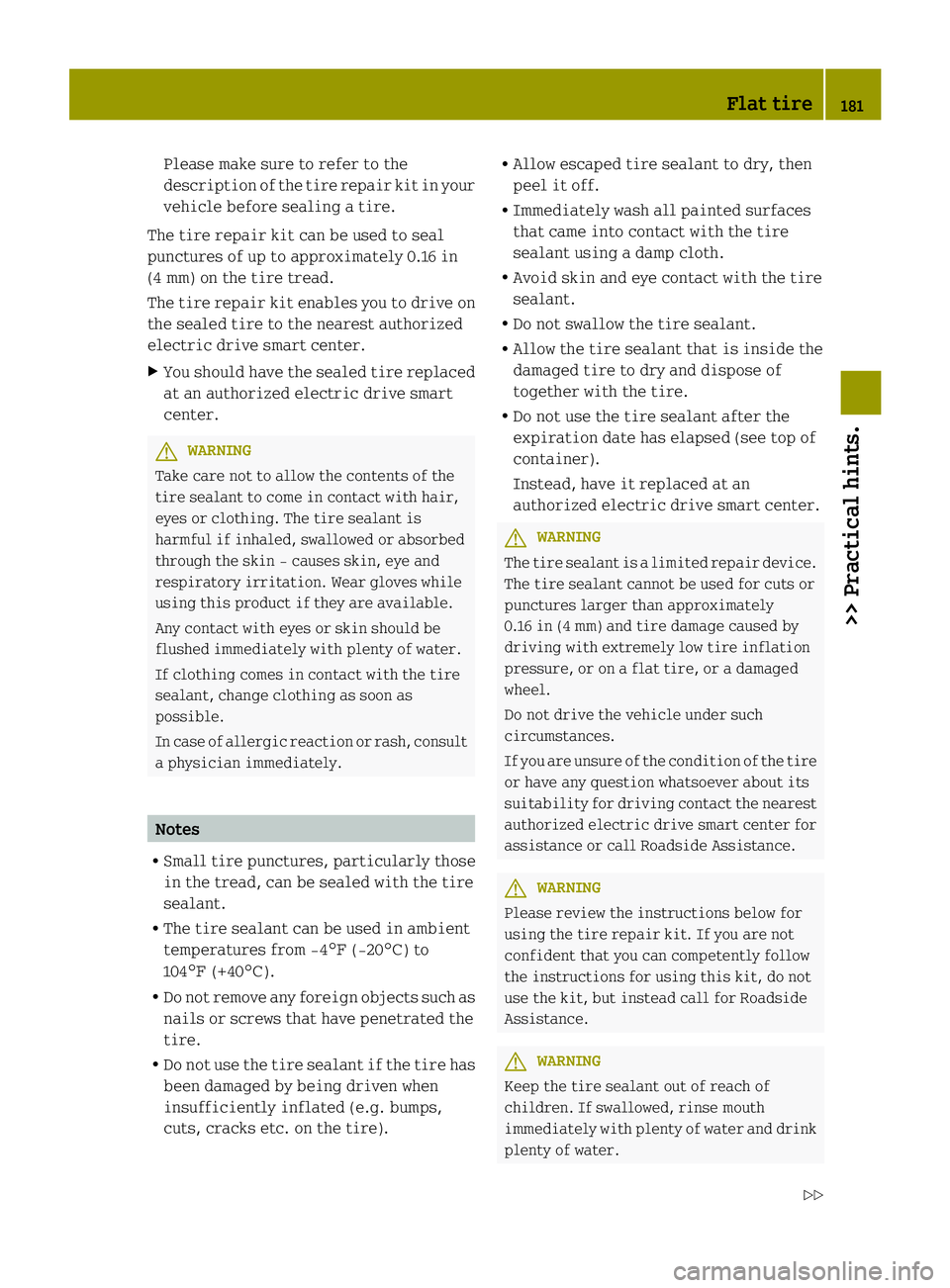

Please make sure to refer to the
description of the tire repair kit in your
vehicle before sealing a tire.
The tire repair kit can be used to seal
punctures of up to approximately 0.16 in
(4 mm) on the tire tread.
The tire repair kit enables you to drive on
the sealed tire to the nearest authorized
electric drive smart center.
X You should have the sealed tire replaced
at an authorized electric drive smart
center. G
WARNING
Take care not to allow the contents of the
tire sealant to come in contact with hair,
eyes or clothing. The tire sealant is
harmful if inhaled, swallowed or absorbed
through the skin - causes skin, eye and
respiratory irritation. Wear gloves while
using this product if they are available.
Any contact with eyes or skin should be
flushed immediately with plenty of water.
If clothing comes in contact with the tire
sealant, change clothing as soon as
possible.
In case of allergic reaction or rash, consult
a physician immediately. Notes
R Small tire punctures, particularly those
in the tread, can be sealed with the tire
sealant.
R The tire sealant can be used in ambient
temperatures from ‑4 ¦(‑20¥ ) to
104¦ (+40¥ ).
R Do not remove any foreig nobjects such as
nails or screws that have penetrated the
tire.
R Do not use the tire sealant if the tire has
been damaged by being driven when
insufficiently inflated (e.g. bumps,
cuts, cracks etc. on the tire). R
Allow escaped tire sealant to dry, then
peel it off.
R Immediately wash all painted surfaces
that came into contact with the tire
sealant using a damp cloth.
R Avoid skin and eye contact with the tire
sealant.
R Do not swallow the tire sealant.
R Allow the tire sealant that is inside the
damaged tire to dry and dispose of
together with the tire.
R Do not use the tire sealant after the
expiration date has elapsed (see top of
container).
Instead, have it replaced at an
authorized electric drive smart center. G
WARNING
The tire sealant is alimited repair device.
The tire sealant cannot be used for cuts or
punctures larger than approximately
0.16 in (4 mm) and tire damage caused by
driving with extremely low tire inflation
pressure, or on a flat tire, or a damaged
wheel.
Do not drive the vehicle under such
circumstances.
If you are unsure of the condition of the tire
or have any question whatsoever about its
suitability for driving contact the nearest
authorized electric drive smart center for
assistance or call Roadside Assistance. G
WARNING
Please review the instructions below for
using the tire repair kit. If you are not
confident that you can competently follow
the instructions for using this kit, do not
use the kit, but instead call for Roadside
Assistance. G
WARNING
Keep the tire sealant out of reach of
children. If swallowed, rinse mouth
immediately with plenty of water and drink
plenty of water. Flat tire
181>> Practical hints.
Z
Page 192 of 218
X
Install last wheel bolt and tighten it
slightly.
X Lower the vehicle until the vehicle is
resting fully on its own weight.
X Remove the jack.
X Tighten the wheel bolts. Observe a
tightening torque of 80 lb-ft (110 Nm). G
WARNING
Have the tightening torque checked after
changing awheel. The wheels could come
loose if they are not tightened to a torque
of 80 lb-ft (110 Nm).
i The Tire Pressure Monitoring System
(TPMS)* only functions on wheels that are
equipped with the proper electronic

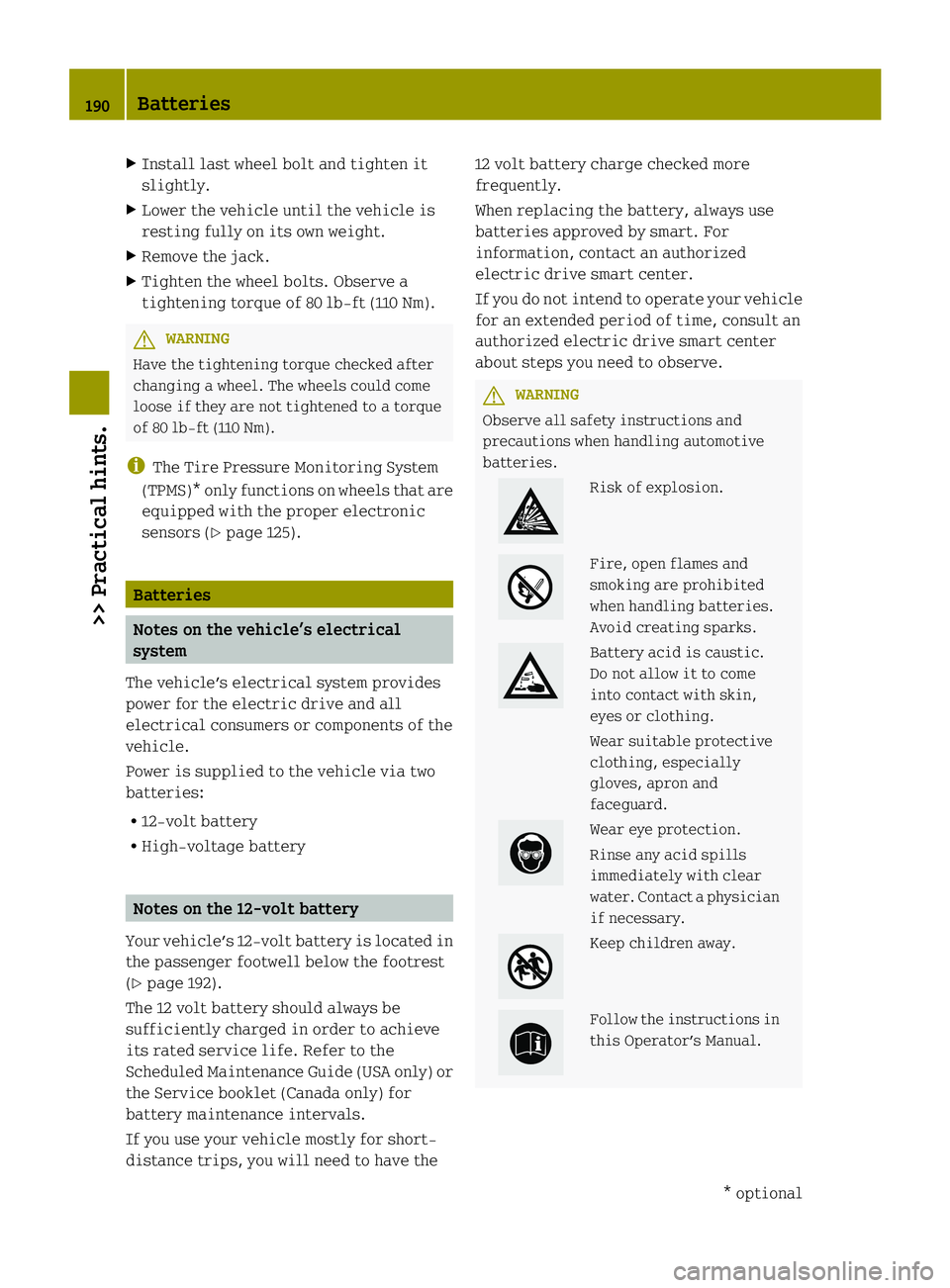

sensors (Y page 125). Batteries
Notes on the vehicle’s electrical
system
The vehicle’s electrical system provides
power for the electric drive and all
electrical consumers or components of the
vehicle.
Power is supplied to the vehicle via two
batteries:
R 12-volt battery
R High-voltage battery Notes on the 12‑volt battery
Your vehicle’s 12‑volt battery is located in
the passenger footwell below the footrest
(Y page 192).
The 12 volt battery should always be
sufficiently charged in order to achieve
its rated service life. Refer to the
Scheduled Maintenance Guide (USA only) or
the Service booklet (Canada only) for
battery maintenance intervals.
If you use your vehicle mostly for short-
distance trips, you will need to have the 12 volt battery charge checked more
frequently.
When replacing the battery, always use
batteries approved by smart. For
information, contact an authorized
electric drive smart center.
If you do not intend to operat
eyour vehicle
for an extended period of time, consult an
authorized electric drive smart center
about steps you need to observe. G
WARNING
Observe all safety instructions and
precautions when handling automotive
batteries. Risk of explosion.
Fire, open flames and
smoking are prohibited
when handling batteries.
Avoid creating sparks.
Battery acid is caustic.
Do not allow it to come
into contact with skin,
eyes or clothing.
Wear suitable protective
clothing, especially
gloves, apron and
faceguard.
Wear eye protection.
Rinse any acid spills
immediately with clear
water. Contact a physician
if necessary.
Keep children away.
Follow the instructions in
this Operator’s Manual.190
Batteries>> Practical hints.
* optional
