high beam SMART FORTWO COUPE ELECTRIC DRIVE 2014 Owners Manual

Through standing water
.............152
Tips, recuperation .....................81
Tips, transmission ..................... 81
Driving and parking
Safety notes ............................. 76
Driving safety systems ....................46
ABS ........................................ 46
ESP ®
....................................... 47
Hydraulic brake assistant ...........48 E
ECO indicator ............................... 86
Electrical system Improper work on or modifica-
tions ....................................... 16
Power outlet ............................ 110
Electronic immobilizer ..................49
Electronic Power Steering see EPS
Electronic Stability Program
see ESP ®
Emergency, in case of Hazard warning flasher ..........48, 68
Roadside Assistance ................... 15
Emergency Tensioning Device
see ETD
Emission control
Information label .....................214
System warranties ......................13
Engine
Electronics ............................. 212
Starting .................................. 76
Turning off .............................. 79
EPS (Electronic Power Steering)
Warning lamp .......................... 170
ESP ®
(Electronic Stability Program) ...47
Warning lamp .......................... 170
ETD (Emergency Tensioning Device) ...33
Safety guidelines ......................35
Exterior lamp switch ......................64
Exterior lighting Overview ................................ 180
Exterior rear view mirrors ..............61 F
Flat tire ..................................... 187
Fluids Capacities .............................. 218
Fog lamps ................................ 67, 180
Front air bags see Air bags
Front compartment ........................ 123
Front lamps Overview ................................ 180
Fuse chart ................................... 208
Fuses ......................................... 205 G
GAWR (Gross Axle Weight Rating) ......144
Global locking/unlocking ................53
Glove box .................................... 106
Gross Axle Weight Rating see GAWR
Gross Vehicle Weight
see GVW
Gross Vehicle Weight Rating
see GVWR
GVW (Gross Vehicle Weight) .............144
GVWR (Gross Vehicle Weight Rating) ..144 H
Halogen headlamps see Headlamps
Hazard warning flasher .................... 68
Headlamps Automatic headlamp mode ............ 64
Daytime running lamp mode .........65
High-beam flasher .....................66
High-beam headlamps ................. 66
Low-beam headlamps ..................64
Switch ..................................... 64
Head-thorax air bags ......................37
Heated exterior rear view mirrors .....61
Height adjustment Seats ...................................... 59
High-beam flasher ......................... 66
High-beam headlamps ................66, 180
Indicator lamp ......................... 171
High-mounted brake lamp ...............1816
Index

High-voltage battery
Battery care ............................ 113
Charge level gauge ..................... 81
Charging (AC power socket) ......... 114
Charging (control system) ...........92
Charging (private wallbox) .........115
Charging (public charging sta-
tion) ...................................... 117
Charging cable ........................ 115
Charging cable warming ............114
Cruise range ........................... 113
Discharged battery ...................113
Displaying available power .........85
ECO indicator ........................... 86
Energy consumption ..................113
Intelligent charging manage-
ment ...................................... 123
Introduction ........................... .112
Notes ..................................... 198
Outside temperatures ................113
Overvoltage protection ..............114
Problems with the charging
process .................................. 120
READY indicator ........................ 87
Terms of use ............................ 114
Warning label (wheel change) ......196
Warning lamp ........................... 171
High-voltage disconnect device ........18
Hill-start assist system ..................81
Hydraulic brake assistant ................48
Hydroplaning ............................... 150I
Identification labels ....................214
Identification number, vehicle
(VIN) .......................................... 215
Infant and child restraint systems see Children in the vehicle
Inflation pressure
see Tires, Inflation pressure
Inside door handle ......................... 54
Instrument cluster .....................23, 25
Illumination ............................ 83
Lamps, indicator and warning .....166
Instrument panel
see Instrument cluster Instruments and controls
see Cockpit
Intelligent charging management
High-voltage battery ................123
Interior motion sensor .................... 49
Interior rear view mirror ................61
Interior storage spaces see Storage compartments
Intermittent wiping
Rear window wiper .....................70
Windshield wipers .....................69
Internet connection
Via mobile service module .........122
Via powerline .......................... 122 J
Jump-starting ............................. 200 K
Key ............................................. 52
Loss of ................................... 176
Replacing the transmitter bat-
tery ....................................... 178
Kilopascal (air pressure unit) .........144
Knee bag ....................................... 37 L
Labels ........................................ 214
Emission control information .....214
Lamps, exterior
Exterior lamp switch ..................64
Switching on/off ....................... 64
Lamps, indicator and warning
12-volt-battery ........................ 171
ABS ....................................... .167
Brakes ................................... 167
Coolant temperature .................172
Drive diagnostics ....................173
EPS ........................................ 170
ESP ®
...................................... 170
Fog lamps ................................ 67
High-beam headlamps ................1 71
High-voltage battery .................171
Low-beam headlamps .................171
Low tire pressure/TPMS mal-
function telltale ...................... 173 Index
7

Indicator and warning lamps
Function Page
0043
0059
Low‑beam head-
lamp indicator
lamp 64,
171 0044
003E
Left turn signal
indicator lamp 66,
172 0087
00E5
ESP®
warning lamp 170
0085
003D
Right turn signal
indicator lamp 66,
172 0083
0052
EPS warning lamp 170
0084
00ED
Drive diagnostics
indicator lamp 173
006B
00DF
ABS indicator lamp 167
006C
0027
Brake warning lamp 167
006D
00ED
Drive diagnostics
warning lamp 173 Function Page
006E
00AC
Coolant tempera-
ture warning lamp 172
006F
0075
High-voltage bat-
tery warning lamp 171
0070
003D
12-volt battery
indicator lamp 171
0071
0075
SRS indicator lamp 169,
169 0072
0076
Seat belt telltale 168
0073
0077
Combination low
tire pressure/TPMS
malfunction tell-
tale* 173
0074
0057
High‑beam head-
lamp indicator
lamp 66,
171 24

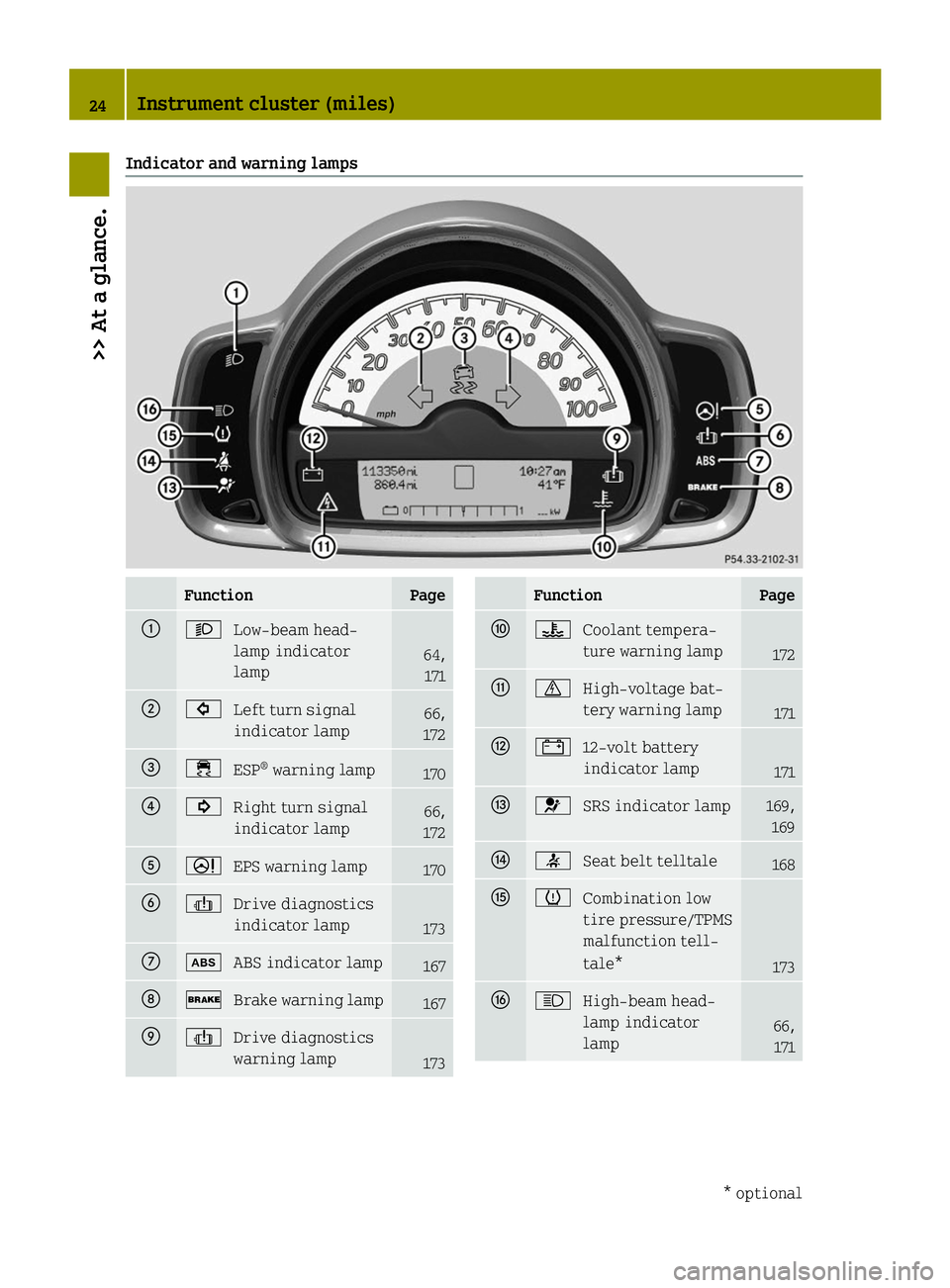

Instrument cluster (miles)>> At a glance.
* optional

Indicator and warning lamps
Function Page
0043
0059
Low‑beam head-
lamp indicator
lamp 64,
171 0044
003E
Left turn signal
indicator lamp 66,
172 0087
00E5
ESP®
warning lamp 170
0085
003D
Right turn signal
indicator lamp 66,
172 0083
0052
EPS warning lamp 170
0084
00ED
Drive diagnostics
indicator lamp 173
006B
0025
ABS indicator lamp 167
006C
004D
Brake warning lamp 167
006D
00ED
Drive diagnostics
warning lamp 173 Function Page
006E
00AC
Coolant tempera-
ture warning lamp 172
006F
0075
High-voltage bat-
tery warning lamp 171
0070
003D
12-volt battery
indicator lamp 171
0071
0075
SRS indicator lamp 169
0072
0076
Seat belt telltale 168
0073
0077
Combination low
tire pressure/TPMS
malfunction tell-
tale* 173
0074
0057
High‑beam head-
lamp indicator
lamp 66,
171 26
Instrument cluster (kilometers)>> At a glance.
* optional

X
Closing: Swivel the rear soft top down-
wards to close.
X Pull soft top down.
X Pull release levers 0043, located to the left
and right of the retaining clip, down-
wards.
X Make sure the rear soft top is correctly
locked in place on both sides. Closing the tailgate on the cabriolet
G
WARNING
To prevent possible personal injury,
always keep hands and fingers away from the
cargo compartment opening when closing
the tailgate. Be especially careful when
small children are around.
! When closing the tailgate, you must
first close the rear soft top. Otherwise
you might break the release levers of the
rear soft top.
X Swivel the tailgate upwards to close. Let
the tailgate lock into place. G
WARNING
When leaving the vehicle, always remove the
key from the starter switch, take it with
you, and lock the vehicle. Do not leave chil-
dren unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious per-
sonal injury. Starter switch positions
Starter switch
005A
For removing key
0047
Ignition (power supply for all elec-
trical consumers) and driving posi-
tion
0048
Starting the drive system
i
When you switch on the ignition, the
indicator and warning lamps (except
low‑beam headlamp indicator lamp,
high‑beam headlamp indicator lamp, and
turn signal indicator lamps unless acti-
vated) in the instrument cluster come on.
The indicator and warning lamps (except
low‑beam headlamp indicator lamp,
high‑beam headlamp indicator lamp, and
turn signal indicator lamps if activated)
will go out when the drive system is run-
ning. This indicates that the respective
systems are operational.
i When you start the drive system, READY
READY
appears in the multifunction display.
The warning and indicator lamps will go
out.
The pointer of the power gauge moves
from "OFF“ to "0“ (Y page 81). Starter switch positions
57>> Controls. Z

R
you have adjusted seat backrest 0087to
a position that is as upright as possi-
ble
R you can move your legs freely
R you can depress the brake and accel-
erator pedal safely.
X Make sure the seat belt is fastened prop-
erly (Y page 62). Lighting
Exterior lamp switch
For safety, smart recommends that you
drive with your low‑beam headlamps on
during the day. In certain countries, local
laws dictate that low‑beam headlamps are
switched on automatically during opera-
tion of the vehicle.
i If you drive in countries where vehi-
cles drive on the other side of the road
than the country in which the vehicle is
registered, you must have the headlamps
modified for symmetrical low beams.
Relevant information can be obtained at
any authorized electric drive smart
center. Exterior lamp switch
003F
Lamps off
Daytime running lamp mode*
0060 Parking lamps
0058 Low‑beam headlamps or high‑beam
headlamps
0058 Automatic headlamp mode* Parking lamps You can switch on and off the parking lamps
with the exterior lamp switch using the
manual headlamp mode.
X
Switching on: Turn the exterior lamp
switch to position 0060.
The parking lamps come on.
The following lamps also come on:
R Tail lamps
R License plate lamps
R Side marker lamps
Low‑beam headlamps You can switch on and off the low‑beam
headlamps with the exterior lamp switch
using the manual headlamp mode.
X
Switching on: Turn the exterior lamp
switch to position 0058.
The low‑beam headlamps come on.
The low‑beam headlamp indicator lamp
0059 in the instrument cluster comes on.
The following lamps also come on:
R Tail and parking lamps
R License plate lamps
R Side marker lamps
Automatic headlamp mode* This feature is only available on vehicles
with rain-light sensor*.
The following lamps come on and go out
automatically depending on the brightness
of the ambient light:
R
Low‑beam headlamps
R Tail and parking lamps
R License plate lamps
R Side marker lamps G
WARNING
If the exterior lamp switch is set to posi-
tion 0058, the headlamps will not be auto-
matically switched on under foggy condi-
tions. 64
Lighting>> Controls.
* optional

To minimize risk to you and to others, acti-
vate headlamps by turning exterior lamp
switch to position 0058when driving or
when traffic and/or ambient lighting con-
ditions require you to do so.
In low ambient lighting conditions, only
switch from position 0058to0058 with the
vehicle at a standstill in a safe location.
Switching from position 0058to0058 will
briefly switch off the headlamps. Doing so
while driving in low ambient lighting con-
ditions may result in an accident.
The automatic headlamp feature is only an
aid to the driver. The driver is responsible
for the operation of the vehicle’s lights at
all times.
X Turn the exterior lamp switch to position
0058.
With the key in starter switch position
1, the tail and parking lamps, the license
plate lamps, and the side marker lamps
will come on and go out automatically
depending on the brightness of the ambi-
ent light.
With the engine running, the low‑beam
headlamps, the tail and parking lamps,
the license plate lamps and the side
marker lamps will come on and go out
automatically depending on the bright-
ness of the ambient light.
Daytime running lamp mode* In USA, the daytime running lamp mode can
be deactivated.
In Canada, the daytime running lamp mode
is mandatory and therefore in a constant
mode.
Depending on the vehicle equipment, your
vehicle comes either with low-beam day-
time running lamps or with LED daytime
running lamps. Switching on:
X
Start the drive system.
The daytime running lamps are switched
on.
On vehicles with low beam daytime run-
ning lamps the parking lamps also come
on.
Switching off - vehicles without rain-
light sensor*:
X Switch on the parking lamps 0060or the
low‑beam headlamps 0059.
The daytime running lamps are switched
off.
Switching off - vehicles with rain-light
sensor*:
X Switch on the parking lamps 0060or the
low‑beam headlamps 0059.
The daytime running lamps are switched
off.
or
X Turn the exterior lamp switch to position
0058.
With the engine running, the low‑beam
headlamps, the tail and parking lamps,
the license plate lamps and the side
marker lamps will come on and go out
automatically depending on the bright-
ness of the ambient light.
Deactivating (USA only):
X Switch off the ignition.
X Remove the key from the starter switch.
X Switch on the high-beam flasher and
press button 0034on the key simultane-
ously.
An acoustic signal sounds.
The daytime running lamp mode is deac-
tivated. Lighting
65>> Controls.
* optional Z

Reactivating (USA only):
X
Switch off the ignition.
X Remove the key from the starter switch.
X Switch on the high-beam flasher and
press button 0034on the key simultane-
ously.
An acoustic signal sounds.
The daytime running lamp mode is reac-
tivated. Combination switch (high beam, high
beam flasher and turn signals)
X Make sure the key is in starter switch
position 1.
High‑beam headlamps and high-beam
flasher X
Make sure the low‑beam headlamps are
switched on (Y page 64).
X Switching on: Push the combination
switch to position 0047.
The high‑beam headlamps come on.
The high‑beam headlamp indicator lamp
0057 in the instrument cluster comes on.
X Switching off: Pull the combination
switch in direction of arrow 0044to its
original position.
The high‑beam headlamps go out.
The high‑beam headlamp indicator lamp
0057 in the instrument cluster goes out.
X High-beam flasher: Pull the combination
switch briefly in direction of arrow 0044.Turn signals
0043
Turn signals, right
0044 Turn signals, left
X Switching on: Push the combination
switch in direction of arrow 0043or0044.
The corresponding turn signals flash.
The corresponding turn signal indicator
lamp 003E or003D in the instrument
cluster flashes.
The combination switch resets automat-
ically after major steering wheel move-
ment.
i To signal minor directional changes
such as changing lanes, push the combi-
nation switch only to the point of resist-
ance and release. The corresponding turn
signals will flash three times. Coming home function
The interior lamps come on and then go out
again after 12 seconds every time when you
lock or unlock the vehicle.
When leaving the vehicle X
Remove the key from the starter switch.
X Exit the vehicle.
X Press button 0038on the key.
The vehicle is locked.
The interior lamps come on and then go
out again after 12 seconds. 66
Lighting>> Controls.

For more information on coolant tempera-
ture warning lamp (Y page 172).Driving abroad
Abroad, there is an extensive smart service
network at your disposal. If you plan to
drive into areas which are not listed in the
index of your smart center directory, you
should request pertinent information from
an authorized electric drive smart center.
Keep in mind, however, that due to the tech-
nical requirements of the smart fortwo
electric drive and its high-voltage power
systems, the vehicle should be serviced
only at an authorized electric drive smart
center.
If you plan to operate your vehicle in for-
eign countries, please be aware that:
R Service facilities or replacement parts
may not be readily available.
R The AC power sockets in some countries,
especially overseas, require different
plugs on the charging cable.
R Charging stations may not be available. Symmetrical low beams
i If you drive in countries where vehi-
cles drive on the other side of the road
than the country in which the vehicle is
registered, you must have the headlamps
modified for symmetrical low beams.
Relevant information can be obtained at
any authorized electric drive smart
center. Vehicle care
Care tips
Regular and proper care will help to main-
tain the value of your vehicle. The best way
to protect your vehicle from harmful envi- ronmental influences is to wash it and use
protective treatments regularly.
smart recommends that you care for the
paintwork at least twice a year (e.g. in the
spring and autumn). G
WARNING
Many cleaning products can be hazardous.
Some are poisonous, others are flammable.
Always follow the instructions on the par-
ticular container. Always open your vehi-
cle’s doors or windows when cleaning the
inside.
Never use fluids or solvents that are not
designed for cleaning your vehicle.
Always lock away cleaning products and
keep them out of reach of children.
! Follow the care tips. Wash your vehicle
preferably by hand.
While in operation or even while parked,
your vehicle is subjected to varying exter-
nal influences, which left unchecked can
attack the paint as well as the vehicle
underbody and lead to permanent damage.
Such damage is caused not only by extreme
and varying climatic conditions, but also
by:
R Air pollution
R Road salt
R Tar
R Gravel and stone chipping
To avoid paint damage, you should imme-
diately remove:
R Insects
R Bird droppings
R Tree sap, etc.
R Grease and oil
R Brake fluid
R Coolant
R Fuel
R Tar spots
! Failure to remove such dirt immedi-
ately can cause damage to the paint or the Vehicle care
153>> Operation. Z

Vehicle
Problem Possible causes/consequences and
0050
0050Solutions 003D
The red 12-V-
battery indica-
tor lamp illu-
minates while
driving or does
not go out after
the drive sys-
tem is started. The 12-V-battery is not being charged.
X
Stop the vehicle immediately in a safe location.
X Do not continue to drive.
X Switch off the drive system.
X Engage the parking brake when leaving the vehicle.
X Contact Roadside Assistance or an authorized electric drive
smart center. 0075
The yellow
high-voltage
battery warn-
ing lamp comes
on while driv-
ing. There may be a malfunction in the high-voltage system.
Contact an authorized electric drive smart center immediately
and have the high-voltage system checked.
0057
The high‑beam
headlamp indi-
cator lamp does
not illuminate
when the
high‑beam
headlamps are
switched on or
when using the
high‑beam
flasher. The high‑beam headlamp indicator lamp has failed.
X
Have the high‑beam headlamp indicator lamp checked at an
authorized electric drive smart center. 0059
The low‑beam
headlamp indi-
cator lamp does
not illuminate
when the
low‑beam head-
lamps are
switched on. The low‑beam headlamp indicator lamp has failed.
X
Have the low‑beam headlamp indicator lamp checked at an
authorized electric drive smart center. What to do if ...
