Menus and submenus
Function
:
Odometer
Odometer
menu (Ypage 89) ;
YSTART
START menu (trip statistics since start) (Y page 90)=
YRESET
RESET menu (trip statistics since last reset) (Y page 90)?
Charge and depart
Charge and depart
menu (Ypage 90) A
Messages
Messages
menu (Ypage 93) B
Settings
Settings
menu (Ypage 93) C
Time
Time
menu (Y page 94) Odometer menu
The Odometer
Odometer menu shows you either the
main odometer and the trip odometer or the
trip odometer with the remaining cruise
range. :
Main odometer
; Trip odometer
= Remaining cruise range
X Press the control switch on the control
lever (Y page 83) up or down until the Control system
89>> Controls. Z
Page 92 of 222
Odometer
Odometer
menu appears in the multi-
function display.
X To switch between submenus: Press the OK
button on the control lever briefly.
X To reset the trip odometer: Select the
trip odometer display.
X Press button Bon the instrument cluster
until the trip odometer is reset to 0
(Y page 23).
If the remaining cruise range of the charge level of the high-voltage battery has drop-
ped below 10 %, Low Battery
Low Battery is displayed
on position =. Start menu
The YSTARTSTART menu shows you the trip statis-
tics since start. :
Average speed since start
; Time elapsed since start
= Distance driven since start
? Average energy consumption
X Press the control switch on the control
lever (Y page 83) up or down until the
YSTART START menu appears in the multifunc-
tion display.
X To reset: Press button Bon the instru-
ment cluster until the YSTARTSTART menu is
reset to 0(Y page 23).
i The YSTARTSTART menu is reset to 0 automat-
ically
R when the ignition has been switched
off for more than 4 hours
R after driving more than 9999 miles or
kilometers Reset menu
The YRESETRESET menu menu shows you the trip
statistics since the last reset. :
Average speed since last reset
; Time elapsed since since last reset
= Distance driven since last reset
? Average energy consumption
X Press the control switch on the control
lever (Y page 83) up or down until the
YRESET RESET menu appears in the multifunc-
tion display.
X To reset: Press button Bon the instru-
ment cluster until the YRESETRESET menu is
reset to 0(Y page 23). Charge and depart menu
In the Charge and Depart Charge and Depart menu you can
change the following settings:
R set a departure time
R switch on/off the "Air conditioning
before start" function
R instant charge of the high‑voltage bat-
tery
R set the maximum charge current.
X Press the control switch on the control
lever up or down until Charge and Charge and
Depart
Depart appears in the multifunction
display.
X Press the OK button on the control lever
briefly.
Setting the departure time With this function, you can preset a depar-
ture time. 90
Control system>> Controls.
Page 93 of 222
This is useful:
R if you wish to cool the interior of the
vehicle before driving
R if you wish to charge the vehicle at a
charging station/wallbox at the most
inexpensive electricity rate
With the "Air conditioning before start"
function, the vehicle interior is cooled
prior to a desired departure time.
Prerequisites:
R The doors and tailgate are closed.
R The charging cable for the high‑voltage
battery is connected to a power source
and inserted into the vehicle's power
socket.
R The high‑voltage battery has a suffi-
cient charge.
The maximum duration of "Air condition-
ing before start" is 30 minutes.
Set the air distribution of your vehicle as
follows so that the "Air conditioning
before start" function has the greatest
effect:
R in summer, to the center and side vents
R in winter, onto the windshield and side
windows
Information on air distribution can be
found on (Y page 102).
The setting of the airflow regulator has no
influence on the "Air conditioning before
start" function.
i If the programmed time is too short, the
high‑voltage battery cannot be com-
pletely charged. After setting the depar- ture time, the maximum charge level
which can be reached is then shown.
i If the high‑voltage battery is not suf-
ficiently charged and the "Air condi-
tioning before start" function is acti-
vated, the high‑voltage battery is
charged first. When a charge level of at
least 20 %has been reached, the "Air con-
ditioning before start" function is acti-
vated. This function then has priority over the charging of the high‑voltage
battery.
Activating the set departure time X
Press and hold the control switch on the
control lever up or down until the display
of the last set departure time :appears
in the multifunction display. X
Briefly press the OK button on the control
lever.
The departure time is activated ;. The
setting for the "Air conditioning before
start" function =is stored.
Changing the set departure time X Press and hold the control switch on the
control lever up or down until the Over‐
Over‐
write write menu appears in the multifunction
display.
X Briefly press the OK button on the control
lever.
X If the 12-hour mode is set:
press and hold the control switch on the
control lever up or down until the
desired mode (am amorpm pm) is selected.
X Briefly press the OK button on the control
lever.
X Press and hold the control switch on the
control lever up or down until the
desired hour is selected. Control system
91>> Controls. Z
Page 94 of 222
X
Briefly press the OK button on the control
lever.
X Press and hold the control switch on the
control lever up or down until the
desired minute is selected.
X Briefly press the OK button on the control
lever.
X Press and hold the control switch on the
control lever up or down until the "Air
conditioning before start" function is
activated or deactivated.
X Briefly press the OK button on the control
lever.
The new departure time is stored and
activated.
The "Air conditioning before start"
function is activated or deactivated.
Starting the charging process of the
high‑voltage battery immediately This function allows you to start the charg-
ing process immediately. The charging
process begins as soon as the charging
cable is connected.
i The charging process also begins when
you insert the charging cable into the
vehicle's power socket. However, this is
only the case if you have not made any
departure time settings.
Information on the charging process can
be found on (Y page 115).
X Press and hold the control switch on the
control lever up or down until the
Instant Charge
Instant Charge menu appears in the
multifunction display.
X Briefly press the OK button on the control
lever.
The charging process is started as soon
as the charging cable is connected.
i When you call up the Instant Charge Instant Charge
menu, the "Air conditioning before
start" function is not available. Setting the maximum charge current G
WARNING
When connected to a power supply socket, a
high electrical load during the charging
process can lead to overheating of the
external power supply. There is a risk of
fire.
Check the maximum permissible charge
current on site before you begin the charg-
ing process. Contact an authorized electric drive smart center should you require
assistance. If necessary, adjust the set-
tings of your vehicle.
You can limit the charge current of the
high‑voltage battery. This can protect the
power supply from overloading. You can set
the limit either on the control unit of the
charging cable or via the control system.
The preset standard value is "Max". This
corresponds to the maximum available
charge current of the power supply.
Check the maximum permissible charge
current for the respective power supply
socket before charging the high‑voltage
battery.
The following values are available for
selection: 8 A,12 A,Max. The last value set
remains stored until a change is made.
X Press and hold the control switch on the
control lever up or down until the
Charge Current Charge Current menu appears in the
multifunction display.
X Briefly press the OK button on the control
lever.
X Press and hold the control switch on the
control lever up or down until the
desired amperage is selected.
X Briefly press the OK button on the control
lever.
The selected amperage is set.
i If differing values are set on the charg-
ing cable and the control system, the
high‑voltage battery is charged using
the lowest value. 92
Control system>> Controls.
Page 95 of 222
i
If the vehicle needs more time to charge
the high‑voltage battery than usual,
check the settings of the maximum per-
missible charge current. Messages menu
The Messages Messages menu stores messages that
you can call up.
i When no messages have been stored, the
Messages
Messages menu is not displayed. X
Press the control switch on the control
lever (Y page 83) up or down until the
Messages Messages menu appears in the multi-
function display.
The number of stored messages is :dis-
played
X Press the OK button on the control lever
briefly.
The first stored message appears.
X To scroll through messages: Press the OK
button on the control lever briefly.
For more information on display messages,
see (Y page 161).
Maintenance service interval display The maintenance service interval display
will notify you when the next maintenance
service is due and what type of maintenance
service is required.
Example:
R ° Main Service in XXX mi
Main Service in XXX mi
R ° Main Service in XX Days Main Service in XX Days
X To confirm: Press the OK button on the
control lever briefly.
The mesage is stored. When the due date for the maintenance ser-
vice has been has been passed, the number
of miles (kilometers) or days since are
preceeded by a minus sign.
! Failure to have the maintenance ser-
vice performed at the designated times/
mileage, may result in vehicle damage
that is not covered by the smart Limited
Warranty. Settings menu
In the Settings Settings menu, you can select indi-
vidual settings for your vehicle.
The following functions are available:
R Setting the language
R Setting the temperature unit
R Setting the distance and speed unit
X Press the control switch on the control
lever (Y page 83) up or down until the
Settings
Settings menu appears in the multi-
function display.
X Press the OK button on the control lever
briefly.
Setting the language The following languages are available:
R German
R US English
R UK English
R French
R Italian
R Spanish X
Press the control switch on the control
lever (Y page 83) up or down until the Control system
93>> Controls. Z
Page 96 of 222
Language
Language
submenu appears in the multi-
function display.
X Press the OK button on the control lever
briefly.
X Press the control switch on the control
lever (Y page 83) up or down until the
desired language is selected.
X Press the OK button on the control lever
briefly to confirm.
The selected language is stored.
Setting the temperature unit The following units are available:
R †
R ‡
X Press the control switch on the control
lever (Y page 83) up or down until the
°F/°C °F/°C submenu appears in the multifunc-
tion display.
X Press the OK button on the control lever
briefly.
X Press the control switch on the control
lever (Y page 83) up or down until the
desired unit is selected.
X Press the OK button on the control lever
briefly to confirm.
The selected unit is stored.
Setting the distance and speed unit The following units are available:
R Miles (mi)
R Kilometers (km)
X Press the control switch on the control
lever (Y page 83) up or down until the mi– mi–
km
km submenu appears in the multifunction
display.
X Press the OK button on the control lever
briefly. X
Press the control switch on the control
lever (Y page 83) up or down until the
desired unit is selected.
X Press the OK button on the control lever
briefly to confirm.
The selected unit is stored.
i Canada only: The unit for the cruise
control (Y page 97) does not change,
regardless of which unit is set in this
menu. Time menu
The Time Time menu lets you set the time and
offers different display modes.
The following submenus are available:
R Setting time display mode (12-hour or
24-hour mode)
R Setting period of day, am or pm 5
R Setting the hours
R Setting the minutes
X Press the control switch on the control
lever (Y page 83) up or down until the
Time
Time menu appears in the multifunction
display.
X Press the OK button on the control lever
briefly.
Setting the time display mode X
Press the control switch on the control
lever (Y page 83) up or down until the
12h 24h 12h 24h submenu appears in the multi-
function display.
X Press the OK button on the control lever
briefly.
X Press the control switch on the control
lever (Y page 83) up or down until the
desired setting is selected.
X Press the OK button on the control lever
briefly to confirm.
The selected mode is stored.
5 Only available in 12-hour mode. 94
Control system>> Controls.
Page 97 of 222

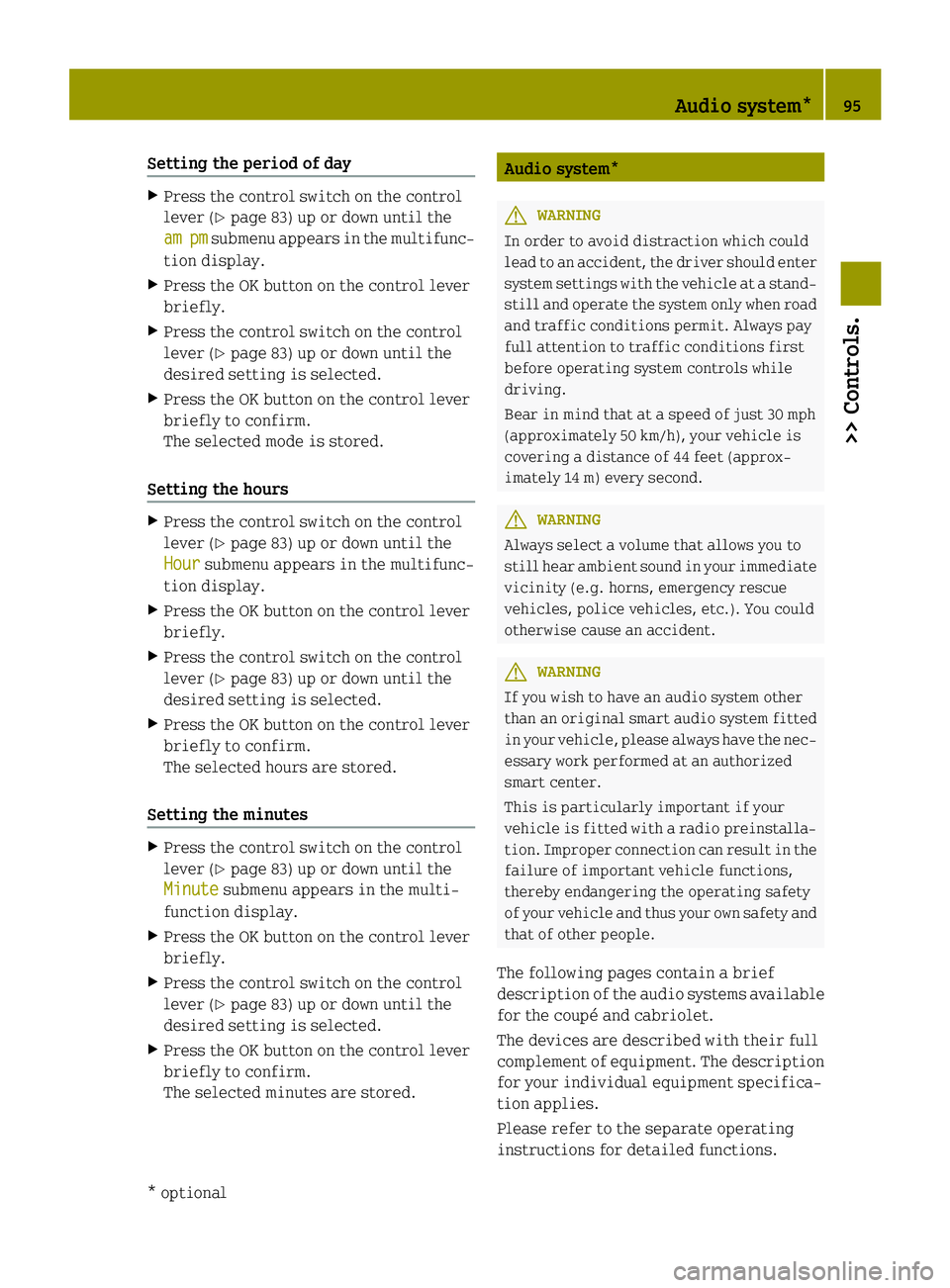

Setting the period of day
X
Press the control switch on the control
lever (Y page 83) up or down until the
am am pm
pmsubmenu appears in the multifunc-
tion display.
X Press the OK button on the control lever
briefly.
X Press the control switch on the control
lever (Y page 83) up or down until the
desired setting is selected.
X Press the OK button on the control lever
briefly to confirm.
The selected mode is stored.
Setting the hours X
Press the control switch on the control
lever (Y page 83) up or down until the
Hour Hour submenu appears in the multifunc-
tion display.
X Press the OK button on the control lever
briefly.
X Press the control switch on the control
lever (Y page 83) up or down until the
desired setting is selected.
X Press the OK button on the control lever
briefly to confirm.
The selected hours are stored.
Setting the minutes X
Press the control switch on the control
lever (Y page 83) up or down until the
Minute Minute submenu appears in the multi-
function display.
X Press the OK button on the control lever
briefly.
X Press the control switch on the control
lever (Y page 83) up or down until the
desired setting is selected.
X Press the OK button on the control lever
briefly to confirm.
The selected minutes are stored. Audio system*
G
WARNING
In order to avoid distraction which could
lead to an accident, the driver should enter system settings with the vehicle at a stand- still and operate the system only when roadand traffic conditions permit. Always pay
full attention to traffic conditions first
before operating system controls while
driving.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approx-
imately 14 m) every second. G
WARNING
Always select a volume that allows you to
still hear ambient sound in your immediate vicinity (e.g. horns, emergency rescue
vehicles, police vehicles, etc.). You could
otherwise cause an accident. G
WARNING
If you wish to have an audio system other
than an original smart audio system fitted
in your vehicle, please always have the nec- essary work performed at an authorized
smart center.
This is particularly important if your
vehicle is fitted with a radio preinstalla-
tion. Improper connection can result in the
failure of important vehicle functions,
thereby endangering the operating safety
of your vehicle and thus your own safety and that of other people.
The following pages contain a brief
description of the audio systems available for the coupé and cabriolet.
The devices are described with their full
complement of equipment. The description
for your individual equipment specifica-
tion applies.
Please refer to the separate operating
instructions for detailed functions. Audio system*
95>> Controls.
* optional Z
Page 98 of 222
Audio system basic
The audio system basic contains the fol-
lowing functions:
R Radio (FM/AM)
R Radio Broadcast Data System (RBDS) and
radio text
R AUX and USB socket (Y page 96)
! Please be sure to read the operating
instructions for the audio system basic
before using the unit. Familiarize your- self with the various functions of the
unit so that you are able to operate it
easily, reliably and correctly at any
time. :
On/off and volume switch
; Display
= Skip/Scroll/Frequency search switches
? Tone settings/Mute/Back control panel
A Stored station buttons
B Radio/Media/System control panel Audio system navigation/multimedia*
The audio system navigation/multimedia
contains the following functions:
R Radio (FM/AM)
R Radio Broadcast Data System (RBDS)
R AUX and USB-socket
R Bluetooth ®
hands-free device
R Navigation
R Audio operation from CD/DVD or SD Card,
via AUX/USB/iPod ®
, or Bluetooth ®
Audio R
Video operation from CD/DVD or SD Card,
via AUX/USB/iPod ®
R Image display from CD/DVD or SD Card,
via USB/iPod ®
! Please be sure to read the operating
instructions for the audio system navi-
gation/multimedia before using the
unit. Familiarize yourself with the var-
ious functions of the unit so that you are able to operate it easily, reliably and
correctly at any time. :
Bluetooth ®
connection indicator lamp
; Display
= Microphone
? Light sensor
A Eject button
B Rotary/Push button
C Menu button AUX and USB sockets
You can connect mobile audio devices such as an MP3 player via the AUX and USB sock-
ets using commercially available 3.5 mm
socket plug (AUX) or USB connector cable
(USB).
The AUX and USB sockets are located in the glove box. 96
Audio system*>> Controls.
* optional
Page 99 of 222
:
USB socket
; AUX socket smart surround sound system*
The smart surround sound system supple-
ments the existing speakers with more
powerful and additional speakers (includ- ing a digital amplifier in the passenger
footwell and a passive subwoofer). Driving systems
Cruise control*
The cruise control maintains the speed you set for your vehicle automatically. On
downhill grades, the cruise control does
not brake the vehicle via the brake system.
The cruise control can only use the braking power of the engine. You must apply the
brakes yourself in order to reduce the
vehicle speed. The cruise control will then
be canceled. G
WARNING
The cruise control is a convenience system designed to assist the driver during vehi-
cle operation. The cruise control cannot
take road, traffic, and weather conditions
into account. The driver is and must always
remain responsible for the vehicle’s speed and for safe brake operation. Do not use the cruise control
R if the road, traffic, and weather condi-
tions do not make it advisable to travel at
a constant speed
R on slippery roads
Rapid changes in tire traction can result
in wheel spin and loss of control.
R when driving in fog
The use of the cruise control is recommen-
ded for driving at a constant speed for
extended periods of time.
With the cruise control is activated and a
speed set, the following message appears
in the multifunction display: U.S. vehicles
:
Cruise control activated
; Set speed Canada vehicles
:
Cruise control activated
; Set speed
The cruise control is operated via buttons
on the steering wheel. Driving systems
97>> Controls.
* optional Z
Page 100 of 222
:
Activating or deactivating the cruise
control
; Resuming at last set speed or increas-
ing speed
= Setting current or lower speed, or
decreasing speed
? Canceling the cruise control
Activating/deactivating The cruise control must be activated before
you can set a speed. When you switch off the drive system, the cruise control is deac-
tivated automatically.
X Press ON/OFF button :briefly.
The cruise control is activated.
CRUISE CRUISE (USA only) or V(Canada only)
appears in the multifunction display.
Setting current speed You can set any speed above 20 mph
(30 km/h).
X Accelerate the vehicle to the desired
speed.
X With the cruise control activated, press
SET/− button =briefly.
X Remove your foot from the accelerator
pedal.
The current speed is set and the vehicle
maintains that speed.
USA only: set
set appears in the multifunc-
tion display to indicate that the speed
has been set. Canada only: The set speed appears in the
multifunction display next to cruise
control symbol V.
i On uphill grades, the cruise control
may not be able to maintain the set speed.
Once the grade eases, the set speed will
be resumed.
On downhill grades, the cruise control
can only maintain the set speed using the
drive systems braking power. You must
apply the brakes yourself when the vehi- cle does not slow down sufficiently. Thiswill cancel the cruise control.
Canceling cruise control When the cruise control is activated, you
can cancel it at any time and resume the set
speed later.
X Press CANCEL button ?briefly.
or
X Depress the brake pedal.
The cruise control is canceled.
The cruise control deactivates automati-
cally, when
R you engage the parking brake
R the vehicle speed is below 20 mphh
(30 km/h)
R ESP ®
is in operation.
Resuming last set speed G
WARNING
The “Resume” function should only be oper- ated if the driver is fully aware of the pre-viously set speed and wishes to resume this particular preset speed.
The set speed stored in memory should only
be set again if prevailing road conditions and legal speed limits permit. Possible
acceleration or deceleration differences
arising from returning to the preset speed
could cause an accident and/or serious
injury to you and others. 98
Driving systems>> Controls.
