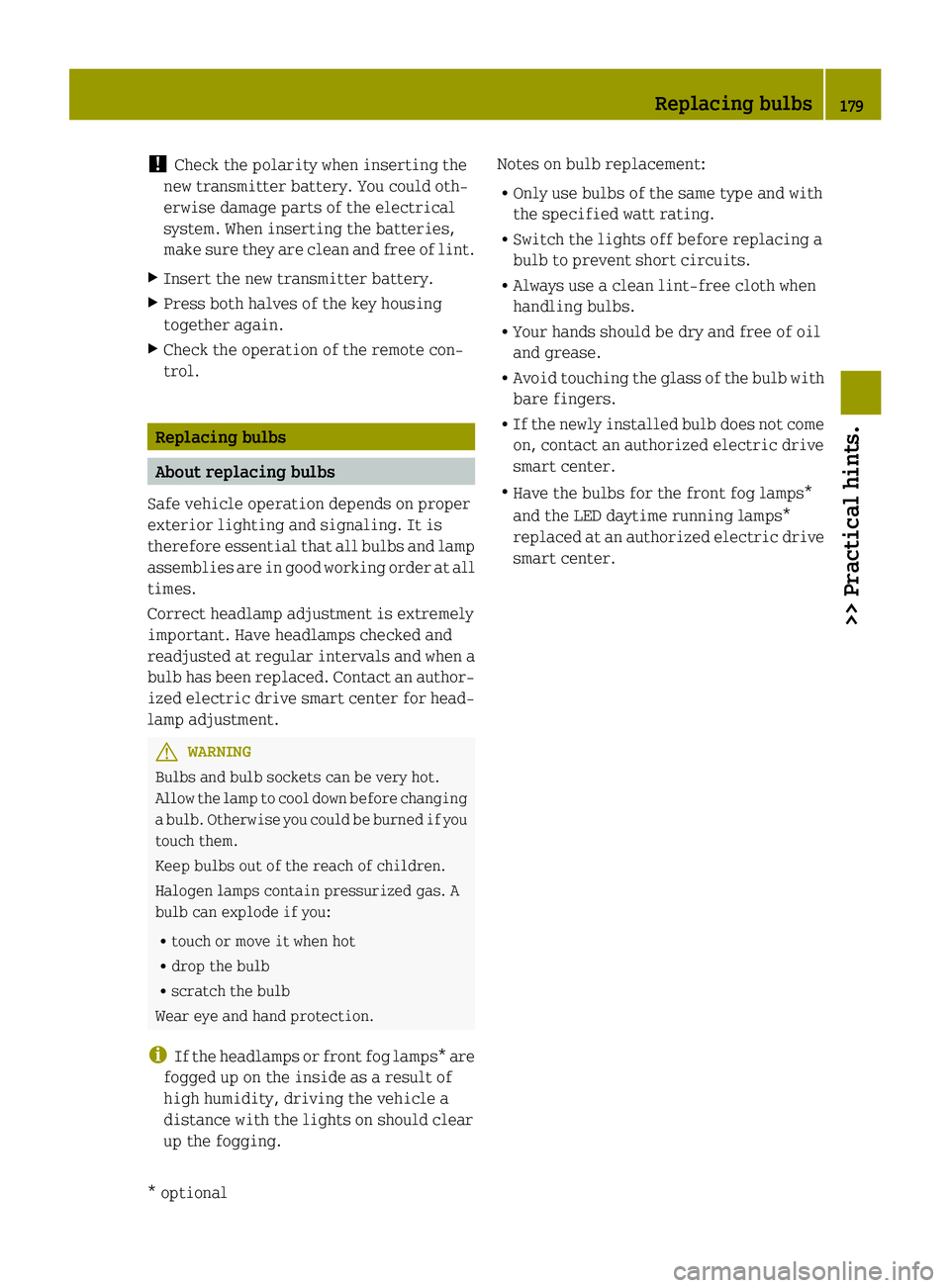

Check the polarity when inserting the
new transmitter battery. You could oth-
erwise damage parts of the electrical
system. When inserting the batteries,
make sure they are clean and free of lint.
X Insert the new transmitter battery.
X Press both halves of the key housing
together again.
X Check the operation of the remote con-
trol. Replacing bulbs
About replacing bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is
therefore essential that all bulbs and lamp
assemblies are in good working order at all times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. Contact an author- ized electric drive smart center for head-
lamp adjustment. G
WARNING
Bulbs and bulb sockets can be very hot.
Allow the lamp to cool down before changing a bulb. Otherwise you could be burned if you
touch them.
Keep bulbs out of the reach of children.
Halogen lamps contain pressurized gas. A
bulb can explode if you:
R touch or move it when hot
R drop the bulb
R scratch the bulb
Wear eye and hand protection.
i If the headlamps or front fog lamps* are
fogged up on the inside as a result of
high humidity, driving the vehicle a
distance with the lights on should clear
up the fogging. Notes on bulb replacement:
R Only use bulbs of the same type and with
the specified watt rating.
R Switch the lights off before replacing a
bulb to prevent short circuits.
R Always use a clean lint-free cloth when
handling bulbs.
R Your hands should be dry and free of oil
and grease.
R Avoid touching the glass of the bulb with
bare fingers.
R If the newly installed bulb does not come
on, contact an authorized electric drive
smart center.
R Have the bulbs for the front fog lamps*
and the LED daytime running lamps*
replaced at an authorized electric drive
smart center. Replacing bulbs
179>> Practical hints.
* optional Z

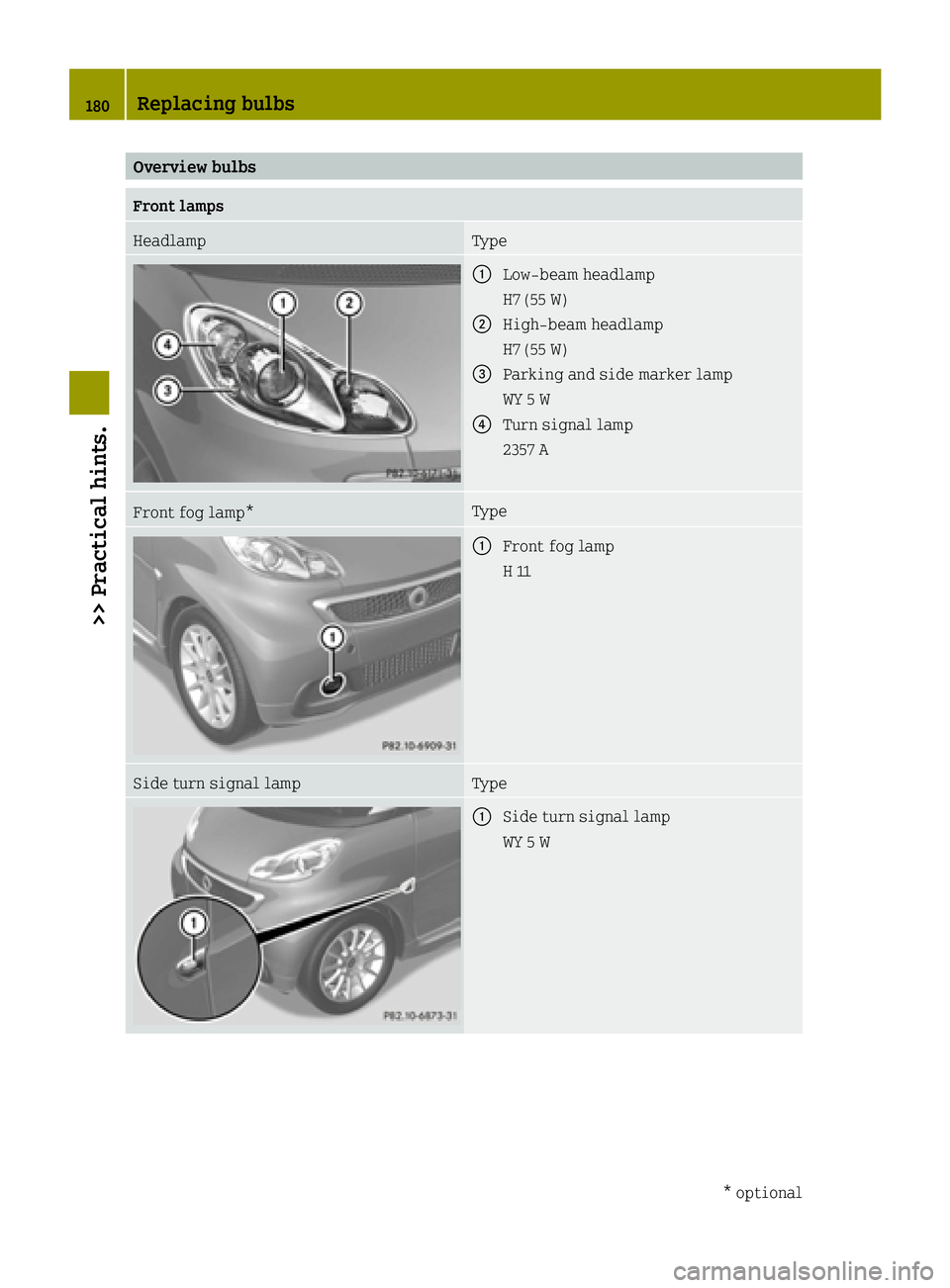

Overview bulbs
Front lamps
Headlamp Type
:
Low‑beam headlamp
H7 (55 W)
; High‑beam headlamp
H7 (55 W)
= Parking and side marker lamp
WY 5 W
? Turn signal lamp
2357 A Front fog lamp* Type
:
Front fog lamp
H 11 Side turn signal lamp Type
:
Side turn signal lamp
WY 5 W 180
Replacing bulbs>> Practical hints.
* optional

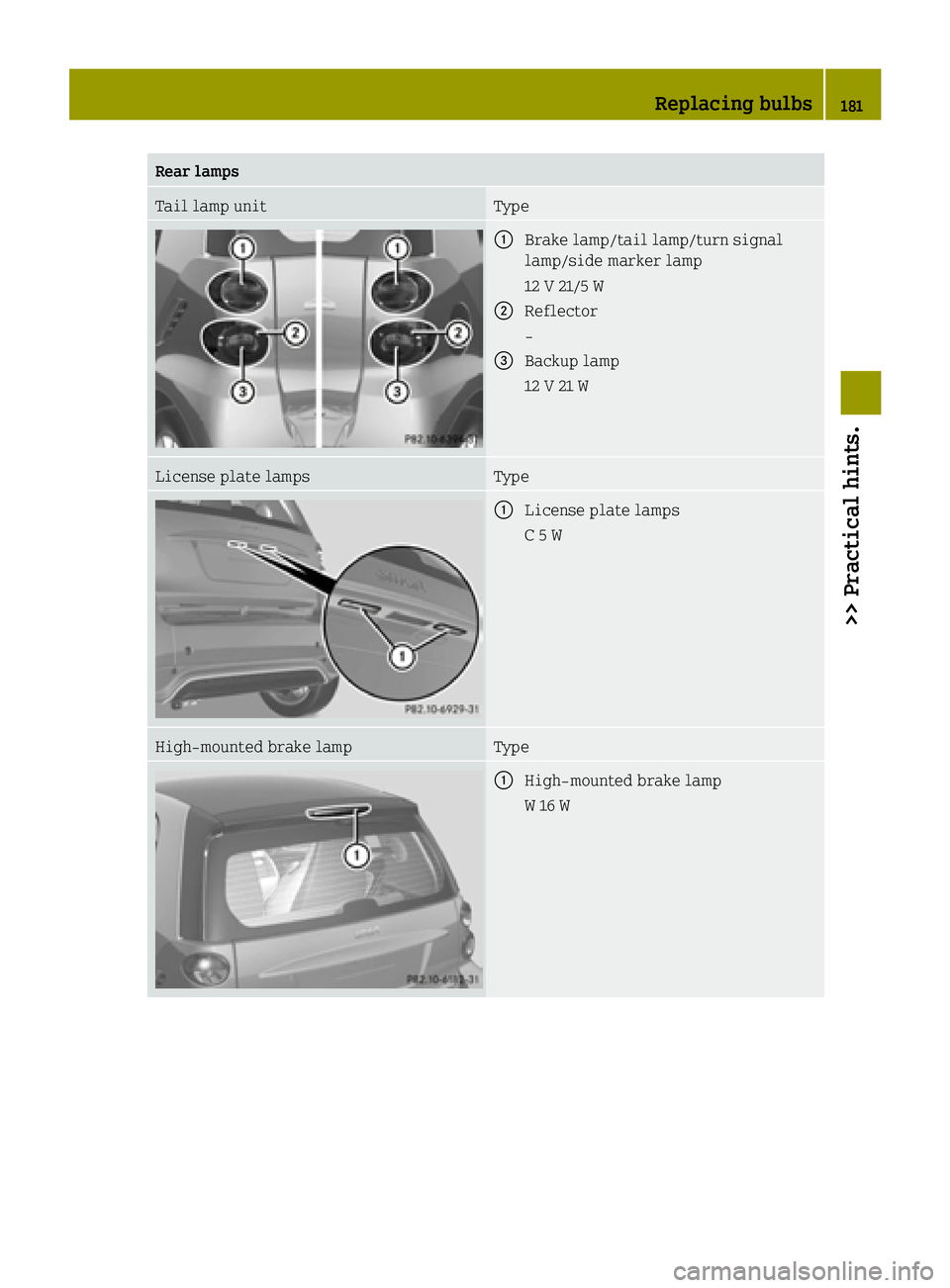

Rear lamps
Tail lamp unit Type
:
Brake lamp/tail lamp/turn signal
lamp/side marker lamp
12 V 21/5 W
; Reflector
-
= Backup lamp
12 V 21 W License plate lamps Type
:
License plate lamps
C 5 W High‑mounted brake lamp Type
:
High‑mounted brake lamp
W 16 W Replacing bulbs
181>> Practical hints. Z

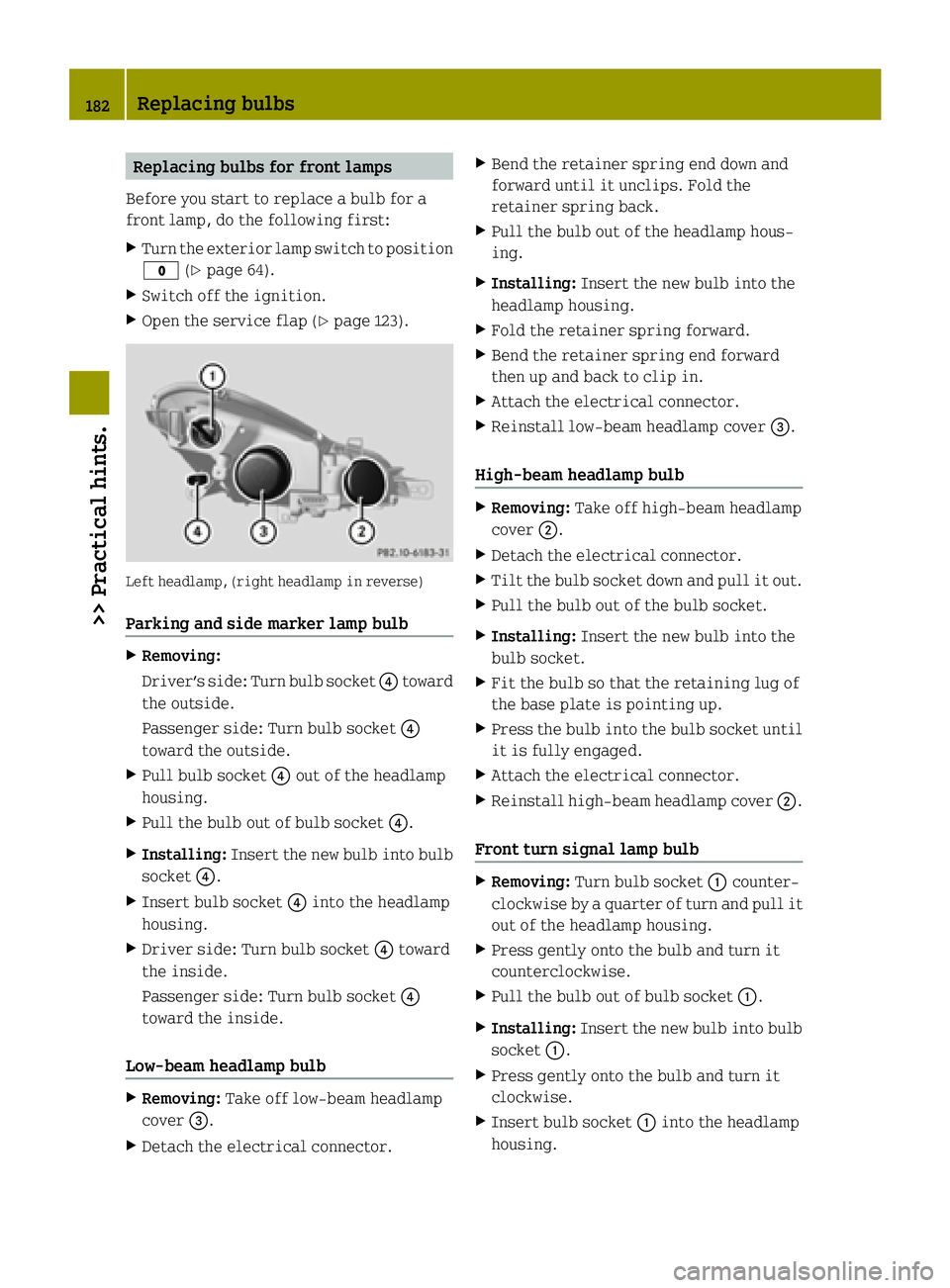

Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
X Turn the exterior lamp switch to position
$ (Ypage 64).
X Switch off the ignition.
X Open the service flap (Y page 123).Left headlamp, (right headlamp in reverse)
Parking and side marker lamp bulb X
Removing:
Driver’s side: Turn bulb socket ?toward
the outside.
Passenger side: Turn bulb socket ?
toward the outside.
X Pull bulb socket ?out of the headlamp
housing.
X Pull the bulb out of bulb socket ?.
X Installing: Insert the new bulb into bulb
socket ?.
X Insert bulb socket ?into the headlamp
housing.
X Driver side: Turn bulb socket ?toward
the inside.
Passenger side: Turn bulb socket ?
toward the inside.
Low‑beam headlamp bulb X
Removing: Take off low‑beam headlamp
cover =.
X Detach the electrical connector. X
Bend the retainer spring end down and
forward until it unclips. Fold the
retainer spring back.
X Pull the bulb out of the headlamp hous-
ing.
X Installing: Insert the new bulb into the
headlamp housing.
X Fold the retainer spring forward.
X Bend the retainer spring end forward
then up and back to clip in.
X Attach the electrical connector.
X Reinstall low‑beam headlamp cover =.
High‑beam headlamp bulb X
Removing: Take off high‑beam headlamp
cover ;.
X Detach the electrical connector.
X Tilt the bulb socket down and pull it out.
X Pull the bulb out of the bulb socket.
X Installing: Insert the new bulb into the
bulb socket.
X Fit the bulb so that the retaining lug of
the base plate is pointing up.
X Press the bulb into the bulb socket until
it is fully engaged.
X Attach the electrical connector.
X Reinstall high‑beam headlamp cover ;.
Front turn signal lamp bulb X
Removing: Turn bulb socket :counter-
clockwise by a quarter of turn and pull it out of the headlamp housing.
X Press gently onto the bulb and turn it
counterclockwise.
X Pull the bulb out of bulb socket :.
X Installing: Insert the new bulb into bulb
socket :.
X Press gently onto the bulb and turn it
clockwise.
X Insert bulb socket :into the headlamp
housing. 182
Replacing bulbs>> Practical hints.

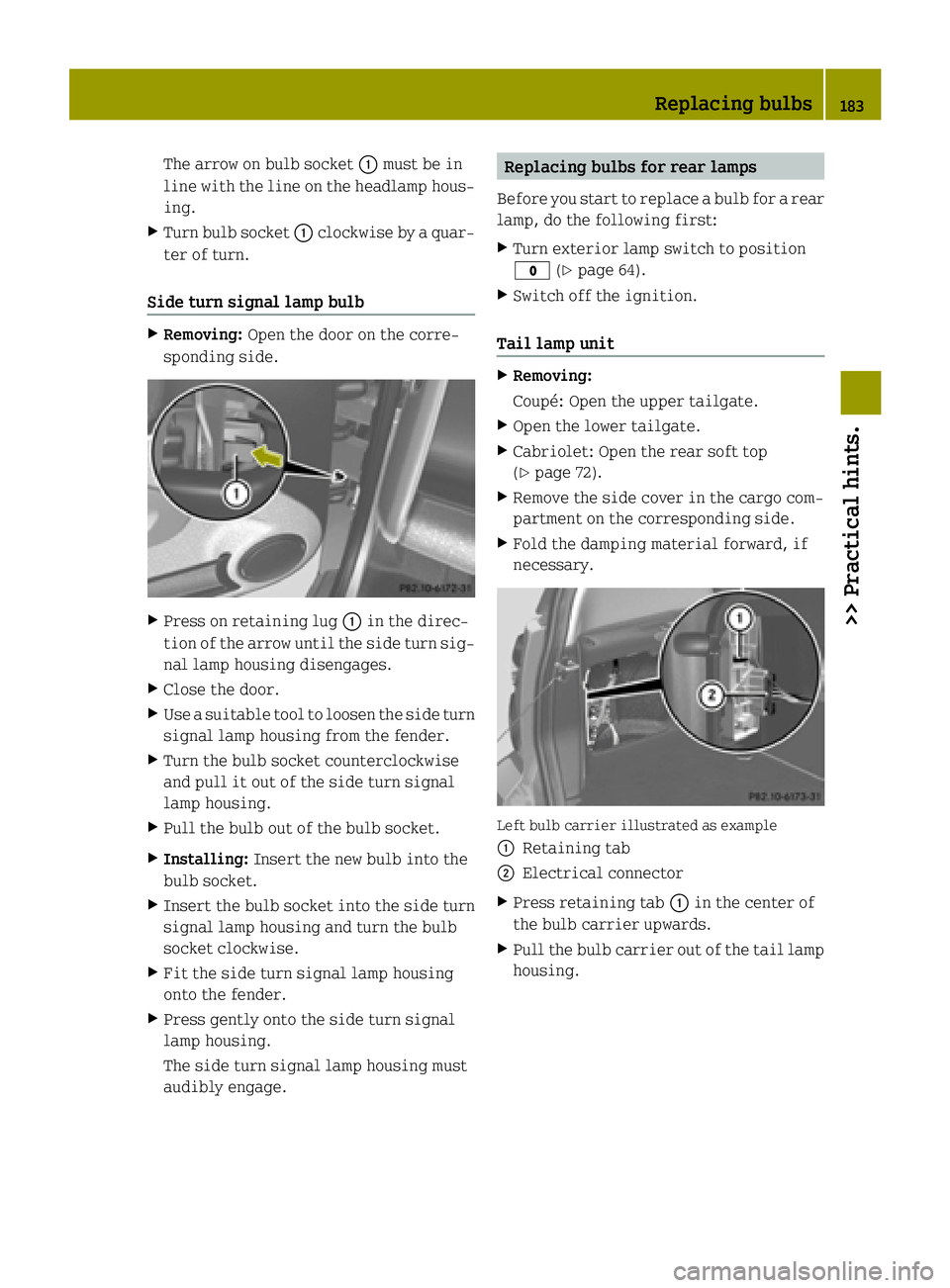

The arrow on bulb socket
:must be in
line with the line on the headlamp hous- ing.
X Turn bulb socket :clockwise by a quar-
ter of turn.
Side turn signal lamp bulb X
Removing: Open the door on the corre-
sponding side. X
Press on retaining lug :in the direc-
tion of the arrow until the side turn sig- nal lamp housing disengages.
X Close the door.
X Use a suitable tool to loosen the side turn
signal lamp housing from the fender.
X Turn the bulb socket counterclockwise
and pull it out of the side turn signal
lamp housing.
X Pull the bulb out of the bulb socket.
X Installing: Insert the new bulb into the
bulb socket.
X Insert the bulb socket into the side turn
signal lamp housing and turn the bulb
socket clockwise.
X Fit the side turn signal lamp housing
onto the fender.
X Press gently onto the side turn signal
lamp housing.
The side turn signal lamp housing must
audibly engage. Replacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
X Turn exterior lamp switch to position
$ (Ypage 64).
X Switch off the ignition.
Tail lamp unit X
Removing:
Coupé: Open the upper tailgate.
X Open the lower tailgate.
X Cabriolet: Open the rear soft top
(Y page 72).
X Remove the side cover in the cargo com-
partment on the corresponding side.
X Fold the damping material forward, if
necessary. Left bulb carrier illustrated as example
:
Retaining tab
; Electrical connector
X Press retaining tab :in the center of
the bulb carrier upwards.
X Pull the bulb carrier out of the tail lamp
housing. Replacing bulbs
183>> Practical hints. Z

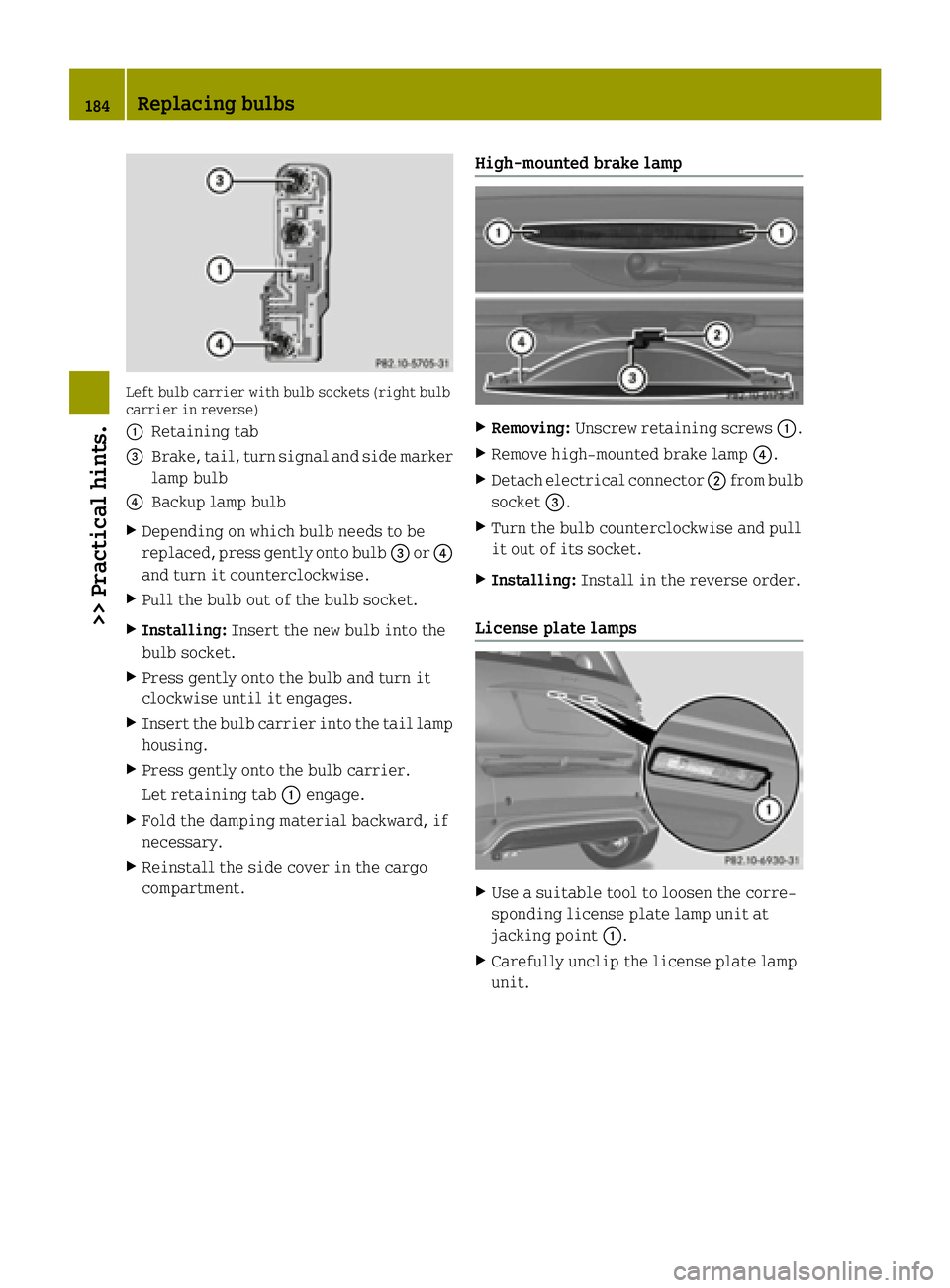

Left bulb carrier with bulb sockets (right bulb
carrier in reverse)
: Retaining tab
= Brake, tail, turn signal and side marker
lamp bulb
? Backup lamp bulb
X Depending on which bulb needs to be
replaced, press gently onto bulb =or?
and turn it counterclockwise.
X Pull the bulb out of the bulb socket.
X Installing: Insert the new bulb into the
bulb socket.
X Press gently onto the bulb and turn it
clockwise until it engages.
X Insert the bulb carrier into the tail lamp
housing.
X Press gently onto the bulb carrier.
Let retaining tab :engage.
X Fold the damping material backward, if
necessary.
X Reinstall the side cover in the cargo
compartment. High-mounted brake lamp X
Removing: Unscrew retaining screws :.
X Remove high-mounted brake lamp ?.
X Detach electrical connector ;from bulb
socket =.
X Turn the bulb counterclockwise and pull
it out of its socket.
X Installing: Install in the reverse order.
License plate lamps X
Use a suitable tool to loosen the corre-
sponding license plate lamp unit at
jacking point :.
X Carefully unclip the license plate lamp
unit. 184
Replacing bulbs>> Practical hints.

X

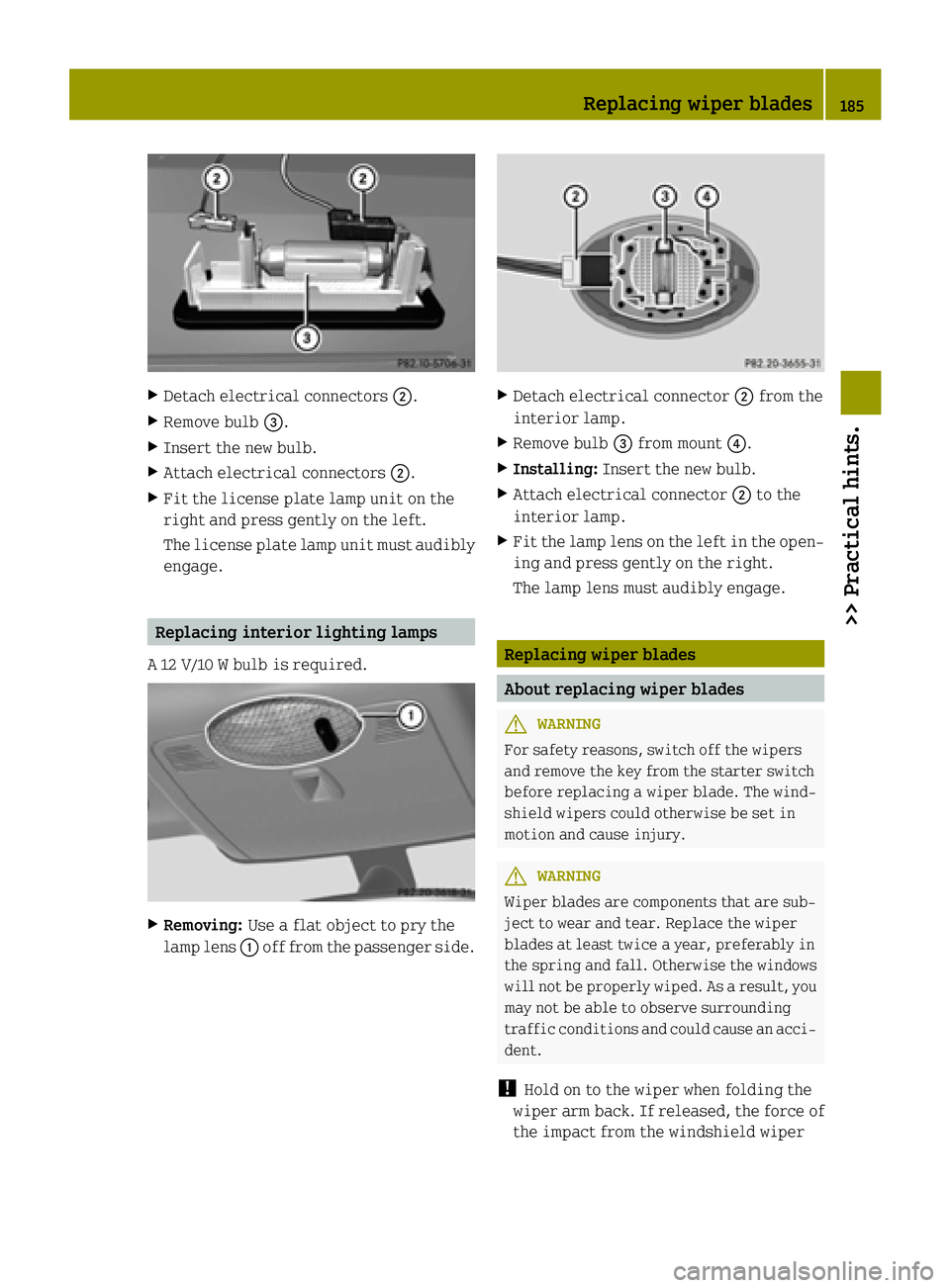

Detach electrical connectors ;.
X Remove bulb =.
X Insert the new bulb.
X Attach electrical connectors ;.
X Fit the license plate lamp unit on the
right and press gently on the left.
The license plate lamp unit must audibly
engage. Replacing interior lighting lamps
A 12 V/10 W bulb is require d.X
Re moving: Use a flat object to pry the
lamp lens :off from the passenger side. X
Detach electrical connector ;from the
interior lamp.
X Remove bulb =from mount ?.
X Installing: Insert the new bulb.
X Attach electrical connector ;to the
interior lamp.
X Fit the lamp lens on the left in the open-
ing and press gently on the right.
The lamp lens must audibly engage. Replacing wiper blades
About replacing wiper blades
G
WARNING
For safety reasons, switch off the wipers
and remove the key from the starter switch
before replacing a wiper blade. The wind-
shield wipers could otherwise be set in
motion and cause injury. G
WARNING
Wiper blades are components that are sub-
ject to wear and tear. Replace the wiper
blades at least twice a year, preferably in
the spring and fall. Otherwise the windows will not be properly wiped. As a result, youmay not be able to observe surrounding
traffic conditions and could cause an acci-
dent.
! Hold on to the wiper when folding the
wiper arm back. If released, the force of the impact from the windshield wiper Replacing wiper blades
185>> Practical hints. Z

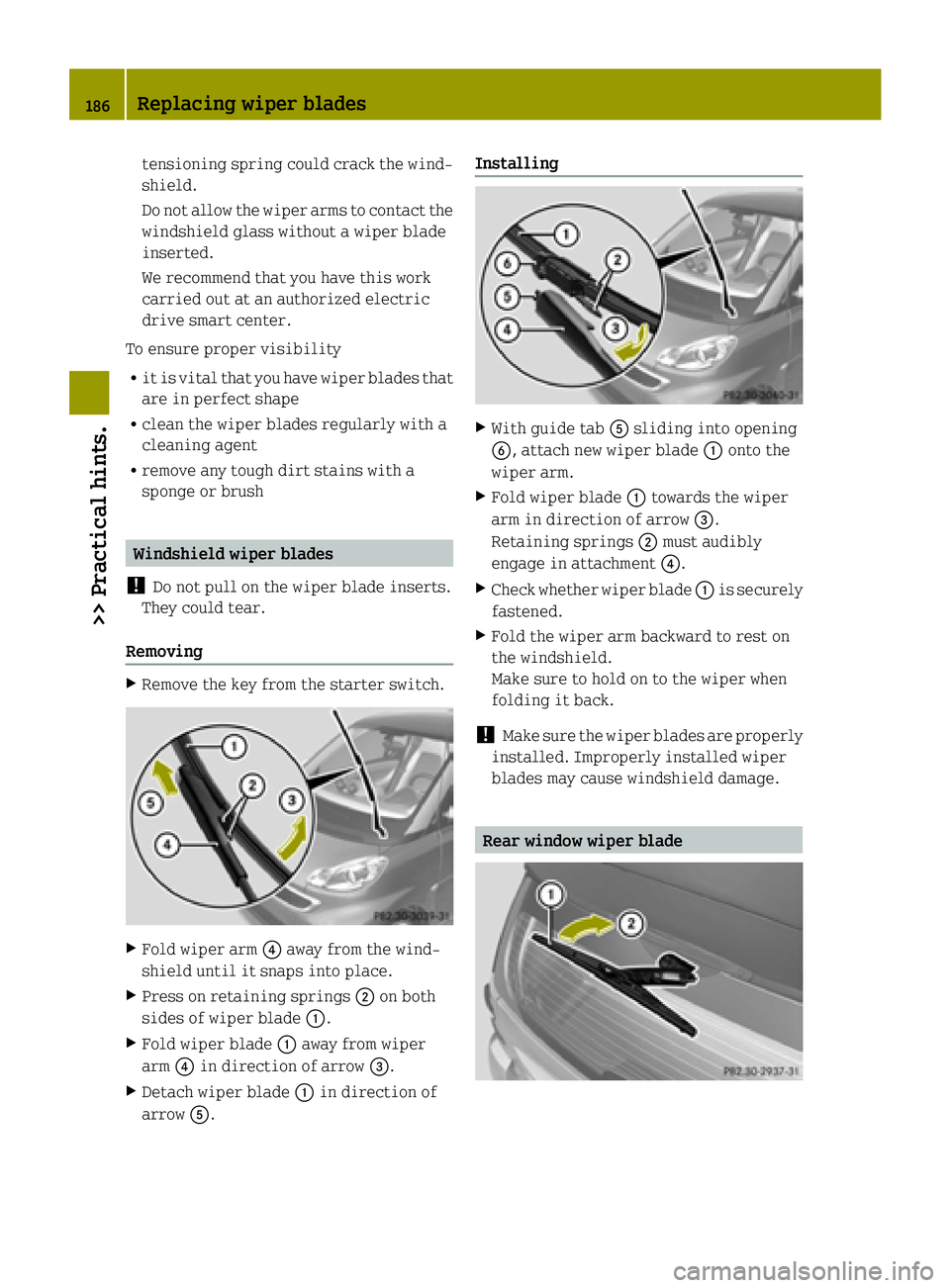

tensioning spring could crack the wind-
shield.
Do not allow the wiper arms to contact the windshield glass without a wiper blade
inserted.
We recommend that you have this work
carried out at an authorized electric
drive smart center.
To ensure proper visibility
R it is vital that you have wiper blades that
are in perfect shape
R clean the wiper blades regularly with a
cleaning agent
R remove any tough dirt stains with a
sponge or brush Windshield wiper blades
! Do not pull on the wiper blade inserts.
They could tear.
Removing X
Remove the key from the starter switch. X
Fold wiper arm ?away from the wind-
shield until it snaps into place.
X Press on retaining springs ;on both
sides of wiper blade :.
X Fold wiper blade :away from wiper
arm ?in direction of arrow =.
X Detach wiper blade :in direction of
arrow A. Installing
X
With guide tab Asliding into opening
B, attach new wiper blade :onto the
wiper arm.
X Fold wiper blade :towards the wiper
arm in direction of arrow =.
Retaining springs ;must audibly
engage in attachment ?.
X Check whether wiper blade :is securely
fastened.
X Fold the wiper arm backward to rest on
the windshield.
Make sure to hold on to the wiper when
folding it back.
! Make sure the wiper blades are properly
installed. Improperly installed wiper
blades may cause windshield damage. Rear window wiper blade186
Replacing wiper blades>> Practical hints.

X

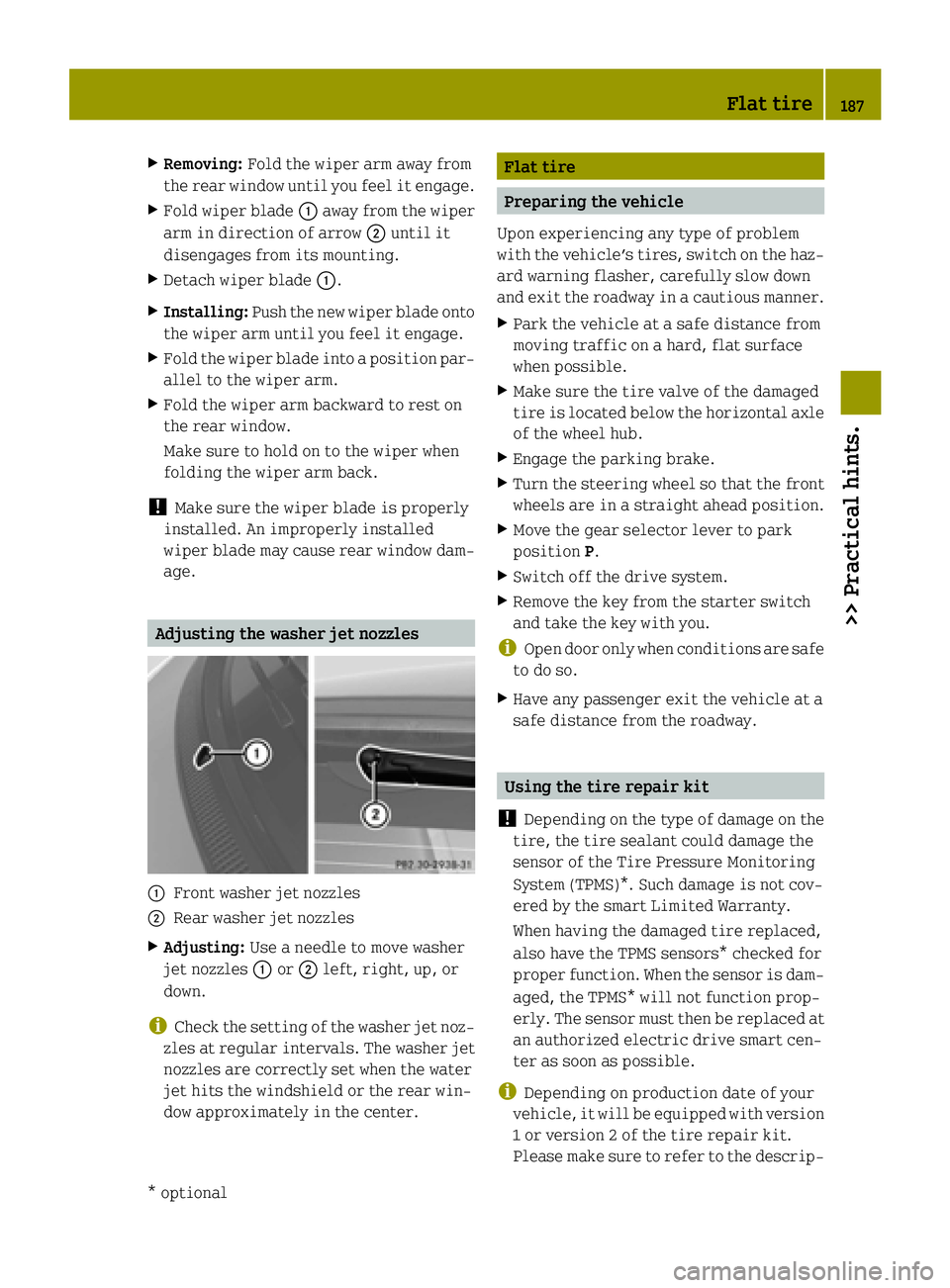

Removing: Fold the wiper arm away from
the rear window until you feel it engage.
X Fold wiper blade :away from the wiper
arm in direction of arrow ;until it
disengages from its mounting.
X Detach wiper blade :.
X Installing: Push the new wiper blade onto
the wiper arm until you feel it engage.
X Fold the wiper blade into a position par-
allel to the wiper arm.
X Fold the wiper arm backward to rest on
the rear window.
Make sure to hold on to the wiper when
folding the wiper arm back.
! Make sure the wiper blade is properly
installed. An improperly installed
wiper blade may cause rear window dam- age. Adjusting the washer jet nozzles
:
Front washer jet nozzles
; Rear washer jet nozzles
X Adjusting: Use a needle to move washer
jet nozzles :or; left, right, up, or
down.
i Check the setting of the washer jet noz-
zles at regular intervals. The washer jet
nozzles are correctly set when the water
jet hits the windshield or the rear win-
dow approximately in the center. Flat tire
Preparing the vehicle
Upon experiencing any type of problem
with the vehicle’s tires, switch on the haz-
ard warning flasher, carefully slow down
and exit the roadway in a cautious manner.
X Park the vehicle at a safe distance from
moving traffic on a hard, flat surface
when possible.
X Make sure the tire valve of the damaged
tire is located below the horizontal axle
of the wheel hub.
X Engage the parking brake.
X Turn the steering wheel so that the front
wheels are in a straight ahead position.
X Move the gear selector lever to park
position P.
X Switch off the drive system.
X Remove the key from the starter switch
and take the key with you.
i Open door only when conditions are safe
to do so.
X Have any passenger exit the vehicle at a
safe distance from the roadway. Using the tire repair kit
! Depending on the type of damage on the
tire, the tire sealant could damage the
sensor of the Tire Pressure Monitoring
System (TPMS)*. Such damage is not cov-
ered by the smart Limited Warranty.
When having the damaged tire replaced,
also have the TPMS sensors* checked for
proper function. When the sensor is dam-
aged, the TPMS* will not function prop-
erly. The sensor must then be replaced at an authorized electric drive smart cen-
ter as soon as possible.
i Depending on production date of your
vehicle, it will be equipped with version
1 or version 2 of the tire repair kit.
Please make sure to refer to the descrip- Flat tire
187>> Practical hints.
* optional Z

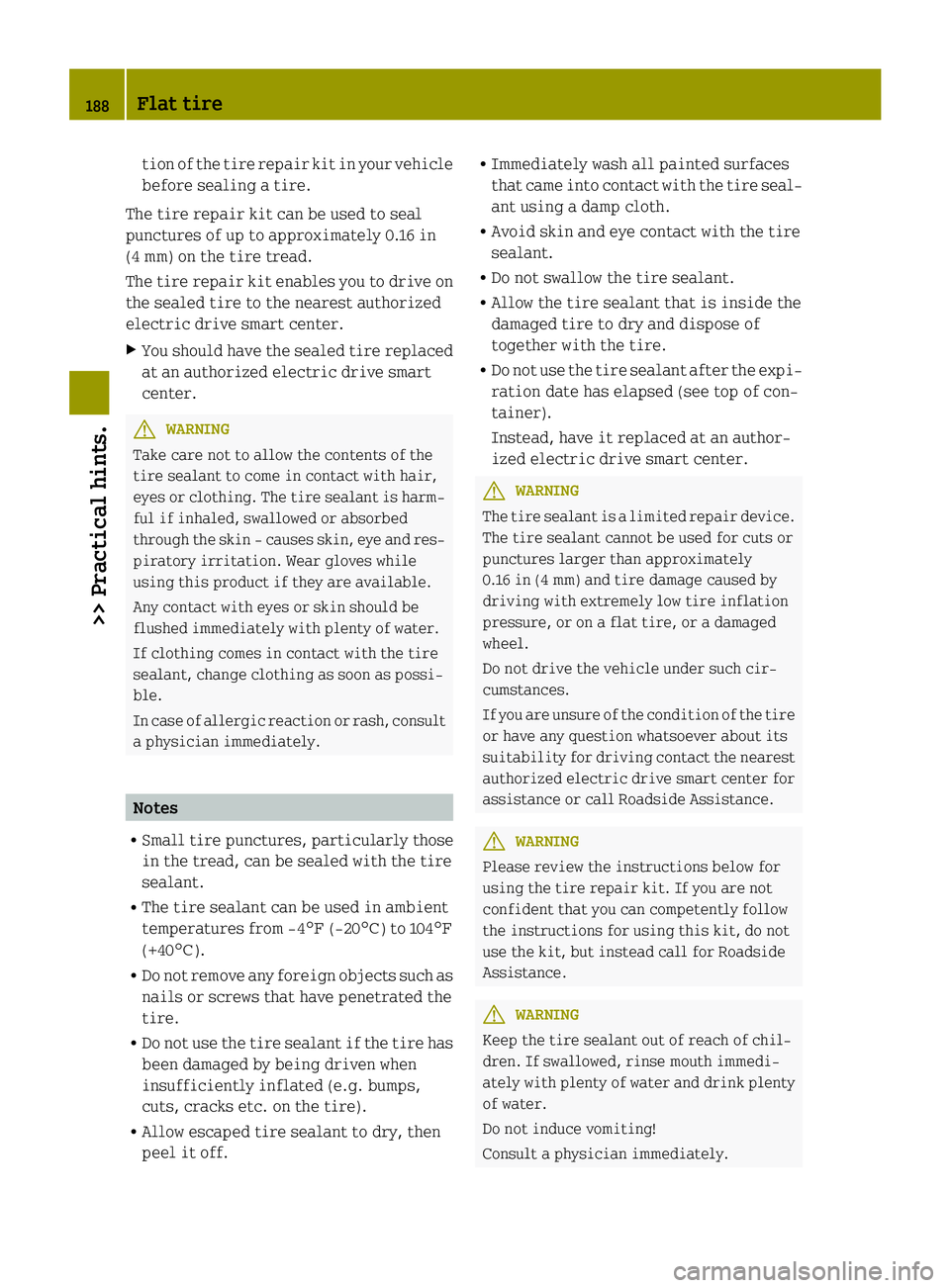

tion of the tire repair kit in your vehicle
before sealing a tire.
The tire repair kit can be used to seal
punctures of up to approximately 0.16 in
(4 mm) on the tire tread.
The tire repair kit enables you to drive on the sealed tire to the nearest authorized
electric drive smart center.
X You should have the sealed tire replaced
at an authorized electric drive smart
center. G
WARNING
Take care not to allow the contents of the
tire sealant to come in contact with hair,
eyes or clothing. The tire sealant is harm- ful if inhaled, swallowed or absorbed
through the skin - causes skin, eye and res- piratory irritation. Wear gloves while
using this product if they are available.
Any contact with eyes or skin should be
flushed immediately with plenty of water.
If clothing comes in contact with the tire
sealant, change clothing as soon as possi-
ble.
In case of allergic reaction or rash, consult
a physician immediately. Notes
R Small tire punctures, particularly those
in the tread, can be sealed with the tire
sealant.
R The tire sealant can be used in ambient
temperatures from ‑4 ¦(‑20¥) to 104¦
(+40¥).
R Do not remove any foreign objects such as
nails or screws that have penetrated the
tire.
R Do not use the tire sealant if the tire has
been damaged by being driven when
insufficiently inflated (e.g. bumps,
cuts, cracks etc. on the tire).
R Allow escaped tire sealant to dry, then
peel it off. R
Immediately wash all painted surfaces
that came into contact with the tire seal-
ant using a damp cloth.
R Avoid skin and eye contact with the tire
sealant.
R Do not swallow the tire sealant.
R Allow the tire sealant that is inside the
damaged tire to dry and dispose of
together with the tire.
R Do not use the tire sealant after the expi-
ration date has elapsed (see top of con-
tainer).
Instead, have it replaced at an author-
ized electric drive smart center. G
WARNING
The tire sealant is a limited repair device. The tire sealant cannot be used for cuts or
punctures larger than approximately
0.16 in (4 mm) and tire damage caused by
driving with extremely low tire inflation
pressure, or on a flat tire, or a damaged
wheel.
Do not drive the vehicle under such cir-
cumstances.
If you are unsure of the condition of the tireor have any question whatsoever about its
suitability for driving contact the nearest
authorized electric drive smart center for
assistance or call Roadside Assistance. G
WARNING
Please review the instructions below for
using the tire repair kit. If you are not
confident that you can competently follow
the instructions for using this kit, do not
use the kit, but instead call for Roadside
Assistance. G
WARNING
Keep the tire sealant out of reach of chil-
dren. If swallowed, rinse mouth immedi-
ately with plenty of water and drink plenty of water.
Do not induce vomiting!
Consult a physician immediately. 188
Flat tire>> Practical hints.
