SMART FORTWO COUPE ELECTRIC DRIVE 2015 Owners Manual

No. Accessory/Component Amperage Color
E
CPC, shifter, brake force booster vacuum
pump 7.5 A Brown
F
Coolant pumps 1 and 2, high-voltage battery 15 A Blue
G
ESP
®
control unit 25 A Neutral
H
Exterior lamp switch, turn signal lamp
switch, cockpit switch module, on-board
diagnostics socket, exterior rear view mir-
ror heating, anti-theft warning system,
rain-light sensor, charge level and power
gauges, central locking system, instrument
cluster, Tire Pressure Monitoring System
(TPMS), brake and turn signal lamps (left and right) 10 A Red
I
— — —
J
— — —
K
Safety circuit high-voltage battery 15 A Blue
L
— — —
M
Rear window wiper (coupé only) 15 A Blue
N
ESP
®
control unit, EPS control unit, restraint
systems 10 A Red
O
Electric drive components, engine control
unit, transmission control unit, on-board
diagnostics socket, sound generator 7.5 A Brown
P
Air conditioning system, exterior rear view
mirror adjustment, washer pump, audio, seat
heating, wiper switch, cruise control, soft
top switch (cabriolet only), backup lamp 10 A Red
Q
Auxiliary power outlet 15 A Blue
R
Left low‑beam headlamp 7.5 A Brown
S
Right low‑beam headlamp 7.5 A Brown
T
— — —
U
Right high‑beam headlamp 7.5 A Brown
V
Left high‑beam headlamp 7.5 A Brown
W
Electric drive components 7.5 A Brown Fuses
209>> Practical hints. Z

No. Accessory/Component Amperage Color
X
Rear window defroster 40 A Orange
Y
Soft top (cabriolet only) 30 A Green
Z
Radiator cooling fan 40 A Orange
\
Horn, central locking system 20 A Yellow
^
— — —
_
Starter switch (ignition) 50 A Red
a
ESP
®
control unit 40 A Orange
©
EPS control unit 30 A Green
y
Exterior rear view mirror heating 7.5 A Brown
z
Brake lamps 7.5 A Brown
|
— — —
~
Tire pressure monitor control unit 7.5 A Brown
¡
Coolant pump, electric drive components, HV
interior PTC heater passenger compartment,
windshield unit car2go 10 A Red
¢
Audio, subwoofer, sound system, soft top
(cabriolet only) 15 A Blue
£
Interior lighting 5 A Light brown
¤
Surround sound system 20 A Yellow
¥
Seat heating control unit 25 A Neutral210
Fuses>> Practical hints.

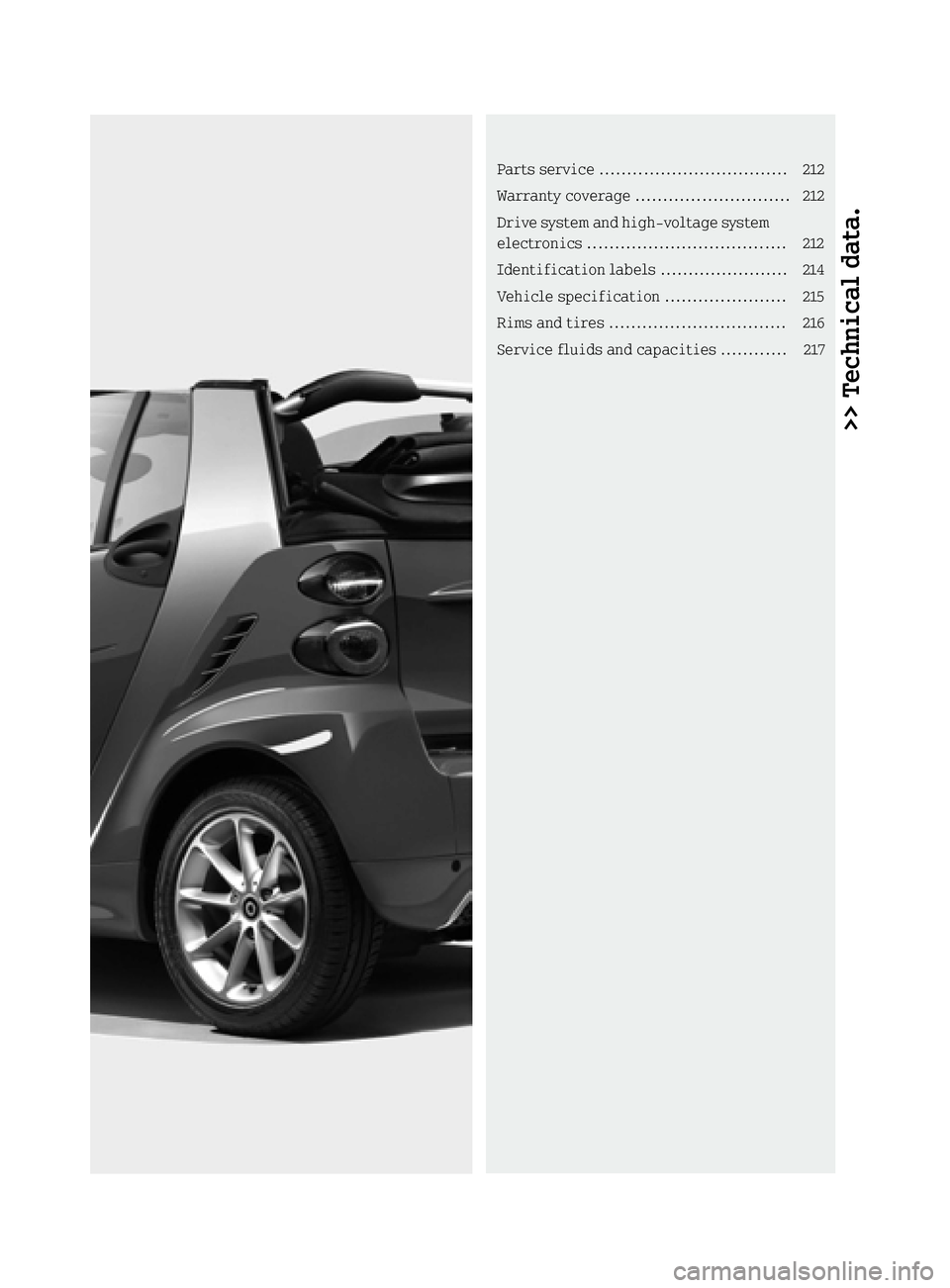

>> Technical data.Parts service .................................. 212
Warranty coverage ............................ 212
Drive system and high-voltage system
electronics .................................... 212
Identification labels ....................... 214
Vehicle specification ...................... 215
Rims and tires ................................ 216

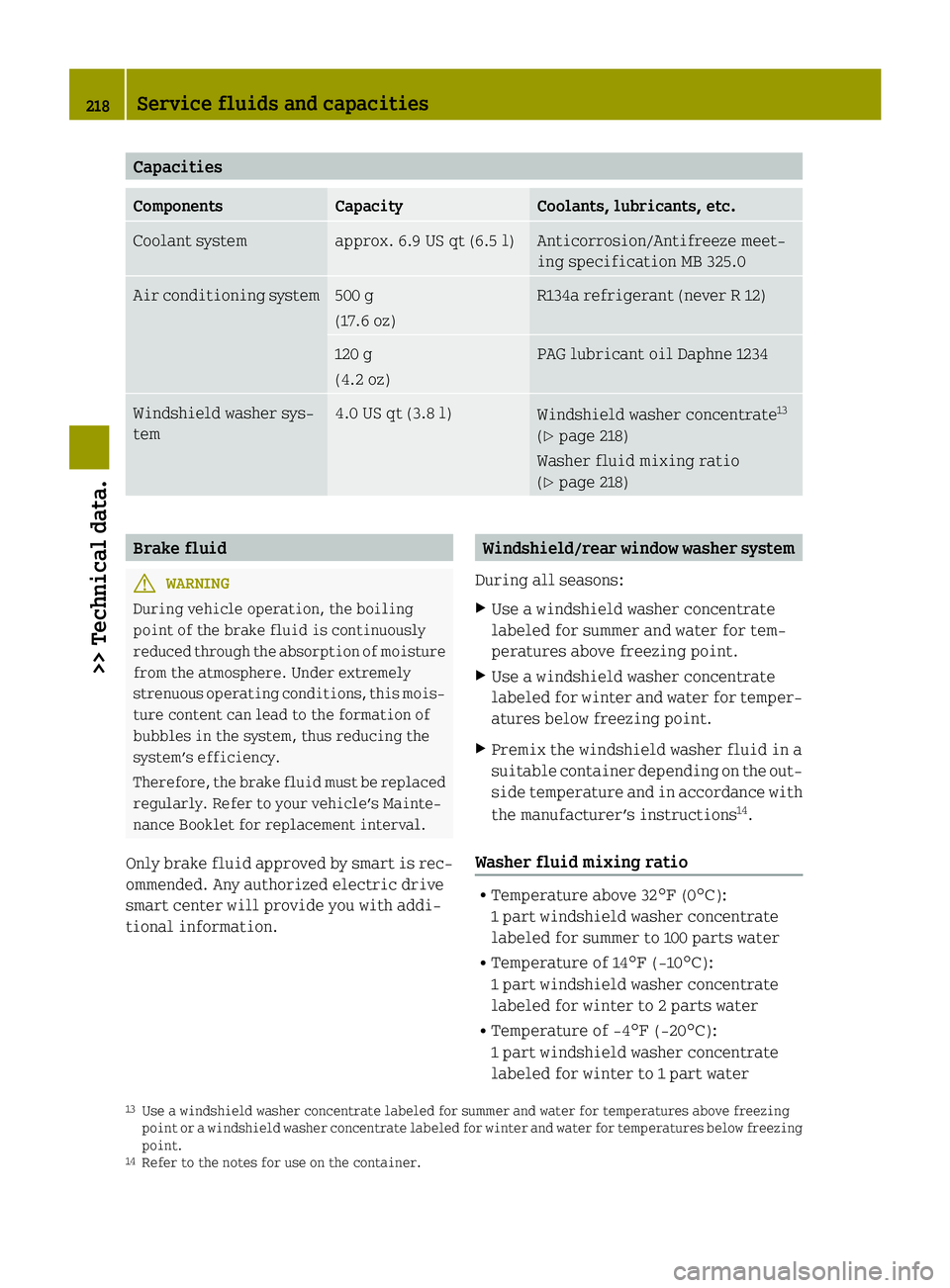

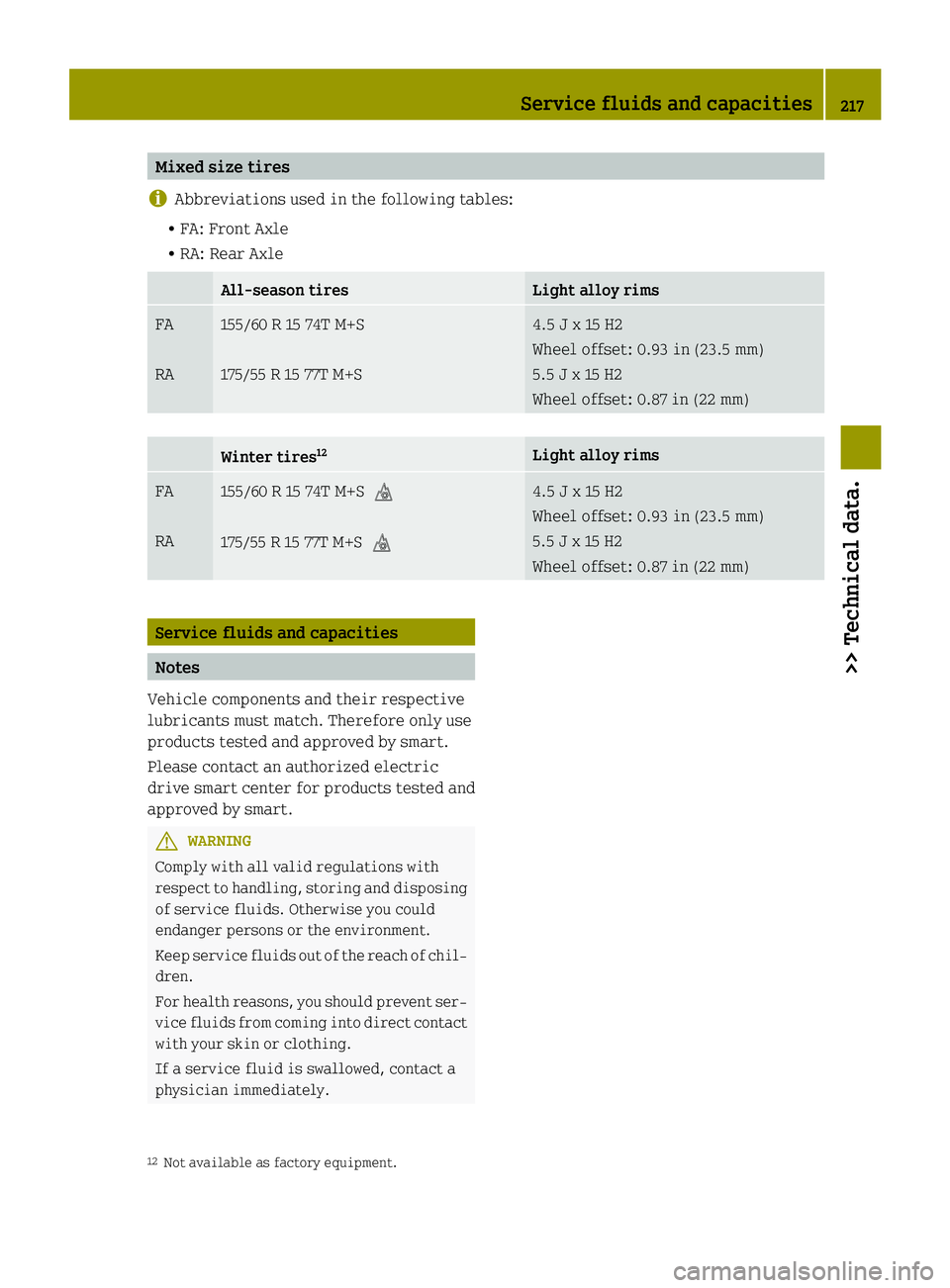

Service fluids and capacities ............ 217

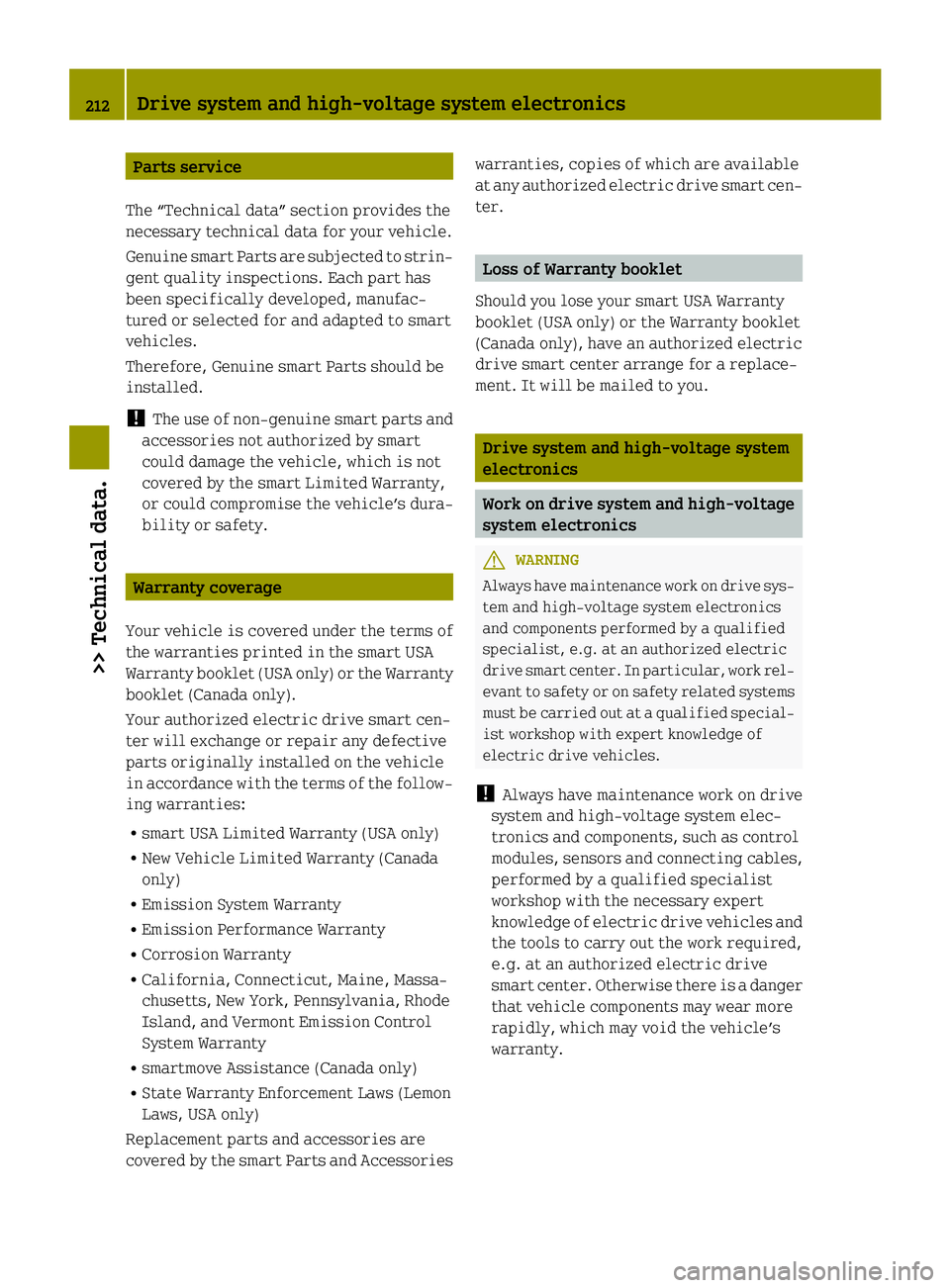

Parts service
The “Technical data” section provides the
necessary technical data for your vehicle.
Genuine smart Parts are subjected to strin- gent quality inspections. Each part has
been specifically developed, manufac-
tured or selected for and adapted to smart
vehicles.
Therefore, Genuine smart Parts should be
installed.
! The use of non-genuine smart parts and
accessories not authorized by smart
could damage the vehicle, which is not
covered by the smart Limited Warranty,
or could compromise the vehicle’s dura-
bility or safety. Warranty coverage
Your vehicle is covered under the terms of
the warranties printed in the smart USA
Warranty booklet (USA only) or the Warranty
booklet (Canada only).
Your authorized electric drive smart cen-
ter will exchange or repair any defective
parts originally installed on the vehicle
in accordance with the terms of the follow-
ing warranties:
R smart USA Limited Warranty (USA only)
R New Vehicle Limited Warranty (Canada
only)
R Emission System Warranty
R Emission Performance Warranty
R Corrosion Warranty
R California, Connecticut, Maine, Massa-
chusetts, New York, Pennsylvania, Rhode
Island, and Vermont Emission Control
System Warranty
R smartmove Assistance (Canada only)
R State Warranty Enforcement Laws (Lemon
Laws, USA only)
Replacement parts and accessories are
covered by the smart Parts and Accessories warranties, copies of which are available
at any authorized electric drive smart cen-
ter. Loss of Warranty booklet
Should you lose your smart USA Warranty
booklet (USA only) or the Warranty booklet
(Canada only), have an authorized electric
drive smart center arrange for a replace-
ment. It will be mailed to you. Drive system and high-voltage system
electronics
Work on drive system and high-voltage
system electronics G
WARNING
Always have maintenance work on drive sys-
tem and high-voltage system electronics
and components performed by a qualified
specialist, e.g. at an authorized electric
drive smart center. In particular, work rel-
evant to safety or on safety related systems must be carried out at a qualified special-ist workshop with expert knowledge of
electric drive vehicles.
! Always have maintenance work on drive
system and high-voltage system elec-
tronics and components, such as control
modules, sensors and connecting cables,
performed by a qualified specialist
workshop with the necessary expert
knowledge of electric drive vehicles and
the tools to carry out the work required,
e.g. at an authorized electric drive
smart center. Otherwise there is a danger
that vehicle components may wear more
rapidly, which may void the vehicle’s
warranty. 212
Drive system and high-voltage system electronics>> Technical data.

Retrofitting electrical and electronic
devices
Electrical and electronic devices can
endanger vehicle operating safety.
! Damage or consequential damage due to
retrofitting a device in the vehicle is
not covered by smart’s warranty.
If you install telephones or radio trans-
mitters in the vehicle you must have such
retrofits approved. smart approves the
installation of telephones and radio devi-
ces if the work is done professionally and
the device is connected to a low-reflection exterior antenna.
The transmitting power of the telephone or
radio must not exceed the following maxi-
mum values. Frequency range
(band) Maximum transmit-
ting power (Watts) Short wave
(<50 MHz) 100
2 m wavelength 50
0.7 m wavelength 35
0.25 m wavelength 10
G
WARNING
Radio transmitters can interfere with the
vehicle’s electronic system, endanger the
operating safety of the vehicle and thus
your own safety, if
R there is no external antenna
R the external antenna is not low-reflec-
tion
R the external antenna is incorrectly
installed
Excessive electromagnetic radiation can
damage your health and that of others.
Using an external antenna addresses and
considers the concerns currently being
discussed in scientific circles about the health hazards possibly posed by electro-
magnetic fields.
Because of this, have the external antenna
installed exclusively at a qualified spe-
cialist workshop which has the necessary
specialist knowledge and tools to carry out
the work required, e.g. at a smart center. In particular, work relevant to safety or on
safety-related systems must be carried out

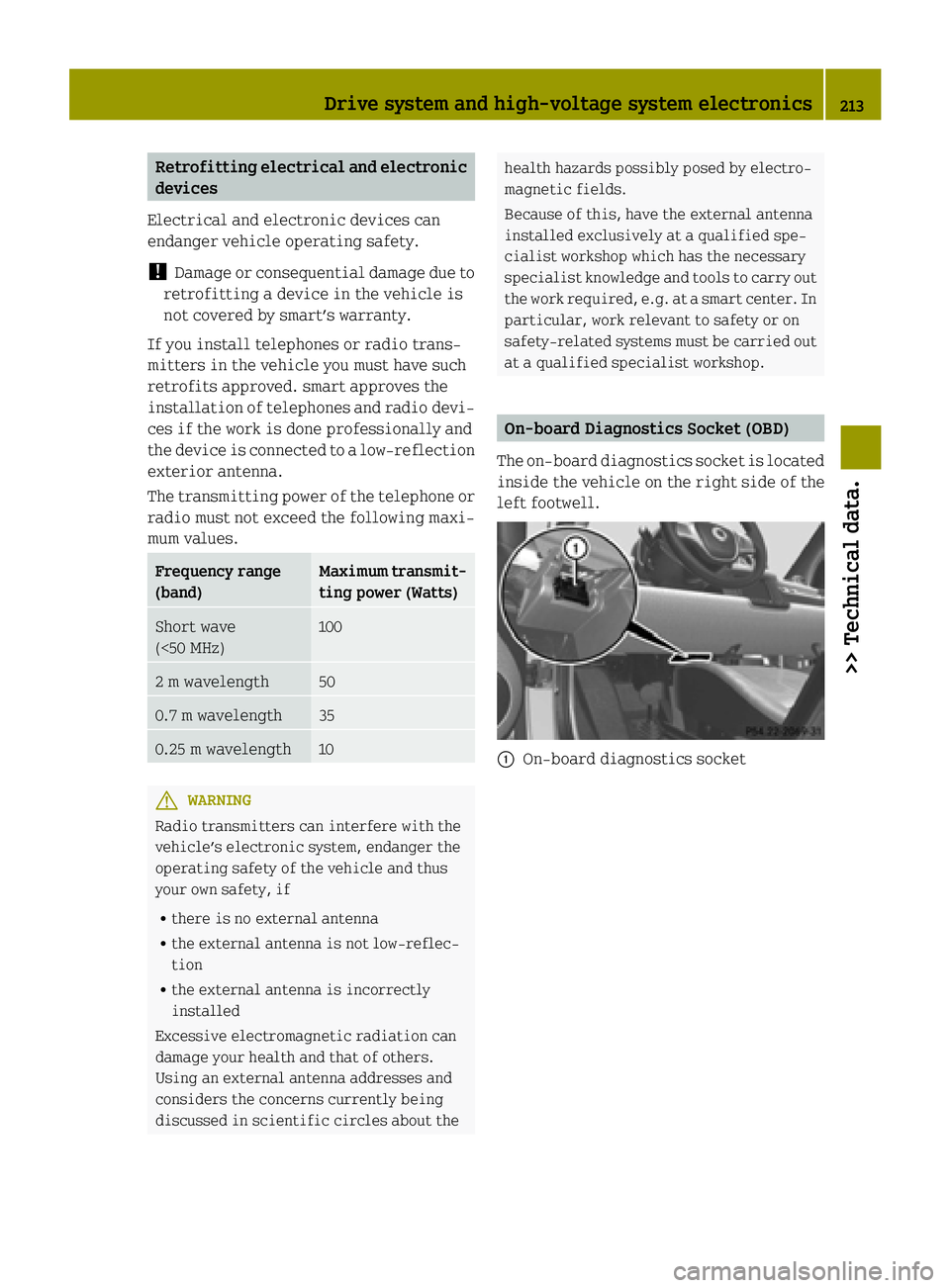

at a qualified specialist workshop. On-board Diagnostics Socket (OBD)
The on-board diagnostics socket is located inside the vehicle on the right side of the
left footwell. :
On-board diagnostics socket Drive system and high-voltage system electronics
213>> Technical data. Z

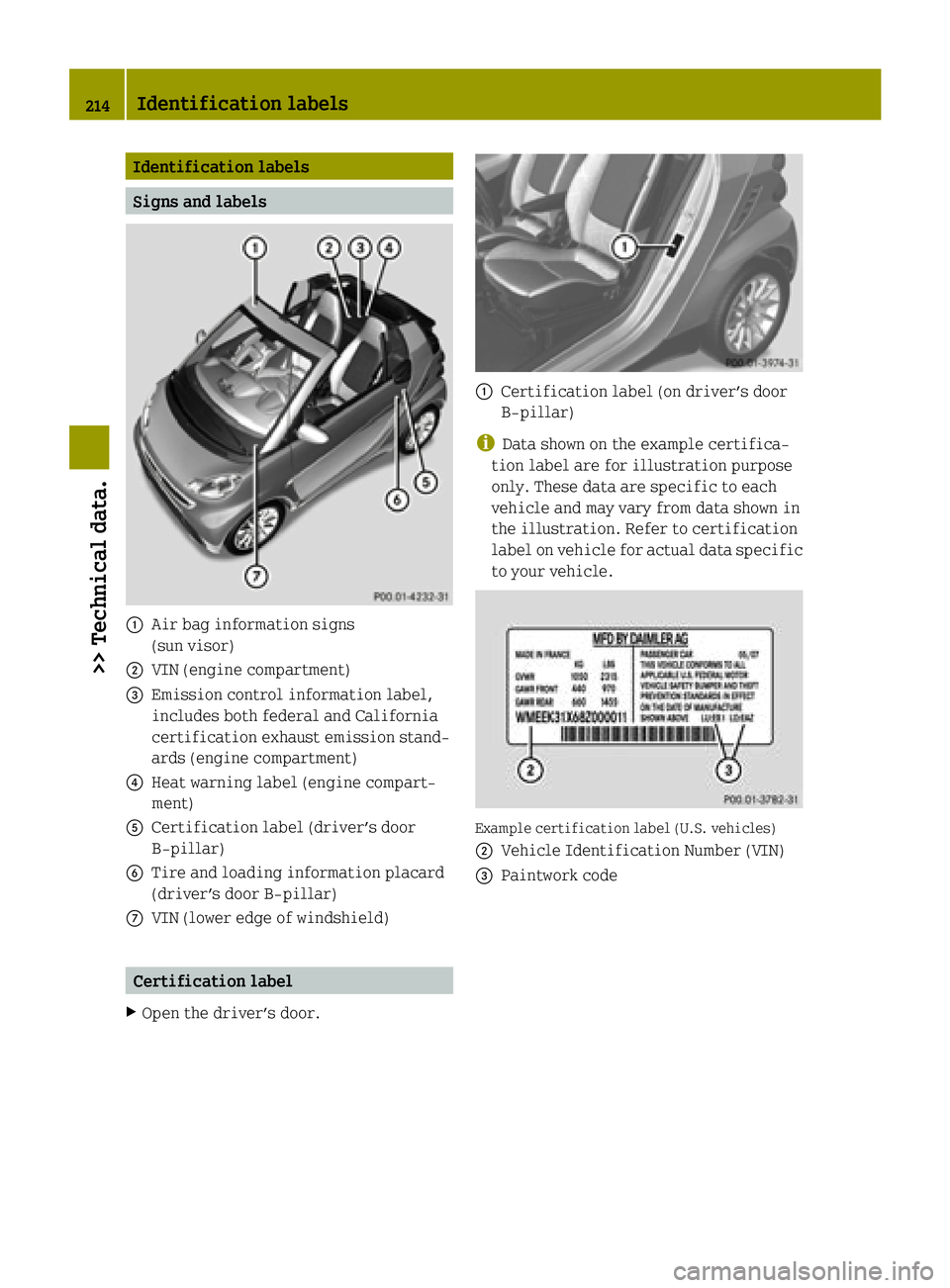

Identification labels
Signs and labels
:
Air bag information signs
(sun visor)
; VIN (engine compartment)
= Emission control information label,
includes both federal and California
certification exhaust emission stand-
ards (engine compartment)
? Heat warning label (engine compart-
ment)
A Certification label (driver’s door
B‑pillar)
B Tire and loading information placard
(driver’s door B‑pillar)
C VIN (lower edge of windshield) Certification label
X Open the driver’s door. :
Certification label (on driver’s door
B‑pillar)
i Data shown on the example certifica-
tion label are for illustration purpose
only. These data are specific to each
vehicle and may vary from data shown in
the illustration. Refer to certification
label on vehicle for actual data specific to your vehicle. Example certification label (U.S. vehicles)
; Vehicle Identification Number (VIN)
= Paintwork code 214
Identification labels>> Technical data.

Example certification label (Canada vehicles)
; Vehicle Identification Number (VIN)
= Paintwork code Vehicle Identification Number (VIN)
The Vehicle Identification Number (VIN)
can be found in the following locations:
R on the certification label on the driver’s
door B‑pillar (Y page 214)
R on the rear right on the cargo compart-
ment floor (Y page 215)
R in the lower edge of the windshield
(Y page 214)
X Open the cargo compartment.
X Fold back the carpet. :
VIN (on the cargo compartment floor) Vehicle specification
The quoted data apply only to the standard
vehicle. Contact an authorized electric
drive smart center for the corresponding
data of all special bodies and special
equipment. Main dimensions
Overall vehicle
length
107.4 in (2 727 mm)
Overall vehicle
width
11 69.0 in (1 752 mm)
Overall vehicle
height
62.1 in (1 555 mm)
Wheelbase
73.5 in (1 867 mm)
Turning circle
28.7 ft (8.75 m)
Weights
Cargo compart-
ment load
max. 110 lb (50 kg)
Roof load
None
This vehicle is not intended to carry items
on its roof. Thus roof rails and any roof-
mounted devices must not be used. G
WARNING
No racks or loads may be secured to the roof of the vehicle, as
R the panorama roof* may be damaged, thus
injuring persons
R this can have a substantial adverse
effect on the driving dynamics of the
vehicle, thus causing accidents
R the rack and/or the load could detach and
through this cause an accident or other
people could be injured by the load and/
or rack that has fallen off
11 Exterior rear view mirrors folded out. Vehicle specification
215>> Technical data.
* optional Z

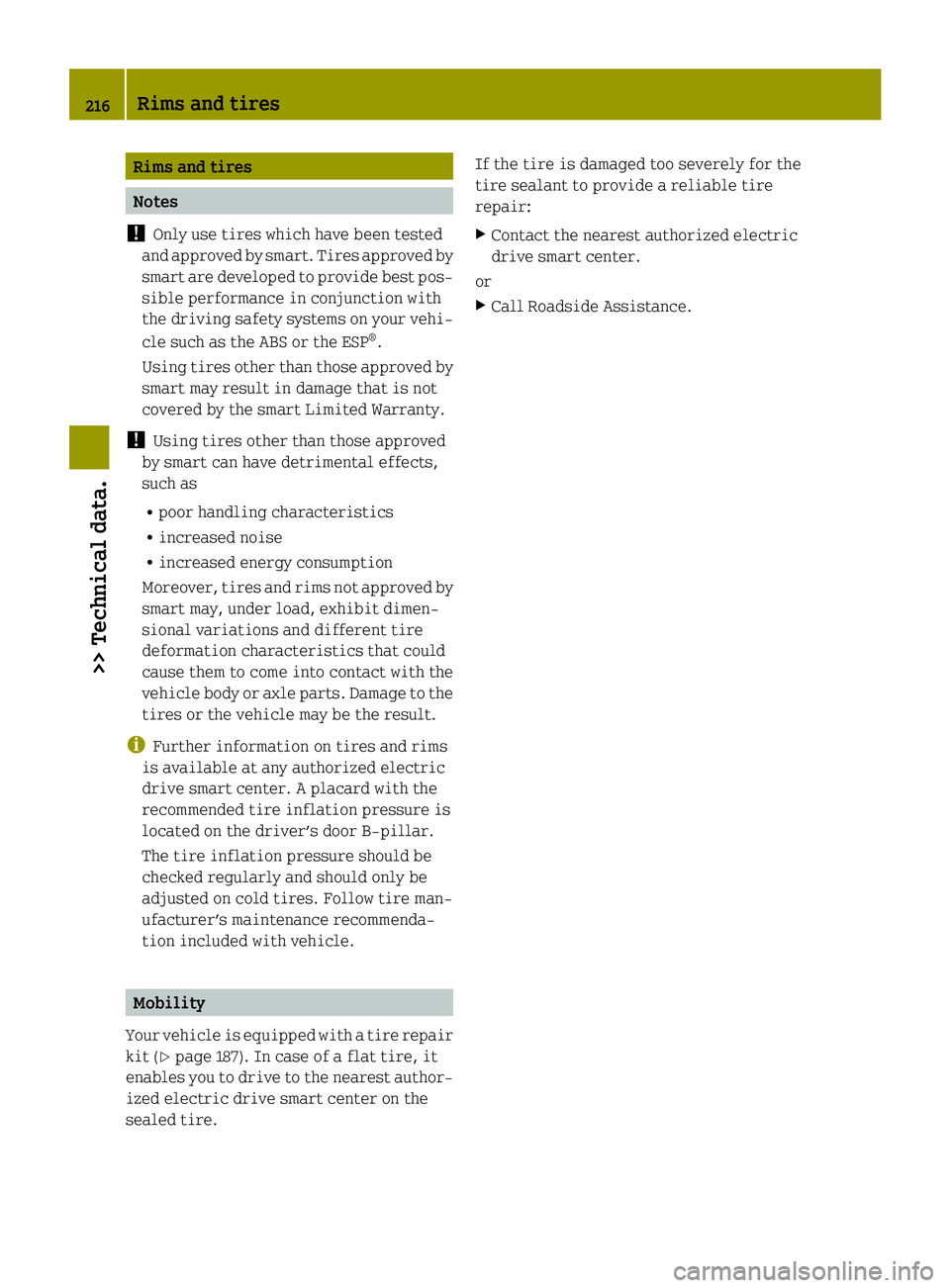

Rims and tires
Notes
! Only use tires which have been tested
and approved by smart. Tires approved by
smart are developed to provide best pos-
sible performance in conjunction with
the driving safety systems on your vehi-
cle such as the ABS or the ESP ®
.
Using tires other than those approved by smart may result in damage that is not
covered by the smart Limited Warranty.
! Using tires other than those approved
by smart can have detrimental effects,
such as
R poor handling characteristics
R increased noise
R increased energy consumption
Moreover, tires and rims not approved by
smart may, under load, exhibit dimen-
sional variations and different tire
deformation characteristics that could
cause them to come into contact with the
vehicle body or axle parts. Damage to the
tires or the vehicle may be the result.
i Further information on tires and rims
is available at any authorized electric
drive smart center. A placard with the
recommended tire inflation pressure is
located on the driver’s door B‑pillar.
The tire inflation pressure should be
checked regularly and should only be
adjusted on cold tires. Follow tire man-
ufacturer’s maintenance recommenda-
tion included with vehicle. Mobility
Your vehicle is equipped with a tire repair kit (Y page 187). In case of a flat tire, it
enables you to drive to the nearest author- ized electric drive smart center on the
sealed tire. If the tire is damaged too severely for the
tire sealant to provide a reliable tire
repair:
X Contact the nearest authorized electric
drive smart center.
or
X Call Roadside Assistance. 216
Rims and tires>> Technical data.

Mixed size tires
i Abbreviations used in the following tables:
R FA: Front Axle
R RA: Rear Axle All-season tires Light alloy rims
FA
RA 155/60 R 15 74T M+S
175/55 R 15 77T M+S 4.5 J x 15 H2
Wheel offset: 0.93 in (23.5 mm)
5.5 J x 15 H2
Wheel offset: 0.87 in (22 mm)
Winter tires
12 Light alloy rims
FA
RA 155/60 R 15 74T M+Si
175/55 R 15 77T M+Si 4.5 J x 15 H2
Wheel offset: 0.93 in (23.5 mm)
5.5 J x 15 H2
Wheel offset: 0.87 in (22 mm)
Service fluids and capacities
Notes
Vehicle components and their respective
lubricants must match. Therefore only use
products tested and approved by smart.
Please contact an authorized electric
drive smart center for products tested and
approved by smart. G
WARNING
Comply with all valid regulations with
respect to handling, storing and disposing of service fluids. Otherwise you could
endanger persons or the environment.
Keep service fluids out of the reach of chil-
dren.
For health reasons, you should prevent ser-
vice fluids from coming into direct contact with your skin or clothing.
If a service fluid is swallowed, contact a
physician immediately.
12 Not available as factory equipment. Service fluids and capacities
217>> Technical data. Z

Capacities
Components Capacity Coolants, lubricants, etc.
Coolant system approx. 6.9 US qt (6.5 l) Anticorrosion/Antifreeze meet-
ing specification MB 325.0
Air conditioning system 500 g
(17.6 oz) R134a refrigerant (never R 12)
120 g
(4.2 oz) PAG lubricant oil Daphne 1234
Windshield washer sys-
tem 4.0 US qt (3.8 l)
Windshield washer concentrate
13
(Y page 218)
Washer fluid mixing ratio
(Y page 218) Brake fluid
G
WARNING
During vehicle operation, the boiling
point of the brake fluid is continuously
reduced through the absorption of moisture from the atmosphere. Under extremely
strenuous operating conditions, this mois-
ture content can lead to the formation of
bubbles in the system, thus reducing the
system’s efficiency.
Therefore, the brake fluid must be replaced regularly. Refer to your vehicle’s Mainte-
nance Booklet for replacement interval.
Only brake fluid approved by smart is rec- ommended. Any authorized electric drive
smart center will provide you with addi-
tional information. Windshield/rear window washer system
During all seasons: X Use a windshield washer concentrate
labeled for summer and water for tem-
peratures above freezing point.
X Use a windshield washer concentrate
labeled for winter and water for temper-
atures below freezing point.
X Premix the windshield washer fluid in a
suitable container depending on the out-
side temperature and in accordance with
the manufacturer’s instructions 14
.
Washer fluid mixing ratio R
Temperature above 32¦ (0¥):
1 part windshield washer concentrate
labeled for summer to 100 parts water
R Temperature of 14¦ (-10¥):
1 part windshield washer concentrate
labeled for winter to 2 parts water
R Temperature of -4¦ (-20¥):
1 part windshield washer concentrate
labeled for winter to 1 part water
13 Use a windshield washer concentrate labeled for summer and water for temperatures above freezing
point or a windshield washer concentrate labeled for winter and water for temperatures below freezing
point.
14 Refer to the notes for use on the container. 218
Service fluids and capacities>> Technical data.
