03-438710-01
Auto door lock control ▶
Door lock output is activated when the vehicle speed is maintained above 30 km/h with IGN1 ON.
However, if all the doors are locked or fail, lock output is not activated.
If any of doors is not locked after Step (1), BCM activates the door lock output up to 5 times.
If the door is still unlocked, BCM considers the door as Fail.
If the failed door is changed from UNLOCK to LOCK, the fail record the side fascia panel.
If there is any failed door, the auto door lock function is not available.
(Even though the vehicle speed is increased over 30 km/h again after decreased below 30 km/h, BCM
does not send the auto door lock signal.)
When receiving the unlock signal for another door during Step (2), BCM sends the lock
signal for the door up to 5 times.
The unlock output is activated automatically when door lock output conditions are met by this function
or the IGN1 switch is turned to OFF from ON position (even though the lock output is not activated if
the vehicle speed is maintained above 30 km/h under lock condition). (If the LOCK condition is
established with the ignition switch ON, the system outputs UNLOCK signal unconditionally when
turning the ignition switch to OFF position.)
However, whether the door lock output condition is met or not is initialized when the IGN1 switch is
turned to OFF position.
When turning the ignition off, the fail record for a door will be initialized.
If any of door lock switches is in LOCK position when turning the ignition off, all doors are unlocked. 1.
2.
3.
4.
5.
6.
7.
8.
9.
(*1) Lock: All doors including tailgate are locked.
Unlock: All doors including tailgate are unlocked.

03-478710-01
Coming home lighting control ▶
The low beam keeps on for 30 seconds when the ignition switch is turned to ON from OFF position
with the headlamp ON.
Coming home lighting OFF condition
This function can be activated or deactivated with the diagnostic device. (default setting: active) 1.
2.
3.3 minutes after all doors and tailgate are open and closed
(lighting goes off 30 seconds after without extension when the closed doors are open)
When receiving REKES and passenger door lock signals (close, open, close) twice during coming
home lighting operation
Lighting goes off during its operation when headlamp and AUTO light switch are turned to other
position than ON
Lighting goes off when ignition switch is turned to ON position -
-
-
-
13) Headlamp

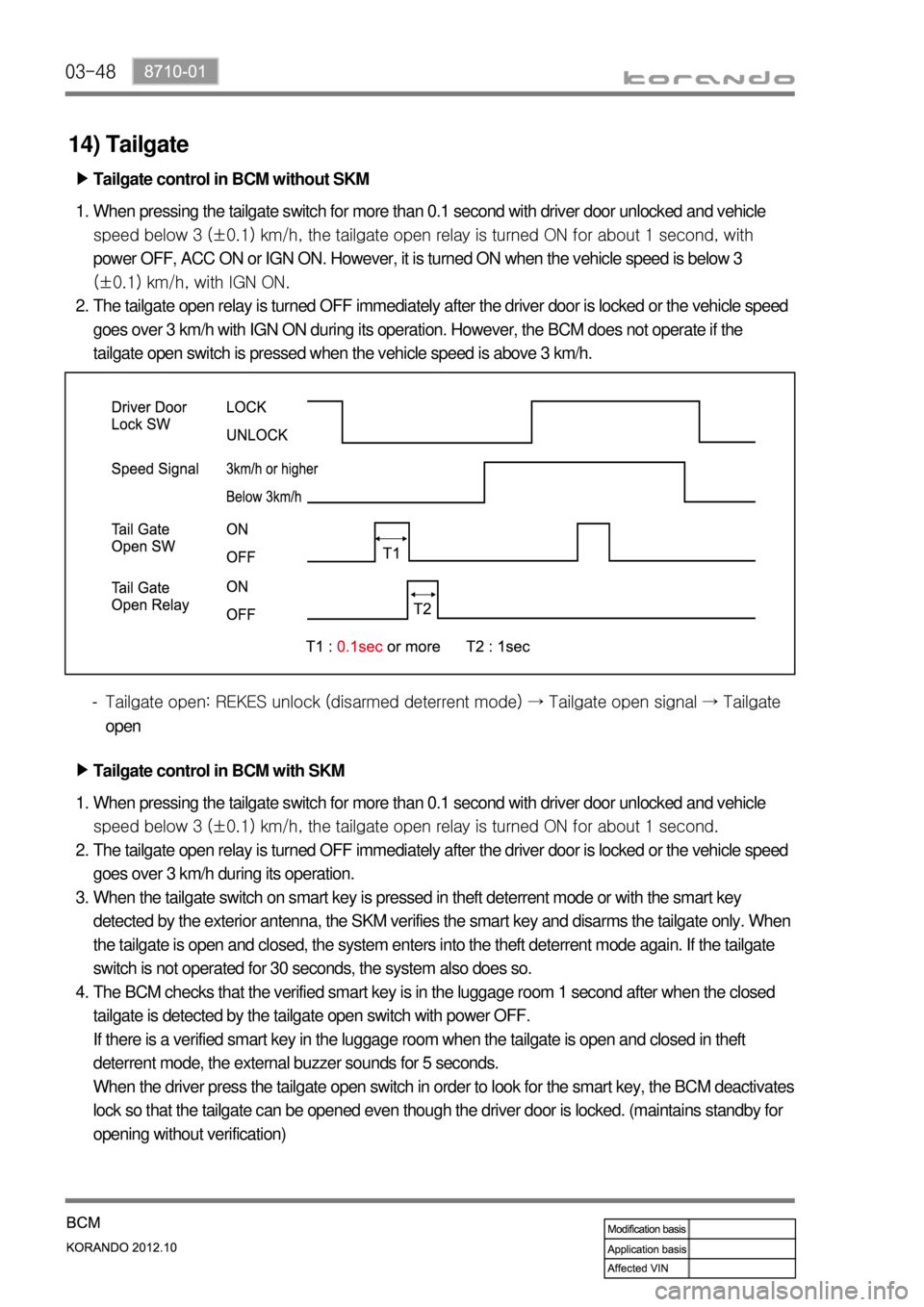

03-48
14) Tailgate
Tailgate control in BCM without SKM ▶
When pressing the tailgate switch for more than 0.1 second with driver door unlocked and vehicle
<009a0097008c008c008b00470089008c00930096009e0047005a0047004f00b700570055005800500047009200940056008f00530047009b008f008c0047009b008800900093008e0088009b008c004700960097008c009500470099008c0093008800a000
470090009a0047009b009c00990095008c008b004700760075> for about 1 second, with
power OFF, ACC ON or IGN ON. However, it is turned ON when the vehicle speed is below 3
(±0.1) km/h, with IGN ON.
The tailgate open relay is turned OFF immediately after the driver door is locked or the vehicle speed
goes over 3 km/h with IGN ON during its operation. However, the BCM does not operate if the
tailgate open switch is pressed when the vehicle speed is above 3 km/h. 1.
2.
<007b008800900093008e0088009b008c004700960097008c0095006100470079006c0072006c007a0047009c009500930096008a00920047004f008b0090009a008800990094008c008b0047008b008c009b008c00990099008c0095009b00470094009600
8b008c0050004702e70047007b008800900093008e0088009b>e open signal → Tailgate
open -
Tailgate control in BCM with SKM ▶
When pressing the tailgate switch for more than 0.1 second with driver door unlocked and vehicle
<009a0097008c008c008b00470089008c00930096009e0047005a0047004f00b700570055005800500047009200940056008f00530047009b008f008c0047009b008800900093008e0088009b008c004700960097008c009500470099008c0093008800a000
470090009a0047009b009c00990095008c008b004700760075> for about 1 second.
The tailgate open relay is turned OFF immediately after the driver door is locked or the vehicle speed
goes over 3 km/h during its operation.
When the tailgate switch on smart key is pressed in theft deterrent mode or with the smart key
detected by the exterior antenna, the SKM verifies the smart key and disarms the tailgate only. When
the tailgate is open and closed, the system enters into the theft deterrent mode again. If the tailgate
switch is not operated for 30 seconds, the system also does so.
The BCM checks that the verified smart key is in the luggage room 1 second after when the closed
tailgate is detected by the tailgate open switch with power OFF.
If there is a verified smart key in the luggage room when the tailgate is open and closed in theft
deterrent mode, the external buzzer sounds for 5 seconds.
When the driver press the tailgate open switch in order to look for the smart key, the BCM deactivates
lock so that the tailgate can be opened even though the driver door is locked. (maintains standby for
opening without verification) 1.
2.
3.
4.

03-498710-01
15) Theft Deterrent Alarm
Theft deterrent alarm control in BCM without SKM ▶
Entering into theft deterrent mode by REKES remote control 1.
When receiving the door lock signal with the key removed, all doors including tailgate and engine
hood closed, all doors are locked and the theft deterrent mode is activated. At this moment, the
turn signal lamps blink twice.
When pressing the lock switch on remote control key again in 4 seconds, the turn signal lamps
blink twice and the horn sounds once in the theft deterrent mode. In other words, when pressing
the door lock button once, all the doors are locked and the turn signal lamps only blink twice, and
another press in 4 seconds makes the turn signal lamps blink twice and alarm horn sound once.
When receiving the door lock signal with any door (except tailgate and engine hood) open, the
doors are unlocked immediately after locking them first.
When receiving the door lock signal with the tailgate or engine hood open, the doors are closed if
they are open, but the theft deterrent mode is not activated. However, when closing the opened
tailgate or engine hood, the theft deterrent mode is activated with two blinks of turn signal lamps.
If a door or tailgate is not opened within 30 seconds after unlocking the doors with remote control
key in theft deterrent mode, all doors will be automatically locked again (re-lock operation). When
entering into the theft deterrent mode, the turn signal lamps blink twice and the horn sounds once.
The theft deterrent mode can be activated only when the above conditions are satisfied.
Ex) The theft deterrent mode cannot be activated when locking the doors with key hole on door. -
-
-
-
-
-

03-50
Disarming by REKES remote control 2.
When unlocking the doors or turning the ignition switch to ON position.
When receiving the door unlock signal in theft deterrent mode, all doors are unlocked and the turn
signal lamps blink once (the horn does not sound).
When receiving the door unlock signal with the theft deterrent mode disarmed, the turn signal
lamps blink once (the horn does not sound). -
-
-
In theft deterrent mode
BCM observes the conditions below continuously: 3.
Battery connection (B+)
Front/rear door open
Tailgate open
4 doors lock/unlock
Engine hood open -
-
-
-
-
Activation of theft deterrent alarm 4.
When any of doors, tailgate or engine hood is open in theft deterrent mode
When unlocking the door lock switch in theft deterrent mode
When opening a door after completion of theft deterrent alarm (for 30 seconds)
Horn and the turn signal lamps operate for 30 seconds with the interval of 0.5s ON/0.5s OFF. -
-
-
-
Disarming conditions of theft deterrent mode 5.
When pressing any switch (lock, unlock, panic) on the remote control key during the theft deterrent
alarm, the alarm stops its operation.
When turning the ignition switch to ON position during the theft deterrent alarm, the alarm stops its
operation.
(For vehicle with immobilizer system, the alarm stops after completion of authorization. For vehicle
without immobilizer system, the alarm stays ON for 30 seconds)
When turning the ignition switch to ON position during the theft deterrent alarm, the alarm stops
and the theft deterrent mode is deactivated after 30 seconds (remaining time).
If there is not any disarming commend, the alarm stays ON for 30 seconds and the theft deterrent
mode continues. -
-
-
-
Operation when disarming 6.
The horn and the turn signal lamps stop their operation. -

03-52
Theft deterrent alarm control in BCM with SKM ▶
Entering into theft deterrent mode by smart key remote control 1.
When receiving the door lock signal from the smart key remote control with power OFF or ACC ON
and tailgate and engine hood closed, the doors are locked and the theft deterrent mode is
activated. At this time, the turn signal lamps blink twice and the exterior buzzer sounds once at
interval with 50 ms ON/50 ms OFF. (SKM turns off the vehicle and sends the signal, when ACC
ON)
The BCM unlock the doors immediately after locking them first without operating turn signal lamp
and exterior buzzer and the system does not enter into theft deterrent mode, if the door lock signal
is received from the smart key remote control when the driver door is unlocked and any of doors is
open.
The BCM locks all the doors and system does not enter into theft deterrent mode if all the doors are
closed when the door lock signal is received from the smart key remote control with the tailgate and
engine hood open. However, if the tailgate and engine hood is closed, the turn signal lamps blink
twice, exterior buzzer sounds once and theft deterrent mode is entered.
If all the doors, tailgate or engine hood is open or the ignition switch is not turned to ON position
within 30 seconds after receiving the door unlock signal from the smart key remote control, the
doors are locked, turn signal lamps blink twice, exterior buzzer sounds once and theft deterrent
mode is re-activated.
The theft deterrent mode can be activated only when the above conditions are satisfied, excepting
manual lock.
Ex) The theft deterrent mode cannot be activated when locking the doors with key hole on door. -
-
-
-
-

03-538710-01
Entering into theft deterrent mode by SKM passive entry 2.
When receiving the signal from the outside door handle switch with power OFF or ACC ON,
tailgate and engine hood closed and driver door unlocked, the doors are locked and the theft
deterrent mode is activated. At this time, the turn signal lamps blink twice and the exterior buzzer
sounds once at interval with 50 ms ON/50 ms OFF. (SKM turns off the vehicle and sends the
signal, when ACC ON)
The BCM unlock the doors immediately after locking them first without operating turn signal lamp
and exterior buzzer and the system does not enter into theft deterrent mode, if the door lock signal
is received from the outside door handle switch when the driver door is unlocked and any of doors
is open.
The BCM locks all the doors and system does not enter into theft deterrent mode if all the doors
are closed when the door lock signal is received from the outside door handle switch with the
tailgate and engine hood open. However, if the tailgate and engine hood is closed, the turn signal
lamps blink twice, exterior buzzer sounds once and theft deterrent mode is entered.
If all the doors, tailgate or engine hood is open or the ignition switch is not turned to ON position
within 30 seconds after receiving the door unlock signal from the outside door handle switch with
the driver door locked, the doors are locked, turn signal lamps blink twice, exterior buzzer sounds
once and theft deterrent mode is re-activated.
The theft deterrent mode can be activated only when the above conditions are satisfied, excepting
lock by smart key remote control signal.
Ex) The theft deterrent mode cannot be activated when locking the doors with key hole on door. -
-
-
-
-

03-54
Disarming 3.
If the door unlock signal is received from the smart key remote control with power OFF or the
outside door handle switch signal is received with the driver door locked, the doors are unlocked,
turn signal lamps blink once, exterior buzzer sounds twice at the intervals with 50 ms ON/450 ms
OFF and theft deterrent mode is deactivated. When receiving the door unlock signal with the theft
deterrent mode disarmed, the turn signal lamps blink and exterior buzzer sounds.
When tailgate is open by tailgate open switch signal (only tailgate disarmed)
When verified smart key is detected and manual tailgate is open by tailgate open switch signal
(only tailgate disarmed)
When ignition switch is turned to ON position -
-
-
-
In theft deterrent mode
BCM observes the conditions below continuously: 4.
Battery connection (B+)
Front/rear door open
Tailgate open
4 doors lock/unlock
Engine hood open -
-
-
-
-
Activation of theft deterrent alarm 5.
When any of doors, tailgate or engine hood is open in theft deterrent mode
When unlocking the door lock switch in theft deterrent mode
When opening a door after completion of theft deterrent alarm (for 30 seconds)
Horn and the turn signal lamps operate for 30 seconds with the interval of 0.5s ON/0.5s OFF. -
-
-
-
Warning cancellation requirements 6.
The theft deterrent alarm is deactivated by the following BCAN signals during its operation: (theft
deterrent mode maintains) -
When door is unlocked by smart key remote control
When door is locked by smart key remote control
When tailgate is open by smart key remote control
When passive door is unlocked due to smart key detection
When tailgate is open due to smart key detection
When panic alarm is activated by smart key remote control 1)
2)
3)
4)
5)
6)
When turning the ignition switch to ON position during the theft deterrent alarm, the alarm stops
immediately.
When turning the ignition switch to ON position during the theft deterrent alarm, the alarm stops and
the theft deterrent mode is deactivated after 30 seconds (remaining time).
If there is not any disarming commend, the alarm stays ON for 30 seconds and the theft deterrent
mode continues. -
-
-

03-558710-01
Re-entering into theft deterrent mode after tailgate open 7.
If all the doors, excepting tailgate, are in theft deterrent mode and the BCM is received the signal
indicating that the verified smart key is not in the vehicle when the tailgate is closed again, the
system enters into the theft deterrent mode again in 1 second. At this time, the turn signal lamps
blink twice and exterior buzzer sounds once by the BCM. -
Operation when disarming 8.
The horn and the turn signal lamps stop their operation. -

03-56
16) Time Lag Power Window Control
When turning the ignition switch to ON position, the power window relay is turned ON.
The power window relay keeps ON for 30 seconds even when stopping the engine.
However, the power window relay is turned OFF when opening a front door.
When locking the door (activation of theft deterrent mode), the power window relay is
immediately turned OFF. 1.
2.
3.
17) Sleep Mode
If the driver door/passenger door/rear doors/tailgate lock switch is not changed for 6 seconds with all
driver door/passenger door/rear doors/tailgate closed, key removed, IGN1 and IGN2 OFF, the
vehicle enters into sleep mode for system power down.
If any of conditions in Step (1) is not satisfied, the System Wake-up mode is activated.
When output such as room lamp, key hole illumination, tail lamps and power window is activating or
all the doors keep closed for 30 seconds after door is unlocked for conditions in Step (1), the system
is in normal mode. Then, if there is no change within 6 seconds with all output conditions and ready
conditions released and all the doors closed, the sleep mode is activated.
When turning on the overhead room lamp switch, the overhead room lamps come on for 10 minutes
and go off, and the sleep mode is activated after 6 seconds.
When the coming home light OFF conditions are satisfied, the sleep mode is activated.
In this condition, when opening a door or inserting the ignition key into key hole, the sleep mode is
deactivated. 1.
2.
3.
4.
5.
6.
