Anti-lock function when a door is open ▶
If any of doors (except tailgate and engine hood) is open, the doors are locked once but immediately
unlocked when receiving the lock signal.
The door remains unlocked for 0.5 seconds when closing the door during unlock.
The system also performs operation as above while the key is removed or the ignition switch is
turned to "ON" position. The ignition key reminder function is activated while the ignition key is
inserted into the key cylinder.
This function is not available when the vehicle speed is over 10 km/h. 1.
2.
3.
4.
(*1) : Driver door lock switch or passenger door lock switch
(*2) : Driver door switch or passenger door switch

03-26

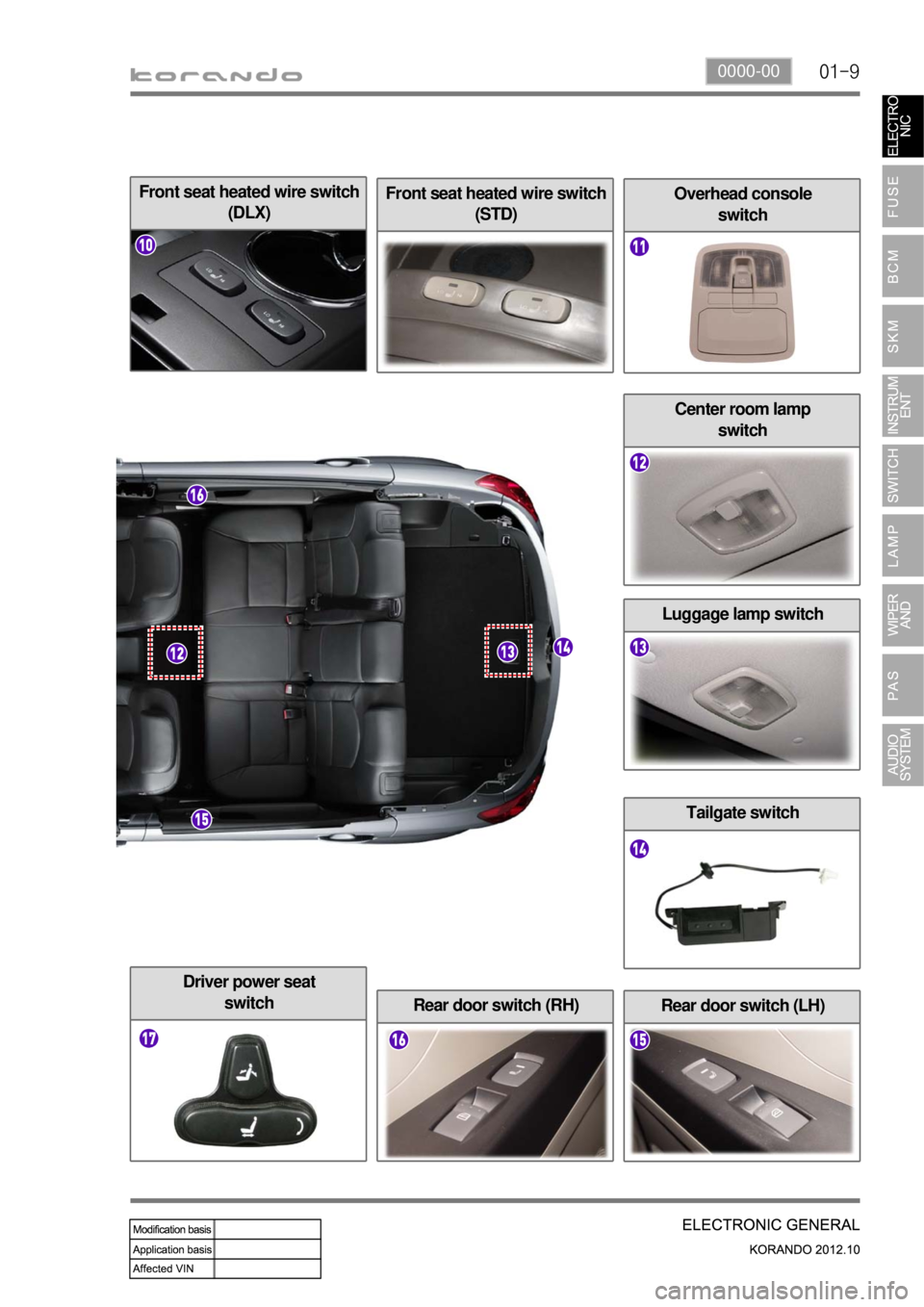

4) Door Ajar Warning
While the BCM without SKM controls the warning lamp, the BCM with SKM controls the warning lamp
and sends the signal via the BCAN communication. But, this control is available only when any of doors
or tailgate, except engine hood, is open.
The instrument cluster controls the door ajar warning lamp according to the signal from the BCM.
(However, the BCM controls the door ajar warning lamp with the electric wire together with the BCAN
communication.)
Also, the instrument cluster controls the blinking function according to the vehicle speed.
(However, the BCM controls the door ajar warning lamp blinking with the electric wire together with
the BCAN communication.) 1.
2.
(*1) : Ajar: Driver, passenger, rear door or tailgate is open
Close: Driver, passenger, rear door and tailgate are closed

03-358710-01
10) Keyless Entry
Transmitter (REKES key) ▶
When the user operates the switch of the remote control key, the vehicle control messages formatted by
its CPU are sent to the main unit wirelessly. The, the CPU control the vehicle and the main unit controls
the vehicle operation.
Door unlock/panic buttonDoor lock
Door unlock/panic button ▶
Unlocking door and tailgate (briefly press)
If you press this button, it unlocks all doors and the tailgate and deactivates the theft deterrent mode.
When the theft deterrent mode is deactivated, the emergency hazard lights blink once.
If the door, tailgate or engine hood is not opened within 30 seconds after unlocking the door with the
remote control key in theft deterrent mode, the door is locked automatically, hazard warning flasher
blinks twice and buzzer sounds once. (entering into theft deterrent mode)
Panic function (press and hold for more than 2 sec)
When pressing (over 2 sec) the button, the hazard warning flasher blinks and buzzer sounds for
about 30 seconds.
Press the UNLOCK or PANIC button to deactivate this function. 1.
-
-
-
2.
-
-

03-36
Remote door lock ▶
When briefly pressing (below 0.5 sec) the LOCK button on the transmitter, the doors are locked.
The BCM sends the door lock signal immediately after receiving the door lock message from the
transmitter. When door close, hood close and door lock status is detected, it outputs the turn signal
lamp signal.
Only when door close, hood close and door lock conditions are satisfied after door lock is performed,
the turn signal lamp signal is outputted.
The REKES operation is not available when the ignition key is in the key switch. Also, it is not
possible to use the switches on the remote control key for 1 second after removing the ignition key
from the ignition switch to avoid unintended operation.
If any of doors could not be locked when pressing the LOCK switch, the system performs the unlock
operation. 1.
2.
3.
4.
5.
Door lock ▶
Locking door and tailgate (briefly press)
If you press this button, all doors and the tailgate are locked and the theft deterrent mode is
activated.
When the theft deterrent mode is activated, the hazard warning flasher blinks twice. However, when
pressing this button once again within 4 seconds, the hazard warning flasher blinks twice and buzzer
sounds once. 1.
-
-

03-38
After 30 seconds delay auto door lock ▶
If a door or tailgate is not opened within 30 seconds after unlocking the doors with remote control key
in theft deterrent mode, all doors will be automatically locked again (change to theft deterrent mode).
If any door is not opened or the key is not detected within 30 seconds after receiving the unlock
signal, the lock signal is outputted and theft deterrent mode is activated.
When entering into the theft deterrent mode, the turn signal lamps blink twice and the exterior buzzer
sounds once for SKM the lamps blink twice and burglar alarm horn sounds once for REKES. 1.
2.
