8712-03
7. SMART KEY VERIFICATION TIME CONTROL
The smart key verification time control consists of pre-verification timer and immobilizer verification timer,
and no verification process is required for 30 seconds after the each verification process has been
completed.
Pre-verification timer: Time for performing start & power mode function that controls the vehicle
power.
Immobilizer verification timer: Time for which the start with a smart key is possible after the SKM and
EMS (ECU) verify the immobilizer. -
-
Item Pre-verification timer Immobilizer verification timer
Operating power
Power OFF, ACC, IGN ON IGN ON after pre-verification (ACC)
FunctionTime for which the power control can be
carried out under the verified conditions
(30 seconds after the verification)Time for which the start request can be
carried out without a smart key under the
verified conditions
(30 seconds after the verification)
Input conditions
Verification
conditionsSmart key searching completed after the
following conditions are met:
Close signal input after any door
opened
Brake switch signal input
START/STOP switch signal input
After emergency slot inserted
After IGN OFF 1.
2.
3.
4.
5.Power changed to IGN ON after
valid pre-verification
Power changed to IGN ON by
smart key verification after pre-
verification timer completed
Smart key verification succeeded
by brake switch input after
immobilizer verification timer
completed with IGN ON
Smart key verification succeeded
after immobilizer verification timer
completed with IGN ON,
immobilizer verification and brake
switch input 1.
2.
3.
4. All doors closed
(including tailgate)
START/STOP switch input
Brake switch signal input
Smart key inserted into emergency
slot
Smart key searching completed
Engine start ON to OFF 1.
2.
3.
4.
5.
6.Brake switch signal input
START/STOP switch input 1.
2.

(2) Smart Key Detected Warning (Smart Key Found Inside Vehicle)
Smart key deactivation warning
The ignition is turned OFF or ACC is turned ON.
A verified smart key found in the vehicle with all doors (including tailgate) closed.
The REKES LOCK or passive LOCK signal is input with a valid smart key from the outside the
vehicle.
The SKM sends the theft deterrent mode signal to the BCM through B-CAN and the verified smart
key is found inside the vehicle.
The SKM sends the smart key detected warning to the BCM and instrument cluster through B-CAN.
The BCM activates the buzzer for up to 10 seconds at intervals of 0.5 sec. ON/0.5 sec. OFF and
turns on the smart key detected warning indicator on the instrument cluster. 1.
2.
3.
4.
5.
6.
Smart key inside vehicle warning
The ignition is turned ON or OFF, or the ACC is turned ON.
A verified smart key found only in the vehicle (including emergency slot) with all doors (including
tailgate) closed.
The passive LOCK signal is input without a valid smart key from the outside the vehicle.
The SKM sends the theft deterrent mode signal to the BCM through B-CAN and the verified smart
key is found inside the vehicle.
The SKM sends the smart key detected warning to the BCM and instrument cluster through B-CAN.
The BCM activates the buzzer for up to 10 seconds at intervals of 0.5 sec. ON/0.5 sec. OFF and
turns on the smart key detected warning indicator on the instrument cluster. 1.
2.
3.
4.
5.
6.Smart key detected warning deactivation conditions
- The theft deterrent mode is deactivated.
Smart key detected warning deactivation conditions
- No smart key is found inside the vehicle when a door is opened and then closed.

8010-01
Pin No. Message Operating condition
Domestic Export
Smart key
warningLCD display shows this message for 10 seconds
when the ignition switch or Smart key system is
defective.
This message comes on for approx. 10 seconds if
the low smart key battery is detected when the
ignition switch is pressed or the engine is started.
Door/PASLCD display shows this message when the door,
engine hood or tailgate is open.
Parking aid
systemIf any obstacle is detected in the rear of the vehicle
when the shift lever is moved to "R" position with IGN
ON, each sensor shows its position and distance.
If any error is detected during initial diagnosis, it is
displayed as "?". Other than that is operated in the
same way as the PAS distance measurement mode.
Cruise
controlThis message comes on when the cruise control
system is activated.
This message comes on when the cruise control
system is deactivated.
This message comes on when the cruise switch is
moved to the ECO position.Pin No. Message Operating condition
TailgateIf the tailgate is open, open status messages are
displayed in 4-step graphics.

8510-00
Rear door switch and
heating switch (RH)
Front seat heating and ventilation switch
With heating and ventilation
switchWith heating switch
Rear door switch and
heating switch (LH)Driver power seat
switch
Tailgate switch
Luggage lamp switch
Center room lamp
switch
Overhead console
switch

8510-00
Door lock/unlock switch
When the door lock/unlock switch
is pressed while all doors
including the tailgate are locked,
all doors will be unlocked. When
the switch is pressed again, all
doors will be locked.Window lock switch
If the window lock switch is
pressed down, only driver window
is operative. Passenger and rear
windows cannot be operated by
their switches.
Rear LH window switch
The window moves upwards or
downwards while this switch is
operated.Passenger door
switch
The window moves upwards
or downwards while this
switch is operated.
Rear RH window
switch
The window moves upwards
or downwards while this
switch is operated.
Driver door window switch
The driver's door window switch has Auto down/Auto up function. The
window can be controlled within 30 seconds by activating the power
window relay even after turning off the ignition switch.
However, if any of front doors is opened or the Lock switch on the
remote control key is pressed (theft deterrent mode is activated)
during the delaying period, the delaying time is immediately canceled
(power window relay is deactivated).
There are two variants of this: only auto down and anti-trap (auto
down and auto up).

8510-00
Door lock/unlock switch
Function of door lock/unlock switch
There are 5 actuators in door lock/unlock system (including tailgate). All of them can control the
corresponding door lock and unlock separately. But, the driver door lock switch can control all door
locks. The BCM controls the lock/unlock switch using the door lock/unlock relay. This is a same control
type with Auto door lock function that locks the doors when the vehicle speed exceeds 30 km/h. (see
circuit diagram)
Door lock/unlock relay (integrated in BCM)
Door lock/unlock switch
When the door lock/unlock switch is pressed while all doors including the tailgate are locked, all doors
will be unlocked. When the switch is pressed again, all doors will be locked.

8510-00
Tailgate open switch

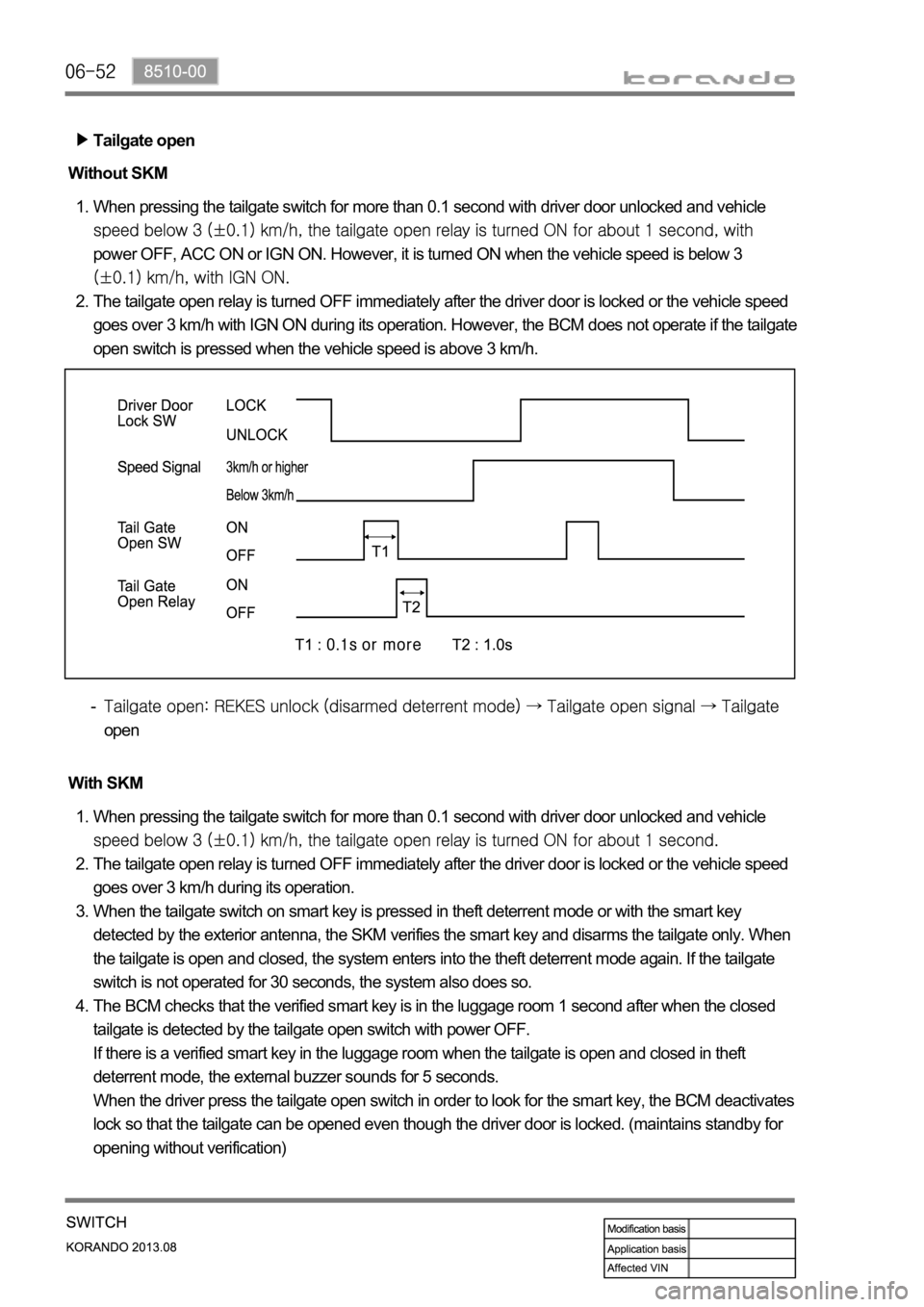

7. TAILGATE SWITCH

Tailgate open
When pressing the tailgate switch for more than 0.1 second with driver door unlocked and vehicle
power OFF, ACC ON or IGN ON. However, it is turned ON when the vehicle speed is below 3
The tailgate open relay is turned OFF immediately after the driver door is locked or the vehicle speed
goes over 3 km/h with IGN ON during its operation. However, the BCM does not operate if the tailgate
open switch is pressed when the vehicle speed is above 3 km/h. 1.
2.
open - Without SKM
When pressing the tailgate switch for more than 0.1 second with driver door unlocked and vehicle
The tailgate open relay is turned OFF immediately after the driver door is locked or the vehicle speed
goes over 3 km/h during its operation.
When the tailgate switch on smart key is pressed in theft deterrent mode or with the smart key
detected by the exterior antenna, the SKM verifies the smart key and disarms the tailgate only. When
the tailgate is open and closed, the system enters into the theft deterrent mode again. If the tailgate
switch is not operated for 30 seconds, the system also does so.
The BCM checks that the verified smart key is in the luggage room 1 second after when the closed
tailgate is detected by the tailgate open switch with power OFF.
If there is a verified smart key in the luggage room when the tailgate is open and closed in theft
deterrent mode, the external buzzer sounds for 5 seconds.
When the driver press the tailgate open switch in order to look for the smart key, the BCM deactivates
lock so that the tailgate can be opened even though the driver door is locked. (maintains standby for
opening without verification) 1.
2.
3.
4. With SKM

Front room lamp
2) Operation
Door coupled operation switch: Comes on
when opening door and goes off when closing
with switch pressed
Driver spot lamp switch: Driver front room
lamp comes on when pressing switch
Passenger spot lamp switch: Passenger front
room lamp comes on when pressing switch A.
B.
C.
Center room lamp
Press switch to turn on center room lamp and
press again to turn off it.
It comes on when opening the door with door
coupled operation switch in the front room lamp
pressed even though the switch is in "OFF"
position.
(1) Front room lamp/Center room lamp
Operating the front room lamp and center room lamp switches illuminates the driver/passenger side
lamps and center room lamp.
Room lamp control by door coupled room lamp operation
If a door except the tailgate is opened after the ignition is turned off, provided that door coupled front
room lamp switch is pressed, the front room lamp and center room lamp are illuminated for 2 sec.
and then fade out for 3 sec.
If a door except the tailgate is opened and then closed while the room lamp is fading out, the room
lamp is illuminated for 2 sec. and then fades out for 3 sec. If the ignition is turned on, the room lamp
goes off immediately.
The front room lamp and center room lamp are illuminated for 30 sec. when the door is unlocked by
the REKES or passive door UNLOCK function with IGN OFF and the ignition key removed. If the
REKES or passive door UNLOCK signal is received again, the room lamps are illuminated for
another 30 sec.
The room lamp goes off immediately when the REKES or passive door LOCK signal is received or
the ignition switch is turned to ON position.
If the room lamp is turned on after the ignition key is removed (door open or room lamp switch is
pressed), it is turned off after 10 minutes by the BCM.
When the door open state is changed or the ignition is turned on after the room lamp has been turned
off automatically, the battery saver feature is reset. 1.
2.
3.
4.
5.

8310-00
Sun visor lamp
Glove box lamp
(2) Luggage lamp
Luggage lampThe luggage lamp is turned on when the tailgate is opened
with the switch operated.
This lamp is not controlled by the BCM, unlike the
front/center room lamp.
(3) Glove box lamp
The glove box lamp comes on when the glove box is
opened after the tail lamp is illuminated.
The sun visor lamp comes on when the sun visor vanity
mirror cover is opened. Luggage lamp control by coupled operation switch when opening/closing tailgate
The luggage lamp comes on when the tailgate is open.
The luggage lamp goes off as soon as the tailgate is closed. 1.
2.
(4) Sun visor lamp
