tailgate SSANGYONG KORANDO 2013 User Guide

Operating process
- IGN OFF/ACC ON
- All doors (including hood and tailgate) closed

8710-01
Theft deterrent mode deactivation conditions (for vehicles without SKM)
The REKES UNLOCK signal is input with IGN ON.
When the REKES UNLOCK signal is input in the theft deterrent mode or with the theft deterrent mode
deactivated, the hazard warning lamp is operated once and the theft deterrent mode is deactivated
(without warning horn output). -
-
Theft deterrent mode (for vehicles without SKM)
Battery power
Front/rear door open
Tailgate open
4 doors LOCK/UNLOCK
Hood open -
-
-
-
- The BCM monitors the following conditions continuously in theft deterrent mode.
Theft deterrent alarm activation (for vehicles without SKM)
Any door including hood and tailgate is opened in theft deterrent mode.
The LOCK switch of any door including tailgate is set to UNLOCK in theft deterrent mode.
Any door except tailgate and hood is closed and then opened after 30 seconds of alarming.
The hazard warning lamp and warning horn are activated for 30 seconds at intervals of 0.5 sec.
ON/0.5 sec. OFF. -
-
-
-
Theft deterrent alarm deactivation conditions (for vehicles without SKM)
Any signal from the REKES (LOCK, UNLOCK, Panic, Escort) deactivates the theft deterrent
alarm.
The theft deterrent alarm remain on for up to 30 seconds.
When the theft deterrent alarm is activated in theft deterrent mode, turning the ignition ON
immediately deactivates the mode. The alarm is deactivated 30 seconds (time remaining) after that.
(For vehicles with immobilizer system, the alarm is deactivated once the key is verified after the
ignition is turned ON) -
-
-

Theft deterrent mode entering by smart key (for vehicles with SKM)
The ignition is turned OFF or ACC is turned ON with all doors (including hood and tailgate)
closed.
The door LOCK signal is received through B-CAN.
The door LOCK relay is activated.
(If ACC ON, the relay is activated after the power is turned OFF.)
All doors (including hood and tailgate) are locked
The system enters the theft deterrent mode after operating the hazard warning lamp twice and
external buzzer (SKM buzzer) once. A.
B.
C.
D.
E. Operation 1.
The door LOCK signal is received through B-CAN when one or more doors are open with driver
door unlocked.
The LOCK relay is activated followed by activation of UNLOCK relay.
The hazard warning lamp and external buzzer (SKM buzzer) are not operated and the system does
not enter the theft deterrent mode. F.
G.
H. Operation 2.
The tailgate and hood are open.
The door LOCK signal is received through B-CAN.
If all doors (including hood and tailgate) are closed, door LOCK relay is activated.
The system does not enter theft deterrent mode.
If the open tailgate and hood are closed.
The system enters the theft deterrent mode after operating the hazard warning lamp twice and
external buzzer (SKM buzzer) once. I.
J.
K.
L.
M.
N. Operation 3.
The door UNLOCK signal is received through B-CAN.
All doors (including hood and tailgate) are not opened or the ignition is not turned ON within 30
seconds (T5).
The door LOCK relay is activated.
The system enters the theft deterrent mode again after operating the hazard warning lamp twice and
external buzzer (SKM buzzer) once. O.
P.
Q.
R. Operation 4.
The procedure of entering theft deterrent mode by door handle switch LOCK is the same with the
operation 3.
Ex) The theft deterrent mode will not be activated when the door is locked by the door key.

Operating process
- IGN OFF/ACC ON
- All doors (including hood and tailgate) closed
Theft deterrent mode deactivation conditions (for vehicles with SKM)
When UNLOCK signal by the smart key with IGN OFF or by the door handle switch with the door
locked is received, the door UNLOCK signal is output and the theft deterrent mode is deactivated
after the hazard warning lamp (once) and external buzzer (SKM buzzer) (twice) operations.
If UNLOCK signal by the smart key is received after the deactivation of theft deterrent mode, the
hazard warning lamp relay and external buzzer (SKM buzzer) are turned ON.
When the tailgate open signal by the smart key or tailgate open switch is received, only the theft
deterrent for tailgate is deactivated.
The theft deterrent mode is deactivated when the ignition is turned ON. -
-
-
-

8710-01
Theft deterrent mode (for vehicles with SKM)
Battery power
Front/rear door open
Tailgate open
4 doors LOCK/UNLOCK
Hood open -
-
-
-
- The BCM monitors the following conditions continuously in theft deterrent mode.
Theft deterrent alarm activation (for vehicles with SKM)
Any door including hood and tailgate is opened in theft deterrent mode.
The LOCK switch of any door including tailgate is set to UNLOCK in theft deterrent mode.
Any door including tailgate and hood is closed and then opened after 30 seconds of alarming.
The hazard warning lamp and warning horn are activated for 30 seconds at intervals of 0.5 sec.
ON/0.5 sec. OFF. -
-
-
-
Theft deterrent alarm deactivation conditions (for vehicles with SKM)
The theft deterrent alarm is deactivated in the following conditions. The theft deterrent mode is kept
ON.
a. Door LOCK/UNLOCK signal by smart key is received.
b. Tailgate open signal by smart key is received.
c. UNLOCK signal by door switch is received.
d. Tailgate open switch signal is received.
e. IGN ON signal is received.
f. Panic function is activated.
When the ignition is turned ON while the theft deterrent alarm is activated, the alarm is deactivated
immediately.
When the theft deterrent alarm is activated in theft deterrent mode, turning the ignition ON
immediately deactivates the mode. The alarm is deactivated 30 seconds (time remaining) after that.
If no deactivation command is received, the system enter the theft deterrent mode after the 30
seconds. -

-
-
-
Theft deterrent mode re-activation after tailgate open (for vehicles with SKM)
All doors except the tailgate are in theft deterrent mode, the system searches for the smart key inside the
vehicle 1 second after the tailgate is closed. If no smart key is found, the system enters the theft
deterrent mode again.
The hazard warning lamp and warning horn are activated when the system enters the mode.

8710-01
Operating process
- The ignition is turned OFF.
19. SLEEP MODE
If the state of the LOCK switches of driver/passenger/rear doors and tailgate is not changed for 6
seconds with the all doors including tailgate closed and IGN OFF (ignition key removed), even if the
state is not LOCK, the system enters the sleep mode to power down. 1.
If any condition of the (1) is not met, the system enters the wake up mode immediately. 2.
When the room lamp, key hole lamp, tail lamp, or power window is already activated, or all doors are
closed for continuous 30 seconds after the door UNLOCK under the conditions stated in (1), the
system waits in normal mode. If the lamps or power window is deactivated and no change is
detected for 6 seconds after all doors are closed, the system enters the sleep mode. 3.
When the front room lamp is ON, the system turns of the room lamp in 10 minutes and enters the
sleep mode after 6 seconds. 4.
If the coming home light is ON, the system enters the sleep mode when the coming home light
switching off conditions are met. 5.
The sleep mode is deactivated when a door is opened or key is inserted. 6.

8712-03
Exterior (bumper) antenna
Mounting location Component
LF transmission for valid smart key searching outside area of rear
bumper when tailgate open switch signal input
Door handle switch & antenna
Mounting location Component
LF transmission for valid smart key searching outside vehicle
(passive entry and KEY IN/OUT)
SKM exterior
antenna
Door handle
switch
Interior (rear) antenna
Mounting location Component
LF transmission for valid smart key searching inside vehicle
(passive start and KEY IN/OUT)
Interior (center) antenna
Mounting location ComponentESCL
Mounting
locationComponent
The ESCL (Electric Steering Column
Lock) is a device which locks the
steering handle with an electrical
signal.

8712-03
Passive entry function actuation area: Within 1.2 m from the door handle antenna
Passive tailgate open actuation area: Within 1.2 m from the center of the bumper -
-
(1) Passive entry actuation area
Searching for a smart key signal from the outside the vehicle is prioritized in the theft deterrent mode
when the passive entry signal is input. Searching for a smart key signal from the inside is prioritized
when the theft deterrent mode is deactivated.
The system searches a smart key only in the actuation area of a switch, which the signal is input
(driver/passenger door handle switches and tailgate open switch). -
-

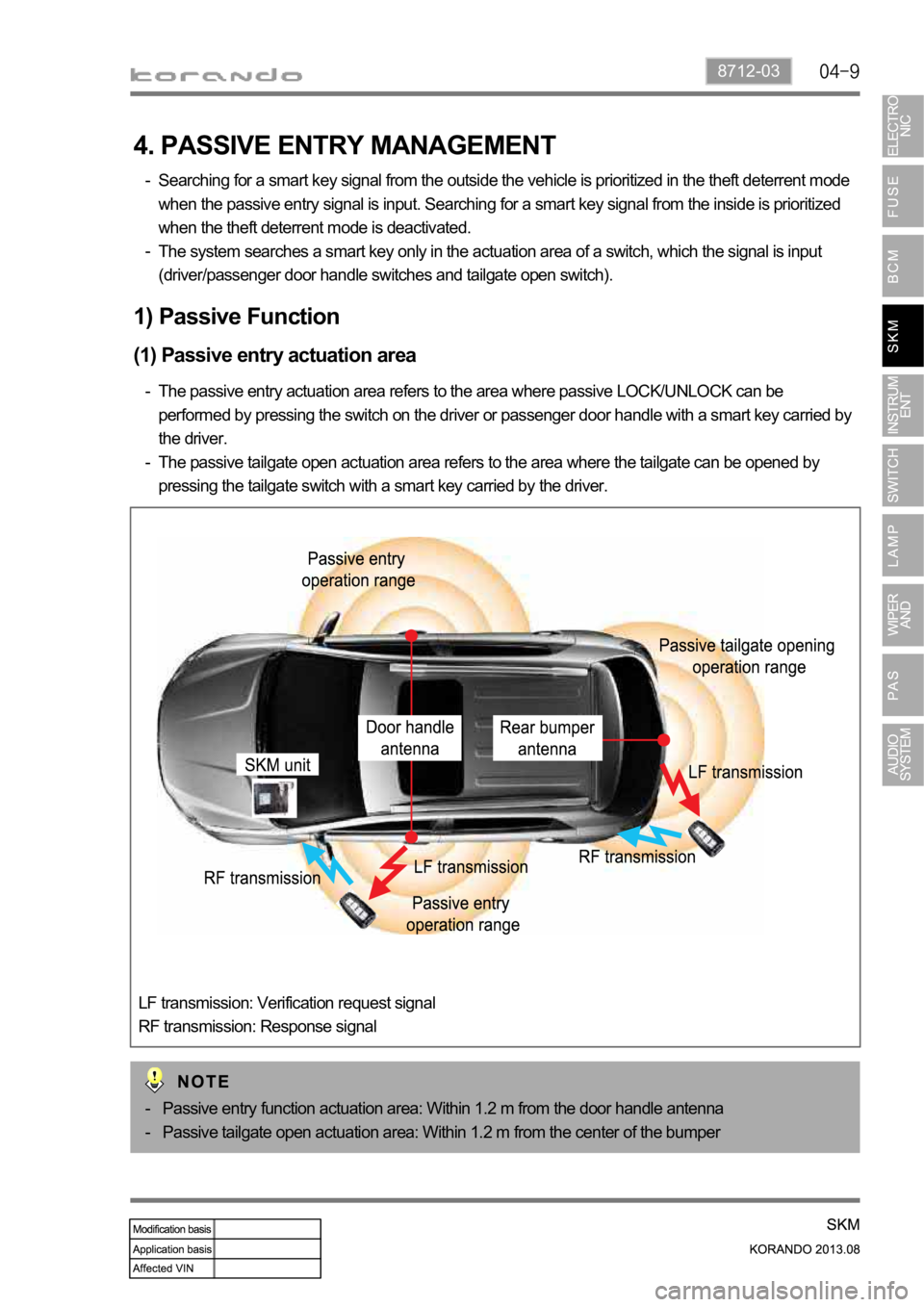

4. PASSIVE ENTRY MANAGEMENT
1) Passive Function
The passive entry actuation area refers to the area where passive LOCK/UNLOCK can be
performed by pressing the switch on the driver or passenger door handle with a smart key carried by
the driver.
The passive tailgate open actuation area refers to the area where the tailgate can be opened by
pressing the tailgate switch with a smart key carried by the driver. -
-
LF transmission: Verification request signal
RF transmission: Response signal

8712-03
(5) Passive tailgate open
The tailgate open control is activated by the tailgate open switch with a valid smart key present within the
passive entry actuation area.
Passive tailgate open by tailgate open switch
When the tailgate is closed with all doors closed, the system enters the theft deterrent mode after
checking a valid smart key inside the vehicle. When a valid smart key is found inside the vehicle, the
external buzzer and smart key detected warning indicator is operated for 10 seconds.
If no smart key is identified as being outside the vehicle, the passive gate open process is stopped
and restarted when the next signal is received from the tailgate open switch.
Smart key searching
* Theft deterrent mode: deactivated after searching the outside vehicle
* Theft deterrent mode deactivated: outside searching after inside searching -
-
-The driver door is locked and the system in the theft deterrent mode.
The tailgate open switch signal is received.
The BCM sends the valid smart key verification request signal to the SKM.
The SKM verifies if a smart key is outside the vehicle using the corresponding rear bumper antenna
(LF verification) (The SKM searches the last smart key used first. If a valid smart key searching is
completed, searching for a key in the luggage compartment and inside the vehicle is started).
The verification signal (RF verification) from the smart key is sent to the REKES antenna of the SKM.
The SKM sends the Passive tailgate open signal to the BCM through the B-CAN if the verified smart
key is found outside the vehicle.
The BCM activates the tailgate open relay according to the signal received from the SKM.
(Only the theft deterrent mode for tailgate is deactivated.) -
1.
2.
3.
4.
5.
6.

8712-03
5. REKES CONTROL FUNCTION
REKES LOCK operation
The REKES LOCK signal is sent when the LOCK button on the smart key is pressed briefly (0.1 sec.
to 1.5 sec.).
The SKM receives the REKES LOCK signal and sends the REKES LOCK request signal to the
BCM through B-CAN.
The BCM outputs the door LOCK signal according to the signal received from the SKM. 1.
2.
3.
When the REKES LOCK signal is received with the ACC ON, the ACC is turned OFF and the
REKES LOCK signal is sent.
REKES UNLOCK operation
The REKES UNLOCK signal is sent when the UNLOCK button on the smart key is pressed briefly
(0.1 sec. or more).
The SKM receives the REKES UNLOCK signal and sends the REKES UNLOCK request signal to
the BCM through B-CAN.
The BCM outputs the door UNLOCK signal according to the signal received from the SKM. 1.
2.
3.
Tailgate open operation
The ignition is turned OFF, ON, or ACC is turned ON.
The tailgate open signal is sent when the tailgate open button on the smart key is pressed 1 second
or more.
The SKM receives the tailgate open signal and sends the tailgate open request signal to the BCM
through B-CAN.
The BCM activates the tailgate open relay when the tailgate open switch is pressed. 1.
2.
3.
4.
