0000-00
(4) Maintenance
Make sure that the battery cables are firmly connected.
If the terminals are corroded, clean them with a wire brush or sandpapers.
Always disconnect the battery cables with the ignition key removed. When disconnecting the battery
cables with the ignition key turned to ON or ACC position, several electric units can be damaged
due to sudden voltage change.
Check the battery for crack, damage or fluid leaks. Replace it if necessary.
Wipe out the battery fluid on the battery surface using a rubber glove and a clean cloth wetted with
soapy water. -
-
-
-
-
If the charge warning lamp ( ) on the instrument cluster comes on while driving, there is a
malfunction in the charge system including the battery. Therefore, carrying out the system check is
needed.

1452-01
Maintenance
If the charge warning lamp ( ) on the instrument cluster comes on while driving, there is a malfunction
in the charge system including the battery. Therefore, carrying out the system check is needed.
Make sure that the battery cables are firmly connected.
If the terminals are corroded, clean them with a wire brush or sandpapers.
Always disconnect the battery cables with the ignition key removed. When disconnecting the battery
cables with the ignition key turned to ON or ACC position, several electric units can be damaged due
to sudden voltage change.
Check the battery for crack, damage or fluid leaks. Replace it if necessary.
Wipe out the battery fluid on the battery surface using a rubber glove and a clean cloth wetted with
soapy water. -
-
-
-
-

Door LOCK/UNLOCK control by door knob switch
The driver and passenger door LOCK knob switches are in the LOCK position from UNLOCK
position.
The door LOCK relay is activated for 0.5 seconds (T1). A.
B. Operation 1.
The driver and passenger door LOCK knob switches are in the UNLOCK position from LOCK
position.
The door UNLOCK relay is activated for 0.5 seconds (T2). C.
D. Operation 2.
All open doors are closed.
The LOCK signal is input within 0.5 seconds (T3).
The UNLOCK signal for all doors is output once for 0.5 seconds (T4). E.
F.
G. Operation 3.
14. CENTRAL DOOR LOCKING SYSTEM CONTROL
For BCM with SKM, sleep mode is deactivated by receiving the status signals from the driver door
knob switch, passenger door knob switch, rear LH/RH door knob switch, and central door
LOCK/UNLOCK switch through the wiring.
If all doors are unlocked 5 times within 1 minute after door LOCK signal output, because of faulty
door knob switch and door open switch, the doors are forced to lock and not allowed to unlock.
However, the UNLOCK conditions are met, the UNKLOCK signal is input normally. -
-
The door lock/unlock system does not work regardless of the door LOCK/UNLOCK switch position,
when reconnecting the battery. (to reset, turn the ignition ON) -
The signal change from UNLOCK to LOCK is ignored during LOCK/UNLOCK output by the central
door LOCK switch, REKES key, and door handle switch.
If LOCK signal from the switch is input within 0.5 seconds after any door is closed, UNLOCK signal
is output. -
-

8712-03

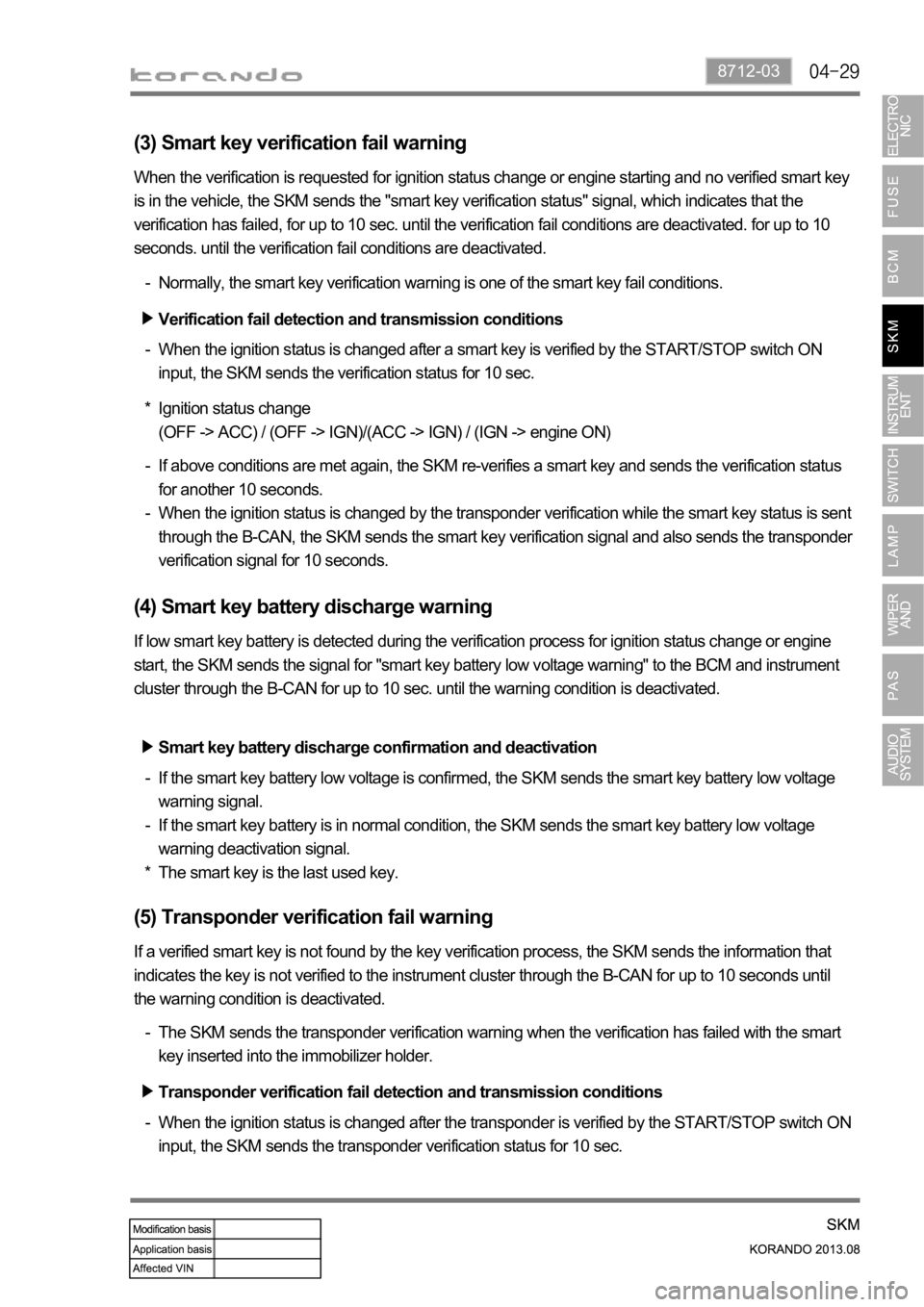

(4) Smart key battery discharge warning (3) Smart key verification fail warning
When the verification is requested for ignition status change or engine starting and no verified smart key
is in the vehicle, the SKM sends the "smart key verification status" signal, which indicates that the
verification has failed, for up to 10 sec. until the verification fail conditions are deactivated. for up to 10
seconds. until the verification fail conditions are deactivated.
Verification fail detection and transmission conditions
When the ignition status is changed after a smart key is verified by the START/STOP switch ON
input, the SKM sends the verification status for 10 sec. -Normally, the smart key verification warning is one of the smart key fail conditions. -
Ignition status change
(OFF -> ACC) / (OFF -> IGN)/(ACC -> IGN) / (IGN -> engine ON) *
If above conditions are met again, the SKM re-verifies a smart key and sends the verification status
for another 10 seconds.
When the ignition status is changed by the transponder verification while the smart key status is sent
through the B-CAN, the SKM sends the smart key verification signal and also sends the transponder
verification signal for 10 seconds. -
-
If low smart key battery is detected during the verification process for ignition status change or engine
start, the SKM sends the signal for "smart key battery low voltage warning" to the BCM and instrument
cluster through the B-CAN for up to 10 sec. until the warning condition is deactivated.
Smart key battery discharge confirmation and deactivation
If the smart key battery low voltage is confirmed, the SKM sends the smart key battery low voltage
warning signal.
If the smart key battery is in normal condition, the SKM sends the smart key battery low voltage
warning deactivation signal.
The smart key is the last used key. -
-
*
(5) Transponder verification fail warning
If a verified smart key is not found by the key verification process, the SKM sends the information that
indicates the key is not verified to the instrument cluster through the B-CAN for up to 10 seconds until
the warning condition is deactivated.
The SKM sends the transponder verification warning when the verification has failed with the smart
key inserted into the immobilizer holder. -
Transponder verification fail detection and transmission conditions
When the ignition status is changed after the transponder is verified by the START/STOP switch ON
input, the SKM sends the transponder verification status for 10 sec. -

(10) Brake not working alert
The SKM sends the brake not working alert signal for 10 sec. every time the ignition status is changed
after the 1st cycle (OFF-ACC-IGN-ACC-OFF)
while the brake is not operated.
when the brake pedal is depressed, the system is reset and alert deactivation signal is sent.
when the 10 min. timer is terminated -
-
(11) Smart key slot detection alert
The SKM sends the smart key slot detection alert signal for 10 sec. when a smart key inserted into
the slot is detected with IGN OFF and the driver's door open. -
(12) SKM alert priority
1 Smart key out alarm Outside
1
2 Smart key reminder alarm Outside
3 Smart key verification failure alarm Inside
2 4 Transponder verification fail alert Inside
5 Smart key battery low voltage alert Inside
6 Transmission position alert Inside
7 SKM error alert Inside
8 Brake alert Inside
9 Clutch alert Inside
10 Smart key slot reminder alarm Inside 1
Warning deactivation conditions
Warning transmission conditions
Warning deactivation conditions
when the smart key is removed, the alert deactivation signal is sent.
when the 10 min. timer is terminated -
-

Front room lamp
2) Operation
Door coupled operation switch: Comes on
when opening door and goes off when closing
with switch pressed
Driver spot lamp switch: Driver front room
lamp comes on when pressing switch
Passenger spot lamp switch: Passenger front
room lamp comes on when pressing switch A.
B.
C.
Center room lamp
Press switch to turn on center room lamp and
press again to turn off it.
It comes on when opening the door with door
coupled operation switch in the front room lamp
pressed even though the switch is in "OFF"
position.
(1) Front room lamp/Center room lamp
Operating the front room lamp and center room lamp switches illuminates the driver/passenger side
lamps and center room lamp.
Room lamp control by door coupled room lamp operation
If a door except the tailgate is opened after the ignition is turned off, provided that door coupled front
room lamp switch is pressed, the front room lamp and center room lamp are illuminated for 2 sec.
and then fade out for 3 sec.
If a door except the tailgate is opened and then closed while the room lamp is fading out, the room
lamp is illuminated for 2 sec. and then fades out for 3 sec. If the ignition is turned on, the room lamp
goes off immediately.
The front room lamp and center room lamp are illuminated for 30 sec. when the door is unlocked by
the REKES or passive door UNLOCK function with IGN OFF and the ignition key removed. If the
REKES or passive door UNLOCK signal is received again, the room lamps are illuminated for
another 30 sec.
The room lamp goes off immediately when the REKES or passive door LOCK signal is received or
the ignition switch is turned to ON position.
If the room lamp is turned on after the ignition key is removed (door open or room lamp switch is
pressed), it is turned off after 10 minutes by the BCM.
When the door open state is changed or the ignition is turned on after the room lamp has been turned
off automatically, the battery saver feature is reset. 1.
