mirror SSANGYONG KORANDO 2013 Service Manual

Hazard warning switch
bezel assembly
Drive door main switch
& Outside rearview mirror
switch
FATC switch
Steering wheel remote
control switchPassenger door switch
Lower main panel
switch
Start/stop switch
Cruise control switch
Multifunction switch
3. SWITCH SYSTEM LAYOUT

3. MAJOR CHANGES
Changes for engine compartment fuse box
8410-02 Engine compartment fuse box
- Changed layout
Name Changes made
A ALT terminal and fuse (150A) Newly adopted
B A/C compressor relay Changed to PCB type
C Headlamp high beam Changed to PCB type
D Rear glass/heated mirror relay Changed to PCB type
E Cooling fan high-speed relay Changed to Micro type
F Blower motor relay Changed to Micro type
G Cooling fan low-speed relay Changed to Micro type
H Cooling fan relay Changed to Micro type
I Fuel heater relay Changed to Micro type
J PTC1 heater relay Changed to Micro type
K Power window relay Changed to Micro type
L Starting relay Changed to Micro type

5. MAJOR CHANGES
Outside rear view mirror folding/unfolding
AUTO folding/unfolding setting
Pressing the manual folding switch for 3
seconds or more sets the AUTO
folding/unfolding and operates the external
buzzer once.
AUTO folding/unfolding unsetting
Pressing the manual folding switch for 3
seconds or more again unsets the AUTO
folding/unfolding and operates the external
buzzer twice.AUTO folding/unfolding setting
The manual folding switch is not pressed.
AUTO folding/unfolding unsetting
The manual folding switch is pressed.

Folding/unfolding control
The folding switch is turned ON.
The folding relay is activated for 16 seconds (T1). A.
B. Operation 1.
The folding switch is turned OFF.
The unfolding relay is activated for 16 seconds (T1). C.
D. Operation 2.
The folding relay is activated by the folding switch.
The folding switch is turned OFF.
The unfolding relay is activated after 0.1 seconds (T2). E.
F.
G. Operation 3.
21. OUTSIDE REAR VIEW MIRROR FOLDING/UNFOLDING
The AUTO folding/unfolding function is not available when the folding switch is ON.
The AUTO folding/unfolding function is available when the folding switch is OFF. -
-The control logic is the same for folding to unfolding operation and unfolding to folding operation. -

Lower main switch
Item Specification
Lower main switch4WD LOCK switch DC 12V - 0.1A
ESP OFF switch DC 12V - 0.1A
Steering wheel heating switch DC 12V - 0.1A
Center fascia switch
Item Specification
Center fascia switchHazard warning flasher switch DC 12V - 0.1A (max. 30 mA)
TRIP/RESET switch DC 12V - 0.1A (max. 30 mA)
Windshield heating switch DC 12V - 0.1A (max. 30 mA)
Rear glass and outside rearview mirror
heating switchDC 12V - 0.1A (max. 30 mA)
Power window main switch
Item Specification
Power window main
switchRated voltage
DC 12 V
Operating voltage DC 9 to 16 V
Rated loadAUTO switch 0.7 A (motor load)
AUTO/MANUAL switch 10 A (motor load)
Window lock switch 10 A (motor load)
Door unlock switch 0.4 A (motor load)
Power window sub switch
Item Specification
Power window sub
switchRated voltage DC 12 V
Operating voltage DC 9 to 16 V
Rated load Manual switch 10 A (motor load)

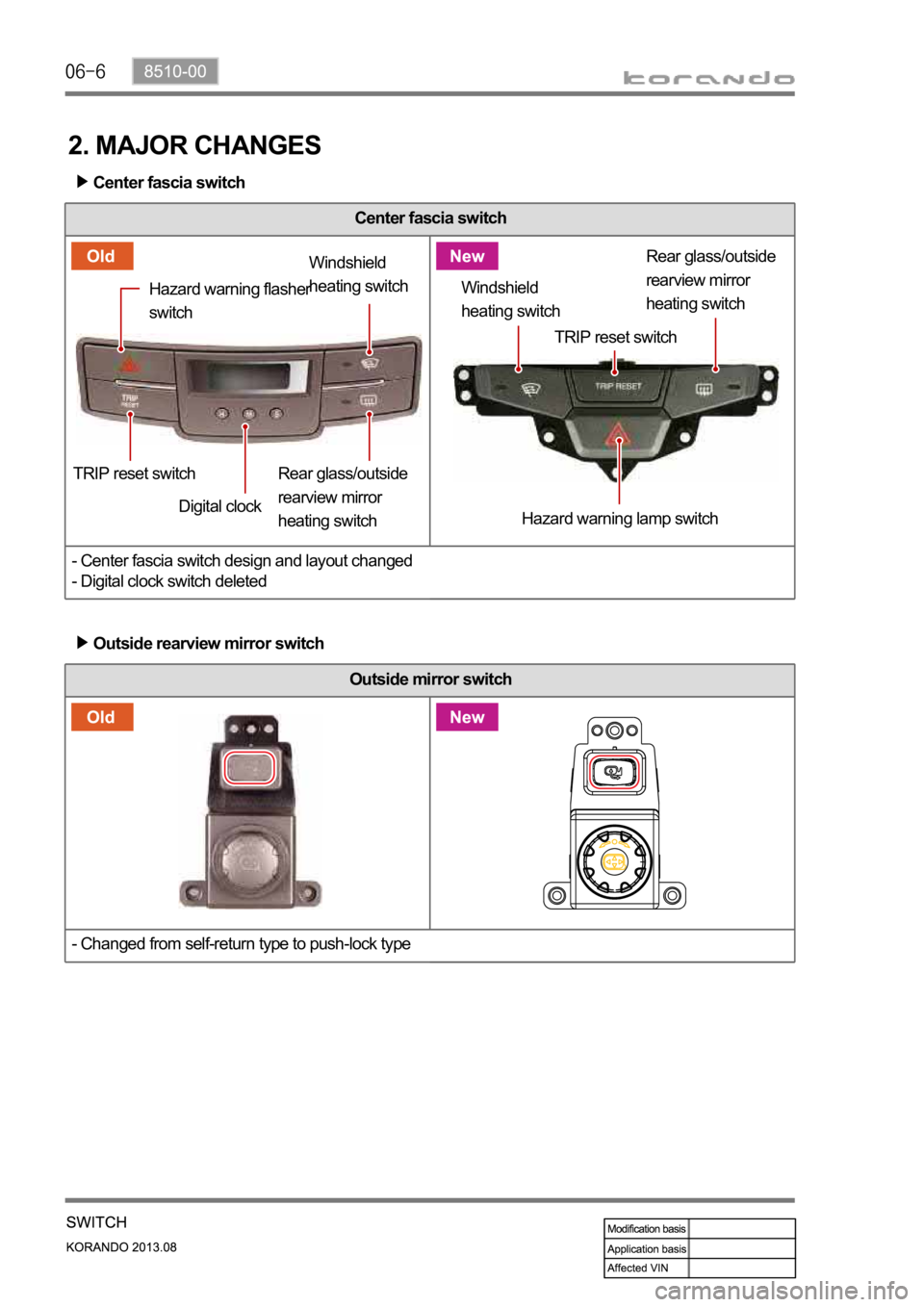

2. MAJOR CHANGES
Center fascia switch
Center fascia switch
- Center fascia switch design and layout changed
- Digital clock switch deleted
Outside rearview mirror switch
Outside mirror switch
- Changed from self-return type to push-lock type
Hazard warning flasher
switch
TRIP reset switch
Digital clock
Windshield
heating switch
Rear glass/outside
rearview mirror
heating switch
Windshield
heating switch
TRIP reset switchRear glass/outside
rearview mirror
heating switch
Hazard warning lamp switch

Drive door main switch
& outside mirror switchHeater and A/C control switch
(auto)
Start/stop switchSteering wheel remote
control switch
Center fascia switch
Passenger door switch
Lower main panel
switch
Cruise control switch
Multifunction switch
Switch layout

Outside rearview mirror switch
(1) Overview
Outside mirror folding/unfolding switch
The outside mirrors are folded/unfolded
whenever pressing this switch.
Mirror selection switch
LH: Driver side mirror
RH: Passenger side mirror A.
B.Mirror aiming switch
Adjust the selected mirror up, down, left,
or right by pressing the corresponding
edges of the switch to get a desired view. C. It is mounted to the door trim and can be adjusted to up, down, left or right so that the driver can obtain a
clear view of the rear of the vehicle depending on the driver's physical condition. The driver can fold the
outside rearview mirror when passing by the narrow road or parking the vehicle. Do not fold or unfold the
outside rearview mirrors manually since the outside rearview mirror folding switch is a push-lock type
switch. This may cause a malfunction of the relevant devices.
2) Outside Mirror Switch

Center fascia switch
2) Center Fascia Switch
This helps the driver to drive the vehicle comfortably by operating the switch for the driving situation. It
consists of the windshield heating switch, TRIP/RESET switch, rear glass/outside rearview mirror
heating switch and hazard warning flasher switch.
Windshield heating switch
TRIP/RESET switch
Rear glass/outside rearview mirror heating switch
Hazard warning flasher switch A.
B.
C.
D.

8510-00
Windshield heating switch
Press this switch to operate the windshield
heating system for 12 minutes. Press the
switch again to stop the system. The
heated glass will operate for about 6
minutes when the switch is pressed again
within 10 minutes after completion of its
first operation cycle. The indicator lamp for
the switch comes on when the heating is
on.
Hazard warning flasher switch
When the driver presses the switch, all the
turn signal lamps flash regardless of the
ignition switch status. Pressing the switch
again turns off the turn signal lamps. The turn
signal lamp does not operate while the
hazard warning flasher operates.
TRIP/RESET switch
Whenever pressing this button, the information is
displayed in the following order: Odometer, Trip
A, Trip B, Distance to empty, Average fuel
economy, Instant fuel economy, Illumination level,
Tire pressure (with TPMS), Ambient air
temperature (for STD); Trip A, Trip B, Distance to
empty, Average fuel economy/Instant fuel
economy, Illumination level, Tire pressure (with
TPMS), Ambient air temperature (for SVC). Press
and hold this button to initialize (reset) Trip A/Trip
B and average fuel consumption, adjust
illumination level or change the unit of
temperature.
Description
Rear glass/outside rearview mirror heating
switch
Press this switch to operate the rear glass and
outside rearview mirror heating system for 12
minutes. Press the switch again to stop the
system. The heated glass will operate for about 6
minutes when the switch is pressed again within
10 minutes after completion of its first operation
cycle. The indicator lamp for the switch comes on
when the heating is on.
The switch is operable only when the engine
is started.
The hazard warning flasher blinks
during emergency hazard warning
lamp control and air bag deployment
signal activation.
The switch is operable only when the
engine is started.
