mirror SSANGYONG KORANDO 2013 User Guide

(1) Rear glass/outside mirror heating switch
Overview
The rear glass/outside mirror heating is operated by BCM.
The heating operates for about 12 minutes when the switch is pressed with the engine started.
Press the switch again to stop the operation.
The output is "ON" only for 6 minutes when turning on the rear defogger switch within 10 minutes after
completion of output for 12 minutes. This can be done only once.
This function is available only when the engine is running.
Operation curve

8510-00
(2) Windshield heating switch
The windshield glass/outside mirror heating is operated by BCM.
The heating operates for about 12 minutes when the switch is pressed with the engine started.
Press the switch again to stop the operation.
The output is "ON" only for 6 minutes when turning on the rear defogger switch within 10 minutes after
completion of output for 12 minutes. This can be done only once.
This function is available only when the engine is running.
Operation curve

(3) Auto light (LIN)
The auto light sensor unit is installed to the back side of the ECM mirror located upper center of the
windshield, and detects the illuminance change. The BCM communicates with the auto light sensor
when the ignition is turned on, and turns on or off the tail lamp and headlamp automatically according to
the signals from the sensor when the multifunction switch is set to AUTO light.
The BCM communicates with the rain sensor even if the multifunction switch is in tail lamp.
Auto light switch Automatic light sensor unit

8310-00

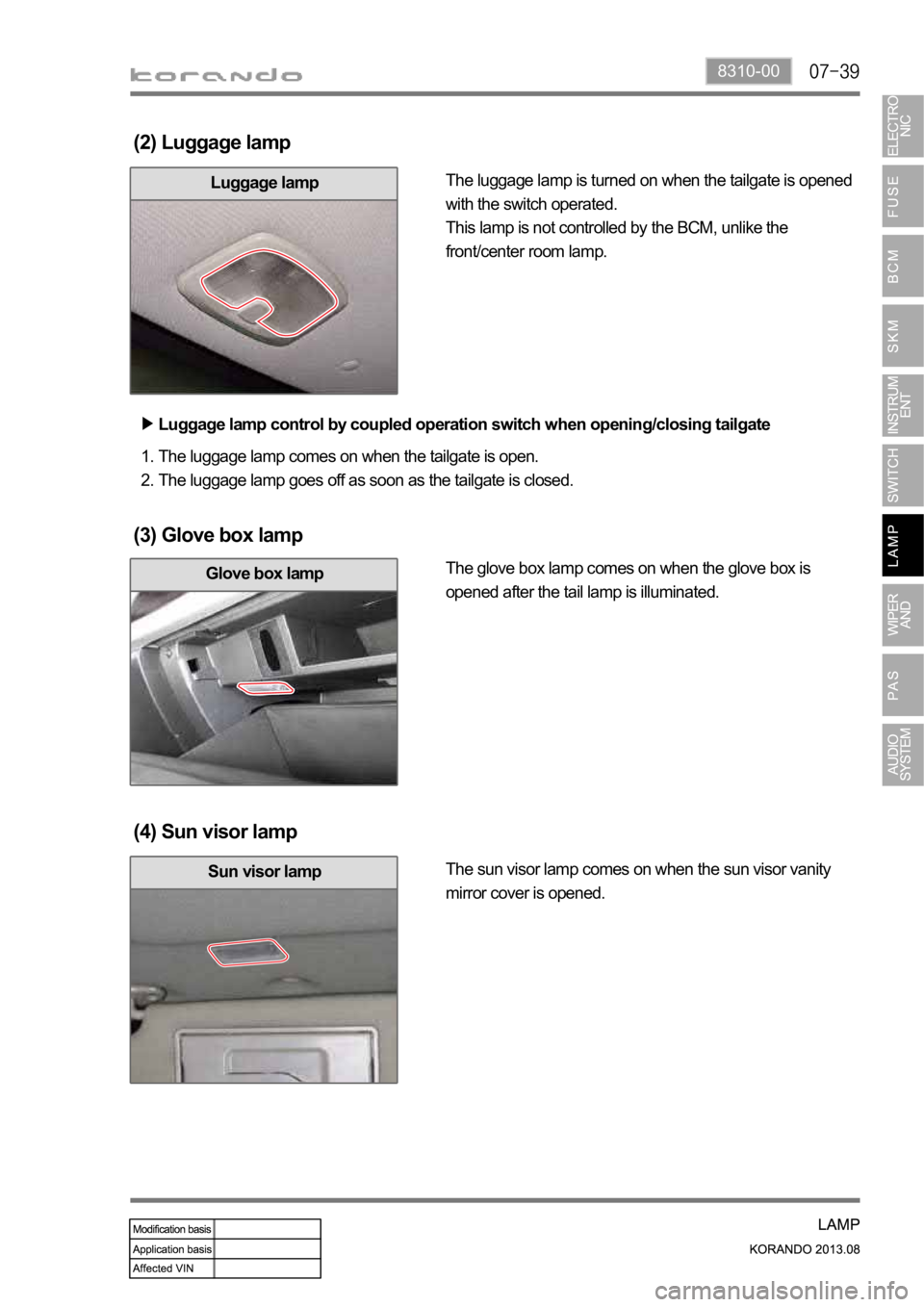

Sun visor lamp
Glove box lamp
(2) Luggage lamp
Luggage lampThe luggage lamp is turned on when the tailgate is opened
with the switch operated.
This lamp is not controlled by the BCM, unlike the
front/center room lamp.
(3) Glove box lamp
The glove box lamp comes on when the glove box is
opened after the tail lamp is illuminated.
The sun visor lamp comes on when the sun visor vanity
mirror cover is opened. Luggage lamp control by coupled operation switch when opening/closing tailgate
The luggage lamp comes on when the tailgate is open.
The luggage lamp goes off as soon as the tailgate is closed. 1.
2.
(4) Sun visor lamp
