Page 890 of 1574

SSANGYONG MUSSO 2003 Workshop Manual AUTOMATIC TRANSMISSION  5A-31
K-Line
The K-line is typically used for obtaining diagnostic  information from the TCU. A computer with a special interface is
connected to the TCU and all current  fau

Page 893 of 1574

SSANGYONG MUSSO 2003 Workshop Manual 5A-34  AUTOMATIC TRANSMISSION

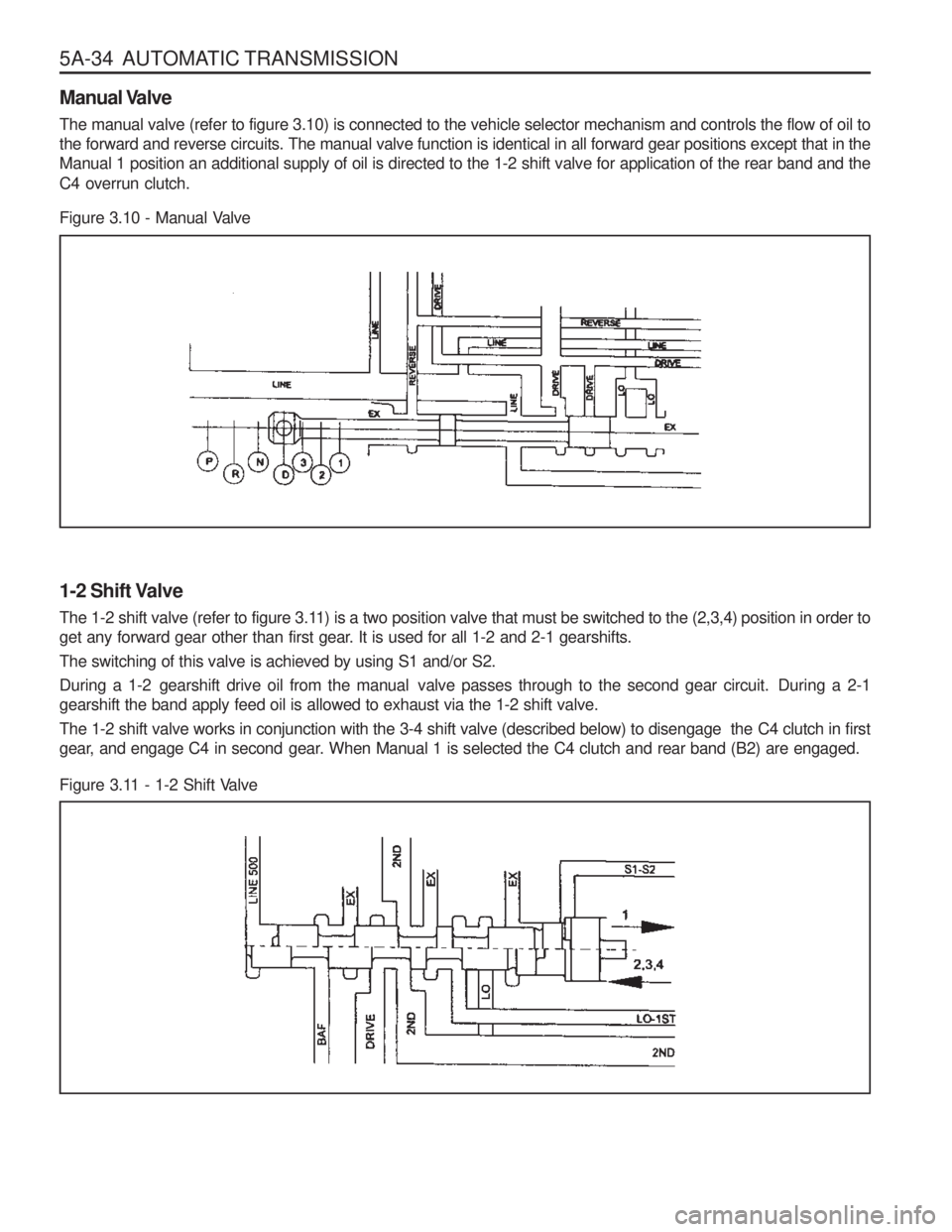

Figure 3.10 - Manual Valve
1-2 Shift Valve
The 1-2 shift valve (refer to figure 3.11) is a two position valve that must be switched to the (2,3,4) position in order to

Page 894 of 1574

SSANGYONG MUSSO 2003 Workshop Manual AUTOMATIC TRANSMISSION  5A-35
2-3 Shift Valve
The 2-3 shift valve (refer to figure 3.12) is a two  position valve. It is used on all 2-3 and 3-2 gearshifts.
The switching of this valve is achieved b

Page 895 of 1574

SSANGYONG MUSSO 2003 Workshop Manual 5A-36  AUTOMATIC TRANSMISSION
4-3 Sequence Valve
The 4-3 sequence valve (refer figure 3.14) is a two  position spring loaded valve. It switches during 3-4  and 4-3
gearshifts although it performs n

Page 896 of 1574

SSANGYONG MUSSO 2003 Workshop Manual AUTOMATIC TRANSMISSION  5A-37
Figure 3.16 - Clutch Apply Regulator Valve
Clutch Apply Regulator Valve
The clutch apply regulator valve (refer figure 3.16) is a fixed ratio valve. This valve provides

Page 898 of 1574

SSANGYONG MUSSO 2003 Workshop Manual AUTOMATIC TRANSMISSION  5A-39
Primary Regulator Valve
The primary regulator valve (PRV) (refer to figure  3.19) regulates the transmission line pressure (or pump  output
pressure). This valve gives

Page 899 of 1574

SSANGYONG MUSSO 2003 Workshop Manual 5A-40  AUTOMATIC TRANSMISSION
Converter Clutch Regulator Valve
The converter clutch regulator valve (refer figure 3.20) regulates
the pressure of the oil which applies the converter clutch. Input
o

Page 900 of 1574

SSANGYONG MUSSO 2003 Workshop Manual AUTOMATIC TRANSMISSION  5A-41

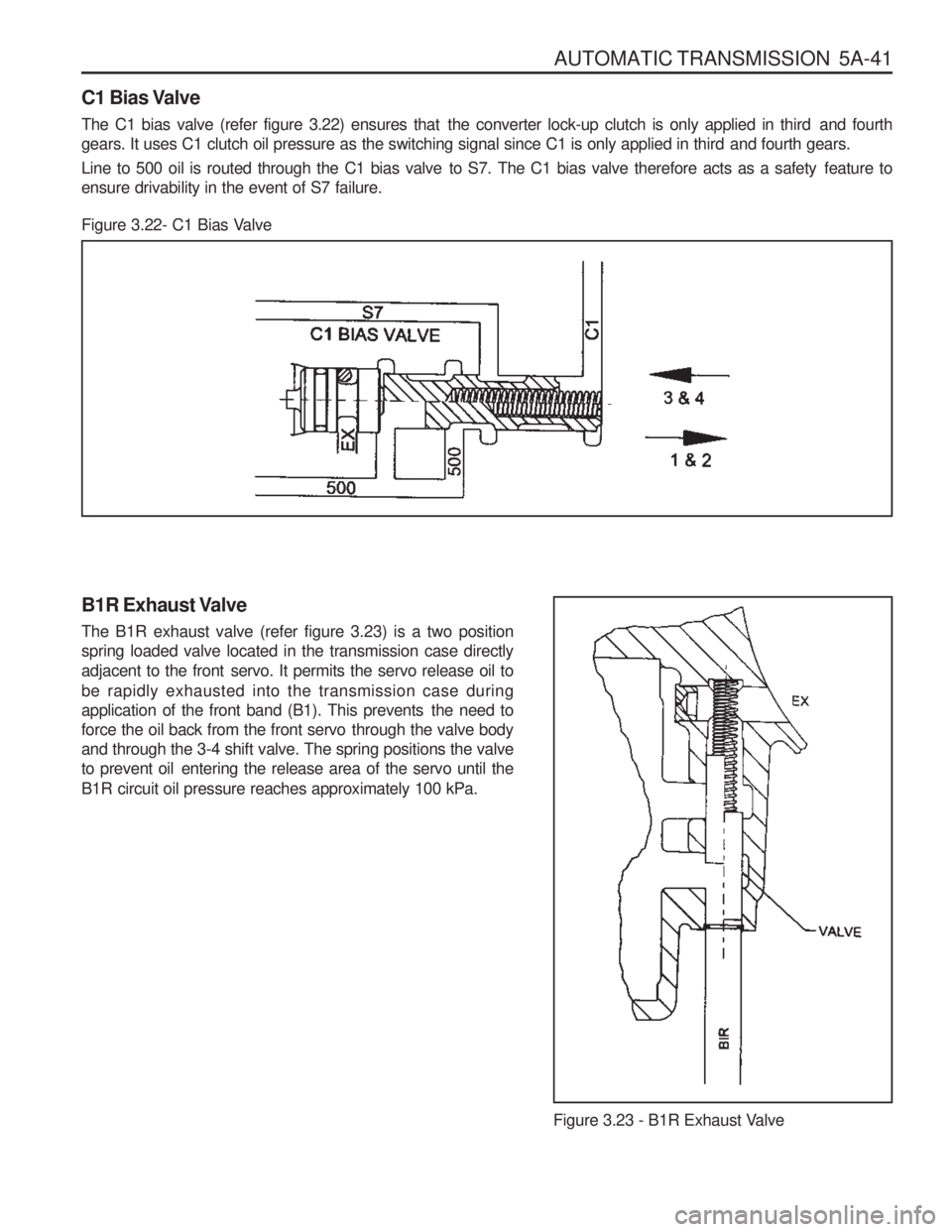

C1 Bias Valve
The C1 bias valve (refer figure 3.22) ensures that  the converter lock-up clutch is only applied in third  and fourth
gears. It uses C1 clutch oil pressur

Page 901 of 1574

SSANGYONG MUSSO 2003 Workshop Manual 5A-42  AUTOMATIC TRANSMISSIONPOWER TRAIN SYSTEM
The Power Train System consists of: � A torque converter with single face lock-up clutch
� Four multi-plate clutch assemblies
� Two brake bands
� Two on

Page 902 of 1574

SSANGYONG MUSSO 2003 Workshop Manual AUTOMATIC TRANSMISSION  5A-43
Figure 4.1 - Power Flow Diagram TORQUE CONVERTER
The torque converter (refer figure 4.2) consists of a  turbine,
stator pump, impeller and a lock-up damper  and piston
