GENERAL INFORMATION 0B-7
MAINTENANCE AND REPAIR
MAINTENANCE AND LUBRICATION
Fuel Filter Replacement
Replace the engine fuel filter every.
Gasoline Engine : 60,000km (36,000 miles)
Diesel Engine : 45,000km (24,000 miles)
Spark Plug Replacement Replace spark plugs with same type.
Type : BOSCH : F8DC4
BERU : 14F-8DU4
Champion : C11YCC
Gap : 0.8 ± 0.1 mm
Spark Plug Wire Replacement Clean wires and inspect them for burns, cracks or other damage. Check the wire boot fit at the Distributor and at the spark plugs. Replace the wires as needed. Brake System Service Check the disc brake pads or the drum brake linings.
Check the pad and the lining thickness carefully. Tire and Wheel Inspection and Rotation
Check the tires for abnormal wear or damage. To equalize wear and obtain maximum tire life, rotate the tires. If irregular or premature wear exists, check the wheel alignment and check for damaged wheels. Whilethe tires and wheels are removed, inspect the brakes.
NORMAL VEHICLE USE The maintenance instructions contained in the maintenance schedule are based on the assumption that the vehicle will be used for the following reasons:

To carry passengers and cargo within the limitation
of the tire inflation prassure. Refer to “Tire and Wheel” in section 2E.
To be driven on reasonable road surfaces and withinlegal operating limits.
EXPLANATION OF SCHEDULED MAINTENANCE SERVICES The services listed in the maintenance schedule are
further explained below. When the following maintenance services are performed, make sure all the parts are replaced and all the necessary repairs are done before driving the vehicle. Always use the proper fluid and lubricants. Engine Oil and Oil Filter Change Always use above the API SH grade or recommended engine oil. Engine Oil Viscosity Engine oil viscosity (thickness) has an effect on fuel economy and cold weather operation. Lower viscosity engine oils can provide better fuel economy and cold
weather performance; however, higher temperatureweather conditions require higher viscosity engine oils for satisfactory lubrication. Using oils of any viscosity other than those viscosities recommended could result in engine damage. Cooling System Service Drain, flush and refill the system with new coolant. Refer to “Recommended Fluids And Lubricants” in this section. Air Cleaner Element Replacement
Clean the air cleaner element every.
Gasoline Engine : 15,000km (10,000 miles)
Diesel Engine : 10,000km (6,000 miles)
Replace the air cleaner element every .
Gasoline Engine : 60,000km (36,000 miles)
Diesel Engine : 30,000km (18,000 miles)
Replace the air cleaner more often under dusty conditions.
Tire Rotation (Left - Hand Drive Type)

0B-8 GENERAL INFORMATIONSCHEDULED MAINTENANCE CHARTS (GASOLINE ENGINE)
Engine
Months
MAINTENANCE ITEM MAINTENANCE INTERVAL
Kilometers or time in months, whichever comes first
120
105
90
75
60
45
30
15
1
96
84
72
60
48
36
24
12
-
x1,000 km
Chart Symbols:
I - Inspect these items and their related parts. If necessary, correct, clean, replenish, adjust or replace. R - Replace or change.
(1) If vehicle is operated under severe condition : short distance driving, extensive idling or driving in dusty condition. Chan ge
engine oil and the filter every 7,500 km or 6 months, whichever comes first.
(2) More frequent maintenance is required if under dusty driving condition.
(3) Refer to “Recommended fluids and lubricants”.
Drive belt
Engine oil & filter (1) (3)Cooling system hose & connections
Engine coolant (3) Fuel filter
(2)
Fuel line & connections
Air cleaner (2)Ignition timingSpark plugsCharcoal canister & vapor lines
I III
- I
-- I
R II
- IIII
- I
R II
-
III
R - I
R II
- IIIII I
R I
RR I
R
I
R - I
R II
- I I I
- I
R II
- III
R I I
R II
- IIII
- I
R I
RR I
R I
R -

0B-10 GENERAL INFORMATIONSCHEDULED MAINTENANCE CHARTS (DIESEL ENGINE)
Engine
Months -
MAINTENANCE ITEM MAINTENANCE INTERVAL
Kilometers or time in months, whichever comes first
100
90
80
70
60
50
40
30
20
10
1
60
54
48
42
36
30
24
18
12
6
x1,000 km
NOTE 1 :
Injection Timing : Adjust as required :- When excessive smoke is visible (black or white)- Poor performance/economy
Chart Symbols:
I - Inspect these items and their related parts. If necessary, correct, clean, replenish, adjust or replace.R - Replace or change. (1) If vehicle is operated under severe condition : short distance driving, extensive idling or driving in dusty condition, chan ge
engine oil every 5,000km or 3 months, whichever comes first.
(2) More frequent maintenance is required if under dusty driving conditing.
(3) Refer to “Recommended fluids and lubricants”.
Drive belt Engine oil & fillter (1) (3)Cooling system hose & connections
Engine coolant (3)
Fuel filter (2) Fuel line & connections Glow plug Pre - fuel filter
Air cleaner (2)Ignition timing (see NOTE 1)
I
R
I
I
R
I I II
I
R I I I IIII I
R I I I
R I I
R I
R I IIII I
R I I I II I
R I
R
III
R I I
R I I I II I
R I I
R
I II I
R I
R I I
R I I
R I I I IIII

SECTION 1B1
M162 ENGINE MECHANICAL
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwisenoted.
Specifications . . . . . . . . . . . . . . . . . . . . . . . 1B1-2Fastener Tightening Specifications . . . . . . . . 1B1-2
Special Tools . . . . . . . . . . . . . . . . . . . . . . . 1B1-4 Special Tools Table . . . . . . . . . . . . . . . . . . . . 1B1-4
Maintenance and Repair . . . . . . . . . . . . . . 1B1-8
On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . 1B1-8
Engine Assembly . . . . . . . . . . . . . . . . . . . . . 1B1-8
Crankcase Ventilation System . . . . . . . . . . 1B1-16
Alternator . . . . . . . . . . . . . . . . . . . . . . . . . . 1B1-18
Power Steering Pump and A/C Bracket . . . 1B1-19
Hydraulic Engine Mounting Insulator . . . . . . 1B1-22
Poly V-Belt . . . . . . . . . . . . . . . . . . . . . . . . . 1B1-25
Tensioning Device . . . . . . . . . . . . . . . . . . . . 1B1-27
Poly V-Belt Inspection . . . . . . . . . . . . . . . . . 1B1-29
Cylinder Head Cover . . . . . . . . . . . . . . . . . 1B1-31
Cylinder Head Front Cover . . . . . . . . . . . . . 1B1-33
Cylinder Head . . . . . . . . . . . . . . . . . . . . . . . 1B1-35
Timing Gear Case Cover . . . . . . . . . . . . . . 1B1-38
Crankshaft Sealing Rear Cover . . . . . . . . . 1B1-40
Belt Pulley and Vibration Damper . . . . . . . . 1B1-42
Crankshaft Front Radial Seal . . . . . . . . . . . 1B1-45
Crankshaft Rear Radial Seal . . . . . . . . . . . 1B1-46
Crankshaft . . . . . . . . . . . . . . . . . . . . . . . . . 1B1-47
Flywheel / Driven Plate . . . . . . . . . . . . . . . . 1B1-53
Camshaft Adjuster . . . . . . . . . . . . . . . . . . . 1B1-55
Camshaft Sprocket Bolt . . . . . . . . . . . . . . . 1B1-58
Camshaft . . . . . . . . . . . . . . . . . . . . . . . . . . 1B1-59
TABLE OF CONTENTS
Camshaft Timing Position . . . . . . . . . . . . . . 1B1-64
Valve Spring . . . . . . . . . . . . . . . . . . . . . . . . 1B1-67
Valve Stem Seal . . . . . . . . . . . . . . . . . . . . . 1B1-71
Chain Tensioner . . . . . . . . . . . . . . . . . . . . . 1B1-72
Timing Chain . . . . . . . . . . . . . . . . . . . . . . . . 1B1-75
Tensioning Rail . . . . . . . . . . . . . . . . . . . . . . 1B1-80
Cylinder Head Guide Rail . . . . . . . . . . . . . . 1B1-81
Crankcase Guide Rail . . . . . . . . . . . . . . . . . 1B1-82
Crankshaft Sprocket . . . . . . . . . . . . . . . . . . 1B1-83
Piston . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1B1-85
Connecting Rod . . . . . . . . . . . . . . . . . . . . . 1B1-88
Piston Ring . . . . . . . . . . . . . . . . . . . . . . . . . 1B1-90
Engine Oil Specification . . . . . . . . . . . . . . . 1B1-92
Oil Pan . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1B1-93
Engine Oil and Oil Filter Element . . . . . . . . 1B1-95
Oil Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . 1B1-97
Oil Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . 1B1-99
Oil Pressure Relief Valve . . . . . . . . . . . . . 1B1-101
Oil Non-Return Valve . . . . . . . . . . . . . . . . 1B1-102
Oil Dipstick Guide Tube . . . . . . . . . . . . . . 1B1-103
Unit Repair . . . . . . . . . . . . . . . . . . . . . . . 1B1-104 Oil Gallery in Crankcase . . . . . . . . . . . . . . 1B1-104
Oil Gallery in Cylinder Head . . . . . . . . . . . 1B1-106
Core Plugs in Crankcase . . . . . . . . . . . . . 1B1-109
Cylinder Bore . . . . . . . . . . . . . . . . . . . . . . 1B1-111
Crankcase Mating Surface . . . . . . . . . . . . 1B1-113
Cylinder Head Mating Surface . . . . . . . . . 1B1-115

1B1-16 M162 ENGINE MECHANICAL

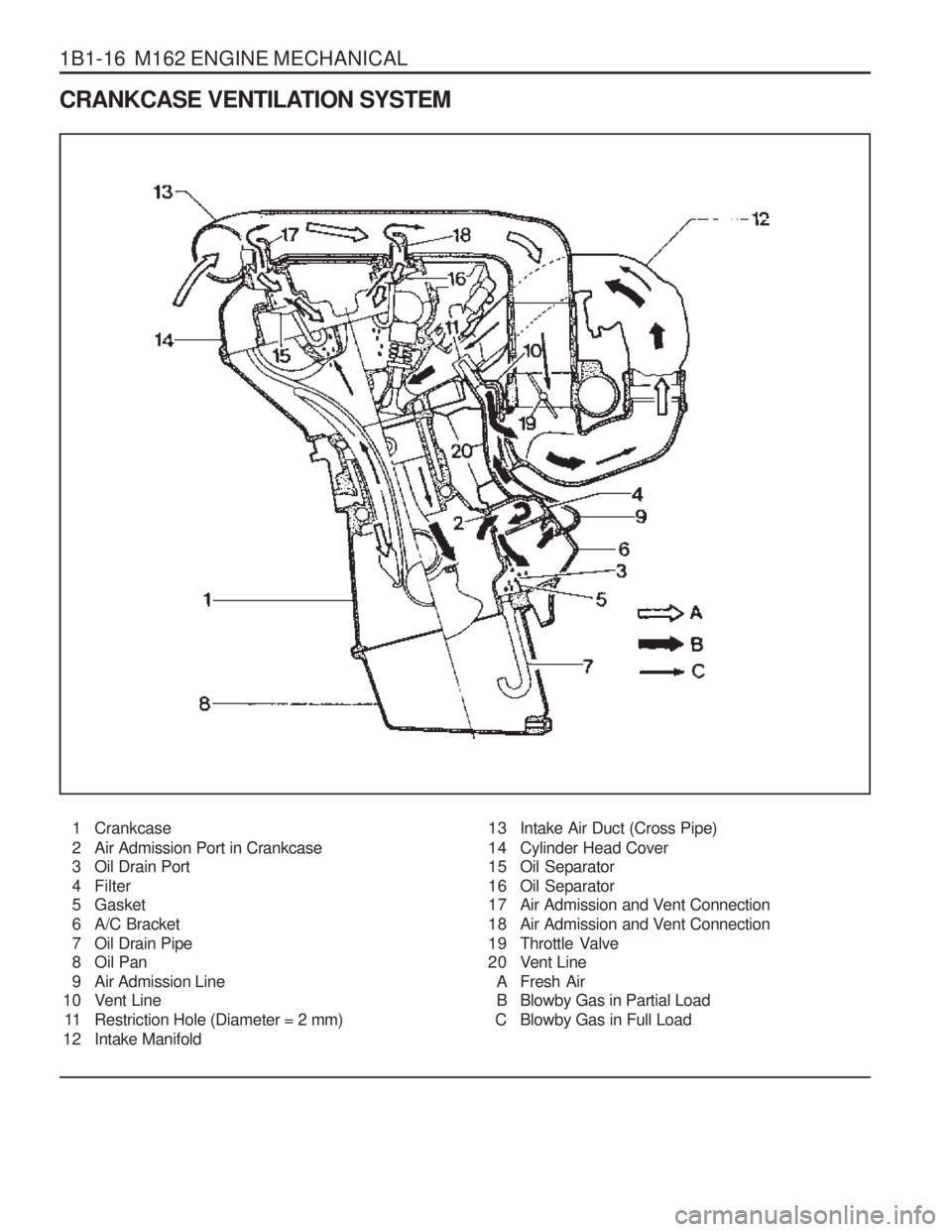

CRANKCASE VENTILATION SYSTEM
1 Crankcase
2 Air Admission Port in Crankcase
3 Oil Drain Port
4 Filter
5 Gasket
6 A/C Bracket
7 Oil Drain Pipe
8 Oil Pan
9 Air Admission Line
10 Vent Line
11 Restriction Hole (Diameter = 2 mm)
12 Intake Manifold 13 Intake Air Duct (Cross Pipe)
14 Cylinder Head Cover
15 Oil Separator
16 Oil Separator
17 Air Admission and Vent Connection
18 Air Admission and Vent Connection
19 Throttle Valve
20 Vent Line
A Fresh Air
B Blowby Gas in Partial Load
C Blowby Gas in Full Load

M162 ENGINE MECHANICAL 1B1-17
Operation at Idling and Mid-Load
It show that the throttle valve (19) is closed or very partially opened and the vacuum pressure in intake manifold is high. The blowby gas in the crankcase in partial load flows into the intake manifold through the vent line (20) after passingthe air conditioner bracket (6) and the filter (4). The air reentered into the intake manifold will be dilluted on the flow
through the restriction hole (11) in the vent line (10). The circulated engine oil is separated at the air conditioner bracket (6) and then returns into the oil pan through thedrain pipe (7). The vacuum pressure generated at the crankcase sucks fresh air from intake air line(13) through the air admissionand vent connection (17,18). The fresh air prevents engine oil from being contami-nated and the air admission and vent connection (17,18) is designed to control the rapid pressure changes in intakeair line (13).
Operation at Full-Load
The throttle valve (19) is fully opened. All the blowby gases flow into the intake air duct (13) after passing through the oil separator (15,16) of the cylinder head cover (14) when fully loaded. This dilluted air will be supplied to the combustion chamber through the intakemanifold (12).

SECTION 1B2
M161 ENGINE MECHANICAL
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwisenoted.
Specifications . . . . . . . . . . . . . . . . . . . . . . . 1B2-2Fastener Tightening Specifications . . . . . . . . 1B2-2
Special Tools . . . . . . . . . . . . . . . . . . . . . . . 1B2-4 Special Tools Table . . . . . . . . . . . . . . . . . . . . 1B2-4
Maintenance and Repair . . . . . . . . . . . . . . 1B2-9
On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . 1B2-9
Engine Assembly . . . . . . . . . . . . . . . . . . . . . 1B2-9
Crankcase Ventilation System . . . . . . . . . . 1B2-17
Alternator . . . . . . . . . . . . . . . . . . . . . . . . . . 1B2-21
Power Steering Pump and A/C Bracket . . . 1B2-22
Hydraulic Engine Mounting Insulator . . . . . . 1B2-25
Poly V-Belt . . . . . . . . . . . . . . . . . . . . . . . . . 1B2-28
Tensioning Deivce . . . . . . . . . . . . . . . . . . . . 1B2-30
Tensioning Device Shock Absorber . . . . . . 1B2-31
Poly V-Belt Inspection . . . . . . . . . . . . . . . . . 1B2-32
Cylinder Head Cover . . . . . . . . . . . . . . . . . 1B2-35
Cylinder Head Front Cover . . . . . . . . . . . . . 1B2-37
Cylinder Head . . . . . . . . . . . . . . . . . . . . . . . 1B2-39
Timing Gear Case Cover . . . . . . . . . . . . . . 1B2-44
Crankshaft Sealing Rear Cover . . . . . . . . . 1B2-47
Belt Pulley and Vibration Damper . . . . . . . . 1B2-49
Crankshaft Front Radial Seal . . . . . . . . . . . 1B2-52
Crankshaft Rear Radial Seal . . . . . . . . . . . 1B2-53
Crankshaft . . . . . . . . . . . . . . . . . . . . . . . . . 1B2-54
Flywheel/Driven Plate . . . . . . . . . . . . . . . . . 1B2-60
Camshaft Adjuster . . . . . . . . . . . . . . . . . . . 1B2-62
TABLE OF CONTENTS
Camshaft Sprocket Bolt . . . . . . . . . . . . . . . 1B2-65
Camshaft . . . . . . . . . . . . . . . . . . . . . . . . . . 1B2-66
Camshaft Timing Position . . . . . . . . . . . . . . 1B2-69
Valve Spring . . . . . . . . . . . . . . . . . . . . . . . . 1B2-72
Valve Stem Seal . . . . . . . . . . . . . . . . . . . . . 1B2-76
Chain Tensioner . . . . . . . . . . . . . . . . . . . . . 1B2-77
Timing Chain . . . . . . . . . . . . . . . . . . . . . . . . 1B2-80
Tensioning Rail . . . . . . . . . . . . . . . . . . . . . . 1B2-85
Cylinder Head Guide Rail . . . . . . . . . . . . . . 1B2-86
Crankcase Guide Rail . . . . . . . . . . . . . . . . . 1B2-87
Crankshaft Sprocket . . . . . . . . . . . . . . . . . . 1B2-88
Piston . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1B2-90
Connecting Rod . . . . . . . . . . . . . . . . . . . . . 1B2-93
Piston Ring . . . . . . . . . . . . . . . . . . . . . . . . . 1B2-95
Oil Pan . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1B2-97
Engine Oil and Oil Filter Element . . . . . . . . 1B2-99
Oil Pump . . . . . . . . . . . . . . . . . . . . . . . . . 1B2-101
Oil Pressure Relief Valve . . . . . . . . . . . . . 1B2-103
Oil Non-Return Valve . . . . . . . . . . . . . . . . 1B2-104
Oil Dipstick Guide Tube . . . . . . . . . . . . . . 1B2-105
Unit Repair . . . . . . . . . . . . . . . . . . . . . . . 1B2-106 Core Plugs in Crankcase . . . . . . . . . . . . . 1B2-106
Cylinder Bore . . . . . . . . . . . . . . . . . . . . . . 1B2-108
Crankcase Mating Surface . . . . . . . . . . . . 1B2-110
Cylinder Head Mating Surface . . . . . . . . . 1B2-112

SECTION 1B3
OM600 ENGINE MECHANICAL
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwisenoted.
Specifications . . . . . . . . . . . . . . . . . . . . . . . 1B3-2Fastener Tightening Specifications . . . . . . . . 1B3-2
Special Tools . . . . . . . . . . . . . . . . . . . . . . . 1B3-4 Special Tools Table . . . . . . . . . . . . . . . . . . . . 1B3-4
Maintenance and Repair . . . . . . . . . . . . . 1B3-12
On-Vehicle Service . . . . . . . . . . . . . . . . . . . . 1B3-12
Engine Assembly . . . . . . . . . . . . . . . . . . . . 1B3-12
Poly V-Belt . . . . . . . . . . . . . . . . . . . . . . . . . 1B3-21
Tensioning Device . . . . . . . . . . . . . . . . . . . . 1B3-23
Poly V-Belt Alignment & Inspection . . . . . . . 1B3-26
Prechamber . . . . . . . . . . . . . . . . . . . . . . . . 1B3-29
Milling of Prechamber Sealing Surface . . . . 1B3-32
TDC (TDC Sensor Bracket) Setting . . . . . . 1B3-35
Cylinder Head . . . . . . . . . . . . . . . . . . . . . . . 1B3-37
Timing Case Cover . . . . . . . . . . . . . . . . . . . 1B3-63
Crankshaft End Cover . . . . . . . . . . . . . . . . 1B3-71
Vibration Damper and Hub . . . . . . . . . . . . . 1B3-74
Crankshaft Front Radial Seal . . . . . . . . . . . 1B3-80
Crankshaft Ball Bearing . . . . . . . . . . . . . . . 1B3-82
Crankshaft . . . . . . . . . . . . . . . . . . . . . . . . . 1B3-83
Flywheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 1B3-93
Machining of Flywheel . . . . . . . . . . . . . . . . 1B3-97
Flywheel Ring Gear . . . . . . . . . . . . . . . . . . 1B3-98
Hydraulic Valve Clearance Compensation
Element Check . . . . . . . . . . . . . . . . . . . . 1B3-101
Valve Tappets . . . . . . . . . . . . . . . . . . . . . . 1B3-103
Valve Spring Check . . . . . . . . . . . . . . . . . 1B3-105
Valve Springs (Cylinder Head Removed) . 1B3-106
TABLE OF CONTENTS
Valve Springs (Cylinder Head Installed) . . 1B3-109
Valve Stem Seals . . . . . . . . . . . . . . . . . . . 1B3-112
Check and Replacement of Valve Guides . . . . . . . . . . . . . . . . . . . . . 1B3-116
Valve Seat Rings . . . . . . . . . . . . . . . . . . . 1B3-122
Check and Machining of Valves . . . . . . . . 1B3-127
Machining of Valve Seat . . . . . . . . . . . . . . 1B3-132
Camshaft Timing Test . . . . . . . . . . . . . . . . 1B3-137
Camshaft . . . . . . . . . . . . . . . . . . . . . . . . . 1B3-139
Chain Tensioner . . . . . . . . . . . . . . . . . . . . 1B3-145
Timing Chain . . . . . . . . . . . . . . . . . . . . . . . 1B3-147
Tensioning Rail . . . . . . . . . . . . . . . . . . . . . 1B3-151
Cylinder Head Guide Rail . . . . . . . . . . . . . 1B3-152
Timing Case Cover Guide Rail . . . . . . . . . 1B3-156
Crankshaft Sprocket . . . . . . . . . . . . . . . . . 1B3-158
Piston . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1B3-163
Oil Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 1B3-169
Oil Pan . . . . . . . . . . . . . . . . . . . . . . . . . . . 1B3-171
Oil Spray Nozzle . . . . . . . . . . . . . . . . . . . . 1B3-174
Oil Pump . . . . . . . . . . . . . . . . . . . . . . . . . . 1B3-175
Unit Repair . . . . . . . . . . . . . . . . . . . . . . . 1B3-177
Cylinder Head Pressure Leakage Test . . . 1B3-177
Facing Cylinder Head Mating Surface . . . . 1B3-178
Replacement of Crankcase Core Plug . . . 1B3-180
Facing Crankcase Contacting Surface . . . 1B3-182
Oil Gallery Steel Ball . . . . . . . . . . . . . . . . . 1B3-183
Cylinder Bore Measurement . . . . . . . . . . . 1B3-187

SECTION 1F1
M162 ENGINE CONTROLS
TABLE OF CONTENTS
CAUTION: Disconnect the negative battery cable before removing or installing any electrical unit or when a tool or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cablewill help prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwisenoted.
Specifications . . . . . . . . . . . . . . . . . . . . . . . 1F1-2
Fastener Tightening Specifications . . . . . . . . 1F1-2
Special Tools . . . . . . . . . . . . . . . . . . . . . . . 1F1-3 Special Tools Table . . . . . . . . . . . . . . . . . . . . 1F1-3
Schematic and Routing Diagrams . . . . . . . 1F1-4 E32 ECU (HFM) . . . . . . . . . . . . . . . . . . . . . . 1F1-4
E32 ECU (MSE) . . . . . . . . . . . . . . . . . . . . . . 1F1-5
Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . 1F1-6
Self Diagnosis Socket Pin Numbers andDescriptions . . . . . . . . . . . . . . . . . . . . . . . . 1F1-6
Self Diagnosis Failure Code . . . . . . . . . . . . . 1F1-7
Test Box Connection . . . . . . . . . . . . . . . . . . 1F1-10
Fuel Injection System Test (MSE3.62) . . . . . 1F1-11
Ignition System Test . . . . . . . . . . . . . . . . . . 1F1-21
Idling Control and Electronic Pedal System Test . . . . . . . . . . . . . . . . . . . . . . . 1F1-26
Air Conditioner Control System Test . . . . . . 1F1-28
Fuel Pressure and Internal Leakage Test . . 1F1-29
Fuel Pump Test . . . . . . . . . . . . . . . . . . . . . . 1F1-31Injector Test . . . . . . . . . . . . . . . . . . . . . . . .
1F1-33
Maintenance and Repair . . . . . . . . . . . . . 1F1-35
On-Vehicle Service . . . . . . . . . . . . . . . . . . . . 1F1-35
ECU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1F1-35
Fuel Pressure Regulator . . . . . . . . . . . . . . 1F1-46
Fuel Distributor . . . . . . . . . . . . . . . . . . . . . . 1F1-50
Injector . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1F1-54
Fuel Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 1F1-57
Fuel Pump . . . . . . . . . . . . . . . . . . . . . . . . . 1F1-58
Purge Switchover Valve . . . . . . . . . . . . . . . 1F1-62
Vacuum System . . . . . . . . . . . . . . . . . . . . . 1F1-64
Crankshaft Position Sensor . . . . . . . . . . . . 1F1-65
Camshaft Position Sensor . . . . . . . . . . . . . 1F1-67
Hot Film Air Mass (HFM) Sensor . . . . . . . . . 1F1-69
Oxygen Sensor . . . . . . . . . . . . . . . . . . . . . . 1F1-72
Knock Sensor . . . . . . . . . . . . . . . . . . . . . . . 1F1-74
Coolant Temperature Sensor . . . . . . . . . . . 1F1-75
Accelerator Pedal Module . . . . . . . . . . . . . . 1F1-78

1F3-2 OM600 ENGINE CONTROLS
FUEL SYSTEM
1 Fuel Injection Pump
2 Fuel Feed Pump
3 Overflow Valve
4 Injection Nozzle
5 Pre-filter 6 Fuel Return Hose
7 Injection Line
8 Fuel Tank
9 Fuel Filter
10 Choke Orifice
MAINTENANCE AND REPAIR
ON-VEHICLE SERVICE
