SSANGYONG NEW ACTYON SPORTS 2012 Service Manual

ELECTRIC DEVICE GENERAL
INFORMATION1. HOW TO READ ELECTRICAL WIRING
DIAGRAM..................................................
10GENERAL INFORMATION1. DIMENSIONS............................................
2. SPECIFICATION........................................2
4

Top view
Side view
Front view Rear view
1. DIMENSIONS
Unit: mm
1910
1790
3060
4990(5070)
1570 1570
Detailed Dimensions ▶
Unit:mm
Headlamp
Front fog lamp
Side repeater
Tun signal lamp (front)
Position lamp 1.
2.
3.
4.
5.Stop/Tail lamp
Back-up lamp
License plate lamp
Turn signal lamp (rear)
Reflector 6.
7.
8.
9.
10.

- Chassis number
The chassis number is stamped on the frame
behind the front right tire.
- Engine number
The engine number is stamped on the cylinder
block behind the A/C compressor.2) Vehicle Identification- Chassis number
The chassis number is stamped on the frame
behind the front right tire.
Unit:mm

2. SPECIFICATION1) Specifications in Unit
( ): Optional item
Vehicle weight and gross vehicle weight may vary according to the options and vehicle
types. -
-

2) Recommended Fluids and Lubricants
Use only Ssangyong recommended fluids and lubricants.
Do not mix any different types or brands of oils or fluids. This may cause damages.
Keep the specified levels when adding or replacing the fluids. -
-
-
3) Scheduled Maintenance Services - Diesel Engine

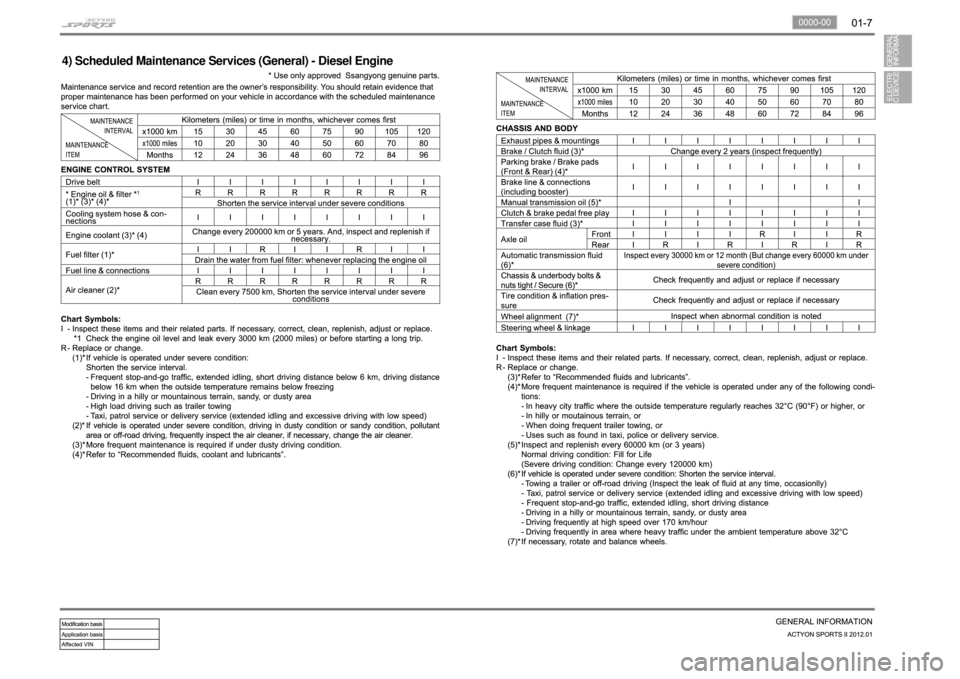

4) Scheduled Maintenance Services (General) - Diesel Engine

5) Scheduled Maintenance Services - Gasoline Engine

1. HOW TO READ ELECTRICAL WIRING DIAGRAM
Position Explanation
A- Upper horizontal lines : Power supply lines
- Power supply lines : 30, 15, 15A, 15C, 58
B- Ef20 or F2 : Fuse Number
·Ef20 : Fuse No #20 in engine room compartment
·F2 : Fuse No #2 in passenger room compartment
C- Connector (C101 ~ C903)
·Connector No C203 terminal No1
·Refer to Major Connector Position (Section 2)
D- S201 : Splice pack (S201 ~ S207)
·Refer to Major Splice Pack Position (Section2)
E- Wiring Harness Color
·Refer to Wiring Harness Color Abbreviation
F- Internal circuit of component (Relay)
(Component Name and Terminal Number)
G- Internal circuit of component (Switch)
(Component Name, Terminal Number and Connecting Wiring Circuit)
H- Lower horizontal line : Ground line
·Ground position (G101 ~ G402)
·B : Body Ground
·Refer to Major Ground Position (Section2)
1) HOW TO READ ELECTRICAL WIRING DIAGRAM2) CONTENTS OF ELECTRICAL WIRING DIAGRAM (CIRCUIT)
