headlamp SSANGYONG NEW ACTYON SPORTS 2012 User Guide

04-78210-01
Indicators on Instrument Cluster ▶
No. Symbol ItemBulb
TypePower Turning ON condition
1Turn signal lamp-L
LEDMultifunction
switchWhen activating switch
2 Turn signal lamp-R LEDMultifunction
switchWhen activating switch
34WD HIGH
indicatorLED IGN IGN ON/ CAN signal input
4Winter mode
indicatorLED IGN IGN ON/ CAN signal input
5Front fog lamp
indicatorLEDFog lamp
relayWhen activating switch
6Cruise control
indicatorLED IGN IGN ON/ CAN signal input
7Light illumination
indicator LED BATT Tail lamp ON
8High beam
indicatorLEDHeadlamp
high beam
relayWhen activating switch
9ABS warning lamp
LED IGNIGN ON/ CAN signal input
(ABS, EBD)
10 Glow indicator LED IGN IGN ON/ CAN signal input
11Immobilizer
indicatorLED IGN IGN ON/ CAN signal input
12Low fuel level
warnig lightLED IGNWhen analog inputting fuel
level

04-20
3. WARNING LIGHTS AND INDICATORS
ESP OFF Indicator
This lamp comes on when pressing
the "ESP OFF" switch or the ESP
system is defective. When the ESP
system is activated, this lamp blinks
and a chime sounds.
Immobilizer Indicator
This indicator comes on when the
ignition key is communicating with
the engine control unit for approx.
0.5 seconds.
Glow Indicator
When the ignition key is turned ON,
this indicator lamp comes on and the
combustion chamber is warmed up.
In the vehicle equipped with direct
injection type engine, this indicator
may come on very shortly or may not
come on.
Fog Lamp / Headlamp
High Beam Indicator
This lamp comes on when
the fog lamp or high beam
headlamp operates to
indicate the operating
status.Engine Oil Pressure Warning Ligh
This lamp comes on if there is any
fault in the engine oil system and
goes off when a certain amount of
time has elapsed after turning ON
the ignition switch.
Door ajar warning
light
This light comes on
when a door or
tailgate is either
opened or not
closed completely.Brake warning light
This warning light comes on
and warning buzzer sounds
when the parking brake is
applied and/or the brake fluid
level is lower than specified
level.Seat belt warning lamp
The seat belt warning light comes on
and the seat belt warning chime
sounds for 6 seconds when the
ignition switch is turned to "ON"
position unless the driver's seat belt is
securely fastened. This reminding
operation stops when the driver
fastens the seat belt.
Engine Coolant Overheat
Warning Light
When the coolant temperature is
abnormally hot (over 120℃), this
warning light blinks and a
warning buzzer sounds at 1 Hz.
(check cooling system)

05-38310-00

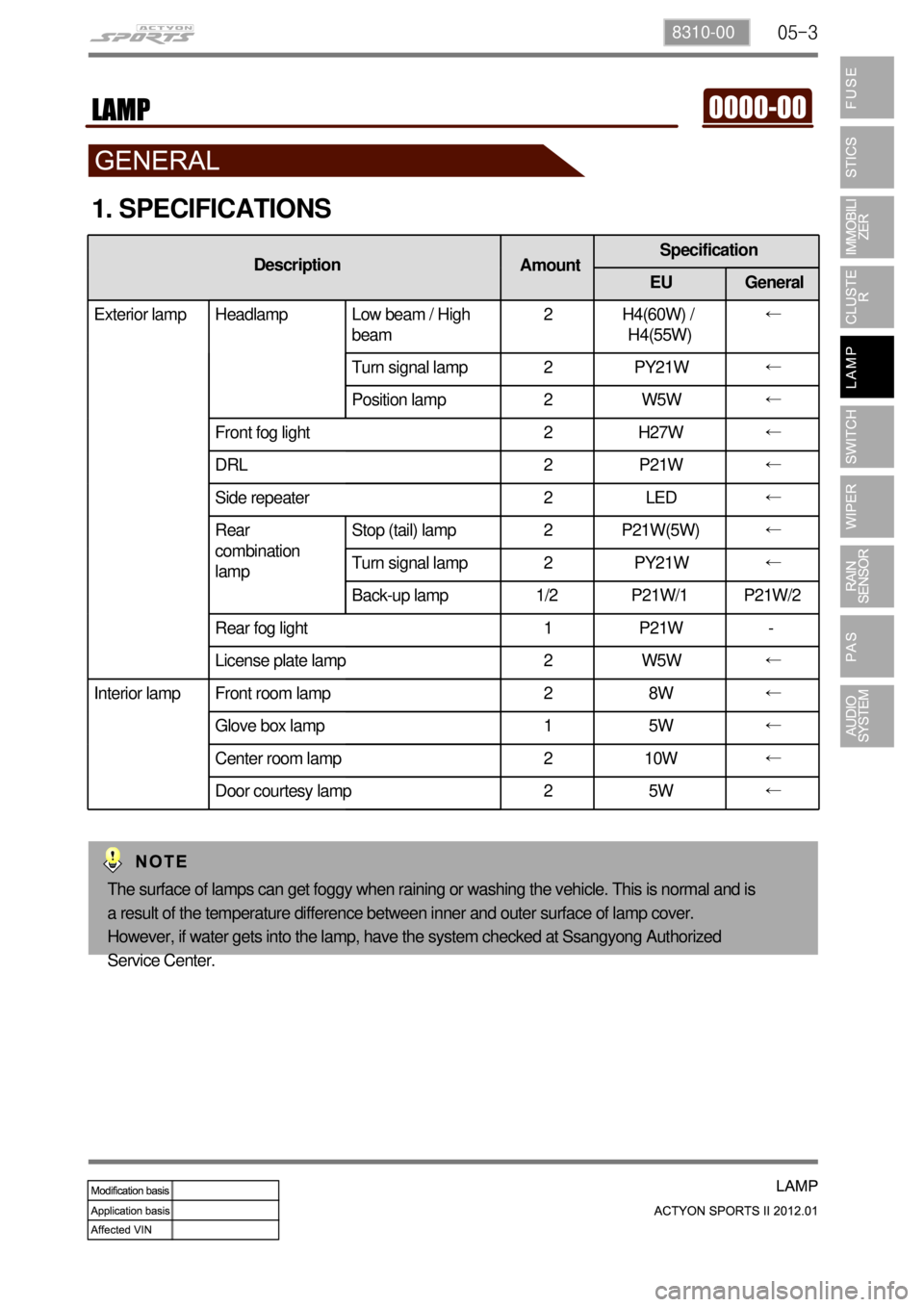

1. SPECIFICATIONS
AmountSpecification
EU General
Exterior lamp Headlamp Low beam / High
beam2 H4(60W) /
H4(55W)←
Turn signal lamp 2 PY21W←
Position lamp 2 W5W←
Front fog light 2 H27W←
DRL 2 P21W←
Side repeater 2 LED←
Rear
combination
lampStop (tail) lamp 2 P21W(5W)←
Turn signal lamp 2 PY21W←
Back-up lamp 1/2 P21W/1 P21W/2
Rear fog light 1 P21W -
License plate lamp 2 W5W←
Interior lamp Front room lamp 2 8W←
Glove box lamp 1 5W←
Center room lamp 2 10W←
Door courtesy lamp 2 5W←Description
The surface of lamps can get foggy when raining or washing the vehicle. This is normal and is
a result of the temperature difference between inner and outer surface of lamp cover.
However, if water gets into the lamp, have the system checked at Ssangyong Authorized
Service Center.

08-4
STICS Engine Compartment Fuse Box
STICS ▶
The rain sensing unit detects the amount of rain drops and sends the operating signal to STICS,
and STICS drives the wiper directly. At this moment, STICS determines the wiper operation mode
(washer, MIST, AUTO), then sends the information to the rain sensor.
Auto Light Sensor and Rain Sensor Coupled Control ▶
Rain detected headlamp: If it rains heavy which requires the highest INT speed (almost
LOW), the headlamps are turned on automatically. -
Night detected wiping: When the auto light control turns on the headlamps and the rain
sensor detects the rain, the wiper sensitivity is automatically increased by one level in
comparison with daytime.
(i.e. the AUTO wiper switch is at the 3rd level, but the wiper operates at the 4th level.) -Wiper relay (HI)
Wiper relay (LO)

08-78610-09
3) Sensitivity Control
The wiper LOW relay is turned on and the wiper motor runs one cycle when the volume
<009a008c0095009a0090009b0090009d0090009b00a000470090009a004700900095008a0099008c0088009a008c008b0047004f008c009f00610047009a008c0095009a0090009b0090009d0090009b00a00047005700470d7d0047005800500047009e00
8f00900093008c0047009b008f008c00470090008e00950090>tion switch and the INT switch is
in the "ON" position, and the wiper motor is in "Parked" position). However, the wiper
motor can be operated only when the rain sensor detects the "Rain Detected" signal. 1.
If the volume sensitivity is changed more than 1 stage within 2 seconds, the wiper motor runs
only one cycle.
4) Auto Light Control
Only when the auto light switch is in "AUTO" position, it controls the tail lamp and
headlamp by communicating with the rain sensor (while the ignition key is in "ON"
position). 1.

08-12
Rain detected headlamp: If it rains heavy which requires the highest INT speed (almost
LOW), the headlamps are turned on automatically.
Night detected wiping: When the auto light control turns on the headlamps and the rain
sensor detects the rain, the wiper sensitivity is automatically increased by one level in
comparison with daytime.
(i.e. the AUTO wiper switch is at the 3rd level, but the wiper operates at the 4th level.) 1.
2.
3. OPERATION MODE OF RAIN SENSING WIPER SYSTEM

07-4
Detailed Dimensions ▶
Unit: mm
Headlamp
Front fog lamp
Side repeater
Front turn signal lamp
Position lamp 1.
2.
3.
4.
5.Stop/Tail lamp
Back-up lamp
License plate lamp
Rear turn signal lamp
Reflector 6.
7.
8.
9.
10.
