03-37410-01
1. SPECIFICATION
Item Front seat Rear seat Remark
Headrest Type Slide Helm
Up/down 90 mm (15 mm X 6) 100 mm
(100 mm X 1)
Seat Recliner20° (foremost
position)+
64°(2° X 32)-
Folding - O
Height
adjustment ± 15 mm-
Sliding 192 mm
(12 mm X 16)-
Driver
lumbar support60° (30° X 2)-
Seat
adjusting
motor Slide/height adjustment
operating voltage 10 to 15 V -
Recliner
Operating voltage9.6 to 14.4 V -
Slide operating voltage 7 A - 13.5 V (based on
75 KG)
Height adjust
operating current8 A -
Recliner
operating current 7 A - 13.5 V,
Unloaded
Heated
seatRated voltage 12 V←
Operating voltage 10 ~ 16V←
Power consumption60W±10% ←
Heated wire temperatureON: 35±4°C
OFF: 45±3°CON: 35±4°C
OFF: 45±3°CTemperature
measured at
seat surface

03-4
2. MAJOR CHANGES
1) Front Seat
Front headrest
Headrest tilting Headrest height
- Chnaged headrest type (Helm → Slide)
- Changed from swing tilting adjusmtment to sliding tilting adjustment
- Improved safety by increasing headrest height (44.5 mm) in case of rear impact
2) Rear Seat
Rear seat headrest
- Warning label affixed to side of rear seat headrest
Headrest warning label

03-10

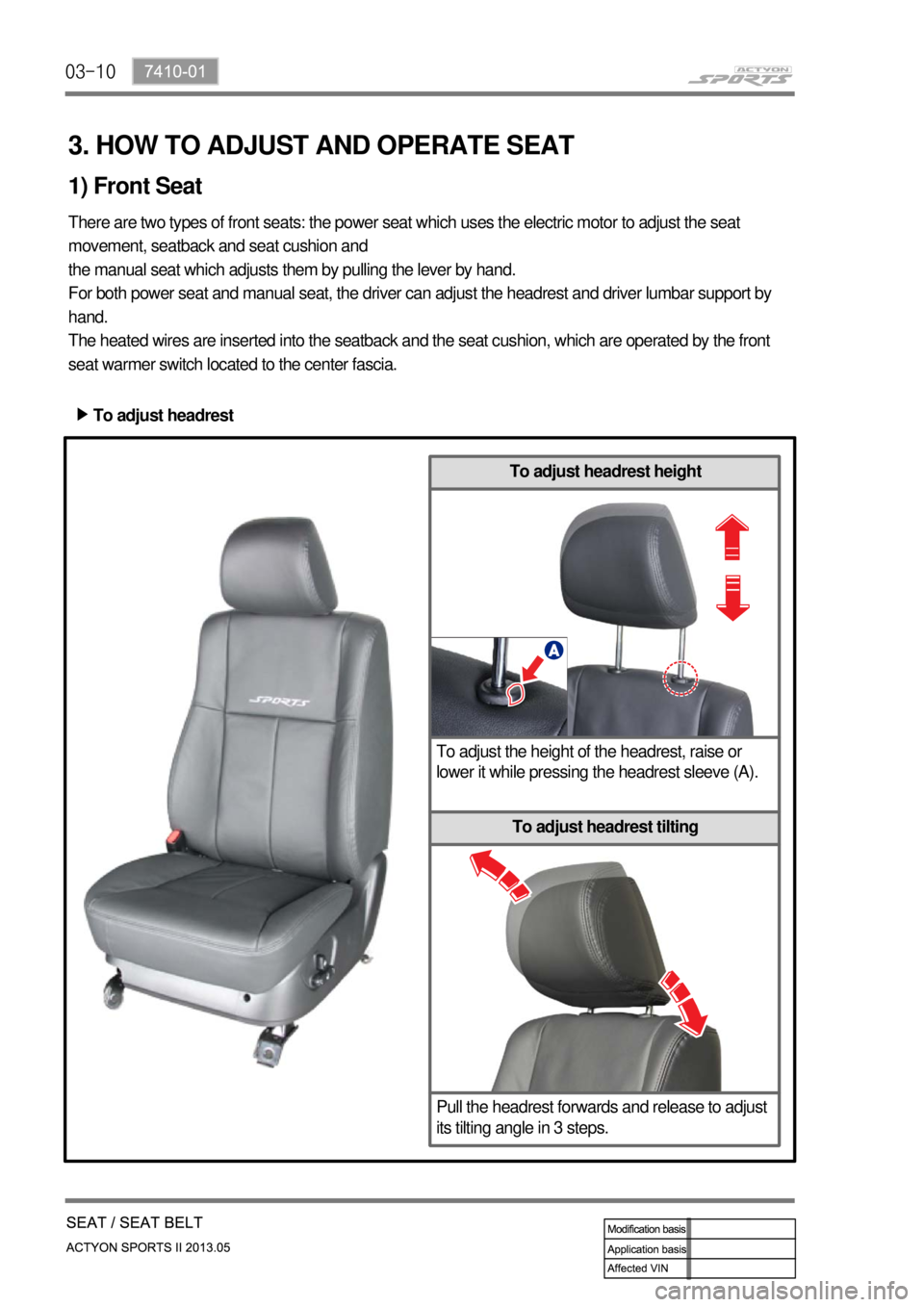

3. HOW TO ADJUST AND OPERATE SEAT
1) Front Seat
There are two types of front seats: the power seat which uses the electric motor to adjust the seat
movement, seatback and seat cushion and
the manual seat which adjusts them by pulling the lever by hand.
For both power seat and manual seat, the driver can adjust the headrest and driver lumbar support by
hand.
The heated wires are inserted into the seatback and the seat cushion, which are operated by the front
seat warmer switch located to the center fascia.
To adjust headrest ▶
To adjust headrest height
To adjust the height of the headrest, raise or
lower it while pressing the headrest sleeve (A).
To adjust headrest tilting
Pull the headrest forwards and release to adjust
its tilting angle in 3 steps.
