LAMP
3. EXTERIOR LAMP OPERATION

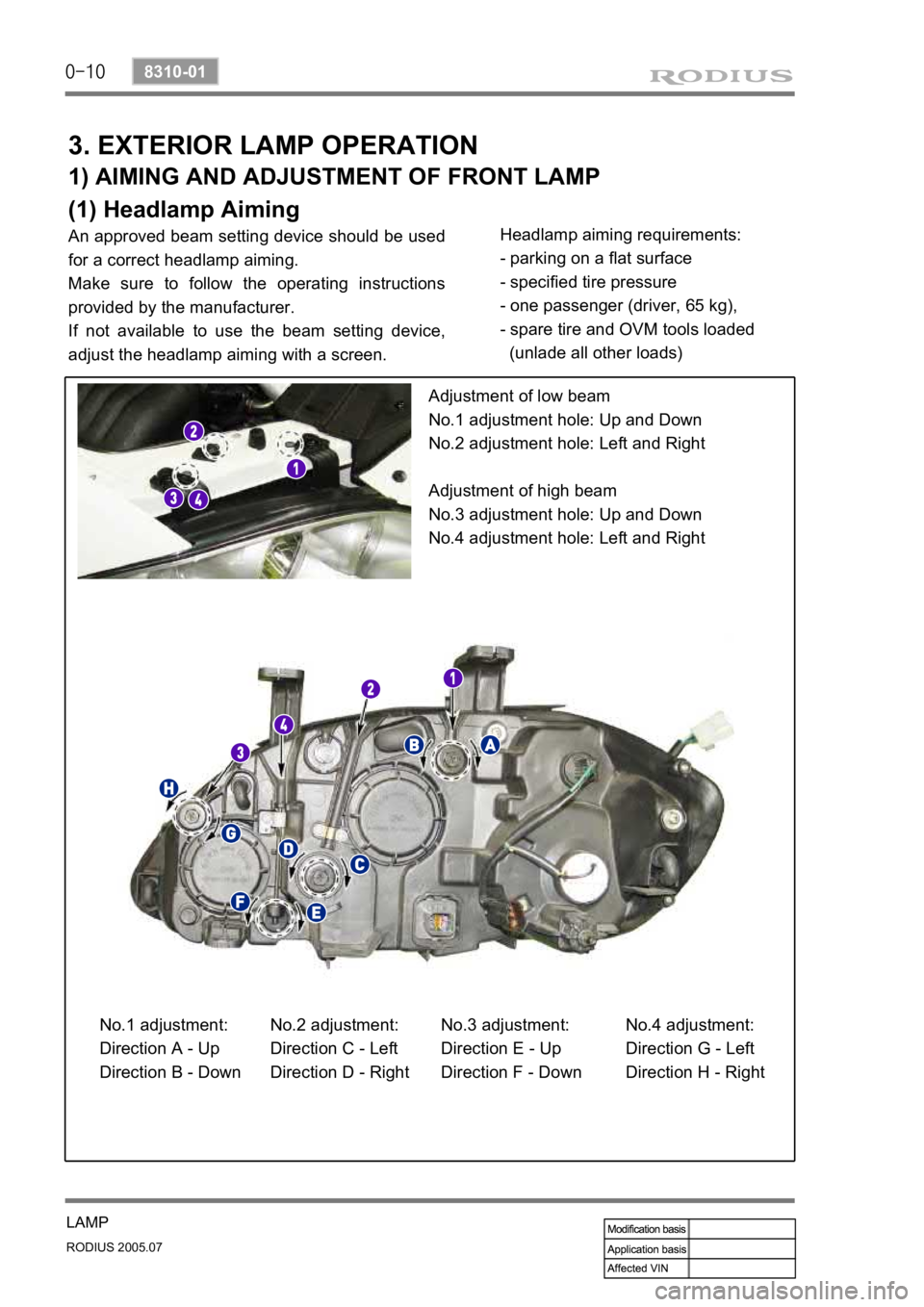

1) AIMING AND ADJUSTMENT OF FRONT LAMP
(1) Headlamp Aiming
An approved beam setting device should be used
for a correct headlamp aiming.
Make sure to follow the operating instructions
provided by the manufacturer.
If not available to use the beam setting device,
adjust the headlamp aiming with a screen. Headlamp aiming requirements:
- parking on a flat surface
- specified tire pressure
- one passenger (driver, 65 kg),
- spare tire and OVM tools loaded
(unlade all other loads)
Adjustment of low beam
No.1 adjustment hole: Up and Down
No.2 adjustment hole: Left and Right
Adjustment of high beam
No.3 adjustment hole: Up and Down
No.4 adjustment hole: Left and Right
No.1 adjustment:
Direction A - Up
Direction B - Down No.2 adjustment:
Direction C - Left
Direction D - Right No.3 adjustment:
Direction E - Up
Direction F - Down No.4 adjustment:
Direction G - Left
Direction H - Right

0-11
LAMP
RODIUS 2005.07
8310-01
Cautions During the Aiming
Procedures
▶
The headlamp angle should be within the
adjustment range as shown in the figure.
Adjust the headlamp aiming by rotating the
direction control levers (Up, Down, Left,
Right) in turn with a screwdriver.
▶When using a beam setting device Align the vehicle and beam setting device according to the operating instructions provided
by the manufacturer.
Adjust the headlamp aiming by rotating the direction control levers (Up, Down, Left, Right) in
turn with a screwdriver.
1.
2.

0-12
RODIUS 2005.07
8310-01
LAMP
▶When Using a Screen Install a screen (2m X 1.5m) in front of the headlamps in vertical by 3m away and align the
center lines of the vehicle and the screen.
1.
Run the engine with approx. 2,000 rpm
and turn on the headlamp. At this
moment, the focus of the headlamp
should aim the “A” point.
2.
If the focus deviates the “A” point,
adjust the headlamp aiming by rotating
control levers (Up, Down, Left, Right) in
turn with a screwdriver.
3.(Unit: mm) (Unit: mm)
