ECU (ENGINE CONTROL UNIT - D27DT EU IV)
1) ENG MAIN RELAY, PEDAL MODULE, HFM SENSOR, VALVE
(1) CONNECTOR INFORMATION
(2) CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

0-26
RODIUS 2007.07
0000-00
ENGINE GENERAL
▶Engine Compartment Layout
Engine assembly
Engine oil dipstick
Vacuum pump
Oil filter and cooler
Fuel filter and priming pump
Brake booster
Brake oil tank
AQGS unit
Washer fluid filler cap
Engine compartment fuse box
PTC relay box
Battery
Vacuum modulator (for VGT turbo charger) 1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.FFH Assembly (Only for vehicle with FFH)
Power steering oil tank
Engine oil filler cap
Fan shroud
E-EGR Valve
High-capacity PCV oil separator
HFM sensor (6.0)
VGT turbo charger
Air cleaner housing
2Coolant surge tank
ABS/ESP HECU (Including TPMS function:
optional)
Exhaust gas FRT Temp. sensor (T3) 14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.

0-28
RODIUS 2007.07
0000-00
ENGINE GENERAL
2. SYSTEMS IN ENGINE COMPARTMENT

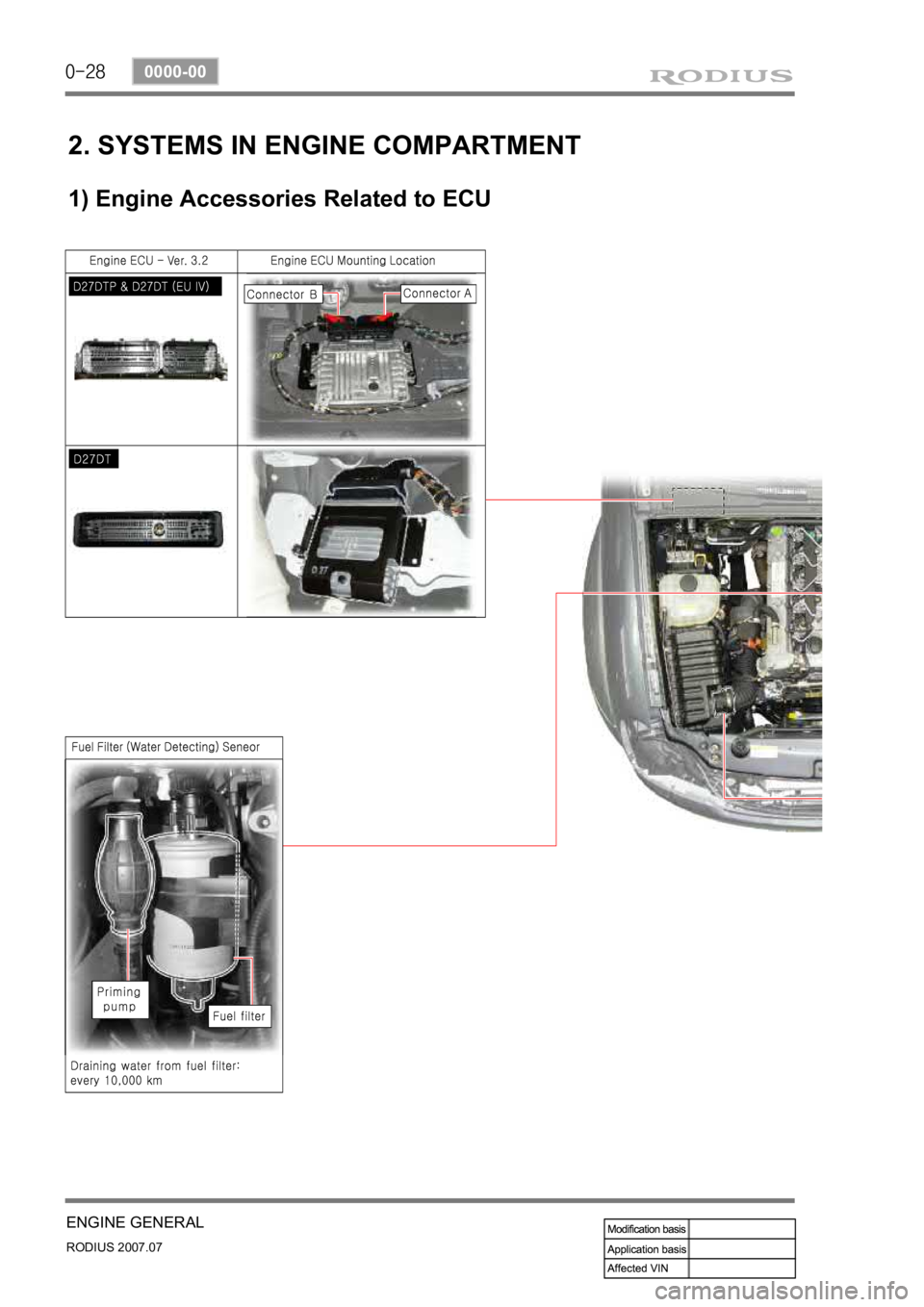

1) Engine Accessories Related to ECU

0-5
ENGINE FUEL SYSTEM
RODIUS 2007.07
0000-00
3) Fuel Rail - Chrome Color
D27DTP & D27DT (EU IV) * Fuel pipe (Common rail → Injector)
* Fuel high pressure pipe (HP pump →
　
Common rail)
D27DT * Fuel pipe (Common rail → Injector)
* Fuel high pressure pipe (HP pump →
Common rail) The I.D and O.D of the fuel rail between
HP pump and common rail are increased
according to the increased amount of fuel
injection.
Also, the engine ECU, HFM sensor and
EGR system are changed to control the
fuel injection volume and engine more
precisely.
·

0-3
ENGINE EXHAUST SYSTEM
RODIUS 2007.07
1792-01
1792-01ENGINE EXHAUST SYSTEM
1. COMPONENTS
The components of the exhaust system for the D27DTP (POWER UP) engine have been
changed as follows:
1. E-EGR valve: Controlling the EGR valve electrically and sends the valve location signal to
ECU (vacuum modulator control has been deleted)
2. EGR cooler: Decreasing EGR gas (NOx) efficiently by cooling the EGR gas and let it flow
to the intake pipe
3. VGT turbocharger: Increase in capacity and performance compared to D27DTP & D20DT
engine
The EGR system has been changed to control NOx more efficiently and the VGT turbo charge
r
has been changed to increase the engine power. For more details, refer to the next description.
The exhaust system for D27DTP (POWER UP) engine is as follows:

0-6
RODIUS 2007.07
0000-00
CDEF(Catalytic Disel Particulate Filter)
CDPF (Catalyst & Diesel Particulate Filter) and Sensors
3. MAJOR CHANGES
The CDPF system is only installed to the D27DT engine, and the major changes comparing to
the previous D27DT engine is as follows:
Engine ECUFuel Common Rail and Fuel Rail
(Between Common Rail and Injector)
The I.D and O.D of fuel rail has changed
from 2.4 mm/6.0 mm to 3.0 mm/6.35 mm.
Also, the damping orifice is installed to
prevent the fuel pulsation occured by fuel
pressure.
The engine ECU has been revised since
terminals have been added for front/rear
temperature sensors.
Its version is 3.2, but it is not compatible
with ECU without CDPF.

0-8
RODIUS 2007.07
0000-00
CDEF(Catalytic Disel Particulate Filter)
4. OPERATION PROCESS
1) Combustion Temperature and Procedures
As the soot is filtered in the CDPF, it is burnt and removed, and the CDPF is returned to the
initial state to collect the soot. Therefore, the burning procedures in the CDPF can be called as
recycling.
The CDPF assembly is integrated with DOC (at front side) and DPF (at rear side).
The DPF burns the soot with high-temperature exhaust gas (over 600°C). The rear
exhaust gas temperature sensor monitors the temperature of DPF section. If this temperature is
below the regeneration temperature, the ECU increases the post injection period to increase
the fuel injection amount, and consequently to increase the exhaust gas temperature.
Normally, when the vehicle is driven for 600 ~ 1,200 km, the enough amount of soot to be
burnt is filtered and accumulated in the CDPF. The ECU increase the amount of post
<009000950091008c008a009b0090009600950047009b0096004700900095008a0099008c0088009a008c0047009b008f008c0047009b008c00940097008c0088009b009c0099008c00470096008d0047008c009f008f0088009c009a009b0047008e008800
9a0047009c00970047009b00960047005d0057005700b6006a> so that the soot is
burnt. The soot is burnt for 15 ~ 20 minutes.

0-11
CDEF(Catalytic Disel Particulate Filter)
RODIUS 2007.07
0000-00

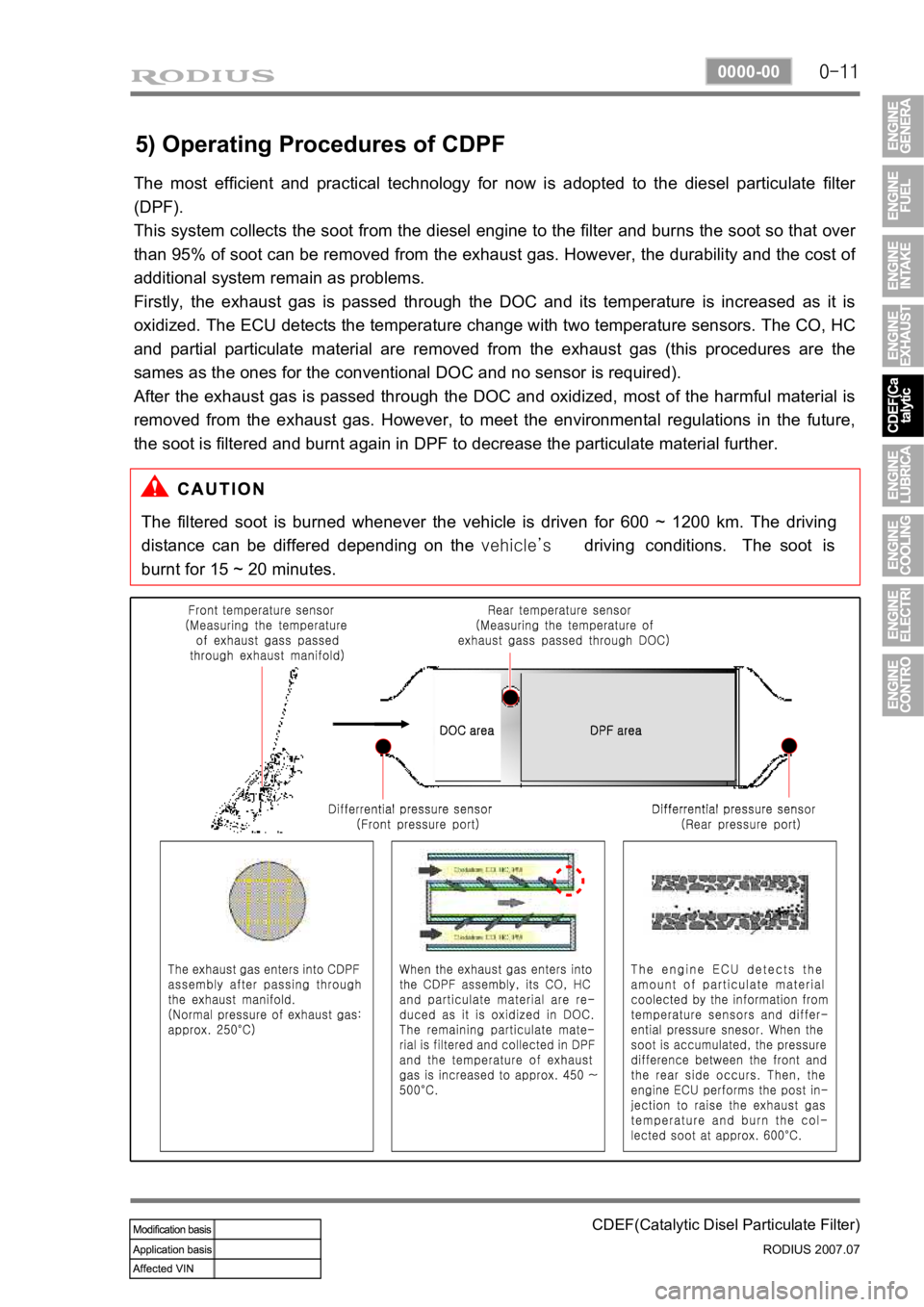

5) Operating Procedures of CDPF
The most efficient and practical technology for now is adopted to the diesel particulate filter
(DPF).
This system collects the soot from the diesel engine to the filter and burns the soot so that ove
r
than 95% of soot can be removed from the exhaust gas. However, the durability and the cost o
f
additional system remain as problems.
Firstly, the exhaust gas is passed through the DOC and its temperature is increased as it is
oxidized. The ECU detects the temperature change with two temperature sensors. The CO, HC
and partial particulate material are removed from the exhaust gas (this procedures are the
sames as the ones for the conventional DOC and no sensor is required).
After the exhaust gas is passed through the DOC and oxidized, most of the harmful material is
removed from the exhaust gas. However, to meet the environmental regulations in the future,
the soot is filtered and burnt again in DPF to decrease the particulate material further.
The filtered soot is burned whenever the vehicle is driven for 600 ~ 1200 km. The driving
distance can be differed depending on the vehicle’s driving conditions. The soot is
burnt for 15 ~ 20 minutes.

0-12
RODIUS 2007.07
0000-00
CDEF(Catalytic Disel Particulate Filter)
6) CDPF Over Load (Notice of Beginning CPF Regeneration Mode
- P1430)
The CDPF system enters the regeneration mode when the mileage is around 600 ~ 1,200
km, depending on the driving condition and driving habits. At this moment, the ECU
performs the CDPF regeneration process; however, the driver may not notice anything
because there is no engine warning or other signals indicating such process.
The control logic in the regeneration process is to increase the exhaust gas temperature by
increasing the fuel injection during post injection process and controlling the intake ai
r
amount(throttle body), and no significant change can be noticed in the vehicle condition.
The engine CHECK lamp flashes but there is no decrease in engine torque.
The engine CHECK lamp flashes to inform the driver when there is an over load due to soot
accumulation because the regeneration temperature cannot be reached due to low speed,
even though CDPF regeneration is in process.
The CDPF regeneration process must be completed by driving for 15-20 minutes at a speed
higher than 80 km/h to solve this problem.
The engine CHECK lamp flashes when CDPF is over loaded; therefore, 4) above must be
performed in this case. 1.
2.
3.
4.
5.
7) CDPF's Excessive Soot Accumulation (P0432)
When the vehicle is driven at a low speed (5-10 km/h) for a long time or long distance, the
soot over accumulates inside the CDPF and the combustion temperature cannot be reached
even by performing the soot combustion process. In this case, this DTC is generated.
This is more serious situation than the CDPF over load condition. Therefore, the engine
power is decreased to protect the system and the engine CHECK lamp is turned on.
Blow the soot between the engine and the exhaust system several times and clear the DTC
to solve this problem. If the same DTC is generated again, check the system according to
the DTC description related to the differential pressure sensor.
* This DTC is actually generated mostly due to the related system malfunction, such as
differential pressure sensor malfunction. 1.
2.
3.
