Page 362 of 444

SSANGYONG RODIUS 2006 Service Manual 0-11 AIR CONDITIONING SYSTEM RODIUS 2007.07 6810-20 2) Rear Air Conditioner Module Wiring layout Components Roof air conditioner duct Blower motor EvaporatorAir mixer door actuator Rear floor heater

Page 416 of 444

SSANGYONG RODIUS 2006 Service Manual 0-3 SUNROOF RODIUS 2007.07 7340-01 7340-01SUN ROOF 1. SUNROOF LAYOUT

Page 417 of 444

SSANGYONG RODIUS 2006 Service Manual 0-4 RODIUS 2007.07 7340-01 SUNROOF 2. COMPONENTS OF SUNROOF

Page 418 of 444

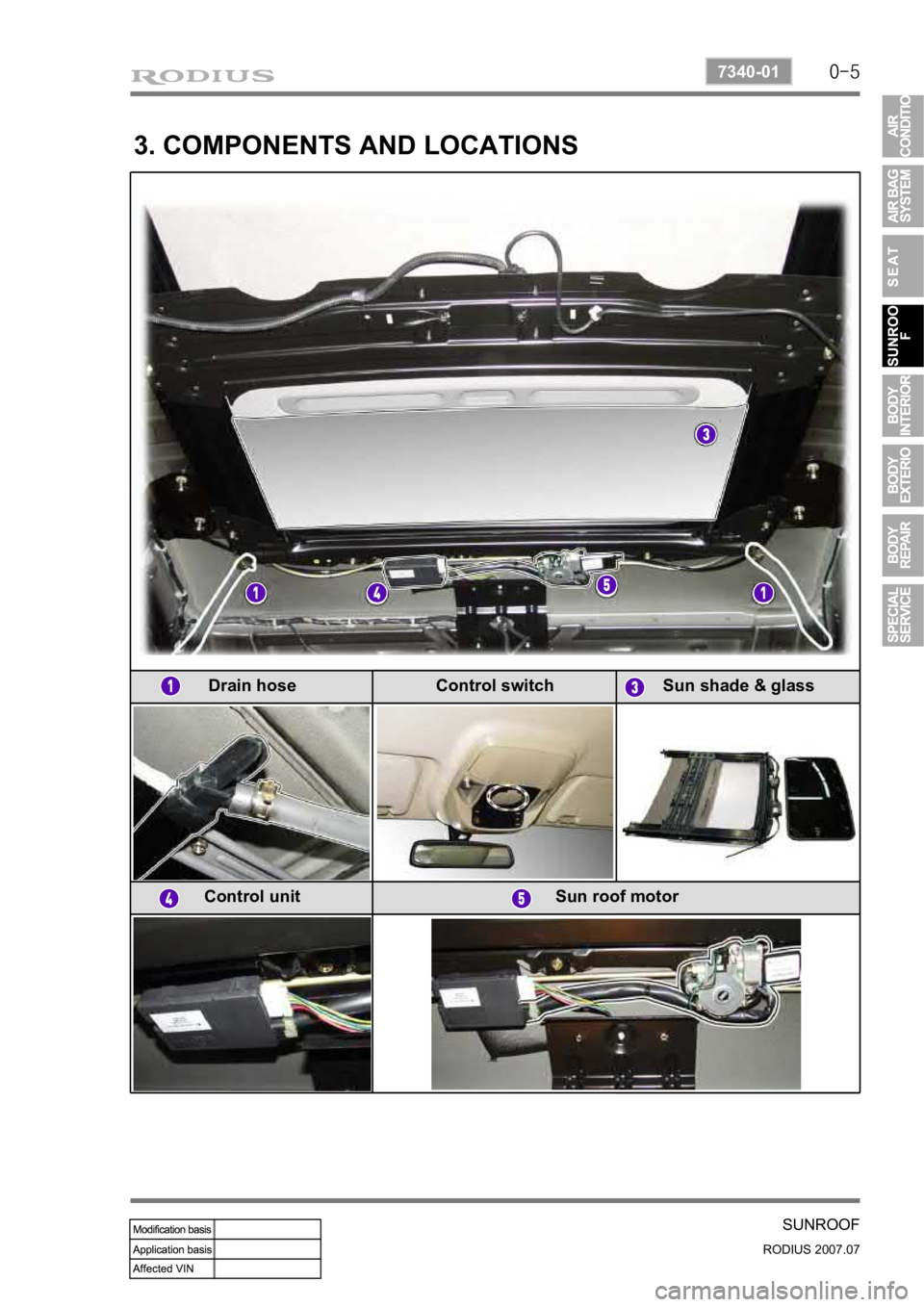

SSANGYONG RODIUS 2006 Service Manual 0-5 SUNROOF RODIUS 2007.07 7340-01 Drain hose Control switch Sun shade & glass Control unit Sun roof motor 3. COMPONENTS AND LOCATIONS

Page 419 of 444

SSANGYONG RODIUS 2006 Service Manual 0-6 RODIUS 2007.07 7340-01 SUNROOF 4. SUNROOF OPERATION 1) Tilting Push the front side of the button when the glass is closed then, mtor actuate the operating cable to lift up the glass. Push the re

Page 420 of 444

SSANGYONG RODIUS 2006 Service Manual 0-7 SUNROOF RODIUS 2007.07 7340-01 2) Sliding push the rear side of the button to slide the door back. Motor actuates the operating cable Mechanical equipment slides the glass back and forth
