LAMP
2. LOCATIONS OF INTERIOR LAMPS
1. Front room lamp
: one at both sides (12V - 5W)
The front room lamps (1, 2) are turned on
when pushing the lamp body regardless o
f
the positions of front room lamp coupled
switch.Press the lamp body again to turn off.
Front room lamps (driver’s and
passenger’s) are turned on when opening
one of front doors with this switch (A)
pressed in.
2. Rear room lamp (in second and third row seats)
: one at both sides (12V - 5W)
Rear room lamps are turned on and off when
the switch (1) is pressed in and out.
Four rear room lamps are turned on when
opening a rear door with this switch pressed
in. The rear room lamps are turned off when
closing the door.3. Center console lamp
: one at back of center console (12V - 5W)
Center console lamp is turned on when
opening a door.
Side (third row set) room lamp
Side (second row set) room lampFront room lamp
switch(coupled
operation with
door)Rear room lamp
switch(coupled
operation with
door)

0-9
LAMP
RODIUS 2006.09
8310-01
4. Luggage room lamp
: one at center (12V - 5W)
Luggage room lamp is turned on
and off when the switch (1) is
pressed in and out.
Luggage lamp is turned on and of
f
when opening and closing one o
f
rear doors with the front room lamp
switch pressed in.
5. Glove box lamp
: one at center (12V - 5W)
6. Door courtesy lamp
: one at each door (12V - 5W)
Door courtesy lamp is turned on when
opening a door while the ignition switch
is in “ON” position.
Rear (third row set) room lamp
Rear (second row set) room lamp
Front room lamp
Glove box lamp
Center console lamp

0-10
RODIUS 2006.09
8310-01
LAMP
3. EXTERIOR LAMP OPERATION
1) AIMING AND ADJUSTMENT OF FRONT LAMP
(1) Headlamp Aiming
An approved beam setting device should be used
for a correct headlamp aiming.
Make sure to follow the operating instructions
provided by the manufacturer.
If not available to use the beam setting device,
adjust the headlamp aiming with a screen. Headlamp aiming requirements:
- parking on a flat surface
- specified tire pressure
- one passenger (driver, 65 kg),
- spare tire and OVM tools loaded
(unlade all other loads)
Adjustment of low beam
No.1 adjustment hole: Up and Down
No.2 adjustment hole: Left and Right
Adjustment of high beam
No.3 adjustment hole: Up and Down
No.4 adjustment hole: Left and Right
No.1 adjustment:
Direction A - Up
Direction B - Down No.2 adjustment:
Direction C - Left
Direction D - Right No.3 adjustment:
Direction E - Up
Direction F - Down No.4 adjustment:
Direction G - Left
Direction H - Right

0-11
LAMP
RODIUS 2006.09
8310-01
Cautions During the Aiming
Procedures
▶
The headlamp angle should be within the
adjustment range as shown in the figure.
Adjust the headlamp aiming by rotating the
direction control levers (Up, Down, Left,
Right) in turn with a screwdriver.
▶When using a beam setting device Align the vehicle and beam setting device according to the operating instructions provided
by the manufacturer.
Adjust the headlamp aiming by rotating the direction control levers (Up, Down, Left, Right) in
turn with a screwdriver.
1.
2.

0-12
RODIUS 2006.09
8310-01
LAMP
▶When Using a Screen Install a screen (2m X 1.5m) in front of the headlamps in vertical by 3m away and align the
center lines of the vehicle and the screen.
1.
Run the engine with approx. 2,000 rpm
and turn on the headlamp. At this
moment, the focus of the headlamp
should aim the “A” point.
2.
If the focus deviates the “A” point,
adjust the headlamp aiming by rotating
control levers (Up, Down, Left, Right) in
turn with a screwdriver.
3.(Unit: mm) (Unit: mm)

0-13
LAMP
RODIUS 2006.09
8310-01

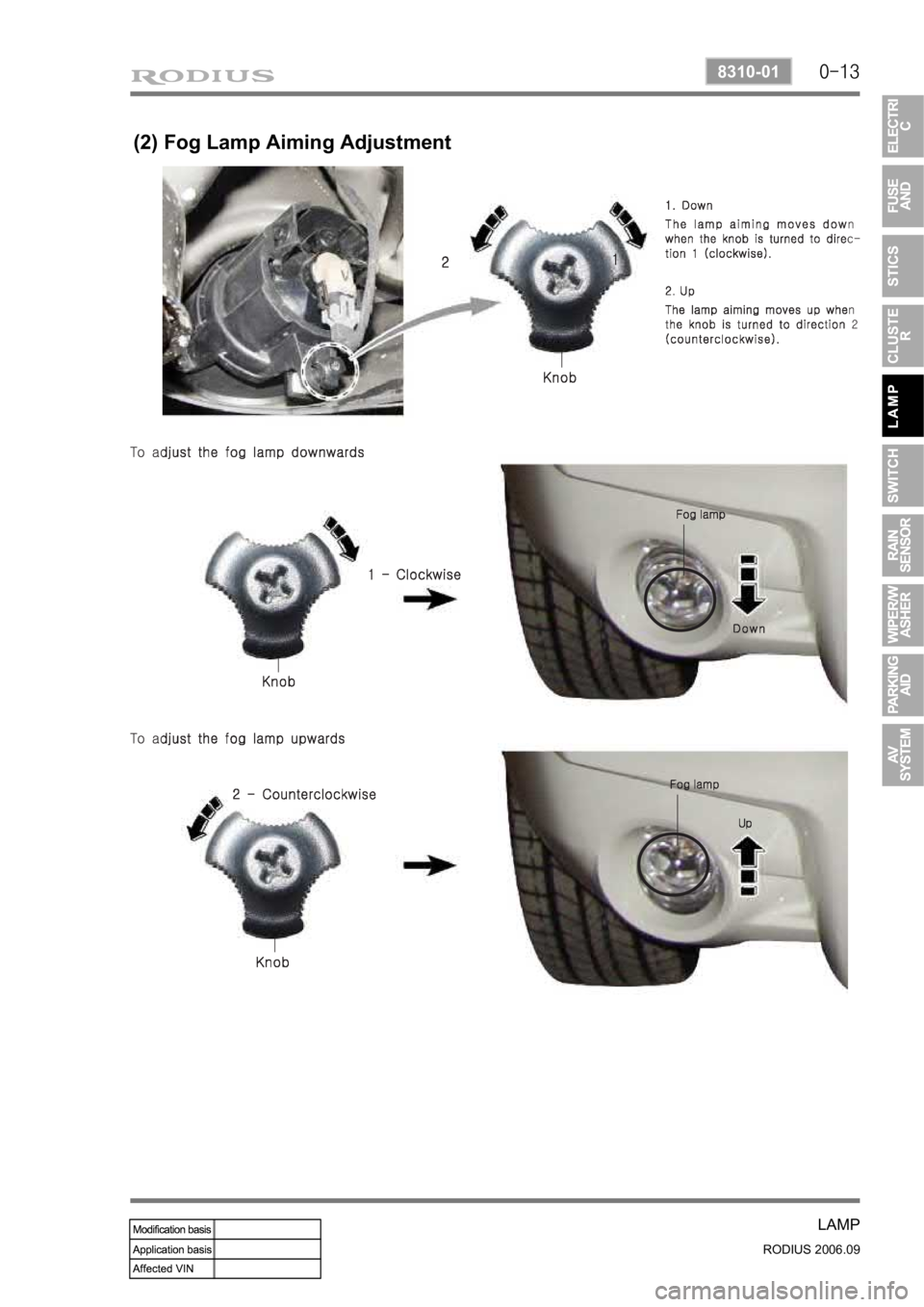

(2) Fog Lamp Aiming Adjustment

0-14
RODIUS 2006.09
8310-01
LAMP

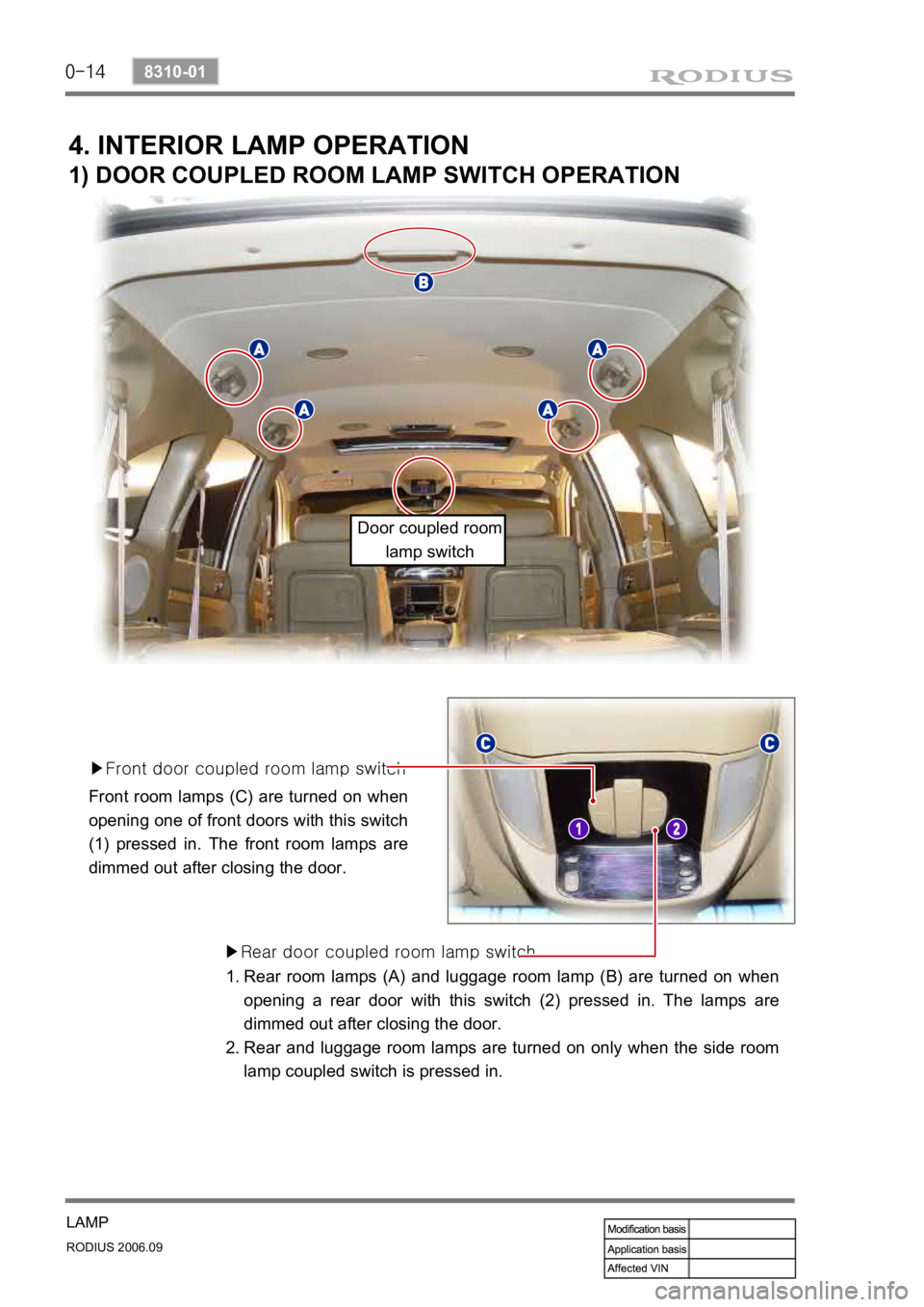

4. INTERIOR LAMP OPERATION
1) DOOR COUPLED ROOM LAMP SWITCH OPERATION
▶Front door coupled room lamp switch
Front room lamps (C) are turned on when
opening one of front doors with this switch
(1) pressed in. The front room lamps are
dimmed out after closing the door.
▶Rear door coupled room lamp switch Rear room lamps (A) and luggage room lamp (B) are turned on when
opening a rear door with this switch (2) pressed in. The lamps are
dimmed out after closing the door.
Rear and luggage room lamps are turned on only when the side room
lamp coupled switch is pressed in.
1.
2.
Door coupled room lamp switch

NO DATA

0-3
RAIN SENSOR
RODIUS 2006.09
8610-11
The rain sensing wiper unit in this vehicle doesn’t control the wiper directly.
The rain sensing unit detects the amount of rain drops and sends the operating signal to
STICS, and STICS drives the wiper directly.

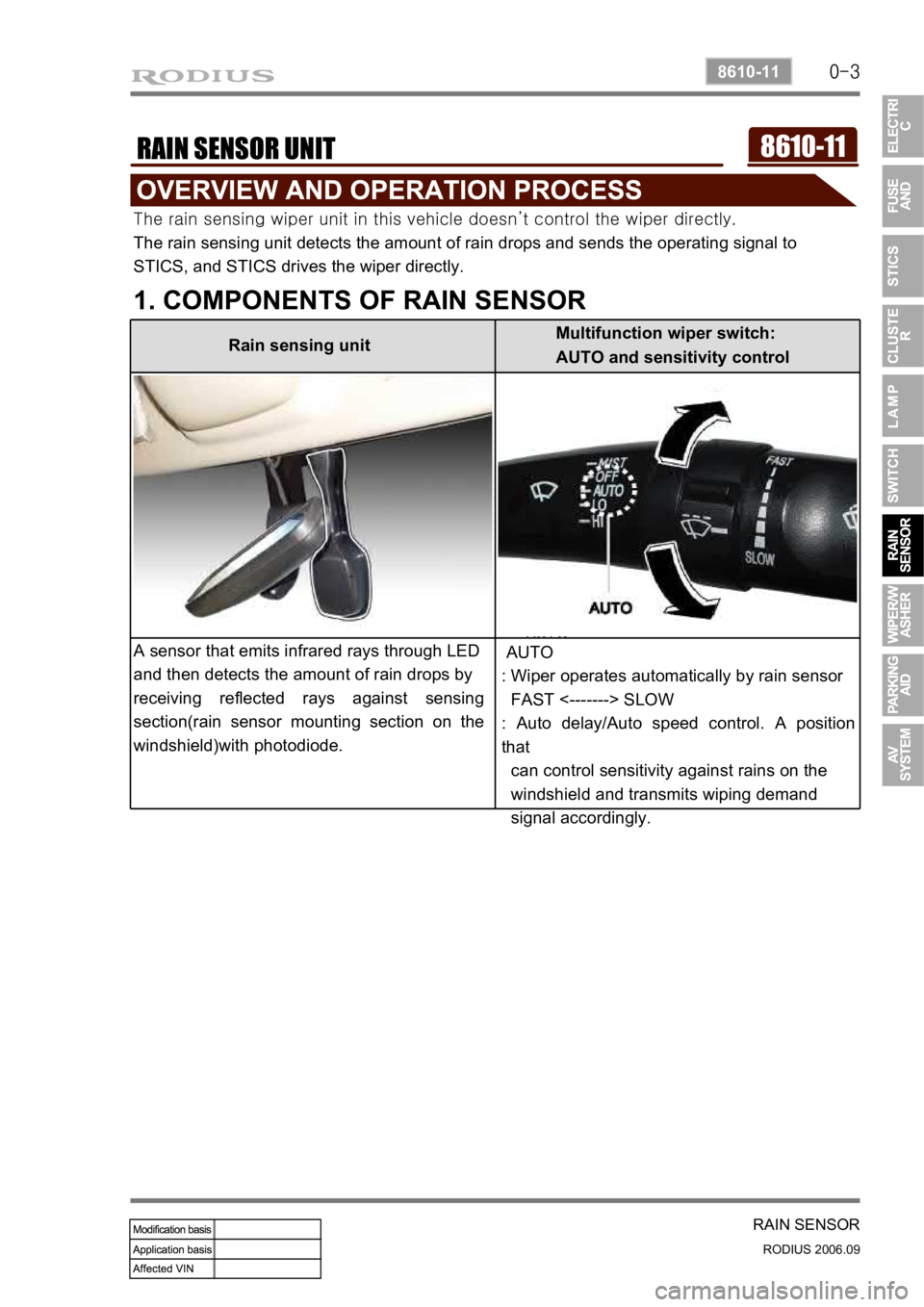

1. COMPONENTS OF RAIN SENSOR
A sensor that emits infrared rays through LED
and then detects the amount of rain drops by
receiving reflected rays against sensing
section(rain sensor mounting section on the
windshield)with photodiode. Rain sensing unit
Multifunction wiper switch:
AUTO and sensitivity control AUTO
: Wiper operates automatically by rain sensor
FAST <-------> SLOW
: Auto delay/Auto speed control. A position
that
can control sensitivity against rains on the
windshield and transmits wiping demand
signal accordingly.
8610-11RAIN SENSOR UNIT

0-4
RODIUS 2006.09
8610-11
RAIN SENSOR

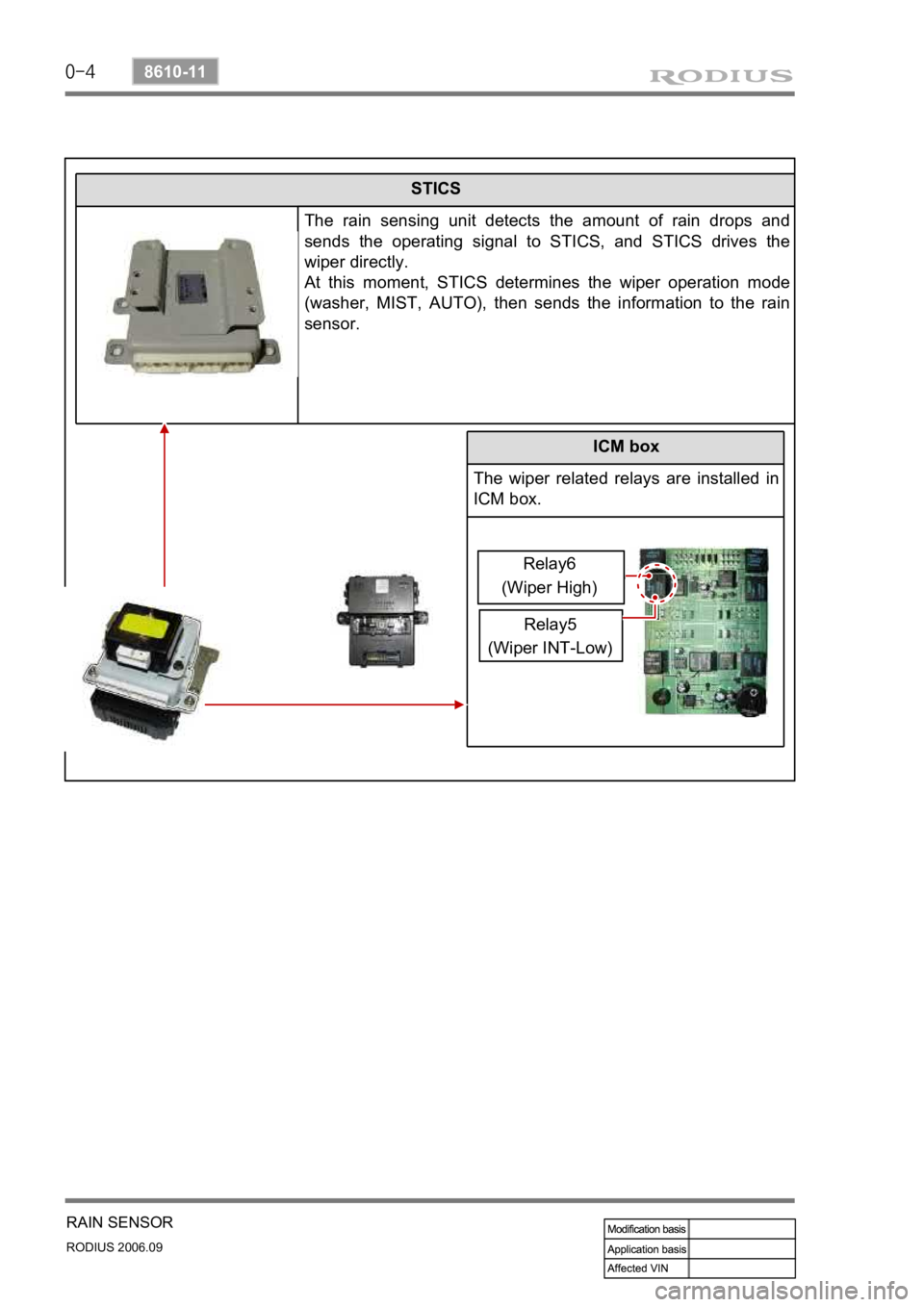

ICM box
The wiper related relays are installed in
ICM box.
Relay5
(Wiper INT-Low)Relay6
(Wiper High)
STICS
The rain sensing unit detects the amount of rain drops and
sends the operating signal to STICS, and STICS drives the
wiper directly.
At this moment, STICS determines the wiper operation mode
(washer, MIST, AUTO), then sends the information to the rain
sensor.
