SSANGYONG RODIUS 2007 Service Manual

0-5
RAIN SENSOR
RODIUS 2006.09
8610-11
Rain sensor unit (including cover)
2. RAIN SENSOR OPERATION
The rain sensor is installed on the specific heat treated windshield that has minimum 13% of
transmittance rate with specified intensity of radiation. It is installed on the glass with a
adhesive of Sorepa.
It communicates with STICS and makes the wipers to operate automatically under the rain
sensing mode (multifunction switch wiper: AUTO mode).
The emitting section of the rain sensor unit emits infrared rays against the windshield and then
detects the amount of rain drops by receiving reflected rays with photodiode.
The sensing section on the windshield is located just above the center point between LED and
photodiode.
Components and functions of the rain sensor unit
Unit latch
Rain
sensor unit
PCB assembly and emitter lens
Emitter lens
The LED emits the infrared
rays is located at bottom and the lens guides the infrared rays to target point.
Receiver lens
The receiver lens guides the reflected infrared rays from windshield to photodiode.
Housing and
receiver lens
Housing and PCB
Rear Front

0-6
RODIUS 2006.09
8610-11
RAIN SENSOR

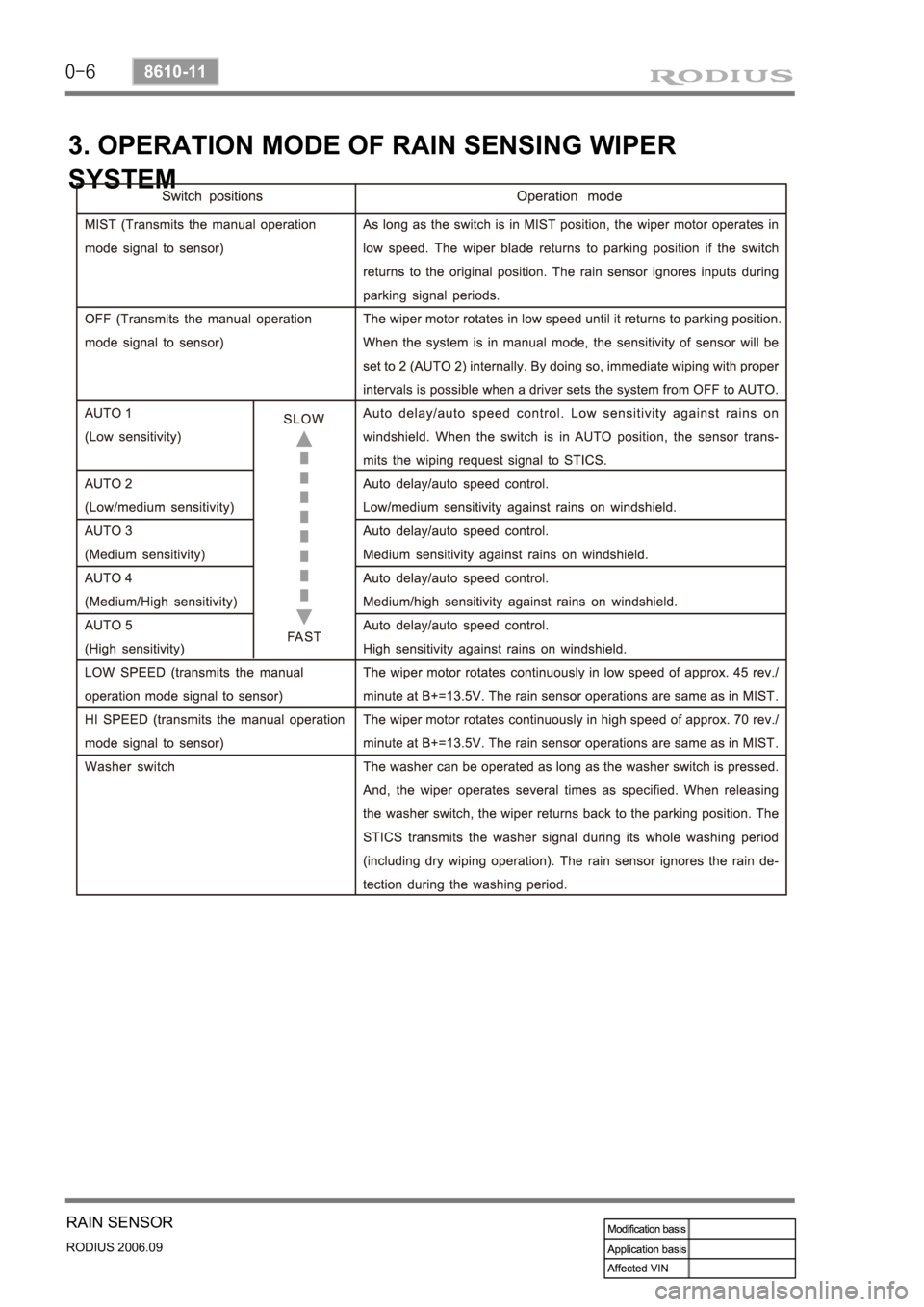

3. OPERATION MODE OF RAIN SENSING WIPER
SYSTEM

0-7
RAIN SENSOR
RODIUS 2006.09
8610-11
4. FUNCTIONS OF RAIN SENSOR
1) Windshield Glass and Coupler Attachment
Check the outer windshield surface of sensing area for wear, damage and scratch. The sensor
is able to compensate the wear up to a specific level. Check the coupler attached surface of
windshield for porosity. If the porosity exists, the sensor cannot function properly.
2) Recognition of AUTO Mode
3) Instant Wipe Function
When the variable resistance knob on the multifunction wiper switch is turned by each 1 stage
from low sensitivity (Smark) to high sensitivity (F mark), the wiper operates one cycle.
And, the wiper also operates during raining up to 5 minutes after rain stops.When the engine is started with the wiper switch “AUTO” position, the wiper operates
one cycle to remind a driver that the wiper switch is in “AUTO” position.
When the wiper switch is turned to “AUTO” from OFF, the wiper operates one cycle. It
always operates one cycle for the initial operation, however, the wiper does not operate
afterwards to prevent the wiper blade wear if not raining when turning the wiper switch to
“AUTO” from “OFF”. However, the wiper operates up to 5 minutes after rain stops.
If this function does not occur, check No. 2 terminal on the rain sensor. If any defective
cannot be found, check the wiper relay (LOW) for defective. 1)
2)
3)If the installed wiper brushes are out of specification (size and length), the rain sensing
area cannot be fully wiped. In this case, the rain sensor’s sensitivity could be
decreased and the wipers are not properly operated -
As described, the STICS recognizes the wiper switch “AUTO” position. If there are not
any problem, go to diagnosis mode in STICS and check the terminal that receives signal
from wiper and communication lines between rain sensor unit and STICS. -

0-8
RODIUS 2006.09
8610-11
RAIN SENSOR

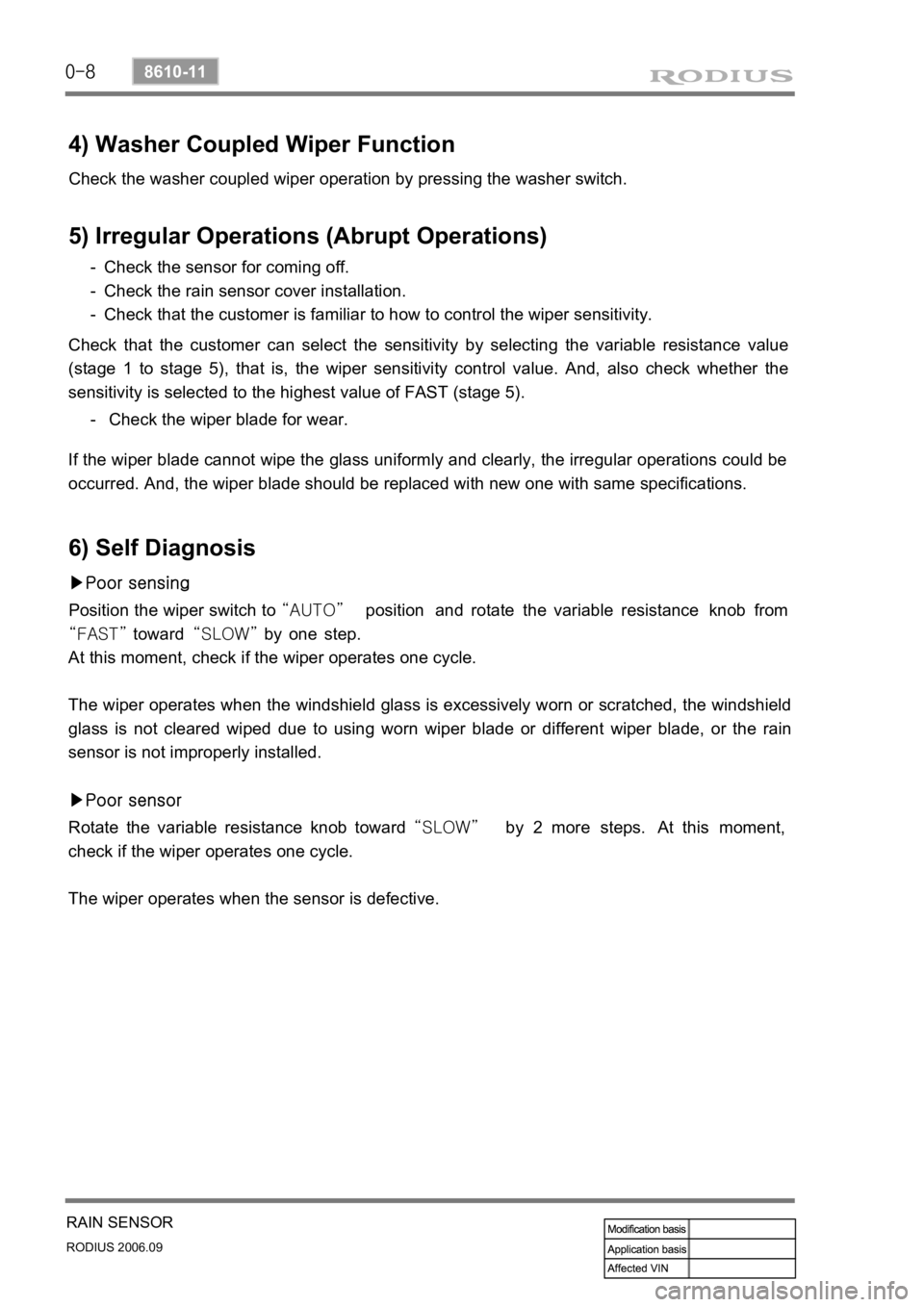

4) Washer Coupled Wiper Function
Check the washer coupled wiper operation by pressing the washer switch.
5) Irregular Operations (Abrupt Operations)
6) Self Diagnosis
Position the wiper switch to “AUTO” position and rotate the variable resistance knob from
“FAST” toward “SLOW” by one step.
At this moment, check if the wiper operates one cycle.
The wiper operates when the windshield glass is excessively worn or scratched, the windshield
glass is not cleared wiped due to using worn wiper blade or different wiper blade, or the rain
sensor is not improperly installed.Check the sensor for coming off.
Check the rain sensor cover installation.
Check that the customer is familiar to how to control the wiper sensitivity. -
-
-
If the wiper blade cannot wipe the glass uniformly and clearly, the irregular operations could be
occurred. And, the wiper blade should be replaced with new one with same specifications. Check that the customer can select the sensitivity by selecting the variable resistance value
(stage 1 to stage 5), that is, the wiper sensitivity control value. And, also check whether the
sensitivity is selected to the highest value of FAST (stage 5).
Check the wiper blade for wear. -
▶Poor sensing
▶Poor sensor
Rotate the variable resistance knob toward “SLOW” by 2 more steps. At this moment,
check if the wiper operates one cycle.
The wiper operates when the sensor is defective.

0-9
RAIN SENSOR
RODIUS 2006.09
8610-11

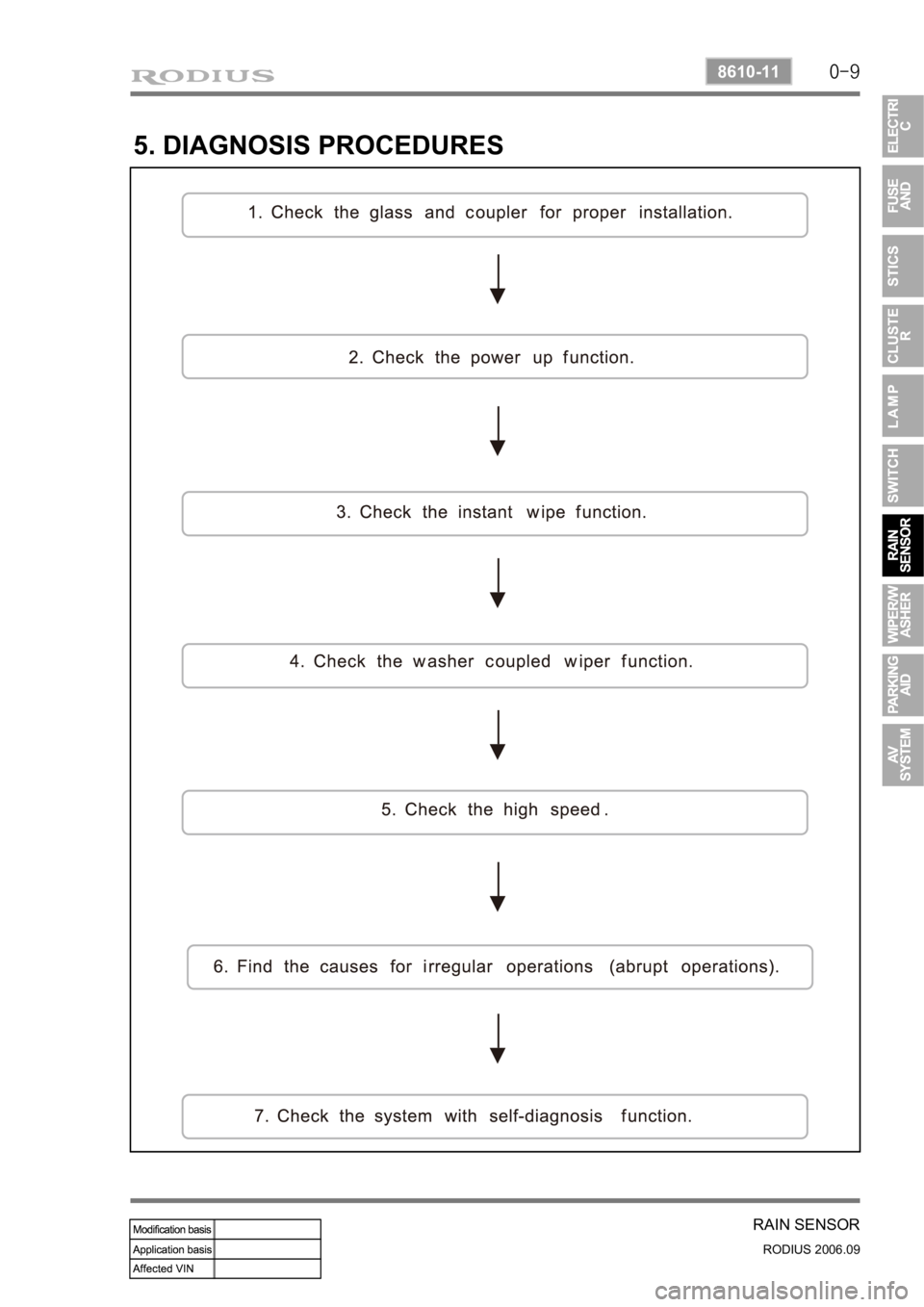

5. DIAGNOSIS PROCEDURES

0-10
RODIUS 2006.09
8610-11
RAIN SENSOR
6. RAIN SENSOR RELATED CIRCUIT
The rain sensor has one connector with 4 pins and each pin has following function as shown in
the circuit diagram.
However, in this vehicle, the terminal No. 1 and No. 2 are for communications between STICS
and the rain sensor; the No. 1 terminal sends the detected value from the rain sensor to STICS
then the STICS drives wiper motor.
to the rain sensor to recognize whether it is actual rain or it is in rain sensing wiper operation
mode.
No.2 terminal sends the wiper and washer operation information such as
washer operation mode,
MIST mode, or
AUTO wiper position -
-
-

0-3
WIPER/WASHER SYSTEM
RODIUS 2006.09
0000-00
7810-01WIPER/WASHER SYSTEM

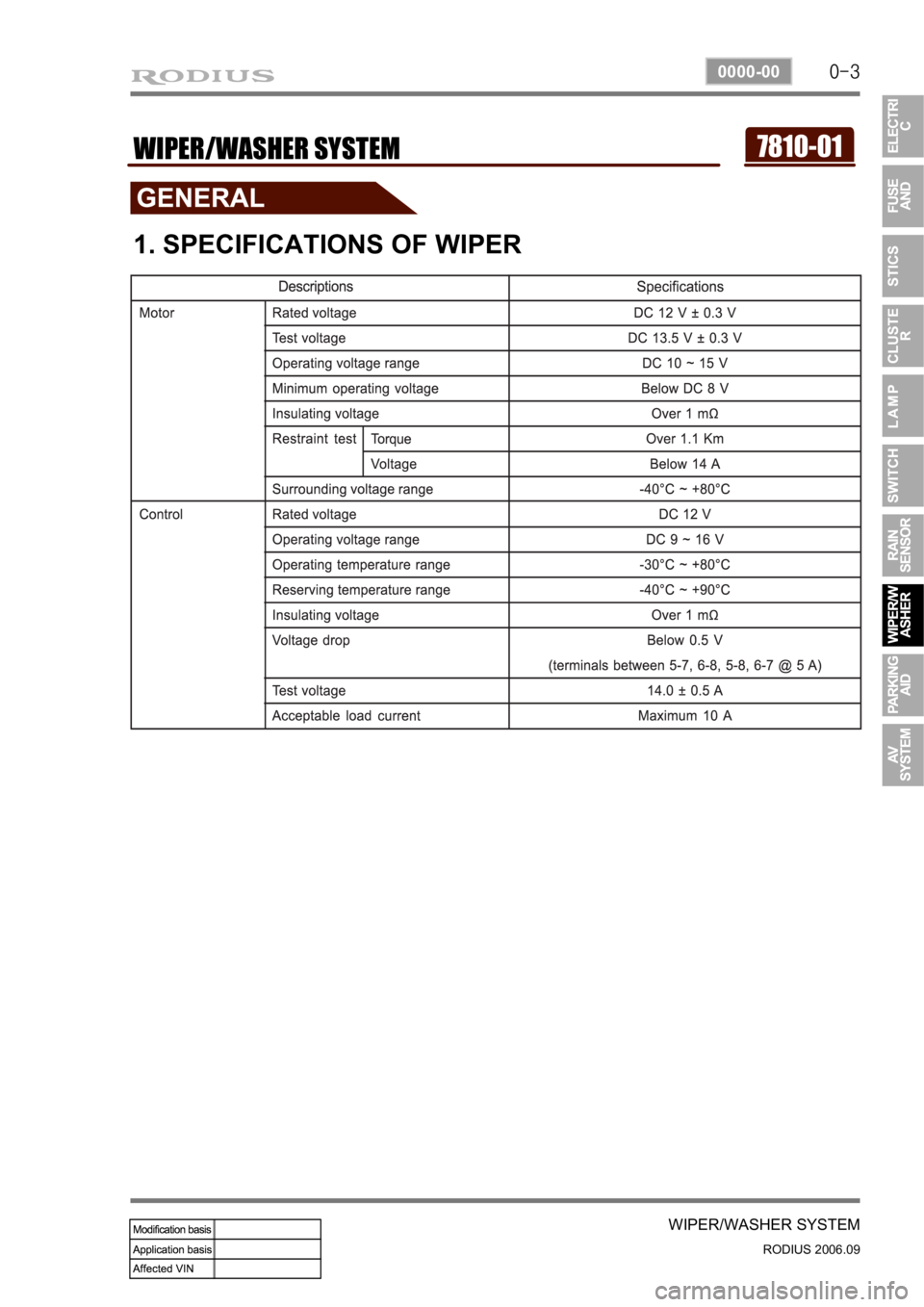

1. SPECIFICATIONS OF WIPER

0-4
RODIUS 2006.09
0000-00
WIPER/WASHER SYSTEM
Front wiper and washer assembly
Rear wiper and washer assembly

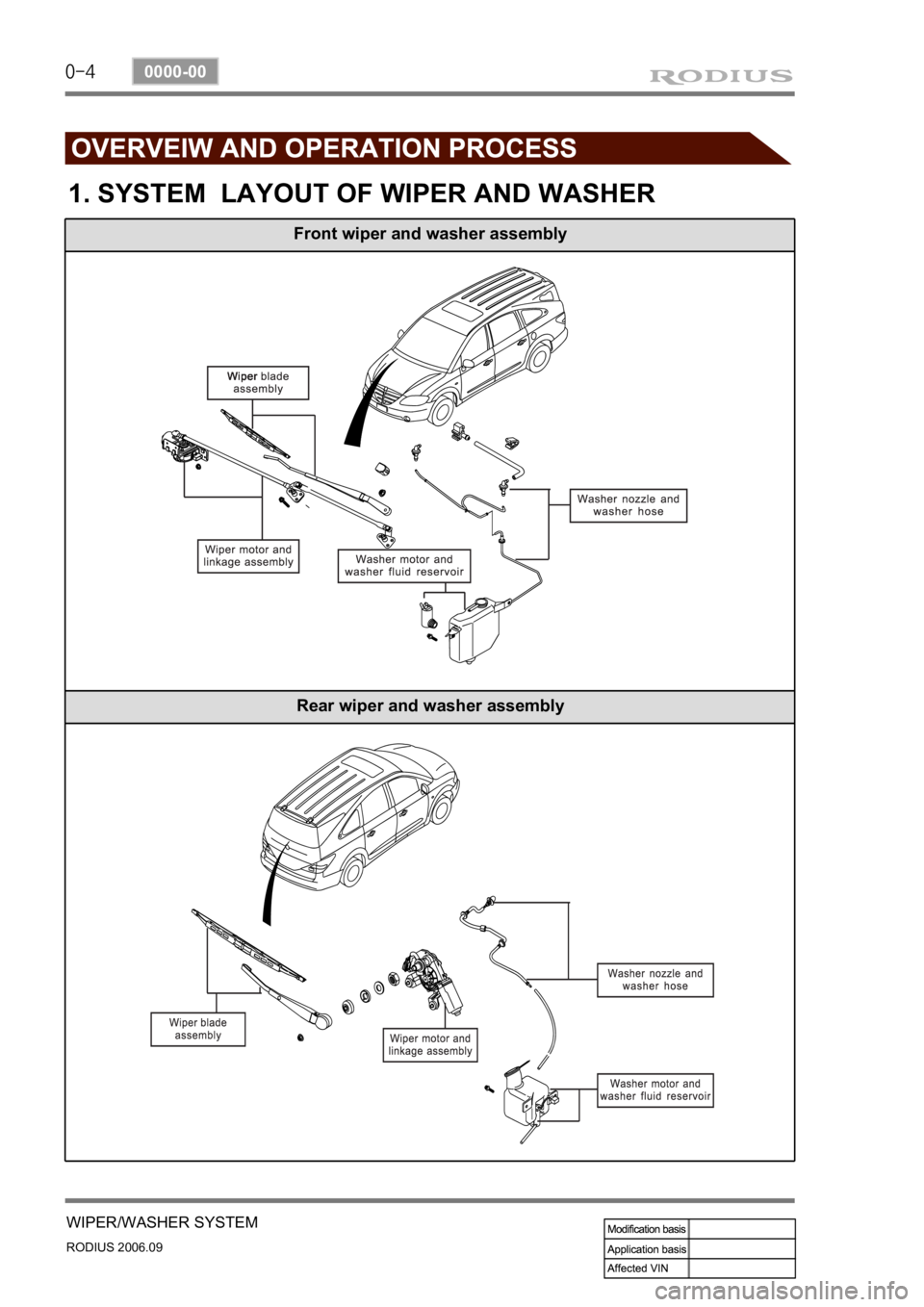

1. SYSTEM LAYOUT OF WIPER AND WASHER

0-5
WIPER/WASHER SYSTEM
RODIUS 2006.09
0000-00

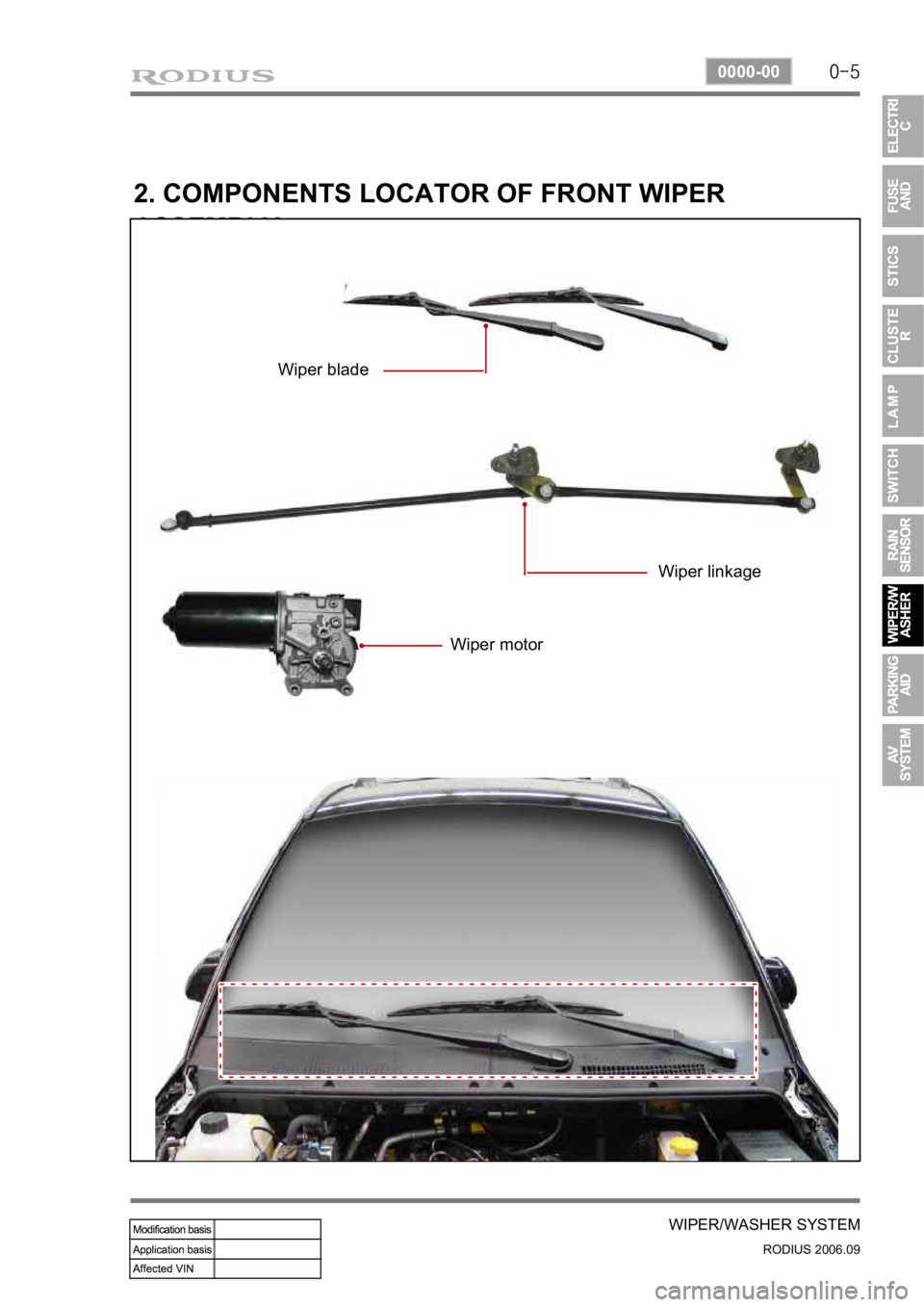

2. COMPONENTS LOCATOR OF FRONT WIPER
ASSEMBLY
Wiper blade
Wiper linkage
Wiper motor

0-6
RODIUS 2006.09
0000-00
WIPER/WASHER SYSTEM

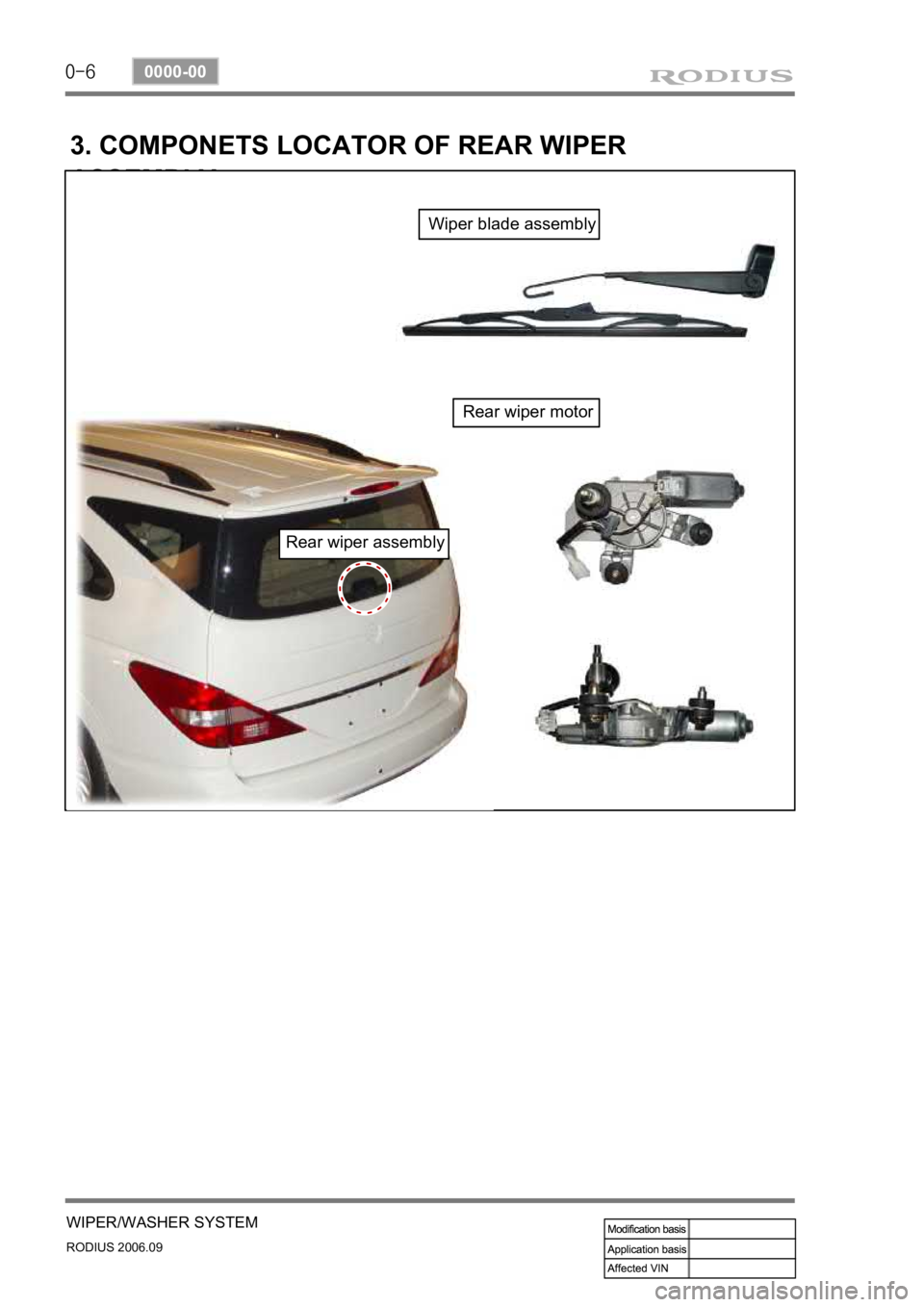

3. COMPONETS LOCATOR OF REAR WIPER
ASSEMBLY
Rear wiper assembly
Rear wiper motor
Wiper blade assembly
