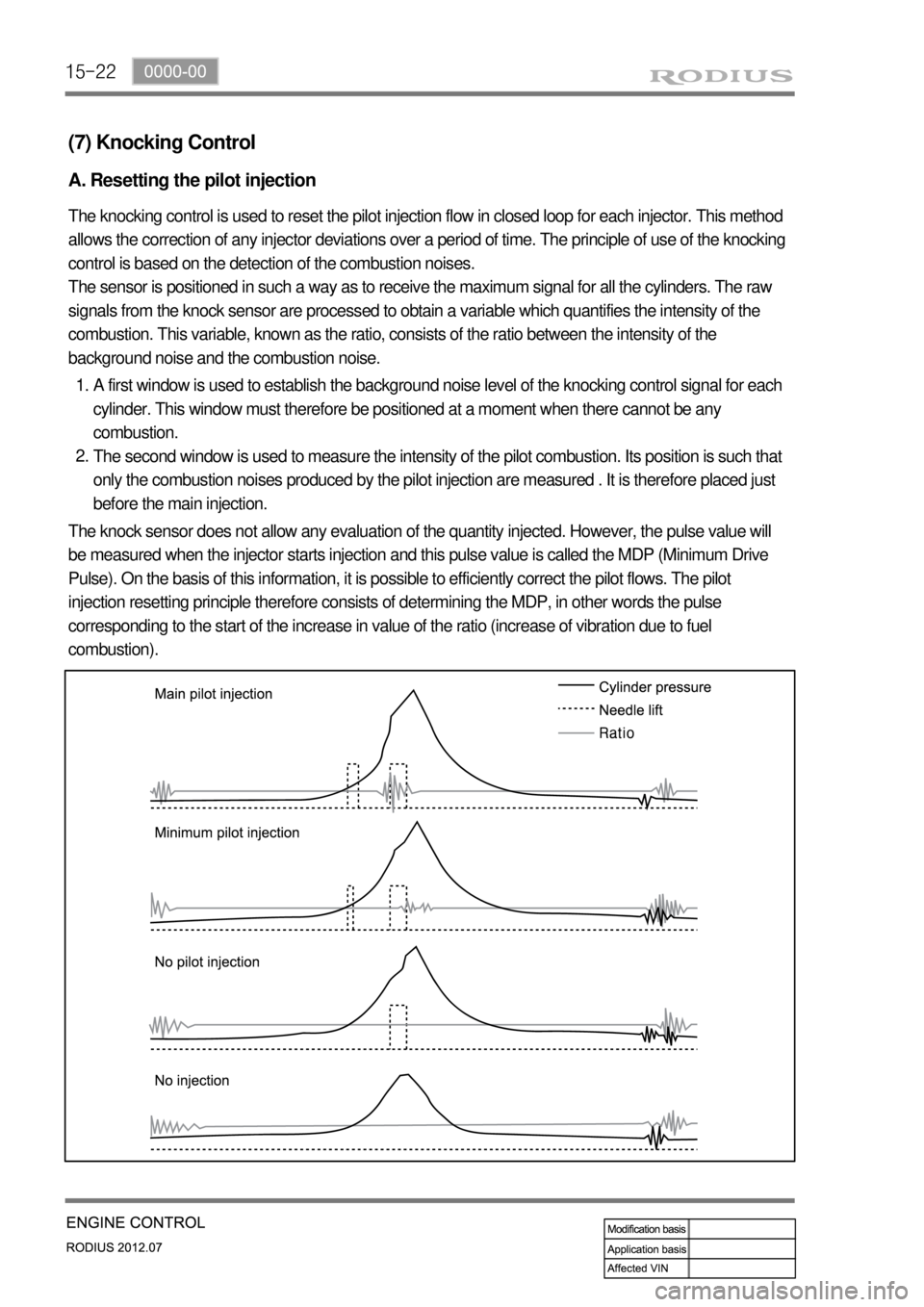

(7) Knocking Control
A. Resetting the pilot injection
The knocking control is used to reset the pilot injection flow in closed loop for each injector. This method
allows the correction of any injector deviations over a period of time. The principle of use of the knocking
control is based on the detection of the combustion noises.
The sensor is positioned in such a way as to receive the maximum signal for all the cylinders. The raw
signals from the knock sensor are processed to obtain a variable which quantifies the intensity of the
combustion. This variable, known as the ratio, consists of the ratio between the intensity of the
background noise and the combustion noise.
A first window is used to establish the background noise level of the knocking control signal for each
cylinder. This window must therefore be positioned at a moment when there cannot be any
combustion.
The second window is used to measure the intensity of the pilot combustion. Its position is such that
only the combustion noises produced by the pilot injection are measured . It is therefore placed just
before the main injection. 1.
2.
The knock sensor does not allow any evaluation of the quantity injected. However, the pulse value will
be measured when the injector starts injection and this pulse value is called the MDP (Minimum Drive
Pulse). On the basis of this information, it is possible to efficiently correct the pilot flows. The pilot
injection resetting principle therefore consists of determining the MDP, in other words the pulse
corresponding to the start of the increase in value of the ratio (increase of vibration due to fuel
combustion).

15-230000-00
This is done periodically under certain operating conditions. When the resetting is finished, the new
minimum pulse value replaces the value obtained during the previous resetting. The first MDP value is
provided by the C3I. Each resetting then allows the closed loop of the MDP to be updated according to
the deviation of the injector.
B. Detection of leaks in the cylinders
The accelerometer is also used to detect any injector which may have stuck open. The detection
principle is based on monitoring the ratio. If there is a leak in the cylinder, the accumulated fuel self-
ignites as soon as the temperature and pressure conditions are favorable (high engine speed, high load
and small leak).
This combustion is set off at about 20 degrees before TDC and before main injection.
The ratio therefore increases considerably in the detection window. It is this increase which allows the
leaks to be detected. The threshold beyond which a fault is signaled is a percentage of the maximum
possible value of the ratio.
Because of the severity of the recovery process (engine shut-down), the etection must be extremely
robust.
An increase in the ratio can be the consequence of various causes:
Pilot injection too much
Main combustion offset
Fuel leak in the cylinder -
-
-
If the ratio becomes too high, the strategy initially restricts the pilot injection flow and retards the main
injection. If the ratio remains high despite these interventions, this shows that a real leak is present, a
fault is signaled and the engine is shut down.
C. Detection of an accelerometer fault
This strategy permits the detection of a fault in the sensor or in the wiring loom connecting the sensor to
the ECU.
It is based on detection of the combustion. When the engine is idling, the detection window is set too low
for the combustion caused by the main injection. If the ratio increases, this shows that the knock sensor
is working properly, but otherwise a fault is signaled to indicate a sensor failure. The recovery modes
associated with this fault consist of inhibition of the pilot injection and discharge through the injectors.

15-28
Electric throttle
bodyAccelerator
pedal
moduleD20DTR
ECU
(9) EGR control
A. Overview
The EGR (Electric-Exhaust Gas Recirculation) valve reduces the NOx emission level by recirculating
some of the exhaust gas to the intake system.
To meet Euro-V regulation, the capacity and response rate of E-EGR valve in D20DTR engine have
been greatly improved. The EGR cooler with high capacity reduces the Nox, and the bypass valve
reduces the CO and HC due to EGR gas before warming up.
Also, the engine ECU adjusts the E-EGR opening by using the air mass signal through HFM sensor. If
the exhaust gas gets into the intake manifold when the EGR valve is open, the amount of fresh air
through HFM sensor should be decresed.
B. Components
E-EGR cooler
Coolant
temperature
sensorOxygen sensor
HFM (intake
air
temperature)
Crankshaft
position
sensorE-EGR valve
T-MAP
sensor

10-38510-23
1. SYSTEM DESCRIPTION
1) System Description
The cruise control is an automatic speed control system that maintains a desired driving speed
without using the accelerator pedal.
The vehicle speed must be greater than 38 km/h to engage the cruise control. This feature is
especially useful for motorway driving.
The cruise control system is a supplementary system, which helps the driver to drive the vehicle
at a desired speed without using the accelerator pedal under the traffic condition where the
vehicle-to-vehicle distance meets the legal requirement.

10-58510-23
2. CONFIGURATION
1) Circuit Diagram
The engine ECU detects the operating conditions of cruise control system, and monitors the
braking performance, vehicle speed, road conditions and ESP system operation. If the engine
ECU determines that there are not any problem to drive in cruise control mode, the vehicle can be
operated by cruise switch signals (decelerating, accelerating, cruising).

10-118510-23
5) Normal Cancellation of the Cruise Control
The cruise control system will be canceled when one or more items of the following conditions
are applied;
When the brake pedal is depressed or When ESP is activated.
When the cruising speed is downed less than 34 km/h
When applying the parking brake during driving.
When using the clutch in order to shift (M/T only). 1.
2.
3.
4.
Keep the main cruise control switch in the neutral position when not using the cruise control.

03-6
Transponder
3. VERIFICATION OF KEY
1) Verification
The immobilizer system prevents the vehicle theft by allowing only the authorized key to start the
engine. The transponder inside the key communicates with the immobilizer installed in the key
box, and the system permits the engine to start after confirming the encrypted coding from the
engine ECU.
In the following cases, a driver may be unable to start the vehicle with the immobilizer.The immobilizer unit transmits
the encrypted code to the
transponder. (2)
The transponder sends an encrypted signal to the unit as a response.
The transmitted code is changed to an encrypted signal in the unit.
The system compares the signal from transponder and the encrypted signal in immobilizer unit. (3)
(4)
(5)
When two or more immobilizer keys come into contact with (each) other(s).
When the key is close to any device sending or receiving electromagnetic fields or waves.
When the key is close to any electronic or electric devices such as lightening equipment,
security keys or security cards.
When the key is close to a magnetic or metal object or a battery. -
-
-
-
Immobilizer Unit

06-58510-00
Passenger’s Window Switch
(same with rear window
switches)
Multifunction Switch and Steering Wheel Angle
Sensor
Room Lamp and Sunroof Switch (w/
multimeter)
Defogger switchPassenger’s seat
warmer switch Rear fog lamp
switch Driver’s seat warmer
switchFront fog
lamp switch
Hazard warning
flasher switchESP OFF
switch
Door coupled
room lamp switch
Sunroof switch
Multimeter
Front room lamp switch

07-4
2. CAUTIONS ON RAIN SENSOR
When the wiper switch is in the AUTO position, the wiper will operate for 1 cycle if the initial
engine start is made. This may cause the wiper blades to wear prematurely. Therefore, other
than rainy days, set the switch to the OFF position. Especially during the winter time, check if
the wiper blades are not frozen to the windshield.
Operating the wiper with the blades frozen can damage the wiper motor.
If you operate the wipers when the windshield is dry without spraying washer fluid, the
windshield can be scratched and the wiper blades can wear prematurely. Use the wiper with the
washer fluid when the windshield is dry.
When it does not rain, turn the wiper switch to the OFF position.
Turn the wiper switch to the OFF position before any car wash to avoid unwanted operation of
the wipers. -
-
-
-
When cleaning the windshield over the sensor with damp clothes, the wiper may operate
suddenly. It could cause serious injury. Make sure to place the wiper switch to the OFF
position and ignition switch OFF when not in use.
Irregular operation (abrupt operation) â–¶
Check if the sensor is off the position.
Check if the rain sensor cover is securely installed.
Check if the customer is familiar to how to control the wiper sensitivity.
Check if the wiper sensitivity control is set to the FAST side (step 5).
Check the wiper blade for wear.
If the wiper blade cannot wipe the glass uniformly and clearly, it may cause the rain sensor to
work irregularly. Therefore, in this case, replace the wiper blade with a new one. -
-
-
-

09-58790-01
2. CAUTIONS
The parking aid system is just a supplemental device to help your parking.
Always keep the safety precautions.
Do not press or shock the sensors by hitting or using a high-pressure water gun while
washing, since it may damage the sensors.
If the system is in normal operating condition, a short beep sounds when the shift lever is
moved into "R" position with the ignition key "ON".
If the system is defective, the warning buzzer sounds for 3 seconds when moving the gear
<009a008f0090008d009b00470093008c009d008c00990047009b0096004702c8007902c9004700970096009a0090009b0090009600950047009e0090009b008f0047009b008f008c00470090008e00950090009b0090009600950047007600750055004700
69008c0047008a00880099008c008d009c0093004700950096>t to confuse this and the parking
aid alarm (in 50 cm). 1.
2.
3.
4.
5.
· Note that the display does not show everything in the rear area. Always check
nobody, especially animals and children, is behind the vehicle when parking or
reversing.
· If you can not properly check the vehicle behind, get out of the vehicle and then
visually check it.
The parking aid system will not work or improperly work under following cases: â–¶
1) Certain obstacles that sensors can not detect
Thin and narrow objects, such as wires, ropes, chains
Cotton, sponge, clothes, snow; that absorb ultrasonic waves
Obstacles lower than the bumper (ex. drain ditch or mud puddle) -
-
-
2) Not defective but improperly working
When the sensing portion is frozen (operates normally after thawed)
When the sensing portion is covered by rain, water drops, snow or mud (operates normally
after cleaned)
When receiving other ultrasonic signals (metal sound or air braking noises from heavy
commercial vehicles)
When a high-power radio is turned on -
-
-
-
3) Narrowed sensing area
When the sensing portion is partially covered by snow or mud (operates normally after cleaned)
<007a009c009900990096009c0095008b00900095008e0047009b008c00940097008c00990088009b009c0099008c00470096008d0047009a008c0095009a0096009900470090009a0047009b009600960047008f0090008e008f0047004f00880097009700
990096009f005500470096009d008c00990047005f005700b6>C) or too low
(approx. below -30°C) -
-
4) Not defective but may cause malfunction
When driving on the rough roads, gravel road, hill and grass
When the bumper height is changed due to heavy load
When the sensing portion is frozen
When the sensing portion is covered by rain, water drops, snow or mud
When receiving other ultrasonic signals (metal sound or air braking noises from heavy
commercial vehicles)
When a high-power radio is turned on
When some accessories are attached in detecting ranges -
-
-
-
-
-
-
