1. SPECIFICATION
Description Specification
Cooling system Type Water cooling, forced circulation
Coolant Capacity approx. 11.5 L
RadiatorCore size589W x 538H x 27T (over 3,170 cm²)
Flow type Cross flow
AntifreezeType Long life coolant
Mixing ratio
(water:antifreeze)50 : 50
Cooling fan
moduleMotor type DC motor
Motor weight 2.14 kg
Control type PWM type
Fan runout 3 mm
Coolant reservoirCapacity over 1.5 L
Circulation Closed roof type
Pressure cap Screw type
Pressure 1.4bar
ThermostatType Wax pallet type
Opening temperature90 ℃
Fully open temperature
100℃
Valve lift 8mm

02-38710-01
1. SPECIFICATIONS OF RK - STICS
1) Electrical Performance
2) Chattering of Input Signals
Vehicle speed input:
The vehicle speed calculating time is 1.0 seconds. The elapsed time of 1.5 seconds after IGN
1 switch :ON” is not included.
20 ms target input:
Wiper motor A/S (parking) terminal
100 ms target input switch
All switches except wiper motor A/S (parking) terminal 1.
2.
3.
3) Time Tolerance
If not indicated, time tolerance will be ± 10%.
<006f0096009e008c009d008c0099005300470090008d00470093008c009a009a0047009b008f008800950047005c0057005700470094009a00530047009b00900094008c0047009b00960093008c009900880095008a008c0047009e009000930093004700
89008c004700b70047005c005700470094009a0055>
The time indicated in each function does not include chattering processing time from switch
input changing point. 1.
2.
Item Requirement Remark
Rated voltage DC 12V
Operating voltage DC 9 ~ 16V Should operate normally within this range.
Operating temperature-30℃ ~ +80℃
Reserved temperature-40℃ ~ +85℃
Max. operating humidity 95%
Resistible voltage 24V
Insulating resistance No heat and fire due
to the current leaks.Confined with PCB, waterproof and coating
that requires the insulation.
Parasitic current below 4.0mA
(below 6.0mA)IGN = OFF, Full output load = OFF, 90
seconds (after received the signals), No input
changes for 2 seconds
Voltage drop below 1.2 V
below 2.0 VPin no. 8 and 2, 3, 5, 7, 10, 12, 13, 15, 19,
20, 23, 40, 47, 51, 53, 54
Pin no. 8 and 1, 14

06-58510-00
Passenger’s Window Switch
(same with rear window
switches)
Multifunction Switch and Steering Wheel Angle
Sensor
Room Lamp and Sunroof Switch (w/
multimeter)
Defogger switchPassenger’s seat
warmer switch Rear fog lamp
switch Driver’s seat warmer
switchFront fog
lamp switch
Hazard warning
flasher switchESP OFF
switch
Door coupled
room lamp switch
Sunroof switch
Multimeter
Front room lamp switch

01-76810-30
(2) Rear Air Conditioner Module
Roof air conditioner duct
Blower motor
Evaporator
Mixer door
Heater core
Air mixer door actuator
Rear floor
heater duct
Heater &
air conditioner
pipes
Wiring layout
Components

02-4
▶Rear 1st Row Seat Belt
▶Rear 2nd Row Seat Belt
▶Rear 3rd Row Seat Belt
Description Specification Remark
11-seaters (w/
swivel seat)· 3-point seat belt LH/RH (ELR)
· 2-point seat belt LH/RH (ELR)
· Fixed type seat belt· 2-point seat belt (ELR): Swivel seat
· Center seat belt: Fool proof type
· Length of webbing: 3,200 mm (3-point),
1,400 mm (2-point)
· Buckle for ELR
· Buckle for fixed type belt· ELR type: Webbing type
· Fixed type: Webbing and floor type
· Slide button type (All)
11-seaters
(w/o swivel
seat)· 3-point seat belt LH/RH (ELR)
· Fixed type seat belt· Retracting distance: over 120 mm
· Retracting time: 8 to 12 ms
· Retracting tension: 2 to 3.2 kN
· Spool-out limit: below 50 mm
· Buckle for ELR
· Buckle for fixed type belt· ELR type: Webbing type
· Fixed type: Webbing and floor type
Description Specification Remark
11-seaters· 3-point seat belt LH/RH (ELR)
· Fixed type seat belt· Center seat belt: Fool proof type
· Length of webbing: 3,200 mm (3-point)
· Buckle for ELR
· Buckle for fixed type belt· Fixed type: Webbing and floor type
· Slide button type
Description Specification Remark
11-seaters· 3-point seat belt LH/RH (ELR)· Center seat belt: Floor type
· Length of webbing: 3,200 mm (3-point)
· Buckle for ELR
· Buckle for fixed type belt· Fixed type: Webbing and floor type
· Slide button type (All)

04-37340-01

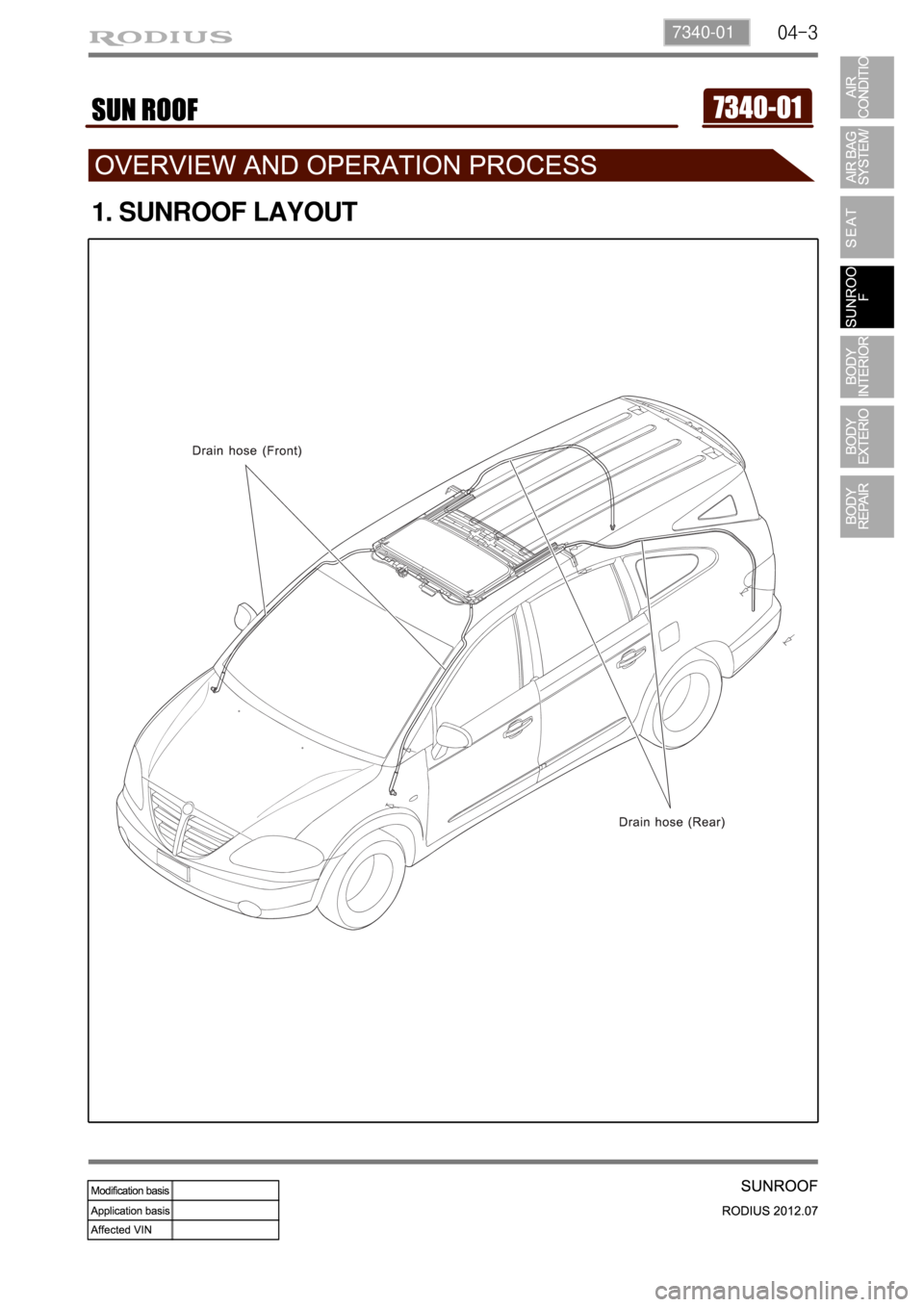

1. SUNROOF LAYOUT

04-4
2. COMPONENTS OF SUNROOF

04-57340-01
Drain hose Control switch Sun shade & glass
Control unit Sun roof motor
3. COMPONENTS AND LOCATIONS

04-6
4. SUNROOF OPERATION
1) Tilting
Push the front side of the button when the glass
is closed then, mtor actuate the operating
cable to lift up the glass.
Push the rear side of the button to put down the
glass.
Motor actuates the operating cable
Mechanical equipment lifts up & down the glass

06-37870-01
Outside Rearview Mirror
Front Bumper Assembly
1. LAYOUT AND COMPONENTS
Hood AssemblyRoof Rack
Front Door Rear Door
