5. RECOMMENDED FLUIDS AND LUBRICANTS
- Use only Ssangyong recommended fluids and lubricants.
- Keep the specified levels when adding or replacing the fluids.
- Do not mix any different types or brands of oils or fluids. This may cause damages.

01-170000-00
Front: Double wishbone Rear: Multi Link
6. JACK POINTS

01-18
The diagnostic connector is located at bottom of instrument panel. It consists of 16 pins.
The REKES key should be coded by the scan tool.
Connector Pin ▶
Diagnostic connector
Pin No. Function
1 -
2 -
3 STICS "A2"(Coding)
4 Ground
5 Ground
6 CAN HI S205 "12"
7 GSL ECU "58"
8 ABS/ESP unit “2”
9 Air bag unit “9”
10 -
11 TCU "A18"
12 -
13 TCCU "21"
14 CAN LO S205 "5"
15 STICS "B16" (Diagnosis)
16 B+
7. PIN ARRANGEMENT OF DIAGNOSTIC CONNECTOR

01-190000-00
8. ELECTRIC COMPONENTS AND LAYOUT
1) Wiring Harness Arrangement

01-20
2) Components Locator

01-210000-00
9. TIGHTENING TORQUE OF STANDARD BOLTS
Tightening Torque By Bolt Specification ▶
Metric bolt strength is embossed on the head
of each bolt. The strength of bolt can be
classified as 4T, 7T, 8.8T, 10.9T, 11T and
12.9T in general.
Observe standard tightening torque during
bolt tightening works and can adjust torque
to be proper within 15 % if necessary. Try not
to over max. allowable tightening torque if not
required to do so. 1.
2.Determine extra proper tightening torque if
tightens with washer or packing.
If tightens bolts on the below materials, be
sure to determine the proper torque. 3.
4.
Aluminum alloy: Tighten to 80 % of
above torque table.
Plastics: Tighten to 20 % of above
torque table. ·
·

03-30000-00

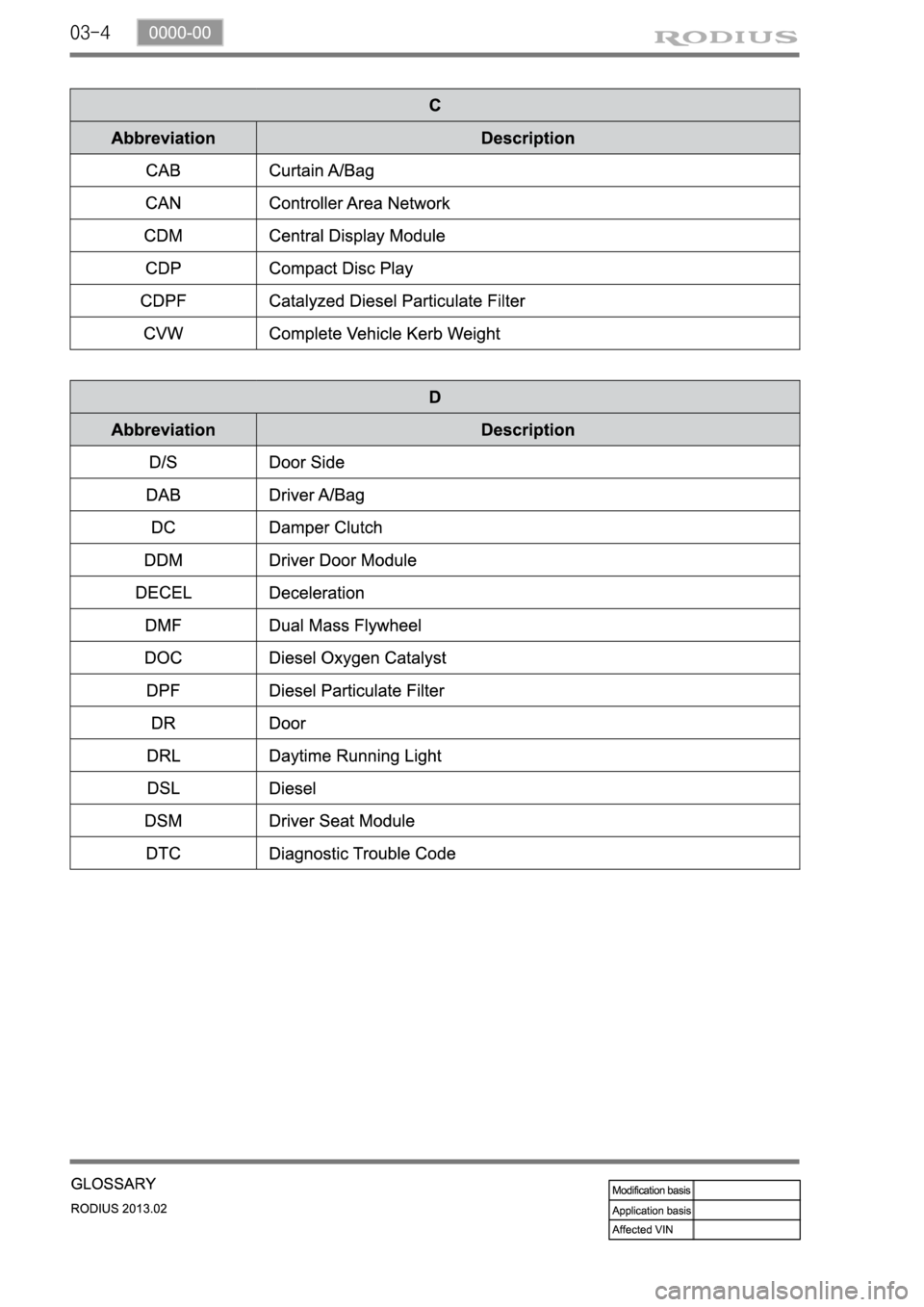

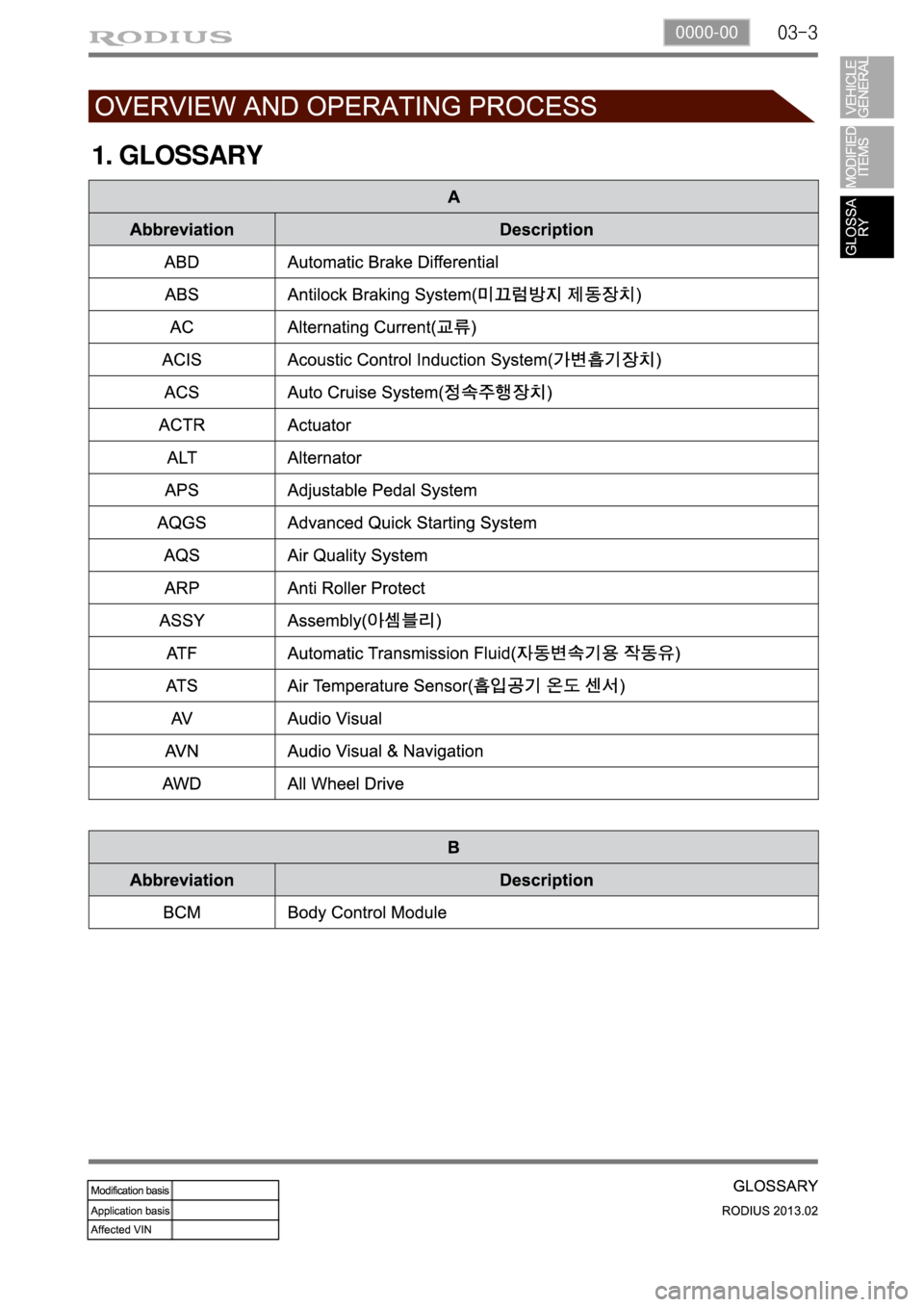

1. GLOSSARY
