When a severe frontal impact occurs, seat belt
pre-tensioners rewind the seat belts
immediately to restrain the occupants to their
seats. It helps the effective operation of the
seat belts and airbags.
2) Pre-tensioner
3) Warning for Air Bag
Do not diagnose the circuit with a circuit tester. Do not attempt to modify any air bag components
including the steering wheel, air bag mounting area, and harness.
Do not impact any air bag components including the steering wheel, air bag mounting area, and
harness by hand or tools. You may get injured by sudden deployment.
The air bag components will be very hot after deployment. Do not touch them.
Once the air bag system is triggered, the triggered air bag assembly should be removed from the
vehicle and replaced with new one.
The air bag contains explosive materials, so contact Ssangyong Dealer or Ssangyong Authorized
Service Operation when trashing or replacing it.
Incorrect air bag inspection can be dangerous and cause injuries. The air bag system must be
disposed only by Ssangyong Dealer or Ssangyong Authorized Service Operation.
Replace the steering wheel with only Ssangyong genuine part.
When the engine starts, the air bag warning lamp comes on for a system check. It goes out after 3
to 7 seconds when the system is normal. If this warning lamp stays ON, then the system may be
defective. Have the air bag system checked immediately by Ssangyong Dealer or Ssangyong
Authorized Service Operation.
The seat belt and air the bags are the most effective when you are sitting well back and upright in
the seat.
A child restraint system must not be placed on the front seat. The infant or child can be severely
injured by an air bag inflation in case of an accident.
Do not carry your child on your lap while driving. You cannot resist against the impact pressure in an
accident.
The child could be crushed between you and the parts of the vehicle.
Do not place any objects on the air bag inflation location. You may get injured by those objects
during deployment.
Do not attach any objects such as a sticker, scent bottle, or phone holder on the steering wheel pad
and to the dashboard. -
-
-
-
-
-
-
-
-
-
-
-
-
-

03-37410-01
1. SPECIFICATION
Item Front SeatRear 1st
Row SeatRear 2nd
Row SeatRear 3rd
Row Seat
Headrest Tilt25°---
Up/down60 mm
(20 mmx3)100 mm
(20 mmx5)120 mm
(20 mmx6)120 mm
(20 mmx6)
SeatReclining80°
(2°x40)76°
(2°x38)76°
(2°x38)-
Folding -105° 105° 103°
Sliding228 mm
(192+36 mm)380 mm
(140+240 mm)340 mm
(100+240 mm)-
Seat warmer - - -
2. WARNINGS FOR POWER SEAT
Adjust the driver's seat before driving.
Make sure that the seat is firmly secured after adjusting.
Never drive the vehicle with the head restraint removed or lowered excessively. Otherwise, your
neck, spine or other parts of the body can be severely injured in the event of an accident.
If you recline the seatback excessively, you could slide under the seat belt and be injured severely
in a collision.
Do not put any object that could damage the seat on the seat.
The front and rear seats are equipped with the heated wire (seat warmer) system. Using the seat
warmer system excessively may cause minor burns. The following occupants should exercise
special care when using the heated wire seat. 1.
2.
3.
4.
5.
6.
Infant, child, old or handicapped person
Person with sensitive skin
Exhausted person
Persons who is drunk or took medicine which causes drowsiness such as sleeping pills, cold
tablets, etc. -
-
-
-
Do not place anything on the seat that insulates against the heat, such as a blanket or cushion.
Make sure that the head restraints are in place and secured properly. Never drive the vehicle with the
head restraint removed.
To minimize the injuries in a collision or an abrupt stop, make sure the seatback is in the upright
position before driving. If the seatback is reclined too much, the occupant could slide under the seat
belt in a collision or an abrupt stop and cannot be protected properly by the airbag system. 7.
8.
9.

03-57410-01

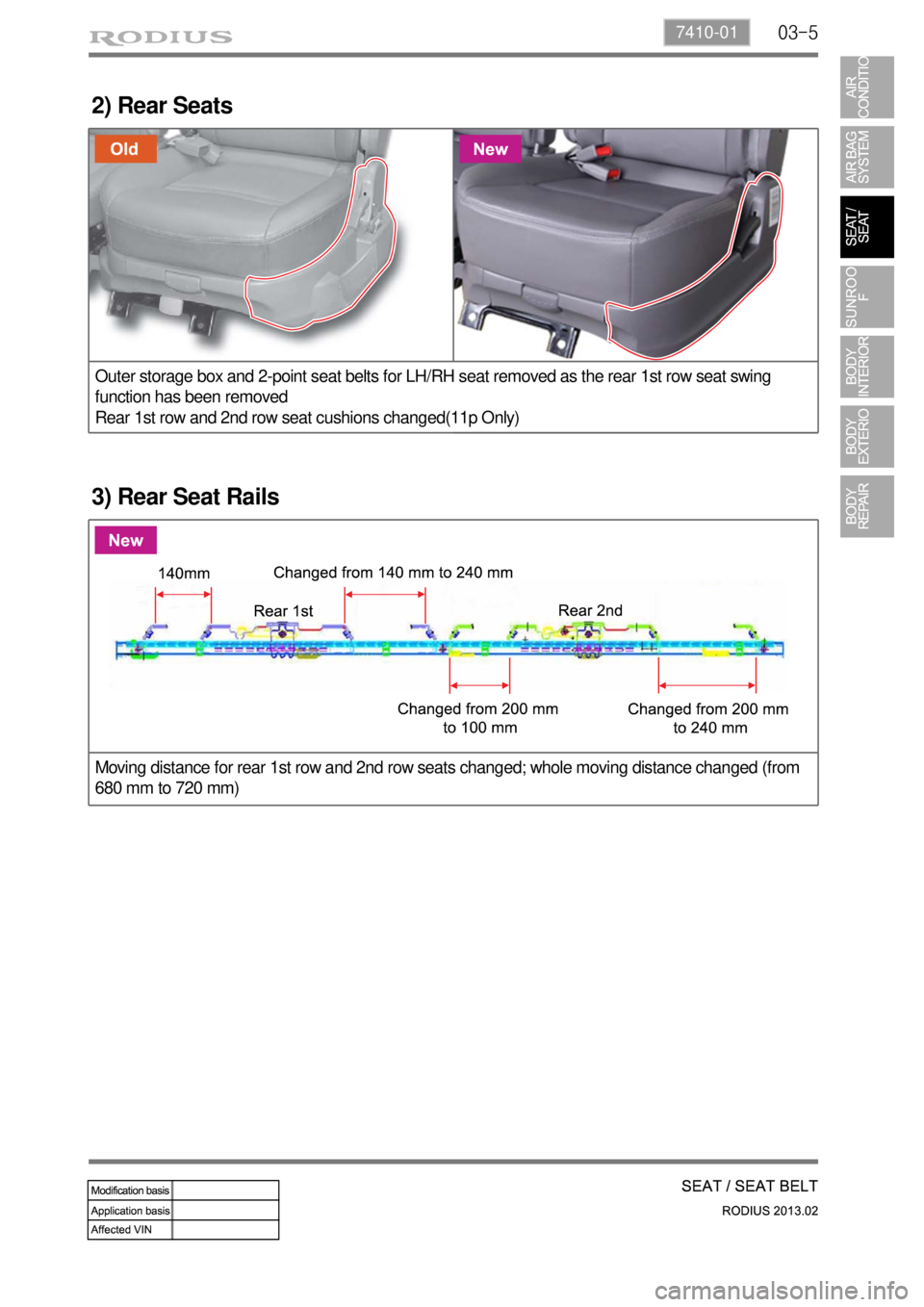

2) Rear Seats
3) Rear Seat Rails
Outer storage box and 2-point seat belts for LH/RH seat removed as the rear 1st row seat swing
function has been removed
Rear 1st row and 2nd row seat cushions changed(11p Only)
Moving distance for rear 1st row and 2nd row seats changed; whole moving distance changed (from
680 mm to 720 mm)

03-30

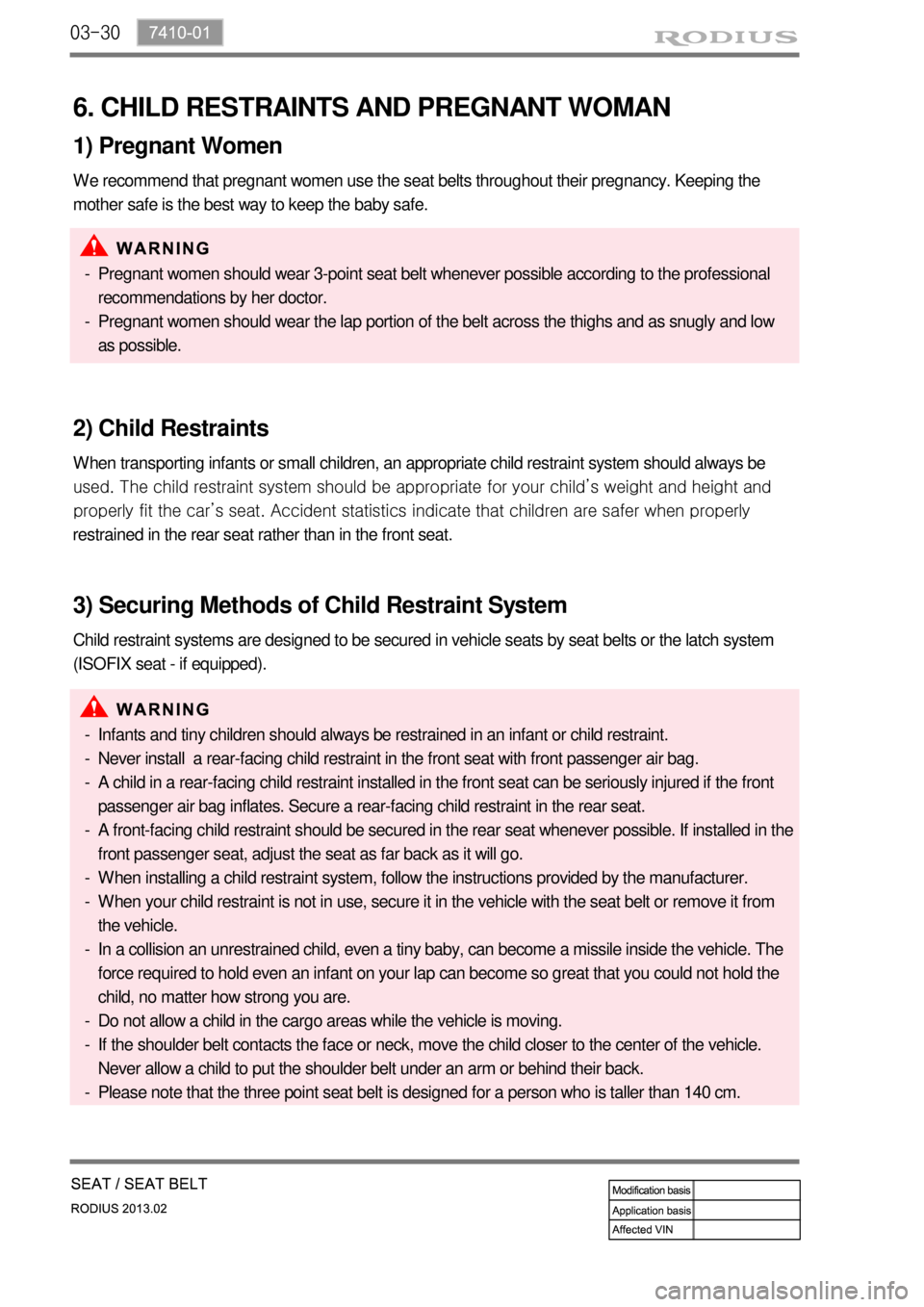

6. CHILD RESTRAINTS AND PREGNANT WOMAN
1) Pregnant Women
We recommend that pregnant women use the seat belts throughout their pregnancy. Keeping the
mother safe is the best way to keep the baby safe.
Infants and tiny children should always be restrained in an infant or child restraint.
Never install a rear-facing child restraint in the front seat with front passenger air bag.
A child in a rear-facing child restraint installed in the front seat can be seriously injured if the front
passenger air bag inflates. Secure a rear-facing child restraint in the rear seat.
A front-facing child restraint should be secured in the rear seat whenever possible. If installed in the
front passenger seat, adjust the seat as far back as it will go.
When installing a child restraint system, follow the instructions provided by the manufacturer.
When your child restraint is not in use, secure it in the vehicle with the seat belt or remove it from
the vehicle.
In a collision an unrestrained child, even a tiny baby, can become a missile inside the vehicle. The
force required to hold even an infant on your lap can become so great that you could not hold the
child, no matter how strong you are.
Do not allow a child in the cargo areas while the vehicle is moving.
If the shoulder belt contacts the face or neck, move the child closer to the center of the vehicle.
Never allow a child to put the shoulder belt under an arm or behind their back.
Please note that the three point seat belt is designed for a person who is taller than 140 cm. -
-
-
-
-
-
-
-
-
-
2) Child Restraints
When transporting infants or small children, an appropriate child restraint system should always be
used. The child restraint system should be appropriate for your child’s weight and height and
properly fit the car’s seat. Accident statistics indicate that children are safer when properly
restrained in the rear seat rather than in the front seat.
3) Securing Methods of Child Restraint System
Child restraint systems are designed to be secured in vehicle seats by seat belts or the latch system
(ISOFIX seat - if equipped).
Pregnant women should wear 3-point seat belt whenever possible according to the professional
recommendations by her doctor.
Pregnant women should wear the lap portion of the belt across the thighs and as snugly and low
as possible. -
-
