SSANGYONG TURISMO 2013 User Guide
Page 603 of 796
05-4
Side View Rear View
1. OVERVIEW
By using the planetary gear sets, two-gears shift type part time transfer case achieves direct
connection when selecting 4WD "HIGH" and 2.48 of reduction gear ratio when selecting 4WD
"LOW". The silent chain in transfer case transfers the output power to front wheels.
The simple operation of switches on instrument panel allows to shift between "2H" and "4H" easily
while driving (for 4L: stop vehicle first). The warning lamp warns the driver when the system is
defective.
Page 604 of 796

05-53240-01
Operation ▶
Description Mode Conditions
Driving mode 2H 2 Wheel drive
(rear wheel)Rear-wheel drive mode. This is used under normal
or high-speed driving conditions on public roads or
highways.
4H 4 Wheel drive
(high speed)This is used under sandy, muddy or snow-covered
road conditions
4 L 4 Wheel drive
(low speed)This is used for maximum traction.
When cornering with low speed in 4WD condition,
there could be tire dragging, some
mechanical shocks and resistances in vehicle’s
drive train. These are normal conditions due to
internal resistance in the drive train when the
4WD system is properly working
Mode change2H ↔
4H 2 Wheel drive
↔4 Wheel driveShifting is possible while driving at the speed of
70 km/h or less
2H, 4H
↔ 4L 2 Wheel drive,
4 Wheel drive
(high speed)
↔4 Wheel drive
(low speed)
To make the mode change easily, stop the
vehicle on level ground and turn the mode
switch to the desired position and move the
shift lever to "N"-"R"-"N" while depressing the
brake pedal. For Automatic Transmission:
Stop the vehicle on level ground and move the
gear selector lever into the “N”
position. Turn
the switch to the desired position. -
For Manual Transmission:
Stop the vehicle on level ground and move the
gear selector lever into the “N” position.
Then turn the switch to the desired position
while depressing the clutch pedal. -
Page 605 of 796
05-6
2. 4WD SYSTEM COMPONENTS
Front axle Exterior components ▶
4WD solenoid valve
Hub & locking hub
Actuator
T/C assemblyT/C control motor
assembly
Front propeller
shaft
Rear axle
Rear propeller
shaft
Page 606 of 796
05-73240-01
Interior Components ▶
4WD Switch assembly Warning & Indicator Lamp for 4WD
TCCU
Page 609 of 796
05-10
(2) Vacuum System Related to 4WD
In 4WD mode, the TCCU blocks the
transferring of vacuum pressure from
vacuum pump to locking hub by supplying
the power to solenoid valve.Check valve
This valve allows the vacuum pressure to
flow through it in only one direction. This
prevent the vacuum from abruptly
releasing due to faulty vacuum pump.
4WD:
The vacuum pressure is released from the hub
actuator. At this time, the front hub end gear is
engaged.2WD:
The vacuum pressure pulls in the locking hub
actuator so that it will not be engaged with the
front end hub gear.
Vacuum solenoid valve
To atmosphere Block the vacuum
pressure
Hub actuator (RH)
Gear disengagedGear engaged
Page 612 of 796
05-133240-01

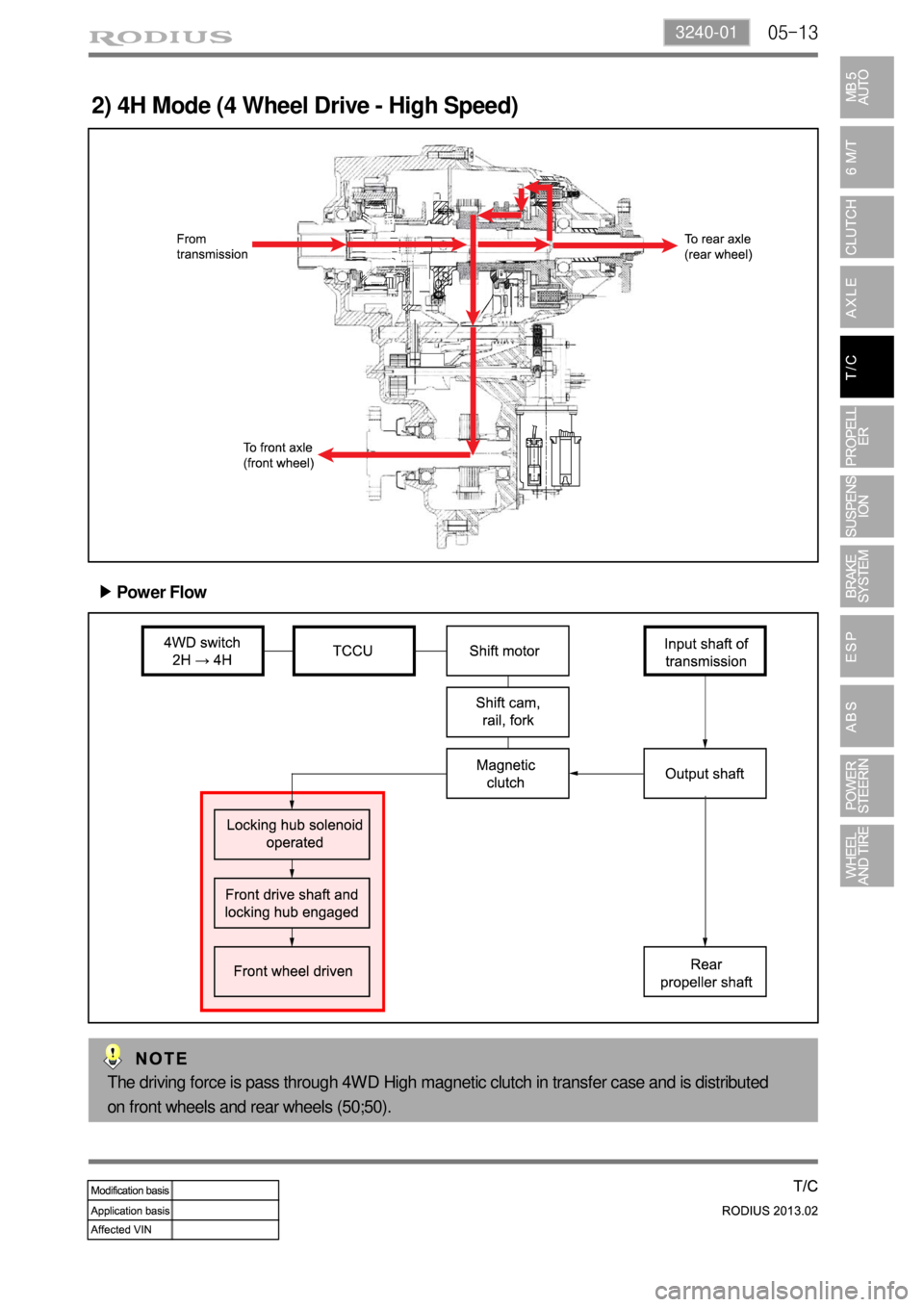

2) 4H Mode (4 Wheel Drive - High Speed)
Power Flow ▶
The driving force is pass through 4WD High magnetic clutch in transfer case and is distributed
on front wheels and rear wheels (50;50).
Page 613 of 796
05-14

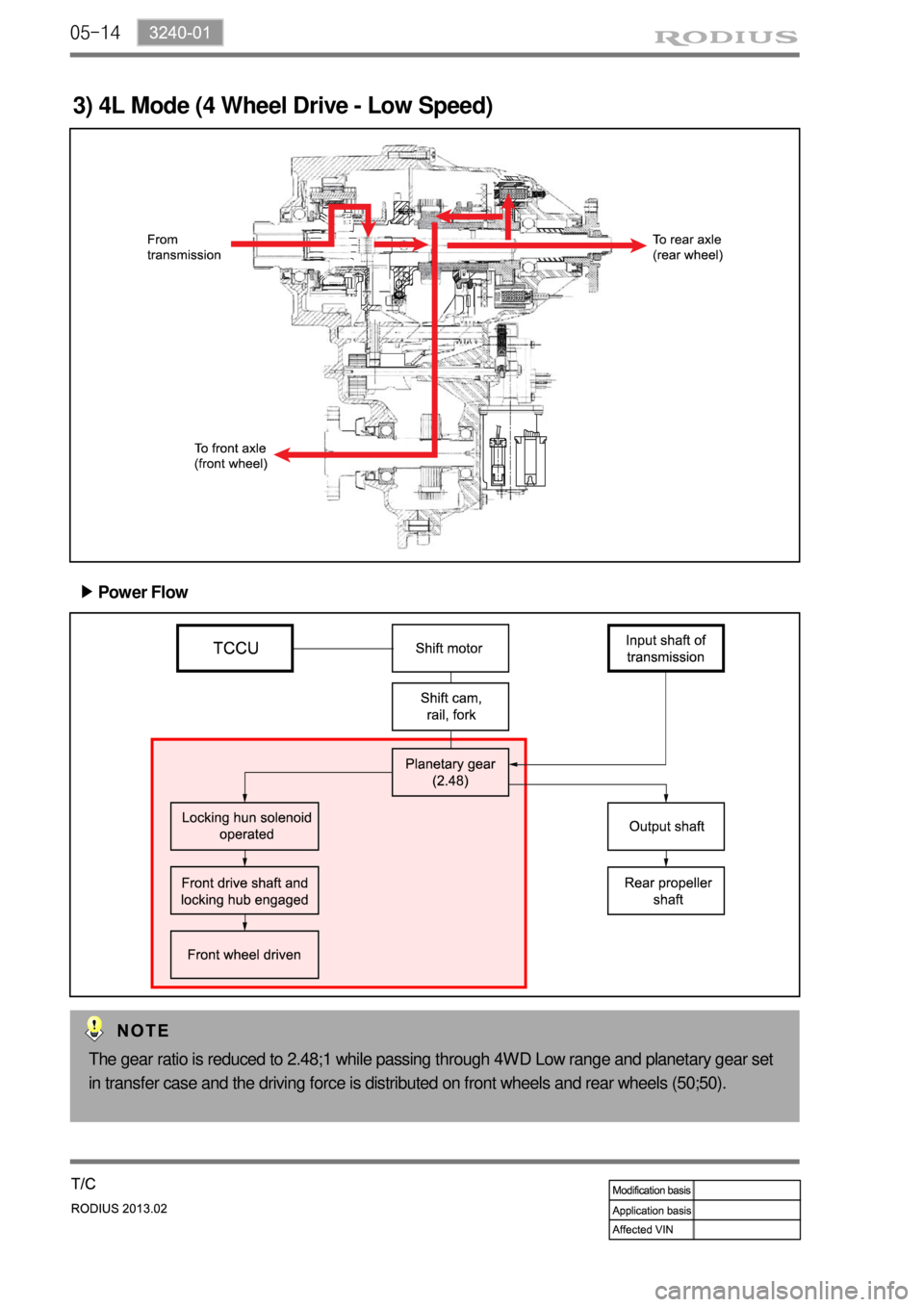

3) 4L Mode (4 Wheel Drive - Low Speed)
Power Flow ▶
The gear ratio is reduced to 2.48;1 while passing through 4WD Low range and planetary gear set
in transfer case and the driving force is distributed on front wheels and rear wheels (50;50).
Page 614 of 796
06-33310-01
1. SPECIFICATIONS
Description Specification
StructureUniversal joint with yoke arm and spider and CV joint
Front propeller shaft (4WD) One universal joint and one CV joint
Rear propeller shaft Two universal joint and one CV joint
Run-out below 0.4 mm
UnbalanceMax. 18g·cm / 4,500rpm
Length of front propeller
shaft4WD A/T 531.2 ± 1.0 mm
Length of rear propeller
shaft2WD M/T 1892.1 ± 2.0 mm
A/T 1975.1 ± 2.0 mm
4WD A/T 1593.1 ± 2.0 mm
Page 615 of 796
06-4
2. MAJOR CHANGES
Rear propeller shaft assembly
- Increased part B of rear propeller shaft assembly due to change of rear sub frame (6.0 mm)
Specifications
ItemM/T 2WD A/T 2WD A/T 4WD
Old New Old New Old New
A (mm) 1886.1 1892.1 1969.1 1975.1 1587.1 1593.1
B (mm) 769.5 775.5 769.5 775.5 769.5 775.5
Page 616 of 796
06-53310-01
1. OVERVIEW
The propeller shaft transfers the power through the transmission and transfer case to the front/rear
axle differential carrier (final reduction gear). It is manufactured by a thin rounded steel pipe to have
the strong resisting force against the torsion and bending. Both ends of propeller shaft are connected
to the spider and the center of propeller shaft is connected to the spline to accommodate the changes
of the height and length. The rubber bushing that covers the intermediate bearing keeps the balance o
f
rear propeller shaft and absorbs its vibration.
Function of propeller shaft ▶
Transmits driving torque.
Compensates the angle change (universal joint / CV joint).
Compensates the axial length change (splines for the slip joint). -
-
-
4WD AT 2WD MT
