Upper Arm
The upper arm is mounted to the frame
and the knuckle and it relieves the load
delivered from the tire to the knuckle.
This enables to absorb the various
impacts according to the load shapes
and to ensure the drivability.
Lower Arm
Knuckle
There are two types of knuckle (4WD,
2WD)
Cam bolt
1) Front Suspension (Double Wishbone)
The lower arm is mounted to the knuckle, the
shock absorber and the lower arm assembly. It
relieves the load delivered from the tire to the
knuckle. This enables to absorb the various
impacts according to the load shapes and to
ensure the drivability.
2. COMPONENTS

09-6
2) Component Overview By System
Function Vehicle with ABS Vehicle with ESP
ABS Yes
Yes EBD Yes
TCS
No AYC
HBA
ARP
3) Part Overview By System
Part Vehicle with ABS Vehicle with ESP
HECU
Yes Yes Front wheel speed sensor
Rear wheel speed sensor
ABS warning lamp
EBD indicator lamp
G sensor (integrated in HECU) 4WD: Yes, 2WD: No No
Sensor cluster (Yaw rate sensor +
lateral sensor+ G sensor)
No Yes ESP operation indicator lamp and
warning lamp
ESP OFF switch and indicator
Steering wheel angle sensor

09-10
Pressure Sensor
InstalledRemoved

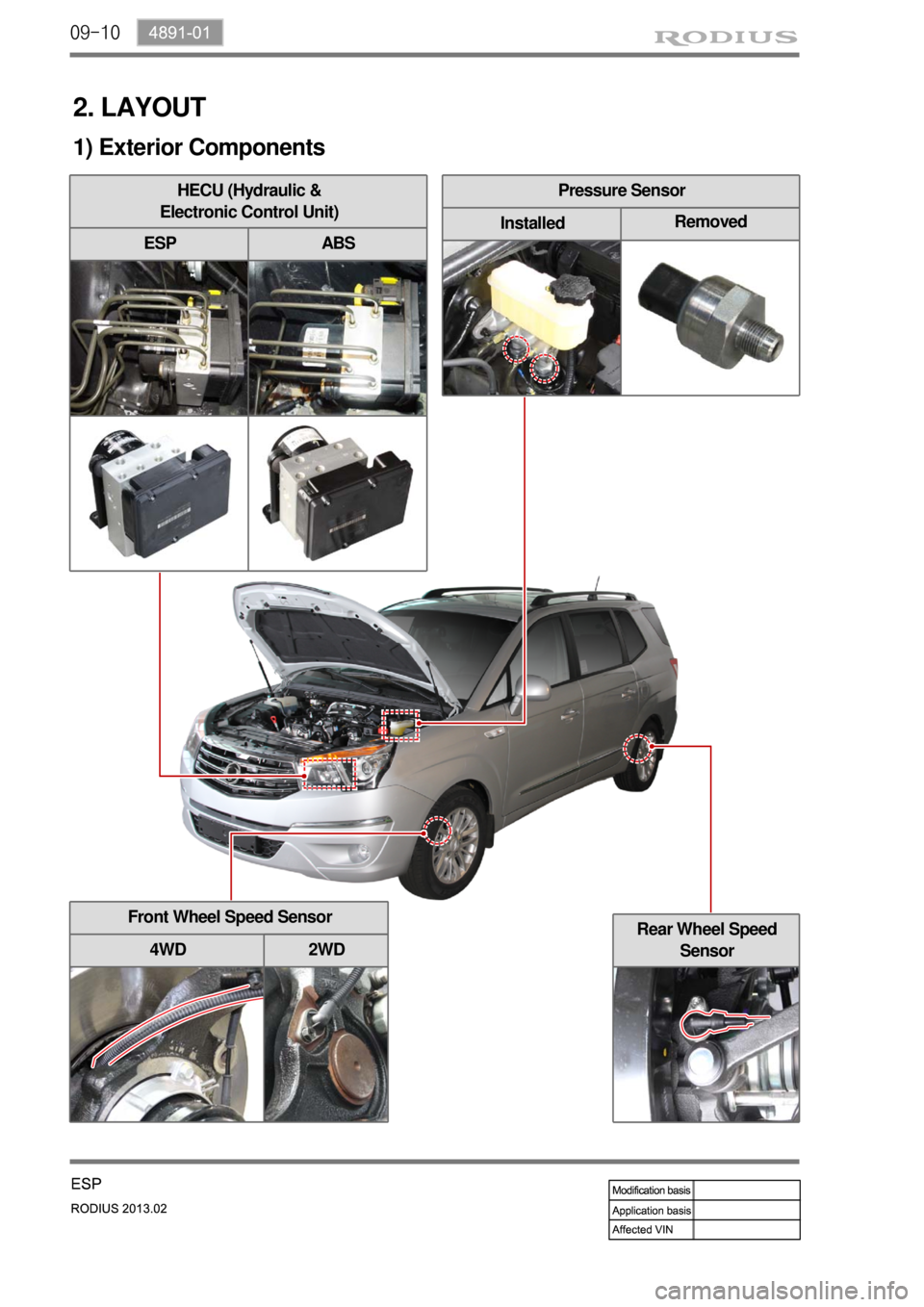

2. LAYOUT
HECU (Hydraulic &
Electronic Control Unit)
ESP ABS
Front Wheel Speed Sensor
4WD 2WDRear Wheel Speed
Sensor
1) Exterior Components

10-54891-01
Warning Lamps
EBD warning lamp ABS warning lamp
2. COMPONENTS AND LAYOUT
The basic functions of ABS system are same with previous version. However, the wheel speed
sensing type is different from previous version.
For details about the components,
refer to Chapter "ESP".
Front Active Wheel Speed Sensor
4WD 2WD
ABS HECU
Rear Active Wheel
Speed Sensor

12-34170-01
1. SPECIFICATION
Description Specification
Tire 16 inch 225/65R16
17 inch 235/60R17
Tire inflation pressure 35 psi
Wheel 16 inch 6.5JX16
17 inch 7.0JX17
Balance weight Inner: Clip-on type
Outer: Tape type
Tightening torques of wheel bolt 127.4 to 156.8 Nm
Wheel offset 2WD 38 mm
4WD 50 mm

12-4
Spare Tire & Winch Assembly
- Spare tire specification added (same as one fitted to vehicle with standard wheel and tire)
Wheel assembly
16 inch (6.5JX16) 17 inch (7.0JX17)
2WD 4WD 2WD 4WD
225/65R16 235/60R17
- 16 inch wheel design changed (same as before for tire size)
- 17 inch wheel specification added (235/60R17 tire)
2. CHANGES
Wheel tire design changed and specification added ▶
With spare tire ▶
Spare tire
Winch assembly
