The wiper system continuously outputs the parking signal of current sensitivity when the parking
terminal is grounded (while the ignition key is in “ON” position and the wiper switch is in
“AUTO” position). 1)
※ The wiper motor runs only when the rain sensor requires.
When the parking terminal is fixed to IGN (HIGH), the wiper system outputs the operating signal of
current sensitivity for 2 seconds, then continuously outputs the parking signal of current sensitivity. 2)
※ The wiper motor runs only when the rain sensor requires.
▶ Wiper operation when the wiper parking terminal is grounded

02-138710-01
The wiper relay (LO) is turned on and the wiper motor runs one cycle when the wiper sensitivity is
changed to 3 from 4 during receiving the malfunction signal (2) from the rain sensor (while the
ignition key is in “ON” position and the wiper switch is in “AUTO” position). 2)
The wiper relay (LO) is turned on and the wiper motor runs one cycle when the wiper sensitivity is
changed to 2 from 1 during receiving the malfunction signal (3) from the rain sensor (while the
ignition key is in “ON” position and the wiper switch is in “AUTO” position). Also, the wiper
relay (LO) is turned on and the wiper motor runs one cycle when the wiper sensitivity is changed to 2
from 1 during receiving the ground fixed or IGN fixed signal from the rain sensor. 3)

02-178710-01
2) Ignition Key Reminder
▶Key Reminder Warning
The chime buzzer output in the ICM box continues when opening the driver’s door while the
ignition key is inserted into ignition switch.
When removing the ignition key or closing the driver’s door during chime buzzer output, the
output turns off.
This function is not available when the ignition switch is “ON”. 1.
2.
3.

02-18
This function does not work if the vehicle speed is over 3 km/h.
The system outputs “UNLOCK” for 5 seconds (T2) from 0.5 seconds after the driver’s door
is opened and the door lock switch is changed to “LOCK” (while the ignition key is in ignition
switch).
The system outputs “UNLOCK” for 5 seconds (T2) when the door lock switch is changed to
“LOCK” from “UNLOCK” and the driver’s door is closed within 0.5 seconds (T1) (while the
ignition key is in ignition switch). 1.
2.
3. ▶Key Reminder
Operating conditions for (*1) and (*2) -
(*1): Driver’s door is opened and driver’s door lock switch is turned to LOCK
(*2): Passenger’s door is opened and passenger’s door lock switch is turned to LOCK

02-198710-01
▶All Door Lock Prevention Function when a Door is Opened
When a door is opened, all doors should be unlocked for 5 seconds if inputs LOCK signal. 1.
The LOCK signal means the central door locking (REKES, central door lock switch, knob switch)
except LOCK input by rear door knob.
After unlocking and opening only the driver’s door with remote control key under armed
mode (driver’s door is unlocked but passenger’s and rear doors are locked), only the
driver’s door generates unlock signal when trying to lock the driver’s door with the driver’s
door opened.
Above operations is regardless of key positions and have priority over the ignition key reminder
function. -
-
-
When the door is closed during unlock output for 5 seconds under item 1 condition, the unlock
output stops. 2.
All doors except tailgate and hood output “UNLOCK” for 5 seconds (T1) when the “LOCK”
signal is inputted (while the ignition key is removed and a of door is opened).
When the door is closed during unlock output for 5 seconds, the unlock output stops. -
-

02-20
3) Mark Lamp Left on Warning
The chime buzzer in the ICM box sounds with the interval of 0.8 second when opening the
driver’s door while the tail lamp is turned on and the ignition key is removed.
The buzzer output stops when turning off the tail lamp and closing the driver’s door.
The system outputs “UNLOCK” for 5 seconds when the driver’s and passenger’s door lock
switch is locked (while the tail lamp is turned on and the driver’s door is opened).
This function is not available when the ignition key is in “ON” position. 1.
2.
3.
4.

02-22
5) Seat Belt Warning
The seat belt warning light comes on and the chime buzzer in the ICM box sounds for 6 seconds
when turning the ignition key to “ON” from “OFF”. If the seat belt is fastened before turning
the ignition key to “ON” position, the warning light in the indicator display blinks for 6
seconds, however, the chime buzzer does not sound.
The seat belt warning light goes off and the chime buzzer in the ICM box stops when turning the
ignition switch to “OFF” position.
The chime buzzer stops and the seat belt warning light stays on for the specified duration (6
seconds) when fastening the seat belt during the warning operation.
The seat belt warning light comes on and the chime buzzer sounds for 6 seconds again when
unfastening the seat belt during fastening operation. 1.
2.
3.
4.

02-238710-01

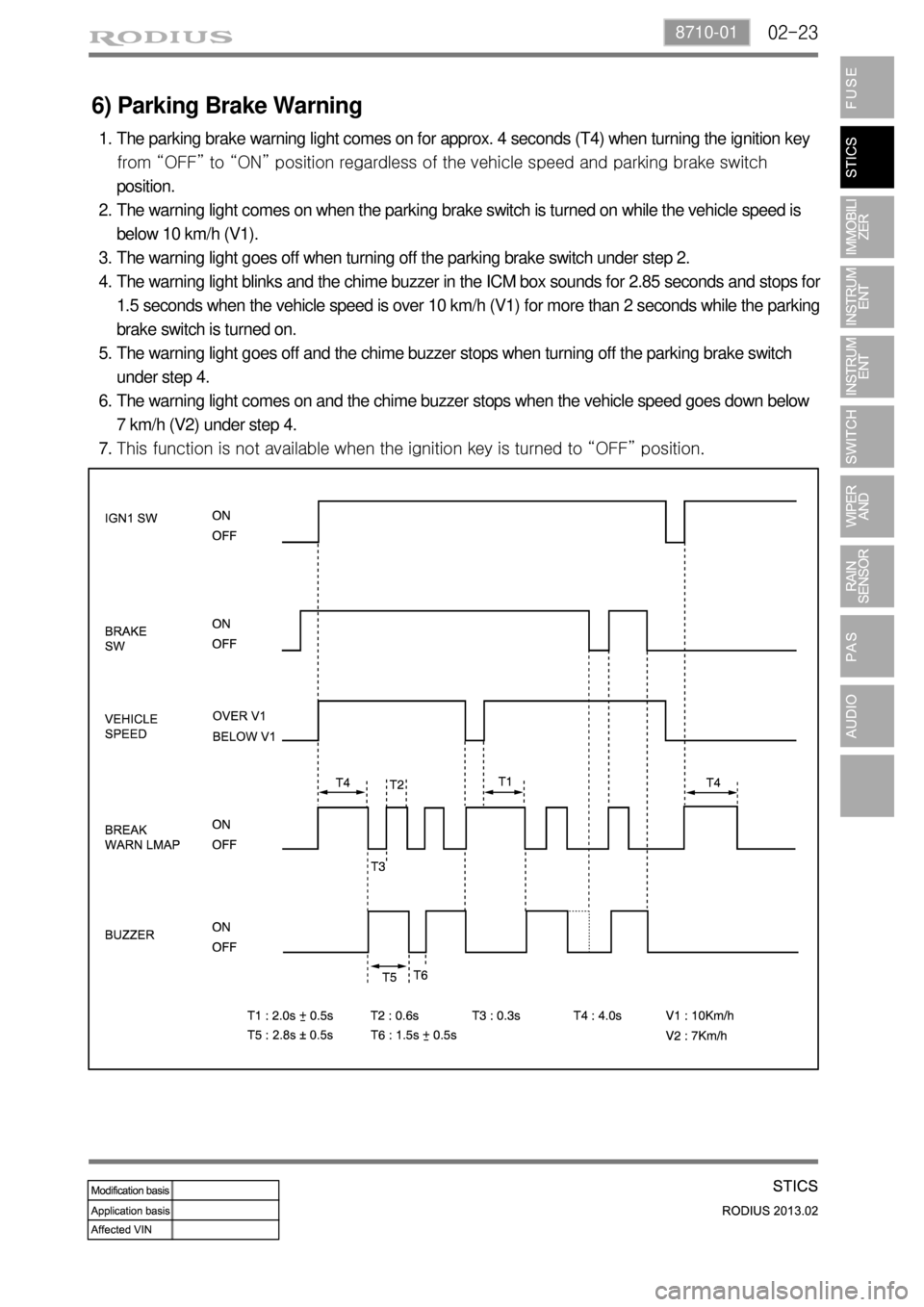

6) Parking Brake Warning
The parking brake warning light comes on for approx. 4 seconds (T4) when turning the ignition key
from “OFF” to “ON” position regardless of the vehicle speed and parking brake switch
position.
The warning light comes on when the parking brake switch is turned on while the vehicle speed is
below 10 km/h (V1).
The warning light goes off when turning off the parking brake switch under step 2.
The warning light blinks and the chime buzzer in the ICM box sounds for 2.85 seconds and stops for
1.5 seconds when the vehicle speed is over 10 km/h (V1) for more than 2 seconds while the parking
brake switch is turned on.
The warning light goes off and the chime buzzer stops when turning off the parking brake switch
under step 4.
The warning light comes on and the chime buzzer stops when the vehicle speed goes down below
7 km/h (V2) under step 4.
This function is not available when the ignition key is turned to “OFF” position. 1.
2.
3.
4.
5.
6.
7.

02-24
7) Room Lamp Control
▶ Front Room Lamp
The front room lamp comes on when opening the
driver’s door or passenger’s door while the front
room lamp switch is at door coupled position and the
key reminder switch is turned off.
The room lamp stays on for 2 seconds (T1) and then
decays through 3 seconds (T2) when closing the
driver’s door or passenger’s door.
The room lamp output should stop immediately afte
r
turning on the ignition key during decaying operation.
The front room lamp comes on for 30 seconds (T3)
when receiving the unlock signal from the remote
control key while the door is closed. 1.
2.
3.
4.
The front room lamp output period is extended by 30 seconds (T3) when receiving the unlock signal
from the remote control key again during output.
When a door is opened during its extended period, the lamp stays on. If closed, operates as in step
2.
The room lamp output stops immediately after receiving the lock signal from driver’s door and
passenger’s door lock switch while the driver’s door and passenger’s door are closed. 5.
6.
7.
Door coupled front
room lamp switch

02-258710-01
The rear room lamp comes on when opening the
rear door while the door coupled rear room lamp
switch is pressed (except for luggage room lamp).
The rear room lamp extends its lighting period by 5
seconds when closing the rear door.
The room lamp output stops immediately after
turning the ignition key to “ON” position during
the extended period.
The room lamp output stops immediately after
receiving the lock signal from the rear door lock
switch or the remote control key while the rear door
is closed. 1.
2.
3.
4.
Door coupled front
room lamp switch
▶Rear Room Lamp
