2) Ignition Key Reminder
▶Key Reminder Warning
The chime buzzer output in the ICM box continues when opening the driver’s door while the
ignition key is inserted into ignition switch.
When removing the ignition key or closing the driver’s door during chime buzzer output, the
output turns off.
This function is not available when the ignition switch is “ON”. 1.
2.
3.

02-20
3) Mark Lamp Left on Warning
The chime buzzer in the ICM box sounds with the interval of 0.8 second when opening the
driver’s door while the tail lamp is turned on and the ignition key is removed.
The buzzer output stops when turning off the tail lamp and closing the driver’s door.
The system outputs “UNLOCK” for 5 seconds when the driver’s and passenger’s door lock
switch is locked (while the tail lamp is turned on and the driver’s door is opened).
This function is not available when the ignition key is in “ON” position. 1.
2.
3.
4.

02-218710-01
4) Door Ajar Warning
The warning light in indicator display comes on when opening any of driver’s door,
passenger’s door, rear door or tailgate while the vehicle speed is below 6 km/h (V1).
The warning light goes off when closing the door under step 1.
The warning light blinks when the vehicle speed is over 10 km/h (V1) for more than 2 seconds while
the warning light is turned on.
The warning light blinks when a door is opened while the vehicle speed is over 10 km/h (V1) (while
the warning light is turned off).
The warning light goes off when closing the door under step 3.
The warning light comes on when the vehicle speed is below 3 km/h (V2) under step 3. 1.
2.
3.
4.
5.
6.

02-22
5) Seat Belt Warning
The seat belt warning light comes on and the chime buzzer in the ICM box sounds for 6 seconds
when turning the ignition key to “ON” from “OFF”. If the seat belt is fastened before turning
the ignition key to “ON” position, the warning light in the indicator display blinks for 6
seconds, however, the chime buzzer does not sound.
The seat belt warning light goes off and the chime buzzer in the ICM box stops when turning the
ignition switch to “OFF” position.
The chime buzzer stops and the seat belt warning light stays on for the specified duration (6
seconds) when fastening the seat belt during the warning operation.
The seat belt warning light comes on and the chime buzzer sounds for 6 seconds again when
unfastening the seat belt during fastening operation. 1.
2.
3.
4.

02-238710-01
6) Parking Brake Warning
The parking brake warning light comes on for approx. 4 seconds (T4) when turning the ignition key
from “OFF” to “ON” position regardless of the vehicle speed and parking brake switch
position.
The warning light comes on when the parking brake switch is turned on while the vehicle speed is
below 10 km/h (V1).
The warning light goes off when turning off the parking brake switch under step 2.
The warning light blinks and the chime buzzer in the ICM box sounds for 2.85 seconds and stops for
1.5 seconds when the vehicle speed is over 10 km/h (V1) for more than 2 seconds while the parking
brake switch is turned on.
The warning light goes off and the chime buzzer stops when turning off the parking brake switch
under step 4.
The warning light comes on and the chime buzzer stops when the vehicle speed goes down below
7 km/h (V2) under step 4.
This function is not available when the ignition key is turned to “OFF” position. 1.
2.
3.
4.
5.
6.
7.

02-378710-01
13) Theft Deterrent
(1) Description of Burglar Alarm Function
The “LOCK” output is “ON” when receiving the “LOCK” signal from transmitter while the
ignition key is removed and all doors are closed. The armed mode is activated when the door lock
switch is locked (theft deterrent horn output: once, hazard relay output: twice).
The theft deterrent horn and hazard relay outputs are “ON” when receiving the “LOCK” signal
from the remote control key again in armed mode (theft deterrent horn output: once, hazard relay
output: twice).
When receiving “LOCK” signal from the remote control key while any of doors is not closed,
only the “LOCK” output can be done and then activates the armed ready mode (without theft
deterrent horn and hazard warning flasher). At this moment, if the ignition key is in the ignition switch,
the door unlock switch is turned “ON” or the door lock switch is unlocked (after 0.6 seconds),
cancels the armed mode and activates the normal mode. However, in these cases, if closing the
door and locking the door lock switch, the theft deterrent horn outputs once and the hazard warning
flasher outputs twice and then activates armed mode.
When the door is not opened or the ignition key is not inserted into ignition switch for 30 seconds
after receiving “UNLOCK” signal, outputs “LOCK” and then activates armed mode (RELOCK
operation). Also, at this moment, the system outputs the theft deterrent horn and hazard warning
flasher.
The armed mode will not be activated except above conditions.
Ex) The armed mode will not be activated when the door is locked by the ignition key. 1.
2.
3.
4.
5.
▶Theft deterrent mode ON conditions

02-38
▶Armed mode cancellation requirements
Unlocking by remote control key or engine starting. 1.
▶Warning operation requirements
When opening the door in armed mode
When unlocking the door lock switch in armed mode
When closing and then opening the door after completion of warning (27 seconds) 1.
2.
3.
▶Warning operation
The theft deterrent horn and hazard warning flasher output is “ON” for T3 (27 seconds)
with the interval of T2 (1second). 1.
▶Warning cancellation requirements
Cancels warning by using any signal from the remote control key (LOCK, UNLOCK, START,
STOP, PANIC, CHECK) during warning operation.
Cancels warning after 27 seconds (remaining period) while the ignition key is turned to
“ON” position. 1.
2.
▶Operation when warning is cancelled
The theft deterrent horn and hazard warning flasher outputs are “OFF”. 1.

02-398710-01
The PANIC warning output is “ON” (theft deterrent horn) when receiving the PANIC signal
from the remote control key (pressing PANIC button for less than 0.5 ~ 1.0 second).
The PANIC warning output is “OFF” when receiving any signal from the remote control key
during PANIC warning.
Followings are theft deterrent warnings:
This function operates only in armed mode.
The system sends the current vehicle conditions (LOCK, engine running) when the PANIC warning
is turned off by the remote control key. 1.
2.
3.
4.
5.The theft deterrent warning is canceled when receiving PANIC signal from the remote control key
during theft deterrent.
The theft deterrent warning output is “ON” when the theft deterrent conditions are
established during PANIC warning (PANIC output is “OFF”).
The PANIC warning output is “ON” when receiving the PANIC signal from the remote
control key in Armed Ready / Armed / Warning Completion / Relock Ready mode (maintaining
the theft deterrent mode). 1)
2)
3)
(2) PANIC Warning

02-42
▶ Power window, warning lamp(brake, s/belt)

02-438710-01

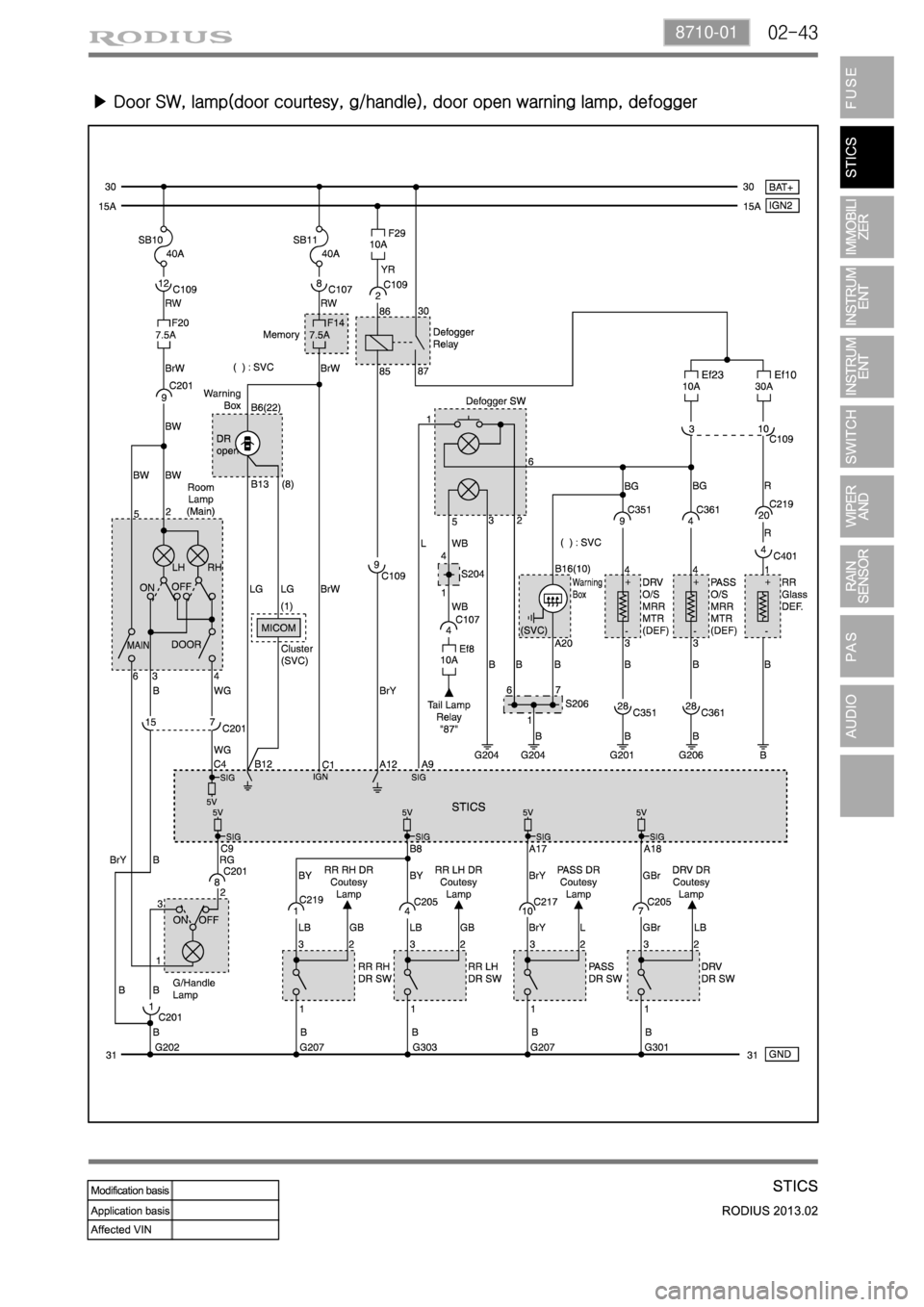

▶ Door SW, lamp(door courtesy, g/handle), door open warning lamp, defogger
