1) Audio Head Unit
4. SWITCH OPERATION AND FUNCTION
No. Name Description
1 Display window Displays operation status and various information
2 BAND/AS buttonSelects the radio function or band (press : FM1 → FM2→ MW
→ LW → FM1 → ....), to store stations automaticall
y (press and
hold)
3 SCAN/INF button Scan in each station automatically, enter the file search mode
(press); switch the display items (press and hold).
4 CALL button Receive the incoming a call (press); connect the Bluetooth device
(press and hold).
5 END button End a call (press); release the Bluetooth connection (press and
hold).
6 SEEK button Find a station manually or skip a track (press); seek a station
automatically or up/down for file searching, fast-forward/rewind a
track(press and hold).
11-138910-05

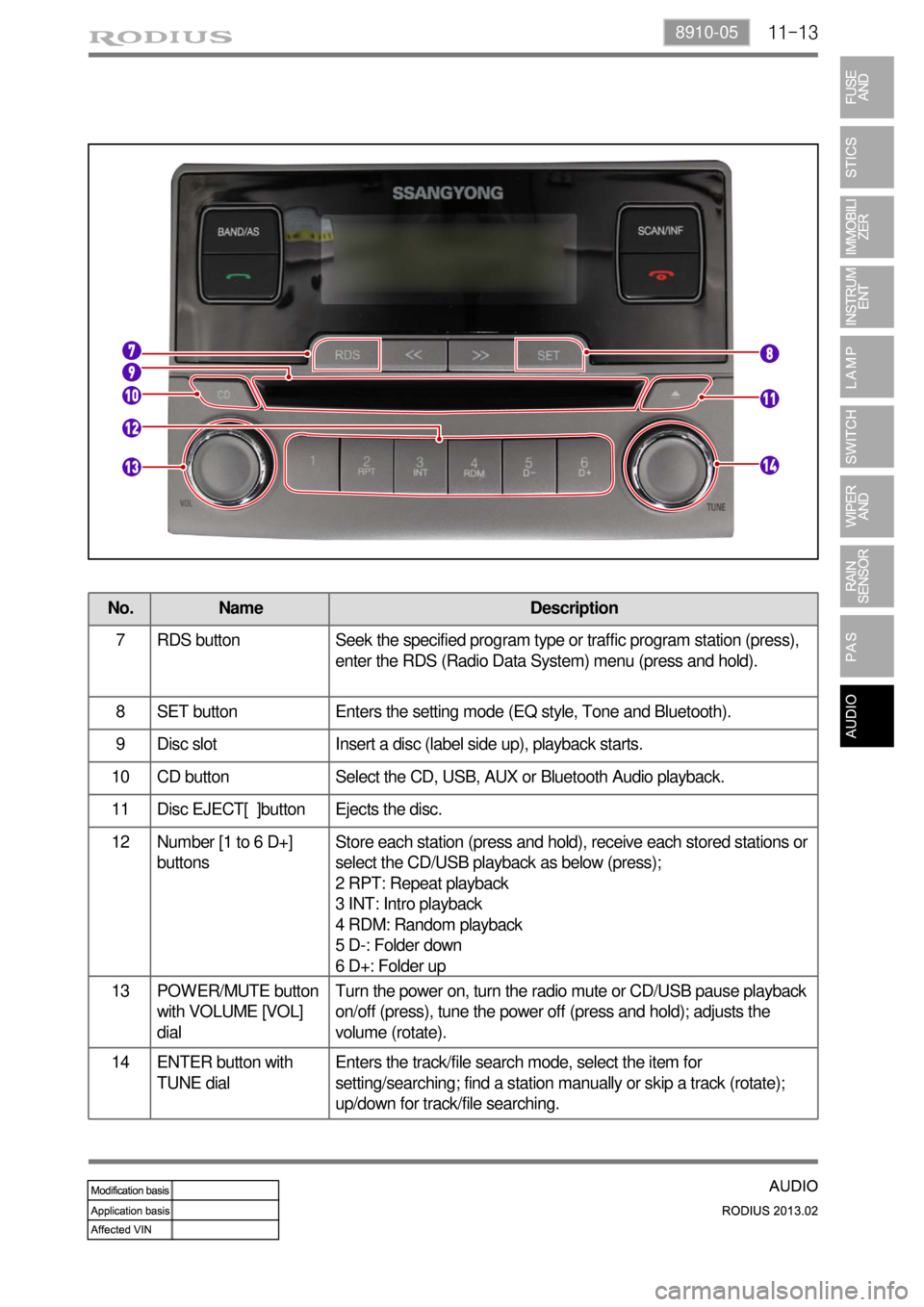

No. Name Description
7 RDS button Seek the specified program type or traffic program station (press),
enter the RDS (Radio Data System) menu (press and hold).
8 SET button Enters the setting mode (EQ style, Tone and Bluetooth).
9 Disc slot Insert a disc (label side up), playback starts.
10 CD button Select the CD, USB, AUX or Bluetooth Audio playback.
11 Disc EJECT[ ]button Ejects the disc.
12 Number [1 to 6 D+]
buttonsStore each station (press and hold), receive each stored stations or
select the CD/USB playback as below (press);
2 RPT: Repeat playback
3 INT: Intro playback
4 RDM: Random playback
5 D-: Folder down
6 D+: Folder up
13 POWER/MUTE button
with VOLUME [VOL]
dialTurn the power on, turn the radio mute or CD/USB pause playback
on/off (press), tune the power off (press and hold); adjusts the
volume (rotate).
14 ENTER button with
TUNE dialEnters the track/file search mode, select the item for
setting/searching; find a station manually or skip a track (rotate);
up/down for track/file searching.
