Page 331 of 484
331
4-3. Do-it-yourself maintenance
4
Maintenance and care

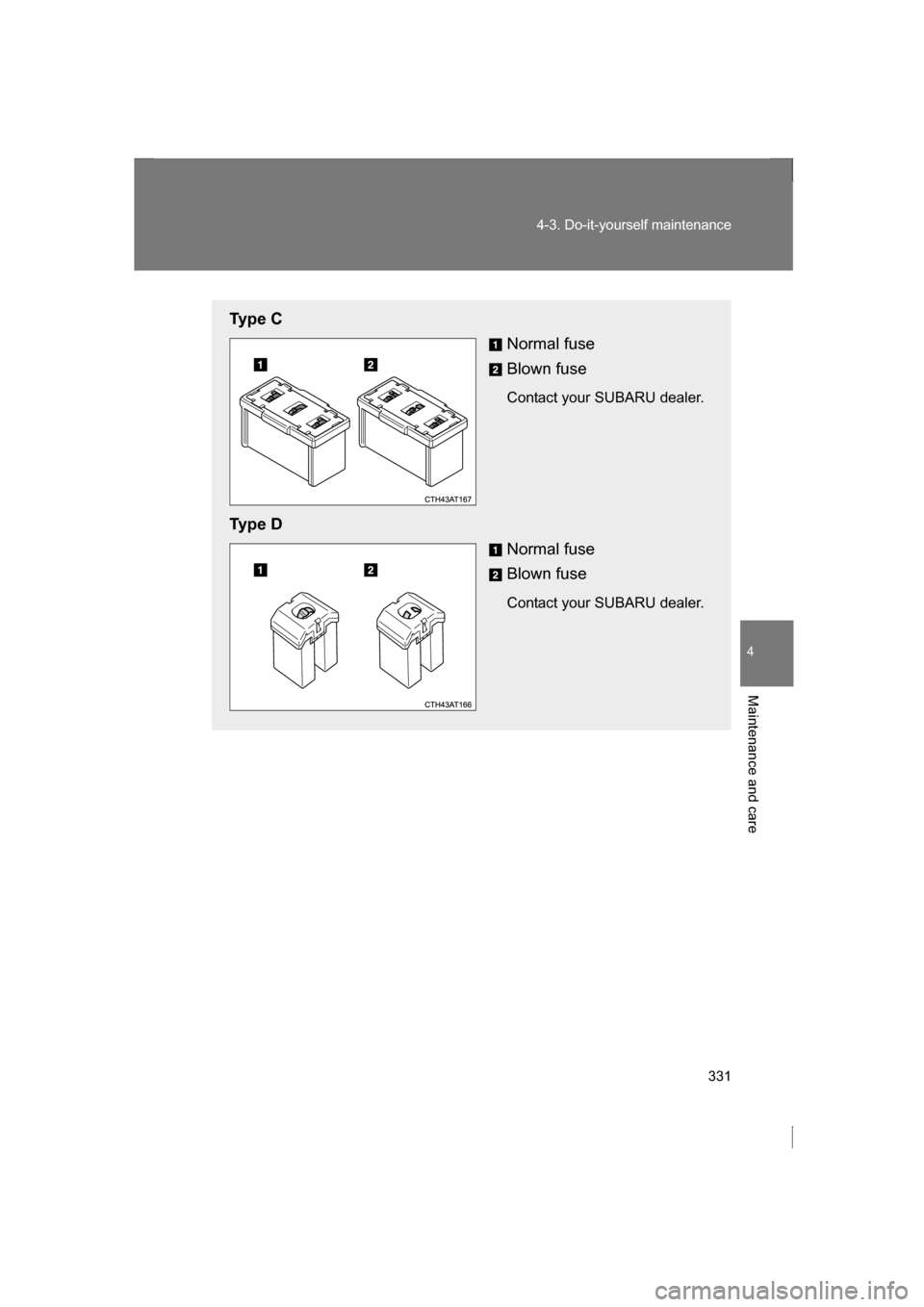

Ty p e CNormal fuse
Blown fuse
Contact your SUBARU dealer.
Ty p e D Normal fuse
Blown fuse
Contact your SUBARU dealer.
Page 332 of 484
332
4-3. Do-it-yourself maintenance

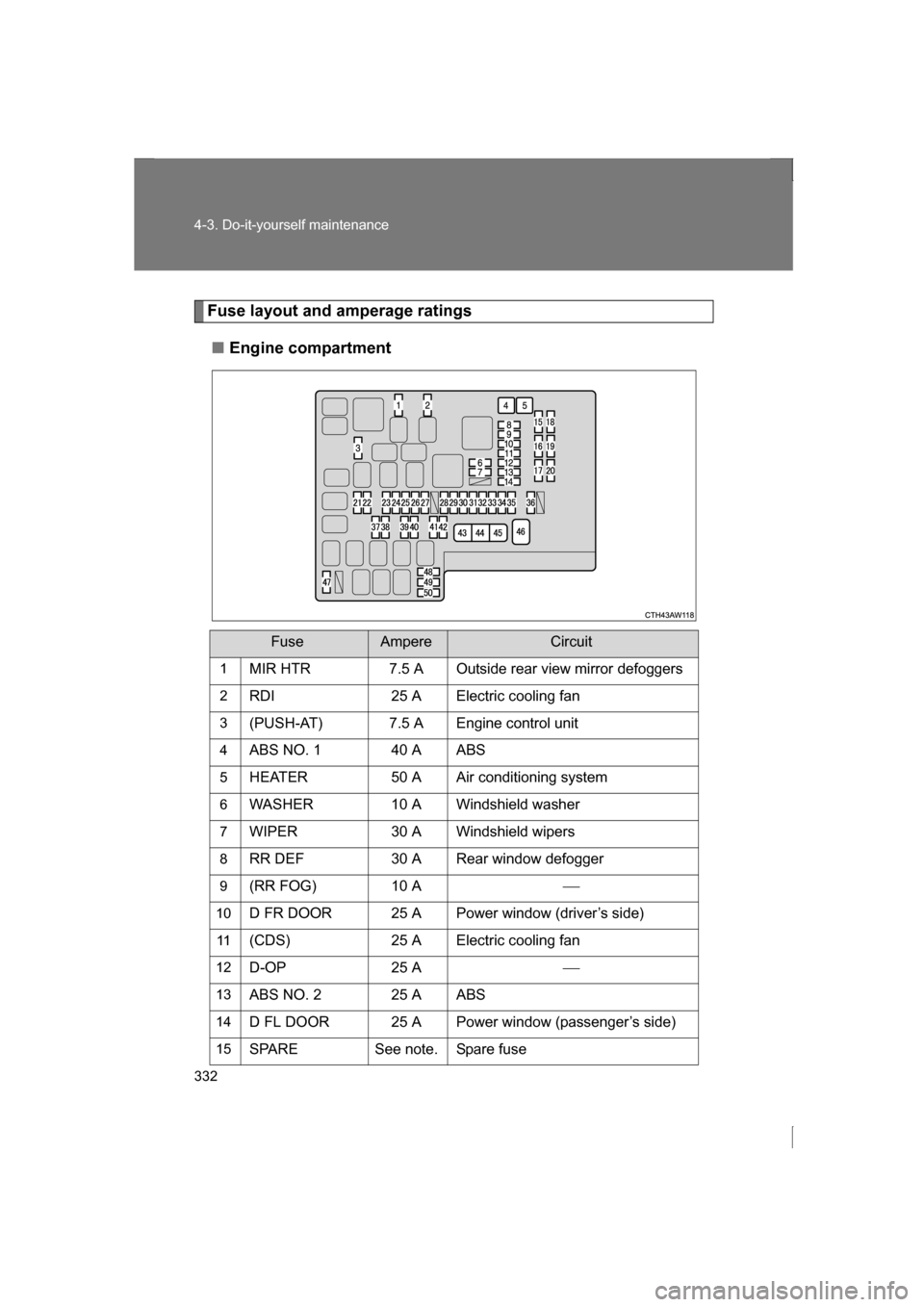

Fuse layout and amperage ratings
■Engine compartment
FuseAmpereCircuit
1 MIR HTR 7.5 A Outside rear view mirror defoggers
2 RDI 25 A Electric cooling fan
3 (PUSH-AT) 7.5 A Engine control unit
4 ABS NO. 1 40 A ABS
5 HEATER 50 A Air conditioning system
6 WASHER 10 A Windshield washer
7 WIPER 30 A Windshield wipers
8 RR DEF 30 A Rear window defogger
9 (RR FOG) 10 A
10 D FR DOOR 25 A Power window (driver’s side)
11 (CDS) 25 A Electric cooling fan
12 D-OP 25 A
13 ABS NO. 2 25 A ABS
14 D FL DOOR 25 A Power window (passenger’s side)
15 SPARE See note. Spare fuse
Page 333 of 484

333
4-3. Do-it-yourself maintenance
4
Maintenance and care

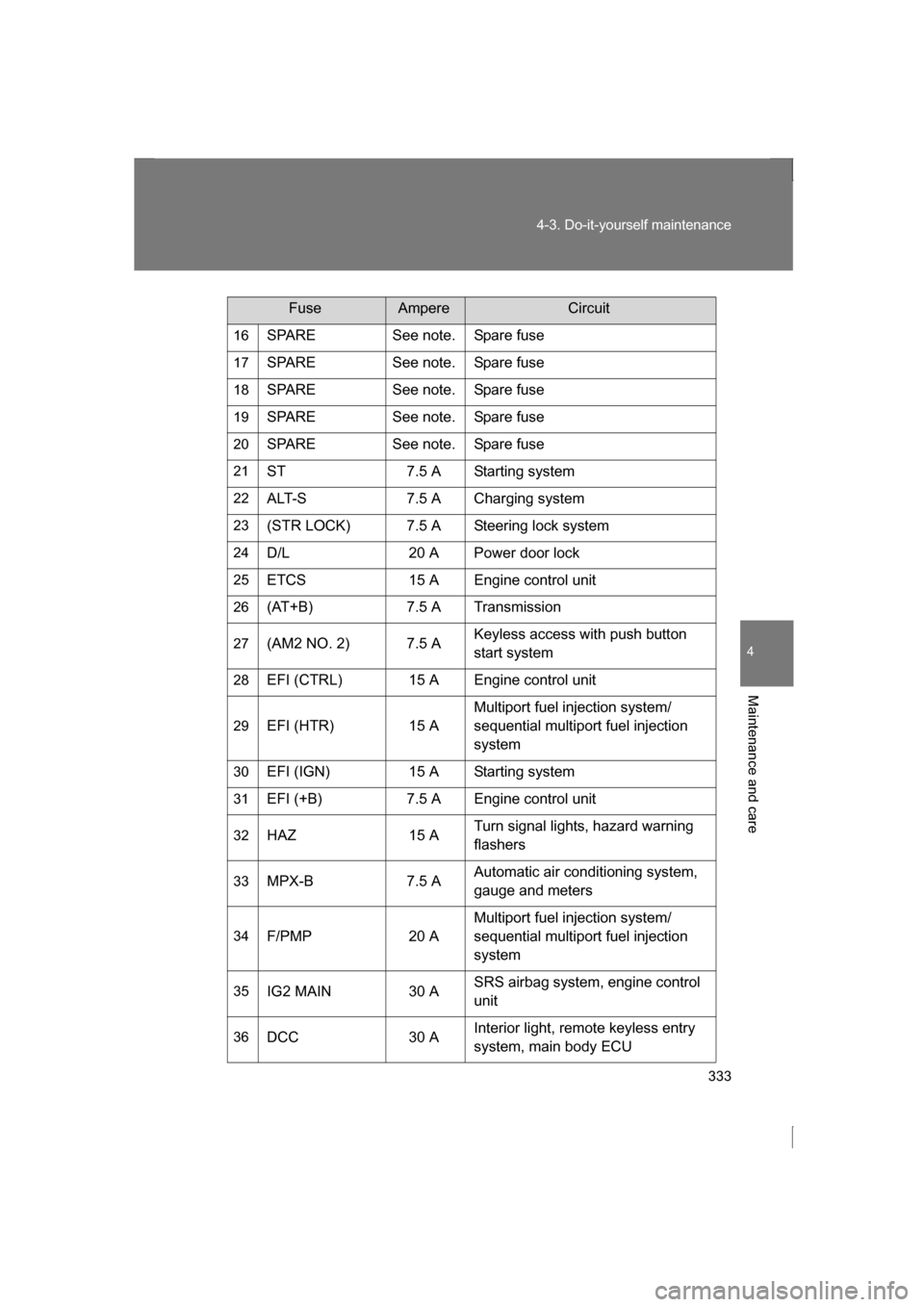

16SPARE See note. Spare fuse
17 SPARE See note. Spare fuse
18 SPARE See note. Spare fuse
19 SPARE See note. Spare fuse
20 SPARE See note. Spare fuse
21 ST 7.5 A Starting system
22 ALT-S 7.5 A Charging system
23 (STR LOCK) 7.5 A Steering lock system
24 D/L 20 A Power door lock
25 ETCS 15 A Engine control unit
26 (AT+B) 7.5 A Transmission
27 (AM2 NO. 2) 7.5 A Keyless access with push button
start system
28 EFI (CTRL) 15 A Engine control unit
29 EFI (HTR) 15 A Multiport fuel injection system/
sequential multiport fuel injection
system
30 EFI (IGN) 15 A Starting system
31 EFI (+B) 7.5 A Engine control unit
32 HAZ 15 A Turn signal lights, hazard warning
flashers
33 MPX-B 7.5 A Automatic air condi
tioning system,
gauge and meters
34 F/PMP 20 A Multiport fuel injection system/
sequential multiport fuel injection
system
35 IG2 MAIN 30 A SRS airbag system, engine control unit
36 DCC 30 A Interior light, remote keyless entry
system, main body ECU
FuseAmpereCircuit
Page 334 of 484
334
4-3. Do-it-yourself maintenance
Note
One of each of the following spare fuses are provided: 7.5 A, 10 A, 15
A, 20 A, 25 A, 30 A.37

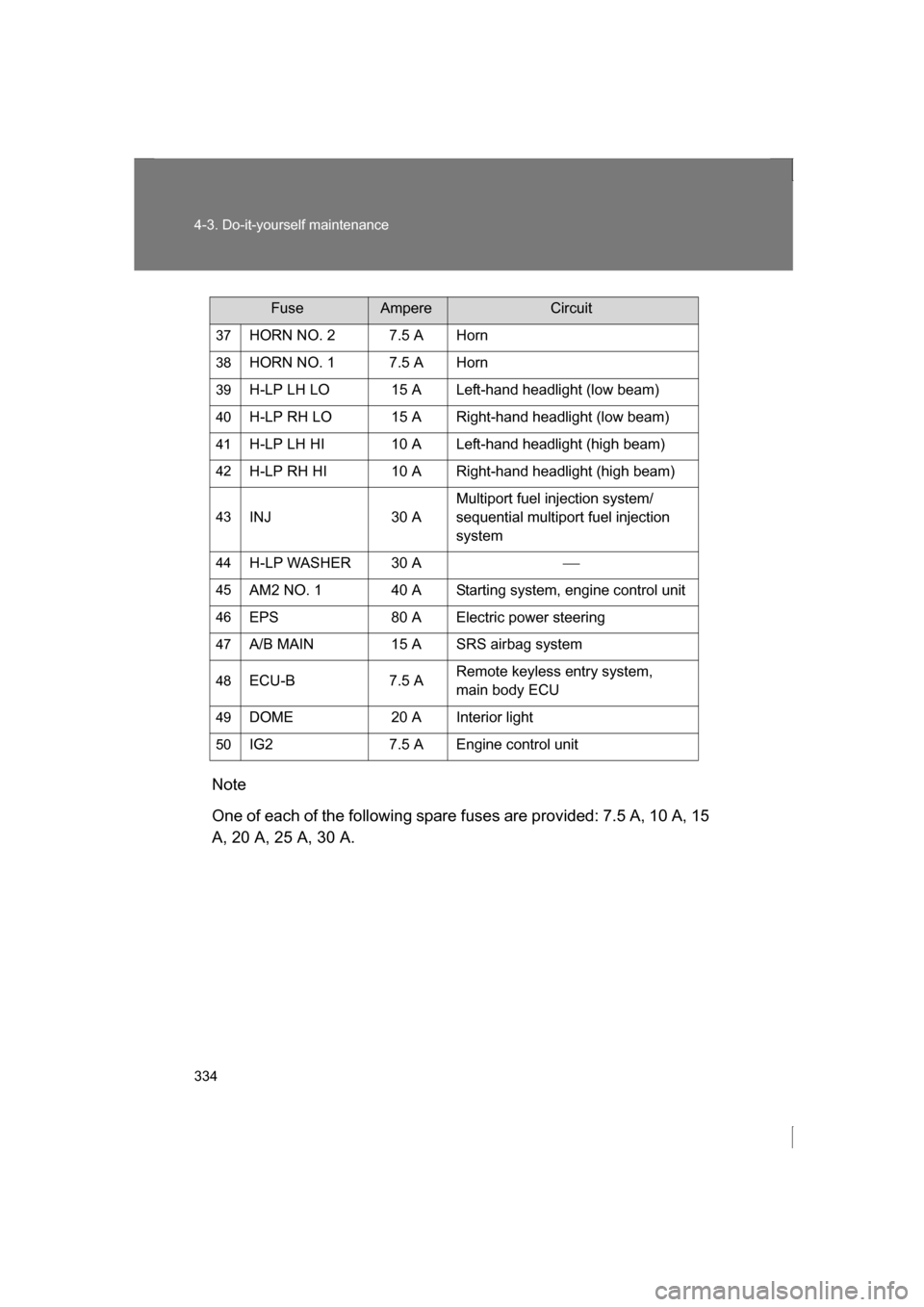

HORN NO. 2 7.5 A Horn
38 HORN NO. 1 7.5 A Horn
39 H-LP LH LO 15 A Left-hand headlight (low beam)
40 H-LP RH LO 15 A Right- hand headlight (low beam)
41 H-LP LH HI 10 A Left-hand headlight (high beam)
42 H-LP RH HI 10 A Right-hand headlight (high beam)
43 INJ 30 A Multiport fuel injection system/
sequential multiport fuel injection
system
44 H-LP WASHER 30 A
45 AM2 NO. 1 40 A Starting system, engine control unit
46 EPS 80 A Electric power steering
47 A/B MAIN 15 A SRS airbag system
48 ECU-B 7.5 A Remote keyless entry system,
main body ECU
49 DOME 20 A Interior light
50 IG2 7.5 A Engine control unit
FuseAmpereCircuit
Page 335 of 484
335
4-3. Do-it-yourself maintenance
4
Maintenance and care

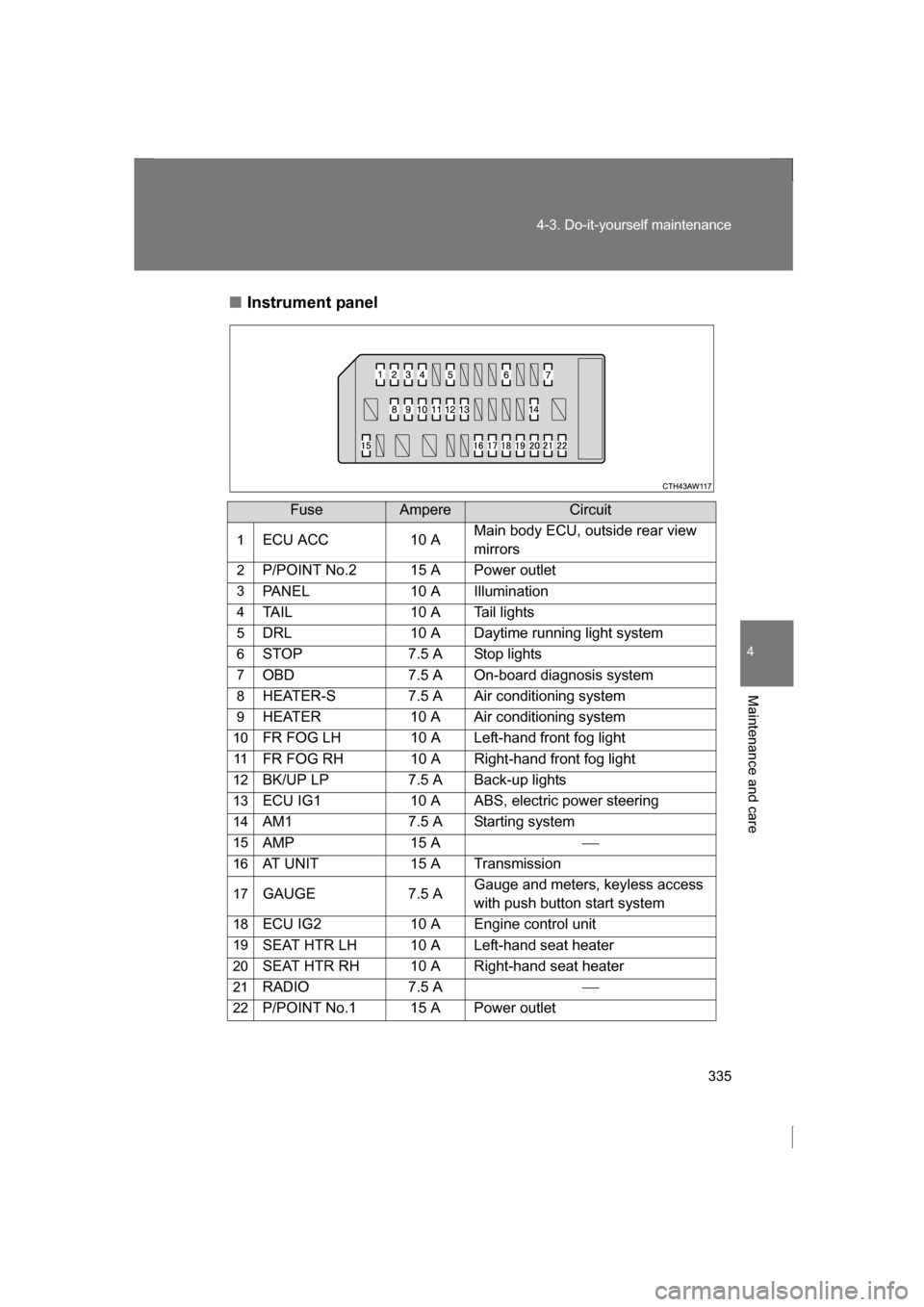

■Instrument panel
FuseAmpereCircuit
1 ECU ACC 10 A Main body ECU, outside rear view
mirrors
2 P/POINT No.2 15 A Power outlet
3 PANEL 10 A Illumination
4 TAIL 10 A Tail lights
5 DRL 10 A Daytime running light system
6 STOP 7.5 A Stop lights
7 OBD 7.5 A On-board diagnosis system
8 HEATER-S 7.5 A Air conditioning system
9 HEATER 10 A Air conditioning system
10 FR FOG LH 10 A Left-hand front fog light
11 FR FOG RH 10 A Right-hand front fog light
12 BK/UP LP 7.5 A Back-up lights
13 ECU IG1 10 A ABS, electric power steering
14 AM1 7.5 A Starting system
15 AMP 15 A
16 AT UNIT 15 A Transmission
17 GAUGE 7.5 A Gauge and meters, keyless access
with push button start system
18 ECU IG2 10 A Engine control unit
19 SEAT HTR LH 10 A Left-hand seat heater
20 SEAT HTR RH 10 A Right-hand seat heater
21 RADIO 7.5 A
22 P/POINT No.1 15 A Power outlet
Page 336 of 484
336
4-3. Do-it-yourself maintenance

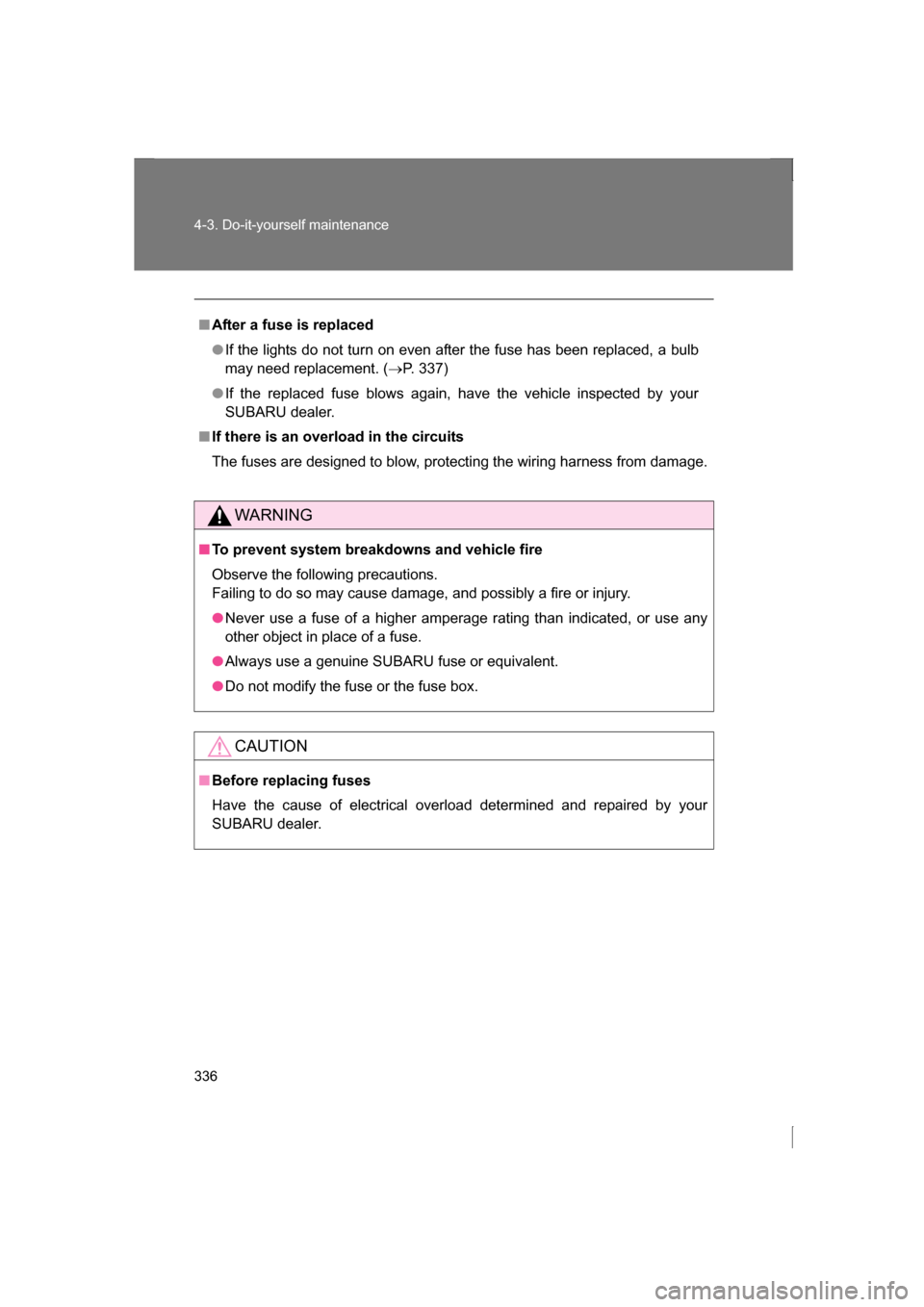

■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (→P. 337)
●If the replaced fuse blows again, have the vehicle inspected by your
SUBARU dealer.
■If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
●Always use a genuine SUBARU fuse or equivalent.
●Do not modify the fuse or the fuse box.
CAUTION
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
SUBARU dealer.
Page 337 of 484
337
4-3. Do-it-yourself maintenance
4
Maintenance and care

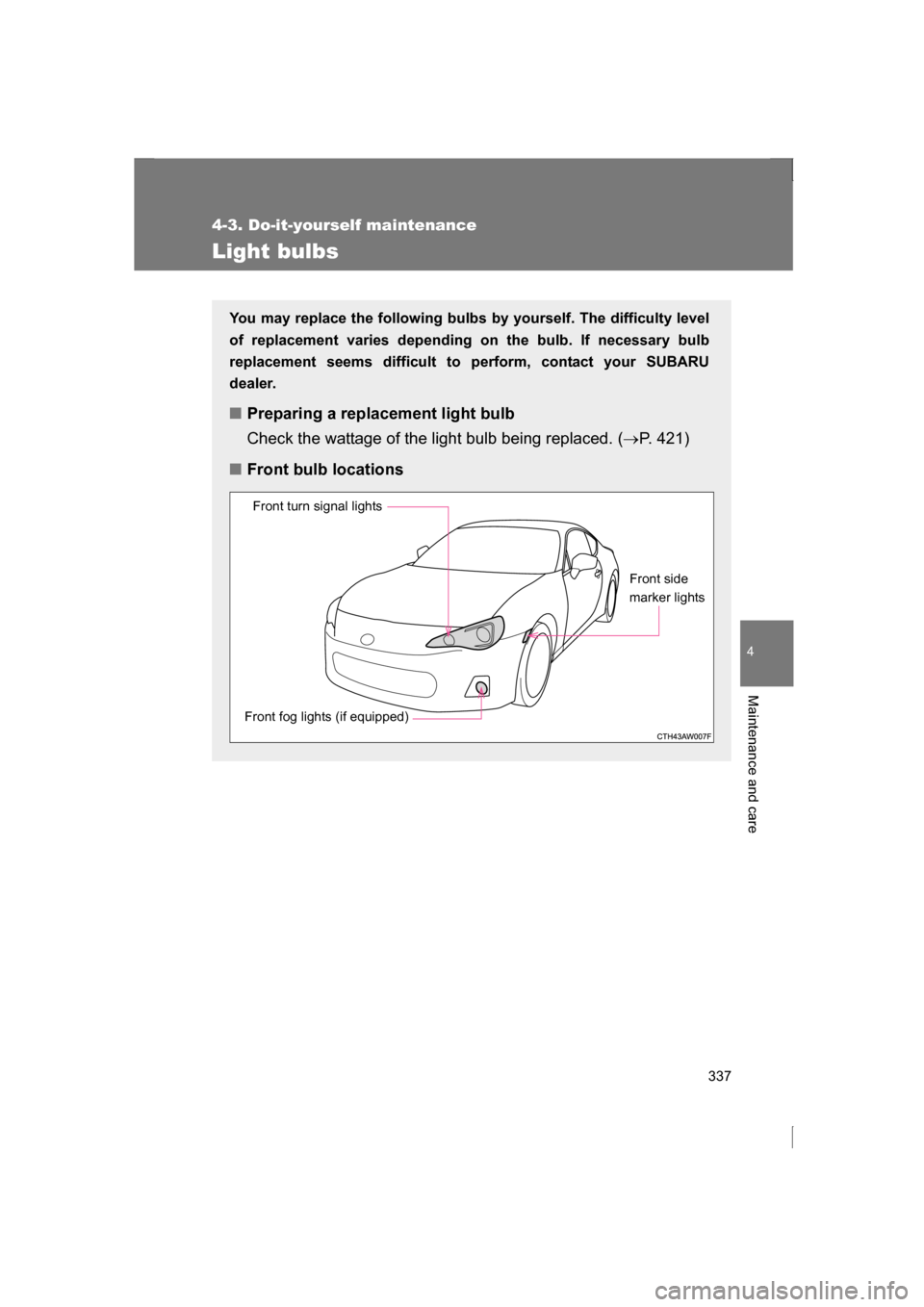

Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perform, contact your SUBARU
dealer.
■Preparing a replacement light bulb
Check the wattage of the light bulb being replaced. (→P. 421)
■Front bulb locations
Front side
marker lights
Front turn signal lights
Front fog lights (if equipped)
Page 338 of 484
338
4-3. Do-it-yourself maintenance

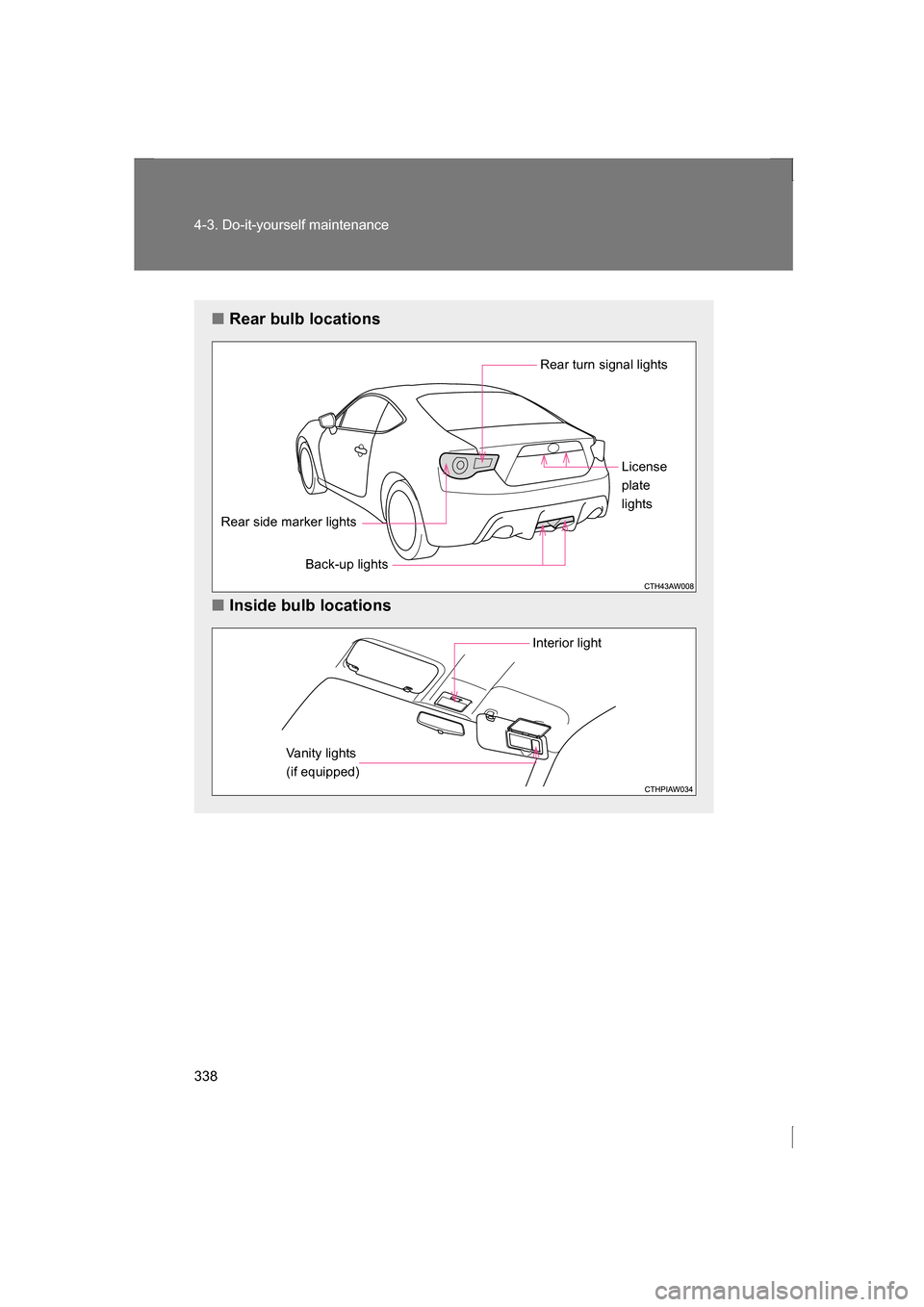

■Rear bulb locations
■Inside bulb locations
Rear turn signal lights
Rear side marker lightsBack-up lights License
plate
lights
Interior light
Vanity lights
(if equipped)
Page 339 of 484
339
4-3. Do-it-yourself maintenance
4
Maintenance and care
Replacing light bulbs

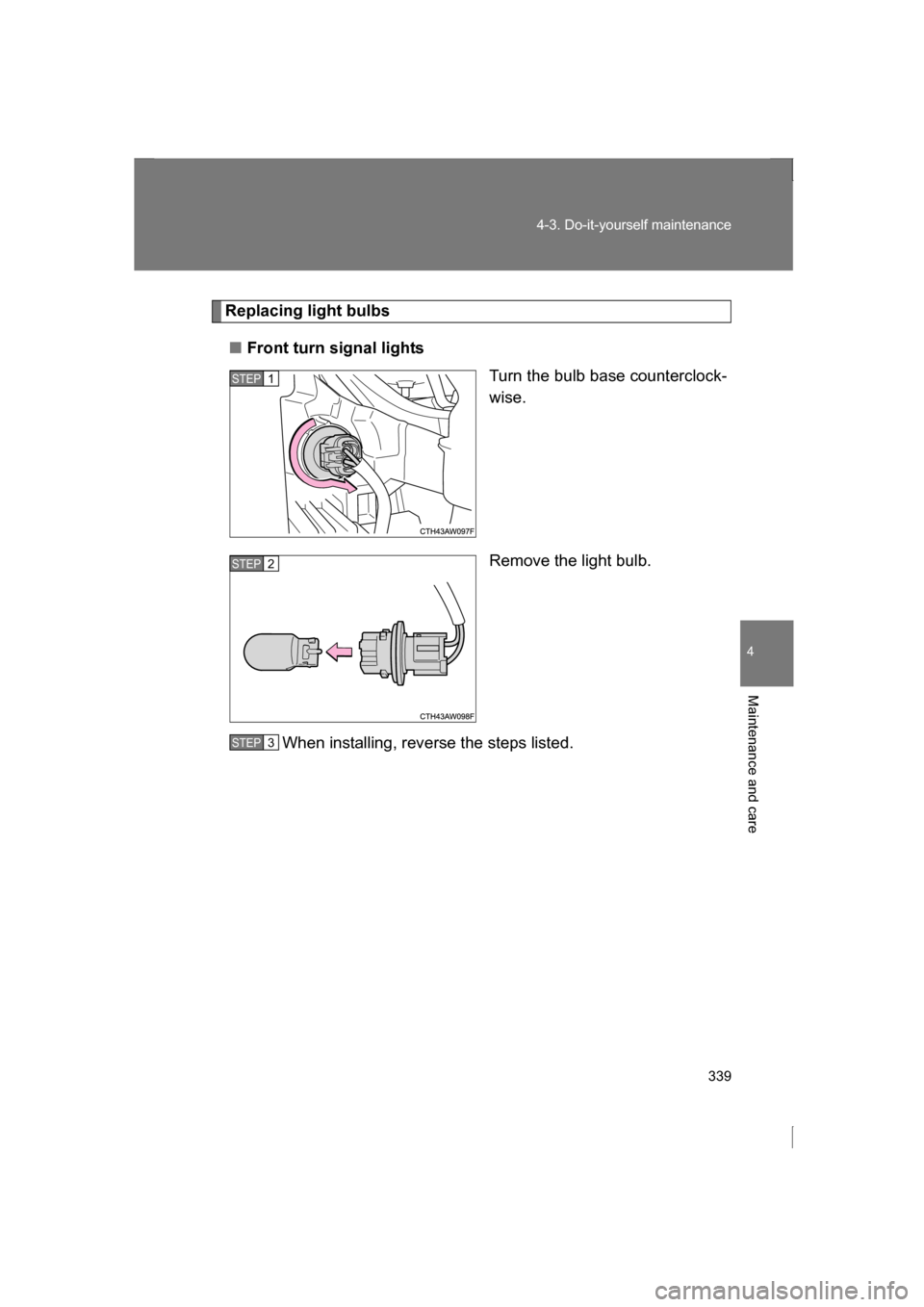

■Front turn signal lightsTurn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP 1
STEP 3 STEP 2
STEP 3
Page 340 of 484
340
4-3. Do-it-yourself maintenance

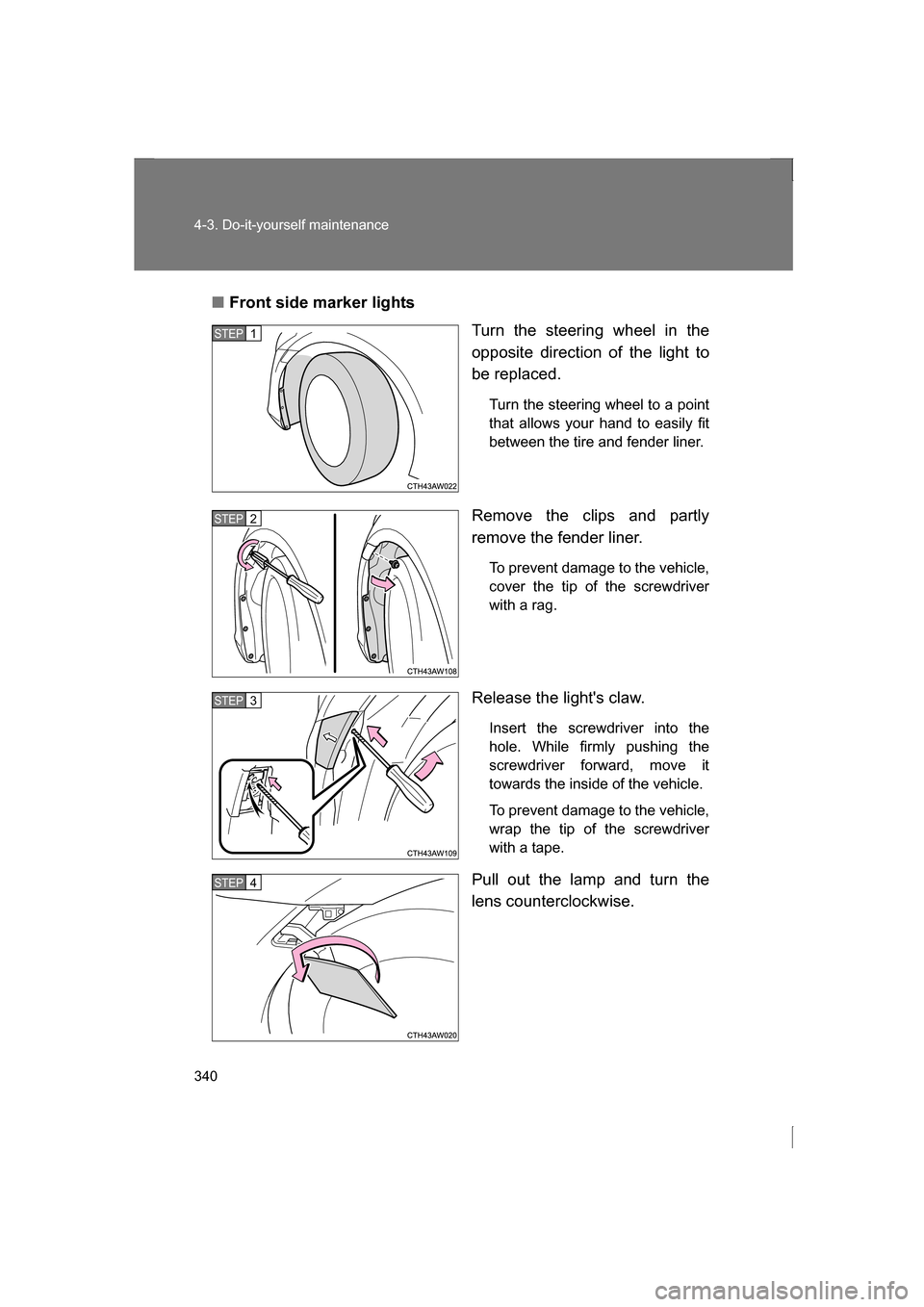

■Front side marker lightsTurn the steering wheel in the
opposite direction of the light to
be replaced.
Turn the steering wheel to a point
that allows your hand to easily fit
between the tire and fender liner.
Remove the clips and partly
remove the fender liner. To prevent damage to the vehicle,
cover the tip of the screwdriverwith a rag.
Release the light's claw. Insert the screwdriver into the
hole. While firmly pushing the
screwdriver forward, move it
towards the inside of the vehicle.
To prevent damage to the vehicle,
wrap the tip of the screwdriver
with a tape.
Pull out the lamp and turn the
lens counterclockwise.
STEP 1
STEP 2
STEP 3
STEP 4
