SUBARU BRZ 2013 1.G Owners Manual

5
When trouble arises
391
5-2. Steps to take in an emergency

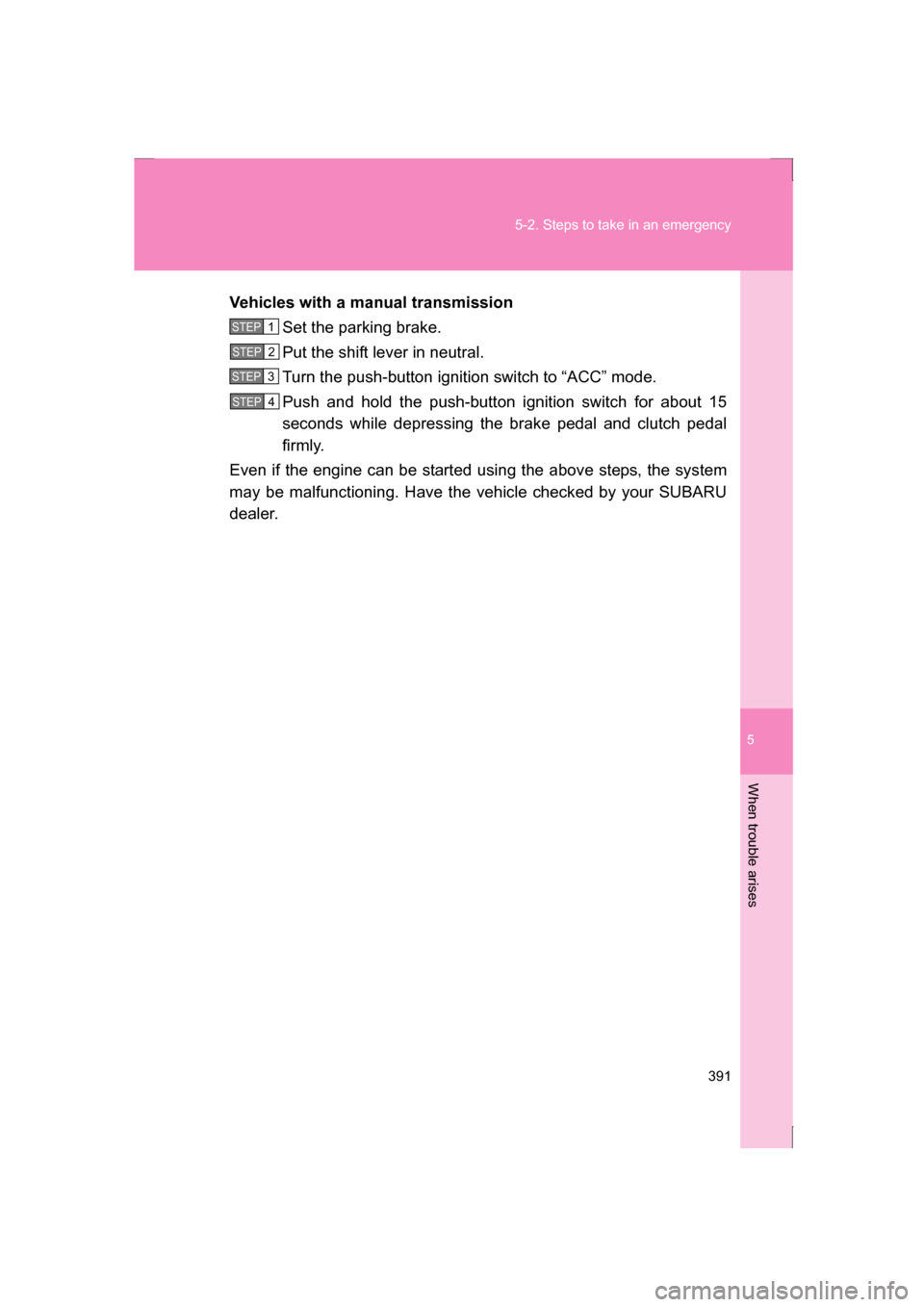

Vehicles with a manual transmissionSet the parking brake.
Put the shift lever in neutral.
Turn the push-button ignition switch to “ACC” mode.
Push and hold the push-button ignition switch for about 15
seconds while depressing the brake pedal and clutch pedal
firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle checked by your SUBARU
dealer.
STEP 1
STEP2
STEP 3
STEP 4

392
5-2. Steps to take in an emergency

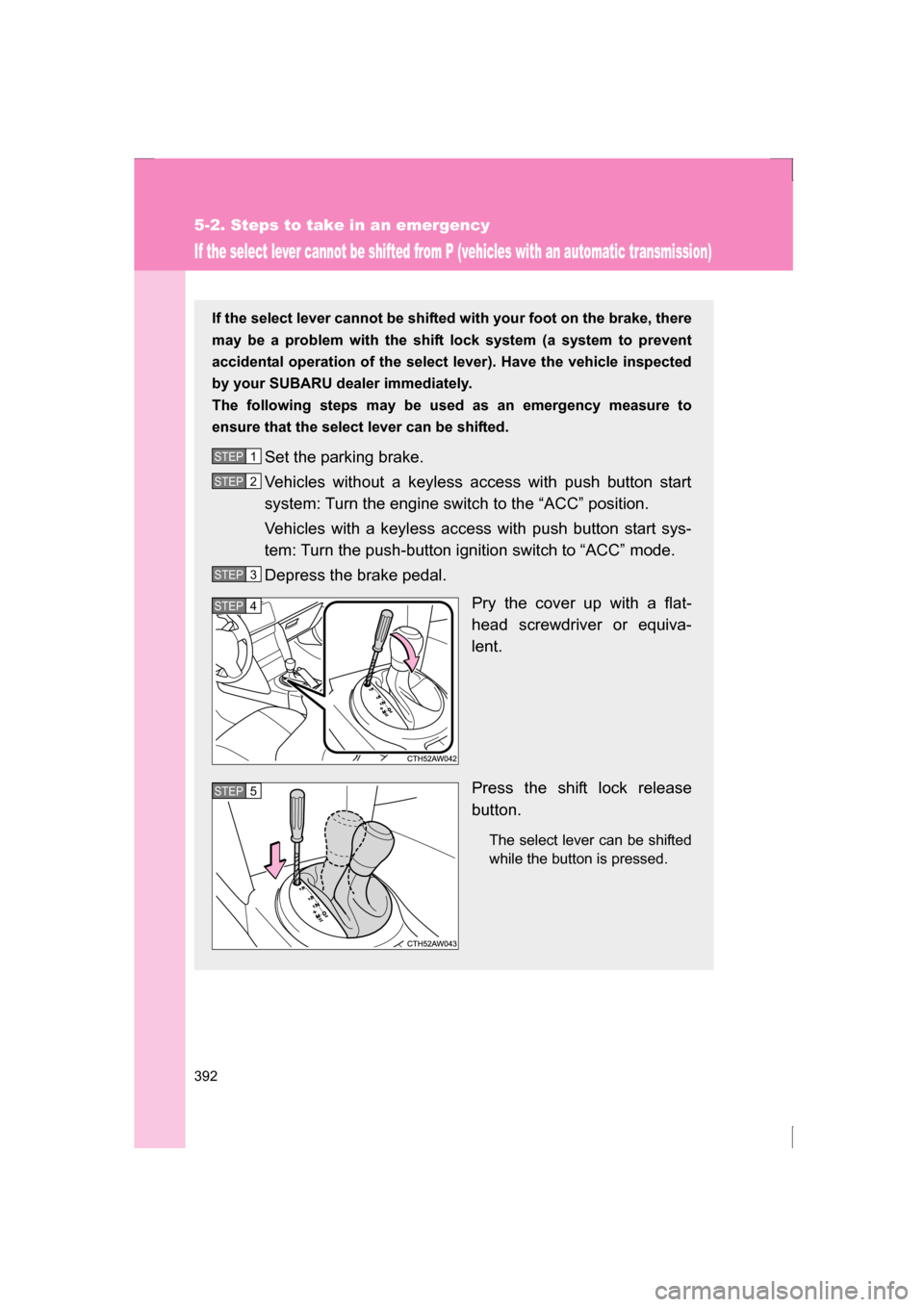

If the select lever cannot be shifted from P (vehicles with an automatic transmission)
If the select lever cannot be shifted with your foot on the brake, there
may be a problem with the shift lock system (a system to prevent
accidental operation of the select lever). Have the vehicle inspected
by your SUBARU dealer immediately.
The following steps may be used as an emergency measure to
ensure that the select lever can be shifted.Set the parking brake.
Vehicles without a keyless access with push button start
system: Turn the engine switch to the “ACC” position.
Vehicles with a keyless access with push button start sys-
tem: Turn the push-button ignition switch to “ACC” mode.
Depress the brake pedal. Pry the cover up with a flat-
head screwdriver or equiva-
lent.
Press the shift lock release
button.
The select lever can be shifted
while the button is pressed.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

5
When trouble arises
393
5-2. Steps to take in an emergency

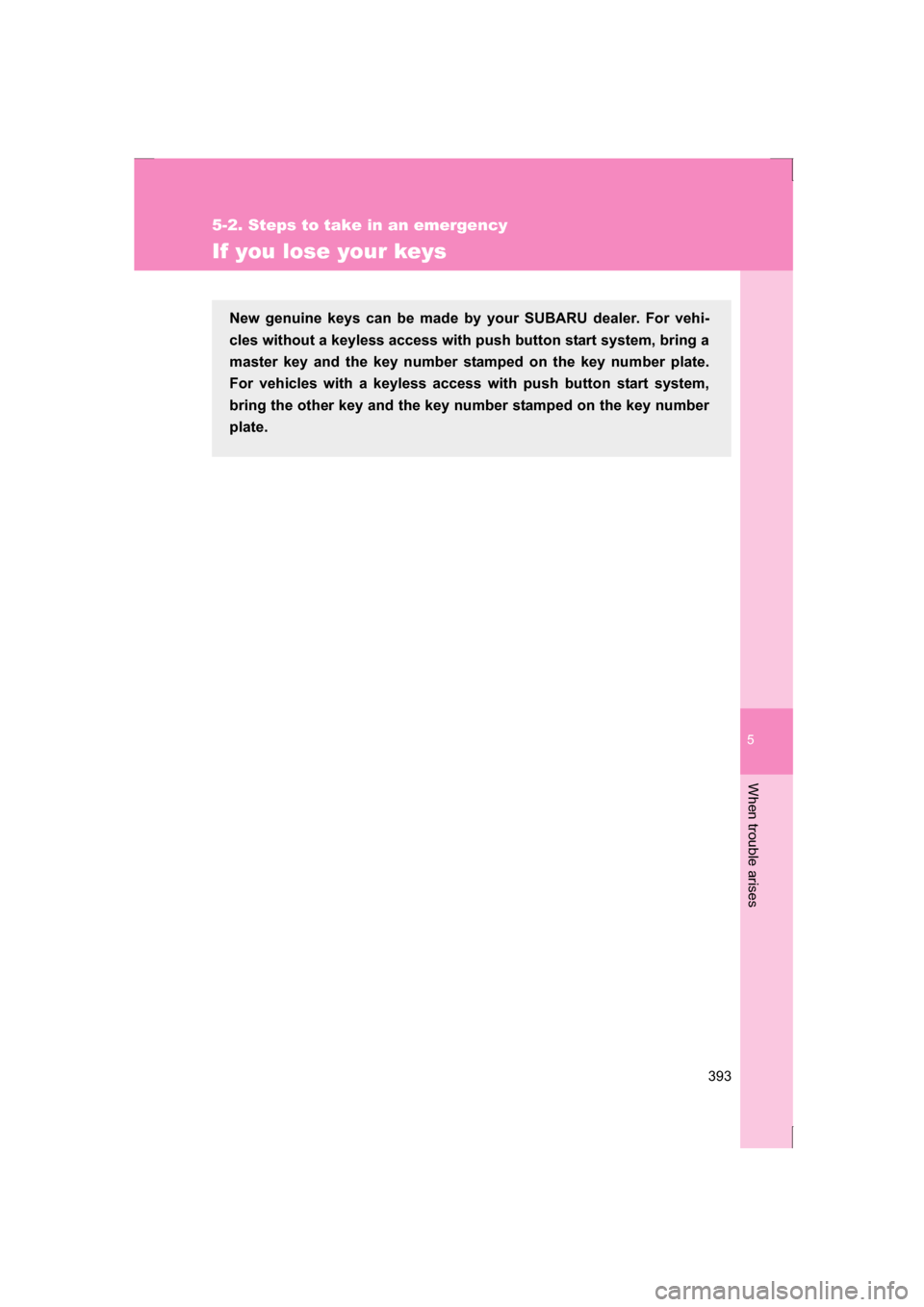

If you lose your keys
New genuine keys can be made by your SUBARU dealer. For vehi-
cles without a keyless access with push button start system, bring a
master key and the key number stamped on the key number plate.
For vehicles with a keyless access with push button start system,
bring the other key and the key number stamped on the key number
plate.

394
5-2. Steps to take in an emergency

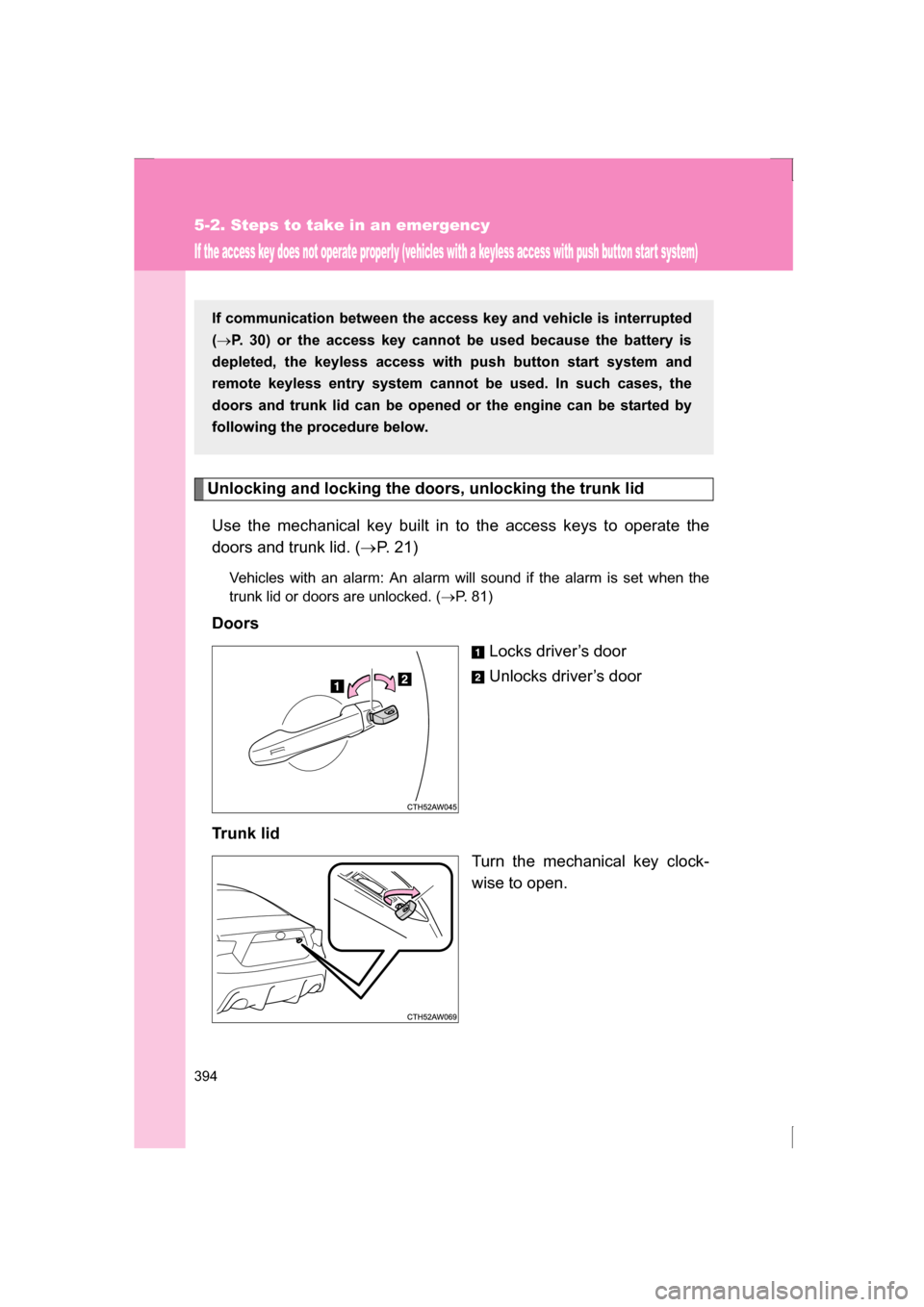

If the access key does not operate properly (vehicles with a keyless access with push button star t system)
Unlocking and locking the doors, unlocking the trunk lid
Use the mechanical key built in to the access keys to operate the
doors and trunk lid. ( →P. 21)
Vehicles with an alarm: An alarm will sound if the alarm is set when the
trunk lid or doors are unlocked. ( →P. 81)
Doors
Locks driver’s door
Unlocks driver’s door
Trunk lid Turn the mechanical key clock-
wise to open.
If communication between the access key and vehicle is interrupted (→ P. 30) or the access key cannot be used because the battery is
depleted, the keyless access with push button start system and
remote keyless entry system canno t be used. In such cases, the
doors and trunk lid can be opened or the engine can be started by
following the procedure below.

5
When trouble arises
395
5-2. Steps to take in an emergency

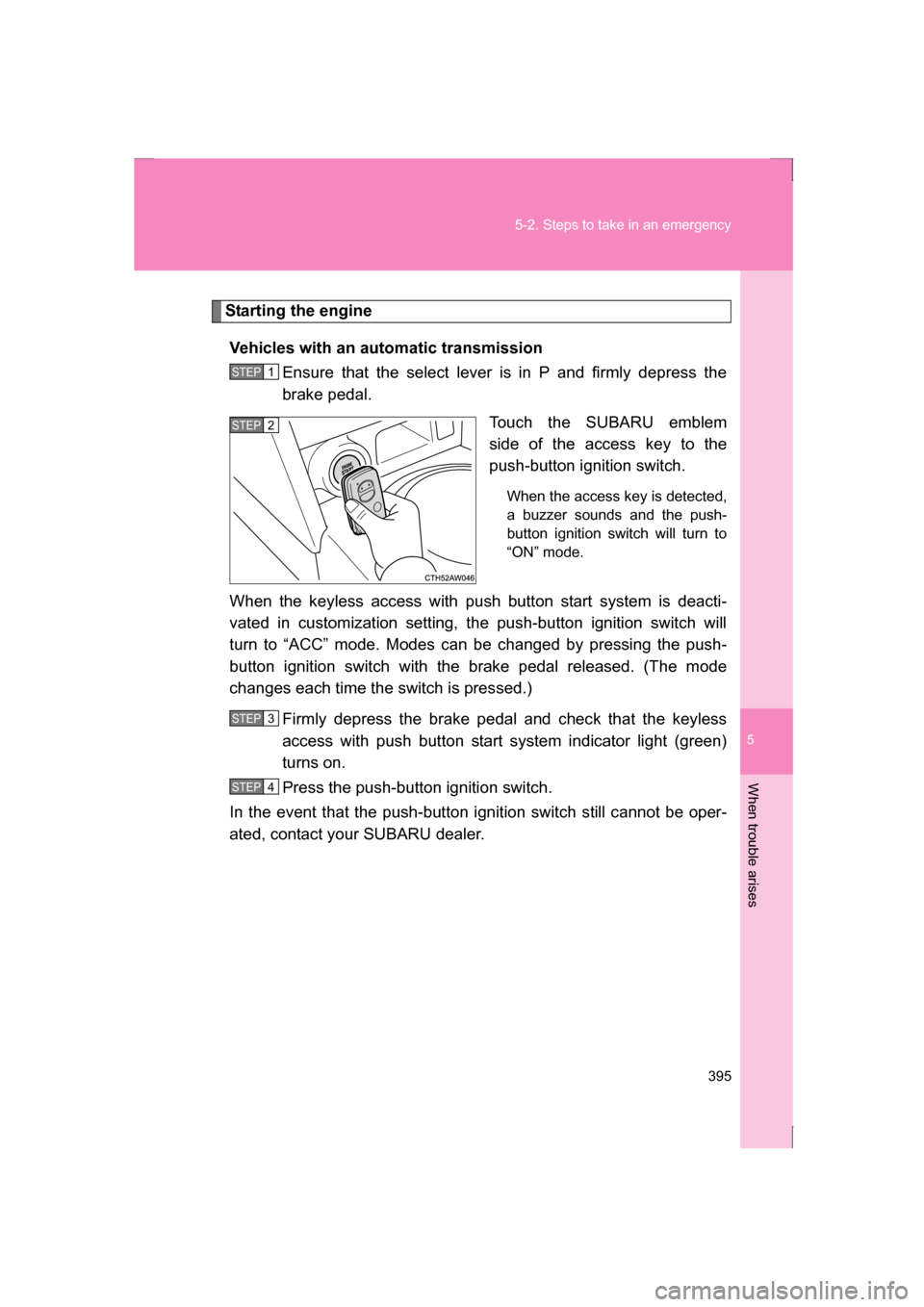

Starting the engineVehicles with an automatic transmission Ensure that the select lever is in P and firmly depress the
brake pedal.
Touch the SUBARU emblem
side of the access key to the
push-button ignition switch.
When the access key is detected,
a buzzer sounds and the push-
button ignition switch will turn to
“ON” mode.
When the keyless access with push button start system is deacti-
vated in customization setting, the push-button ignition switch will
turn to “ACC” mode. Modes can be changed by pressing the push-
button ignition switch with the brake pedal released. (The mode
changes each time the switch is pressed.) Firmly depress the brake pedal and check that the keyless
access with push button start system indicator light (green)
turns on.
Press the push-button ignition switch.
In the event that the push-button ignition switch still cannot be oper-
ated, contact your SUBARU dealer.
STEP 1
STEP 2
STEP 3
STEP 4

396
5-2. Steps to take in an emergency

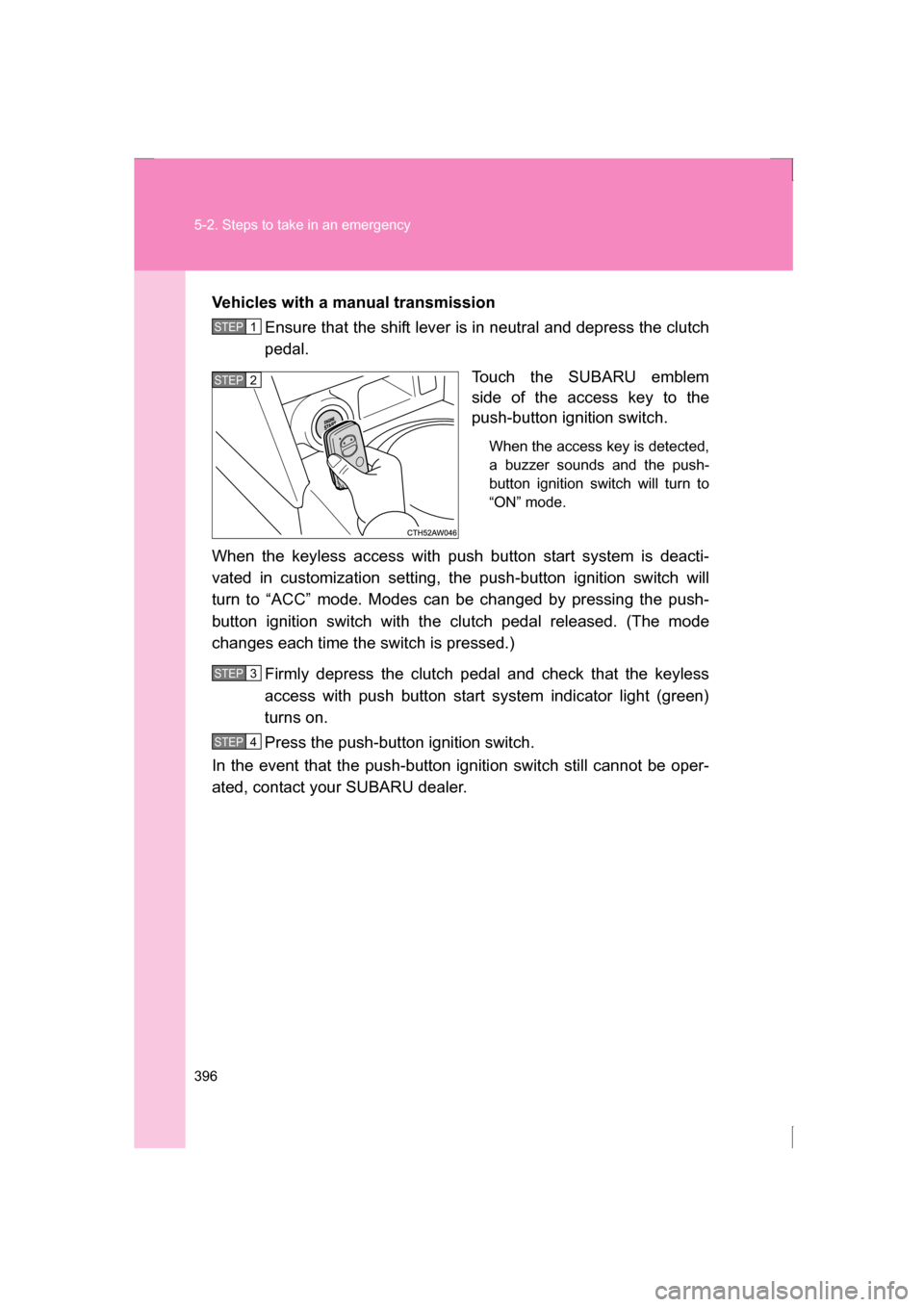

Vehicles with a manual transmissionEnsure that the shift lever is in neutral and depress the clutch
pedal.
Touch the SUBARU emblem
side of the access key to the
push-button ignition switch.
When the access key is detected,
a buzzer sounds and the push-
button ignition switch will turn to
“ON” mode.
When the keyless access with push button start system is deacti-
vated in customization setting, the push-button ignition switch will
turn to “ACC” mode. Modes can be changed by pressing the push-
button ignition switch with the clutch pedal released. (The mode
changes each time the switch is pressed.) Firmly depress the clutch pedal and check that the keyless
access with push button start system indicator light (green)
turns on.
Press the push-button ignition switch.
In the event that the push-button ignition switch still cannot be oper-
ated, contact your SUBARU dealer.
STEP 1
STEP 2
STEP 3
STEP 4

5
When trouble arises
397
5-2. Steps to take in an emergency

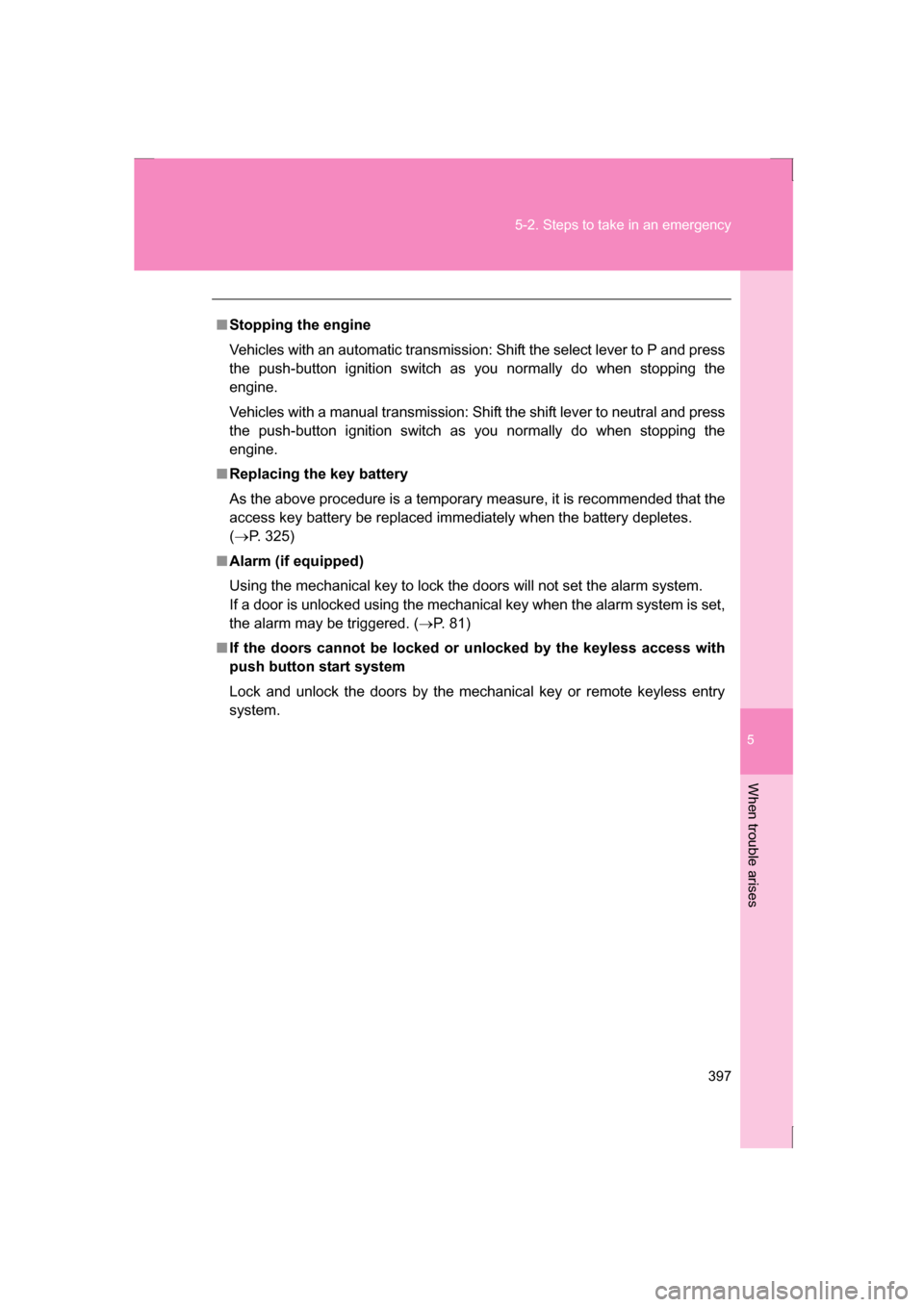

■Stopping the engine
Vehicles with an automatic transmission: Shift the select lever to P and press
the push-button ignition switch as you normally do when stopping theengine.
Vehicles with a manual transmission: Shift the shift lever to neutral and press
the push-button ignition switch as you normally do when stopping theengine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the
access key battery be replaced immediately when the battery depletes. (→ P. 325)
■Alarm (if equipped)
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered. ( →P. 81)
■If the doors cannot be locked or unlocked by the keyless access with
push button start system
Lock and unlock the doors by the mechanical key or remote keyless entry
system.

398
5-2. Steps to take in an emergency

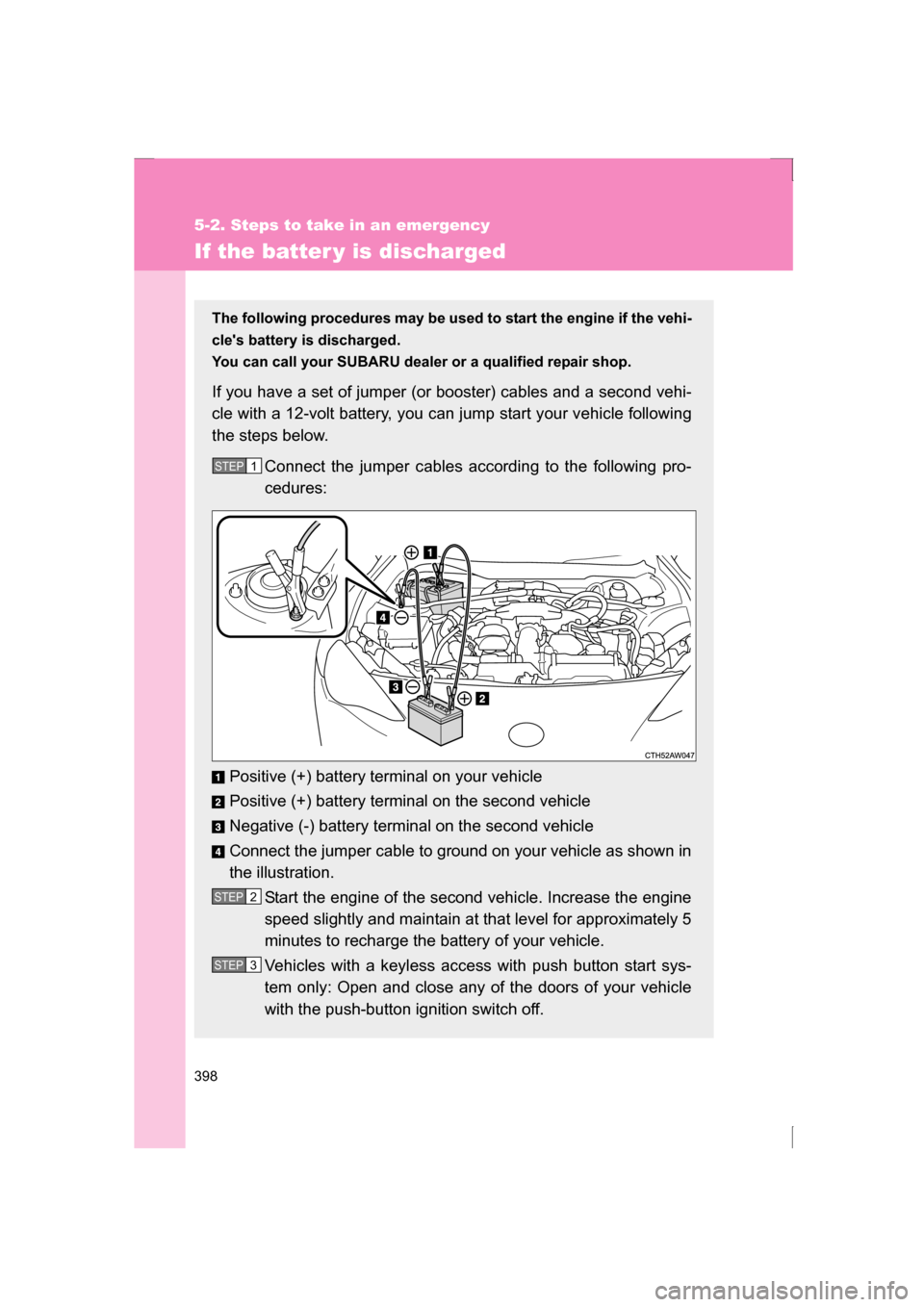

If the batter y is discharged
The following procedures may be used to start the engine if the vehi-
cle's battery is discharged.
You can call your SUBARU dealer or a qualified repair shop.
If you have a set of jumper (or booster) cables and a second vehi-
cle with a 12-volt battery, you can jump start your vehicle following
the steps below.Connect the jumper cables according to the following pro-
cedures:
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (-) battery terminal on the second vehicle
Connect the jumper cable to ground on your vehicle as shown in
the illustration. Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Vehicles with a keyless access with push button start sys-
tem only: Open and close any of the doors of your vehicle
with the push-button ignition switch off.
STEP 1
STEP 2
STEP 3

5
When trouble arises
399
5-2. Steps to take in an emergency

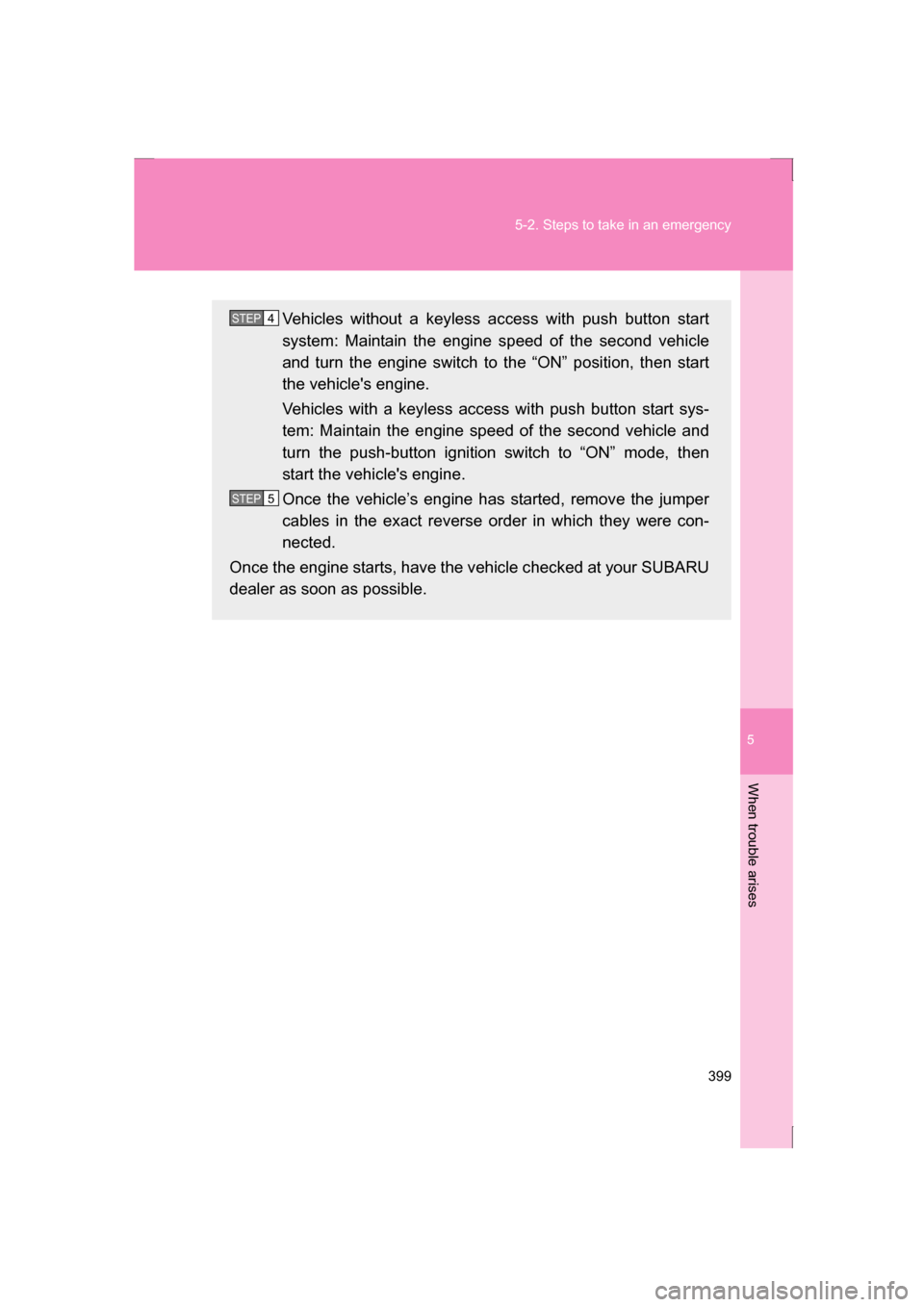

Vehicles without a keyless access with push button start
system: Maintain the engine speed of the second vehicle
and turn the engine switch to the “ON” position, then start
the vehicle's engine.
Vehicles with a keyless access with push button start sys-
tem: Maintain the engine speed of the second vehicle and
turn the push-button ignition switch to “ON” mode, then
start the vehicle's engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your SUBARU
dealer as soon as possible.STEP 4
STEP 5

400
5-2. Steps to take in an emergency

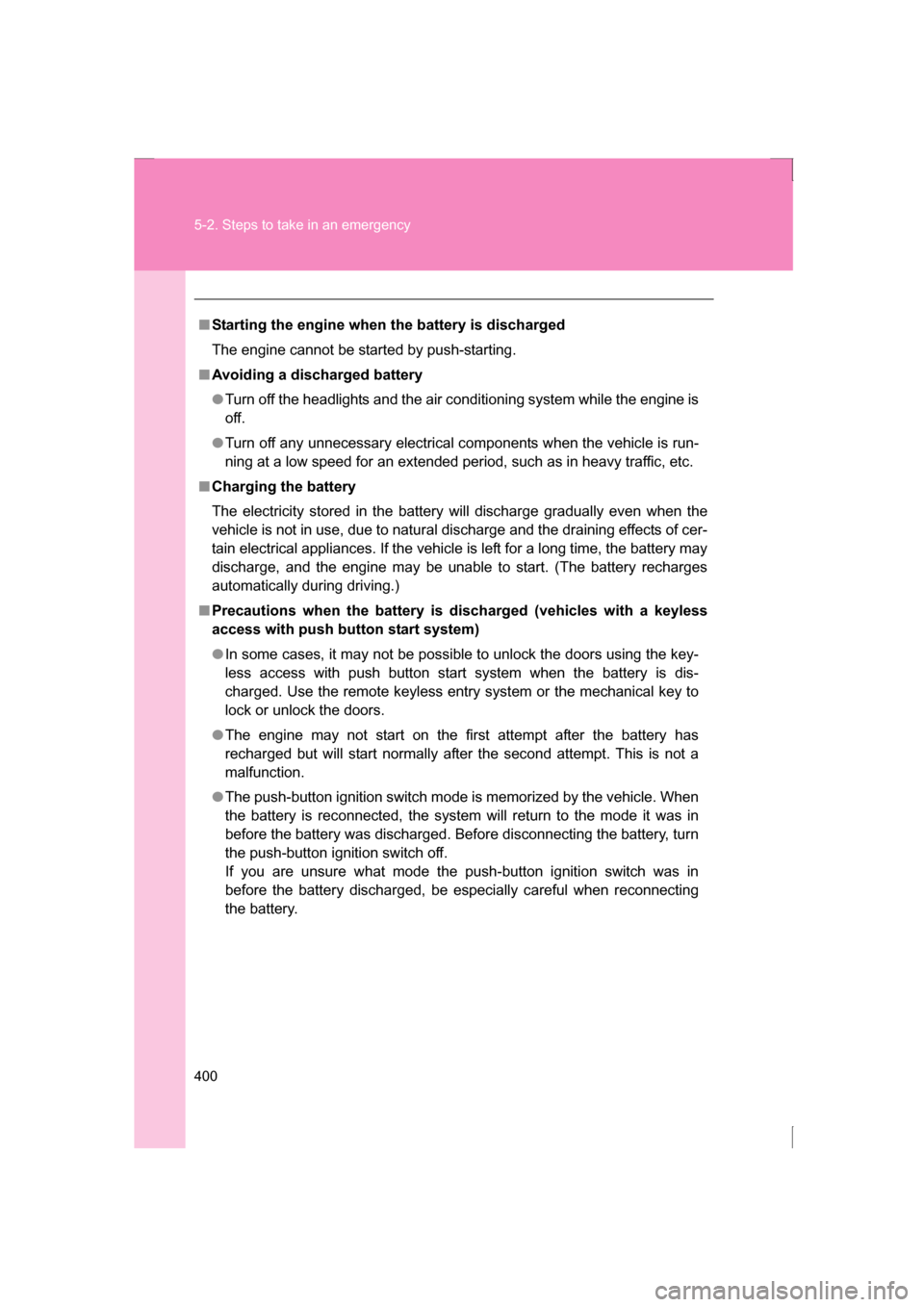

■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■Avoiding a discharged battery
●Turn off the headlights and the air conditioning system while the engine is
off.
●Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic, etc.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)
■Precautions when the battery is discharged (vehicles with a keyless
access with push button start system)
●In some cases, it may not be possible to unlock the doors using the key-
less access with push button start system when the battery is dis-
charged. Use the remote keyless entry system or the mechanical key to
lock or unlock the doors.
●The engine may not start on the first attempt after the battery has
recharged but will start normally after the second attempt. This is not a
malfunction.
●The push-button ignition switch mode is memorized by the vehicle. When
the battery is reconnected, the system will return to the mode it was in
before the battery was discharged. Before disconnecting the battery, turn
the push-button ignition switch off.
If you are unsure what mode the push-button ignition switch was in
before the battery discharged, be especially careful when reconnecting
the battery.
