380 5-2. Steps to take in an emergency
OnceContinuous
(5 seconds)
(Flashes
in yellow)Keyless access with push
button start system indica-
tor light
An attempt was made to exit
the vehicle with the access
key and lock the doors with-
out first turning the push-but-
ton ignition switch off.Turn the
push-button
ignition switch
off and lock
the doors
again.
Once(Flashes
in yellow
for 15
seconds.)Keyless access with push
button start system indica-
tor light
Indicates that the access key
is not present when attempt-
ing to start the engine.Confirm the
location of the
access key.
Intermit-
tently (7
sec-
onds)

(Flashes
in yellow)Keyless access with push
button start system indica-
tor light
An attempt was made to
drive when the regular key
was not inside the vehicle.Confirm that
the access
key is inside
the vehicle.
Once(Flashes
in yellow
for 15
seconds.)Keyless access with push
button start system indica-
tor light
Indicates that the access key
battery is low.Replace the
battery.
(oP. 329)
Once(Flashes
quickly in
green for
15 sec-
onds.)Keyless access with push
button start system indica-
tor light
Indicates that the steering
lock has not been released.Release the
steering lock.
(oP. 168)
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection
procedure

5
When trouble arises
381 5-2. Steps to take in an emergency
Once(Flashes
in yellow
for 15
seconds.)Keyless access with push
button start system indica-
tor light
The access key could not be
detected in the vehicle even
after the push-button ignition
switch was pressed once.Vehicles with
an automatic
transmission:
Touch the
access key to
the push-but-
ton ignition
switch while
depressing
the brake
pedal.
Vehicles with
a manual
transmission:
Touch the
access key to
the push-but-
ton ignition
switch while
depressing
with the
clutch pedal.
Interior
buzzerExterior
buzzerWarning
lightWarning light/DetailsCorrection
procedure

382
5-2. Steps to take in an emergency

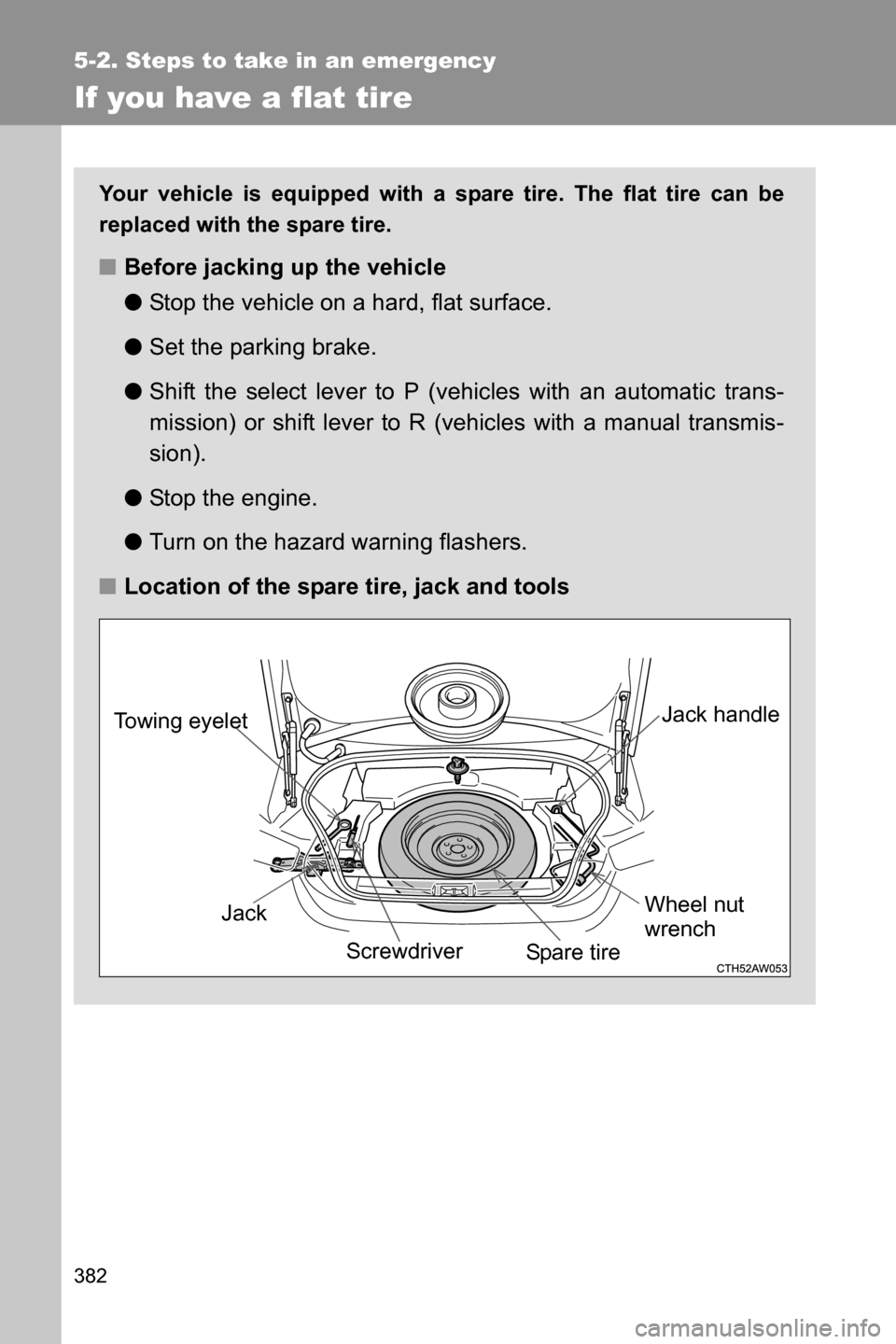

If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
●Set the parking brake.
●Shift the select lever to P (vehicles with an automatic trans-
mission) or shift lever to R (vehicles with a manual transmis-
sion).
●Stop the engine.
●Turn on the hazard warning flashers.
■Location of the spare tire, jack and tools
JackJack handle
Spare tire Towing eyelet
ScrewdriverWheel nut
wrench

5
When trouble arises
383 5-2. Steps to take in an emergency
Taking out the spare tire
Remove the luggage mat.
Remove the cover and loosen
the center fastener that secures
the spare tire.
STEP 1
STEP 2

384 5-2. Steps to take in an emergency
Replacing a flat tire
Chock the tires.
STEP 1
Flat tire
Wheel
chock posi-
tions
FrontLeft-
hand
sideBehind the
rear right-
hand side
tire
Right-
hand
sideBehind the
rear left-
hand side
tire
RearLeft-
hand
sideIn front of
the front
right-hand
side tire
Right-
hand
sideIn front of
the front
left-hand
side tire

5
When trouble arises
385 5-2. Steps to take in an emergency
Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and
the tire.
When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
STEP 2
STEP 3
STEP 4
STEP 5

386 5-2. Steps to take in an emergency
Installing the spare tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.
If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, and the tire may
come off the vehicle.
Install the spare tire and loosely
tighten each wheel nut by hand
to approximately the same
amount.
Tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel seat.
Lower the vehicle.
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
89 ft•lbf (120 N•m, 12.2 kgf•m)
STEP 1
Tapered portion
Disc wheel
seat
STEP 2
STEP 3
STEP 4

5
When trouble arises
387 5-2. Steps to take in an emergency
Stow the flat tire, tire jack and all tools.
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily only in an emergency.
●Make sure to check the tire pressure of the compact spare tire.
(oP. 424)
■When using the compact spare tire (vehicles with a tire pressure
monitoring system)
As the compact spare tire is not equipped with the tire pressure warning
valve and transmitter, low inflation pressure of the spare tire will not be
warned. Also, if you replace the compact spare tire after the tire pressure
warning light comes on, the light remains on.
■If you have a flat rear tire
Install the compact spare tire on the front of the vehicle. Perform the fol-
lowing steps.
Replace a front tire with the compact spare tire.
Replace the flat rear tire with the tire removed from the front of
the vehicle.
STEP 5
STEP 1
STEP 2

388 5-2. Steps to take in an emergency
■After completing the tire change (vehicles with a tire pressure mon-
itoring system)
The tire pressure monitoring system must be reset. (oP. 3 1 3 )
■Storing the tire
Always install the center fastener as shown in the illustration below.
Compact spare tire
Except compact spare tire

5
When trouble arises
389 5-2. Steps to take in an emergency
WARNING
■Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to
the vehicle suddenly falling off the jack.
●Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Always check that the tire jack is securely set to the jack point.
●Do not put any part of your body under the vehicle supported by a jack.
●Do not start or run the engine while your vehicle is supported by the
jack.
●Do not raise the vehicle while someone is in it.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle may be injured.
