Remote keyless entry system
Remote transmitter key (if equipped)
Access key(if equipped)
Lock/Unlock doors
BASIC OPERATION
All doors and trunk will be locked/unlocked by the following procedures carrying the access
key on your person. (The driver should always carry the access key.)
For detailed operating and safety information, please refer to
your Owner’s Manual.
Keyless access function (if equipped)
1 Locks both side doors
2 The driver’s door will be unlocked.
(To unlock other doors, briefly press the
button a second time within 3 seconds.)
3 Unlocks the trunk lid (press and hold)
4 Sounds the alarm (press and hold)
*Grip the driver’s door handle to unlock the
driver’s door. Grip the passenger’s door
handle to unlock all doors.
Side door:Unlocking the trunk lid:
34
2
1
1
2
3
4
Locking
Unlocking*
Grip
To u c hPress
Lock sensor (the indentation on the side of the door handle)
u Some functions are available on certain models. u For detailed operating and safety information, please refer to your Own\
er’s Manual.

3
Ignition switch must be in ACC or ON.
1 Turn the control switch to the side that you want
to adjust. L is for the left mirror, R is for the right
mirror.
2 Move the control switch in the direction you want
to adjust the mirror.
Adjustable components
1 Seat position adjustment
2 Seatback angle adjustment
3 Vertical height adjustment (driver’s side only)
4 Seatback fold strap
Front seat
Tilt/telescopic steering wheel
Outside rear view mirror switch
1 Hold the steering wheel and push the lever down.
2 Adjust to the ideal position by moving the steering
wheel horizontally and vertically.
3 After adjustment, pull the lever up to secure the
steering wheel.
1
23
12
124
3
2
4
Getting in the rear seats:Lift the seatback angle adjustment lever.
Getting out the rear seats:Pull the seatback fold strap.
The seat can be slid forward and backward. (Front passenger seat only)\

4
Start/Stop engine
Push-button ignition switch (if equipped)
Engine (ignition) switch (if equipped)
Performing the following operations when carrying the access key on your person starts the
engine or changes push-button ignition switch modes.
Starting the engine;
1: Check that the parking brake is set.
2: Check that the select lever is set in P (AT models). Check that the shift lever is set in neutral (MT models).
3: Firmly depress the brake pedal (AT models). Firmly depress the clutch pedal (MT models). The push button start system indicator light (green) will turn on.
4: Press the push-button ignition switch.
Stopping the engine;
1: Stop the vehicle (AT models). While depressing the clutch pedal, stop the vehicle (MT models).
2: Shift the select lever to P (AT models). Shift the shift lever to neutral (MT models).
3: Set the parking brake.
4: Release the brake pedal (AT models). Release the clutch pedal (MT models).
5: Press the push-button ignition switch.
6: Check that the keyless access with push button start system indicator light (green) is off.
Off ( Tu r n e d o f f )ACC (G r e e n)ON (G r e e n)
Modes can be changed by pressing the push-button ignition switch with the brake
pedal (vehicles with an automatic transmission) or clutch pedal (vehicles with a manual
transmission) released. (The mode changes each time the switch is pressed)
Changing push-button ignition switch mode
LOCK : The steering wheel is locked and the key can be
removed. (Vehicles with an automatic transmission:
The key can be removed only when the select lever
is in P.)
ACC : Some electrical components such as the power
outlet can be used.
ON : All electrical components can be used.
START : The engine can be started.
Flashes slowlyFlashes slowly
0058 Some functions are available on certain models. 00030058 For detailed operating and safety information, please refer to your Own\
er’s Manual.

5
Operate Select lever/Shift lever
Automatic transmission (if equipped)
Manual transmission (if equipped)
P = Parking/Starting the engine
R = Reversing
N = Neutral
D = Drive
For normal driving/Temporary manual mode
driving
M = Manual mode
Manual mode driving:
To enter manual mode, shift the select lever to the M position.
While the engine switch is in the ON position or the push-button ignition switch is in
ON mode, move the select lever with the brake pedal depressed.
Temporary manual mode driving (vehicles with paddle shift levers):
Temporary manual mode driving can be changed to by
operating the paddle shift levers while the select lever is
in the D position.
Shifting the shift lever to R
Shift the shift lever to R while lifting up the ring section.
Downshift (-)U p s h i f t (+)

6

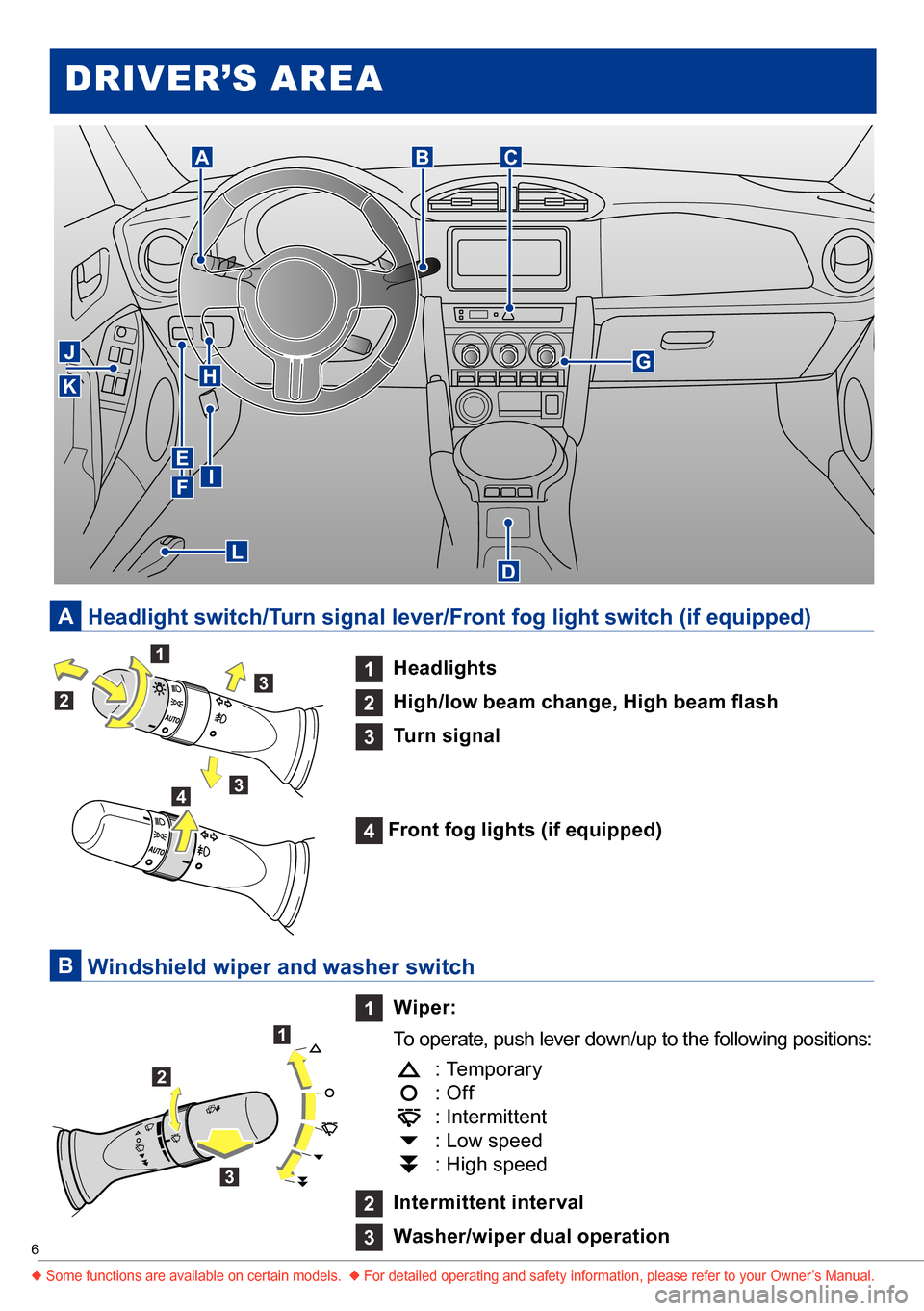

DRIVER’S AREA
1 Headlights
2 High/low beam change, High beam flash
3 Turn signal
4 Front fog lights (if equipped)
Headlight switch/Turn signal lever/Front fog light switch (if equipped)A
1 Wiper:
To operate, push lever down/up to the following positions:
: Te m p o r a r y
: Off
: Intermittent
: Low speed
: High speed
2 Intermittent interval
3 Washer/wiper dual operation
Windshield wiper and washer switchB
AC
I
JG
D
F
L
H
E
K
43
3
1
2
B
1
2
3
u Some functions are available on certain models. u For detailed operating and safety information, please refer to your Own\
er’s Manual.

7
Windshield defogger/Rear window defogger switchG
Hazard warning flasher switchC
Instrument panel light control dialE
Seat heater switches (if equipped)D
Manual headlight leveling dialF
All the turn signal lights will flash.
Use the switch to warn other drivers.
Ty p e ATy p e B
1 Windshield defogger switch:
The dehumidification function operates and fan speed increases.
Set the outside/recirculated air mode button to outside air mode if the recirculated air
mode is used. (It may switch automatically.)
2 Rear window defogger switch:
The rear window defogger and the outside rear view mirror defogger (if equipped) turns
on. The function will automatically turn off after approximately 15 min.
Press
Rapid heating
Normal heating
Brighter
Darker
Raise
Lower
1
2
1
2

8
1 Closing
2 One-touch closing*
3 Opening
4 One-touch opening*
* : Pushing the switch in the opposite direction will stop window travel partway.
5 Lock switch
1 Locks both side doors
2 Unlocks both side doors
Power windows switchesJ
Power door lock switchK
Trunk lid opener switchH Engine hood lock release lever I
1
2
4
5
3
Pull Press and hold
1
2
0058 Some functions are available on certain models. 00030058 For detailed operating and safety information, please refer to your Own\
er’s Manual.

9

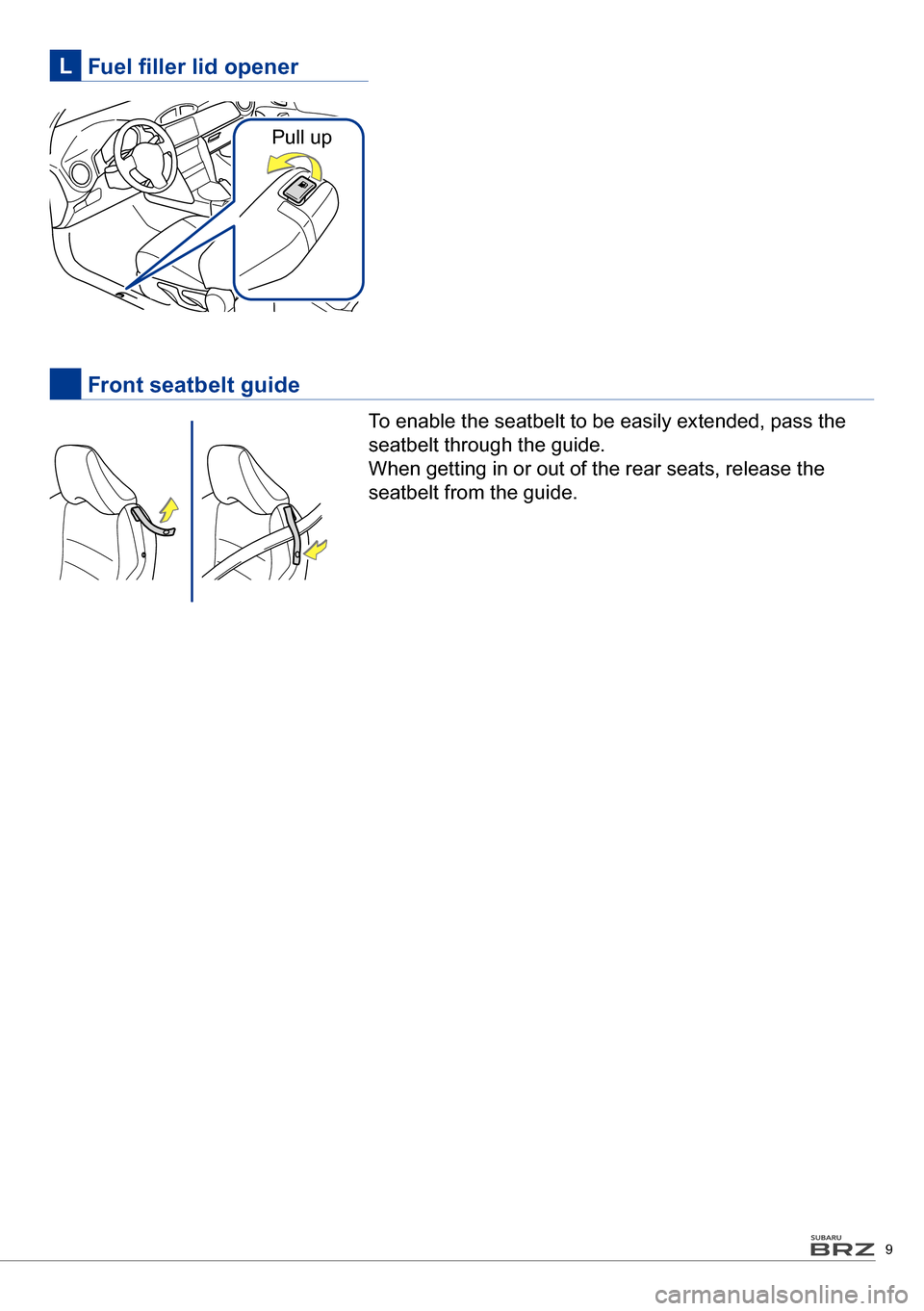

Fuel filler lid openerL
Front seatbelt guide
To enable the seatbelt to be easily extended, pass the
seatbelt through the guide.
When getting in or out of the rear seats, release the
seatbelt from the guide.
Pull up

10

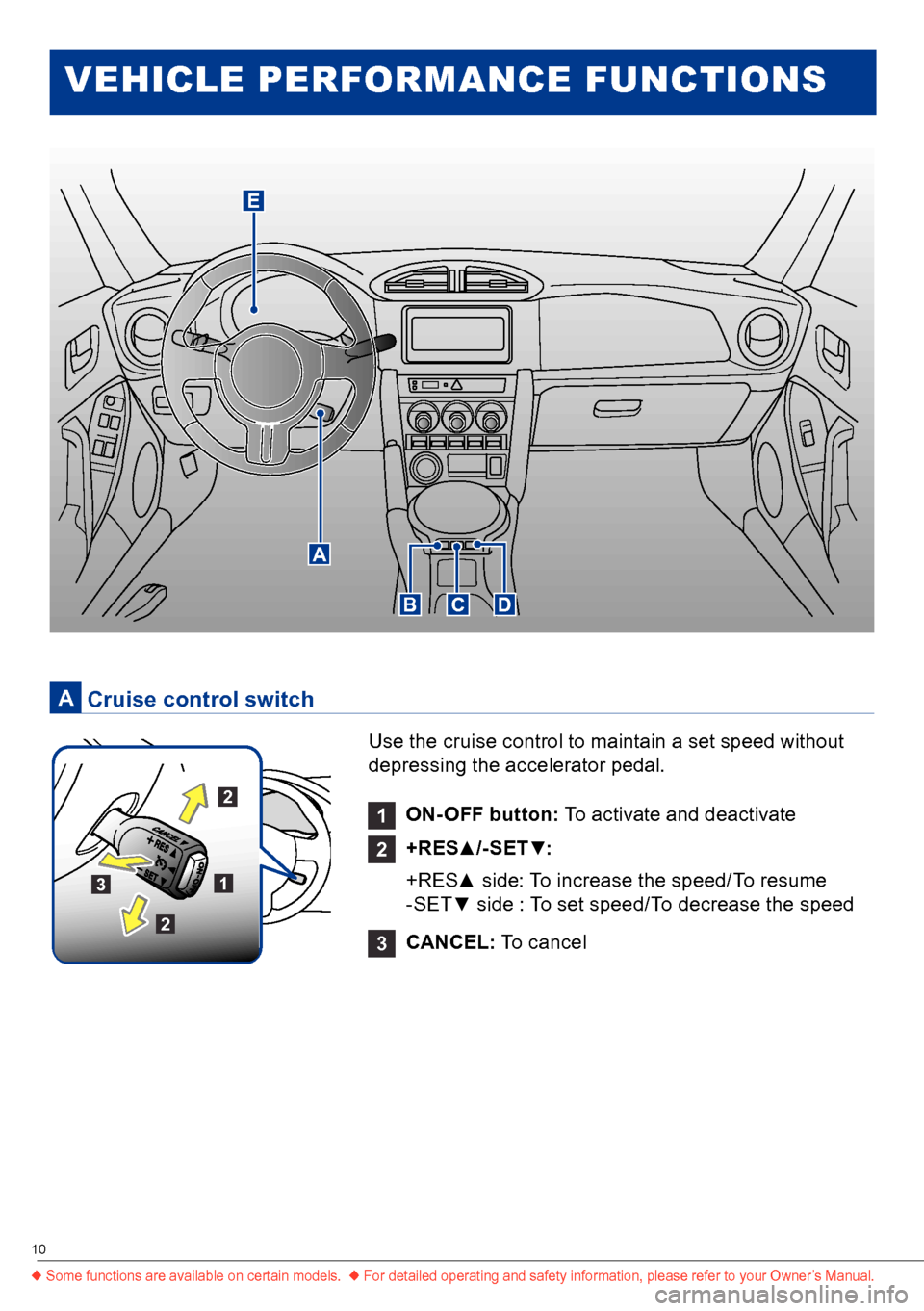

VEHICLE PERFORMANCE FUNCTIONS
Cruise control switchA
1 ON- OFF button: To activate and deactivate
2 + R E S▲ / - S E T ▼:
+RES▲ side: To increase the speed/To resume
-SET▼ side : To set speed/To decrease the speed
3 CANCEL: To cancel
Use the cruise control to maintain a set speed without
depressing the accelerator pedal.
C
A
E
DB
1
2
3
2
u Some functions are available on certain models. u For detailed operating and safety information, please refer to your Own\
