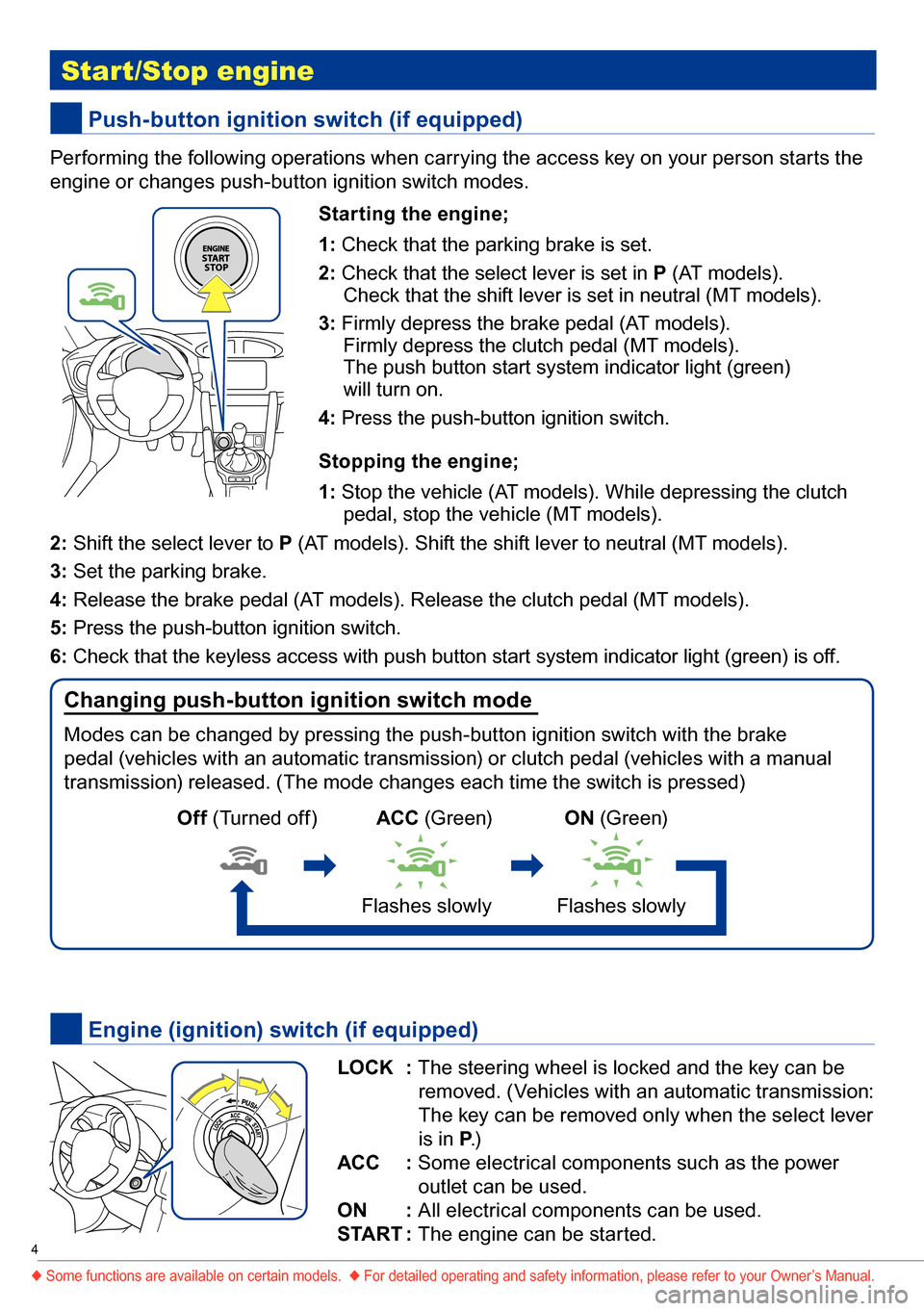

start stop button SUBARU BRZ 2016 1.G Quick Reference Guide

4
Start/Stop engine
Push-button ignition switch (if equipped)
Engine (ignition) switch (if equipped)
Performing the following operations when carrying the access key on your person starts the
engine or changes push-button ignition switch modes.
Starting the engine;
1: Check that the parking brake is set.
2: Check that the select lever is set in P (AT models). Check that the shift lever is set in neutral (MT models).
3: Firmly depress the brake pedal (AT models). Firmly depress the clutch pedal (MT models). The push button start system indicator light (green) will turn on.
4: Press the push-button ignition switch.
Stopping the engine;
1: Stop the vehicle (AT models). While depressing the clutch pedal, stop the vehicle (MT models).
2: Shift the select lever to P (AT models). Shift the shift lever to neutral (MT models).
3: Set the parking brake.
4: Release the brake pedal (AT models). Release the clutch pedal (MT models).
5: Press the push-button ignition switch.
6: Check that the keyless access with push button start system indicator light (green) is off.
Off ( Tu r n e d o f f )ACC (G r e e n)ON (G r e e n)
Modes can be changed by pressing the push-button ignition switch with the brake
pedal (vehicles with an automatic transmission) or clutch pedal (vehicles with a manual
transmission) released. (The mode changes each time the switch is pressed)
Changing push-button ignition switch mode
LOCK : The steering wheel is locked and the key can be
removed. (Vehicles with an automatic transmission:
The key can be removed only when the select lever
is in P.)
ACC : Some electrical components such as the power
outlet can be used.
ON : All electrical components can be used.
START : The engine can be started.
Flashes slowlyFlashes slowly
0058 Some functions are available on certain models. 00030058 For detailed operating and safety information, please refer to your Own\
er’s Manual.
