7

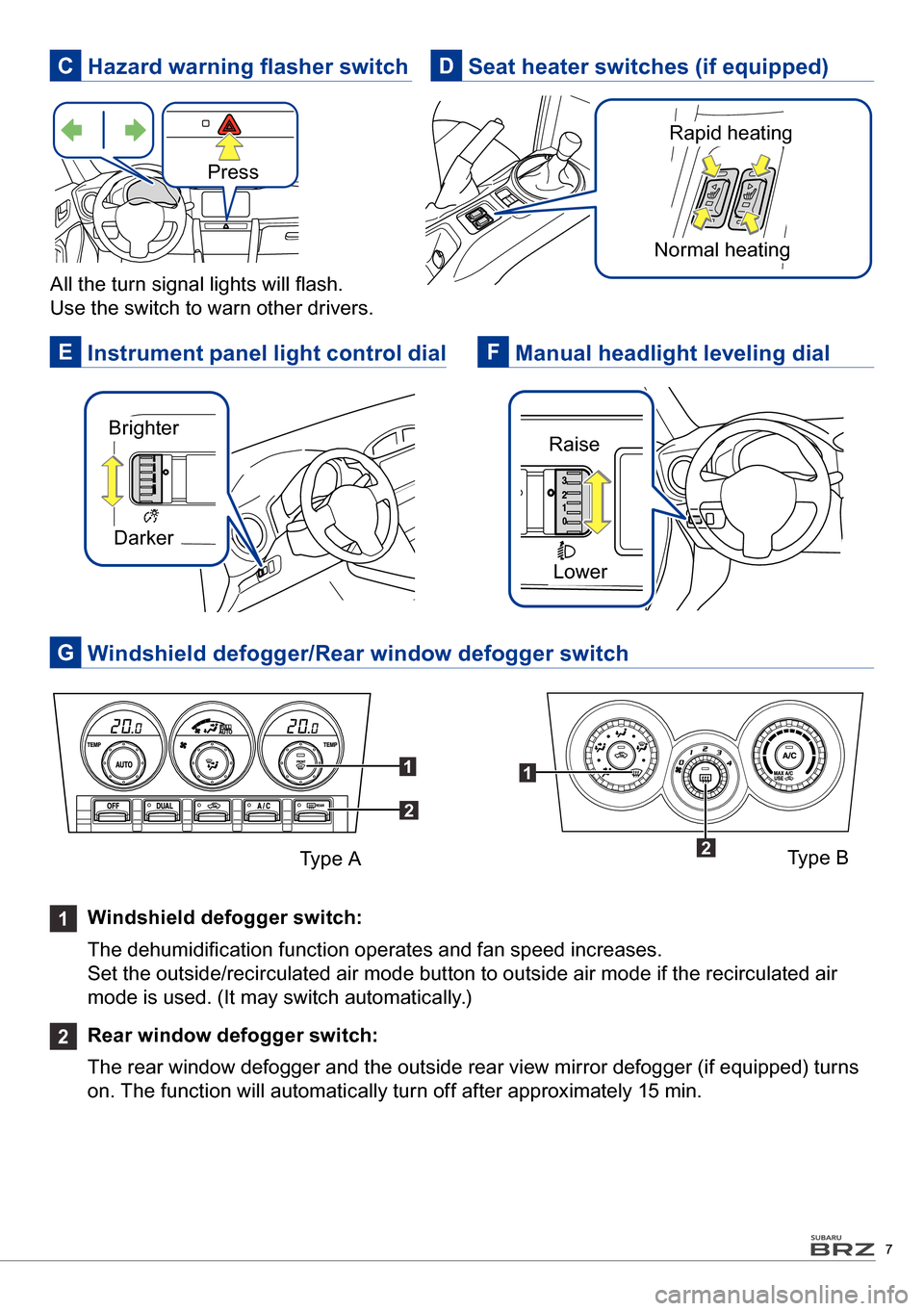

Windshield defogger/Rear window defogger switchG
Hazard warning flasher switchC
Instrument panel light control dialE
Seat heater switches (if equipped)D
Manual headlight leveling dialF
All the turn signal lights will flash.
Use the switch to warn other drivers.
Ty p e ATy p e B
1 Windshield defogger switch:
The dehumidification function operates and fan speed increases.
Set the outside/recirculated air mode button to outside air mode if the recirculated air
mode is used. (It may switch automatically.)
2 Rear window defogger switch:
The rear window defogger and the outside rear view mirror defogger (if equipped) turns
on. The function will automatically turn off after approximately 15 min.
Press
Rapid heating
Normal heating
Brighter
Darker
Raise
Lower
1
2
1
2

14
Some warning/indicator lights illuminate for a few seconds in order to check themselves
when the ignition switch is turned ON.
MAIN WARNING AND INDICATOR LIGHTS
Warning lights
Refer to your Owner’s Manual for countermeasures when each warning light comes on.
If necessary, consult your authorized SUBARU dealer.
Malfunction indicator
Indicates a malfunction in:• The electronic engine control system;• The electronic throttle control system;• The electronic automatic transmission control system.
Brake system warning
• Low brake fluid• Malfunction in the brake system• The parking brake is not released.
Charging system warning
Indicates a malfunction in the
vehicle’s charging system.
ABS warning
Indicates a malfunction in:
• The ABS;
• The brake assist system.
Low engine oil pressure warning
Indicates that the engine oil pressure is too low.
Electric power steering warning
Indicates a malfunction in the electric power steering system.
Driver’s seatbelt reminder
Warns the driver to fasten his/
her seatbelt.
Front passenger’s seatbelt reminder
Warns the front passenger
to fasten his or her seatbelt.
Location: On the center panel.
Open door warning
Indicates that a door or the trunk
lid is not fully closed.
Low fuel level warning
Fuel level is low.
SRS airbag system warning
Indicates a malfunction in:
• The SRS airbag system;
• The seatbelt pretensioner system;
• The front passenger occupant
detection system.
Automatic transmission fluid temperature warning (if equipped)
Indicates that the automatic
transmission fluid temperature is
too high.
u Some functions are available on certain models. u For detailed operating and safety information, please refer to your Own\
er’s Manual.
