SUBARU BRZ 2017 1.G Owner's Manual

19
Scrapping of your SUBARU
The SRS airbag and seatbelt pretensioner devices in your SUBARU contain
explosive chemicals. If the vehicle is scrapped with the airbags and seatbelt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seatbelt pretensioner
removed and disposed of by a qualified service shop or by your SUBARU
dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These
components may include airbag, seatbelt pretensioners, and transmitter
batteries.
WARNING
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

20
Symbols used throughout this manual
Warnings & Cautions
Symbols used in illustrations
WARNING
This is a warning against something which, if ignored, may cause death or
serious injury to people. You are informed about what you must or must not do
in order to reduce the risk of death or serious injury to yourself and others.
CAUTION
This is a warning against something which, if ignored, may cause damage to
the vehicle or its equipment. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your SUBARU and its
equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen.”
Arrows indicating operations
Indicates the action (pushing, turning,
etc.) used to operate switches and
other devices.
Indicates the outcome of an operation
(e.g. a lid opens).

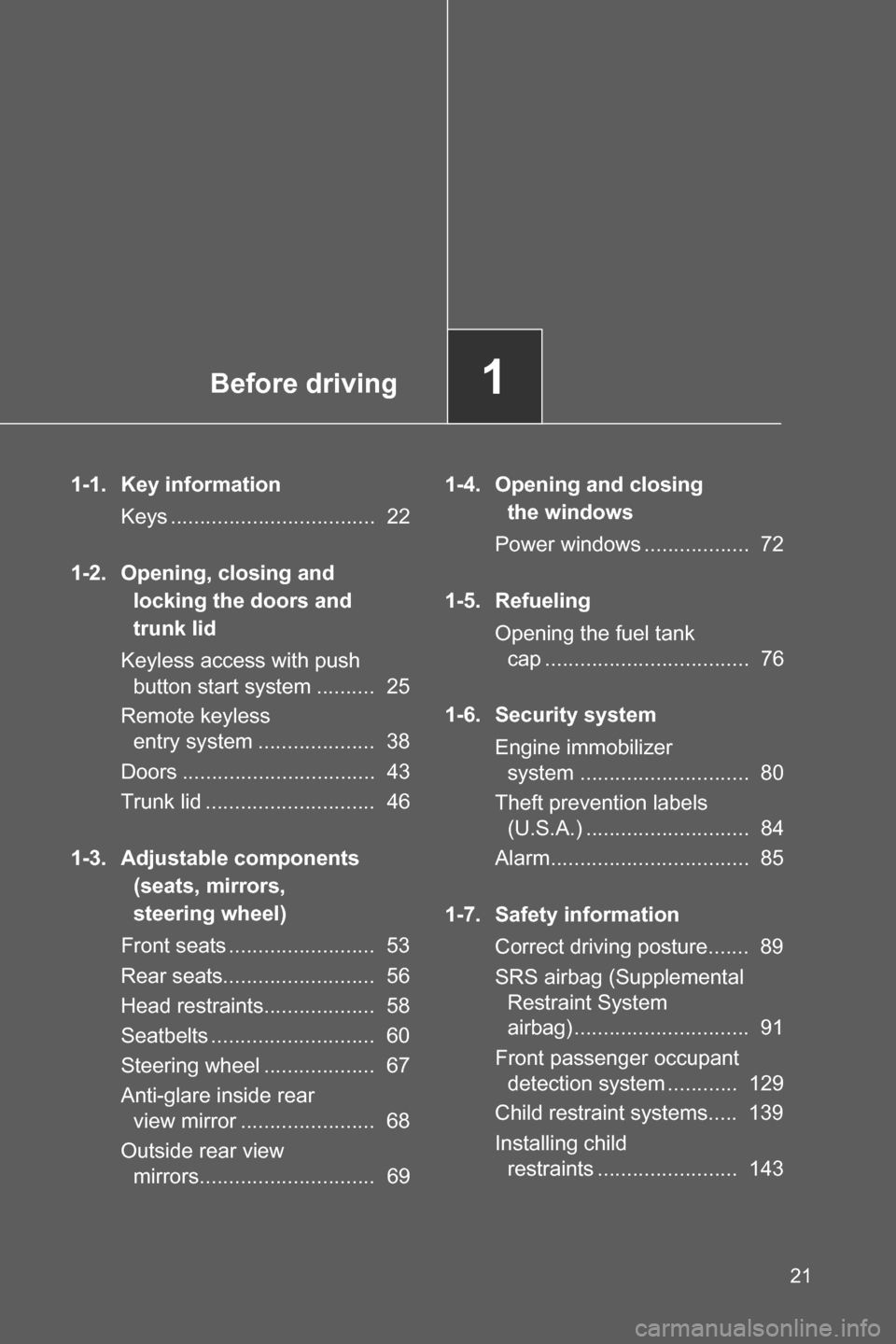

Before driving1
21
1-1. Key information
Keys ................................... 22
1-2. Opening, closing and
locking the doors and
trunk lid
Keyless access with push
button start system .......... 25
Remote keyless
entry system .................... 38
Doors ................................. 43
Trunk lid ............................. 46
1-3. Adjustable components
(seats, mirrors,
steering wheel)
Front seats ......................... 53
Rear seats.......................... 56
Head restraints................... 58
Seatbelts ............................ 60
Steering wheel ................... 67
Anti-glare inside rear
view mirror ....................... 68
Outside rear view
mirrors.............................. 691-4. Opening and closing
the windows
Power windows .................. 72
1-5. Refueling
Opening the fuel tank
cap ................................... 76
1-6. Security system
Engine immobilizer
system ............................. 80
Theft prevention labels
(U.S.A.) ............................ 84
Alarm.................................. 85
1-7. Safety information
Correct driving posture....... 89
SRS airbag (Supplemental
Restraint System
airbag) .............................. 91
Front passenger occupant
detection system ............ 129
Child restraint systems..... 139
Installing child
restraints ........................ 143

22
1-1. Key information
Keys
The following keys are provided with the vehicle.
Vehicles without a keyless access with push button start sys-
tem
Master keys
Operating the remote keyless
entry system (oP. 38)
Va l e t k e y
Key number plate
Vehicles with a keyless access with push button start system
Access keys
• Operating the keyless
access with push button
start system (oP. 25)
• Operating the remote key-
less entry system
(oP. 38)
Mechanical keys
Key number plate

23 1-1. Key information
1
Before driving
Using the mechanical key (vehicles with a keyless access with
push button start system)
To take out the mechanical key,
push the release knob and take
the key out.
After using the mechanical key,
store it in the access key. Carry
the mechanical key together with
the access key. If the access key
battery is depleted or the “keyless
access” entry function does not
operate properly, you will need
the mechanical key.
(oP. 449)
■When required to leave the vehicle’s key with a parking attendant
Turn the trunk lid opener main switch off as circumstances demand.
(oP. 4 7 )
On vehicles without a keyless access with push button start system, provide
the attendant with the valet key.
On vehicles with a keyless access with push button start system, remove the
mechanical key for your own use and provide the attendant with the access
key only.
■Key number plate
Keep the plate in a safe place, not in the vehicle. In the event that a key
(without a keyless access with push button start system) or mechanical key
(with a keyless access with push button start system) is lost, a new key can
be made at your SUBARU dealer using the key number plate. (oP. 448)
■When riding in an aircraft
When bringing a key with remote keyless entry system onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons
are not likely to be pressed accidentally. Pressing a button may cause the
key to emit radio waves that could interfere with the operation of the aircraft.

24 1-1. Key information
CAUTION
■To prevent key damage
Observe the following:
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temperatures for a long period of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Do not attach metallic or magnetic materials to the keys or place the keys
close to such materials.
●Do not disassemble the keys.
●Do not attach a sticker or anything else to the surface of the key.
●Vehicles with a keyless access with push button start system: Do not place
the keys near objects that produce magnetic fields, such as TVs, audio
systems, glass top ranges, or medical electrical equipment, such as low-
frequency therapy equipment.
■Carrying the access key on your person (vehicles with a keyless
access with push button start system)
Carry the access key 3.9 in. (10 cm) or more away from electric appliances
that are turned on. Radio waves emitted from electric appliances within 3.9
in. (10 cm) of the access key may interfere with the key, causing the key to
not function properly.
■In case of a keyless access with push button start system malfunction
or other key-related problems (vehicles with a keyless access with
push button start system)
Take your vehicle with all the access keys provided with your vehicle to your
SUBARU dealer.
■When a vehicle key is lost
If the key remains lost, the risk of vehicle theft increases significantly. Visit
your SUBARU dealer immediately with all remaining access keys that were
provided with your vehicle.

25
1
Before driving
1-2. Opening, closing and locking the doors and trunk lid

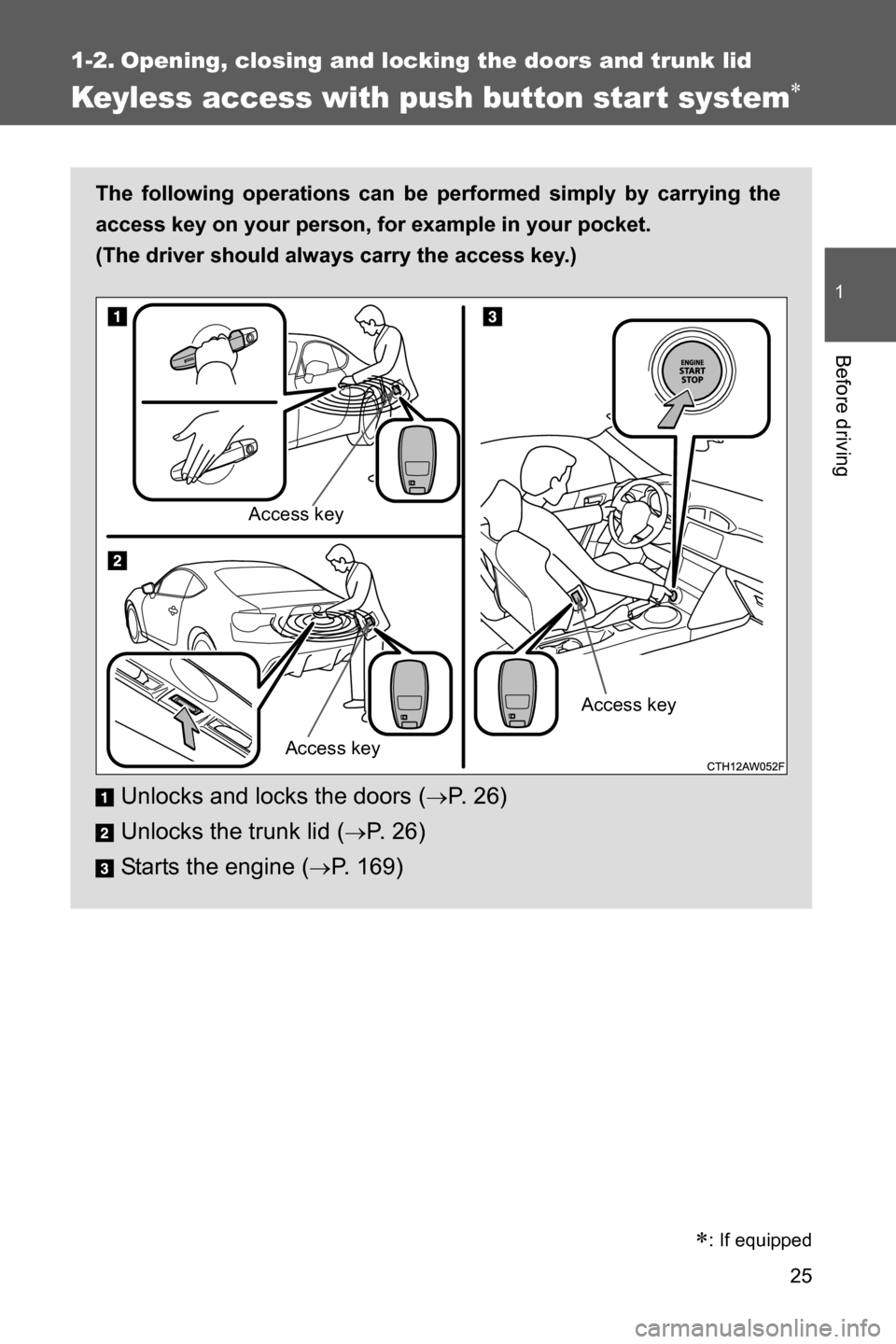

Keyless access with push button start system
The following operations can be performed simply by carrying the
access key on your person, for example in your pocket.
(The driver should always carry the access key.)
Unlocks and locks the doors (oP. 2 6 )
Unlocks the trunk lid (
oP. 2 6 )
Starts the engine (
oP. 1 6 9 )
Access key
Access key
Access key

: If equipped

26 1-2. Opening, closing and locking the doors and trunk lid
Unlocking and locking the doors
Grip the driver’s door handle to
unlock the door. Grip the passen-
ger’s door handle to unlock all
the doors.
Make sure to touch the sensor on
the back of the handle.
The doors cannot be unlocked for
3 seconds after the door is
locked.
Touch the lock sensor (the
indentation on the side of the
door handle) to lock the doors.
Check that the door is securely
locked.
Unlocking the trunk lid
Press the button to unlock the
trunk lid.

27 1-2. Opening, closing and locking the doors and trunk lid
1
Before driving
Antenna location and effective range
■Antenna location
Antennas outside the cabin
Antennas inside the cabin
Antenna outside the trunk
Antenna inside the trunk

28 1-2. Opening, closing and locking the doors and trunk lid
■Effective range (areas within which the access key is
detected)
When locking or unlocking
the doors
The system can be operated
when the access key is
within about 1.3 - 2.6 ft. (0.4 -
0.8 m) of either of the outside
door handles. (Only the
doors detecting the key can
be operated.)
When unlocking the trunk
lid
The system can be operated
when the access key is
within about 1.3 - 2.6 ft. (0.4 -
0.8 m) of the trunk lid release
button.
When starting the engine
or changing push-button
ignition switch modes
The system can be operated
when the access key is
inside the vehicle.
