SUBARU BRZ 2017 1.G Service Manual
Manufacturer: SUBARU, Model Year: 2017, Model line: BRZ, Model: SUBARU BRZ 2017 1.GPages: 540, PDF Size: 6.88 MB
Page 41 of 540
39 1-2. Opening, closing and locking the doors and trunk lid
1
Before driving
■Operation signals
Doors: A buzzer sounds and the hazard warning flashers flash to indicate
that the doors have been locked/unlocked. (Locked: once;
Unlocked: twice)
Trunk lid: A buzzer sounds to indicate that the trunk lid has been unlocked.
■Door lock buzzer (vehicles with a keyless access with push button
start system)
If an attempt to lock the doors is made when a door is not fully closed, a
buzzer sounds continuously. Fully close the door to stop the buzzer, and lock
the vehicle once more.
■Panic mode
Vehicles without a keyless access with push button start system
Vehicles with a keyless access with push button start systemWhen is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on
the transmitter.
When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on
the access key.
Page 42 of 540
40 1-2. Opening, closing and locking the doors and trunk lid
■Vehicle finder function
Vehicles without a keyless access with push button start system
Vehicles with a keyless access with push button start system
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.A buzzer (sounds once) and the hazard
warning flashers (flash 3 times) are used
to inform the driver of the vehicle’s loca-
tion.
Press 3 times within 5 seconds
while within a circumference of approxi-
mately 30 ft. (10 m) from of the vehicle.
However, if the interval between the 3
presses is short, the system may not be
activated.This setting must be custom-
ized at your SUBARU dealer.
A buzzer (sounds once) and the hazard
warning flashers (flash 3 times) are used
to inform the driver of the vehicle’s loca-
tion.
Press 3 times within 5 seconds
while within a circumference of approxi-
mately 30 ft. (10 m) from of the vehicle.
However, if the interval between the 3
presses is short, the system may not be
activated.This setting must be custom-
ized at your SUBARU dealer.
Page 43 of 540
41 1-2. Opening, closing and locking the doors and trunk lid
1
Before driving
■Conditions affecting operation
Vehicles without a keyless access with push button start system
The remote keyless entry system may not operate normally in the following
situations:
●When the transmitter battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electri-
cal noise
●When carrying a portable radio, cellular phone or other wireless commu-
nication devices
●When the transmitter is in contact with, or is covered by a metallic object
●When other transmitters (that emit radio waves) are being used nearby
●If window tint with a metallic content or metallic objects are attached to
the rear window
Vehicles with a keyless access with push button start system
oP. 3 1
■If the remote keyless entry system does not operate properly (vehicles
with a keyless access with push button start system)
Locking and unlocking the doors, unlocking the trunk lid: Use the mechanical
key. ( oP. 449)
■Key battery depletion
Vehicles without a keyless access with push button start system
If the remote keyless entry system does not operate, the battery may be
depleted. Replace the battery when necessary. ( oP. 367)
Vehicles with a keyless access with push button start system
oP. 3 5
■When the access key battery is fully depleted
oP. 367
■Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask
your SUBARU dealer for details.
■Customization that can be configured at your SUBARU dealer
Settings (e.g. remote keyless entry system) can be changed.
(Customizable features oP. 493)
Page 44 of 540
42 1-2. Opening, closing and locking the doors and trunk lid
■Certification for remote keyless entry system
For vehicles sold in the U.S.A.
FCC ID: HYQ23AAA FCC ID: HYQ12BBY
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
For vehicles sold in Canada
NOTE:
This device complies with Industry Canada’s licence-exempt RSSs. Opera-
tion is subject to the following two conditions: (1) this device may not cause
interference; and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
NOTE:
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
Page 45 of 540

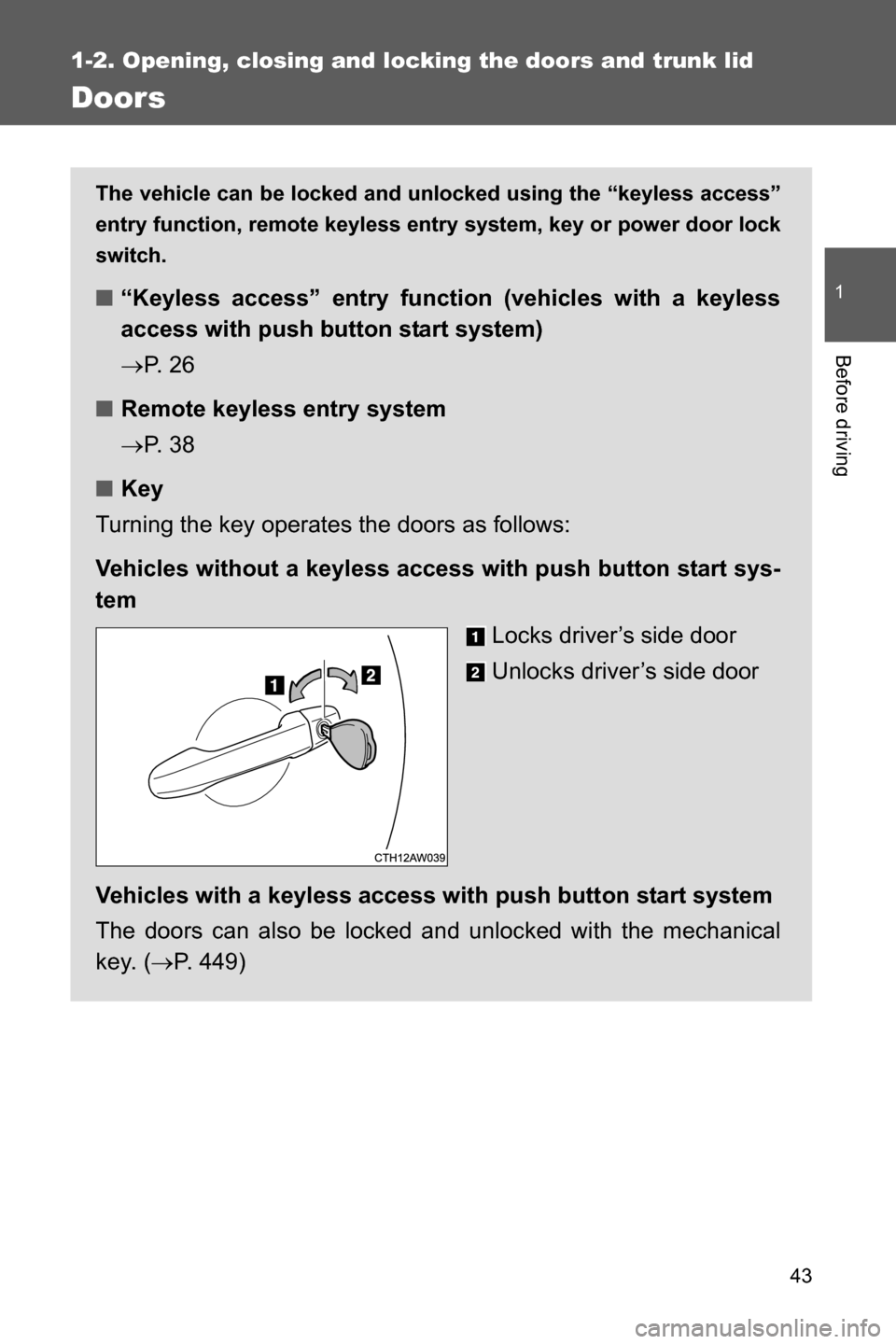

43
1
1-2. Opening, closing and locking the doors and trunk lid
Before driving
Doors
The vehicle can be locked and unlocked using the “keyless access”
entry function, remote keyless entry system, key or power door lock
switch.
■“Keyless access” entry function (vehicles with a keyless
access with push button start system)
oP. 2 6
■Remote keyless entry system
oP. 3 8
■Key
Turning the key operates the doors as follows:
Vehicles without a keyless access with push button start sys-
tem
Locks driver’s side door
Unlocks driver’s side door
Vehicles with a keyless access with push button start system
The doors can also be locked and unlocked with the mechanical
key. ( oP. 449)
Page 46 of 540
44 1-2. Opening, closing and locking the doors and trunk lid
Locking the doors from the outside without a key
Move the lock lever to the lock position.
Close the door.
Vehicles with a keyless access with push button start system
The door cannot be locked if the access key is left inside the vehi-
cle.
The key may not be detected correctly and the door may be locked.
■Power door lock switch
Locks both side doors
Unlocks both side doors
■Lock lever
Locks the door
Unlocks the door
STEP 1
STEP 2
Page 47 of 540
45 1-2. Opening, closing and locking the doors and trunk lid
1
Before driving
■Window open/close function linked to door operation
In order to make opening and closing the doors easier, completely closed
windows are linked to door operations. Therefore, when a door is opened, its
window opens slightly. When a door is closed, its window closes completely.
However, if the battery has discharged or is disconnected, this function will
not operate. ( oP. 457)
■If the keyless access with push button start system has been deacti-
vated in a customized setting (vehicles with a keyless access with
push button start system)
Use the remote keyless entry system or mechanical key. ( oP. 38, 449)
WARNING
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
●Always use a seatbelt.
●Always lock both side doors.
●Ensure that both side doors are properly closed.
●Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Page 48 of 540
46
1-2. Opening, closing and locking the doors and trunk lid

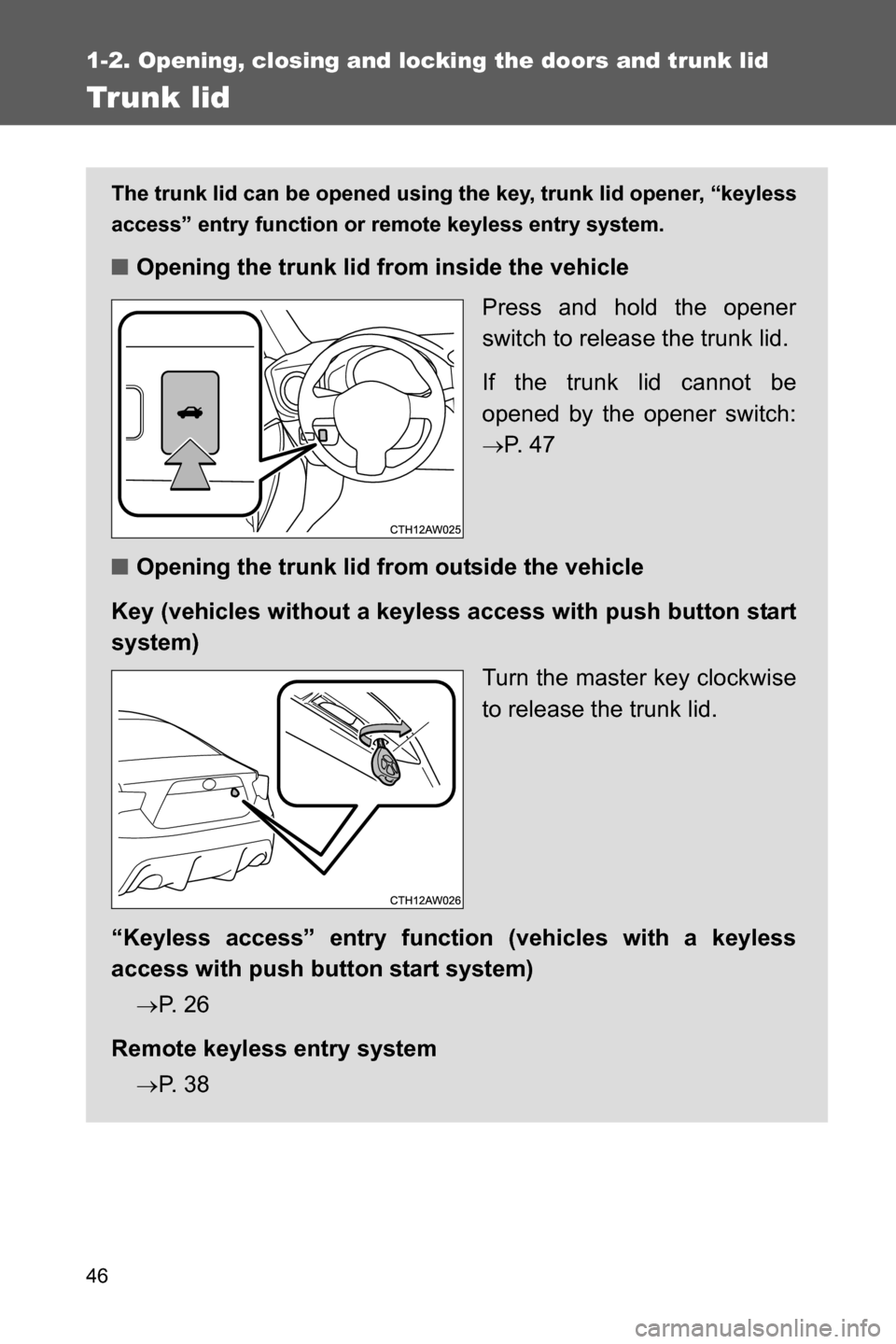

Trunk lid
The trunk lid can be opened using the key, trunk lid opener, “keyless
access” entry function or remote keyless entry system.
■Opening the trunk lid from inside the vehicle
Press and hold the opener
switch to release the trunk lid.
If the trunk lid cannot be
opened by the opener switch:
oP. 4 7
■Opening the trunk lid from outside the vehicle
Key (vehicles without a keyless access with push button start
system)
Turn the master key clockwise
to release the trunk lid.
“Keyless access” entry function (vehicles with a keyless
access with push button start system)
oP. 2 6
Remote keyless entry system
oP. 3 8
Page 49 of 540
47 1-2. Opening, closing and locking the doors and trunk lid
1
Before driving
Canceling the trunk lid opener feature
To protect luggage stored in the trunk lid against theft, do the follow-
ing:
Turn the main switch in the trunk
lid off to disable the trunk lid
opener.
On (The trunk lid can be
opened using the trunk lid
opener.)
Off (The trunk lid cannot be
opened using the trunk lid
opener.)
Vehicles without a keyless access
with push button start system:
The trunk lid can only be opened
with the master key.
Vehicles with a keyless access
with push button start system:
The trunk lid can only be opened
with the mechanical key.
Page 50 of 540
48 1-2. Opening, closing and locking the doors and trunk lid
■Trunk light
The trunk light turns on when the trunk lid is opened.
■Function to prevent the trunk lid being locked with the access key
inside (vehicles with a keyless access with push button start system)
●When all doors are being locked, closing the trunk lid with the access key
left inside the trunk will sound an alarm.
In this case, the trunk lid can be opened using the “keyless access” entry
function.
●Even when the spare access key is put in the trunk with all the doors
locked, the key confinement prevention function can be activated so the
trunk lid can be opened. In order to prevent theft, take all access keys
with you when leaving the vehicle.
●Even when the access key is put in the trunk with all the doors are
locked, the key may not be detected depending on the places and the
surrounding radio wave conditions. In this case, the key confinement pre-
vention function cannot be activated, causing the doors to lock when the
trunk lid is closed. Make sure to check where the key is before closing
the trunk lid.
●The key confinement prevention function cannot be activated if any one
of the doors is unlocked. In this case, open the trunk lid using the trunk lid
opener.
■Internal trunk lid release lever
■Using the mechanical key (vehicles with a keyless access with push
button start system)
The trunk lid can be also opened using the mechanical key. ( oP. 449) The trunk lid can be opened by pulling on
the glow-in-the-dark lever located on the
inside of the trunk lid.
The lever will continue to glow for some
time after the trunk lid is closed.
