79 1-5. Refueling
1
Before driving
WARNING
■When refueling
Observe the following precautions to prevent fuel overflowing from the fuel
tank:
●Securely insert the fuel nozzle into the fuel filler neck
●Stop filling the tank after the fuel nozzle automatically clicks off
●Do not top off the fuel tank
●Observe other precautions that are posted at the service station.
●Turn the cap to the right until it clicks to ensure that it is fully tightened. If
the cap is not securely tightened, fuel spillage could occur in the event of
an accident, creating a fire hazard.
■When replacing the fuel cap
Do not use anything but a genuine fuel tank cap designed for your vehicle.
Doing so may cause a fire or other incident which may result in death or seri-
ous injury.
CAUTION
■Refueling
●Do not spill fuel during refueling.
Doing so may damage the vehicle, such as causing the emission control
system to operate abnormally or damaging fuel system components or the
vehicle's painted surface.
●Never add any cleaning agents to the fuel tank. The addition of a cleaning
agent may cause damage to the fuel system.
●Immediately put fuel in the tank whenever the low fuel warning light illumi-
nates. Engine misfires as a result of an empty tank could cause damage to
the engine. Continuing to operate your vehicle at an extremely low fuel
level may result in a reduction of engine performance.

80
1-6. Security system

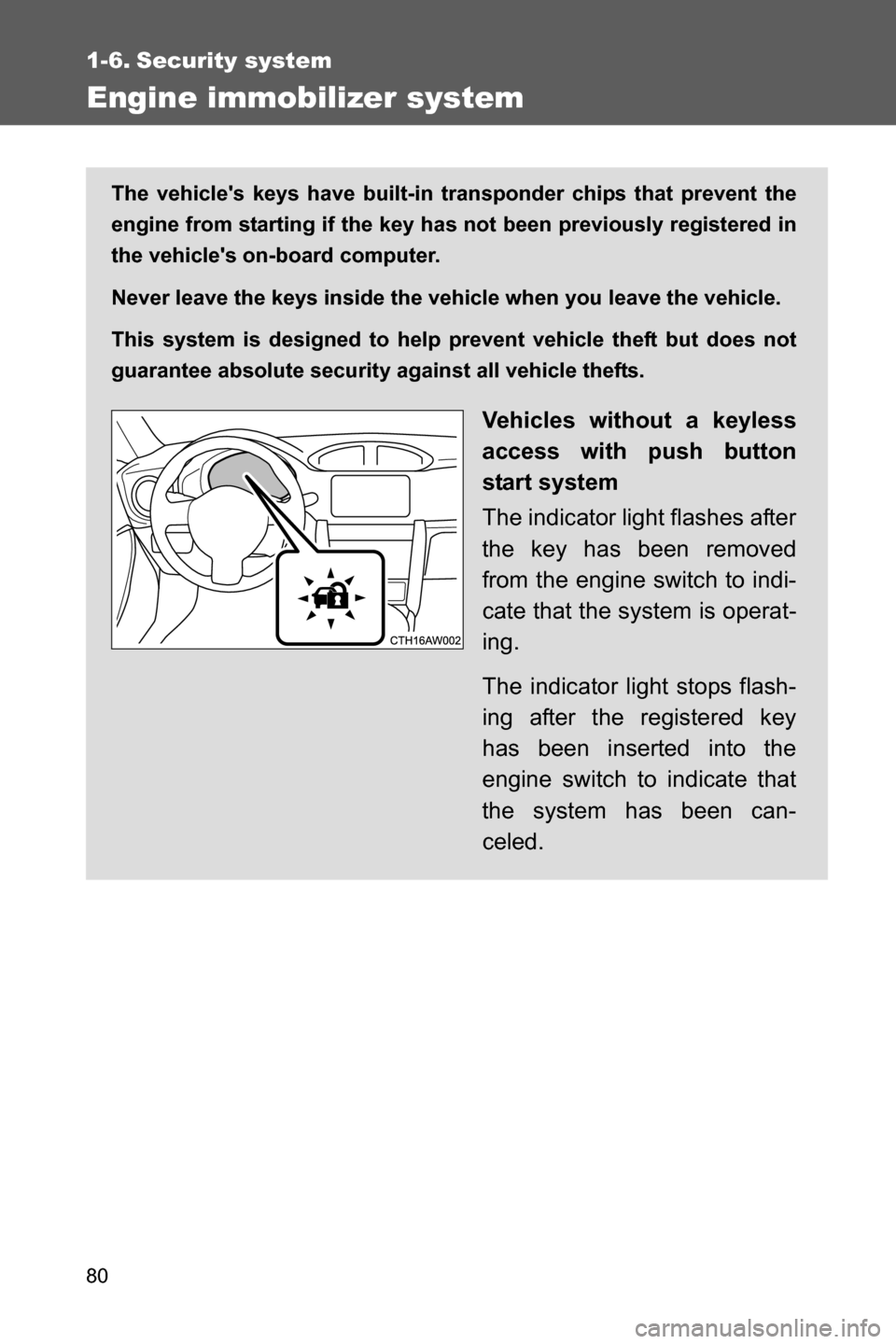

Engine immobilizer system
The vehicle's keys have built-in transponder chips that prevent the
engine from starting if the key has not been previously registered in
the vehicle's on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not
guarantee absolute security against all vehicle thefts.
Vehicles without a keyless
access with push button
start system
The indicator light flashes after
the key has been removed
from the engine switch to indi-
cate that the system is operat-
ing.
The indicator light stops flash-
ing after the registered key
has been inserted into the
engine switch to indicate that
the system has been can-
celed.

81 1-6. Security system
1
Before driving
■When the vehicle cannot be started with the registered key (vehicles
without a keyless access with push button start system)
Remove the key and try again.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the key is in contact with a metallic object
●If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle
Vehicles with a keyless
access with push button
start system
The indicator light flashes after
the push-button ignition switch
has been turned off to indicate
that the system is operating.
The indicator light stops flash-
ing after the push-button igni-
tion switch has been turned to
“ACC” or “ON” mode to indi-
cate that the system has been
canceled.

82 1-6. Security system
■Certification for engine immobilizer system
For vehicles sold in the U.S.A.
FCC ID: Y8PSSPIMB03 FCC ID: MOZRI-38BFH
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
FCC WARNING
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE:
This device complies with Industry Canada’s licence-exempt RSSs. Opera-
tion is subject to the following two conditions: (1) This device may not cause
interference, and (2) This device must accept any interference, including
interference that may cause undesired operation of the device.
NOTE:
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. L’exploitation est autorisée aux
deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
For vehicles sold in Mexico
Este equipo opera a título secundario, consecuentemente, debe aceptar
interferencias perjudiciales incluyendo equipos de la misma clase y puede
no causar interferencias a sistemas operando a título primario.

83 1-6. Security system
1
Before driving
CAUTION
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

84
1-6. Security system

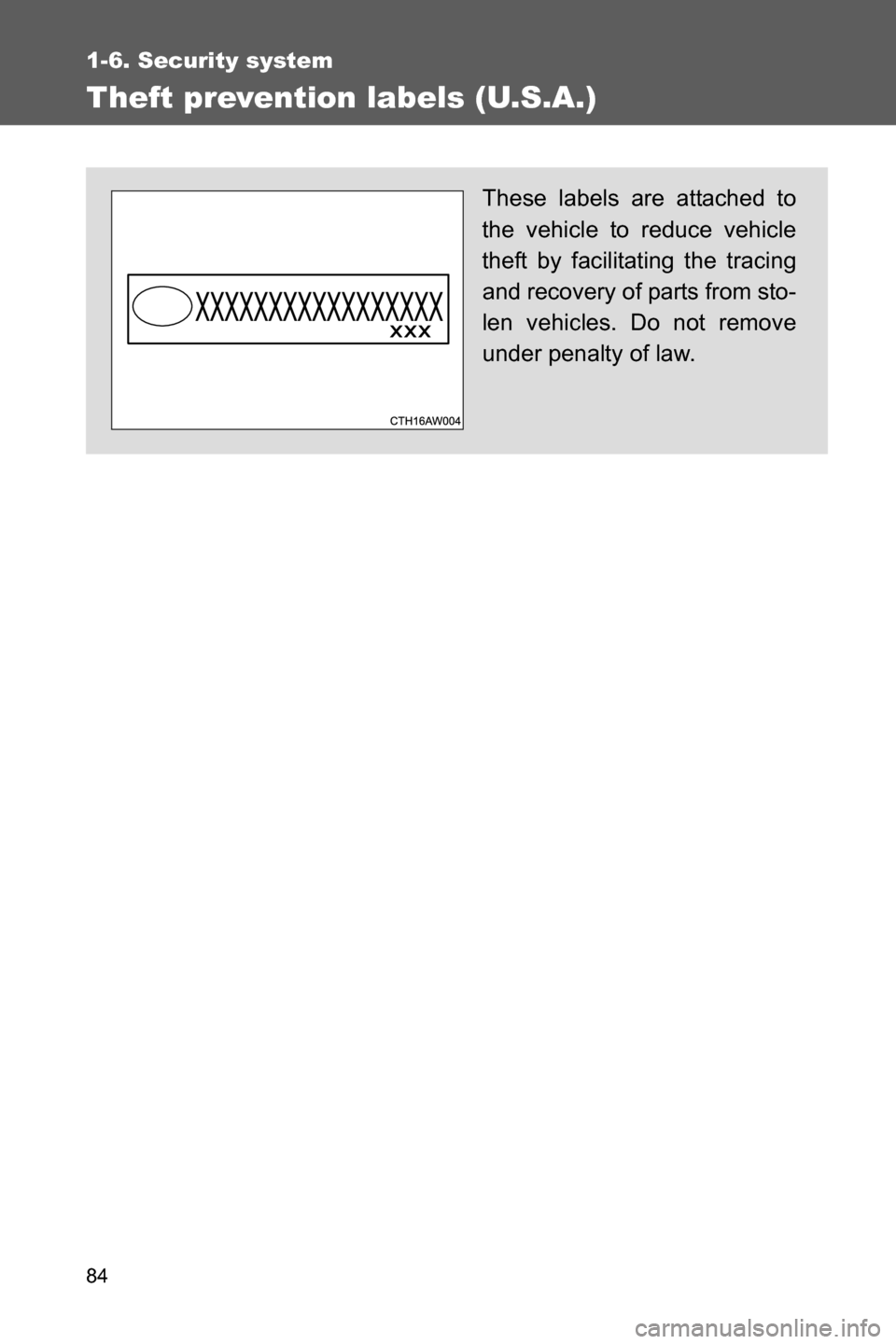

Theft prevention labels (U.S.A.)
These labels are attached to
the vehicle to reduce vehicle
theft by facilitating the tracing
and recovery of parts from sto-
len vehicles. Do not remove
under penalty of law.

85
1
1-6. Security system
Before driving

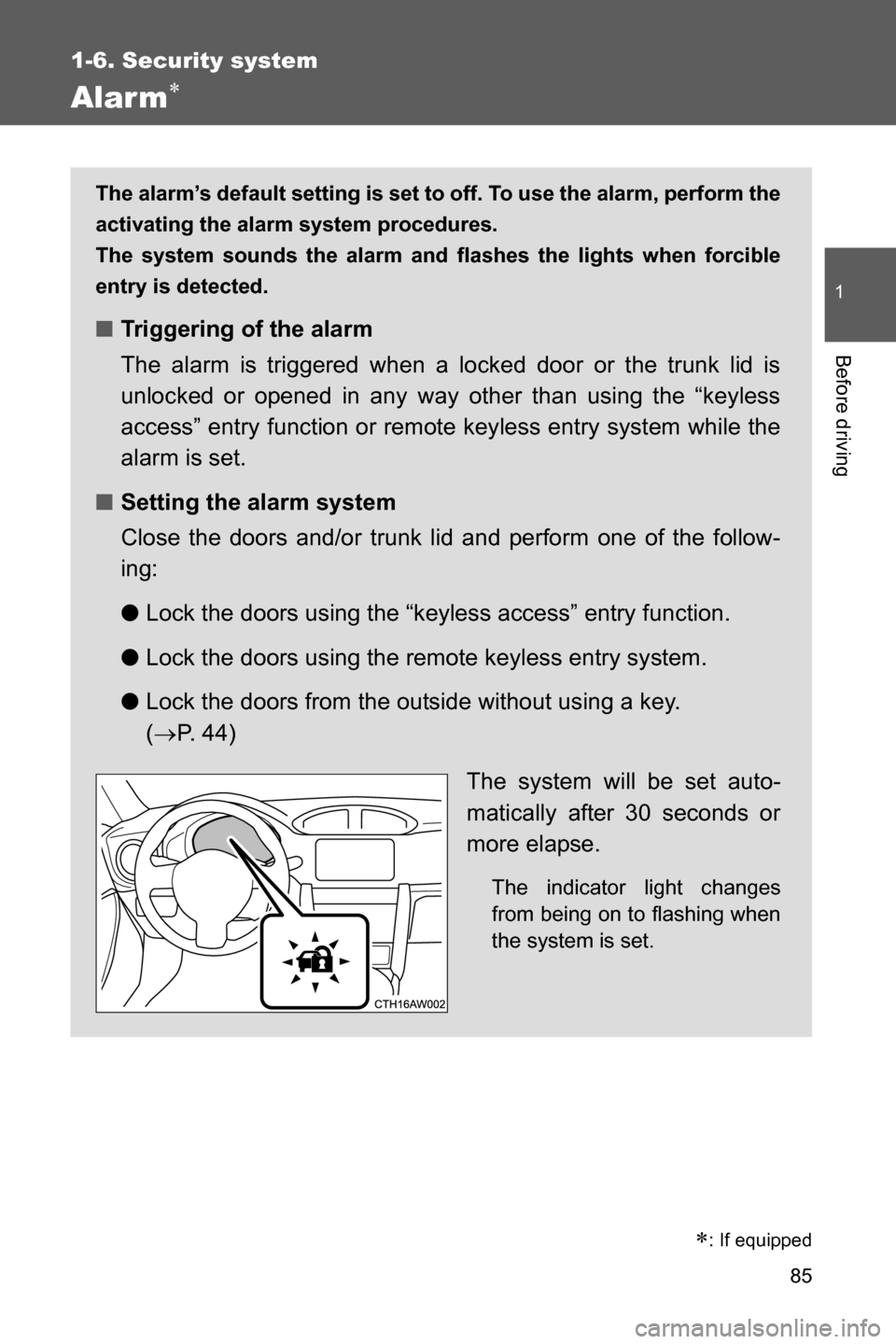

Alarm
The alarm’s default setting is set to off. To use the alarm, perform the
activating the alarm system procedures.
The system sounds the alarm and flashes the lights when forcible
entry is detected.
■Triggering of the alarm
The alarm is triggered when a locked door or the trunk lid is
unlocked or opened in any way other than using the “keyless
access” entry function or remote keyless entry system while the
alarm is set.
■Setting the alarm system
Close the doors and/or trunk lid and perform one of the follow-
ing:
●Lock the doors using the “keyless access” entry function.
●Lock the doors using the remote keyless entry system.
●Lock the doors from the outside without using a key.
(oP. 44)
The system will be set auto-
matically after 30 seconds or
more elapse.
The indicator light changes
from being on to flashing when
the system is set.

: If equipped

86 1-6. Security system
Activating/deactivating the alarm system
Check that both side doors and the trunk lid are closed.
Turn the push-button ignition switch to “ON” mode.
Open the driver’s door while
pressing and holding on
the power door lock switch and
continue to press for
approximately 10 seconds after
the driver’s door has opened.
The alarm system changes
between activated and deacti-
vated as follows.
■Deactivating or stopping the alarm
Perform one of the following to deactivate or stop the alarm:
●Unlock the doors using the “keyless access” entry function.
●Unlock the doors using the remote keyless entry system.
●Turn the push-button ignition switch to “ACC” or “ON” mode,
or start the engine. (The alarm will be deactivated or stopped
after a few seconds.)
STEP 1
STEP 2
STEP 3
Alarm statusHornMulti-information dis-
play
Deactivated Sounds twice AL oF
Activated Sounds once AL on

87 1-6. Security system
1
Before driving
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure
of the following.
●Nobody is in the vehicle.
●The windows are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Opening and closing the trunk lid
●If the alarm setting operations are performed with the trunk lid left open,
the alarm will not be set. After closing the trunk lid, the alarm is set after
30 seconds or more elapse.
●When the trunk lid is unlocked using the “keyless access” entry function
or remote keyless entry system while the alarm is set, the alarm goes
into standby mode. After closing the trunk lid, the alarm is set again after
30 seconds or more elapse.
■Triggering of the alarm
The alarm may be triggered in the following situations.
Stopping the alarm deactivates the alarm system.
●A person inside the vehicle opens a
door or the trunk lid.
●The battery is recharged or replaced
when the vehicle is locked.

88 1-6. Security system
■When the battery is disconnected
Be sure to deactivate the alarm system.
If the battery is disconnected before deactivating the alarm system, the
alarm may be triggered when the battery is reconnected.
■Customization that can be configured at your SUBARU dealer
Settings (e.g. alarm system) can be changed.
(Customizable features oP. 493)
CAUTION
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
