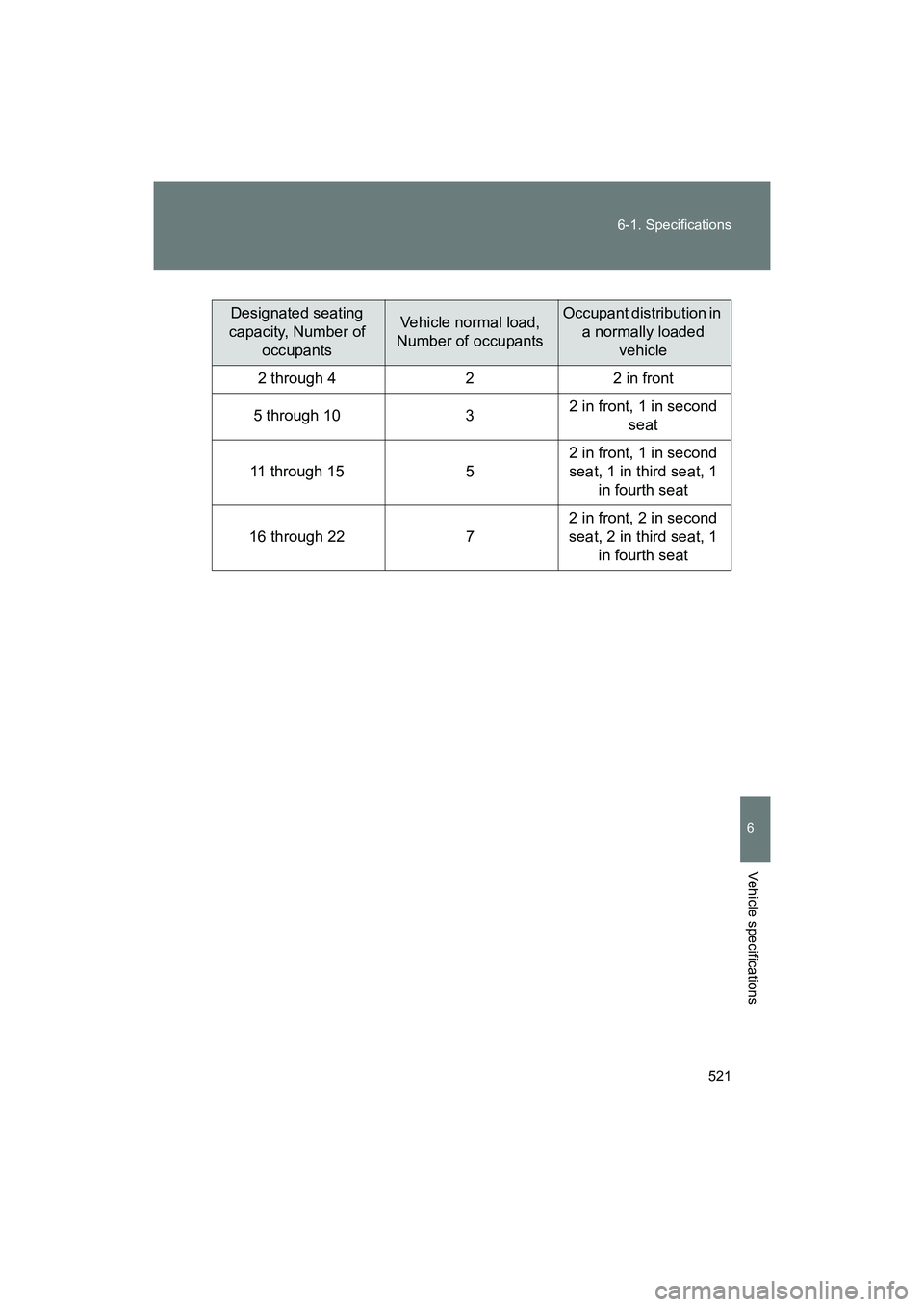

Page 521 of 568
521
6-1. Specifications
6
Vehicle specifications
BRZ_U (A4450BE-A)
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehicle
2 through 4 2 2 in front
5 through 10 3 2 in front, 1 in second
seat
11 through 15 5 2 in front, 1 in second
seat, 1 in third seat, 1
in fourth seat
16 through 22 7 2 in front, 2 in second
seat, 2 in third seat, 1
in fourth seat

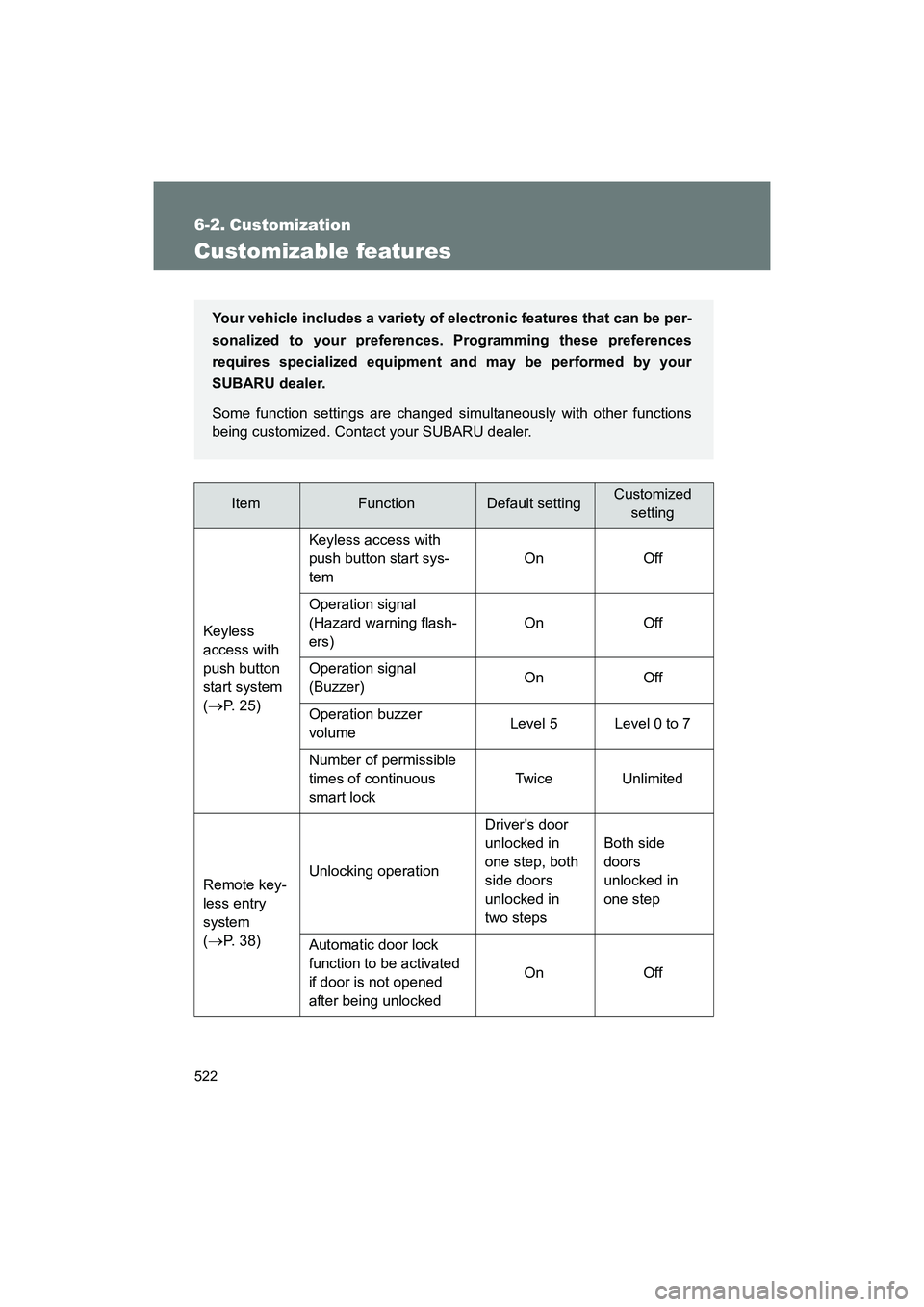

Page 522 of 568

522
BRZ_U (A4450BE-A)
6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Keyless
access with
push button
start system
(
→P. 25) Keyless access with
push button start sys-
tem
On Off
Operation signal
(Hazard warning flash-
ers) On Off
Operation signal
(Buzzer) On Off
Operation buzzer
volume Level 5 Level 0 to 7
Number of permissible
times of continuous
smart lock Twice Unlimited
Remote key-
less entry
system
(
→P. 38) Unlocking operation
Driver's door
unlocked in
one step, both
side doors
unlocked in
two stepsBoth side
doors
unlocked in
one step
Automatic door lock
function to be activated
if door is not opened
after being unlocked On Off
Your vehicle includes a variety of
electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by your
SUBARU dealer.
Some function settings are changed simultaneously with other functions
being customized. Contact your SUBARU dealer.

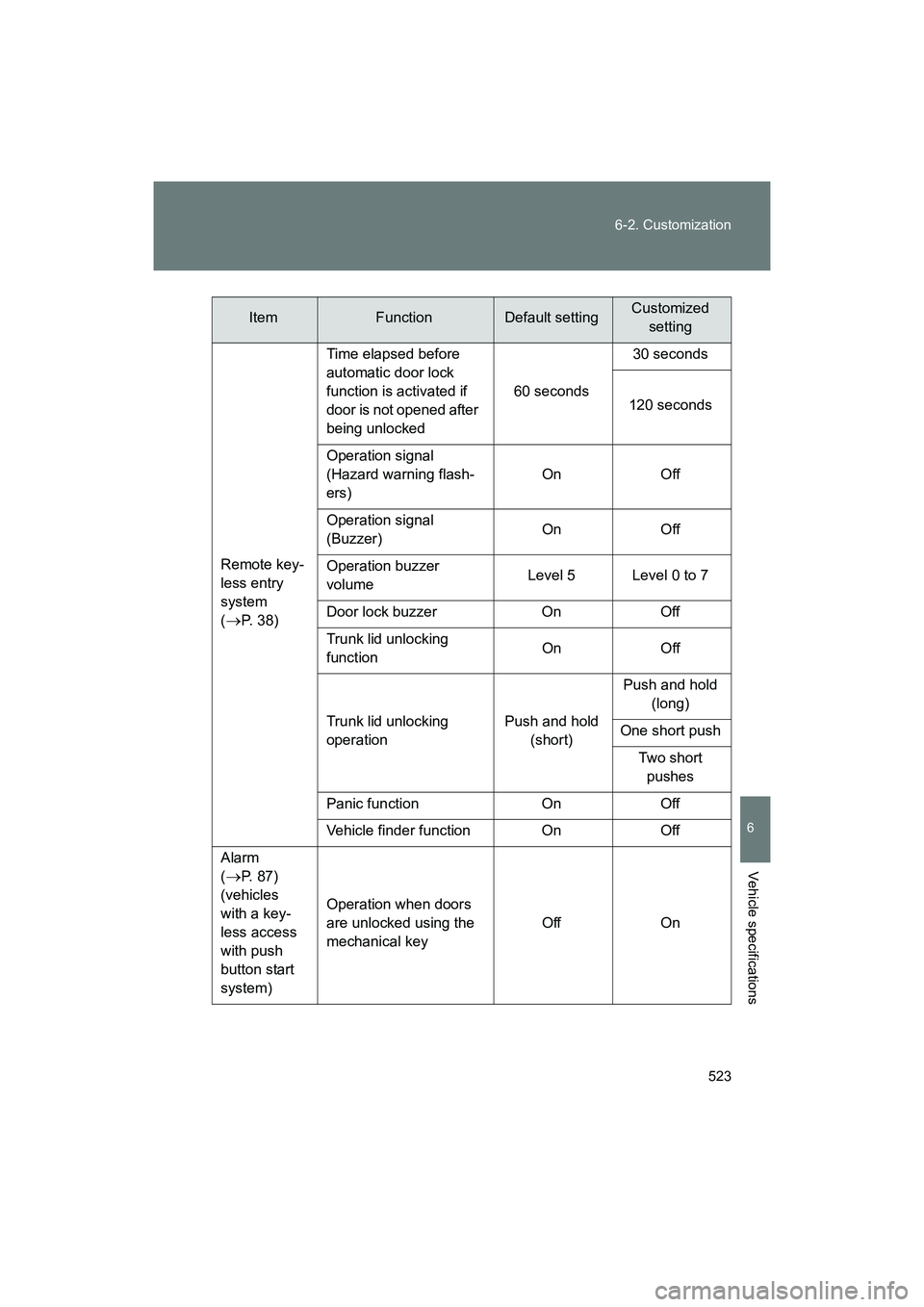

Page 523 of 568
523
6-2. Customization
6
Vehicle specifications
BRZ_U (A4450BE-A)
Remote key-
less entry
system
(
→P. 38)
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked
60 seconds30 seconds
120 seconds
Operation signal
(Hazard warning flash-
ers) On Off
Operation signal
(Buzzer) On Off
Operation buzzer
volume Level 5 Level 0 to 7
Door lock buzzer On Off
Trunk lid unlocking
function On Off
Trunk lid unlocking
operation Push and hold
(short) Push and hold
(long)
One short push Two short pushes
Panic function On Off
Vehicle finder function On Off
Alarm
(
→P. 87)
(vehicles
with a key-
less access
with push
button start
system) Operation when doors
are unlocked using the
mechanical key
Off On
ItemFunctionDefault settingCustomized
setting

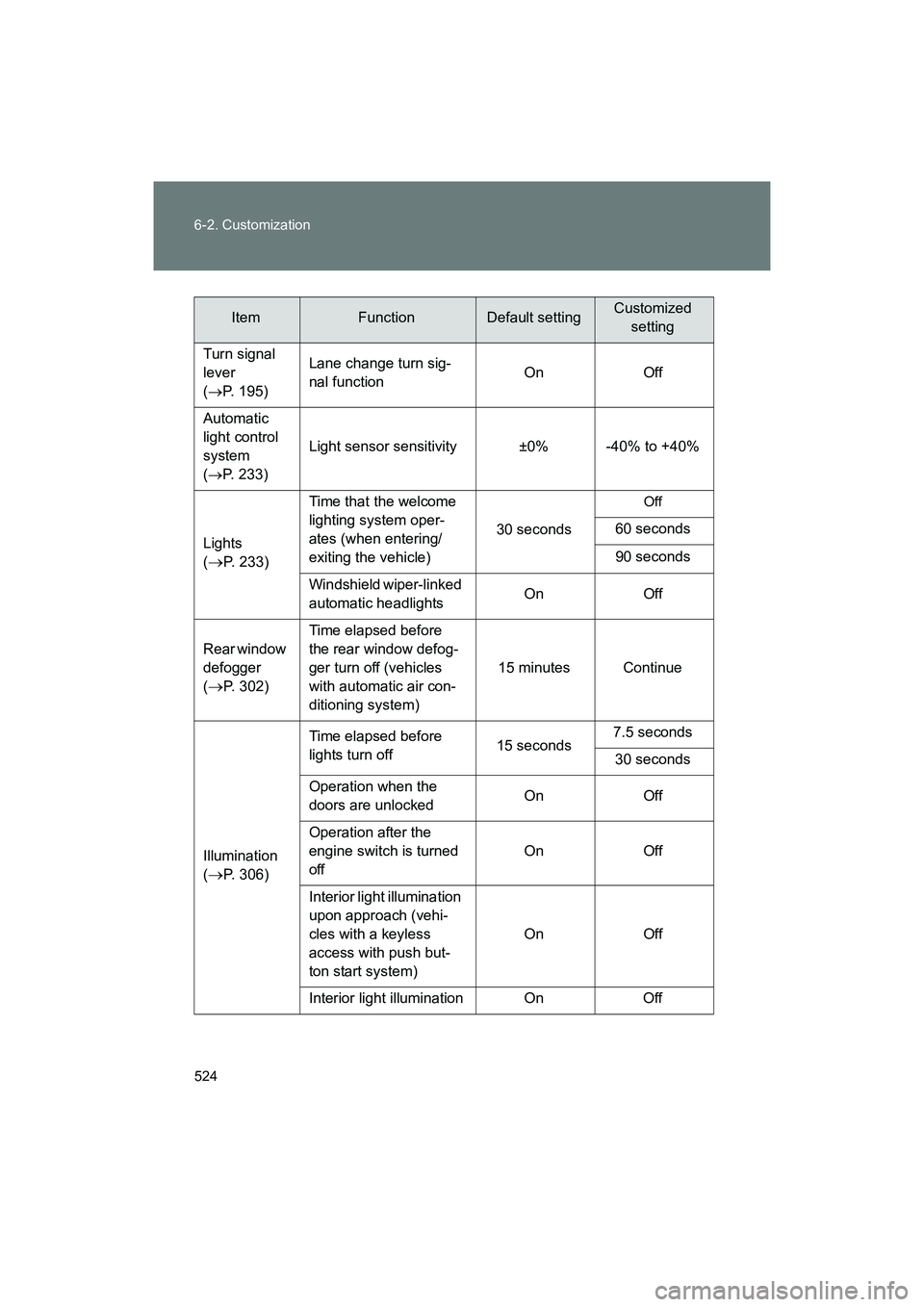

Page 524 of 568
524 6-2. Customization
BRZ_U (A4450BE-A)
Turn signal
lever
(→ P. 195) Lane change turn sig-
nal function
On Off
Automatic
light control
system
( → P. 233) Light sensor sensitivity ±0% -40% to +40%
Lights
(
→P. 233) Time that the welcome
lighting system oper-
ates (when entering/
exiting the vehicle)
30 seconds
Off
60 seconds
90 seconds
Windshield wiper-linked
automatic headlights On Off
Rear window
defogger
(
→P. 302) Time elapsed before
the rear window defog-
ger turn off (vehicles
with automatic air con-
ditioning system)
15 minutes Continue
Illumination
(
→P. 306) Time elapsed before
lights turn off
15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlocked On Off
Operation after the
engine switch is turned
off On Off
Interior light illumination
upon approach (vehi-
cles with a keyless
access with push but-
ton start system) On Off
Interior light illumination On Off
ItemFunctionDefault settingCustomized setting

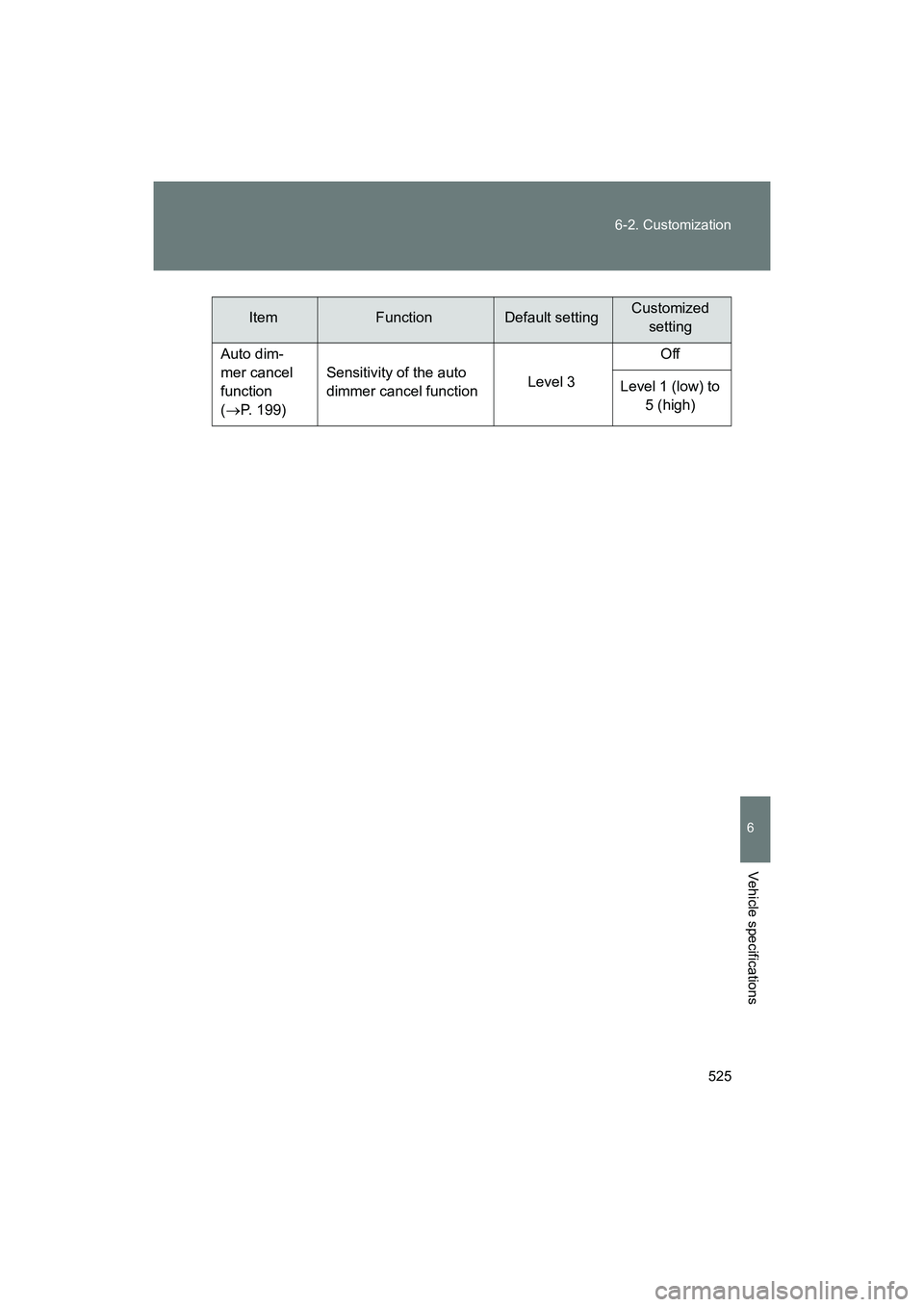

Page 525 of 568
525
6-2. Customization
6
Vehicle specifications
BRZ_U (A4450BE-A)
Auto dim-
mer cancel
function
(
→ P. 199) Sensitivity of the auto
dimmer cancel function
Level 3Off
Level 1 (low) to 5 (high)
ItemFunctionDefault settingCustomizedsetting

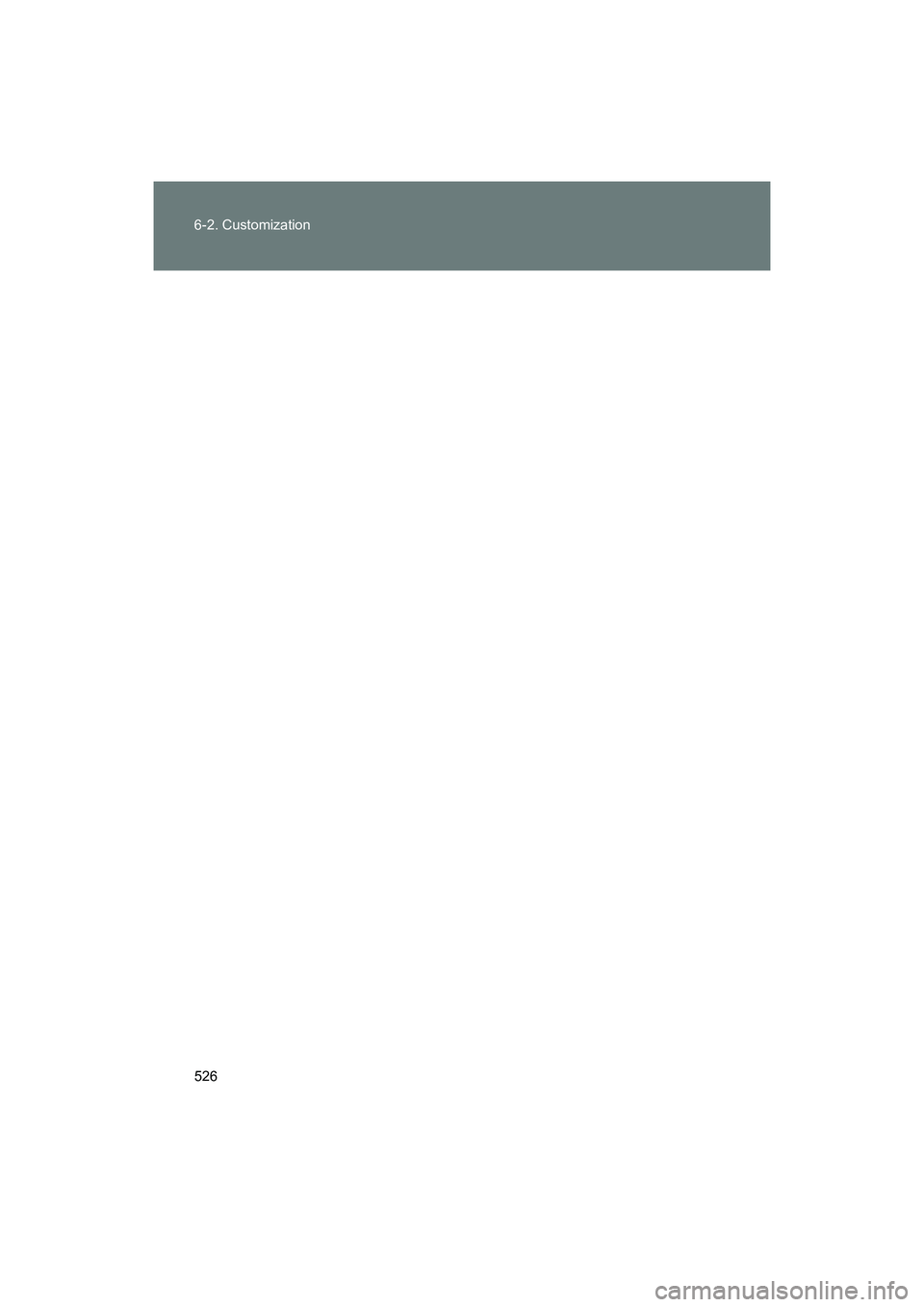

Page 526 of 568
526 6-2. Customization
BRZ_U (A4450BE-A)

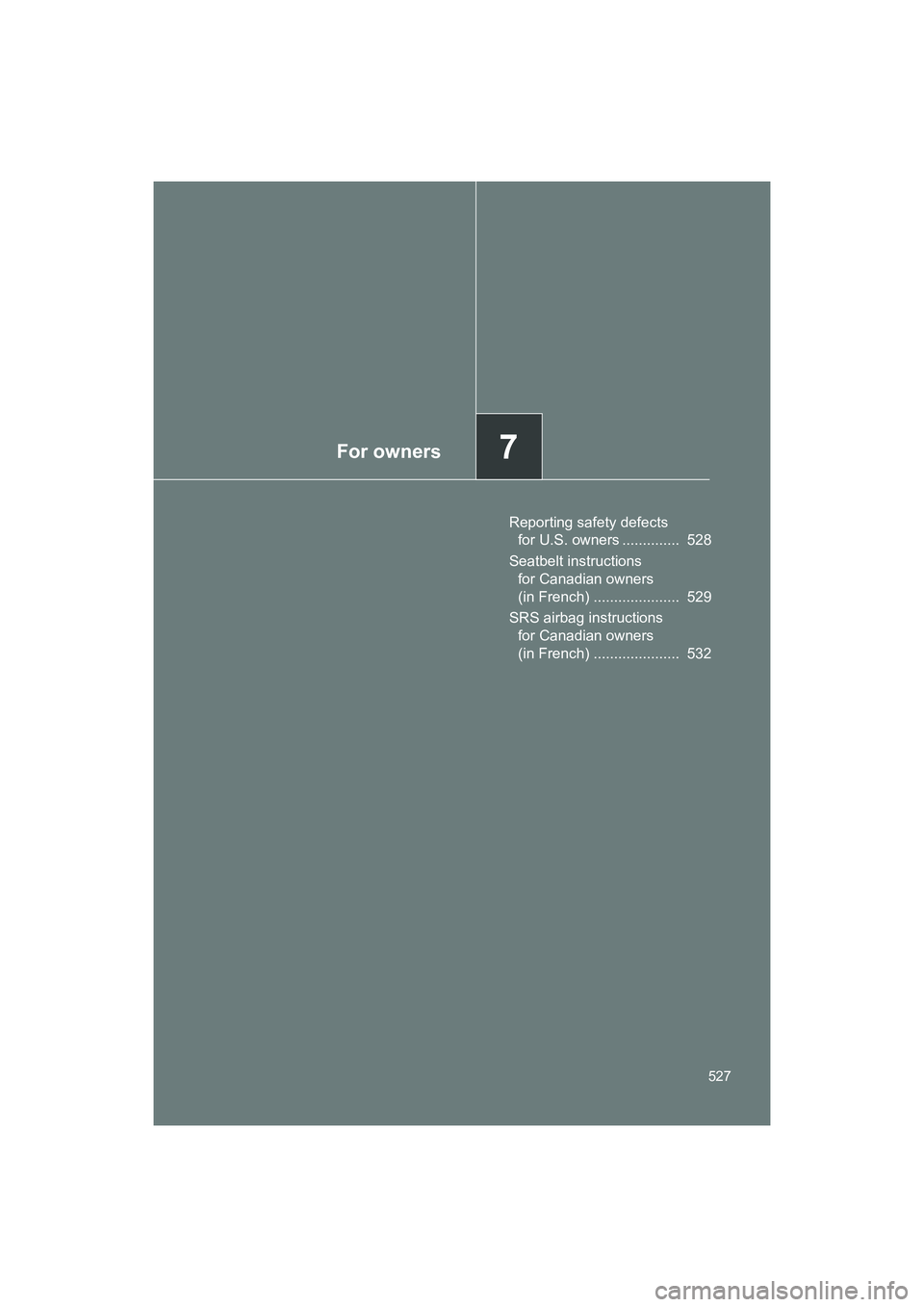

Page 527 of 568
For owners7
527
BRZ_U (A4450BE-A)
Reporting safety defects for U.S. owners .............. 528
Seatbelt instructions for Canadian owners
(in French) ..................... 529
SRS airbag instructions for Canadian owners
(in French) ..................... 532

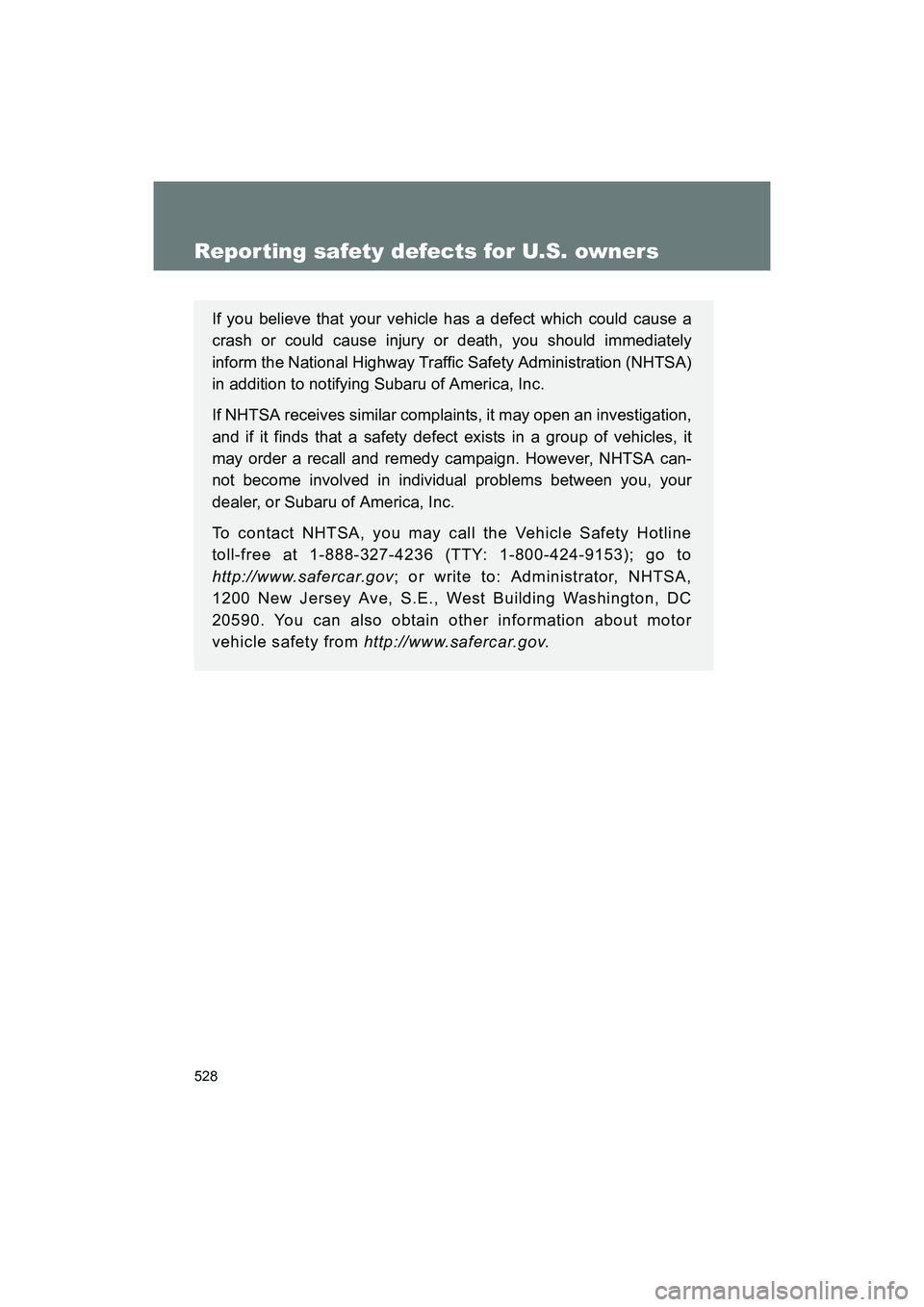

Page 528 of 568
528
BRZ_U (A4450BE-A)
Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffic Safety Administration (NHTSA)
in addition to notifying Subaru of America, Inc.
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individual problems between you, your
dealer, or Subaru of America, Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to: Administrator, NHTSA,
1200 New Jersey Ave, S.E., West Building Washington, DC
20590. You can also obtain other information about motor
vehicle safety from http://www.safercar.gov .

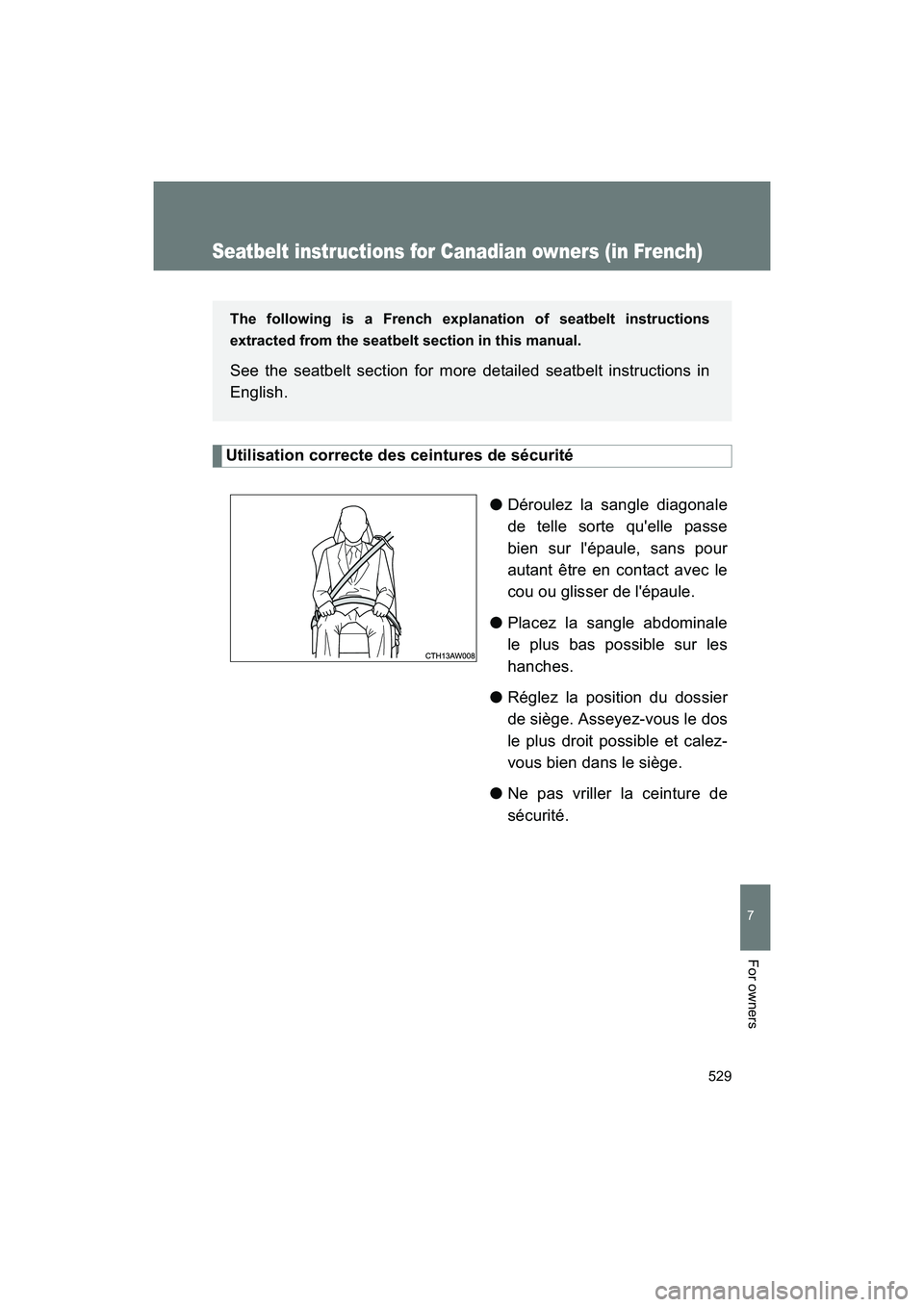

Page 529 of 568
529
7
BRZ_U (A4450BE-A)
For owners
Seatbelt instructions for Canadian owners (in French)
Utilisation correcte des ceintures de sécurité●Déroulez la sangle diagonale
de telle sorte qu'elle passe
bien sur l'épaule, sans pour
autant être en contact avec le
cou ou glisser de l'épaule.
● Placez la sangle abdominale
le plus bas possible sur les
hanches.
● Réglez la position du dossier
de siège. Asseyez-vous le dos
le plus droit possible et calez-
vous bien dans le siège.
● Ne pas vriller la ceinture de
sécurité.
The following is a French explanation of seatbelt instructions
extracted from the seatbelt section in this manual.
See the seatbelt section for more detailed seatbelt instructions in
English.

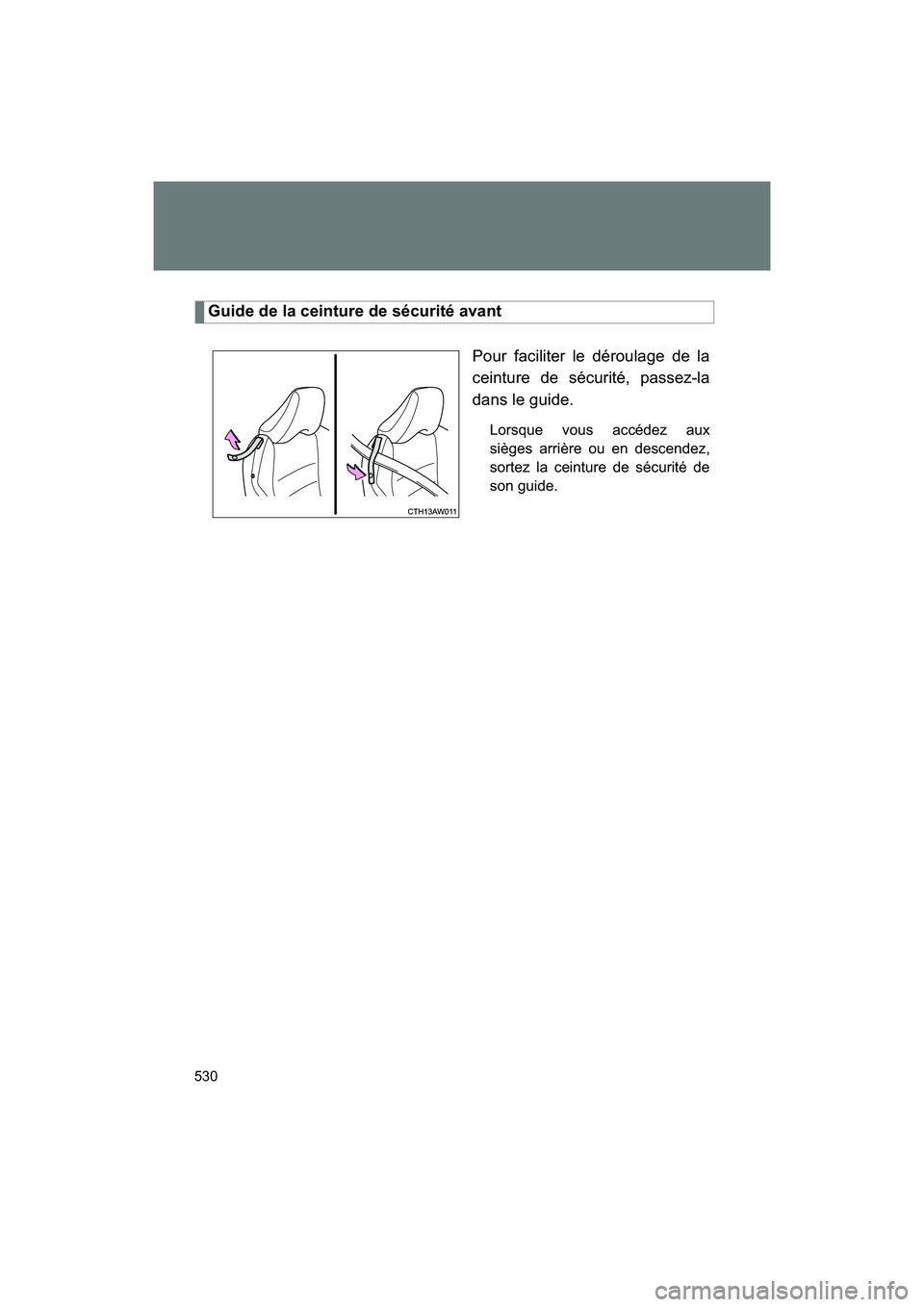

Page 530 of 568
530
BRZ_U (A4450BE-A)
Guide de la ceinture de sécurité avantPour faciliter le déroulage de la
ceinture de sécurité, passez-la
dans le guide.
Lorsque vous accédez aux
sièges arrière ou en descendez,
sortez la ceinture de sécurité de
son guide.
