SUBARU BRZ 2018 Quick Guide
Manufacturer: SUBARU, Model Year: 2018, Model line: BRZ, Model: SUBARU BRZ 2018Pages: 33, PDF Size: 3.52 MB
Page 1 of 33
2 018
Quick Guide
BRZ
Love. It’s what makes a Subaru, a Subaru.
3156598_18a_BRZ_QRG_100217.indd 210/3/17 8:55 AM
Page 2 of 33

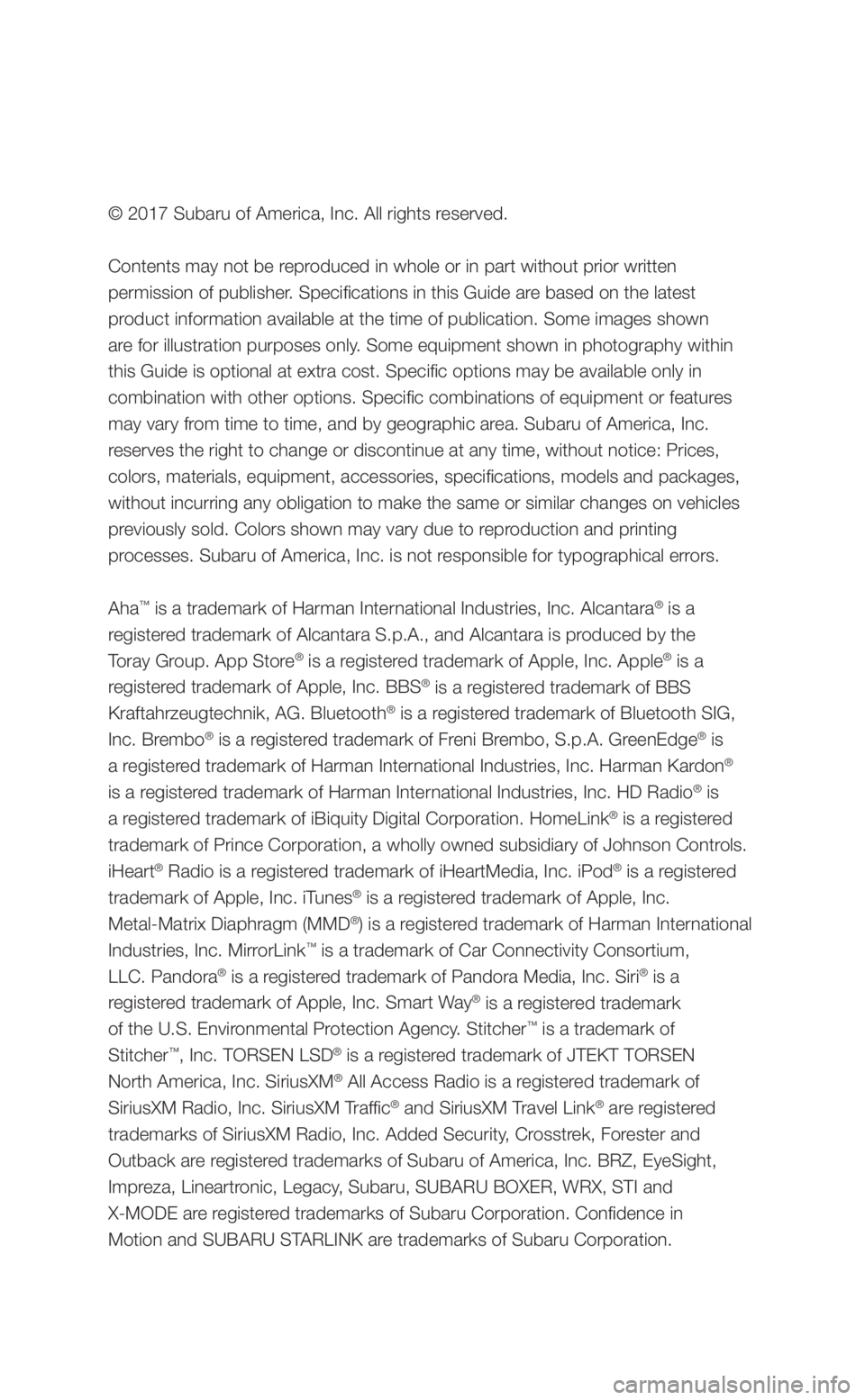

© 2017 Subaru of America, Inc. All rights reserved.
Contents may not be reproduced in whole or in part without prior written
permission of publisher. Specifications in this Guide are based on the latest
product information available at the time of publication. Some images show\
n
are for illustration purposes only. Some equipment shown in photography within
this Guide is optional at extra cost. Specific options may be availabl\
e only in
combination with other options. Specific combinations of equipment or \
features
may vary from time to time, and by geographic area. Subaru of America, Inc.
reserves the right to change or discontinue at any time, without notice: \
Prices,
colors, materials, equipment, accessories, specifications, models and \
packages,
without incurring any obligation to make the same or similar changes on \
vehicles
previously sold. Colors shown may vary due to reproduction and printing
processes. Subaru of America, Inc. is not responsible for typographical errors.
Aha
™ is a trademark of Harman International Industries, Inc. Alcantara® is a
registered trademark of Alcantara S.p.A., and Alcantara is produced by the
Toray Group. App Store
® is a registered trademark of Apple, Inc. Apple® is a
registered trademark of Apple, Inc. BBS® is a registered trademark of BBS
Kraftahrzeugtechnik, AG. Bluetooth® is a registered trademark of Bluetooth SIG,
Inc. Brembo® is a registered trademark of Freni Brembo, S.p.A. GreenEdge® is
a registered trademark of Harman International Industries, Inc. Harman Kardon®
is a registered trademark of Harman International Industries, Inc. HD Radio® is
a registered trademark of iBiquity Digital Corporation. HomeLink® is a registered
trademark of Prince Corporation, a wholly owned subsidiary of Johnson Co\
ntrols.
iHeart
® Radio is a registered trademark of iHeartMedia, Inc. iPod® is a registered
trademark of Apple, Inc. iTunes® is a registered trademark of Apple, Inc.
Metal-Matrix Diaphragm (MMD®) is a registered trademark of Harman International
Industries, Inc. MirrorLink™ is a trademark of Car Connectivity Consortium,
LLC. Pandora® is a registered trademark of Pandora Media, Inc. Siri® is a
registered trademark of Apple, Inc. Smart Way® is a registered trademark
of the U.S. Environmental Protection Agency. Stitcher™ is a trademark of
Stitcher™, Inc. TORSEN LSD® is a registered trademark of JTEKT TORSEN
North America, Inc. SiriusXM® All Access Radio is a registered trademark of
SiriusXM Radio, Inc. SiriusXM Traffic® and SiriusXM Travel Link® are registered
trademarks of SiriusXM Radio, Inc. Added Security, Crosstrek, Forester and
Outback are registered trademarks of Subaru of America, Inc. BRZ, EyeSight,
Impreza, Lineartronic, Legacy, Subaru, SUBARU BOXER, WRX, STI and
X-MODE are registered trademarks of Subaru Corporation. Confidence in
Motion and SUBARU STARLINK are trademarks of Subaru Corporation.
3156598_18a_BRZ_QRG_100217.indd 310/3/17 8:55 AM
Page 3 of 33

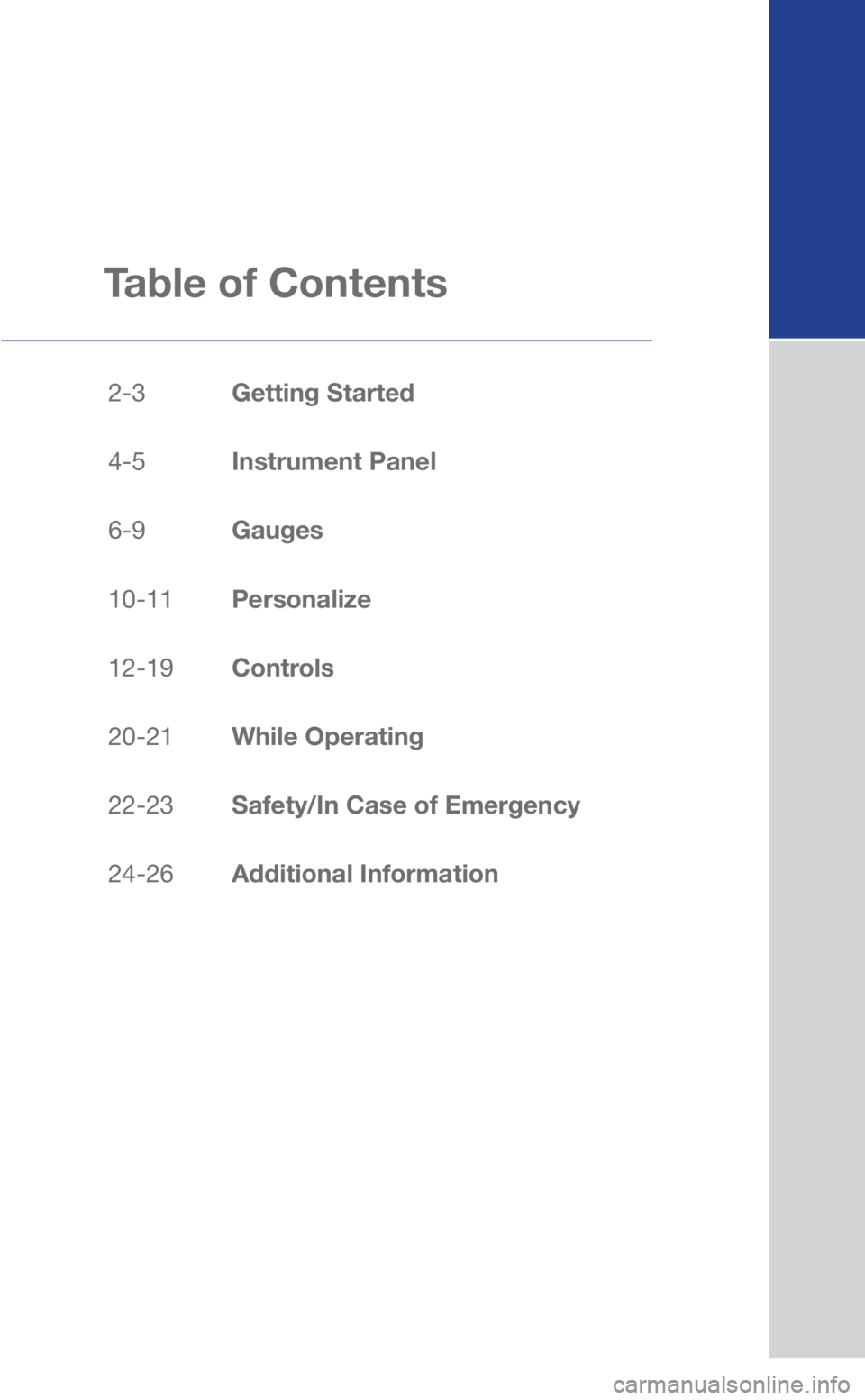

Table of Contents
2-3 Getting Started
4-5 Instrument Panel
6-9 Gauges
10-11 Personalize
12-19 Controls
20-21 While Operating
22-23 Safety/In Case of Emergency
24-26 Additional Information
3156598_18a_BRZ_QRG_100217.indd 510/3/17 8:55 AM
Page 4 of 33
2

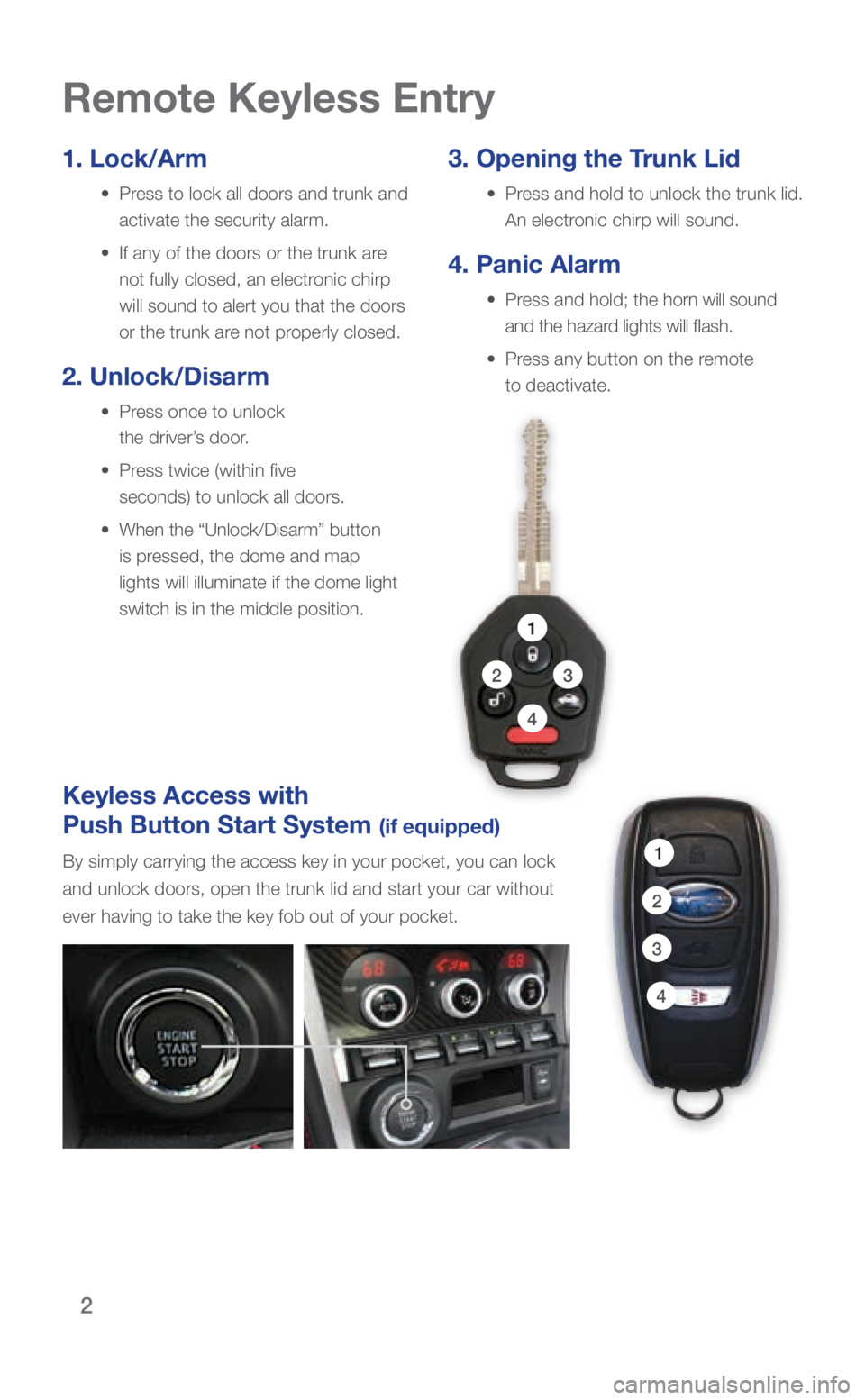

Keyless Access with
Push Button Start System
(if equipped)
By simply carrying the access key in your pocket, you can lock
and unlock doors, open the trunk lid and start your car without
ever having to take the key fob out of your pocket.1
2
3
4
Remote Keyless Entry
1. Lock/Arm
• Press to lock all doors and trunk and
activate the security alarm.
• If any of the doors or the trunk are
not fully closed, an electronic chirp
will sound to alert you that the doors
or the trunk are not properly closed.
2. Unlock/Disarm
• Press once to unlock
the driver’s door.
• Press twice (within five
seconds) to unlock all doors.
• When the “Unlock/Disarm” button
is pressed, the dome and map
lights will illuminate if the dome light
switch is in the middle position.
3. Opening the Trunk Lid
• Press and hold to unlock the trunk lid.
An electronic chirp will sound.
4. Panic Alarm
• Press and hold; the horn will sound
and the hazard lights will flash.
• Press any button on the remote
to deactivate.
1
23
4
3156598_18a_BRZ_QRG_100217.indd 210/3/17 8:55 AM
Page 5 of 33
3

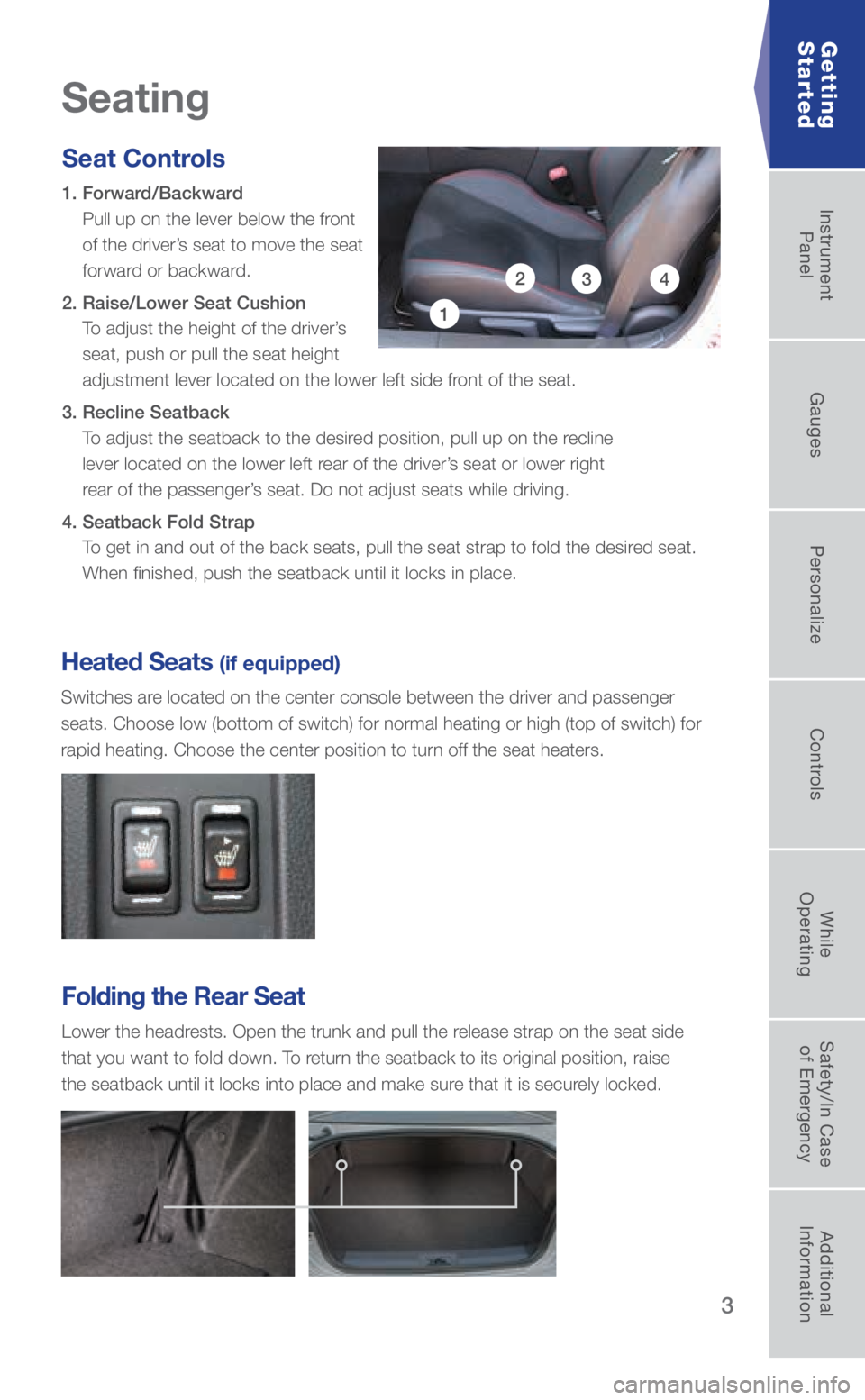

Seating
Seat Controls
1. Forward/Backward
Pull up on the lever below the front
of the driver’s seat to move the seat
forward or backward.
2. Raise/Lower Seat Cushion To adjust the height of the driver’s
seat, push or pull the seat height
adjustment lever located on the lower left side front of the seat.
3. Recline Seatback To adjust the seatback to the desired position, pull up on the recline
lever located on the lower left rear of the driver’s seat or lower right
rear of the passenger’s seat. Do not adjust seats while driving.
4. Seatback Fold Strap To get in and out of the back seats, pull the seat strap to fold the desi\
red seat.
When finished, push the seatback until it locks in place.
Heated Seats (if equipped)
Switches are located on the center console between the driver and passenger
seats. Choose low (bottom of switch) for normal heating or high (top \
of switch) for
rapid heating. Choose the center position to turn off the seat heaters.
1
234
Folding the Rear Seat
Lower the headrests. Open the trunk and pull the release strap on the seat side
that you want to fold down. To return the seatback to its original position, raise
the seatback until it locks into place and make sure that it is securely locked.
Getting
Started
3156598_18a_BRZ_QRG_100217.indd 310/3/17 8:56 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information
Page 6 of 33
4

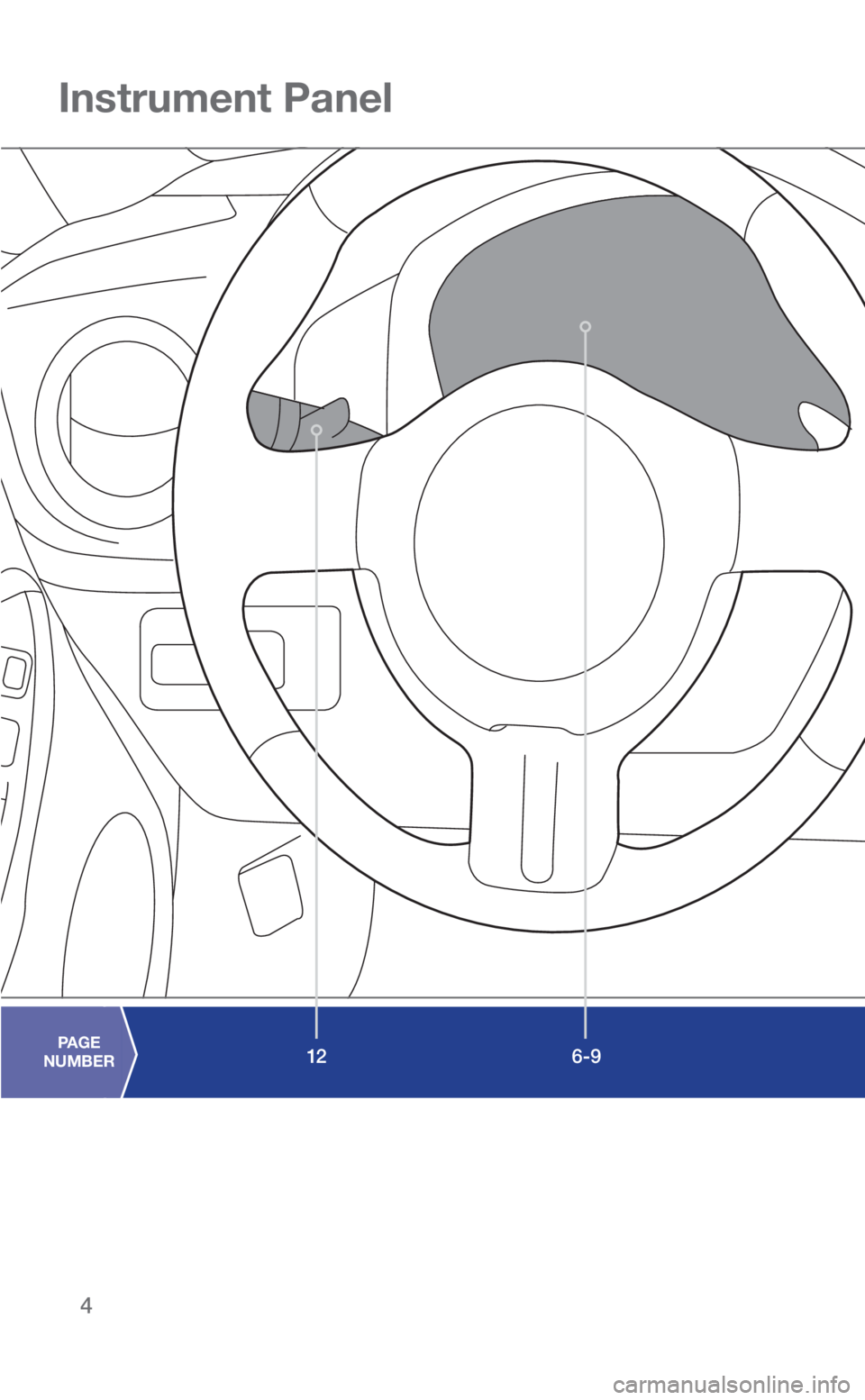

Instrument Panel
6-9PAGE
NUMBER12PAGE
NUMBER
3156598_18a_BRZ_QRG_100217.indd 410/3/17 8:56 AM
Page 7 of 33
5

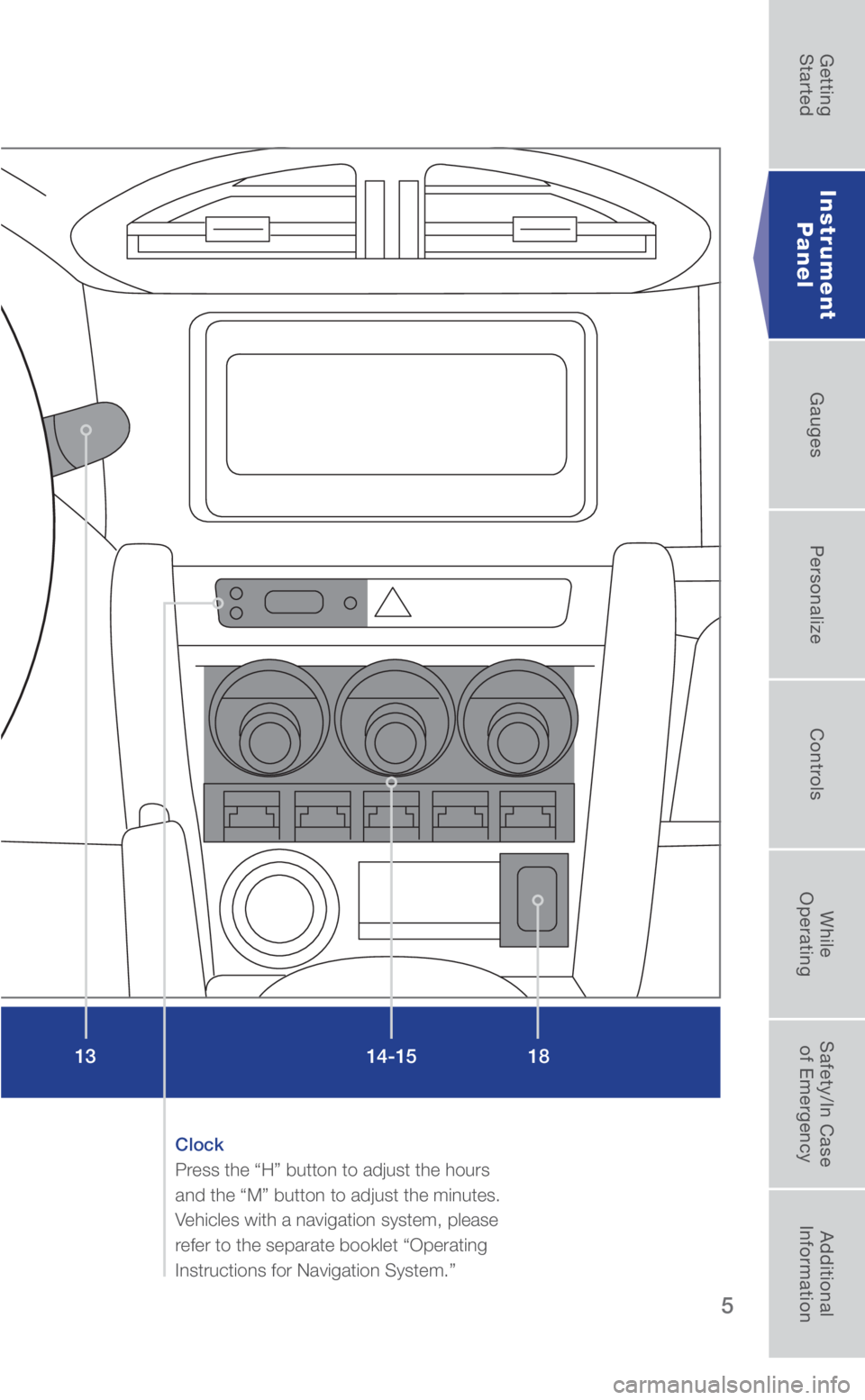

Clock
Press the “H” button to adjust the hours
and the “M” button to adjust the minutes.
Vehicles with a navigation system, please
refer to the separate booklet “Operating
Instructions for Navigation System.”
18
1314-15
Instrument
Panel
3156598_18a_BRZ_QRG_100217.indd 510/3/17 8:56 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

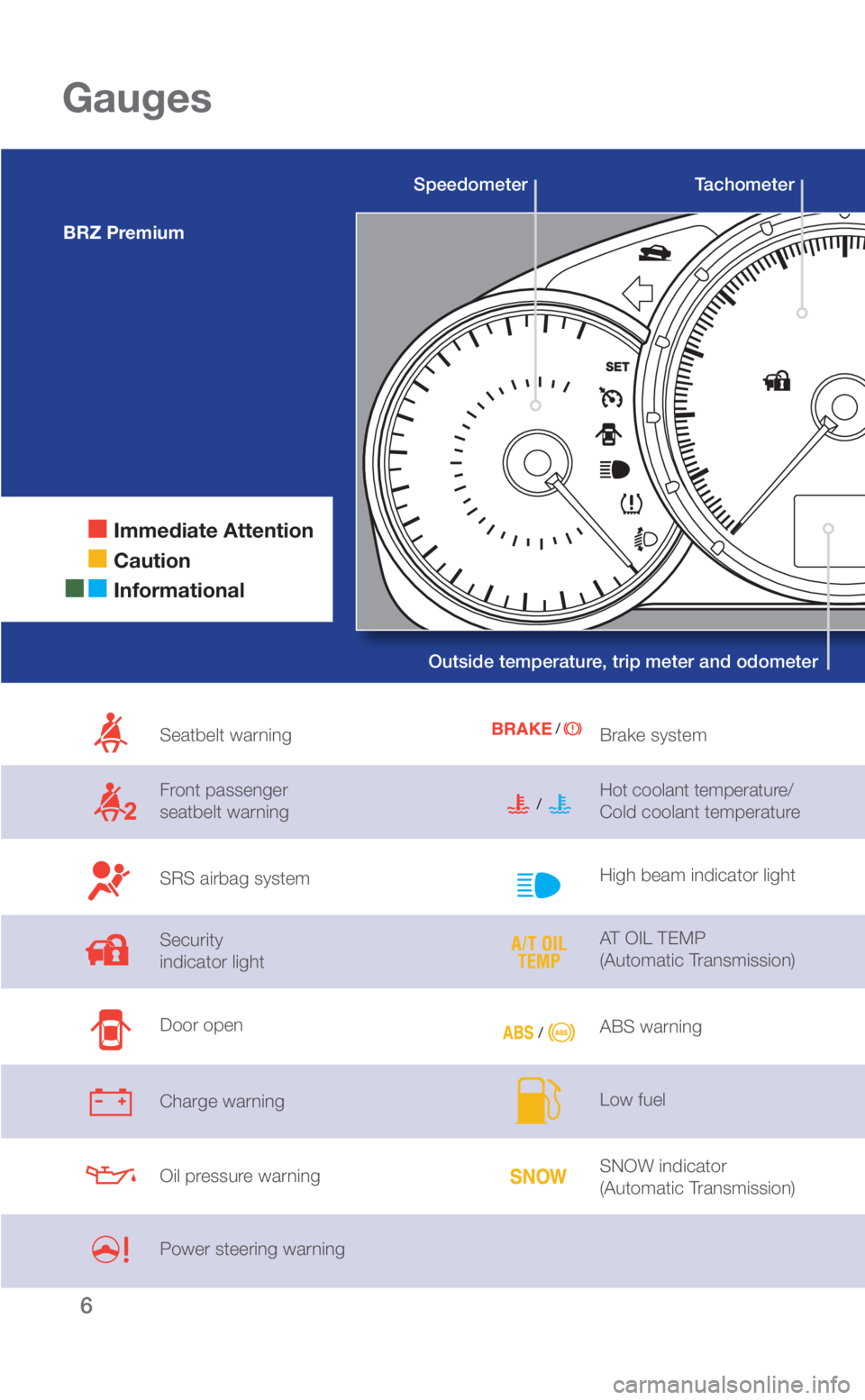

Page 8 of 33
6
Immediate Attention
Caution
Informational
Gauges
Seatbelt warning
Front passenger
seatbelt warning
SRS airbag system
Security
indicator light
Door open
Charge warning
Oil pressure warning
Power steering warning Brake system
Hot coolant temperature/
Cold coolant temperature
High beam indicator light
AT OIL TEMP
(Automatic Transmission)
ABS warning
Low fuel
SNOW indicator
(Automatic Transmission)
Speedometer Tachometer
Outside temperature, trip meter and odometer
BRZ Premium
3156598_18a_BRZ_QRG_100217.indd 610/3/17 8:56 AM
Page 9 of 33
7

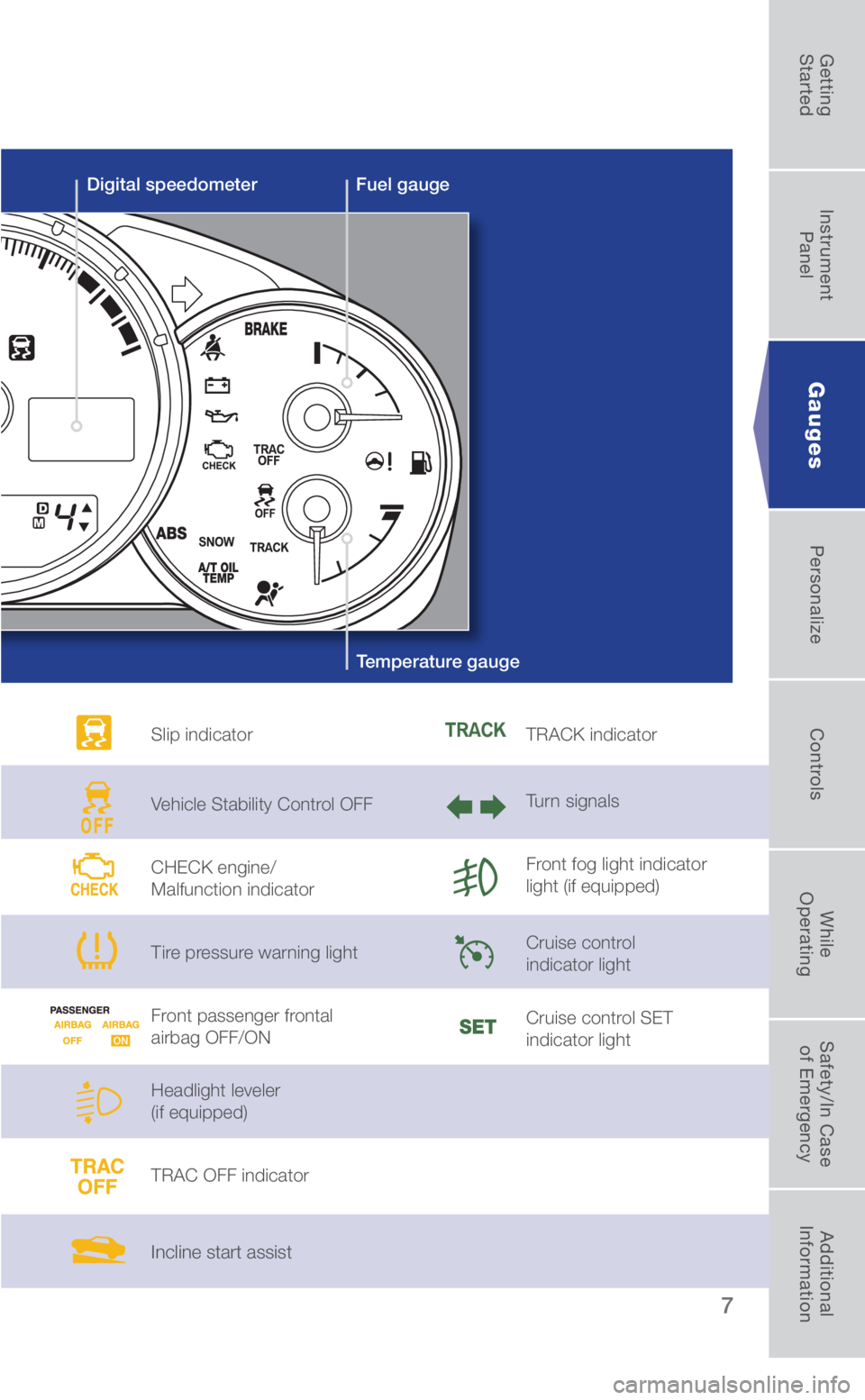

Slip indicator
Vehicle Stability Control OFF
CHECK engine/
Malfunction indicator
Tire pressure warning light
Front passenger frontal
airbag OFF/ON
Headlight leveler
(if equipped)
TRAC OFF indicator
Incline start assist
TRACK indicator
Turn signals
Front fog light indicator
light (if equipped)
Cruise control
indicator light
Cruise control SET
indicator light
Gauges
Digital speedometerFuel gauge
Temperature gauge
3156598_18a_BRZ_QRG_100217.indd 710/3/17 8:56 AM
Getting
Started Instrument
Panel Gauges
Personalize ControlsWhile
Operating Safety/In Case
of Emergency Additional
Information

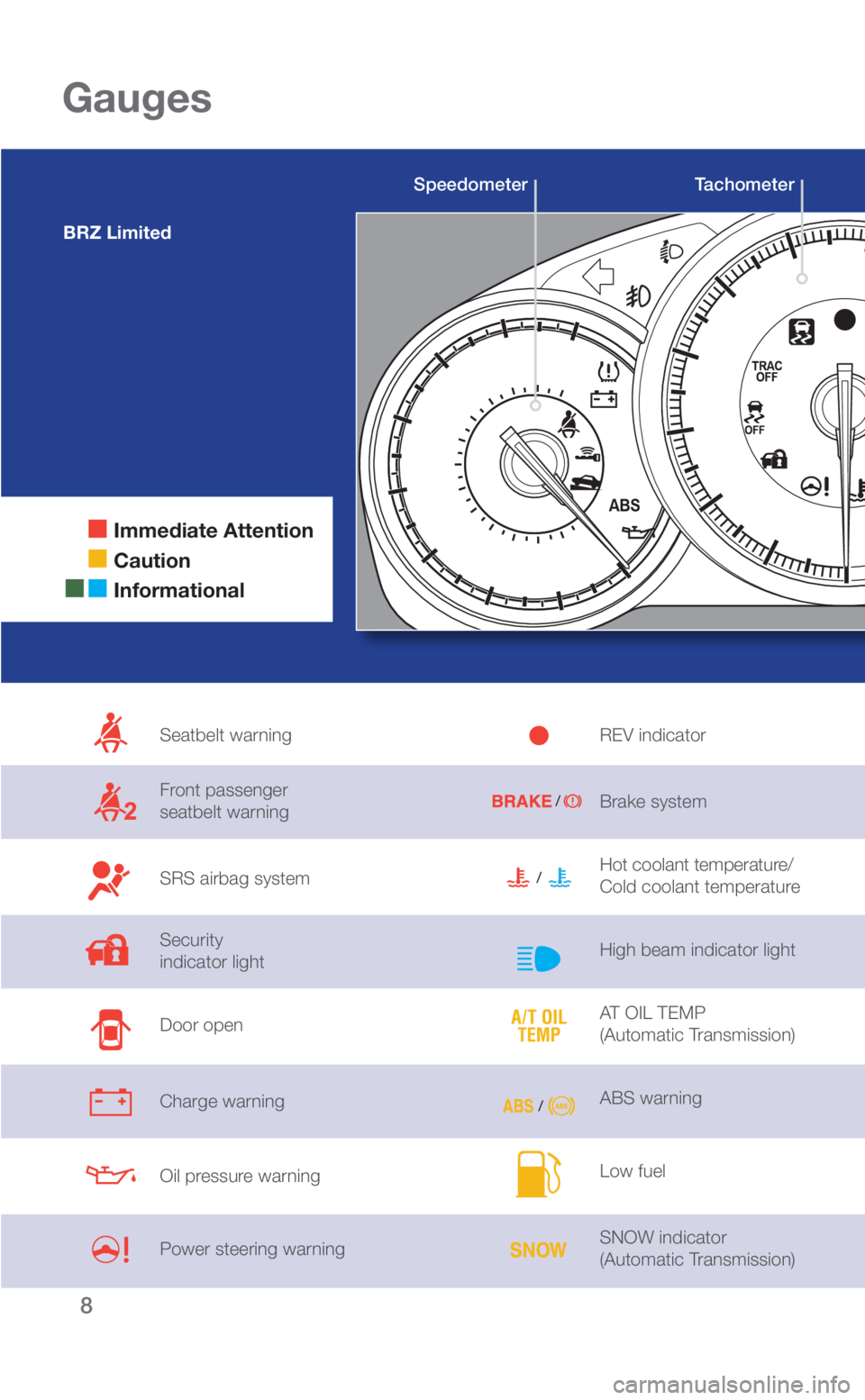

Page 10 of 33
8
Immediate Attention
Caution
Informational
Gauges
Seatbelt warning
Front passenger
seatbelt warning
SRS airbag system
Security
indicator light
Door open
Charge warning
Oil pressure warning
Power steering warning REV indicator
Brake system
Hot coolant temperature/
Cold coolant temperature
High beam indicator light
AT OIL TEMP
(Automatic Transmission)
ABS warning
Low fuel
SNOW indicator
(Automatic Transmission)
Speedometer Tachometer
BRZ Limited
