SUBARU BRZ 2019 Owners Manual

5
When trouble arises
461
5-2. Steps to take in an emergency
BRZ_U

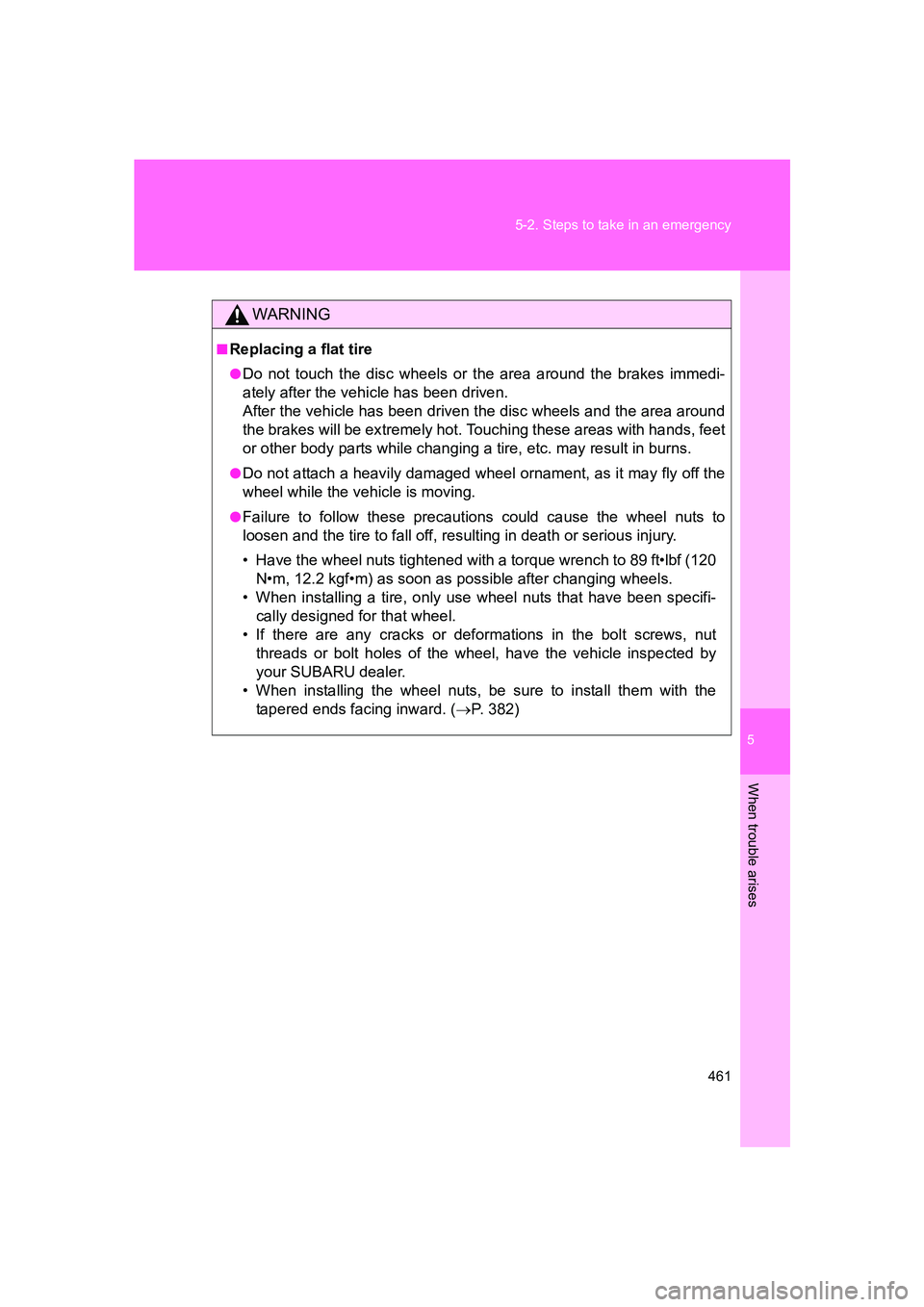

WARNING
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.
●Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
●Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 89 ft•lbf (120
N•m, 12.2 kgf•m) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifi- cally designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by
your SUBARU dealer.
• When installing the wheel nuts, be sure to install them with the tapered ends facing inward. ( →P. 382)

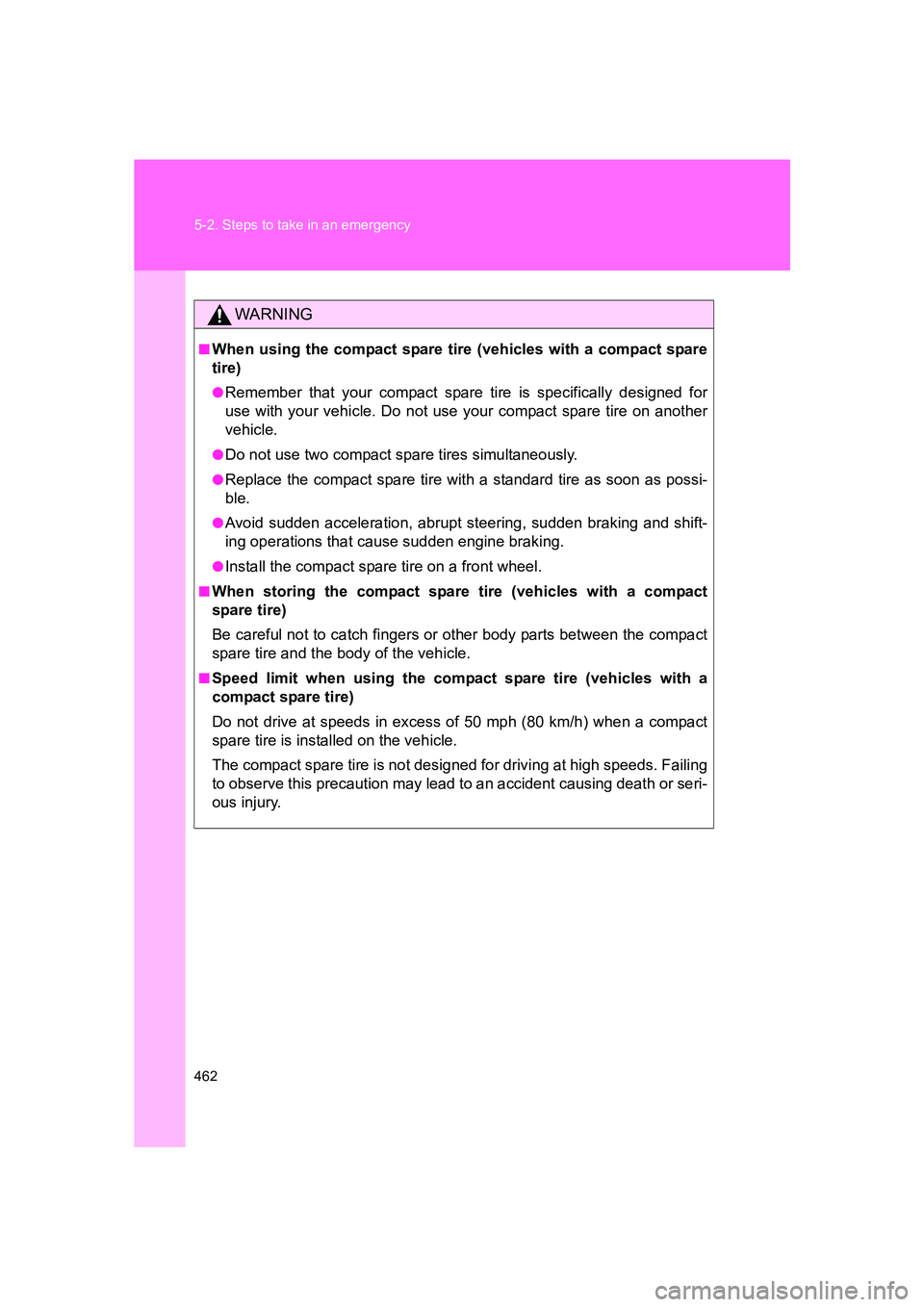

462 5-2. Steps to take in an emergency
BRZ_U
WARNING
■When using the compact spare tire (vehicles with a compact spare
tire)
●Remember that your compact spare tire is specifically designed for
use with your vehicle. Do not use your compact spare tire on another
vehicle.
●Do not use two compact spare tires simultaneously.
●Replace the compact spare tire with a standard tire as soon as possi-
ble.
●Avoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that cause sudden engine braking.
●Install the compact spare tire on a front wheel.
■When storing the compact spare tire (vehicles with a compact
spare tire)
Be careful not to catch fingers or other body parts between the compact
spare tire and the body of the vehicle.
■Speed limit when using the compact spare tire (vehicles with a
compact spare tire)
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing
to observe this precaution may lead to an accident causing death or seri-
ous injury.

5
When trouble arises
463
5-2. Steps to take in an emergency
BRZ_U

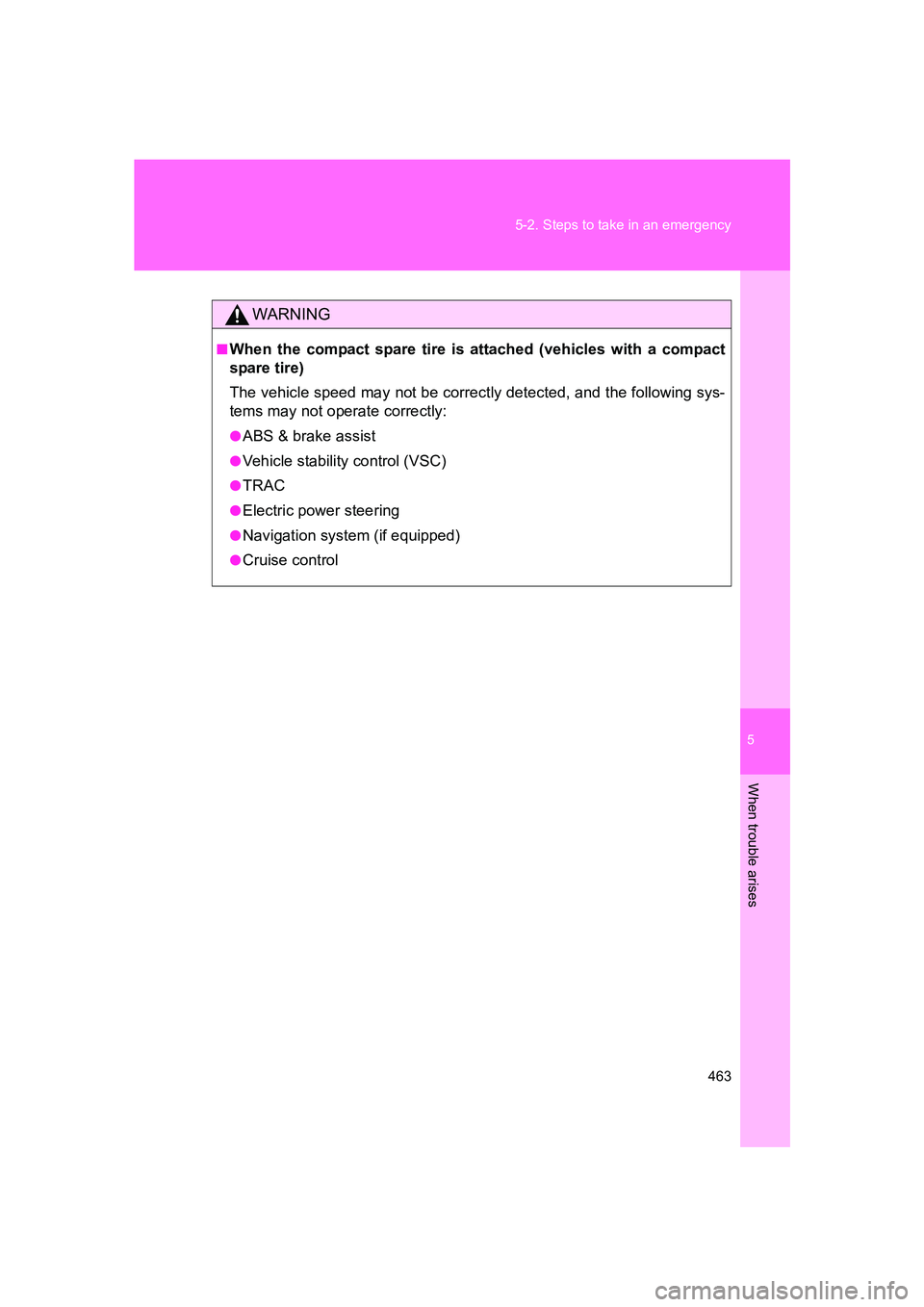

WARNING
■When the compact spare tire is attached (vehicles with a compact
spare tire)
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly:
●ABS & brake assist
●Vehicle stability control (VSC)
●TRAC
●Electric power steering
●Navigation system (if equipped)
●Cruise control

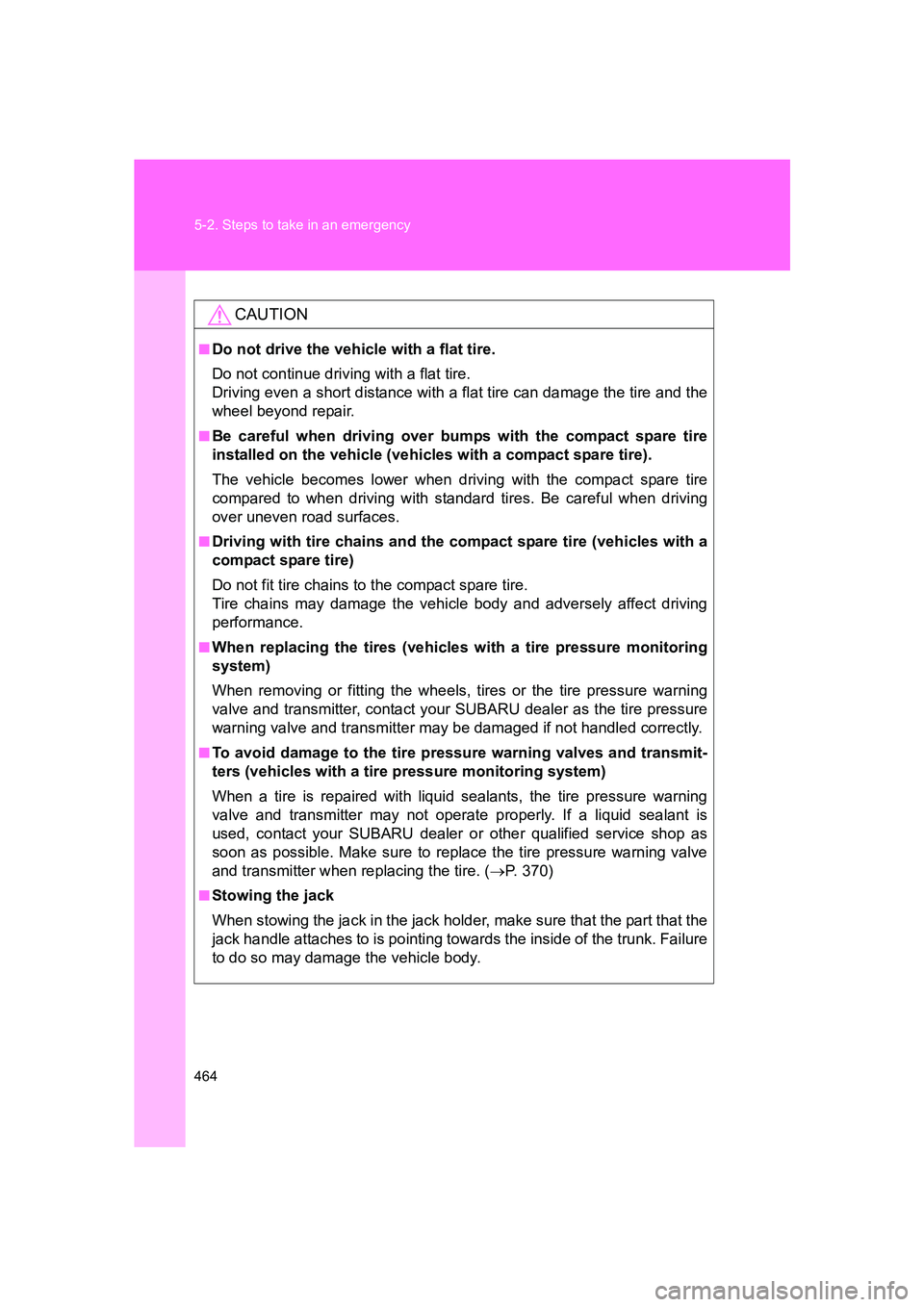

464 5-2. Steps to take in an emergency
BRZ_U
CAUTION
■Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
■Be careful when driving over bumps with the compact spare tire
installed on the vehicle (vehicles with a compact spare tire).
The vehicle becomes lower when driving with the compact spare tire
compared to when driving with standard tires. Be careful when driving
over uneven road surfaces.
■Driving with tire chains and the compact spare tire (vehicles with a
compact spare tire)
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving
performance.
■When replacing the tires (vehicles with a tire pressure monitoring
system)
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your SUBARU dealer as the tire pressure
warning valve and transmitter may be damaged if not handled correctly.
■To avoid damage to the tire pressure warning valves and transmit-
ters (vehicles with a tire pressure monitoring system)
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your SUBARU dealer or other qualified service shop as
soon as possible. Make sure to replace the tire pressure warning valve
and transmitter when replacing the tire. (→P. 370)
■Stowing the jack
When stowing the jack in the jack holder, make sure that the part that the
jack handle attaches to is pointing towards the inside of the trunk. Failure
to do so may damage the vehicle body.

5
When trouble arises
465
5-2. Steps to take in an emergency
BRZ_U

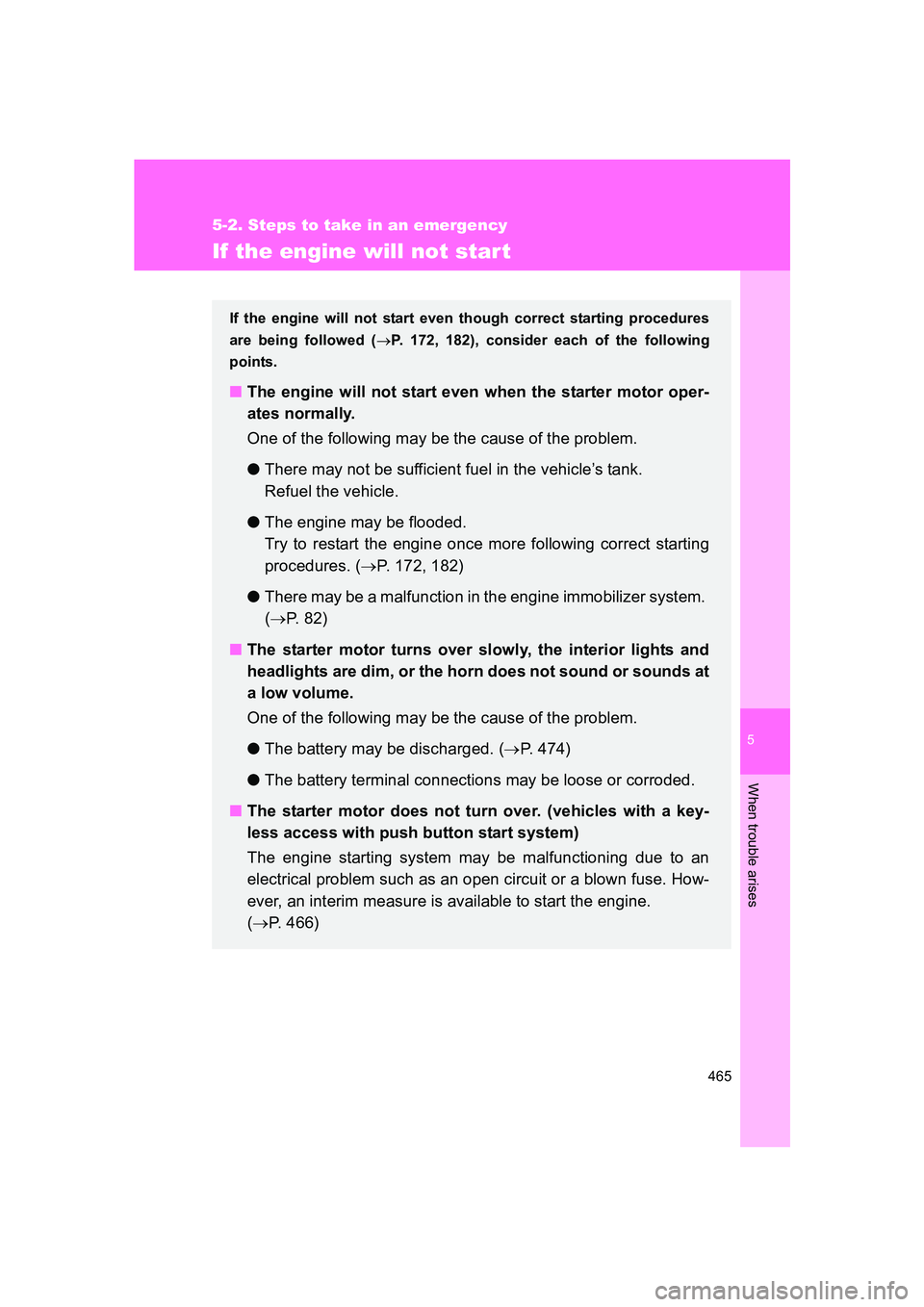

If the engine will not start
If the engine will not start even though correct starting procedures
are being followed ( →P. 172, 182), consider each of the following
points.
■ The engine will not start even when the starter motor oper-
ates normally.
One of the following may be the cause of the problem.
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures. ( →P. 172, 182)
● There may be a malfunction in the engine immobilizer system.
(→ P. 82)
■ The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem.
●The battery may be discharged. ( →P. 474)
● The battery terminal connections may be loose or corroded.
■ The starter motor does not turn over. (vehicles with a key-
less access with push button start system)
The engine starting system may be malfunctioning due to an
electrical problem such as an open circuit or a blown fuse. How-
ever, an interim measure is available to start the engine.
(→ P. 466)

466 5-2. Steps to take in an emergency
BRZ_U

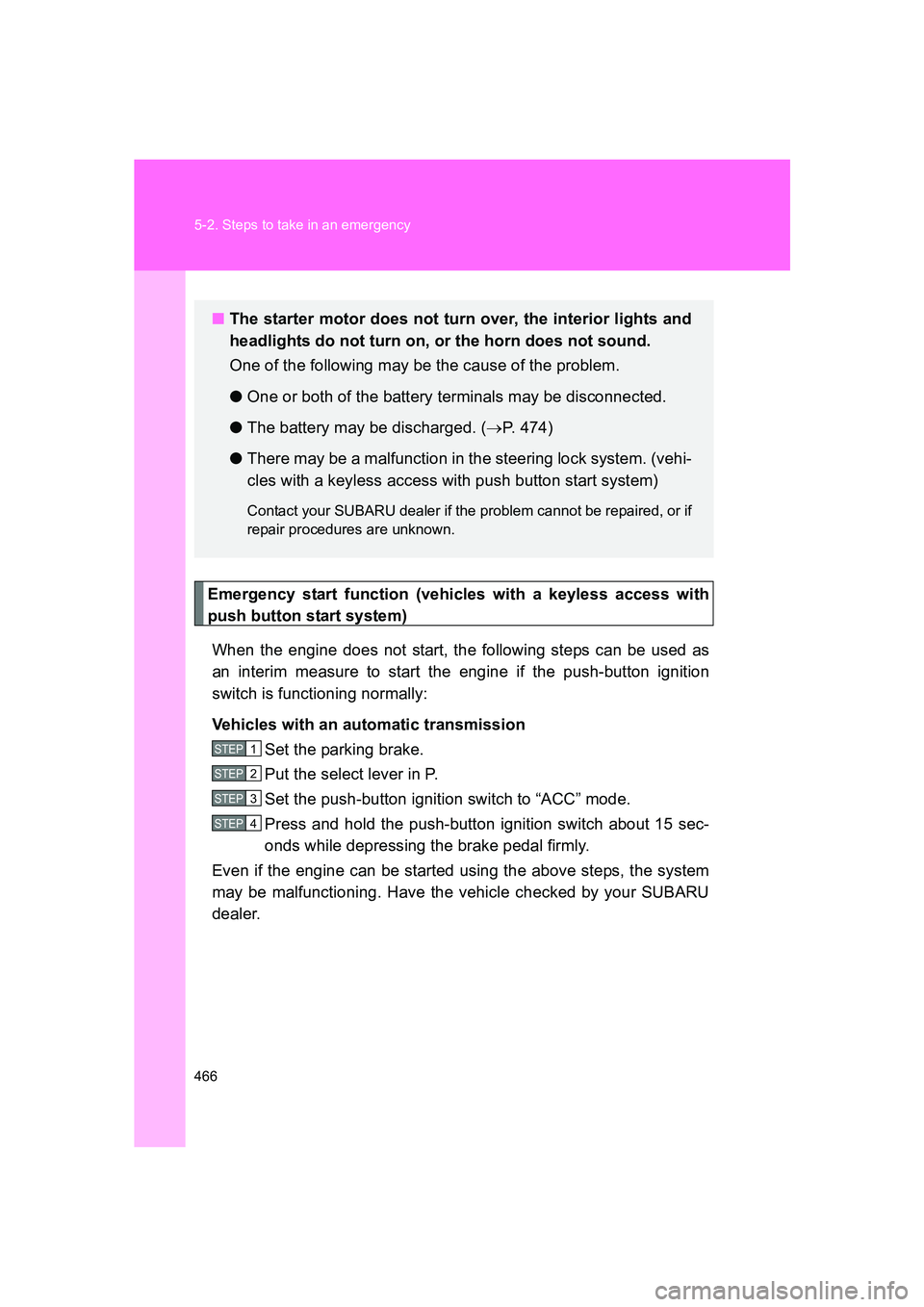

Emergency start function (vehicles with a keyless access with
push button start system)When the engine does not start, the following steps can be used as
an interim measure to start the engine if the push-button ignition
switch is functioning normally:
Vehicles with an automatic transmission Set the parking brake.
Put the select lever in P.
Set the push-button ignition switch to “ACC” mode.
Press and hold the push-button ignition switch about 15 sec-
onds while depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle checked by your SUBARU
dealer.
■ The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem.
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. ( →P. 474)
● There may be a malfunction in the steering lock system. (vehi-
cles with a keyless access with push button start system)
Contact your SUBARU dealer if the problem cannot be repaired, or if
repair procedures are unknown.
STEP 1
STEP 2
STEP 3
STEP 4

5
When trouble arises
467
5-2. Steps to take in an emergency
BRZ_U

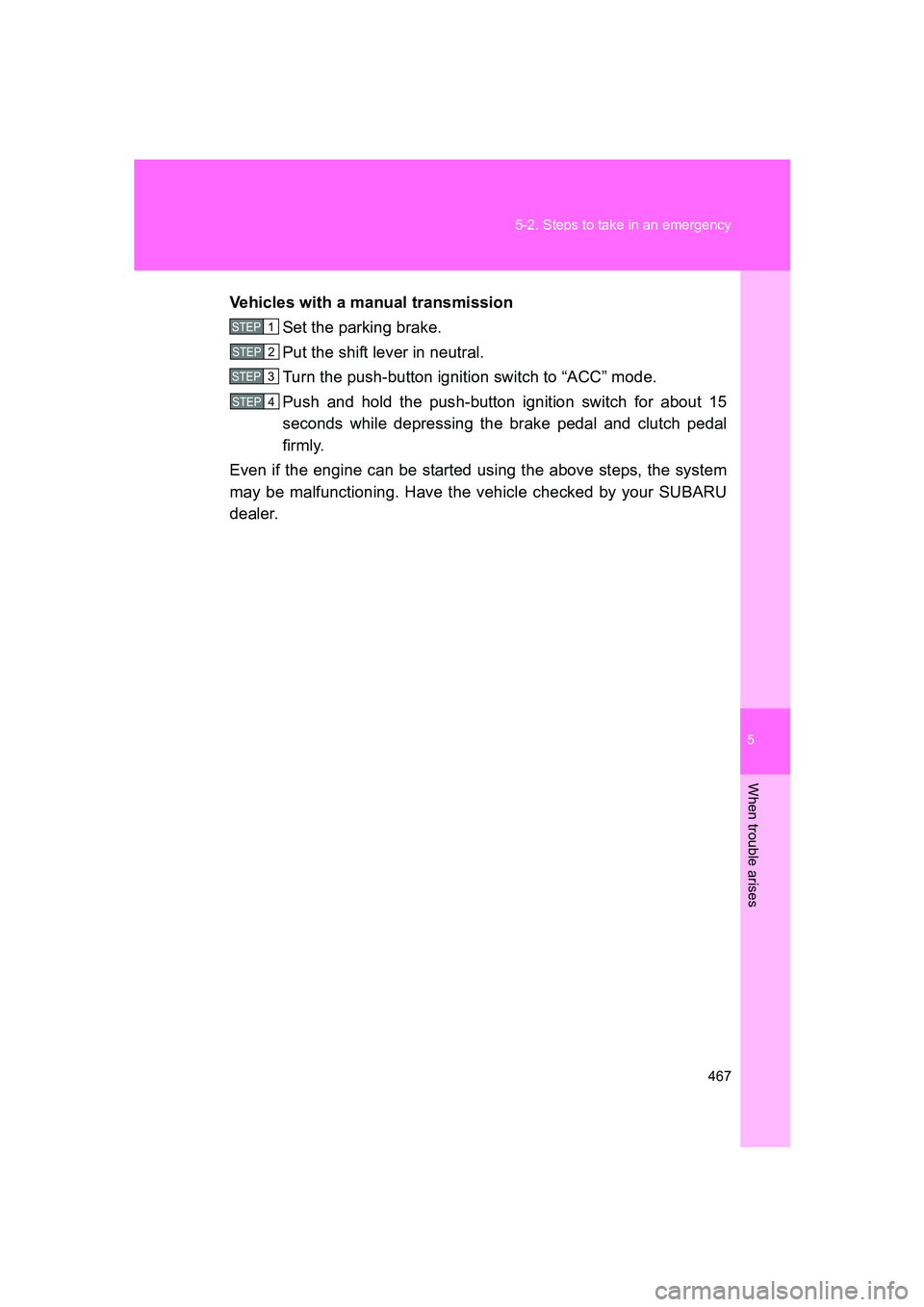

Vehicles with a manual transmission
Set the parking brake.
Put the shift lever in neutral.
Turn the push-button ignition switch to “ACC” mode.
Push and hold the push-button ignition switch for about 15
seconds while depressing the brake pedal and clutch pedal
firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle checked by your SUBARU
dealer.
STEP 1
STEP2
STEP 3
STEP 4

468
5-2. Steps to take in an emergency
BRZ_U

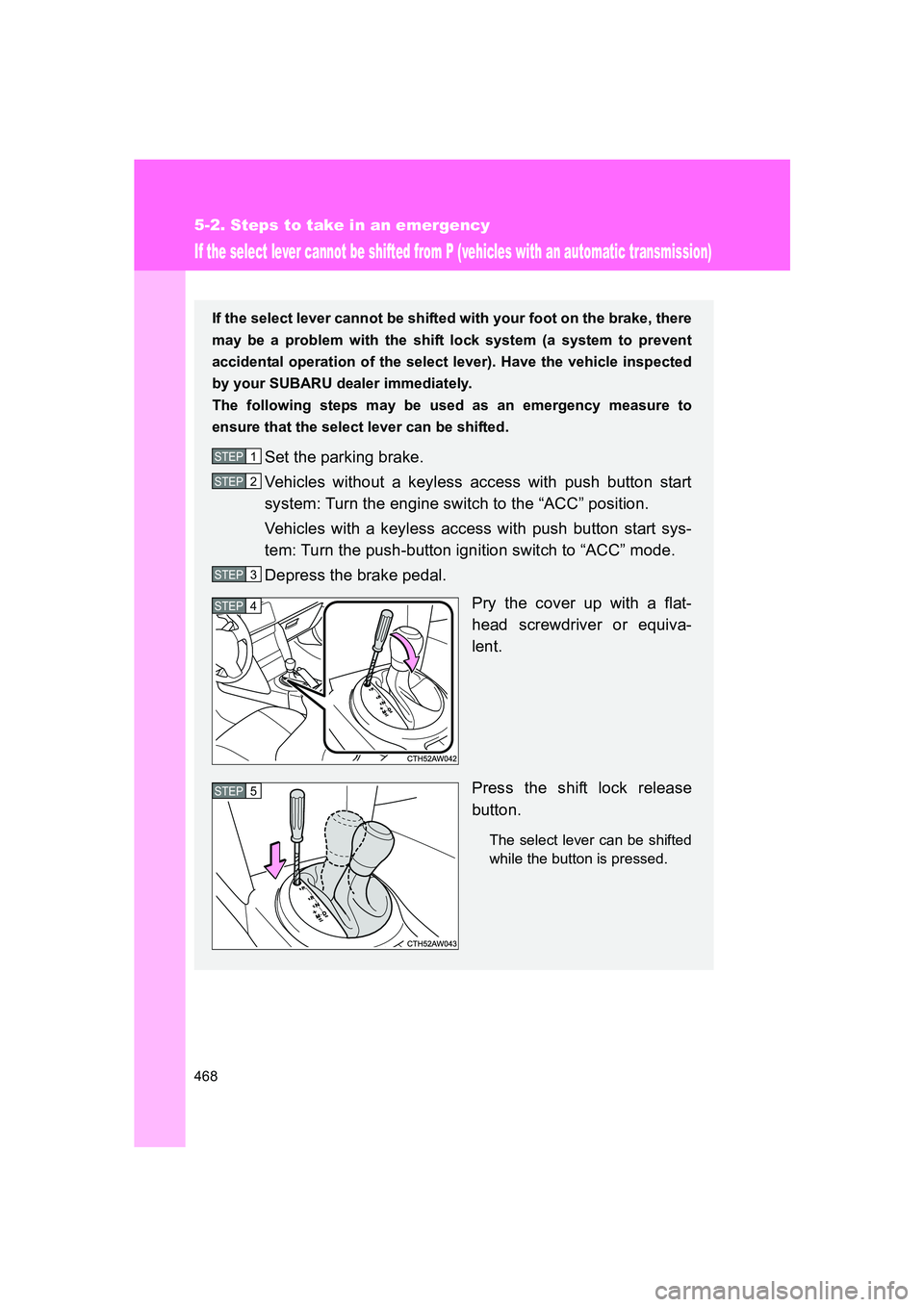

If the select lever cannot be shifted from P (vehicles with an automatic transmission)
If the select lever cannot be shifted with your foot on the brake, there
may be a problem with the shift lock system (a system to prevent
accidental operation of the select lever). Have the vehicle inspected
by your SUBARU dealer immediately.
The following steps may be used as an emergency measure to
ensure that the select lever can be shifted.
Set the parking brake.
Vehicles without a keyless access with push button start
system: Turn the engine switch to the “ACC” position.
Vehicles with a keyless access with push button start sys-
tem: Turn the push-button ignition switch to “ACC” mode.
Depress the brake pedal.Pry the cover up with a flat-
head screwdriver or equiva-
lent.
Press the shift lock release
button.
The select lever can be shifted
while the button is pressed.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5

5
When trouble arises
469
5-2. Steps to take in an emergency
BRZ_U

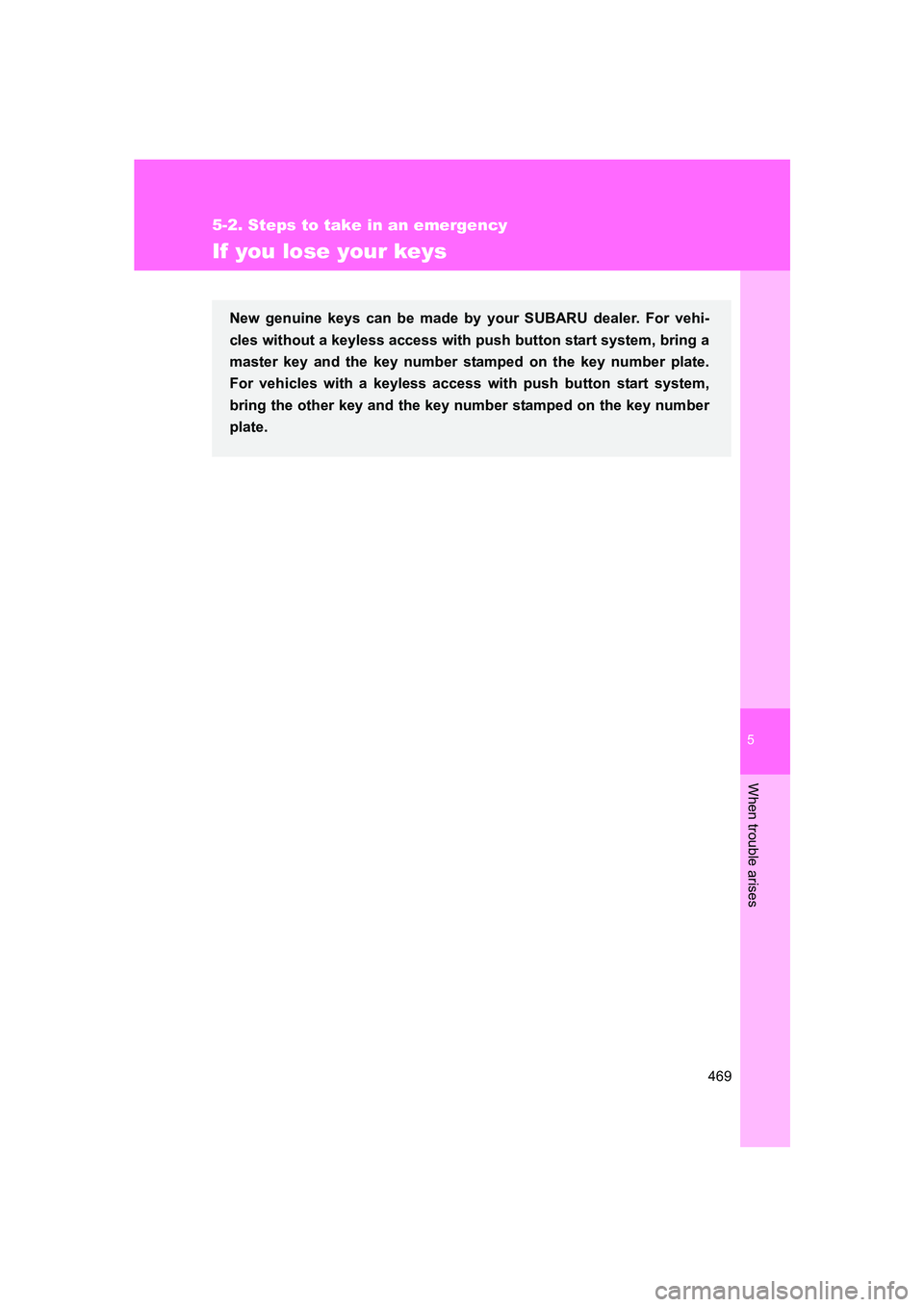

If you lose your keys
New genuine keys can be made by your SUBARU dealer. For vehi-
cles without a keyless access with push button start system, bring a
master key and the key number stamped on the key number plate.
For vehicles with a keyless access with push button start system,
bring the other key and the key number stamped on the key number
plate.

470
5-2. Steps to take in an emergency
BRZ_U

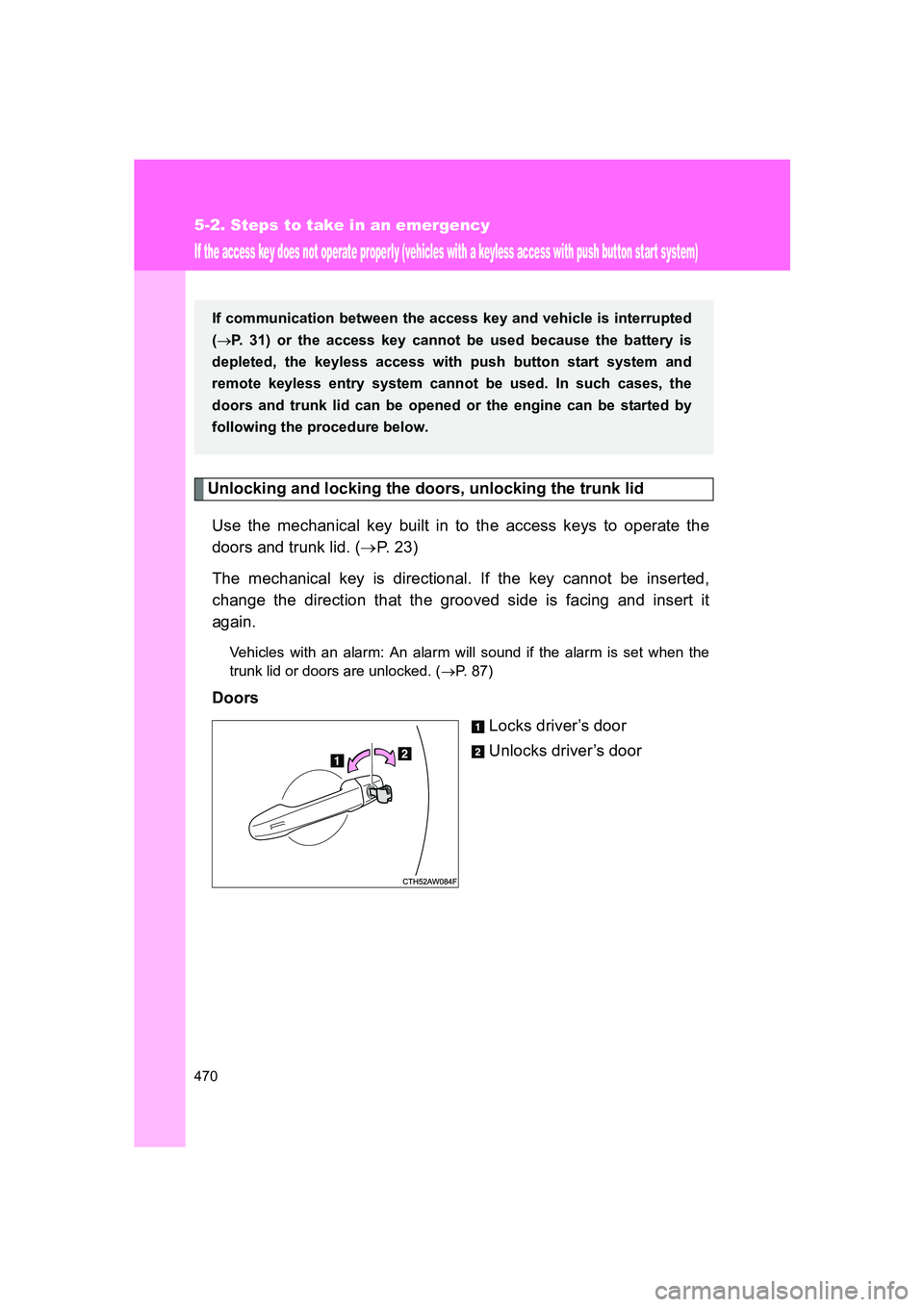

If the access key does not operate properly (vehicles with a keyless access with push button star t system)
Unlocking and locking the doors, unlocking the trunk lidUse the mechanical key built in to the access keys to operate the
doors and trunk lid. ( →P. 23)
The mechanical key is directional. If the key cannot be inserted,
change the direction that the grooved side is facing and insert it
again.
Vehicles with an alarm: An alarm will sound if the alarm is set when the
trunk lid or doors are unlocked. ( →P. 87)
Doors
Locks driver’s door
Unlocks driver’s door
If communication between the access key and vehicle is interrupted
(→ P. 31) or the access key cannot be used because the battery is
depleted, the keyless access with push button start system and
remote keyless entry system canno t be used. In such cases, the
doors and trunk lid can be opened or the engine can be started by
following the procedure below.
