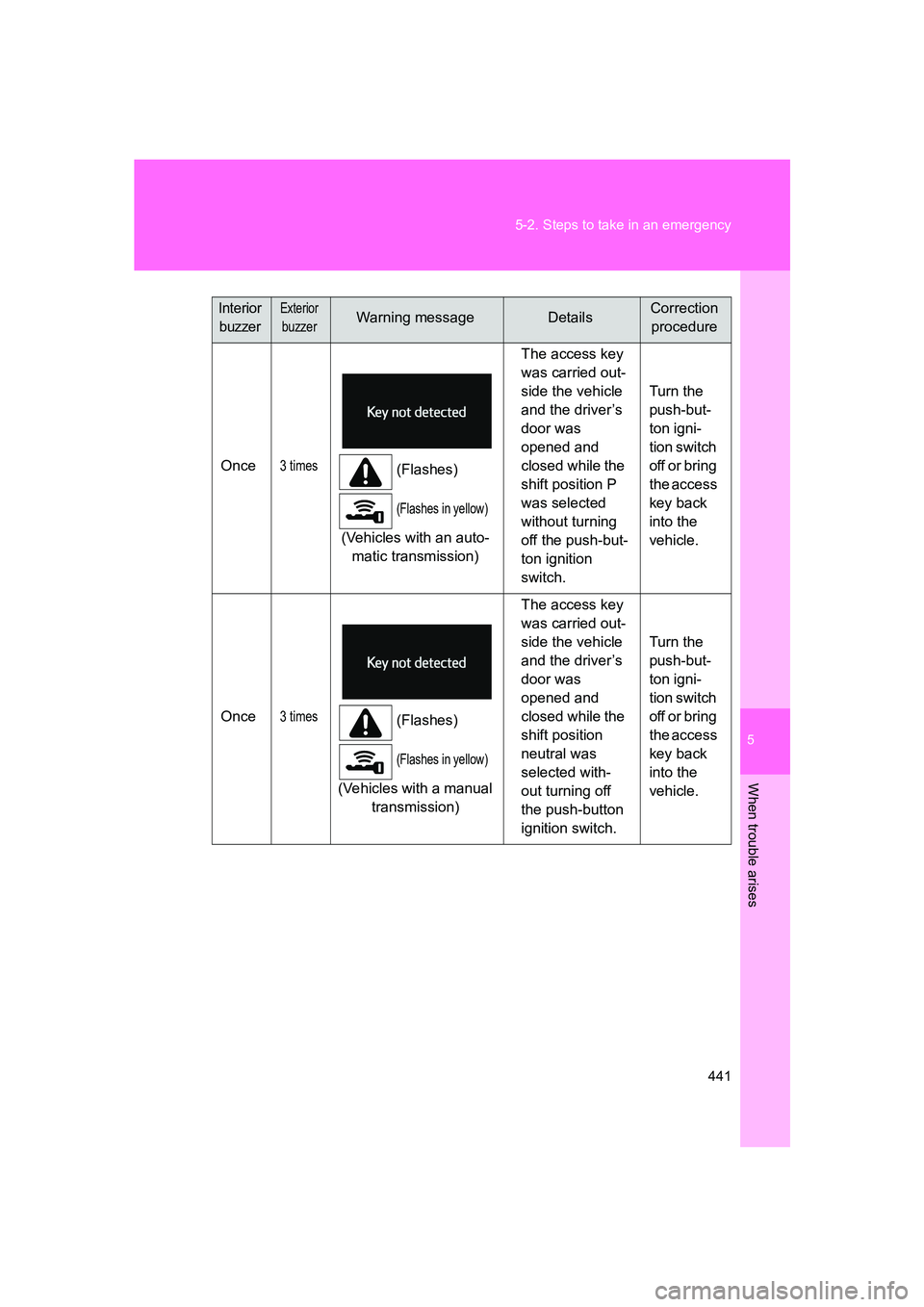

SUBARU BRZ 2019 Owners Manual

5
When trouble arises
441
5-2. Steps to take in an emergency
BRZ_U
Once3 times(Flashes)
(Flashes in yellow)
(Vehicles with an auto-
matic transmission) The access key
was carried out-
side the vehicle
and the driver’s
door was
opened and
closed while the
shift position P
was selected
without turning
off the push-but-
ton ignition
switch.
Turn the
push-but-
ton igni-
tion switch
off or bring
the access
key back
into the
vehicle.
Once
3 times(Flashes)
(Flashes in yellow)
(Vehicles with a manual transmission) The access key
was carried out-
side the vehicle
and the driver’s
door was
opened and
closed while the
shift position
neutral was
selected with-
out turning off
the push-button
ignition switch.
Turn the
push-but-
ton igni-
tion switch
off or bring
the access
key back
into the
vehicle.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

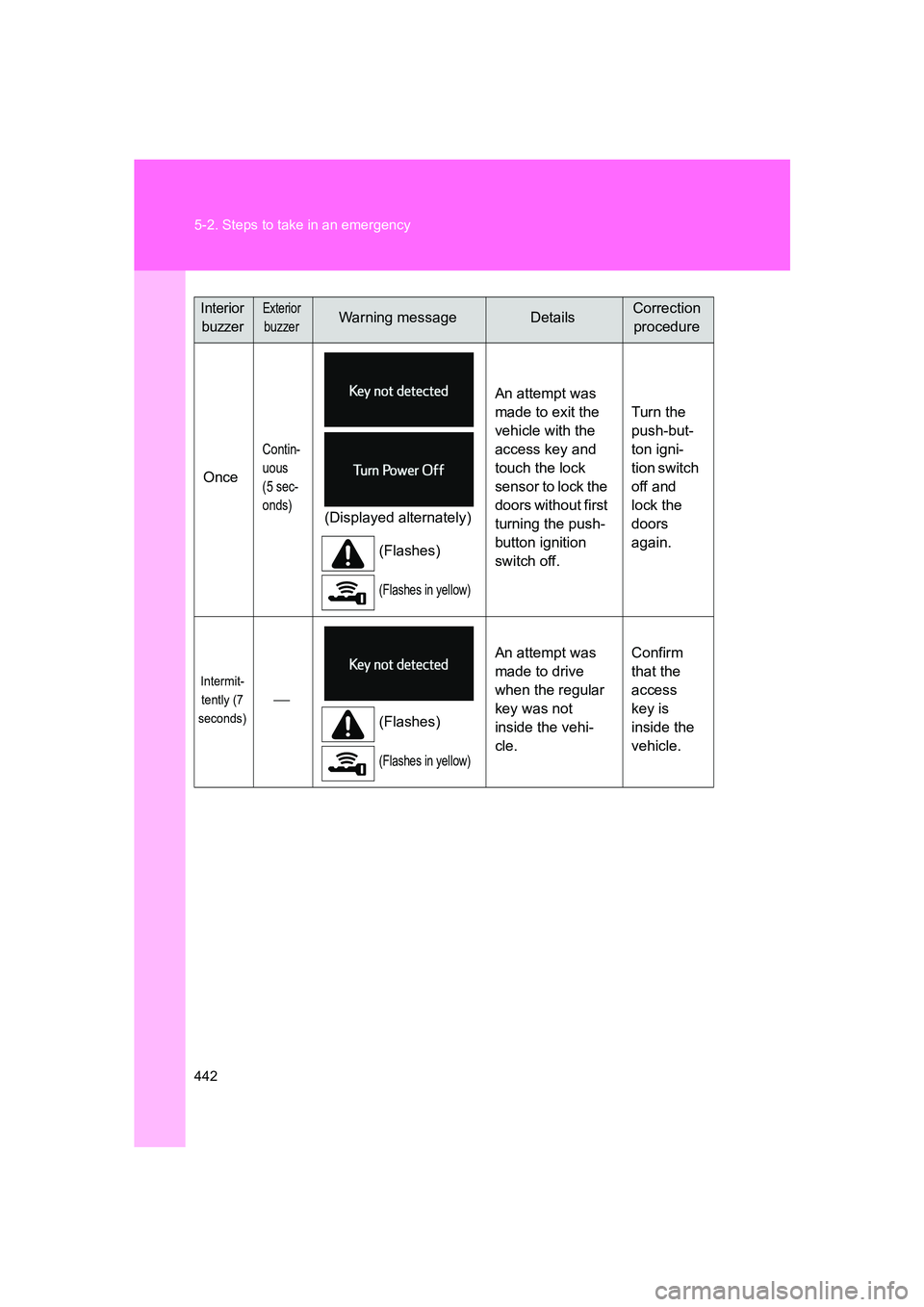

442 5-2. Steps to take in an emergency
BRZ_U
Once
Contin-
uous
(5 sec-
onds)
(Displayed alternately)(Flashes)
(Flashes in yellow)
An attempt was
made to exit the
vehicle with the
access key and
touch the lock
sensor to lock the
doors without first
turning the push-
button ignition
switch off. Turn the
push-but-
ton igni-
tion switch
off and
lock the
doors
again.
Intermit-
tently (7
seconds)

(Flashes)
(Flashes in yellow)
An attempt was
made to drive
when the regular
key was not
inside the vehi-
cle. Confirm
that the
access
key is
inside the
vehicle.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

5
When trouble arises

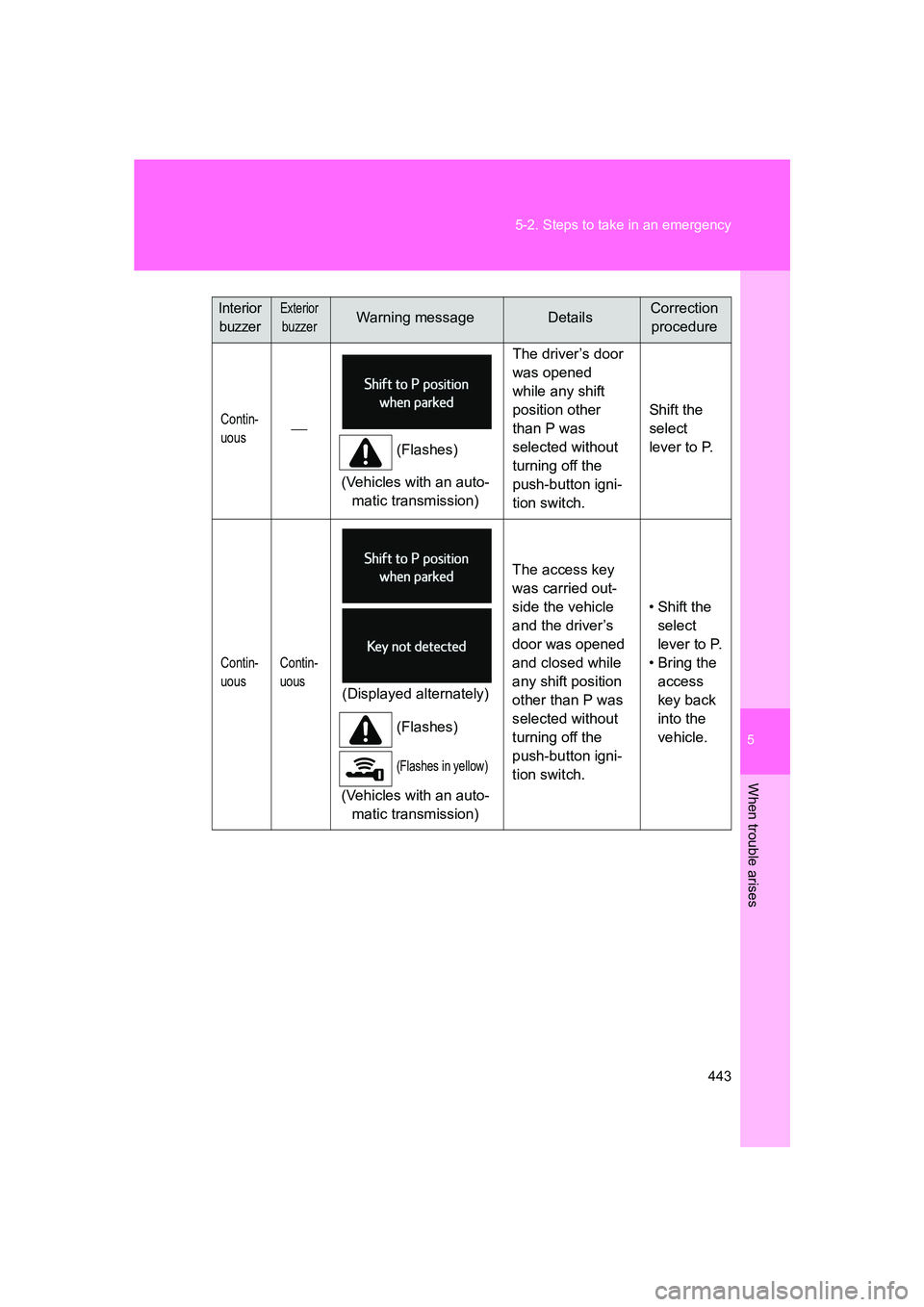

443
5-2. Steps to take in an emergency
BRZ_U
Contin-
uous
(Flashes)
(Vehicles with an auto- matic transmission) The driver’s door
was opened
while any shift
position other
than P was
selected without
turning off the
push-button igni-
tion switch.
Shift the
select
lever to P.
Contin-
uous
Contin-
uous
(Displayed alternately)
(Flashes)
(Flashes in yellow)
(Vehicles with an auto-matic transmission) The access key
was carried out-
side the vehicle
and the driver’s
door was opened
and closed while
any shift position
other than P was
selected without
turning off the
push-button igni-
tion switch.
• Shift the
select
lever to P.
• Bring the access
key back
into the
vehicle.
InteriorbuzzerExterior
buzzerWarning messageDetailsCorrection procedure

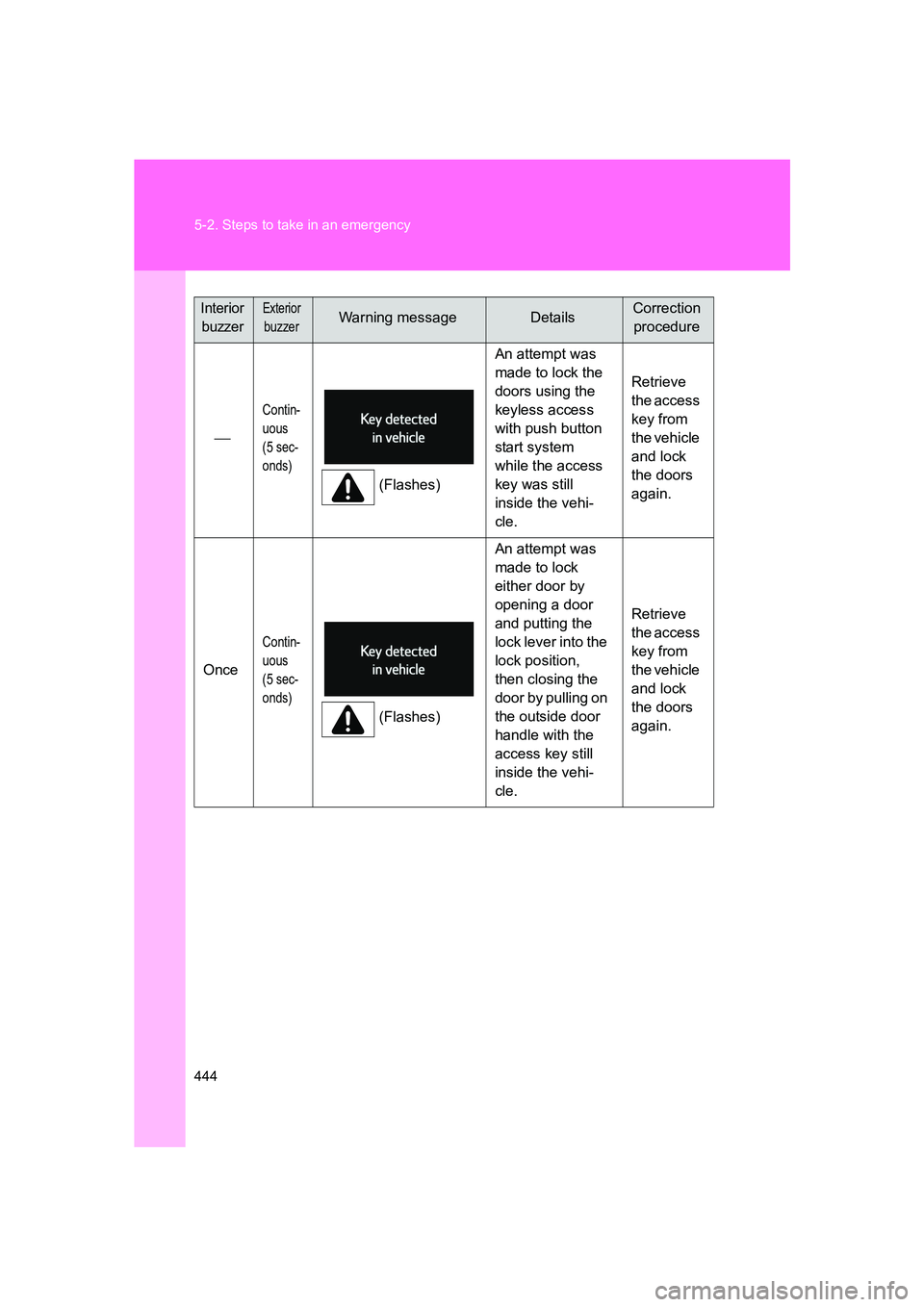

444 5-2. Steps to take in an emergency
BRZ_U

Contin-
uous
(5 sec-
onds)
(Flashes)An attempt was
made to lock the
doors using the
keyless access
with push button
start system
while the access
key was still
inside the vehi-
cle. Retrieve
the access
key from
the vehicle
and lock
the doors
again.
Once
Contin-
uous
(5 sec-
onds)
(Flashes) An attempt was
made to lock
either door by
opening a door
and putting the
lock lever into the
lock position,
then closing the
door by pulling on
the outside door
handle with the
access key still
inside the vehi-
cle. Retrieve
the access
key from
the vehicle
and lock
the doors
again.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

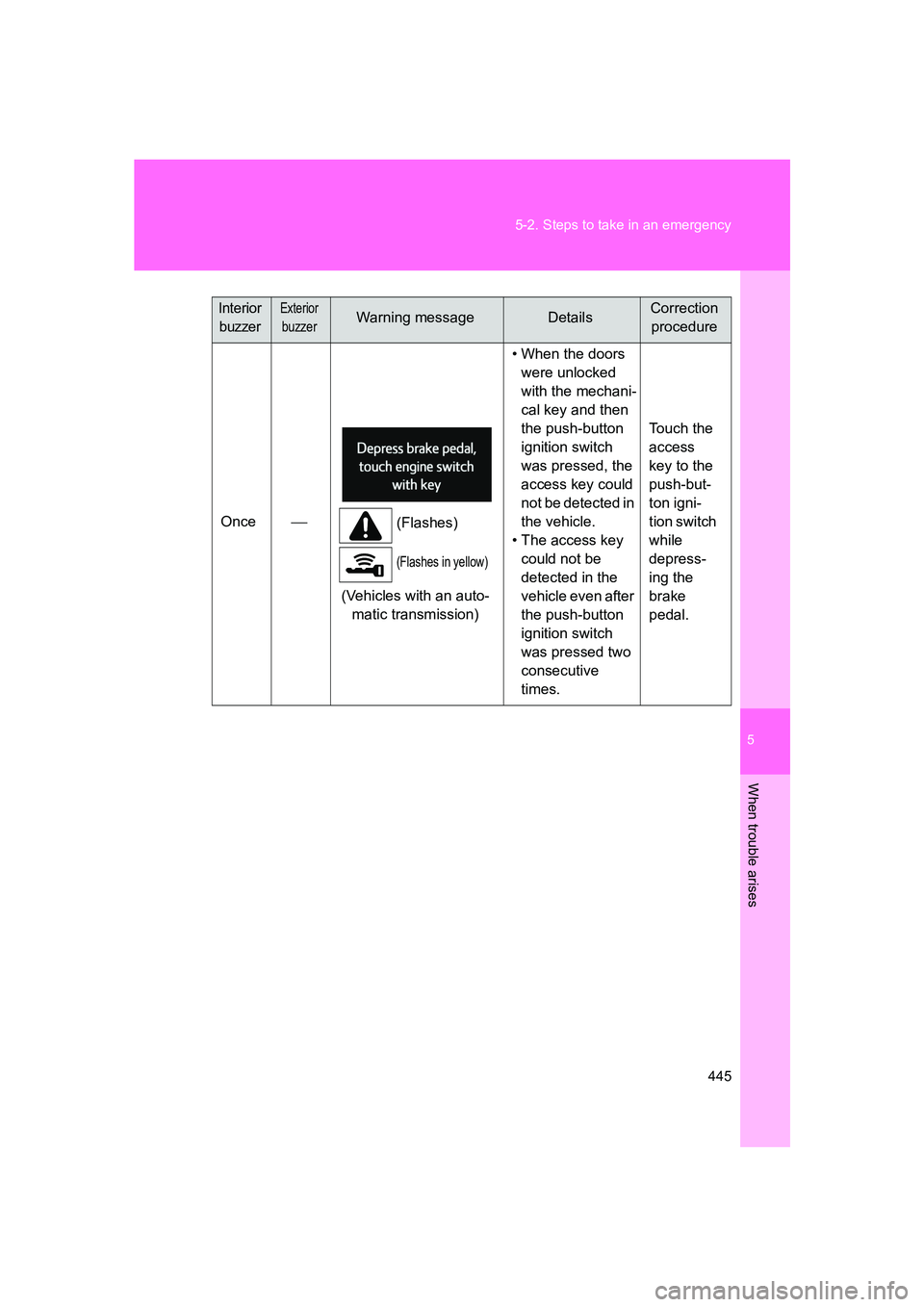

5
When trouble arises
445
5-2. Steps to take in an emergency
BRZ_U
Once

(Flashes)
(Flashes in yellow)
(Vehicles with an auto-
matic transmission) • When the doors
were unlocked
with the mechani-
cal key and then
the push-button
ignition switch
was pressed, the
access key could
not be detected in
the vehicle.
• The access key could not be
detected in the
vehicle even after
the push-button
ignition switch
was pressed two
consecutive
times. Touch the
access
key to the
push-but-
ton igni-
tion switch
while
depress-
ing the
brake
pedal.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

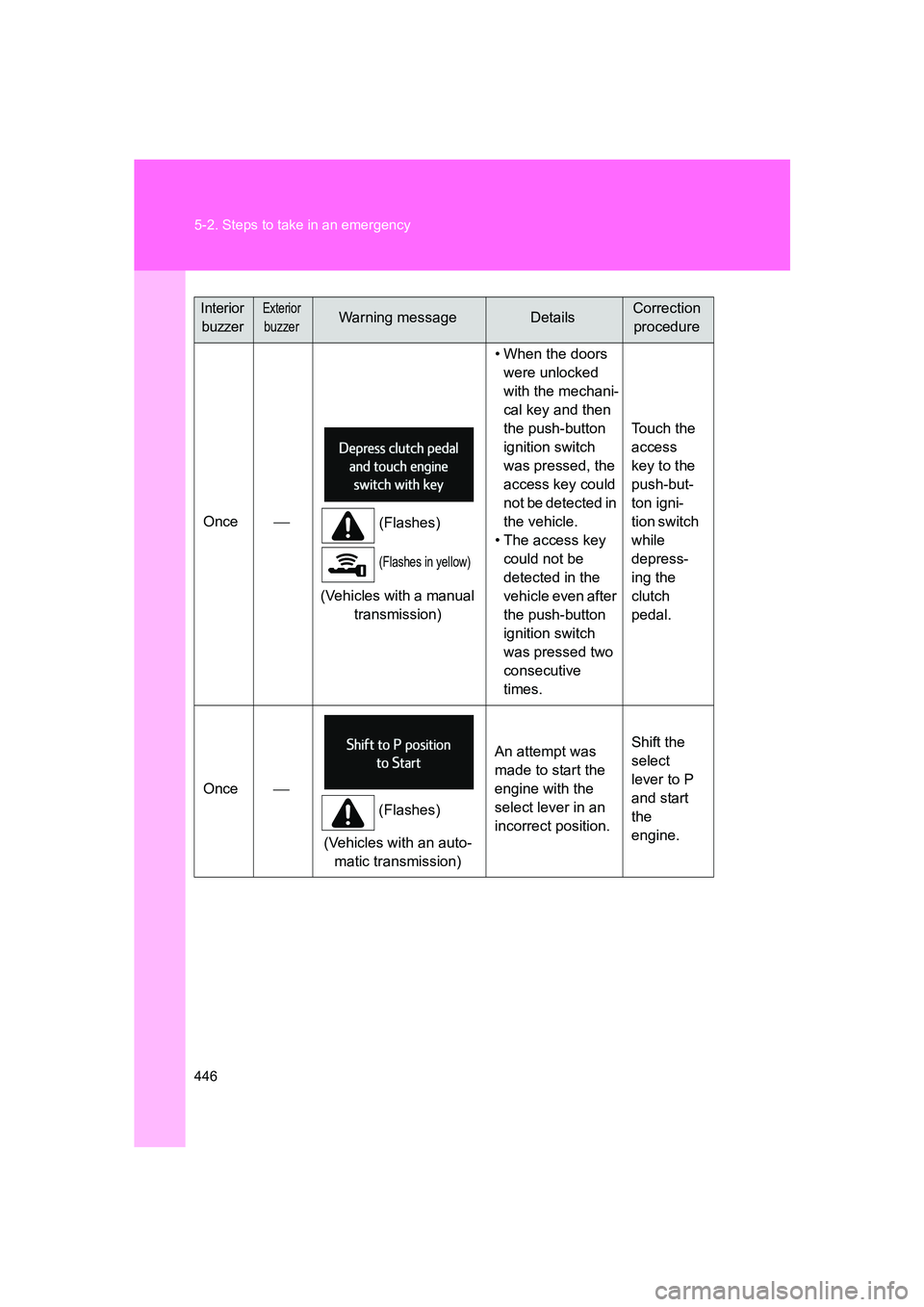

446 5-2. Steps to take in an emergency
BRZ_U
Once
(Flashes)
(Flashes in yellow)
(Vehicles with a manual
transmission) • When the doors
were unlocked
with the mechani-
cal key and then
the push-button
ignition switch
was pressed, the
access key could
not be detected in
the vehicle.
• The access key could not be
detected in the
vehicle even after
the push-button
ignition switch
was pressed two
consecutive
times. Touch the
access
key to the
push-but-
ton igni-
tion switch
while
depress-
ing the
clutch
pedal.
Once 
(Flashes)
(Vehicles with an auto- matic transmission) An attempt was
made to start the
engine with the
select lever in an
incorrect position.
Shift the
select
lever to P
and start
the
engine.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

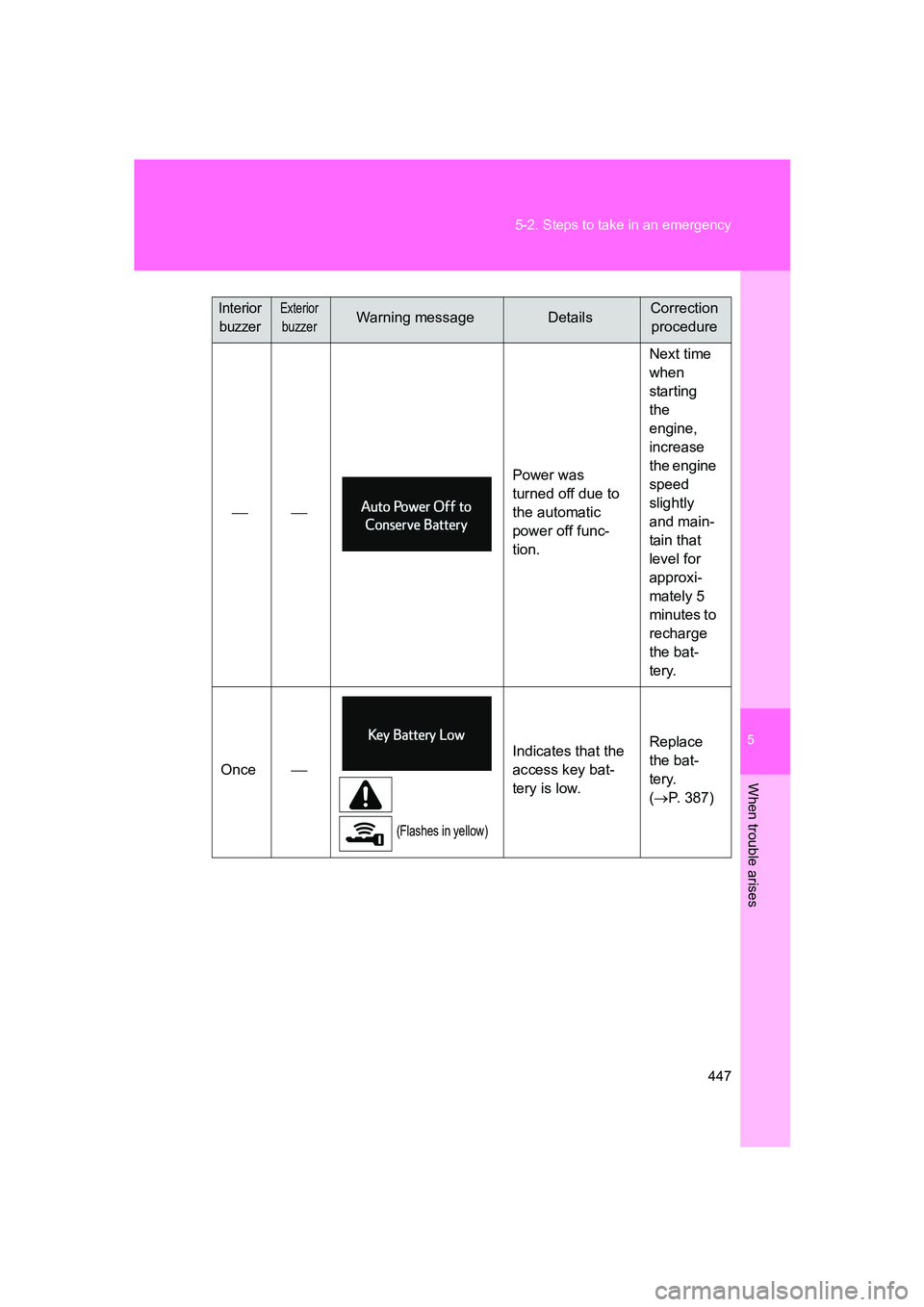

5
When trouble arises
447
5-2. Steps to take in an emergency
BRZ_U

Power was
turned off due to
the automatic
power off func-
tion.Next time
when
starting
the
engine,
increase
the engine
speed
slightly
and main-
tain that
level for
approxi-
mately 5
minutes to
recharge
the bat-
tery.
Once 
(Flashes in yellow)
Indicates that the
access key bat-
tery is low. Replace
the bat-
tery.
(
→ P. 387)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

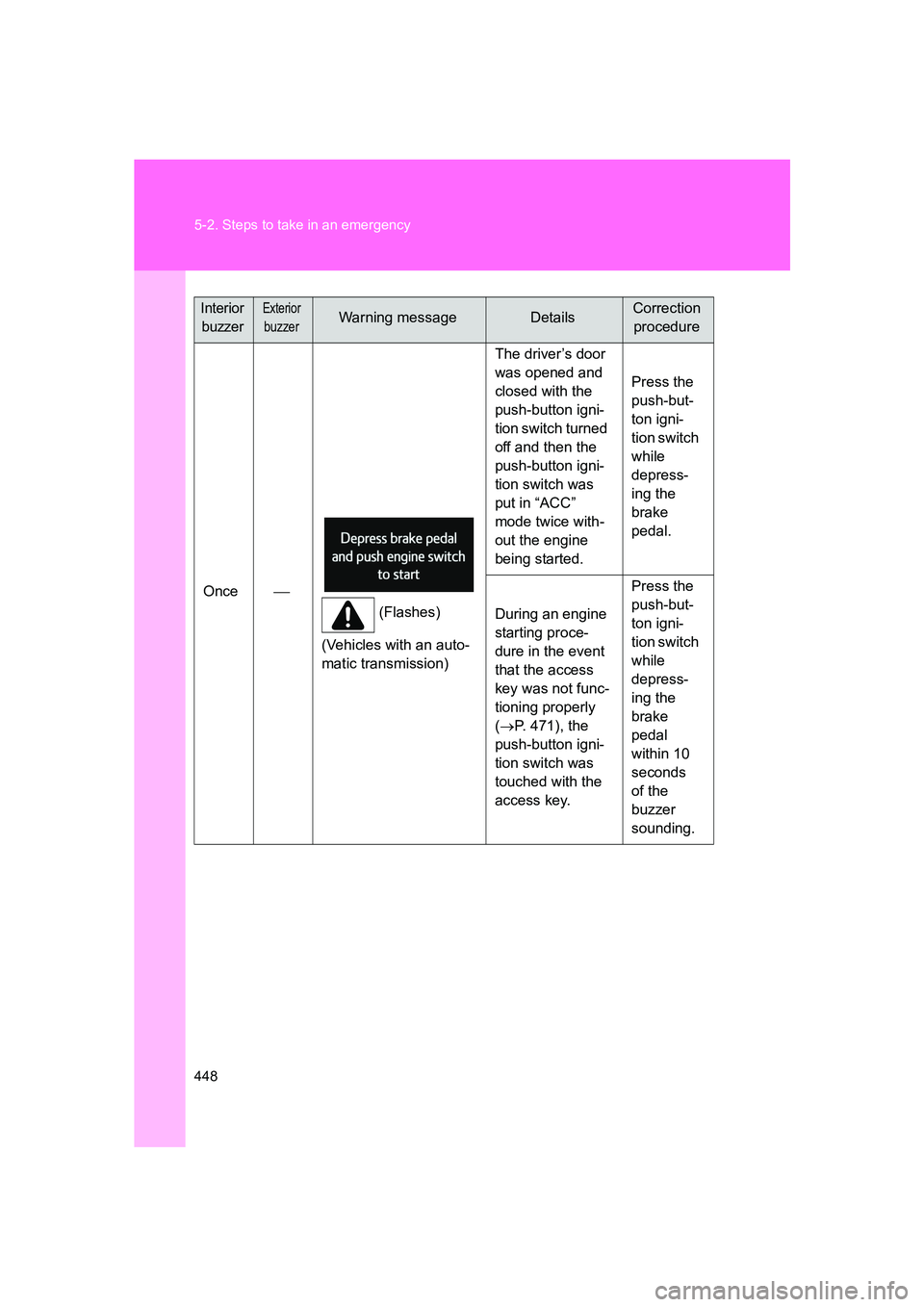

448 5-2. Steps to take in an emergency
BRZ_U
Once
(Flashes)
(Vehicles with an auto-
matic transmission) The driver’s door
was opened and
closed with the
push-button igni-
tion switch turned
off and then the
push-button igni-
tion switch was
put in “ACC”
mode twice with-
out the engine
being started.
Press the
push-but-
ton igni-
tion switch
while
depress-
ing the
brake
pedal.
During an engine
starting proce-
dure in the event
that the access
key was not func-
tioning properly
( → P. 471), the
push-button igni-
tion switch was
touched with the
access key. Press the
push-but-
ton igni-
tion switch
while
depress-
ing the
brake
pedal
within 10
seconds
of the
buzzer
sounding.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

5
When trouble arises

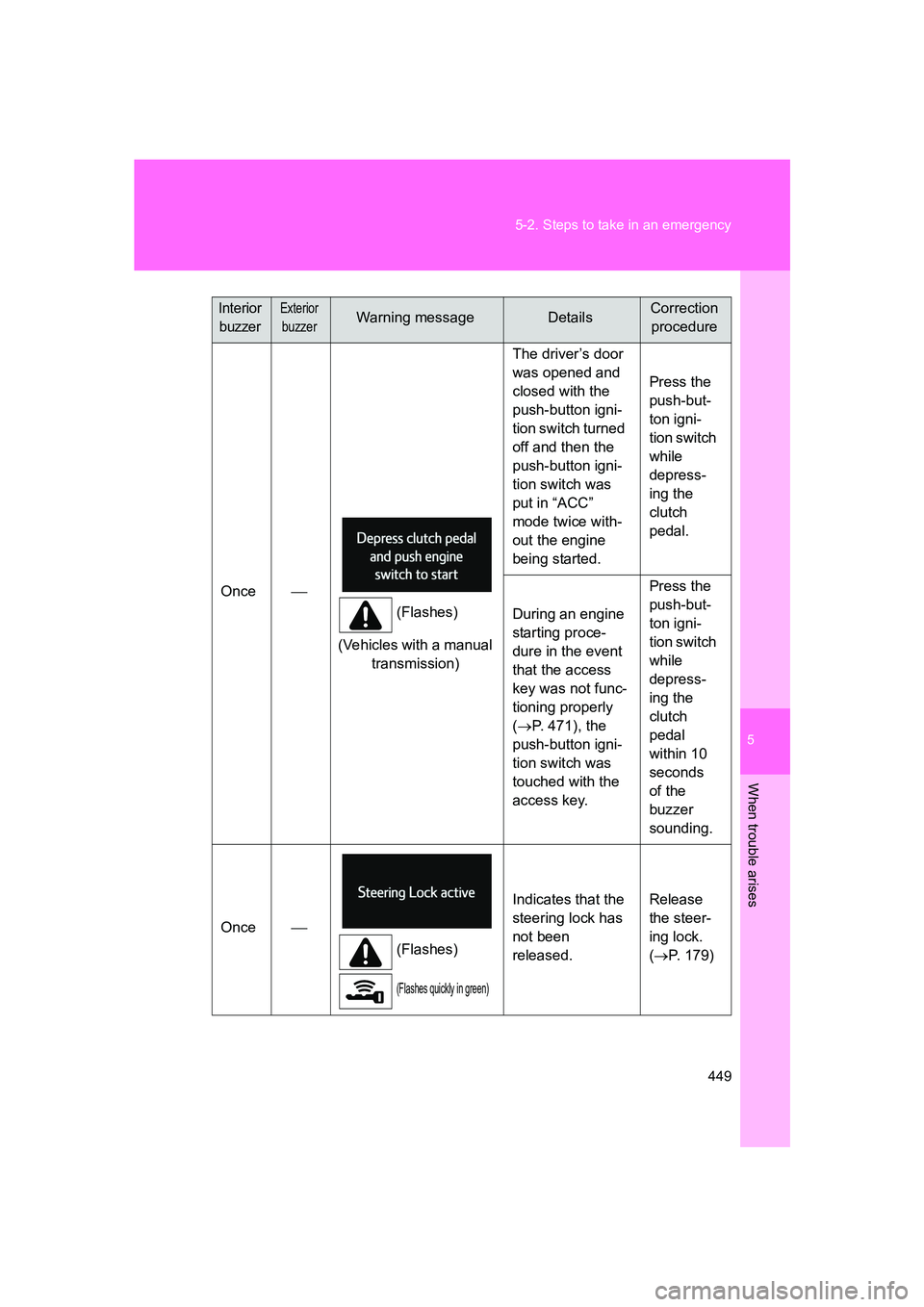

449
5-2. Steps to take in an emergency
BRZ_U
Once

(Flashes)
(Vehicles with a manual transmission) The driver’s door
was opened and
closed with the
push-button igni-
tion switch turned
off and then the
push-button igni-
tion switch was
put in “ACC”
mode twice with-
out the engine
being started.
Press the
push-but-
ton igni-
tion switch
while
depress-
ing the
clutch
pedal.
During an engine
starting proce-
dure in the event
that the access
key was not func-
tioning properly
( → P. 471), the
push-button igni-
tion switch was
touched with the
access key. Press the
push-but-
ton igni-
tion switch
while
depress-
ing the
clutch
pedal
within 10
seconds
of the
buzzer
sounding.
Once 
(Flashes)
(Flashes quickly in green)
Indicates that the
steering lock has
not been
released. Release
the steer-
ing lock.
(
→ P. 179)
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure

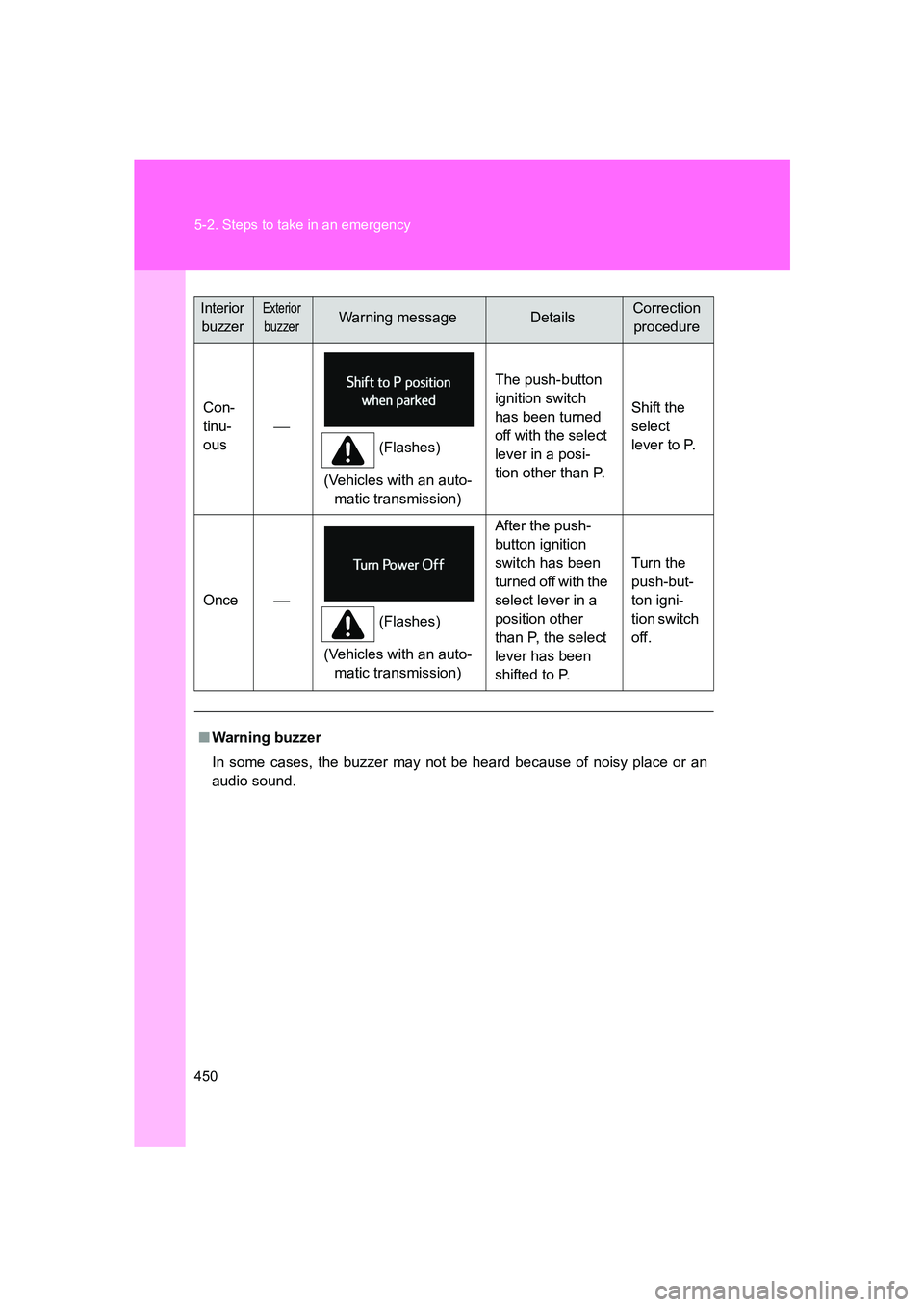

450 5-2. Steps to take in an emergency
BRZ_U
Con-
tinu-
ous
(Flashes)
(Vehicles with an auto- matic transmission) The push-button
ignition switch
has been turned
off with the select
lever in a posi-
tion other than P.
Shift the
select
lever to P.
Once 
(Flashes)
(Vehicles with an auto- matic transmission) After the push-
button ignition
switch has been
turned off with the
select lever in a
position other
than P, the select
lever has been
shifted to P.
Turn the
push-but-
ton igni-
tion switch
off.
■ Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection procedure
